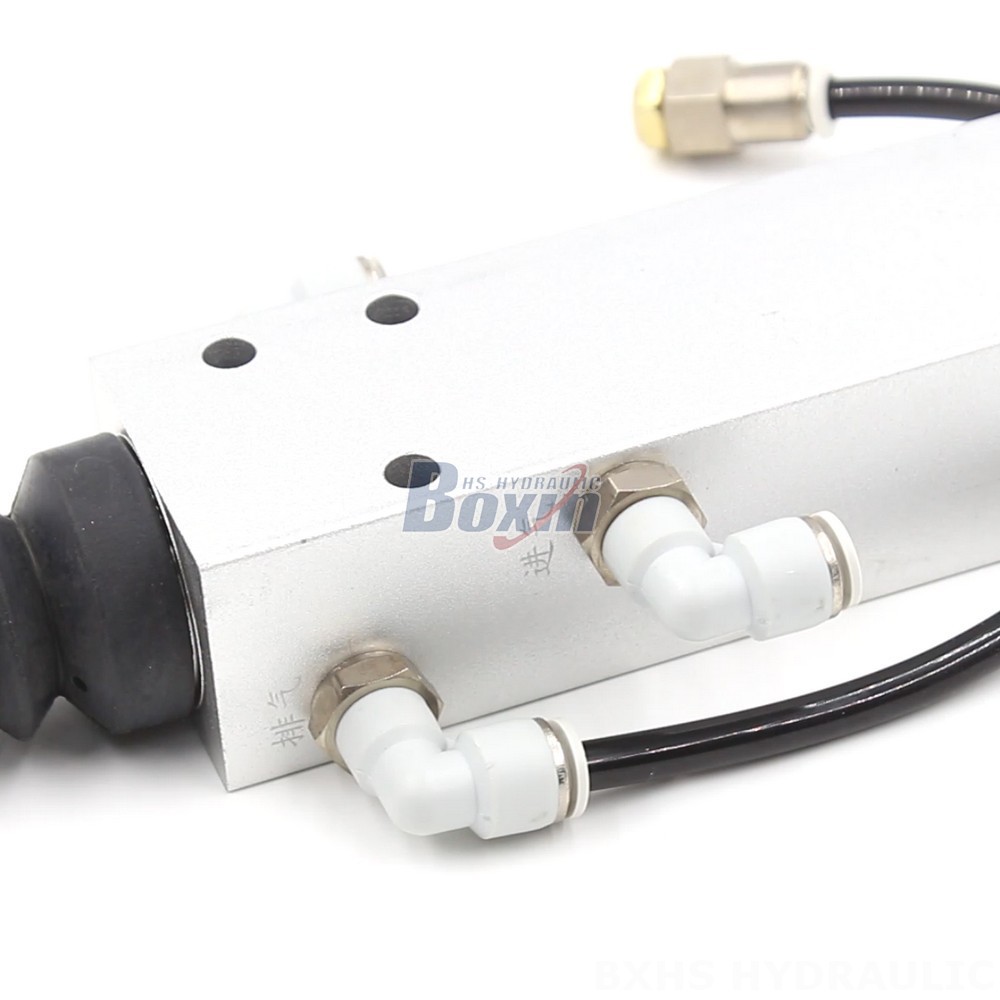

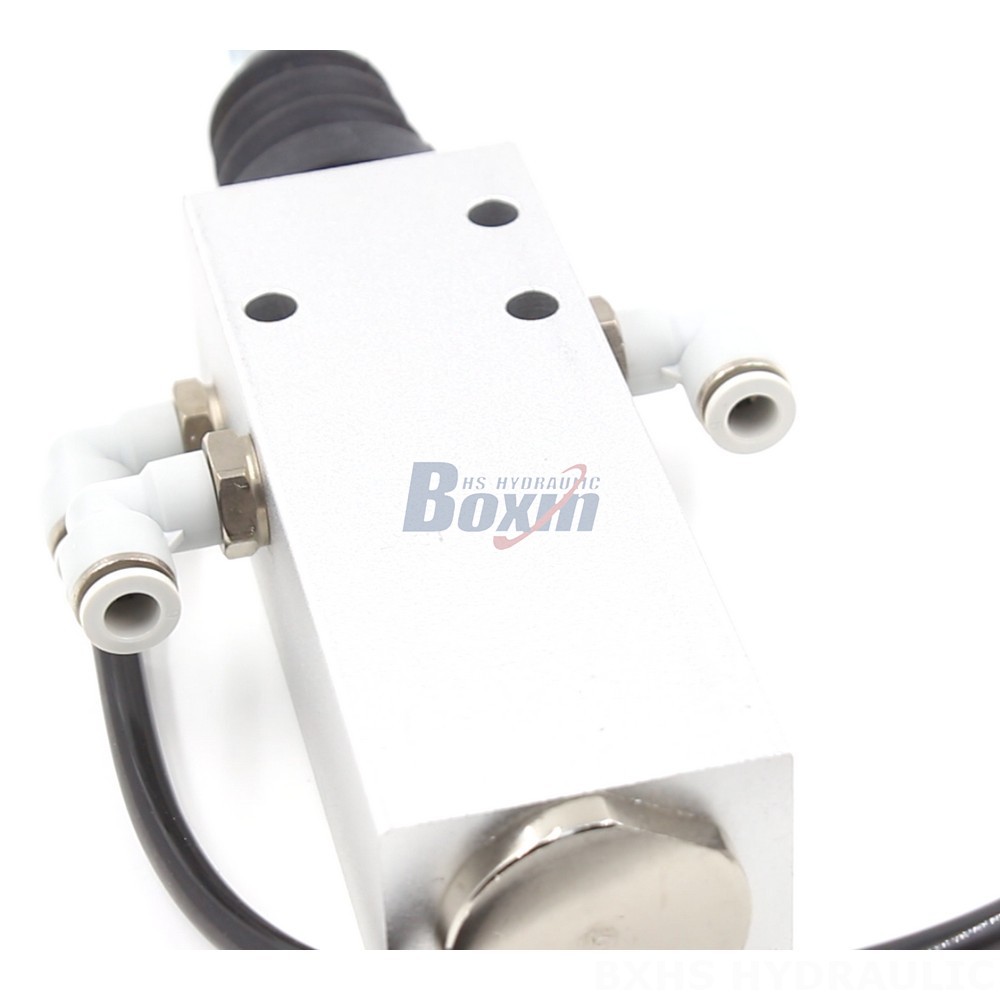

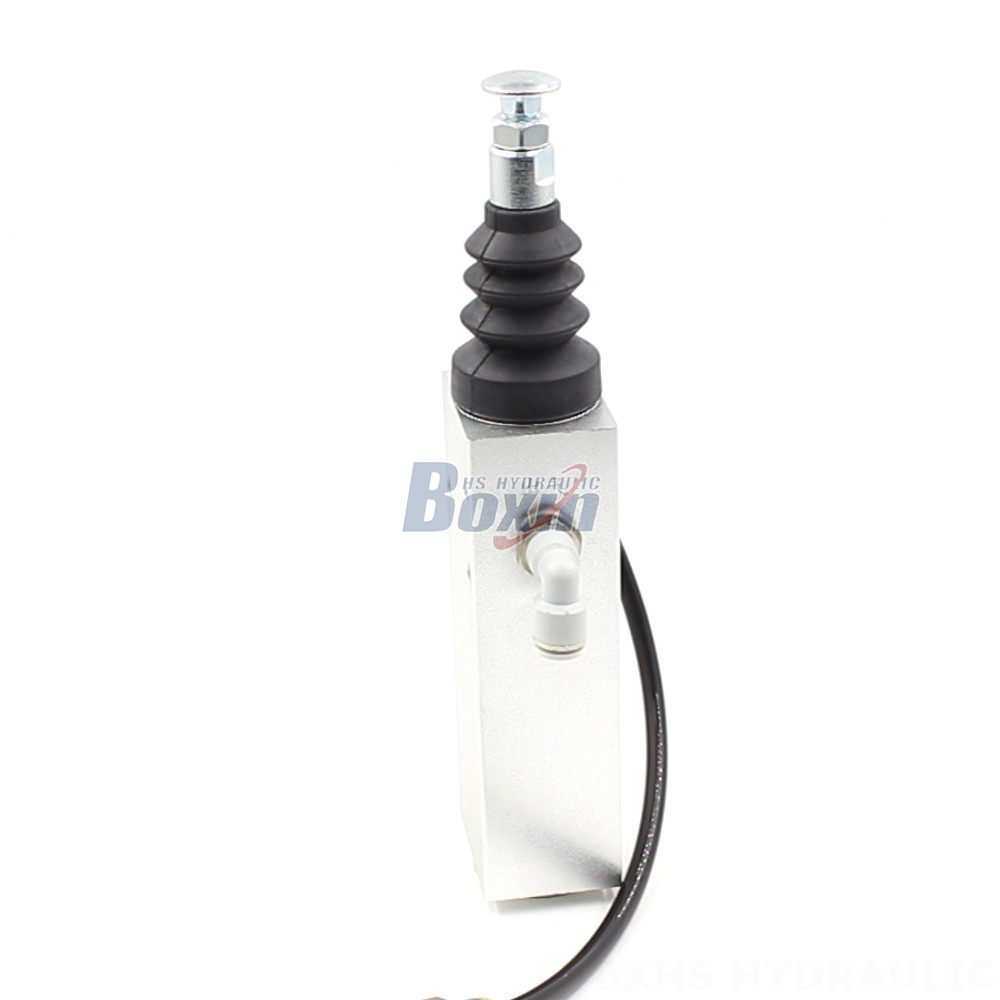

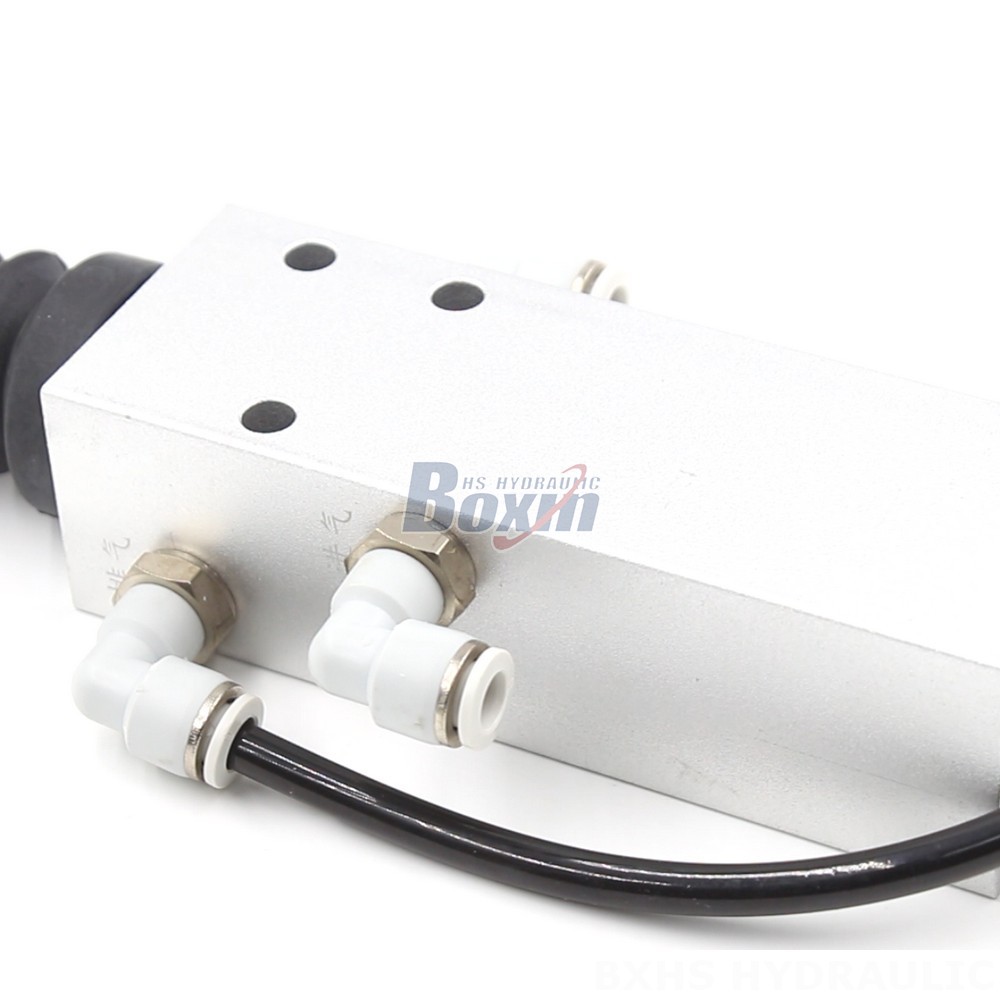

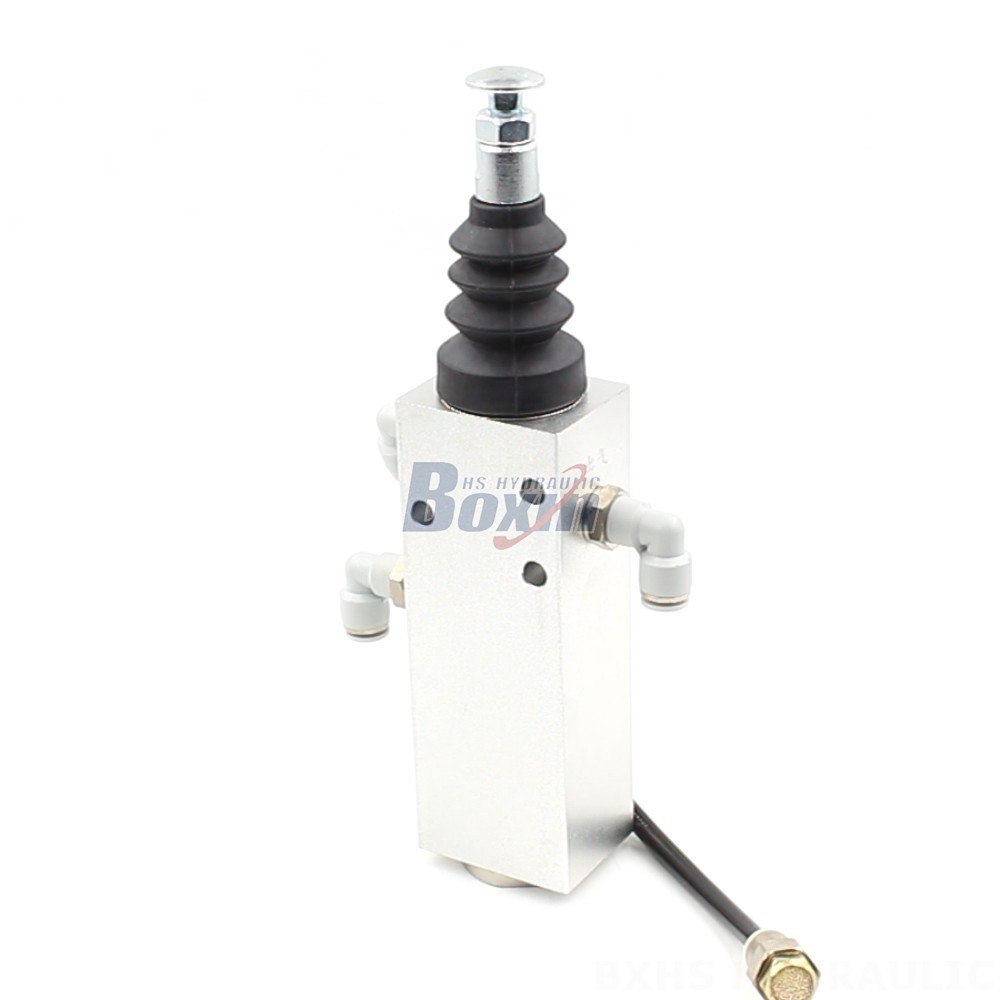

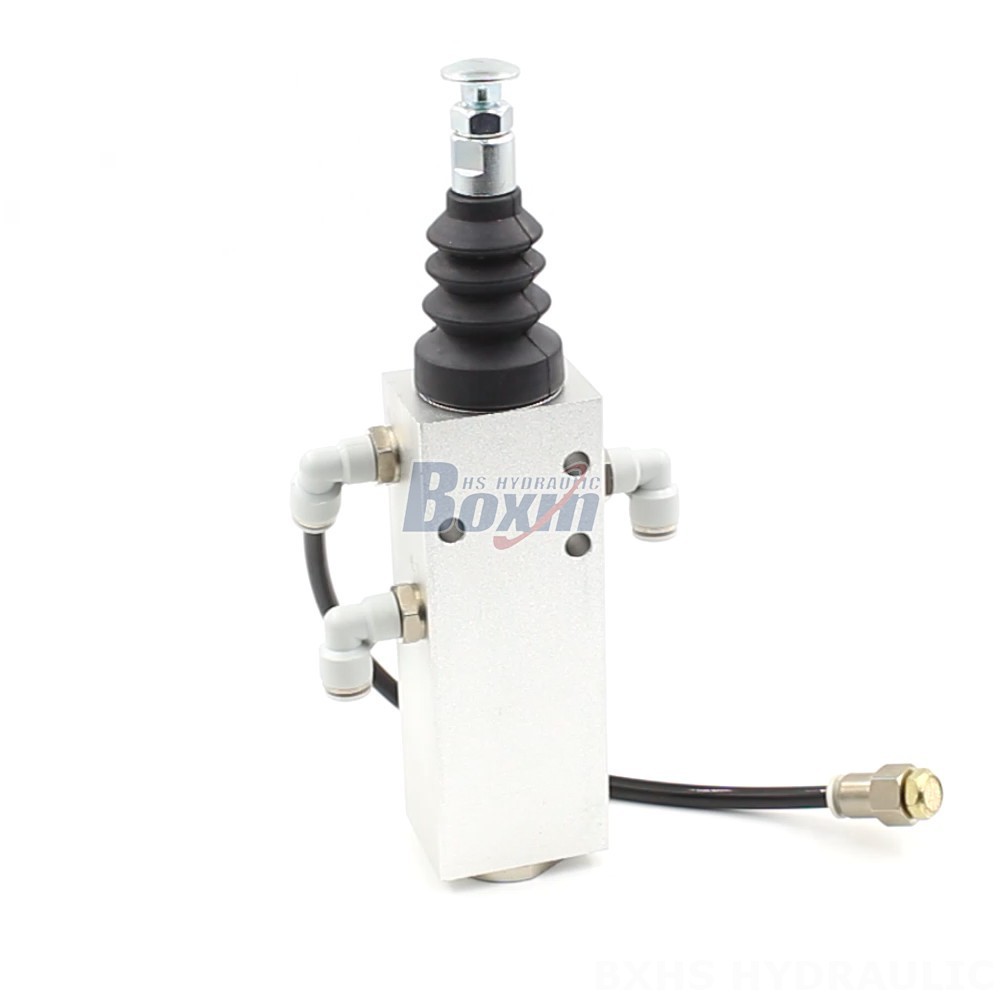

The XQF23 Pneumatic Directional Valve is a reliable and robust solution for controlling hydraulic systems in a variety of applications, including construction, agriculture, and material handling. This monoblock valve features a 1-section design, a maximum pressure of 200 bar (2900 psi), and is suitable for use with a wide range of hydraulic fluids.
| Série XQF Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Pneumatique |
| Distributeur | 1 tiroir |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 50 L/min (13,2 US gpm) |
| Pression maximale | 200 bar (2 900 psi) |
| Orifice d'entrée | G1/4 |
| Orifice de sortie | G1/4 |
| Dimension du raccord | G1/4 |
The XQF23 Pneumatic Directional Valve is a high-performance, 1-section monoblock valve designed for use in demanding applications. It features a pneumatic control method, a maximum pressure rating of 200 bar (2900 psi), and an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). This valve is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, and mini excavators. It offers reliable and precise control of hydraulic systems, ensuring optimal performance and efficiency in various industries.
