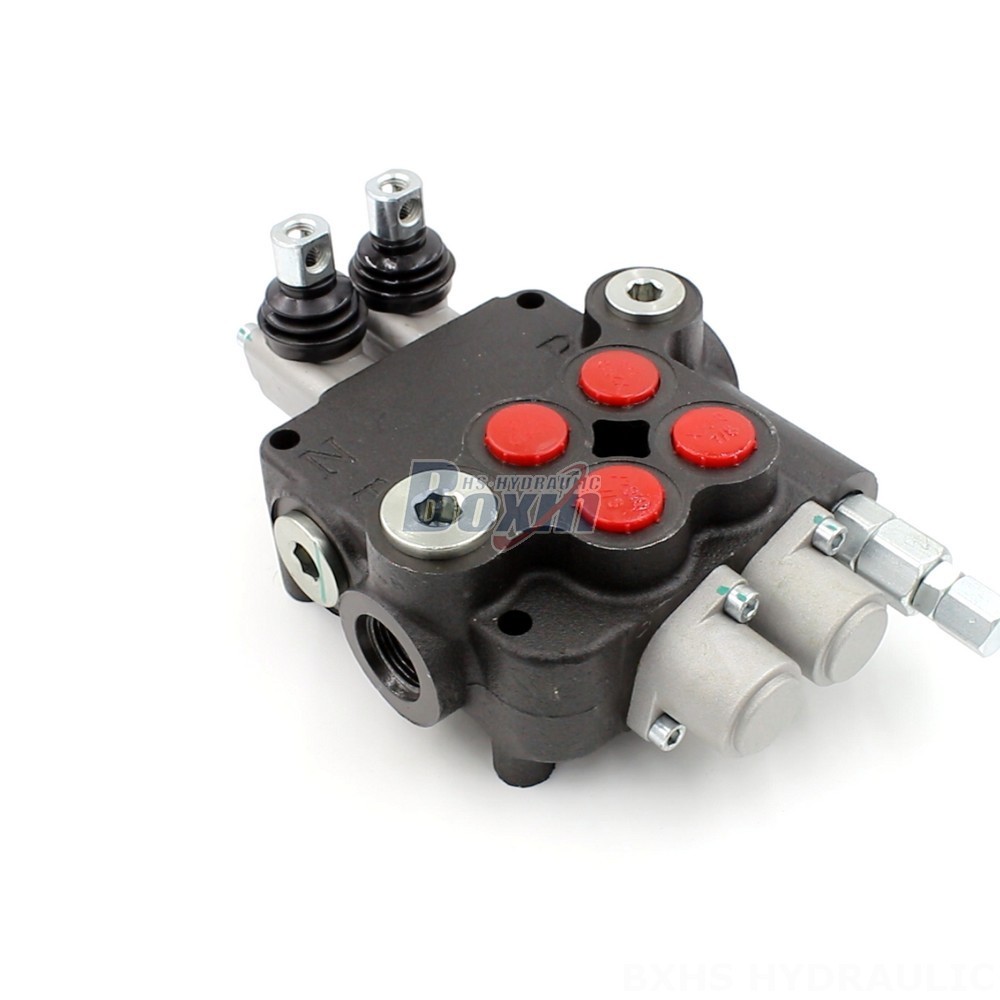

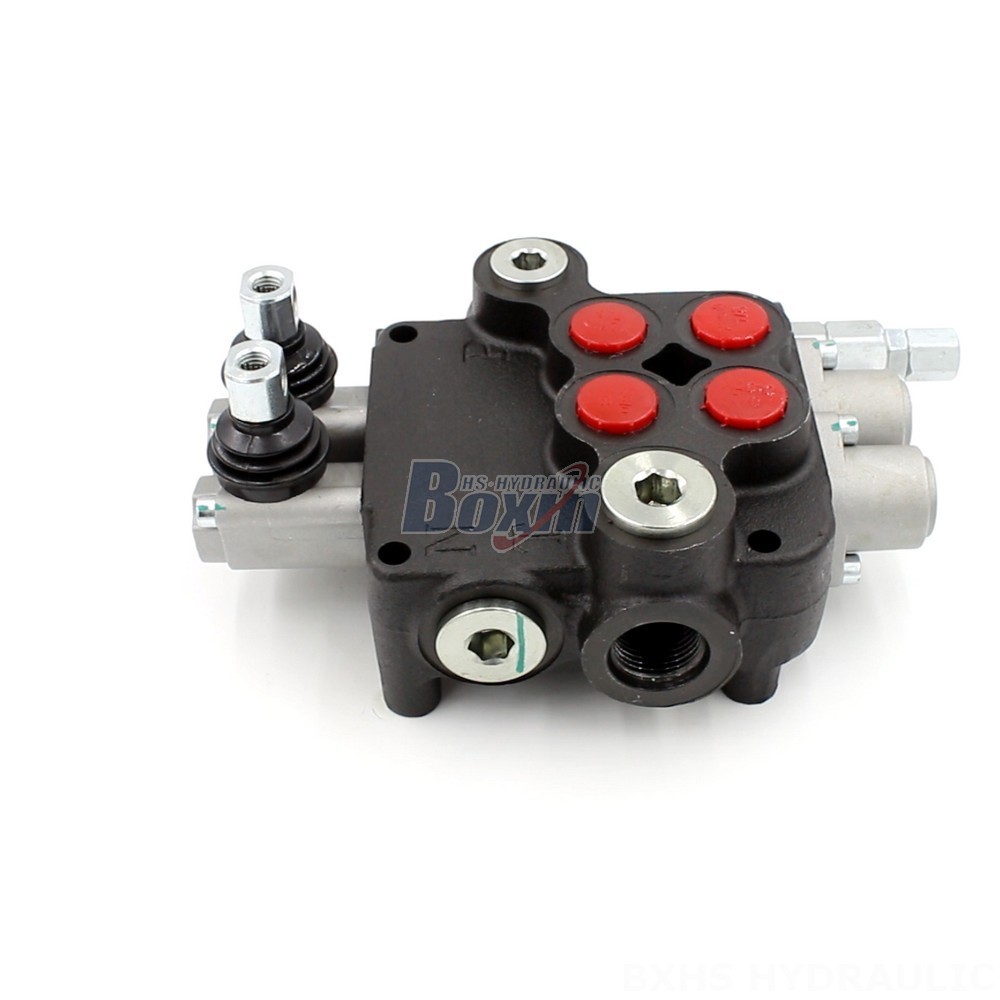

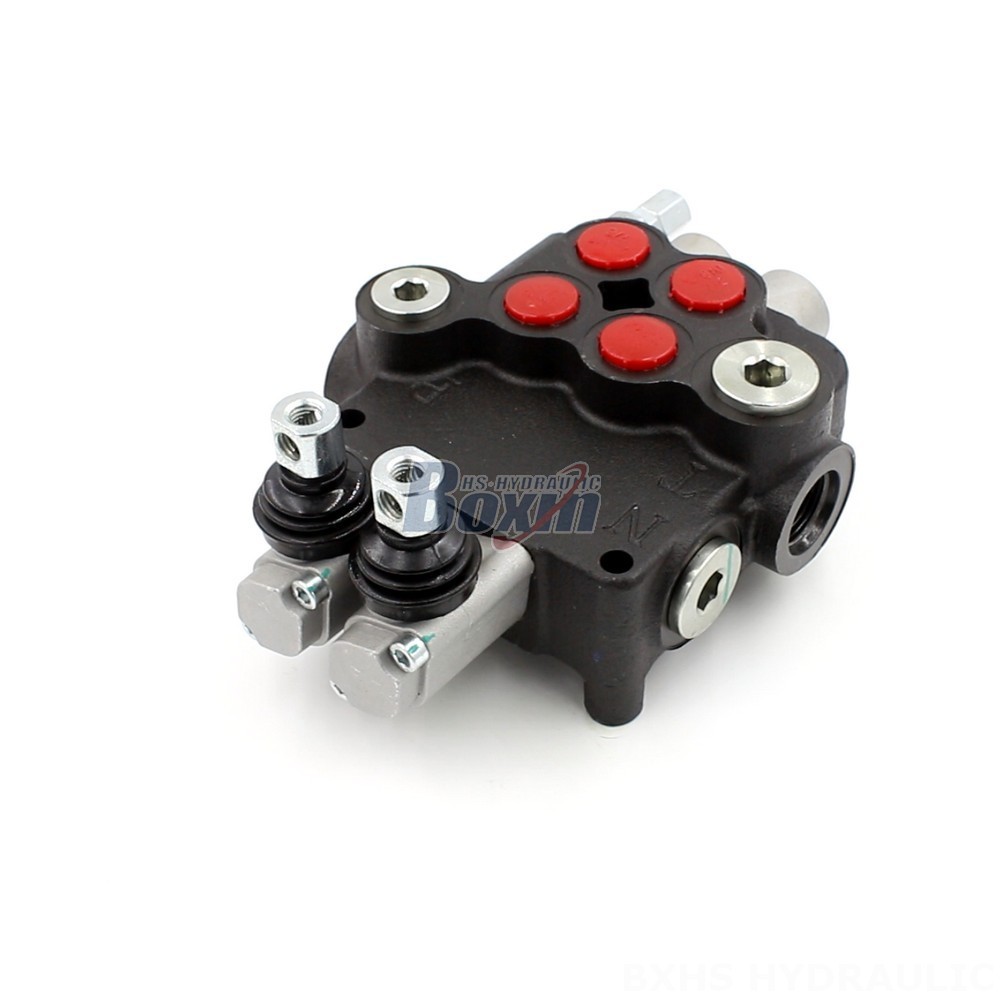

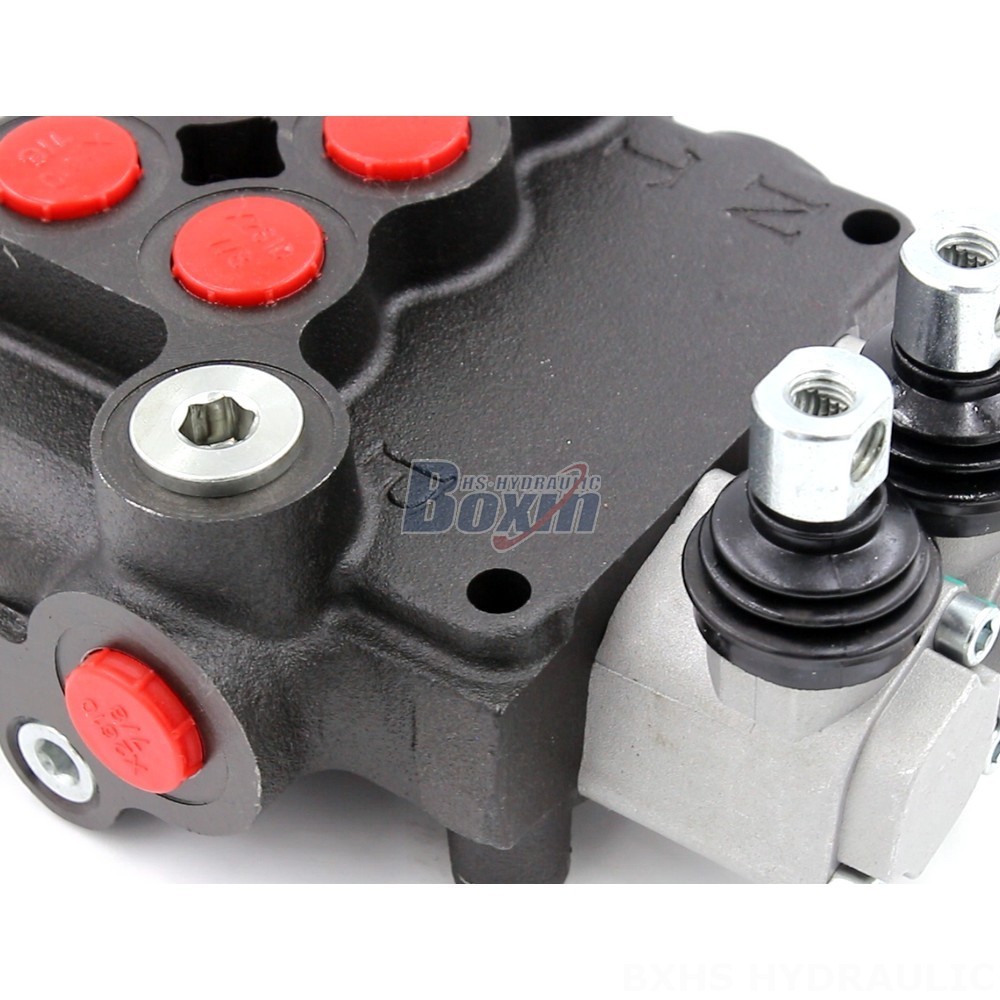

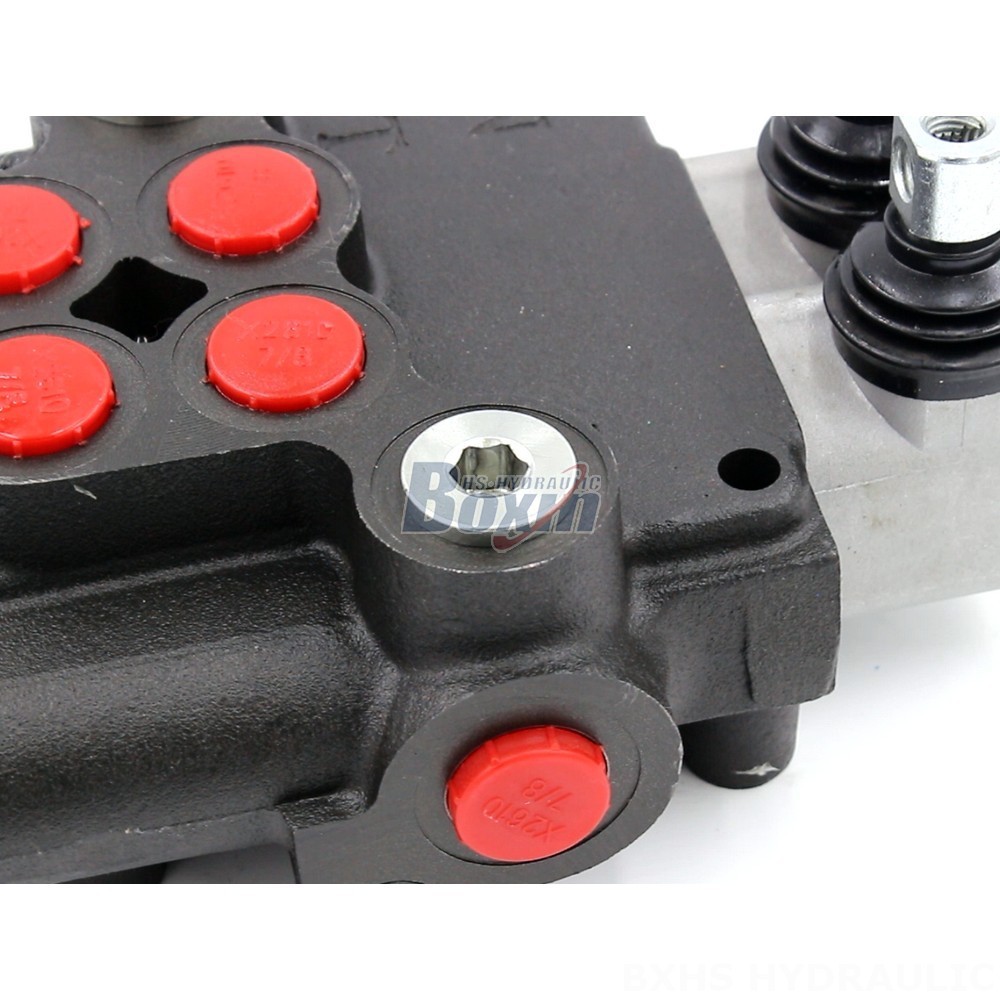

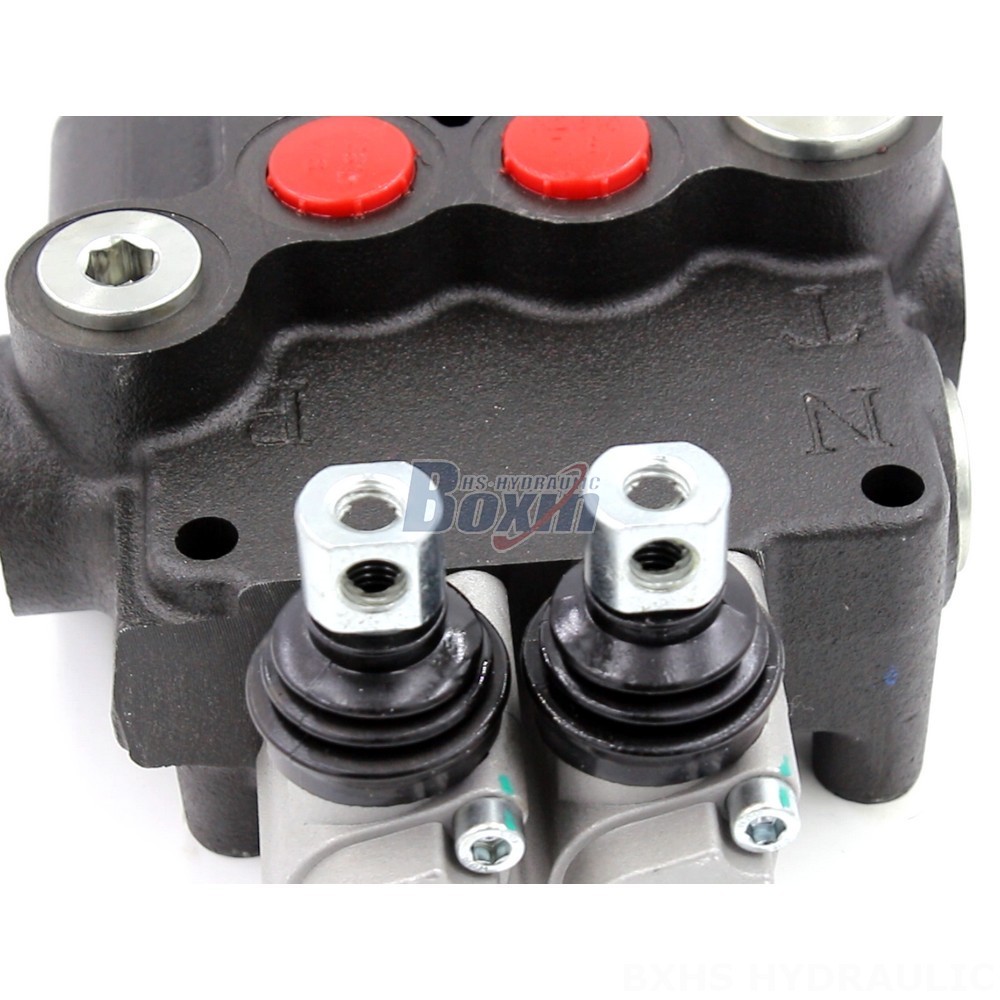

The P80 Series Flow Valve is a 2-section, manual control monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. Ideal for material handling, construction, agriculture, and industrial vehicles, this valve is perfect for OEM, ODM, white label, and custom applications. Contact us for wholesale inquiries.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Flow Valve is a reliable and efficient hydraulic solution designed for a wide range of applications. This 2-section monoblock valve features manual control, a rated flow of 80 L/min, and a maximum pressure of 250 bar. Its robust design makes it suitable for demanding environments in material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, white label, and custom solutions to meet your specific requirements. Contact us for wholesale inquiries and to discuss how this valve can enhance your product line.
