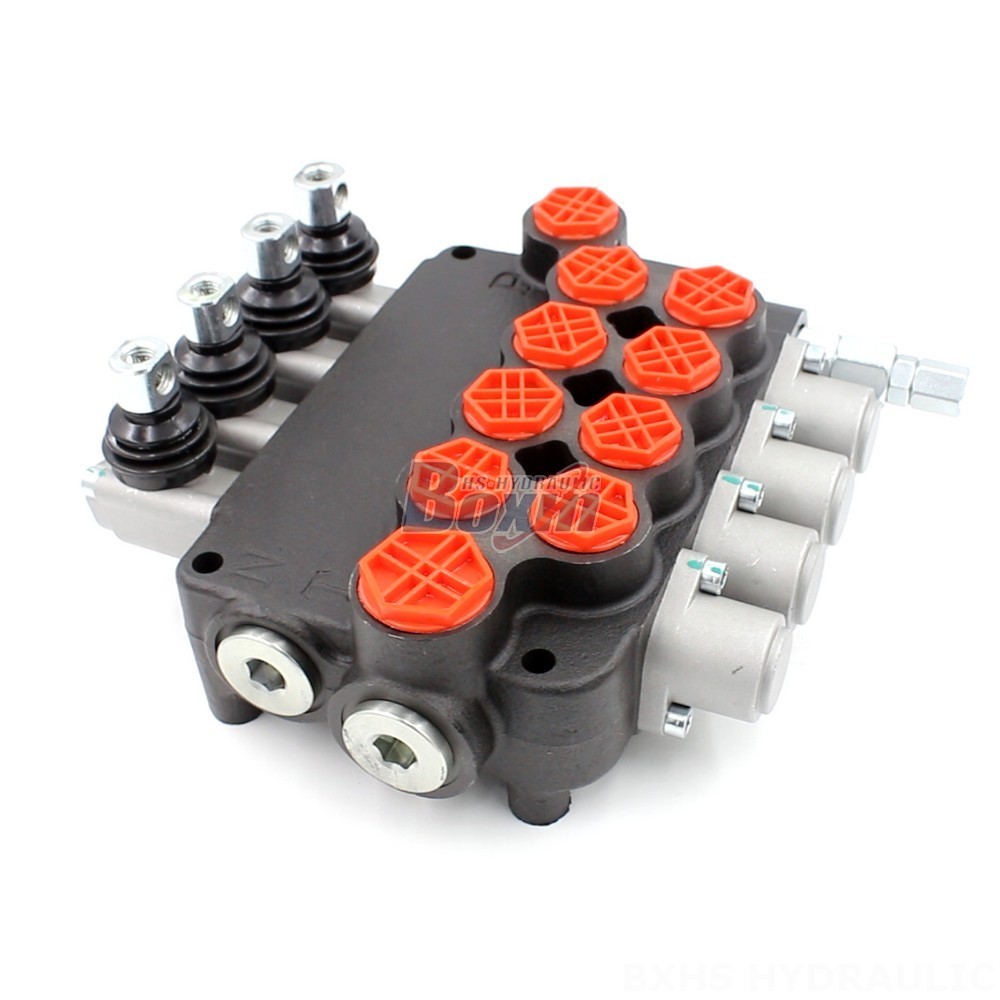

Spool Type Valve | G34 Series | 4 Spools

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G1/2

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*27*11

Poids brut:13.40 kg

Disponibilité: En stock

1235 personnes consultent ce produit

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools drawing image

The G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. It features a monoblock valve design, manual control, and a rated flow of 80 L/min, making it suitable for demanding tasks.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a high-performance valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It boasts a robust monoblock valve structure with 4 spools, offering precise and efficient control of hydraulic systems. The valve is manually controlled and has a rated flow of 80 L/min, making it ideal for handling various tasks. It operates at a maximum pressure of 250 bar and is compatible with a wide viscosity range (15 - 75 mm²/s). Designed for durability and reliability, this valve can withstand ambient temperatures ranging from -40°C to +80°C. Its versatile design makes it suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
