Source ZT20 Directional Control Valves from a Trusted Manufacturer

Méthode de contrôle:Manuel

Distributeur:2 tiroirs

Débit nominal:90 L/min (23,8 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G3/4

Marque:BXHS

Type de produit:Vanne de commande hydraulique

Série de produits:Série ZT20 Vanne de commande hydraulique

Taille de l'emballage:23*18*11

Poids brut:7.91 kg

Disponibilité: En stock

1149 personnes consultent ce produit

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

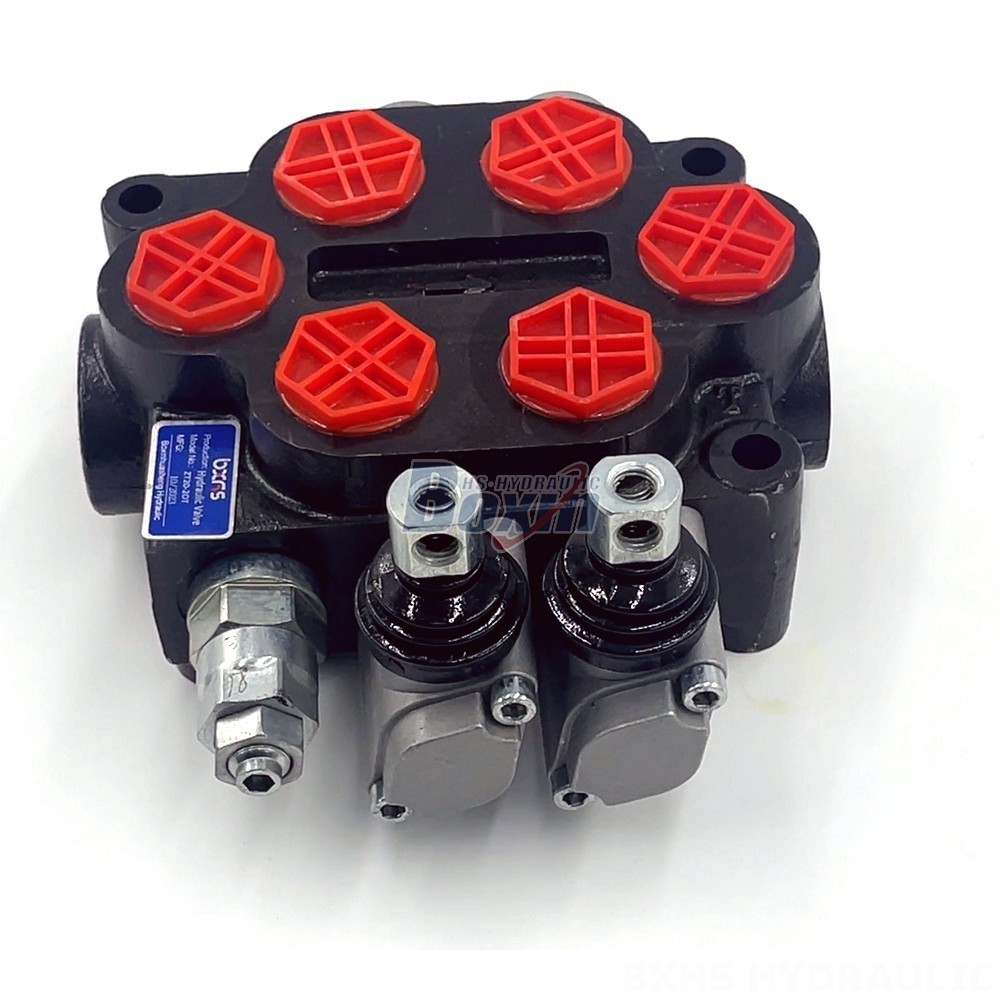

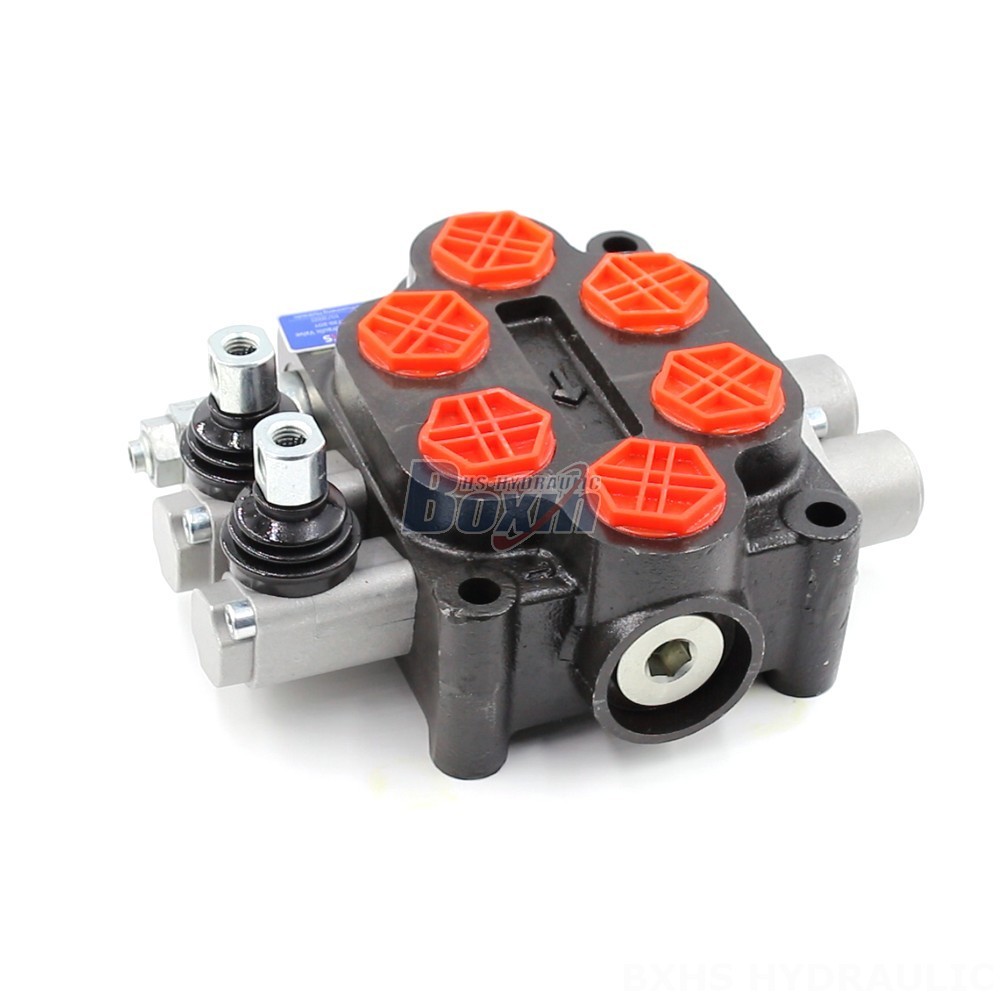

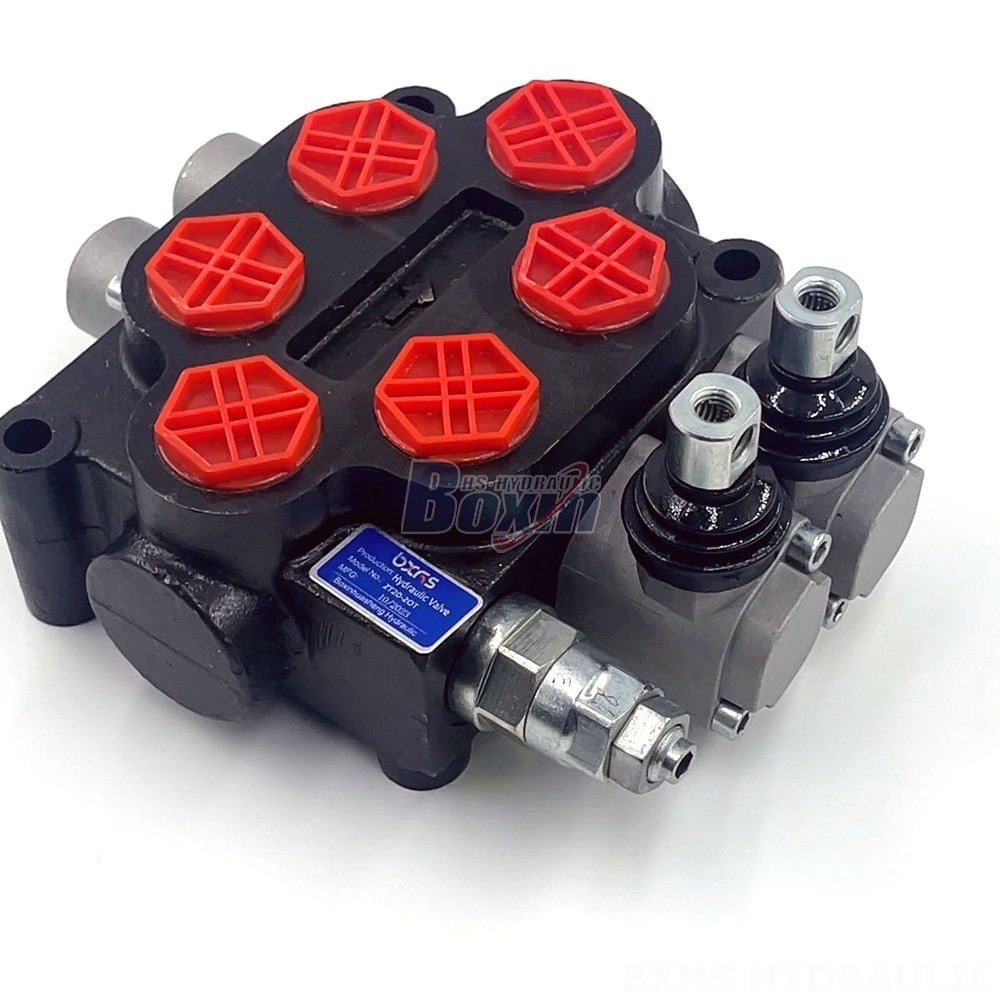

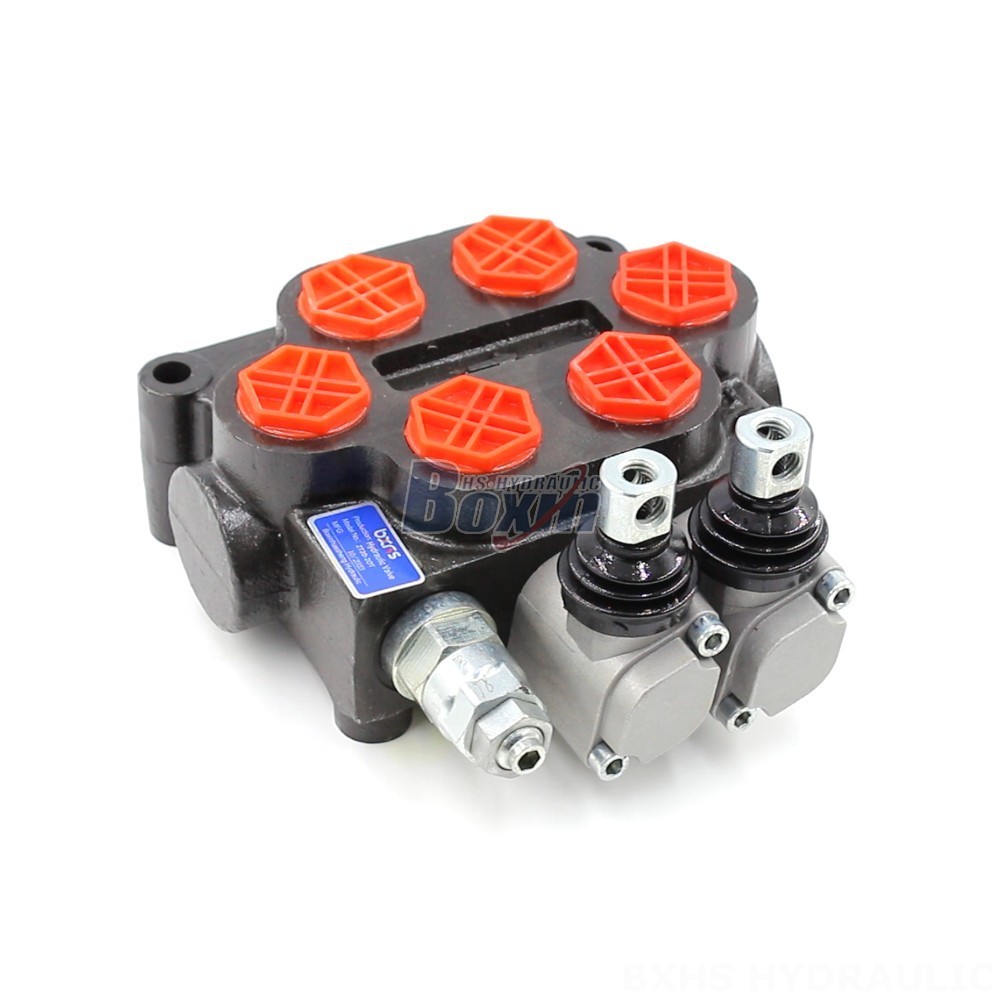

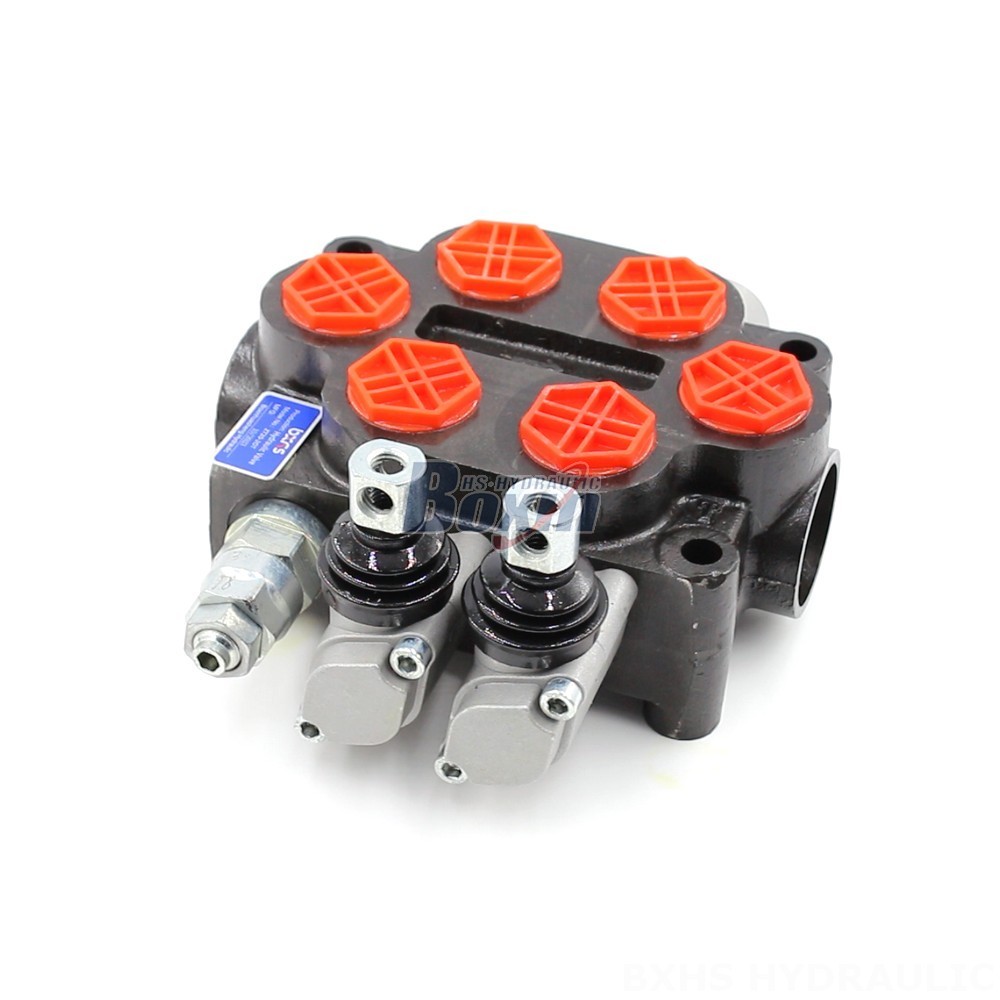

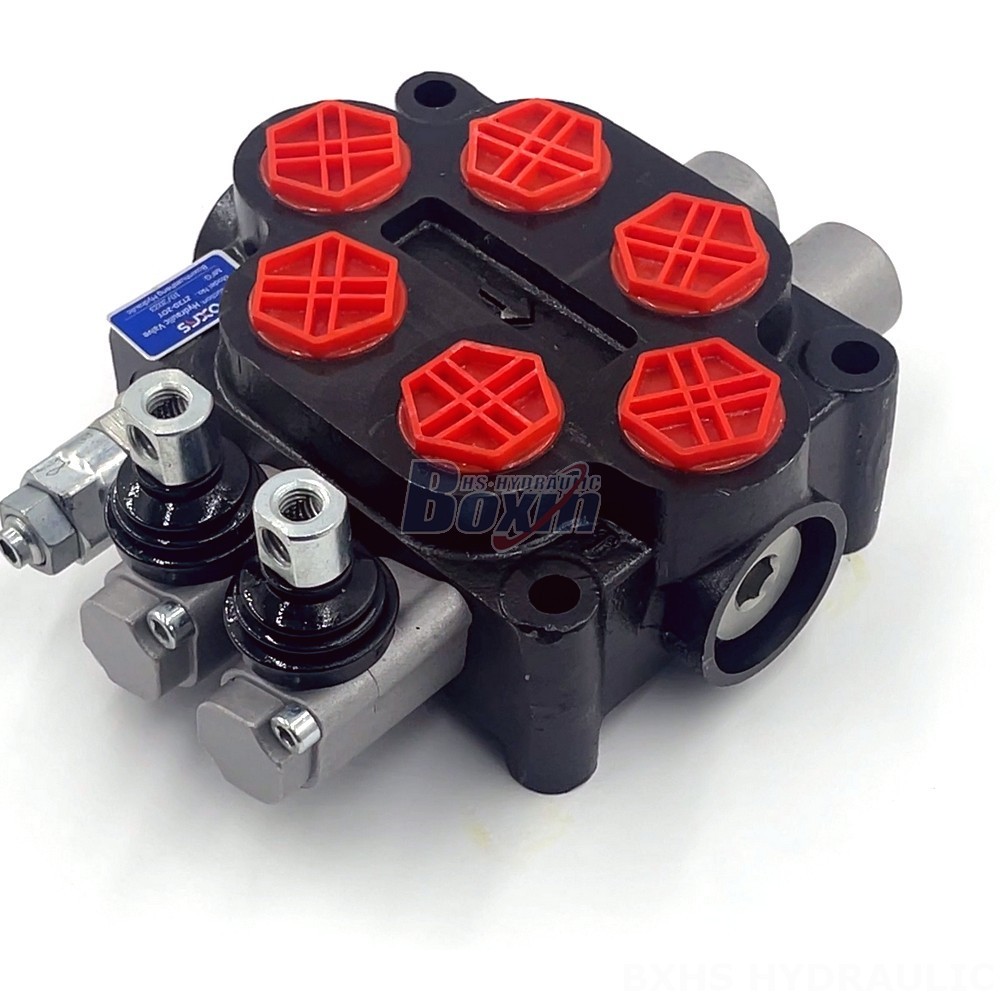

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

Série ZT20 Vanne de commande hydraulique Paramètres
Méthode de contrôle Manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs
Débit nominal 100 L/min (26,5 US gpm)
Pression maximale 250 bar (3 600 psi)
Orifice d'entrée G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections
Type de structure Distributeur monobloc
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
