Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1012 personnes consultent ce produit

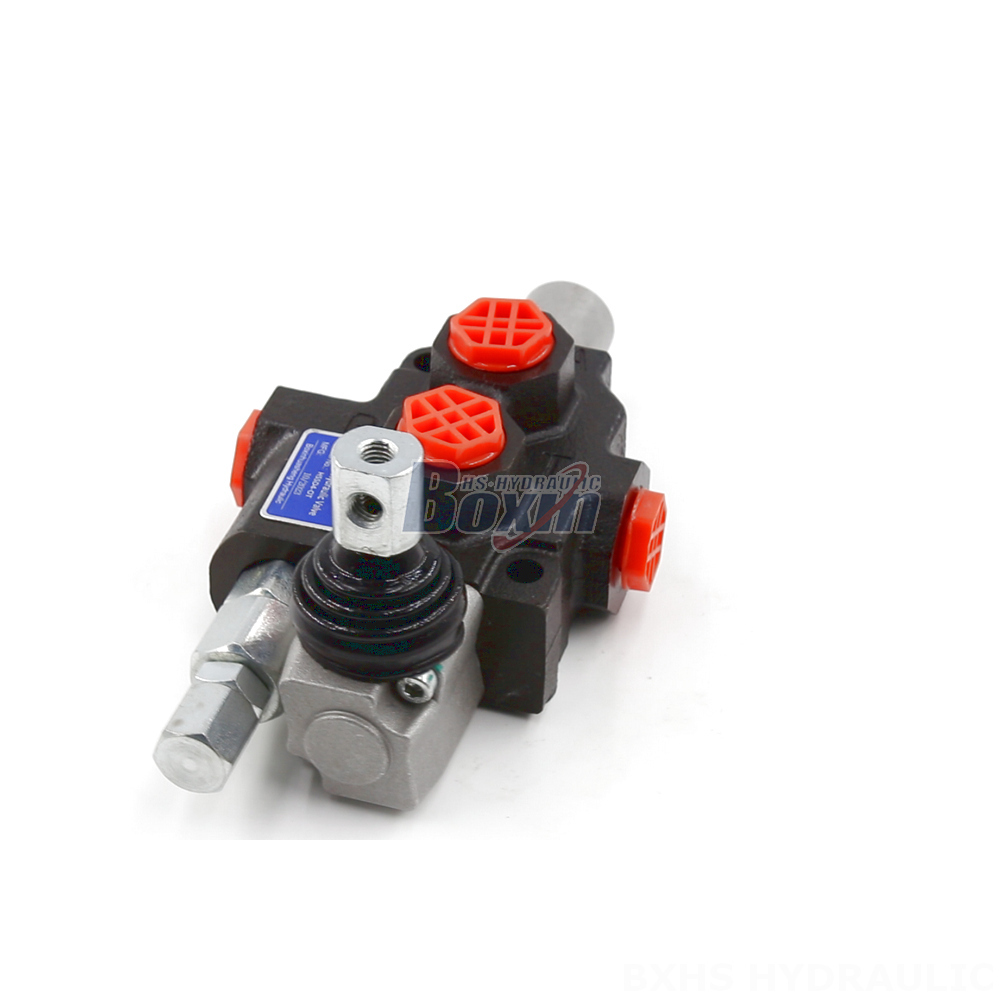

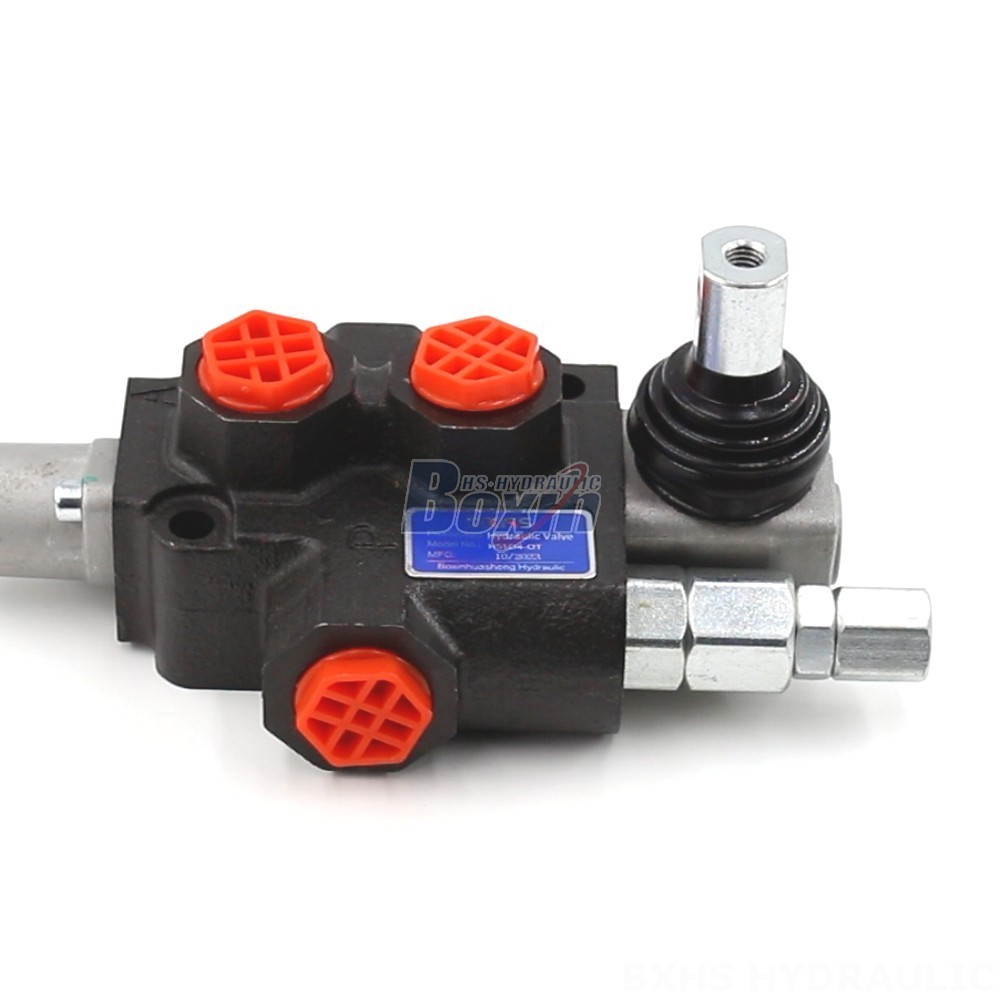

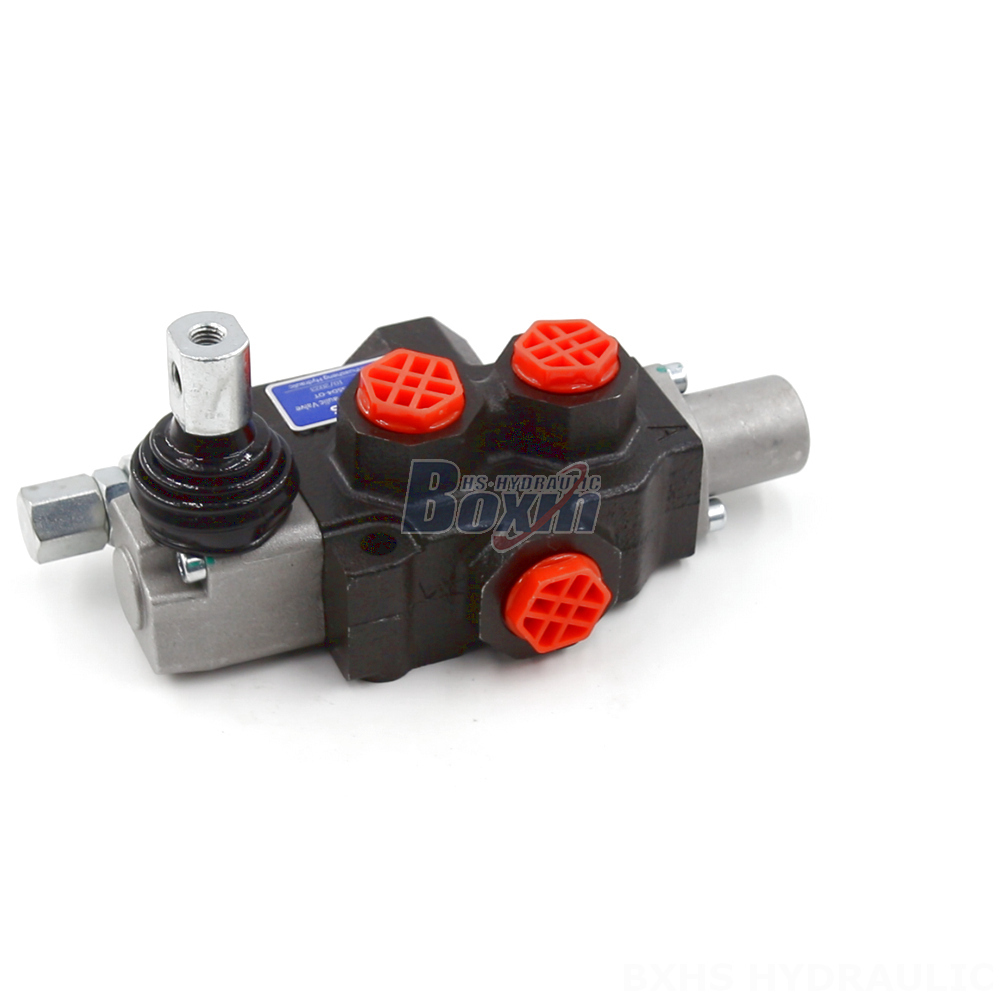

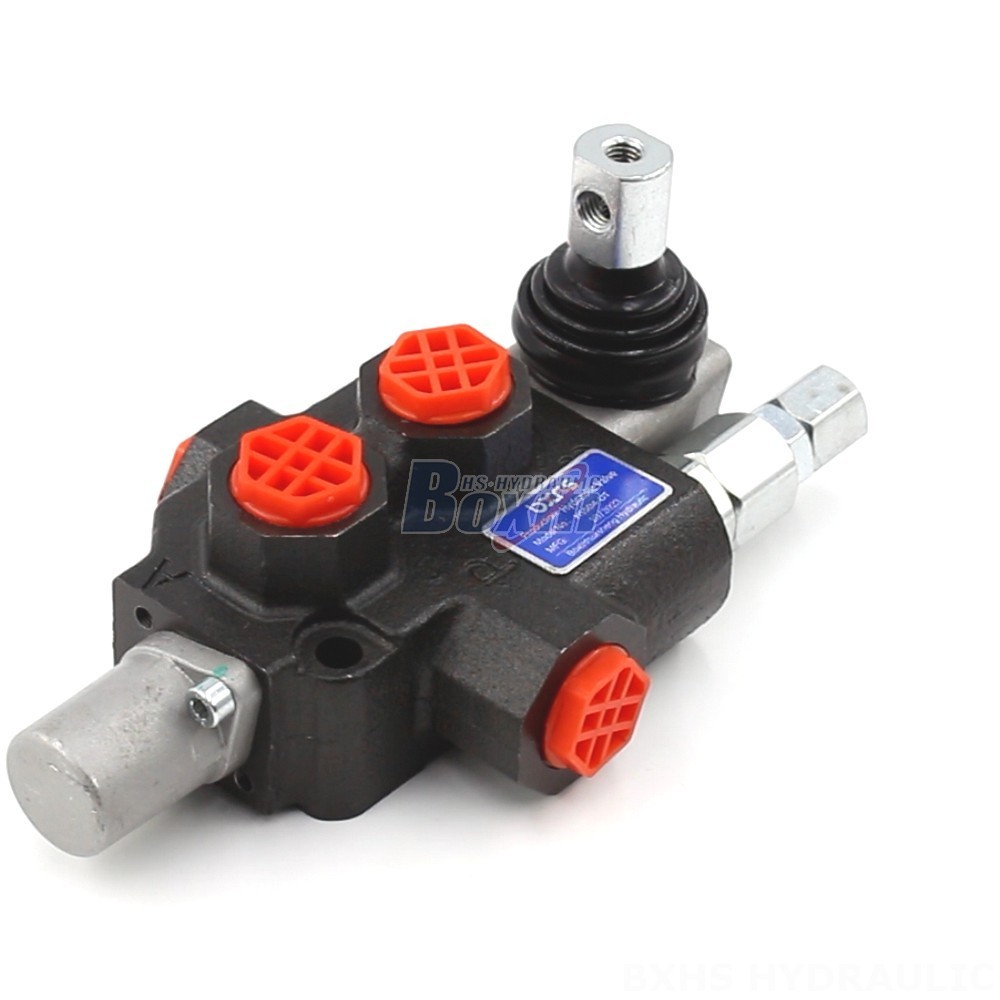

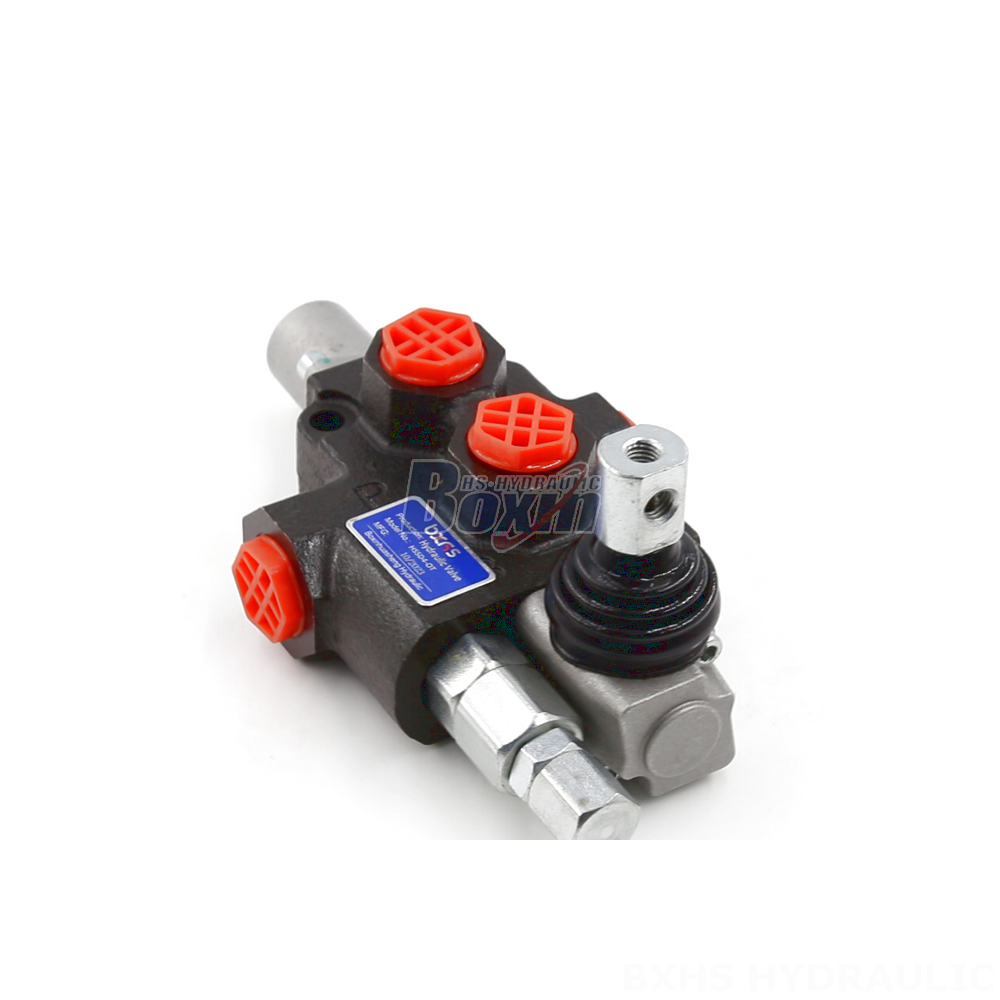

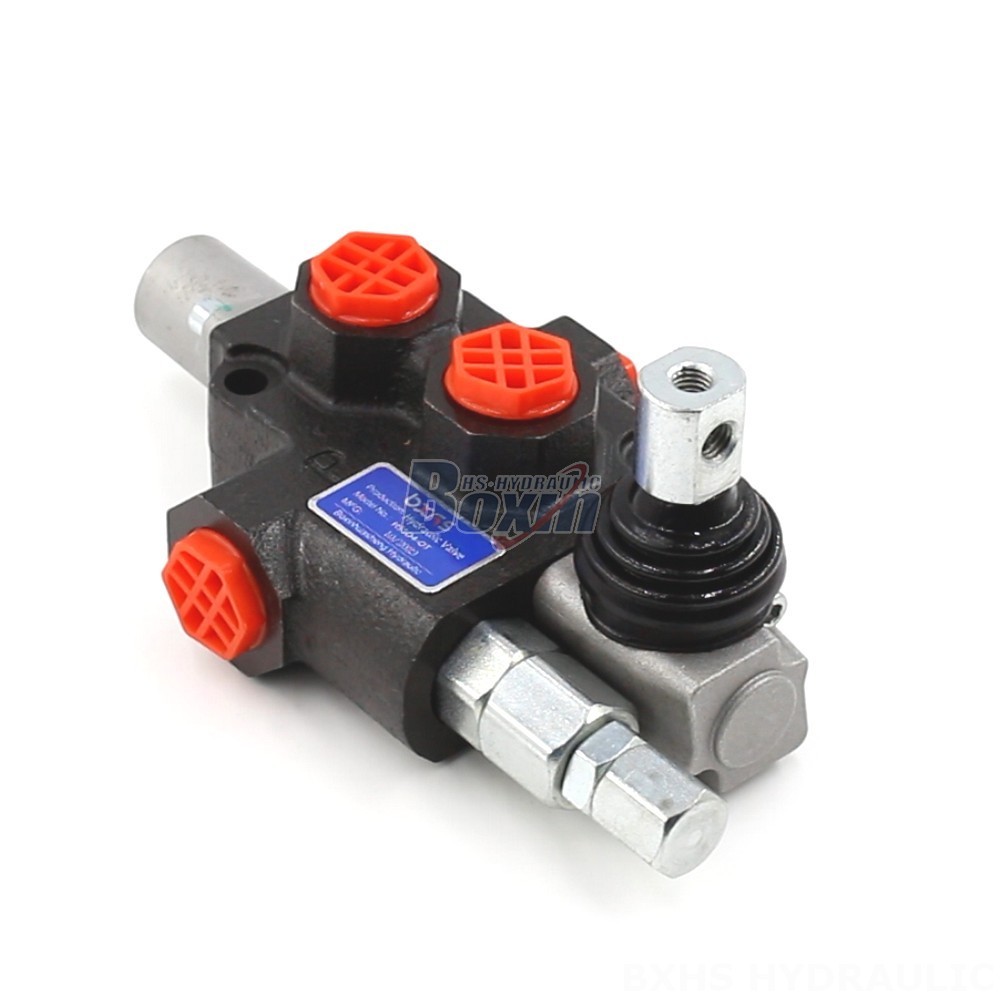

This is a reliable and durable 4-way hydraulic directional control valve (SD4 series) designed for demanding applications in construction, agriculture, and material handling. It features a compact monoblock design, manual control, and a rated flow of 40 L/min.
| Série SD4 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel |
| Distributeur | 1 tiroir |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi), 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, SAE 6 |
| Orifice de sortie | G3/8, SAE 6 |
| Dimension du raccord | G3/8, SAE 6 |
| Section | 1 section |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
The SD4 Series 4-Way Hydraulic Valve is a manual, monoblock valve offering a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 230 bar (3300 psi). Its robust construction and wide operating temperature range (-40°C to +80°C) make it suitable for various demanding applications. This valve is perfect for use in a variety of equipment, including telehandlers, forklifts, cranes, excavators, and loaders, making it a versatile solution for a wide range of industries.
