Source Your P120 Directional Control Valves from a Trusted Manufacturer

Méthode de contrôle:Manuel

Distributeur:2 tiroirs

Débit nominal:120 L/min (31.7 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G1

Orifice de sortie:G1

Dimension du raccord:G1

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P120 Vanne directionnelle monobloc

Taille de l'emballage:30*39*17

Poids brut:19.00 kg

Disponibilité: En stock

1108 personnes consultent ce produit

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer drawing image

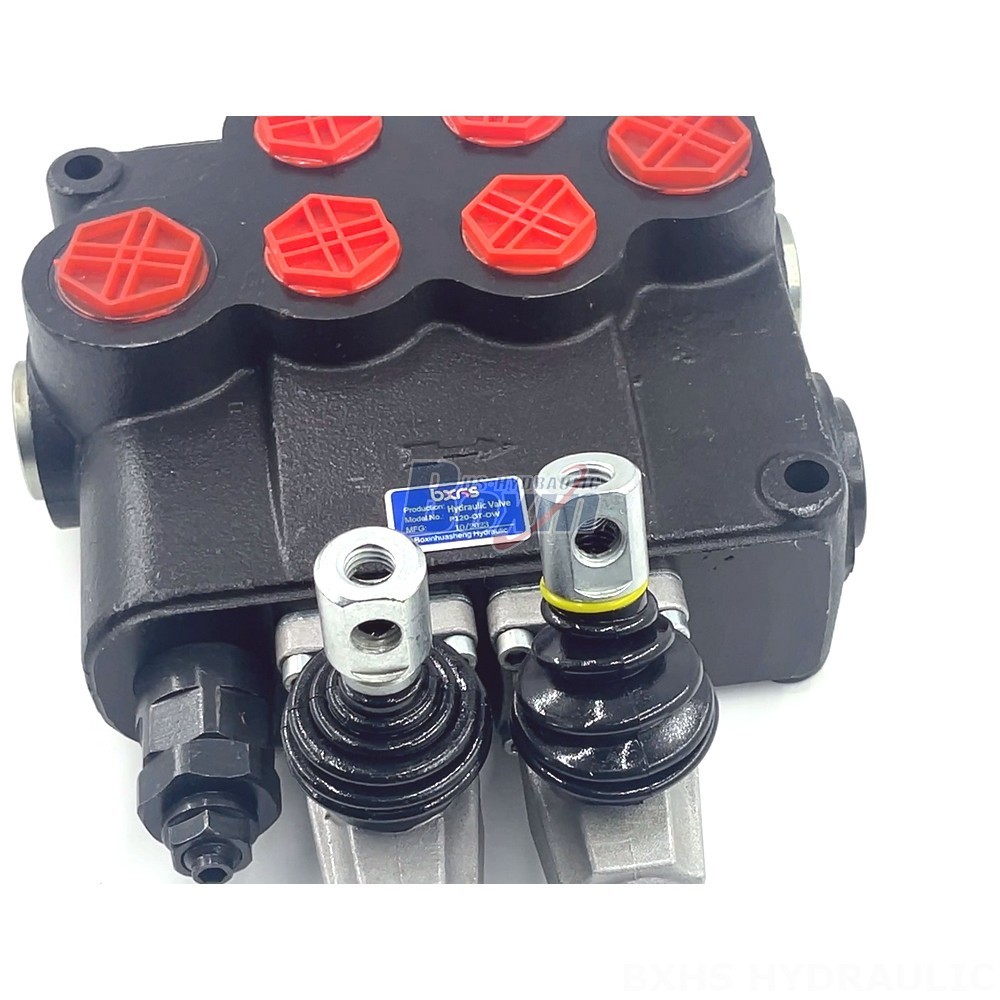

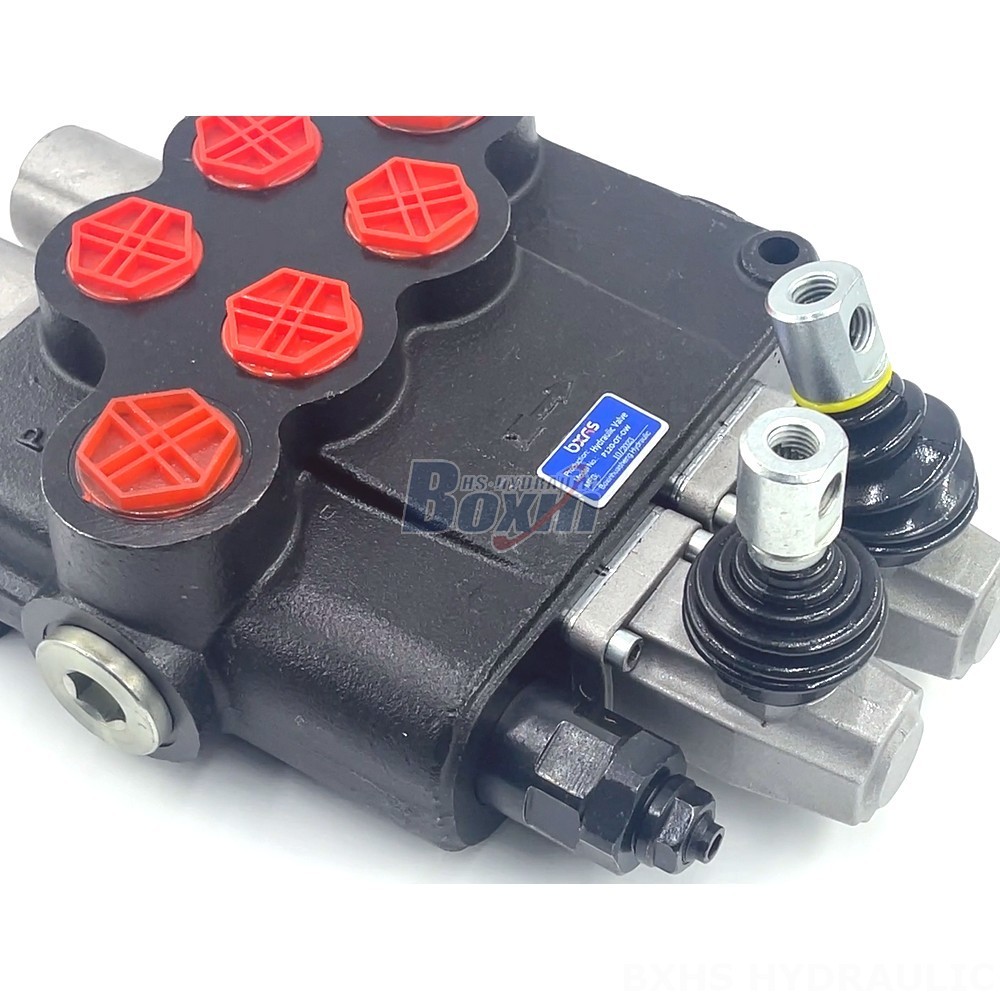

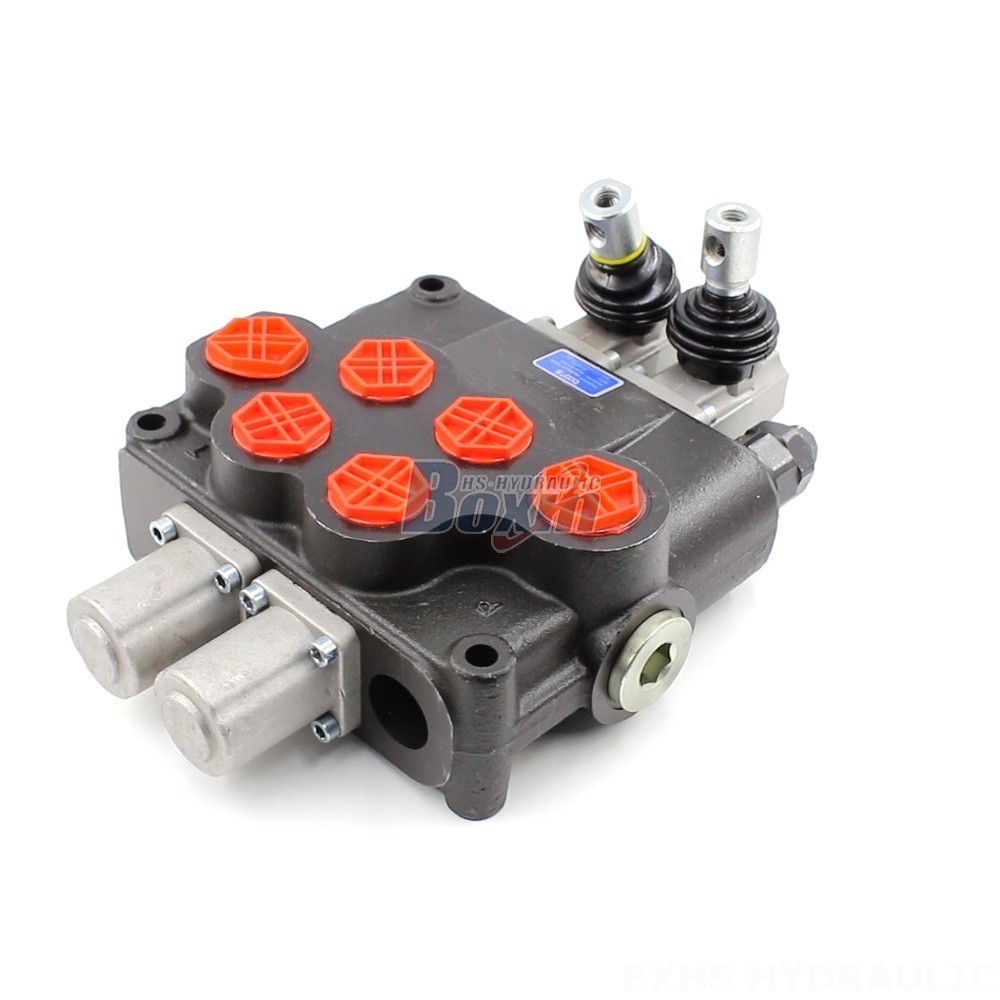

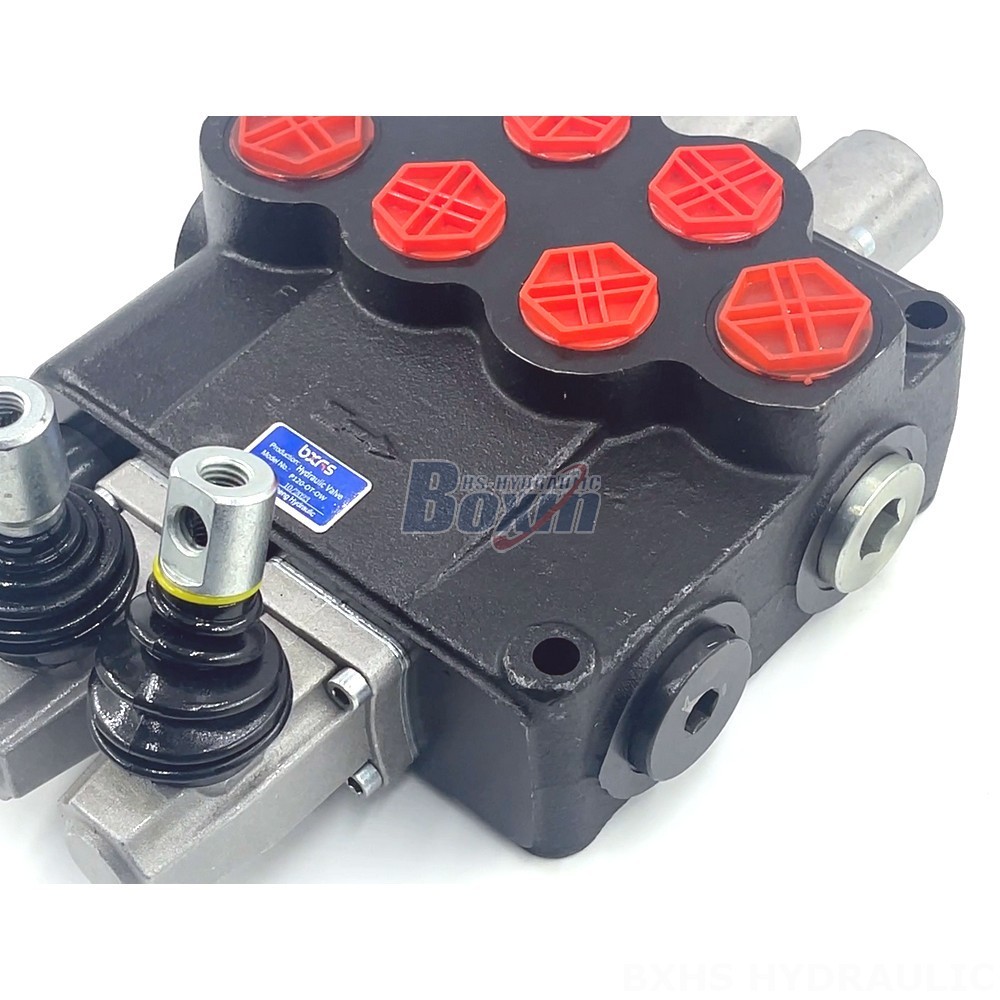

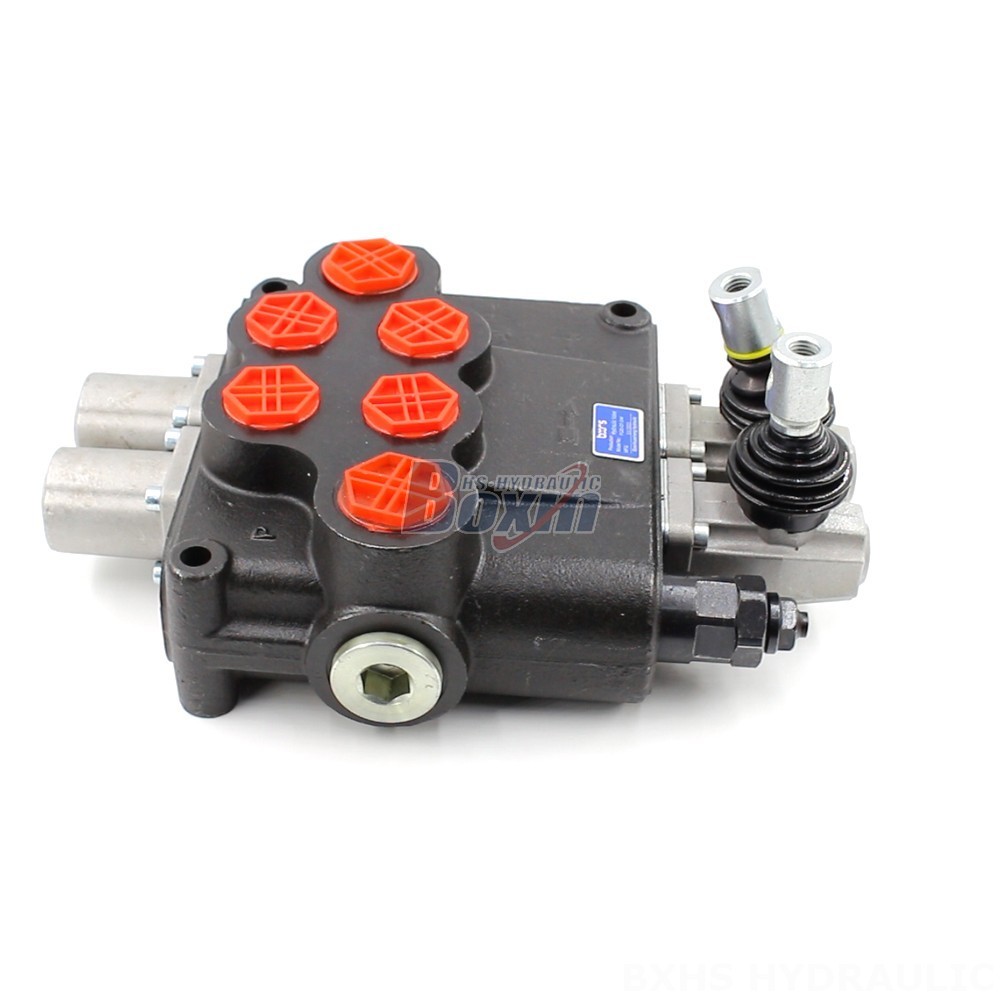

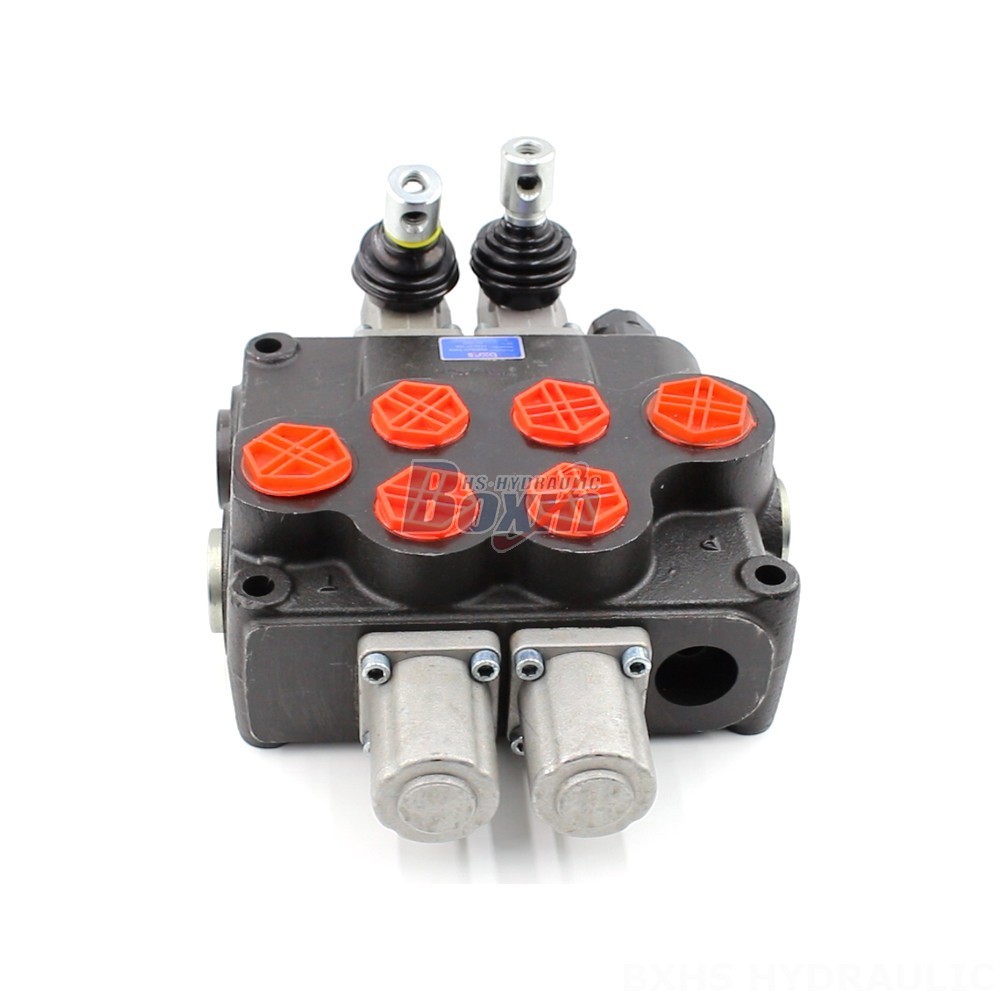

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.

Série P120 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs
Débit nominal 120 L/min (31.7 US gpm)
Pression maximale 250 bar (3 600 psi)
Orifice d'entrée G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Orifice de sortie G1, SAE 16, 1 NPT, M36×2
Dimension du raccord G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Section 1 section, 2 sections, 3 sections, 4 sections
Type de structure Distributeur monobloc
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)

The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
