Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1087 personnes consultent ce produit

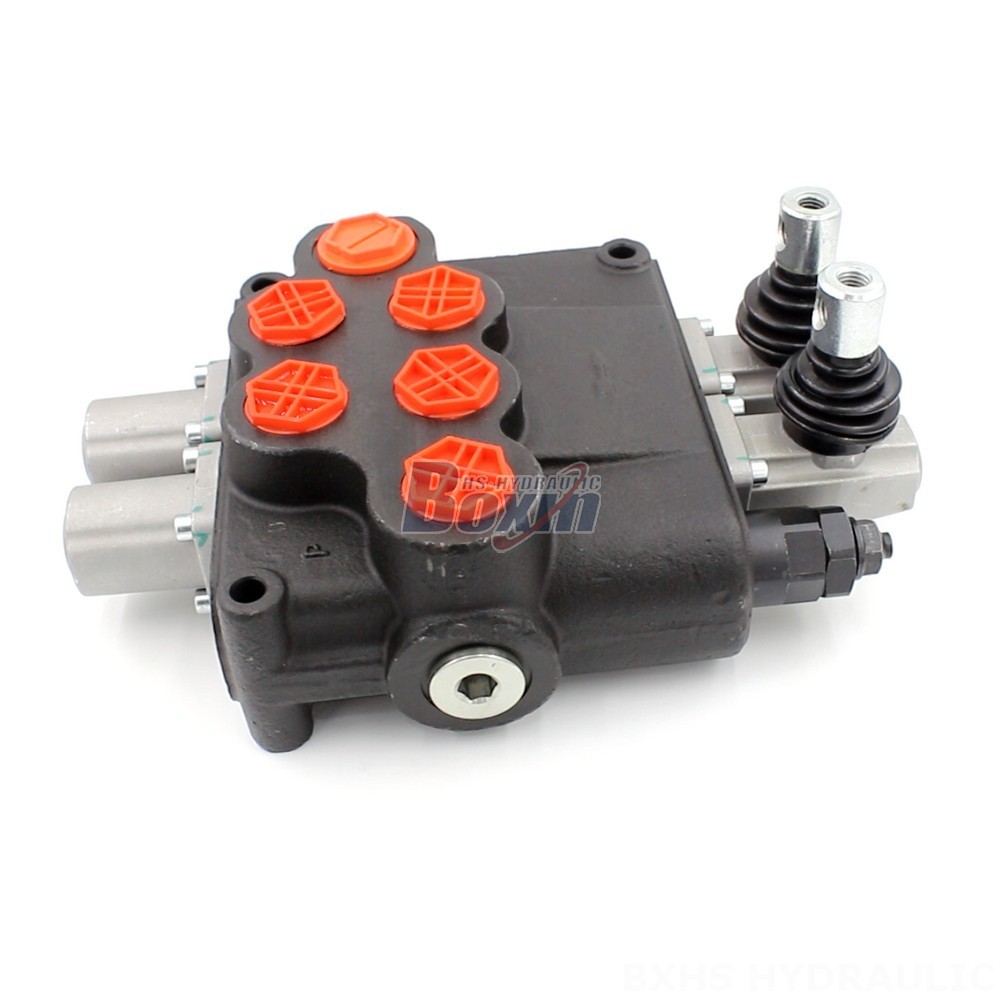

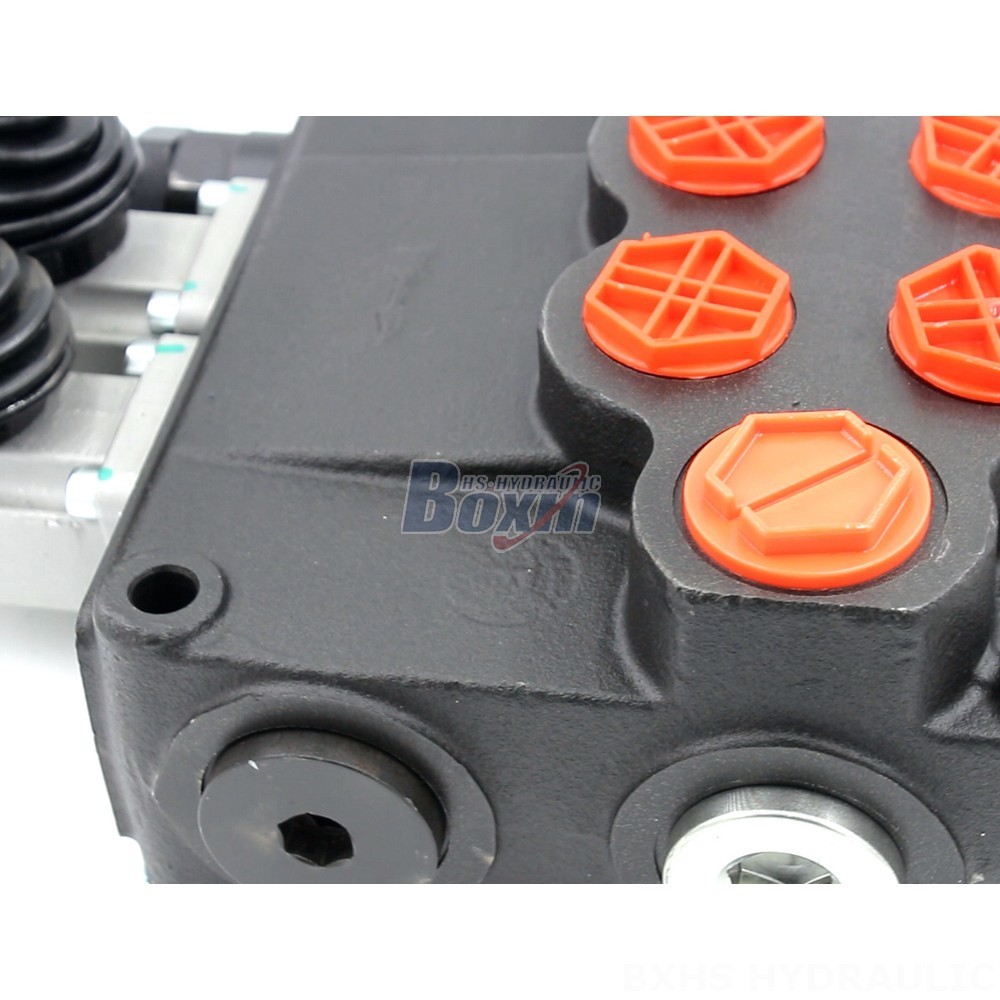

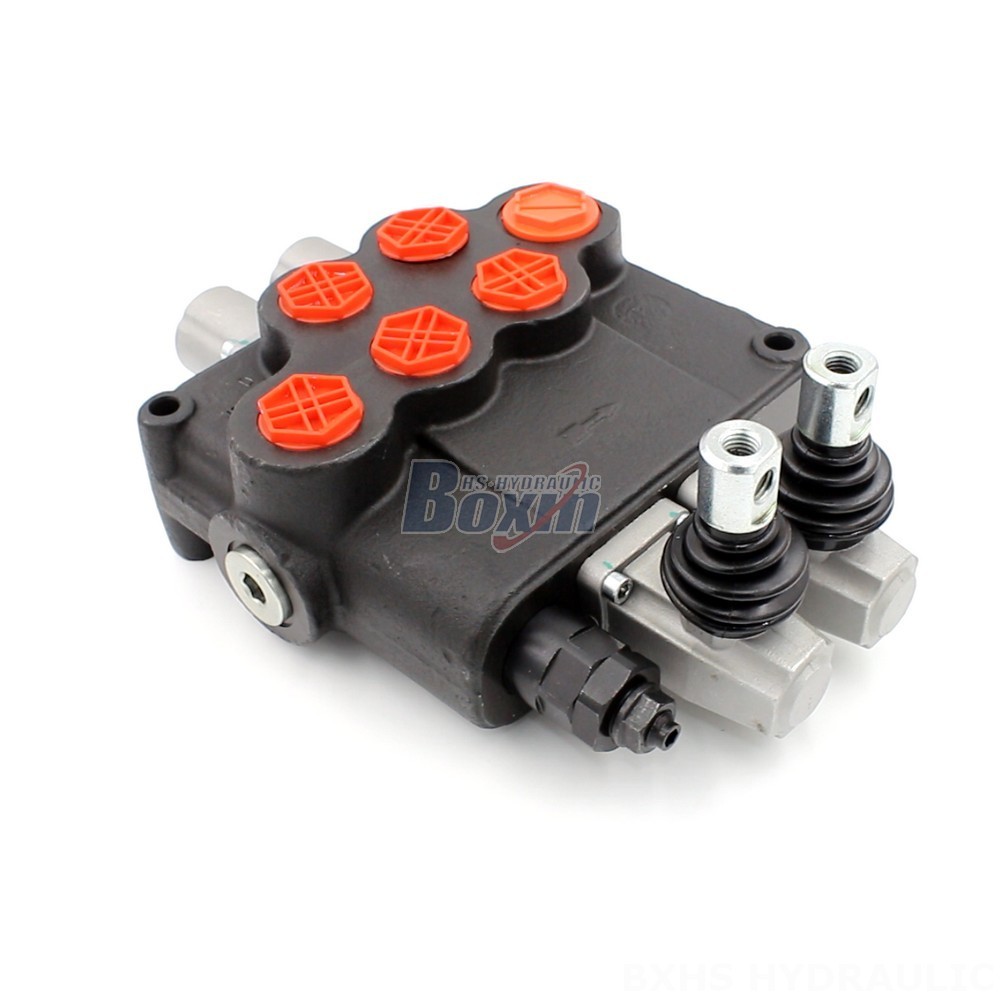

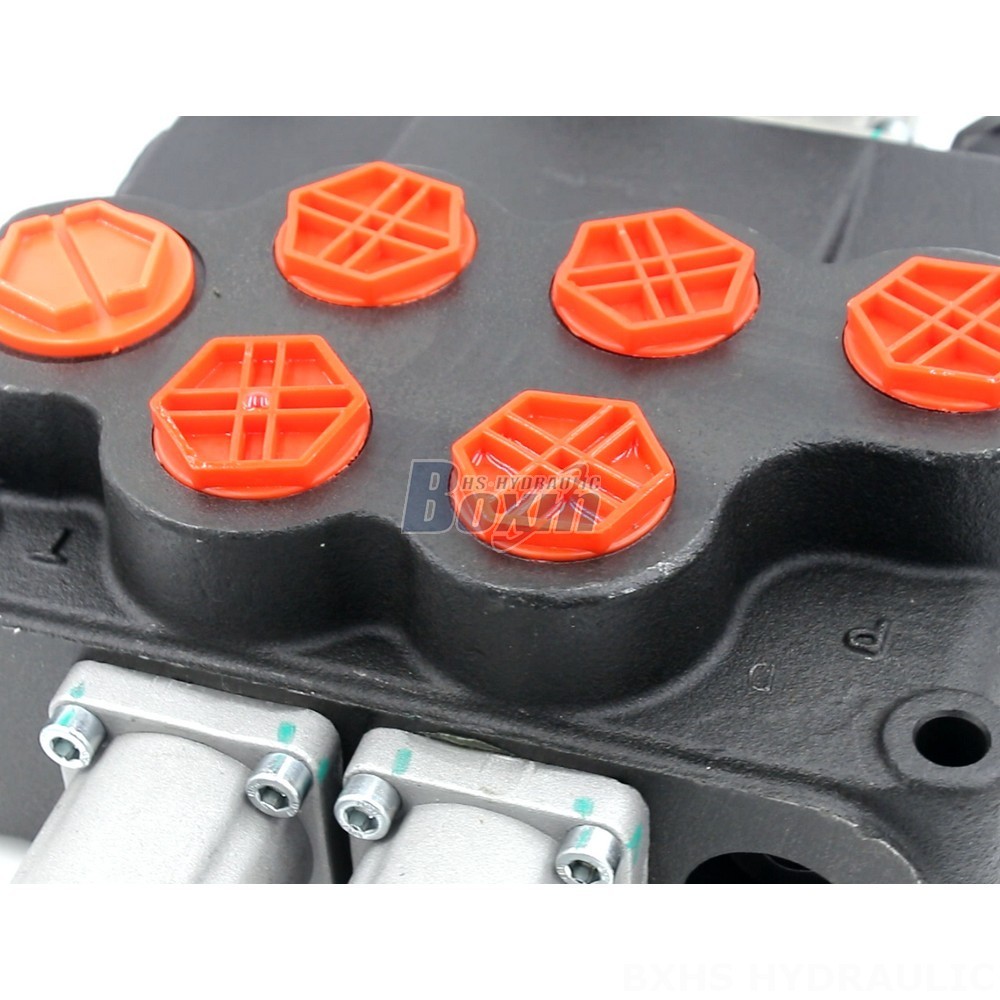

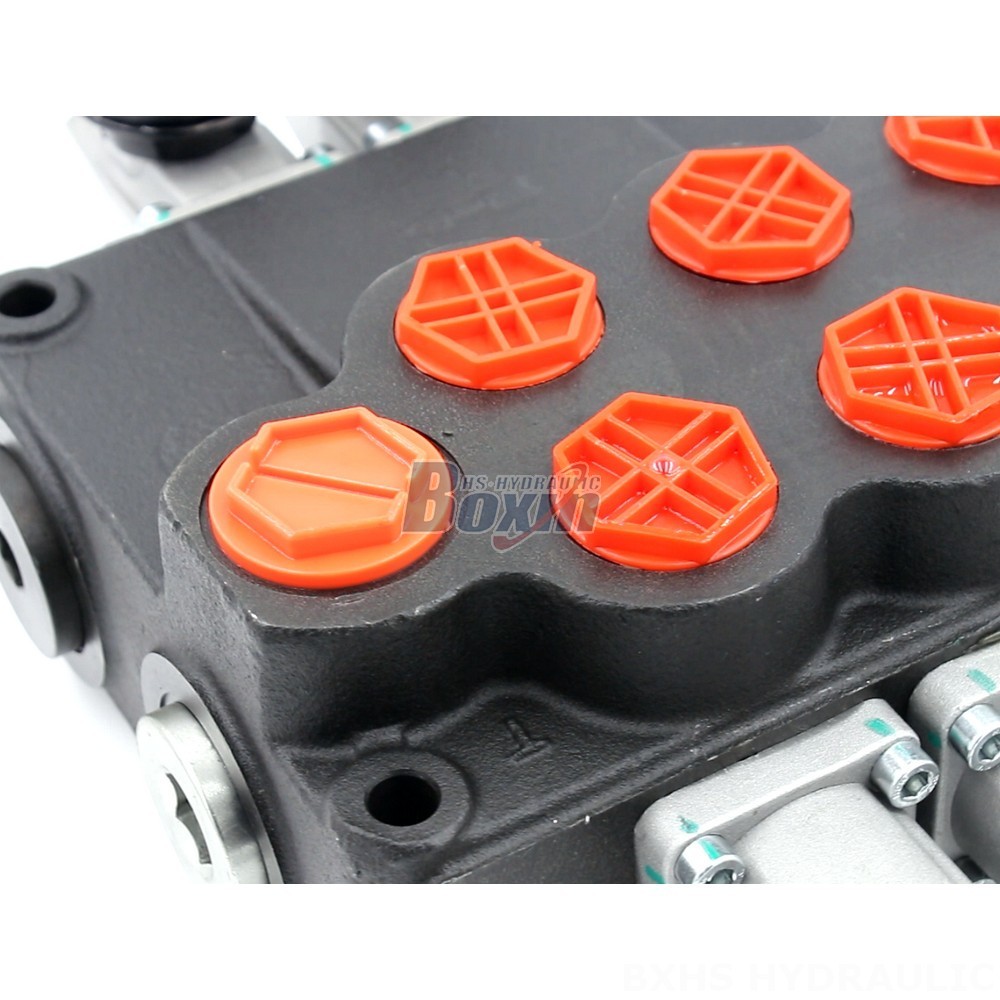

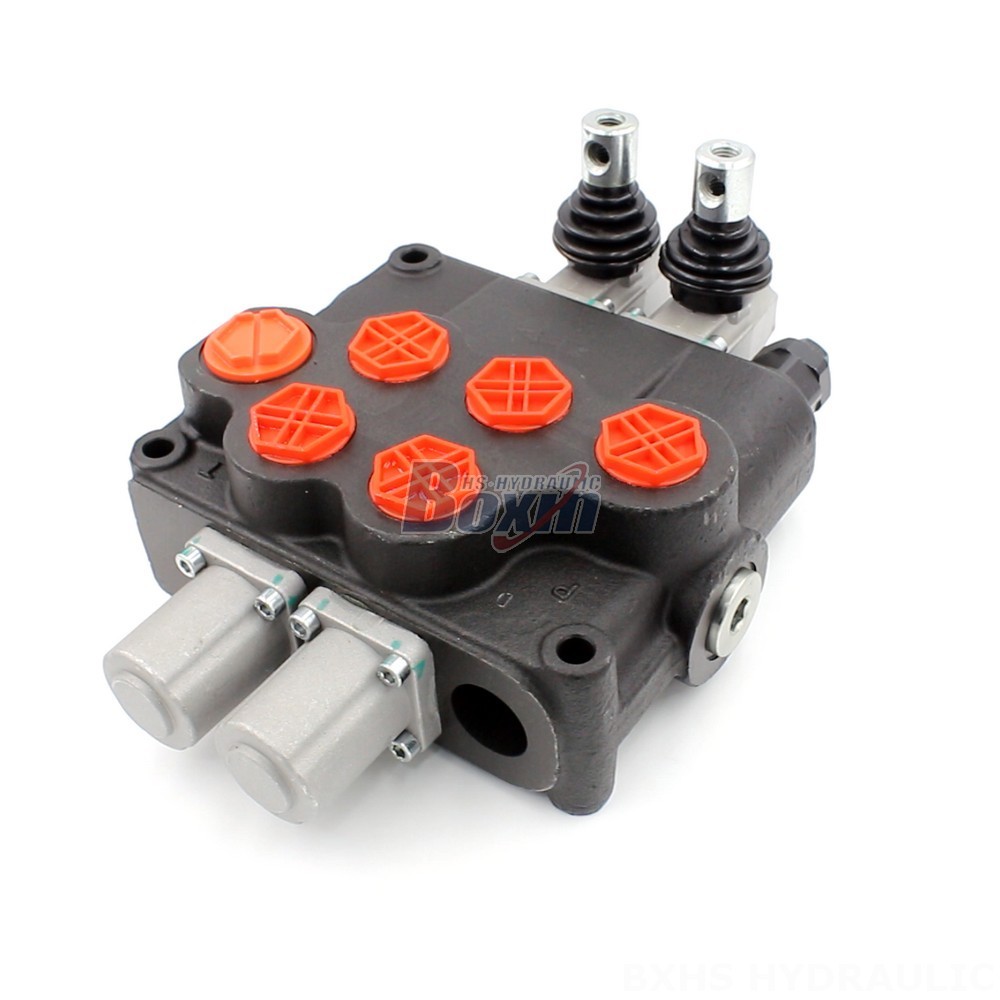

Our P120 Series Hydraulic Pressure Compensated Valves are high-quality, reliable, and designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Get yours directly from the factory!
| Série P120 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 120 L/min (31.7 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Orifice de sortie | G1, SAE 16, 1 NPT, M36×2 |
| Dimension du raccord | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
This P120 Series Hydraulic Pressure Compensated Valve is a high-performance, reliable solution for a wide range of applications. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for use in demanding environments. The valve's monoblock construction ensures durability and long life, and the manual control method makes it easy to operate. We offer this P120 Valve directly from our factory at competitive prices. We are also a leading manufacturer of hydraulic components and can provide you with customized solutions to meet your specific needs. Whether you need a single valve or a complete hydraulic system, we have the expertise and resources to deliver. Contact us today to learn more about our products and services.
