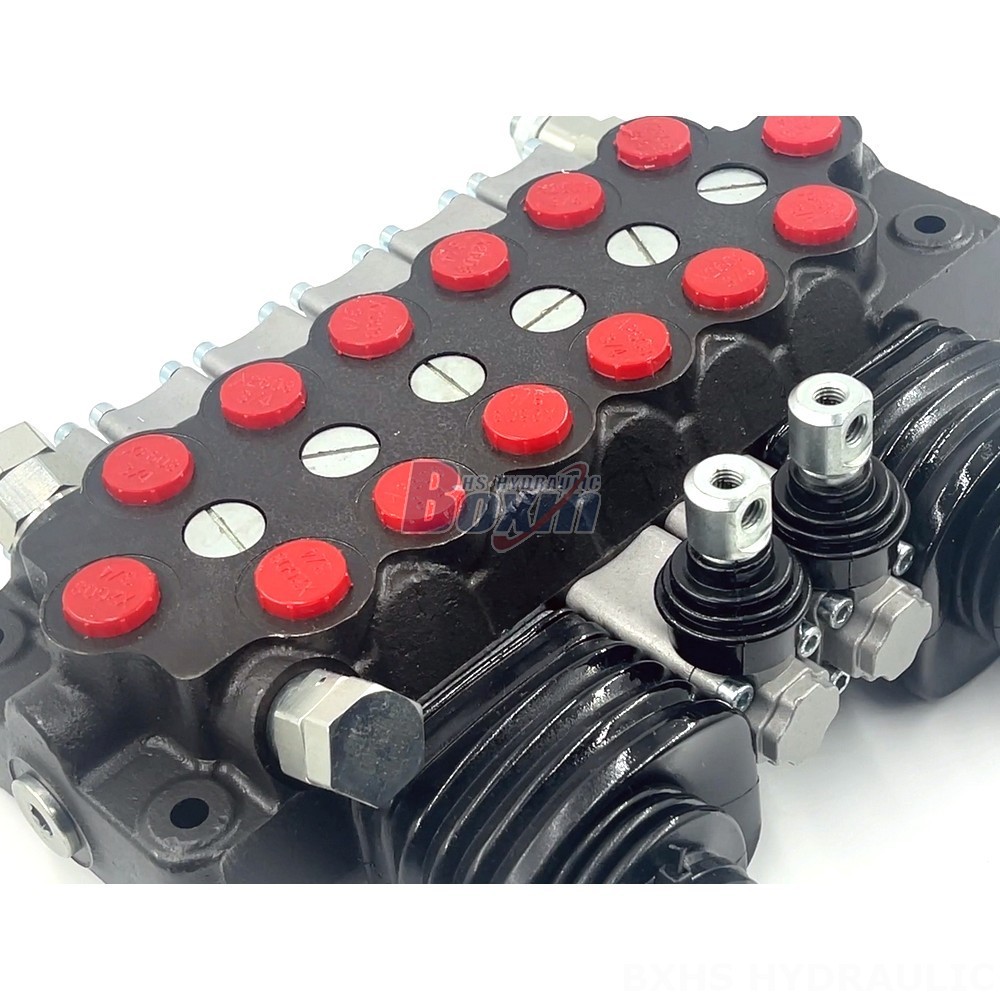

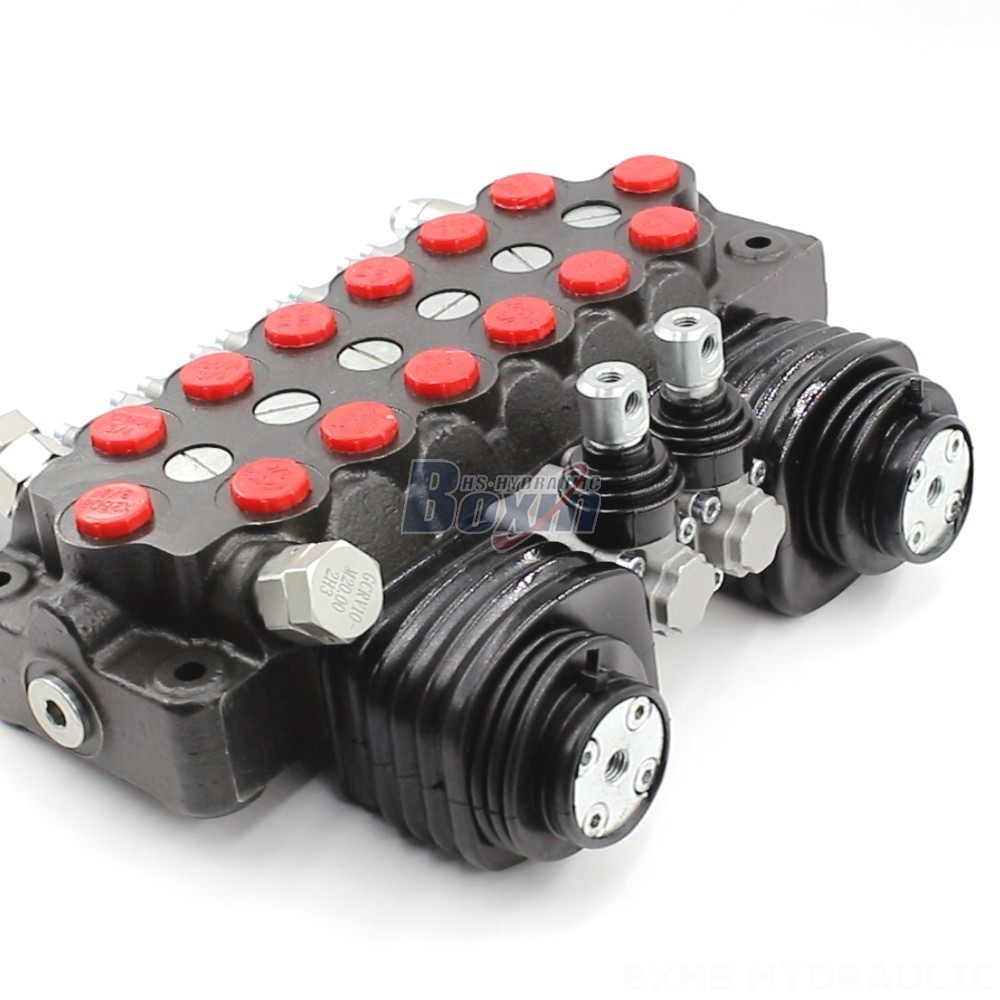

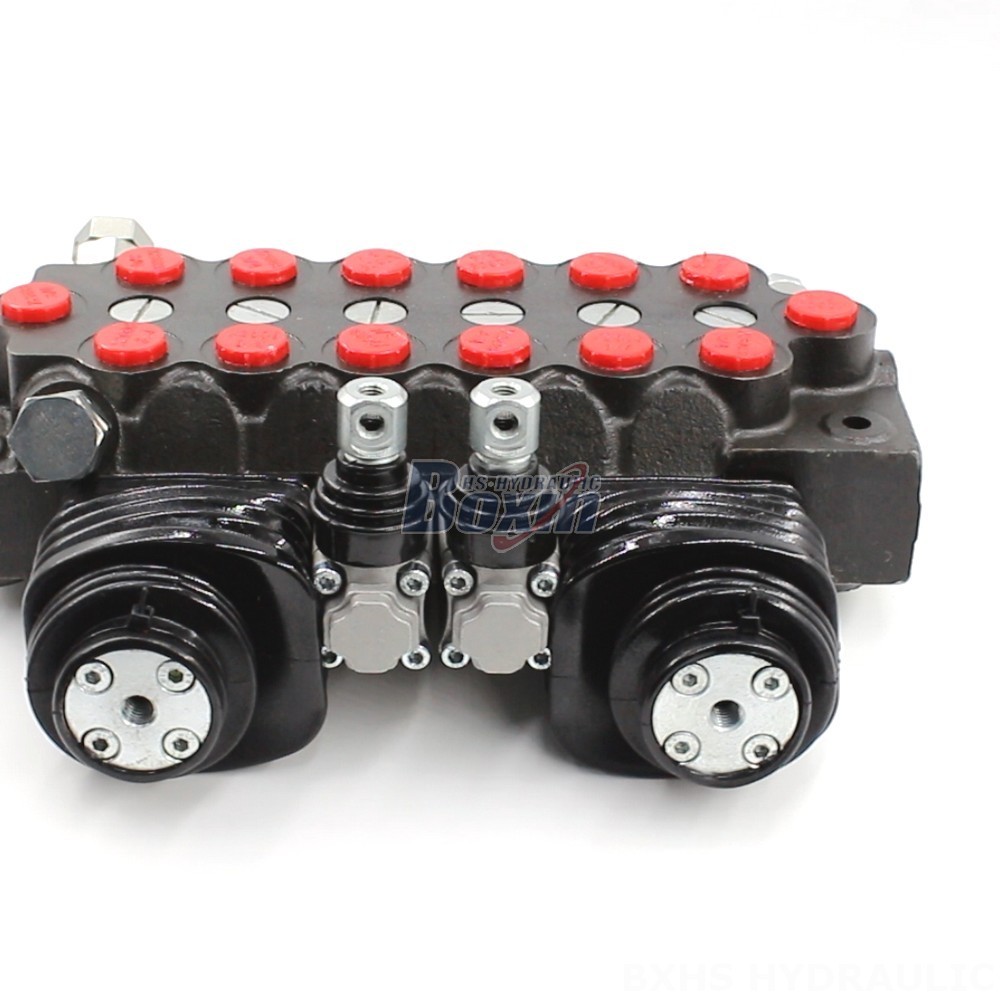

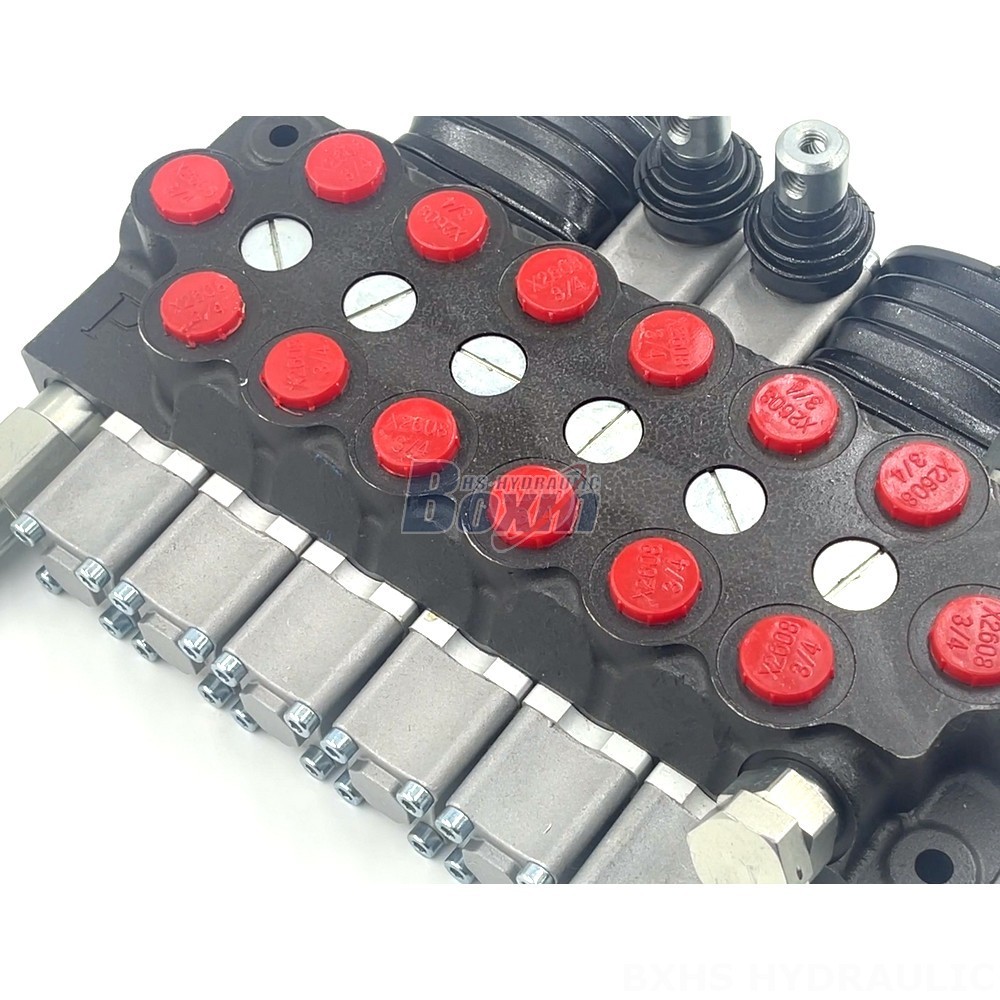

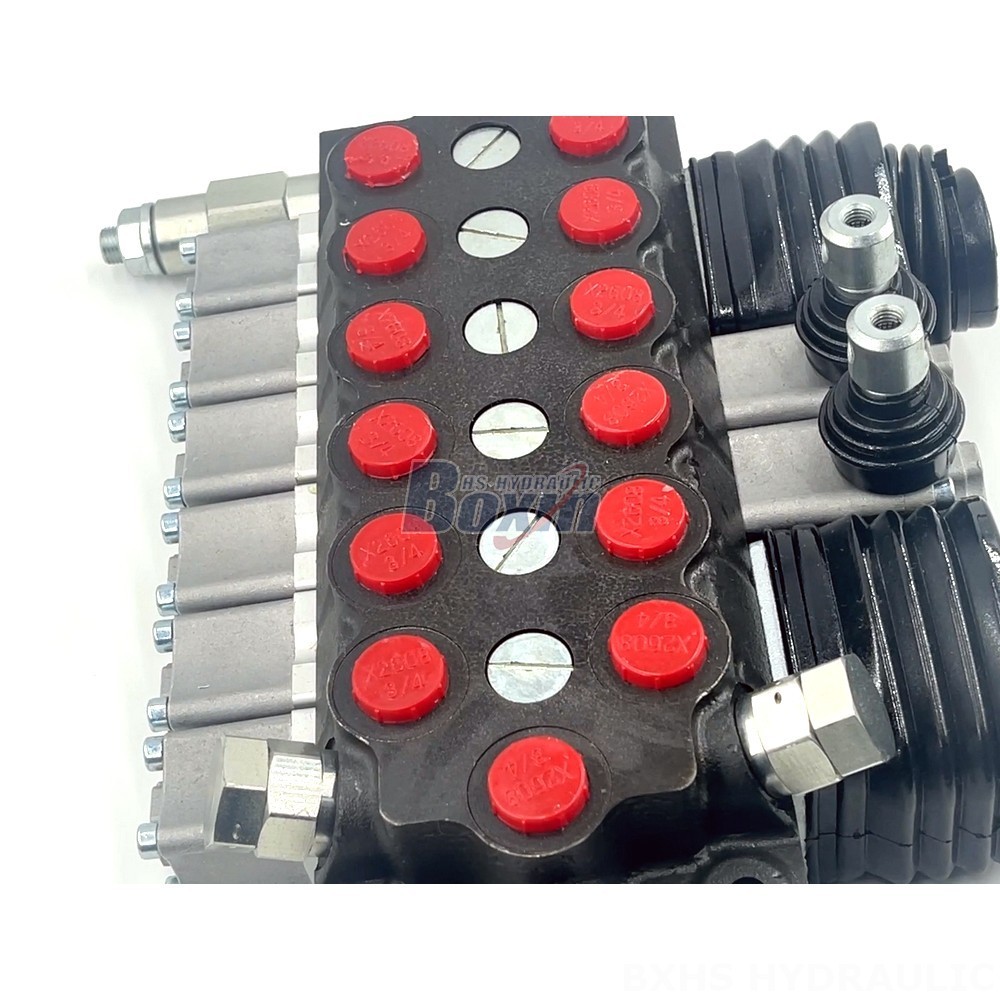

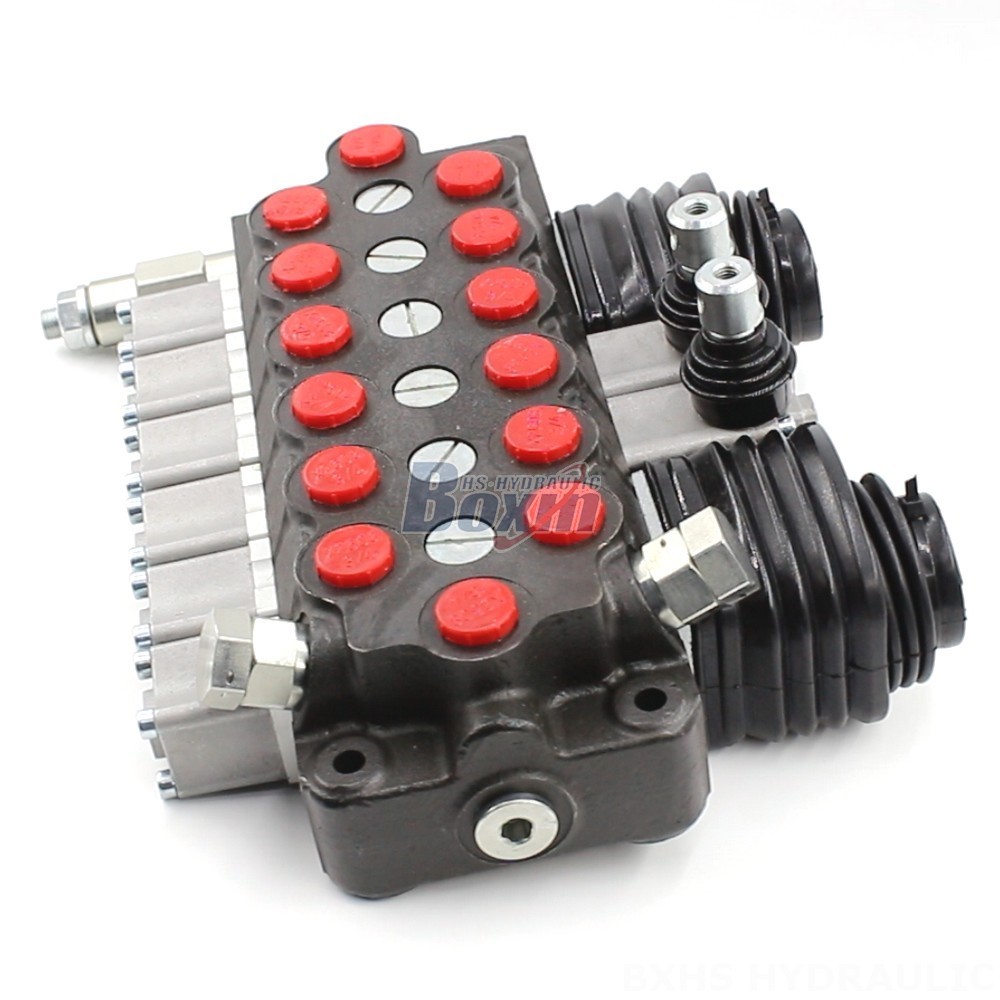

The TR55 Hydraulic Valve is a high-performance, 6-section monoblock valve designed for various applications including material handling, construction, and agriculture. It offers a rated flow of 40 L/min and a maximum pressure of 315 bar. Available with manual or joystick control, this valve is directly sourced from the manufacturer, ensuring quality and competitive pricing.
| Série TR55 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/8, G1/2 |
| Orifice de sortie | G3/8, G1/2 |
| Dimension du raccord | G3/8, G1/2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F), -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
The TR55 Series Hydraulic Valve is a robust and reliable solution for various machinery applications. This 6-section monoblock valve features a rated flow of 40 L/min and a maximum pressure of 315 bar. It operates with a viscosity range of 15 - 75 mm²/s and withstands ambient temperatures ranging from -40°C to +60°C. The valve is available with both manual and joystick control options, providing flexibility for different operating needs. Direct sourcing from the manufacturer ensures high quality and competitive prices. Our factory offers wholesale options for bulk purchases, making the TR55 Series an ideal choice for businesses seeking reliable and cost-effective hydraulic valves.
