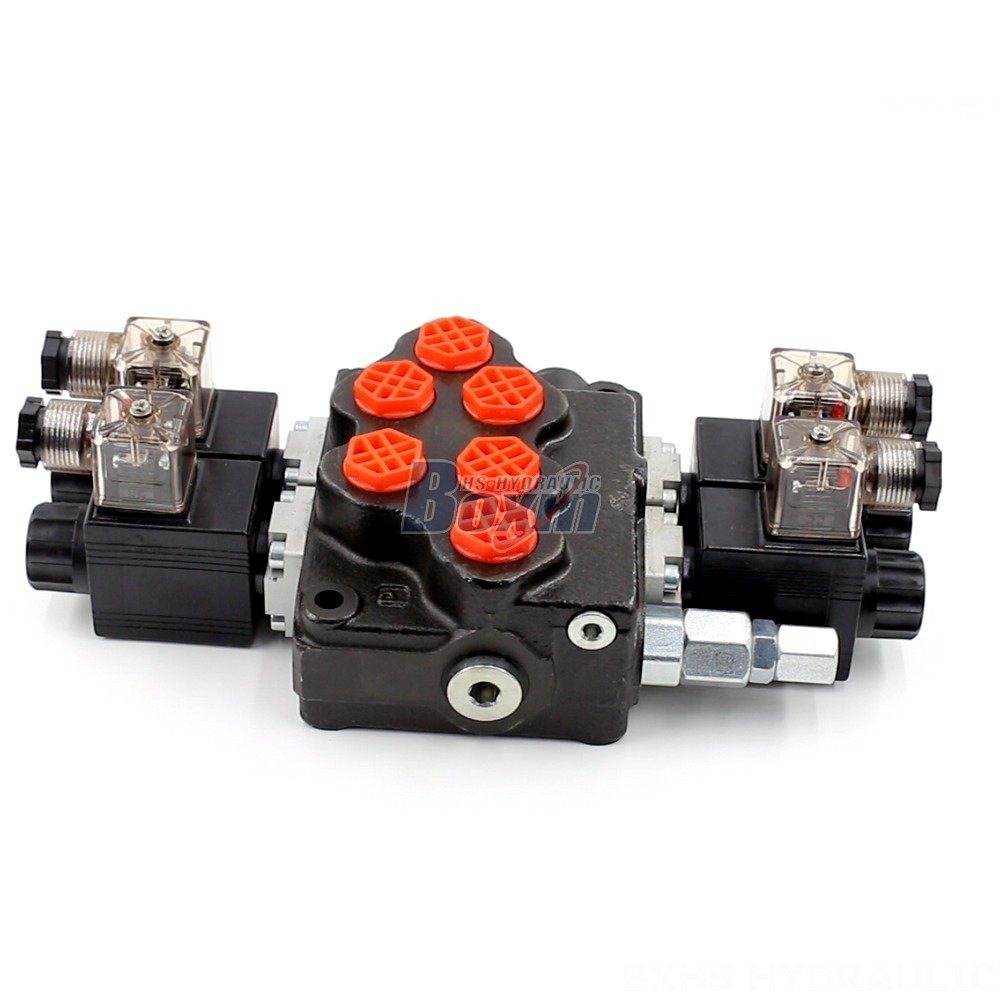

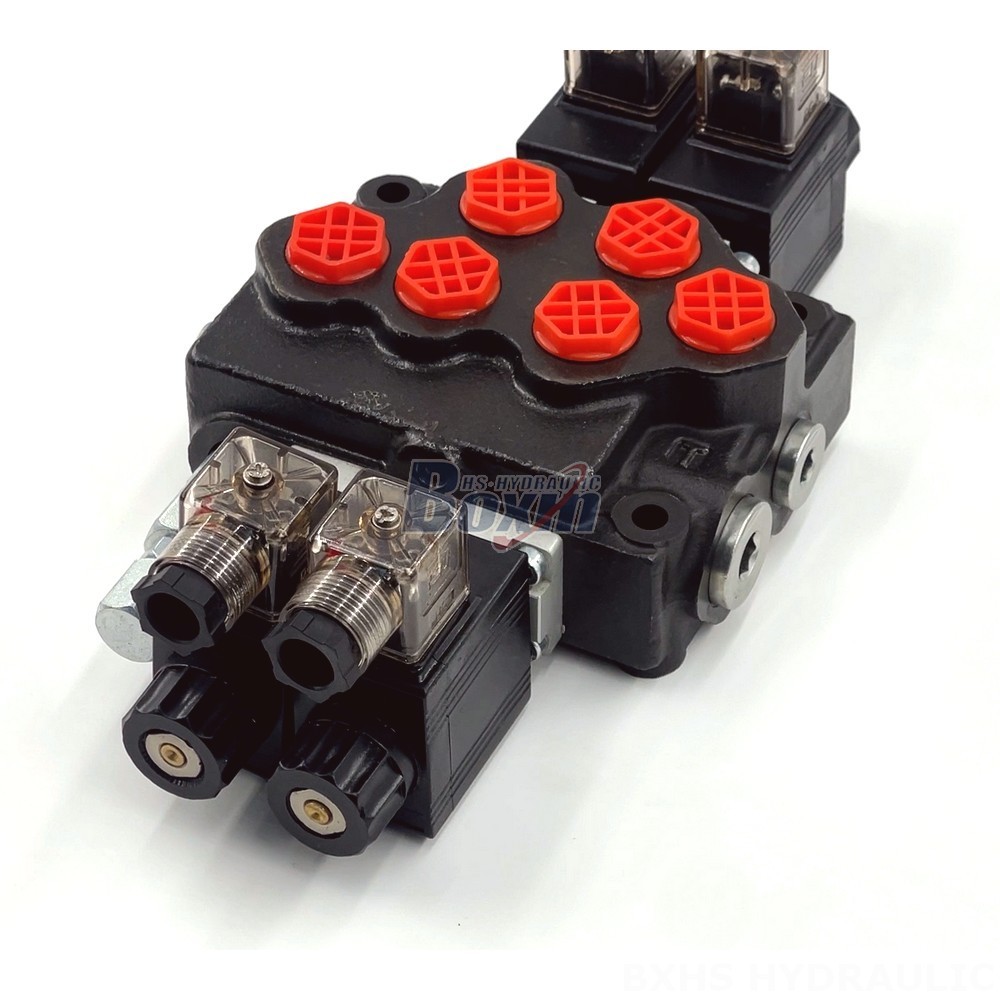

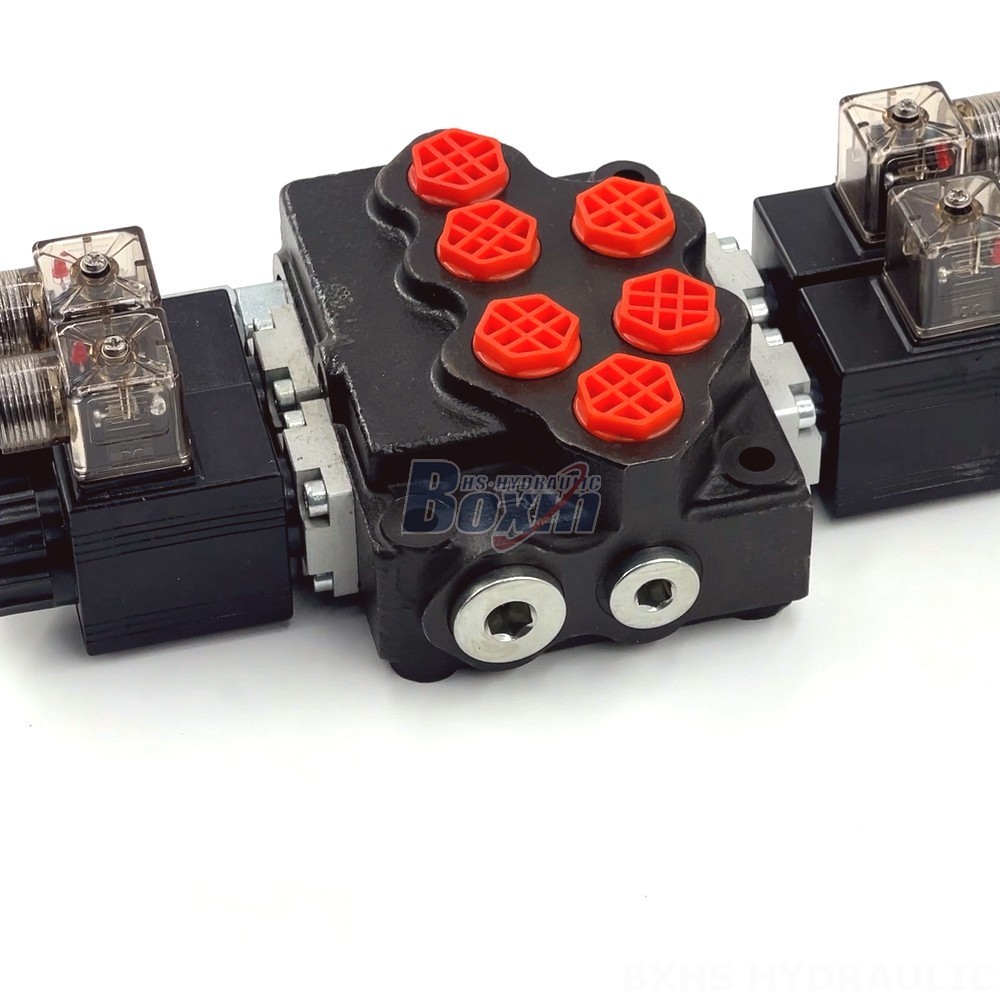

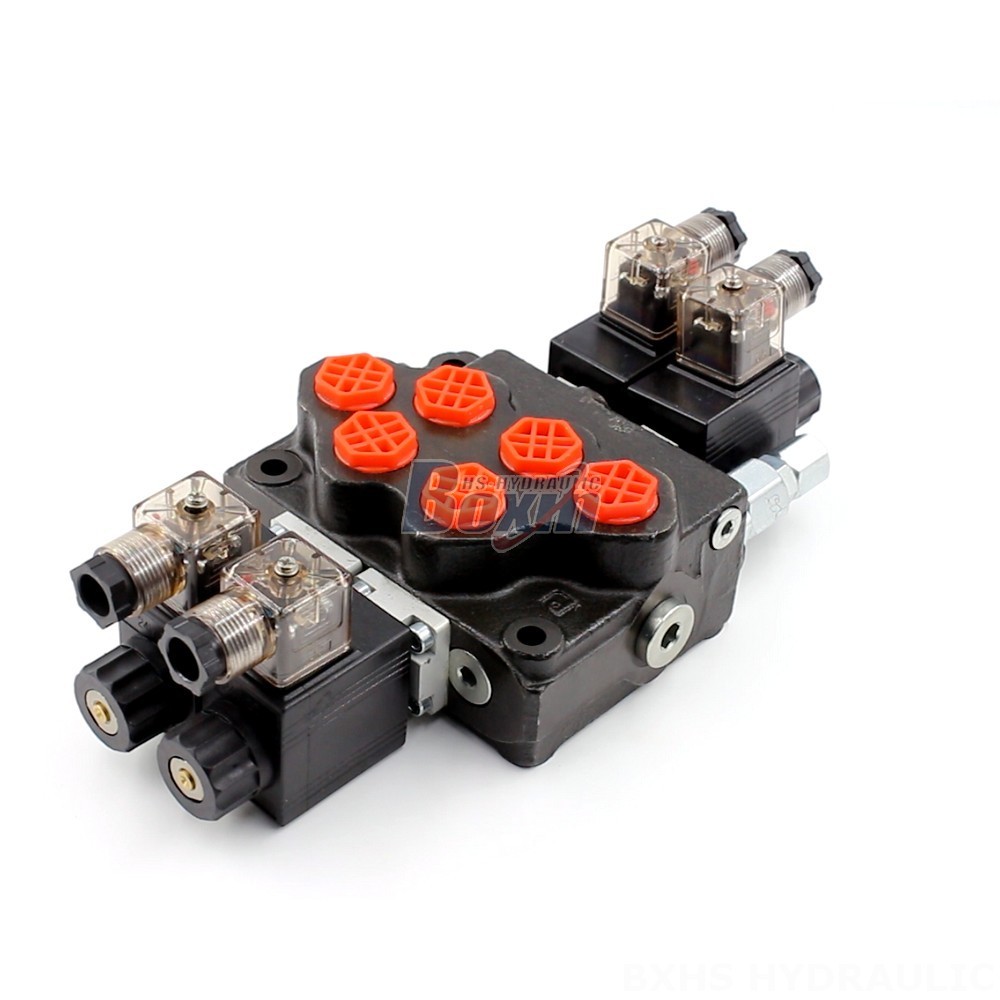

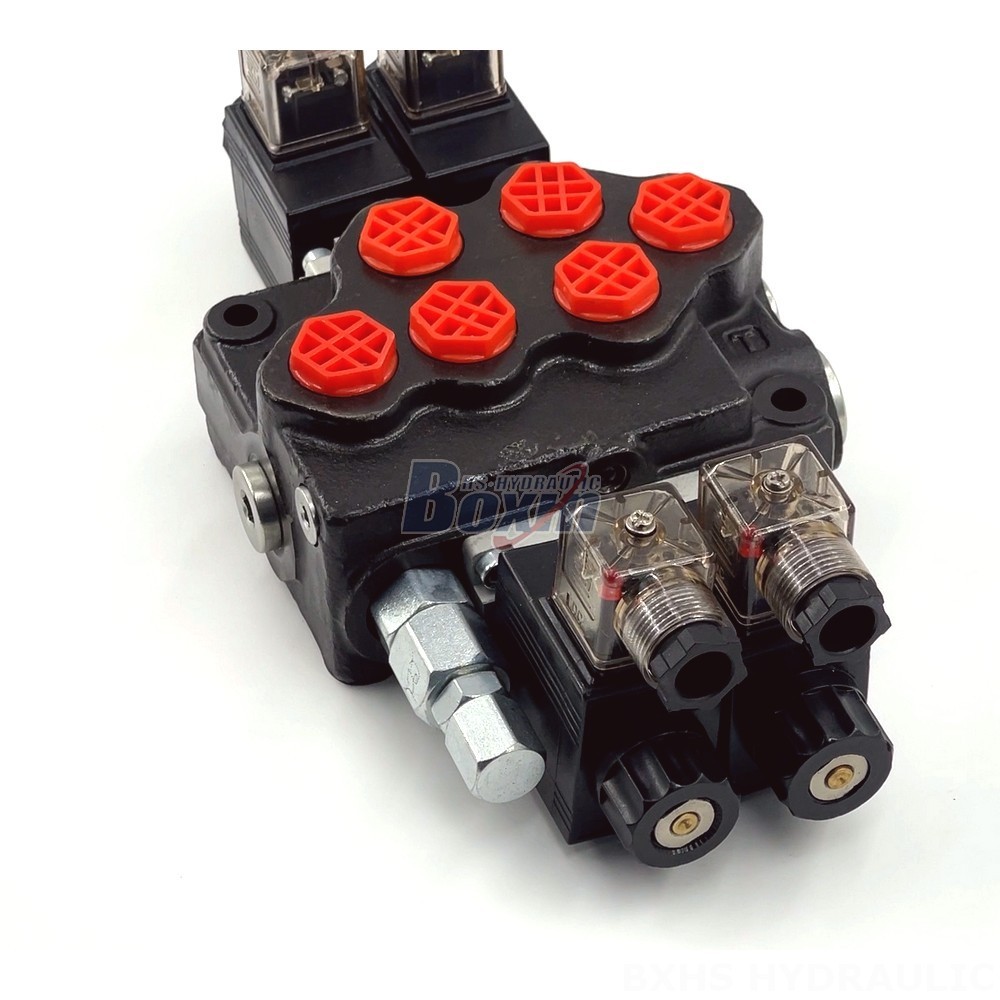

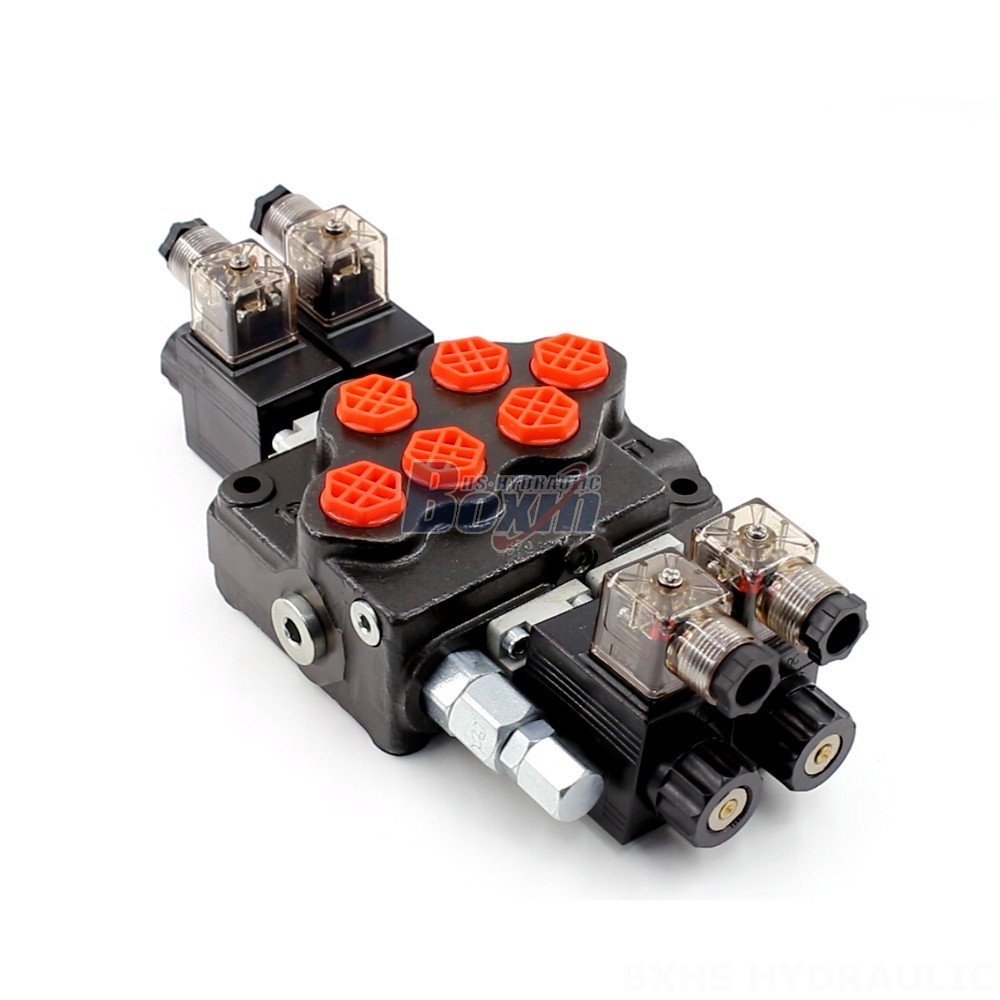

The SD5 Solenoid Valve is a high-quality hydraulic spool valve designed for tractors and other heavy-duty equipment. It offers a reliable and efficient way to control hydraulic flow, providing smooth operation and long service life. This valve is available in a variety of configurations to meet your specific application requirements.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Solenoid Valve is a high-performance hydraulic valve manufactured for tractors and other heavy-duty machinery. This 2-section monoblock valve is built to withstand demanding conditions with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve features a solenoid control method, offering precise and responsive operation. It is suitable for a wide range of applications, including material handling, construction and earthmoving, agriculture, and industrial vehicles. We are a manufacturer, offering factory supply, factory wholesale, and customized options to meet your specific needs. Our commitment to quality and customer satisfaction ensures that you receive a reliable and durable product that exceeds your expectations.
