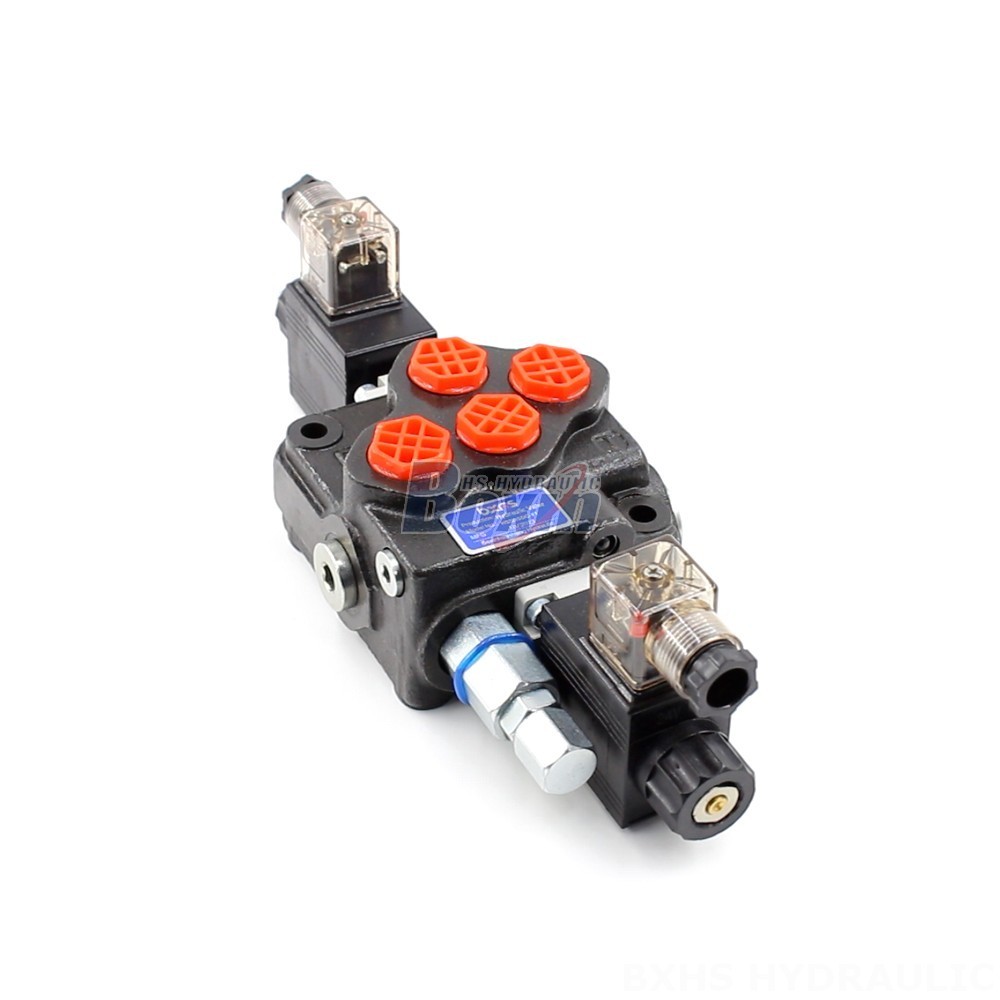

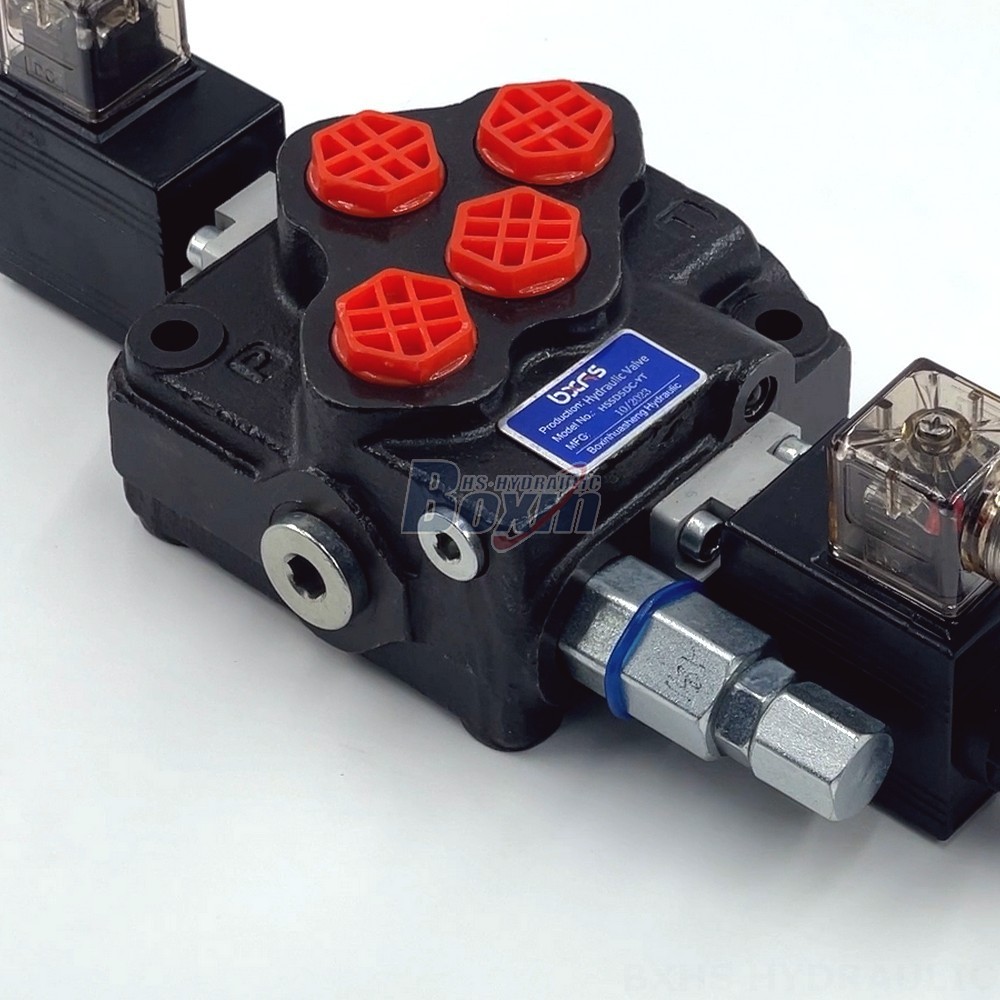

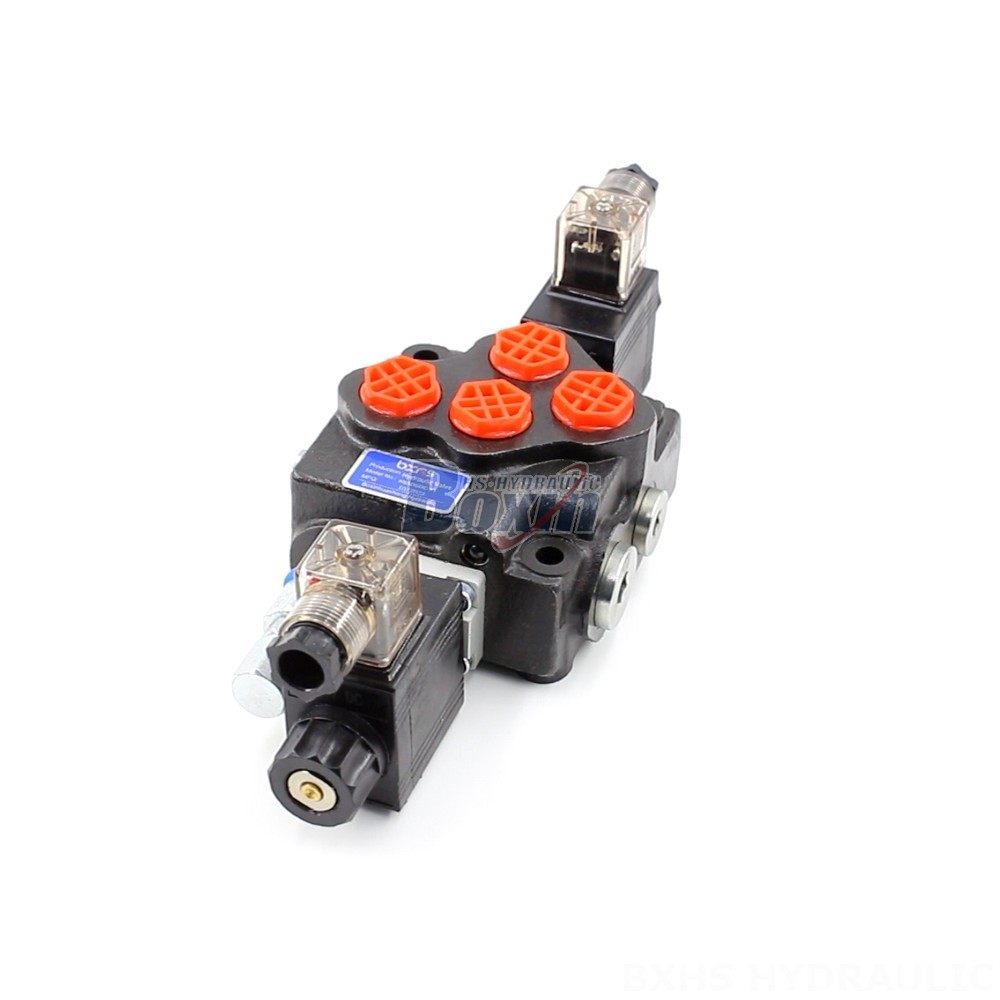

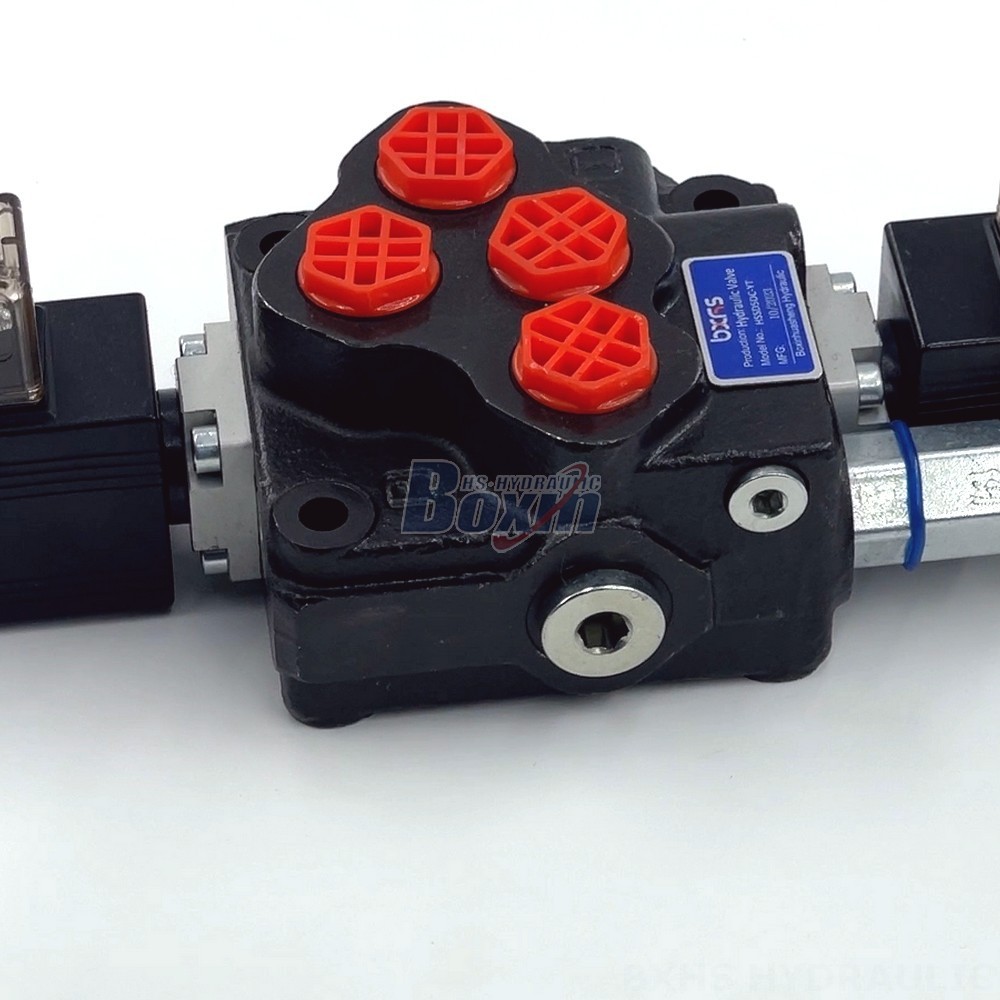

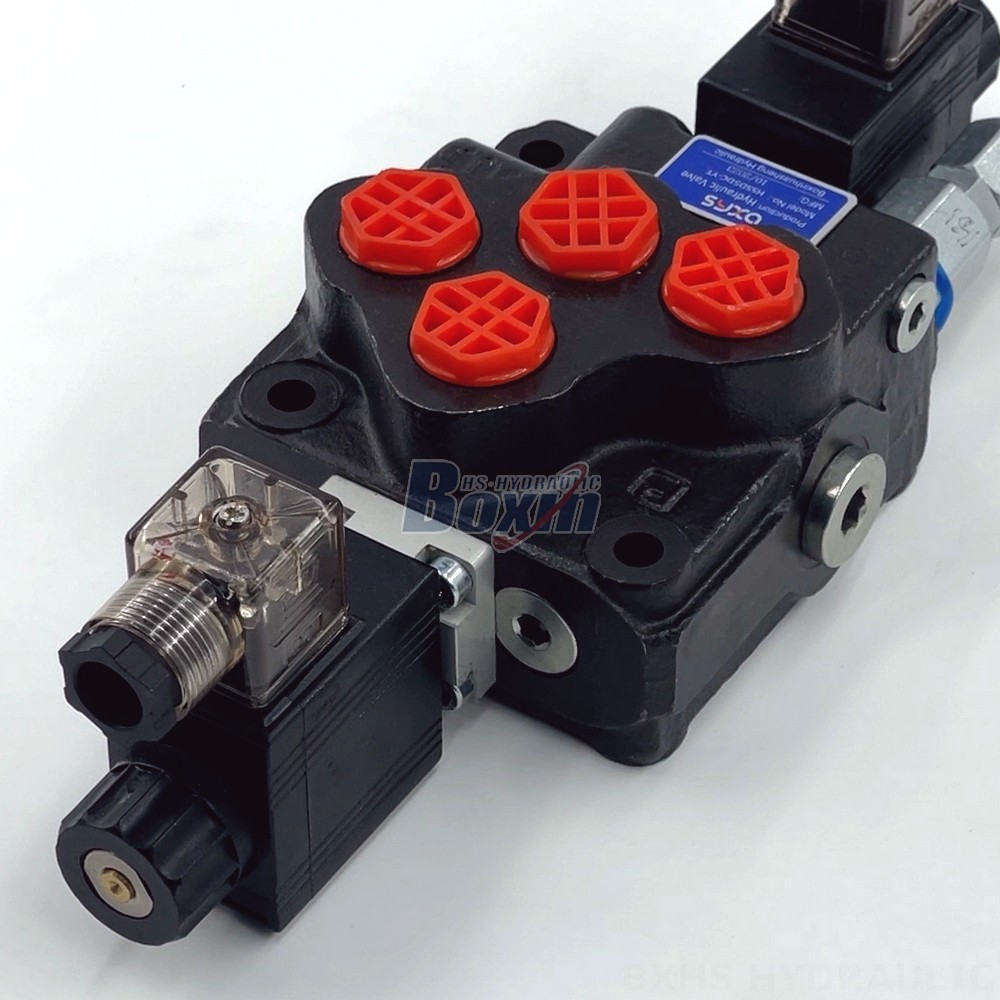

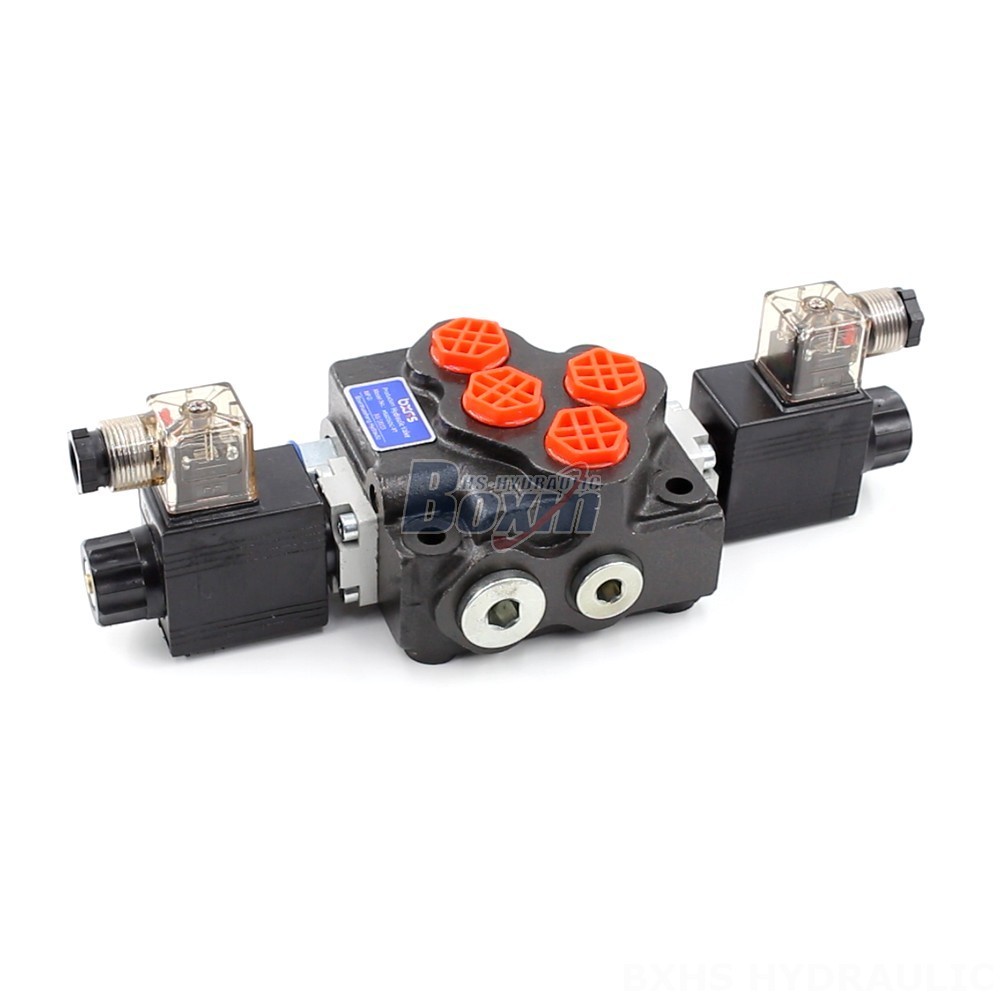

The SD5 Series Proportional Hydraulic Valve is a high-performance, compact monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features solenoid control, a 40 L/min flow rate, and a maximum pressure of 305 bar. This valve is available direct from the manufacturer, offering factory prices and wholesale options.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Proportional Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. Directly sourced from the manufacturer, this valve offers exceptional quality and value. Its monoblock construction ensures robust performance, while its compact design allows for easy installation. The SD5 valve is perfect for applications requiring precise and responsive control, such as forklifts, telehandlers, mini excavators, skid steer loaders, and more. We offer competitive factory pricing and wholesale options to meet the needs of our global customer base.
