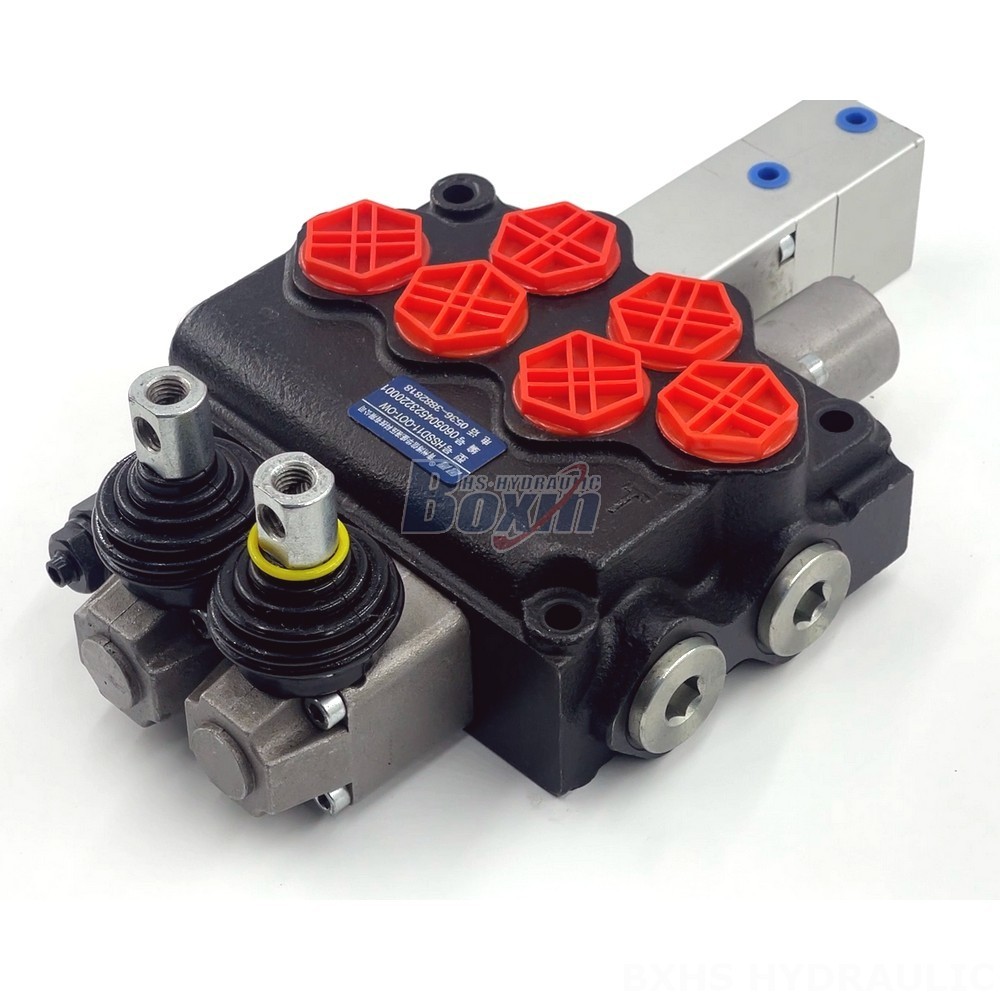

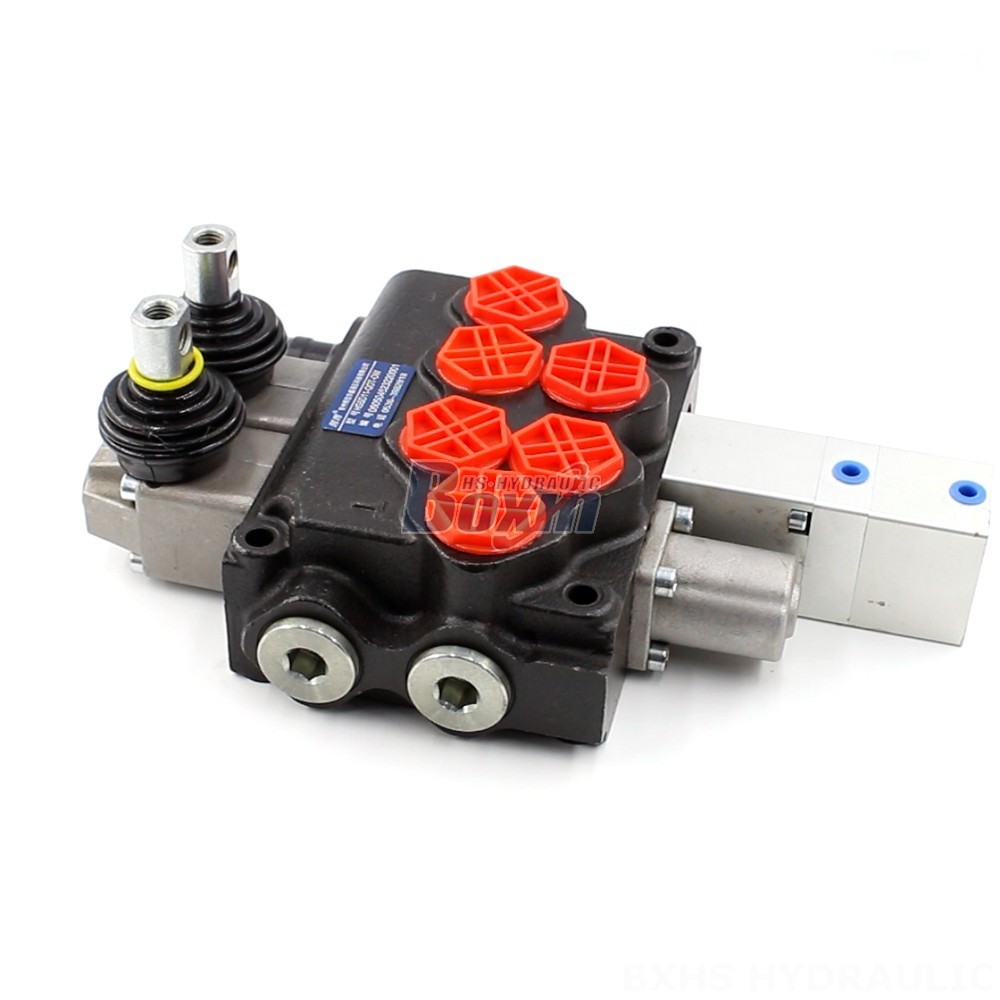

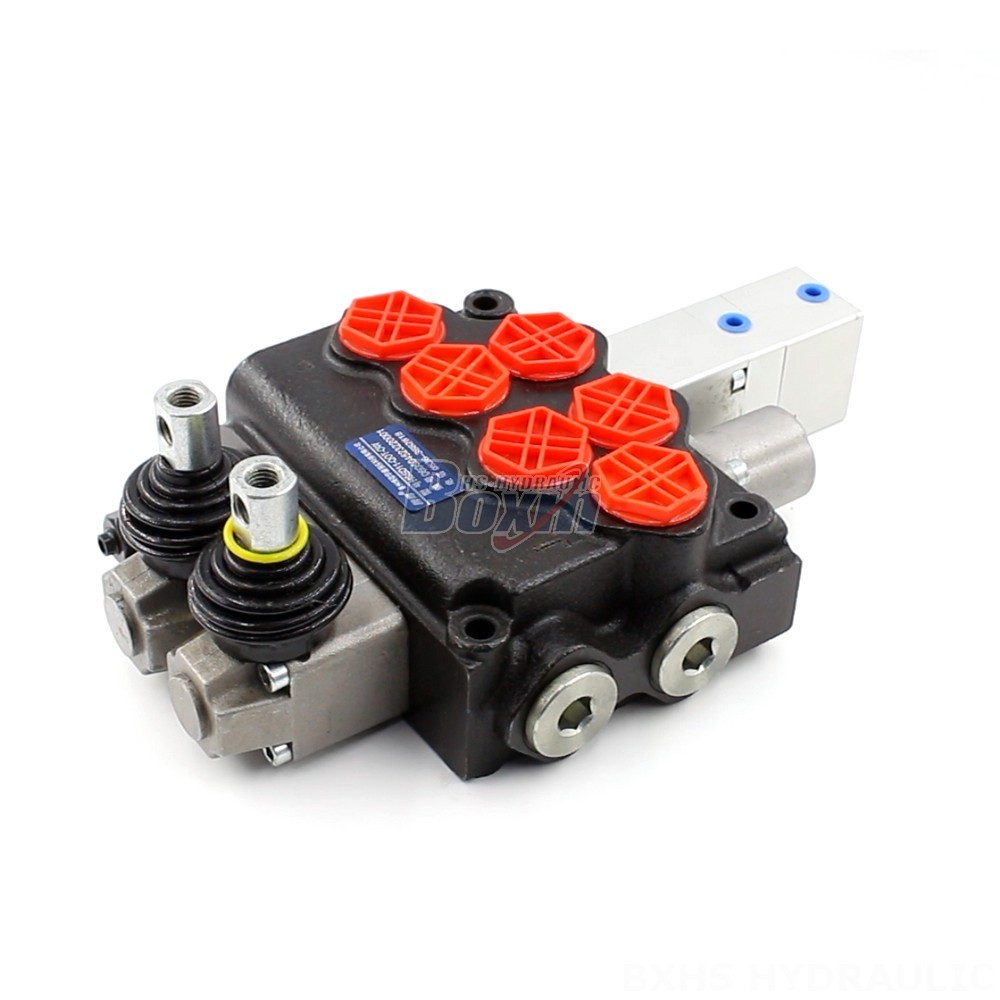

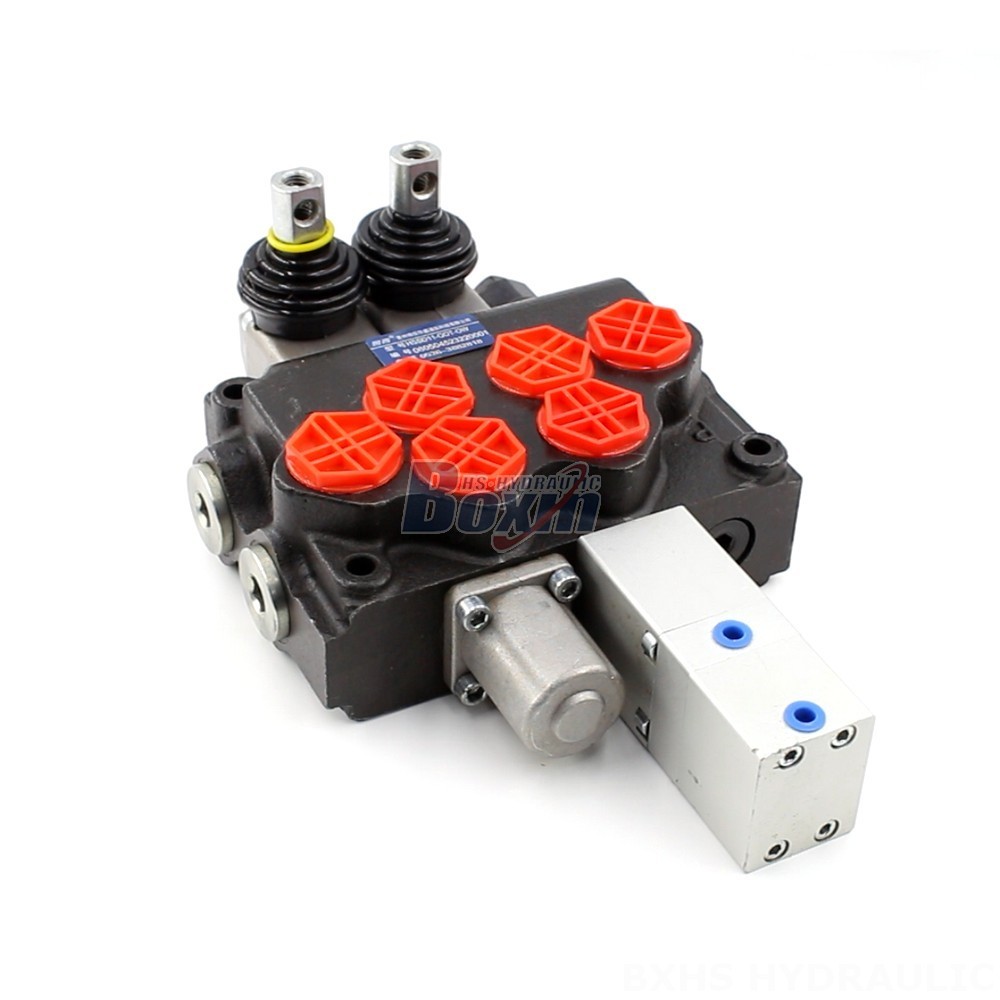

Introducing the SD11 Valve, a high-performance hydraulic valve from our manufacturing facility. This valve is designed for global distribution, wholesale, and customized applications, and it meets the highest standards of quality and reliability. With a rated flow of 70 L/min (18.5 US gpm) and a maximum pressure of 250 bar (3600 psi), the SD11 is suitable for a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série SD11 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Électrique, Pneumatique et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 70 L/min (18,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi), 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4, SAE 12 |
| Orifice de sortie | G3/4, SAE 12 |
| Dimension du raccord | G3/4, SAE 12 |
The SD11 Valve features a manual control method and a monoblock valve structure. It operates in an ambient temperature range of -40°C to +60°C (-40°F to +140°F) and has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The valve comes with 1 spool and is part of the SD11 Series. It is applicable to various models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dump trucks, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers, stone cutters, screeners, and tractors with front-end loaders.
