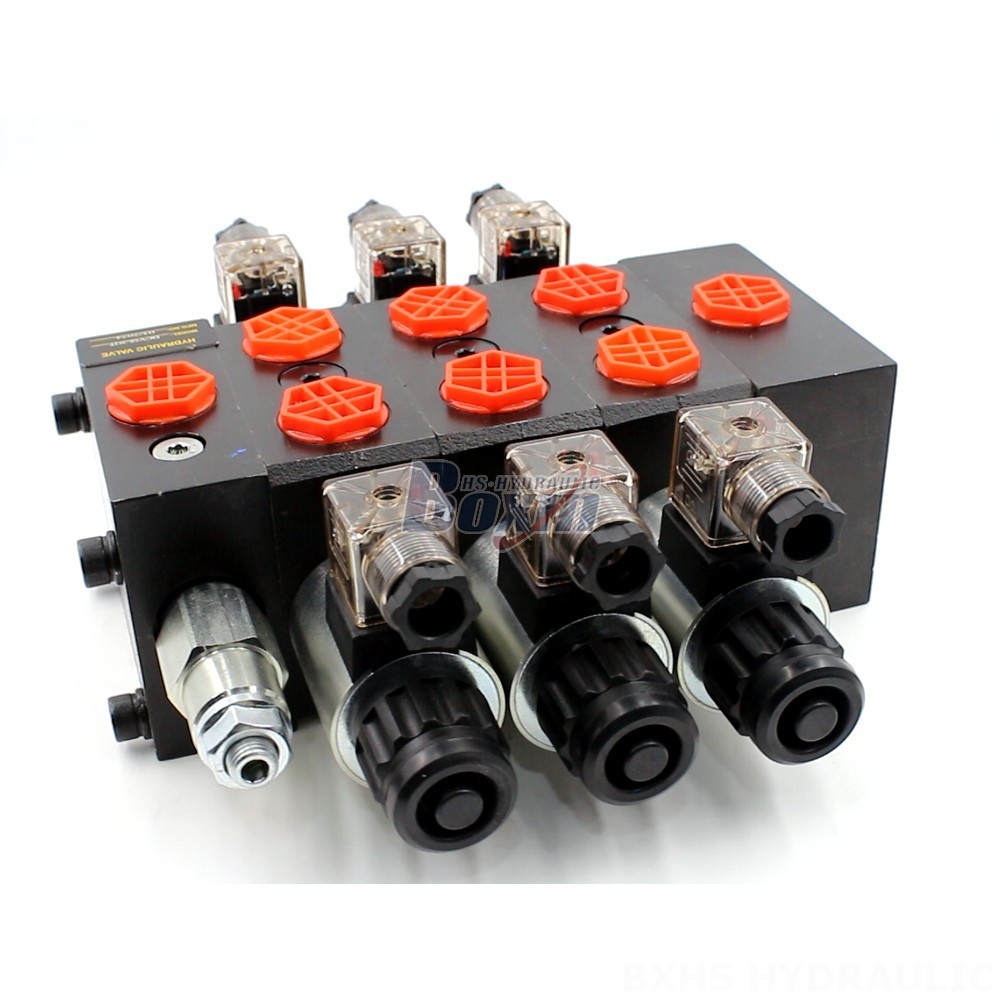

The DCV58 Series tractor hydraulic lever valve is a high-performance solenoid valve designed for demanding applications in construction, agriculture, material handling, and industrial vehicles. This 3-section, 60 L/min valve offers exceptional efficiency and versatility, with a maximum pressure rating of 350 bar.
| Série DCV58 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |
This DCV58 Series tractor hydraulic lever valve is a 3-section, solenoid-controlled sectional valve, offering exceptional efficiency and versatility for a wide range of applications. With a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is designed to handle demanding hydraulic systems. Its robust construction and operating temperature range of -40°C to +80°C (-40°F to +176°F) ensure reliable operation in challenging environments. The valve is particularly suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
