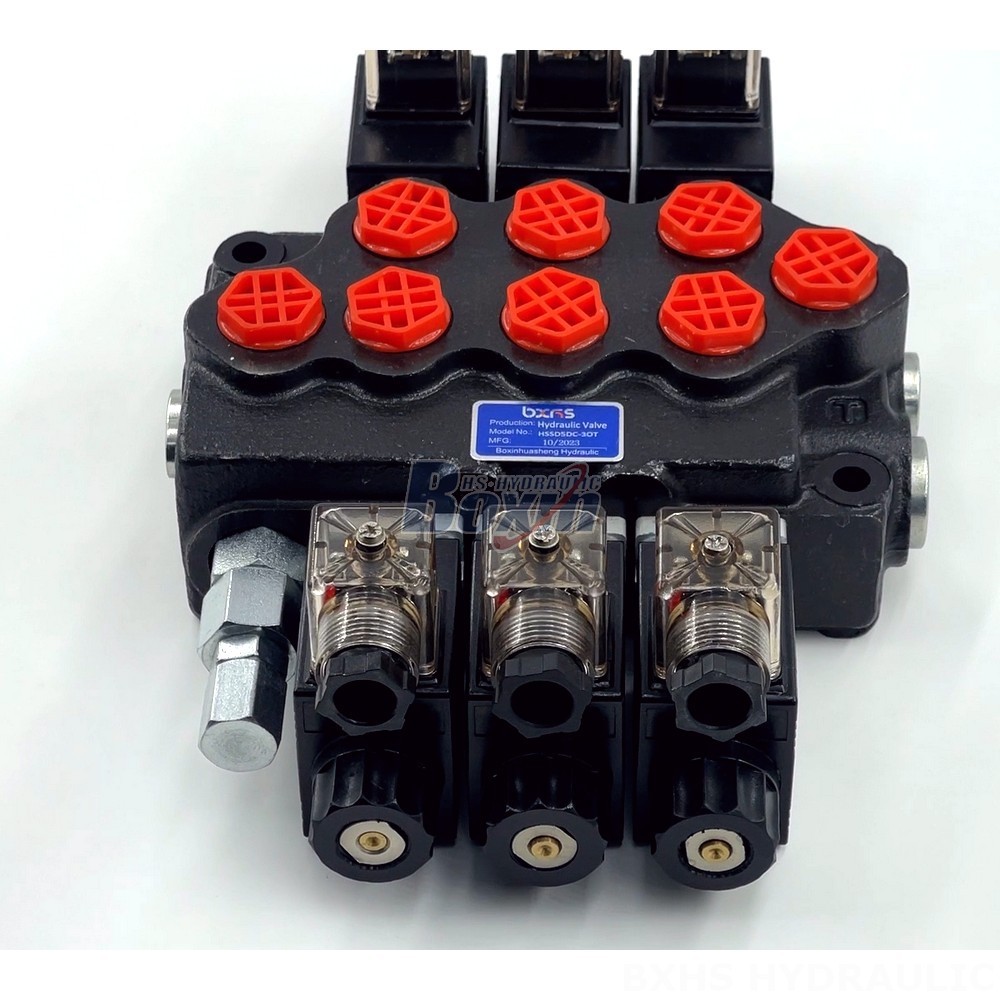

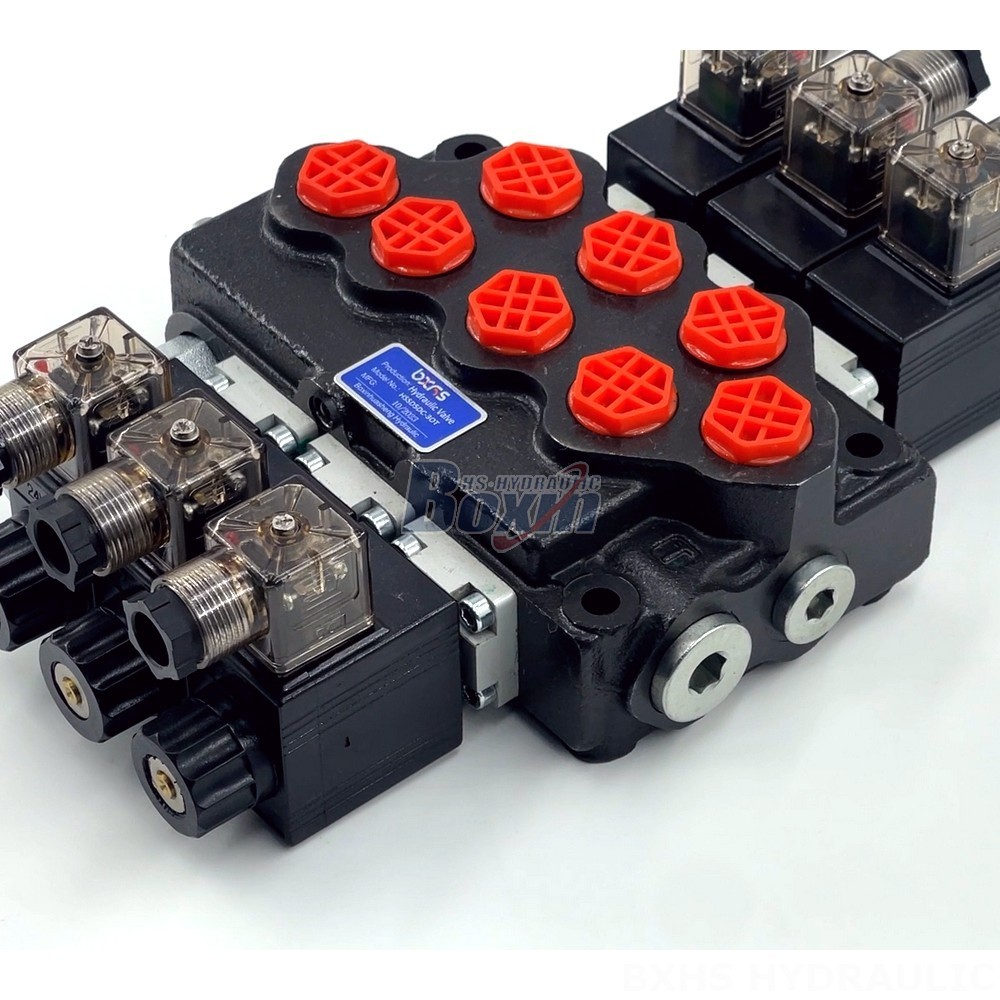

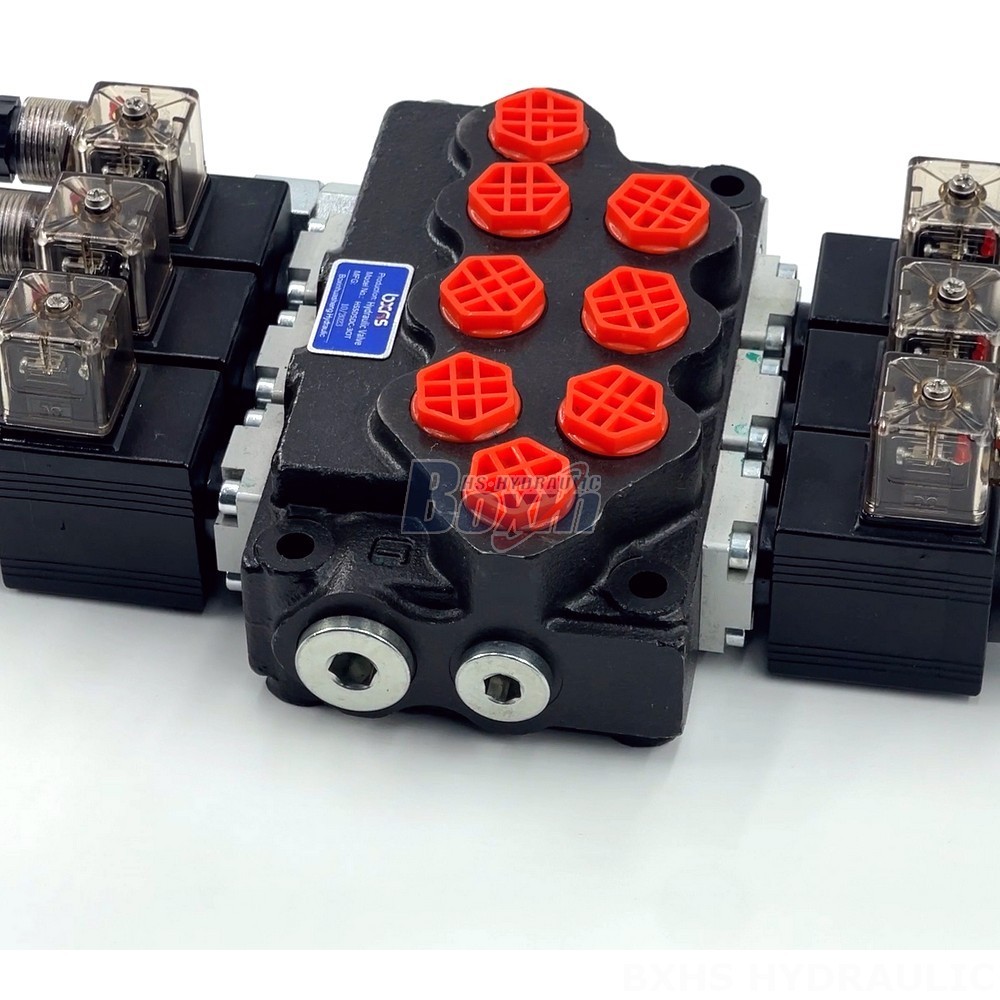

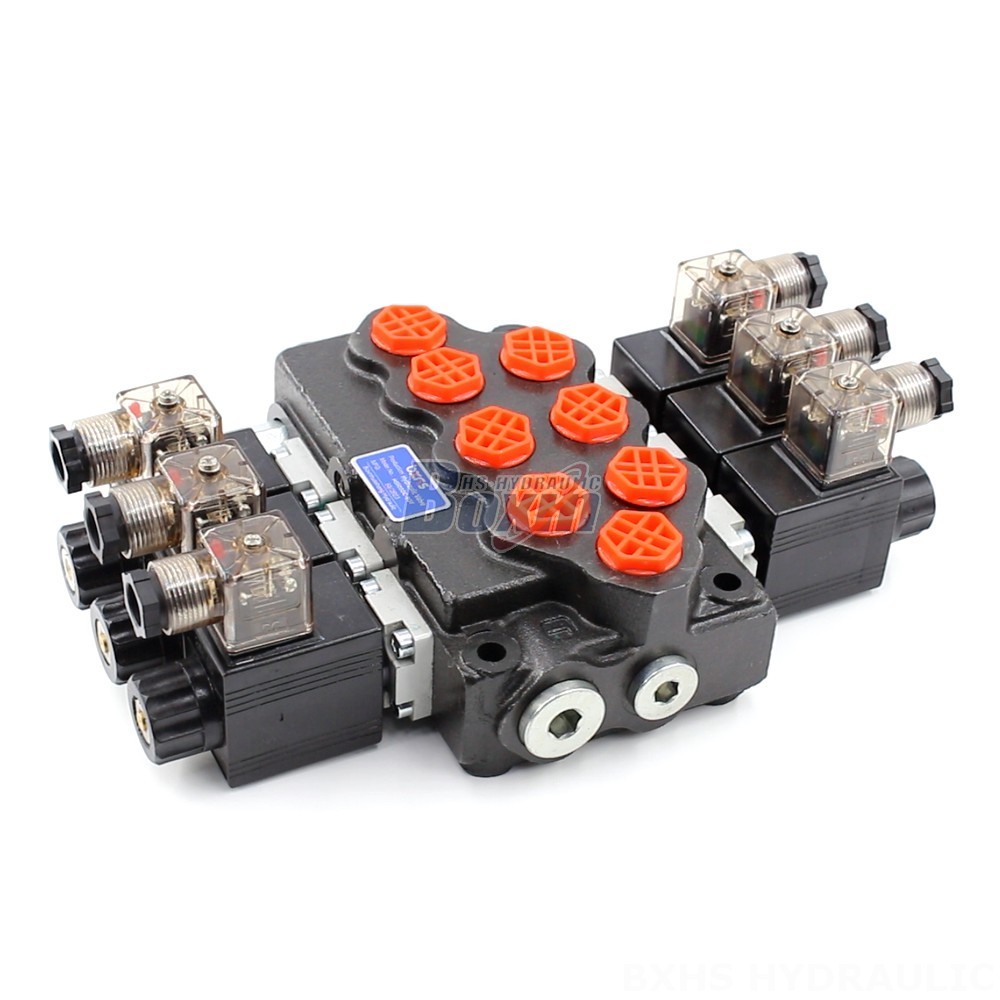

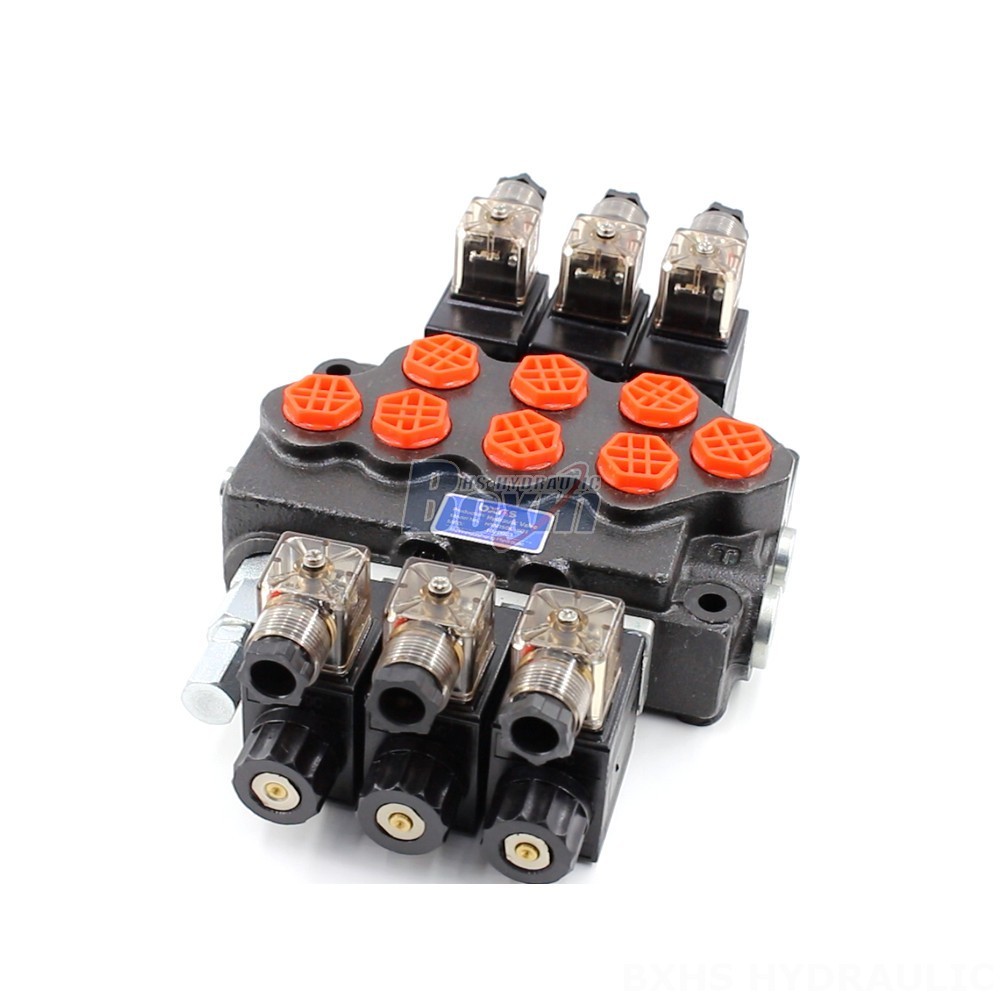

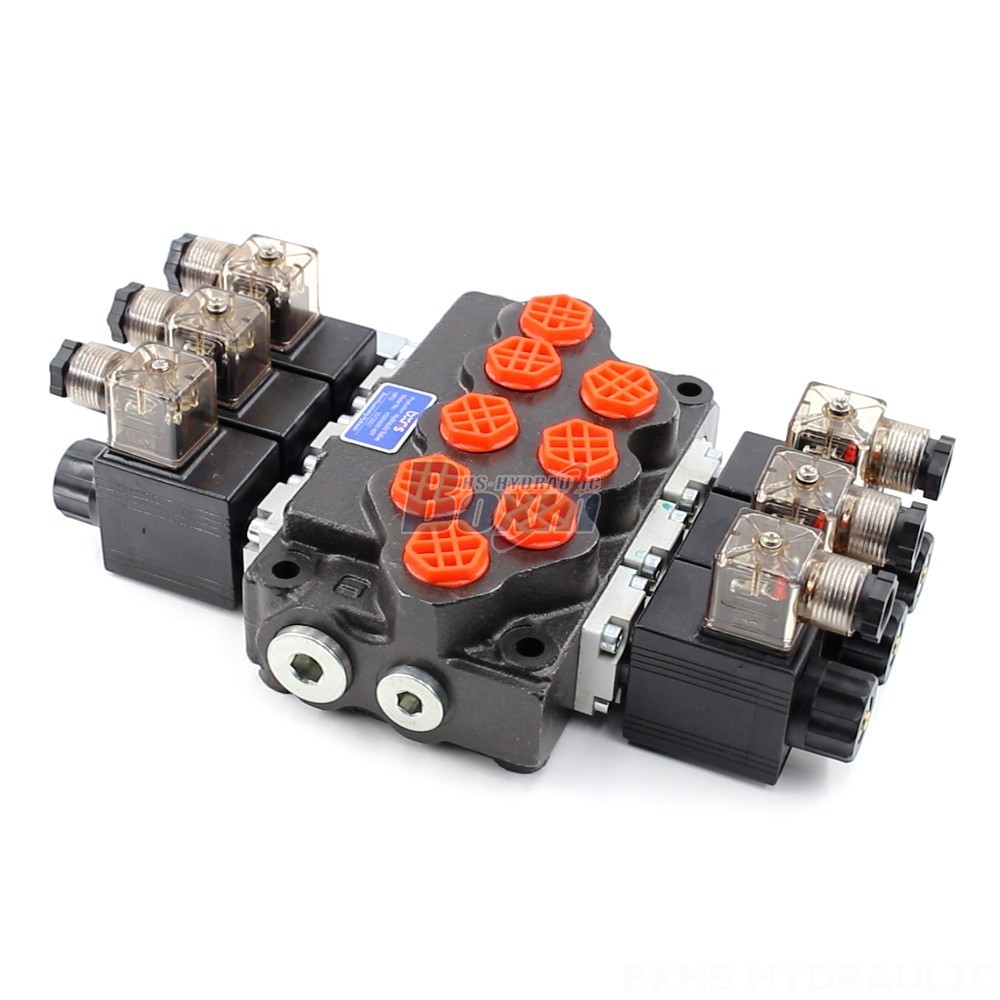

The SD5 Series Monoblock Valve is a solenoid operated hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. It features a compact design, high flow rate, and robust construction, making it ideal for demanding environments.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Monoblock Valve is a 3-section, 3-spool valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. It is designed for use with hydraulic fluids with a viscosity range of 15-75 mm²/s and can operate in ambient temperatures ranging from -40°C to +60°C. This valve is suitable for applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The SD5 Series Monoblock Valve is a reliable and durable solution for your hydraulic system needs.
