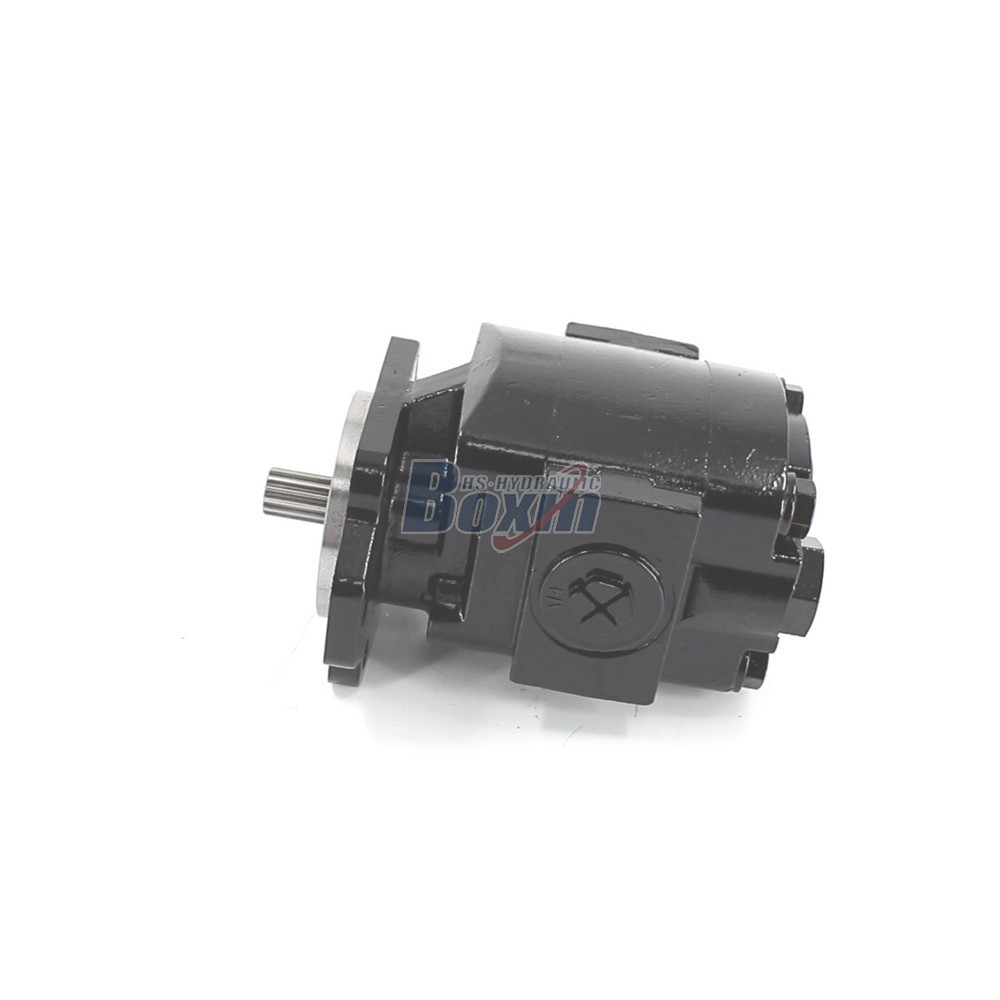

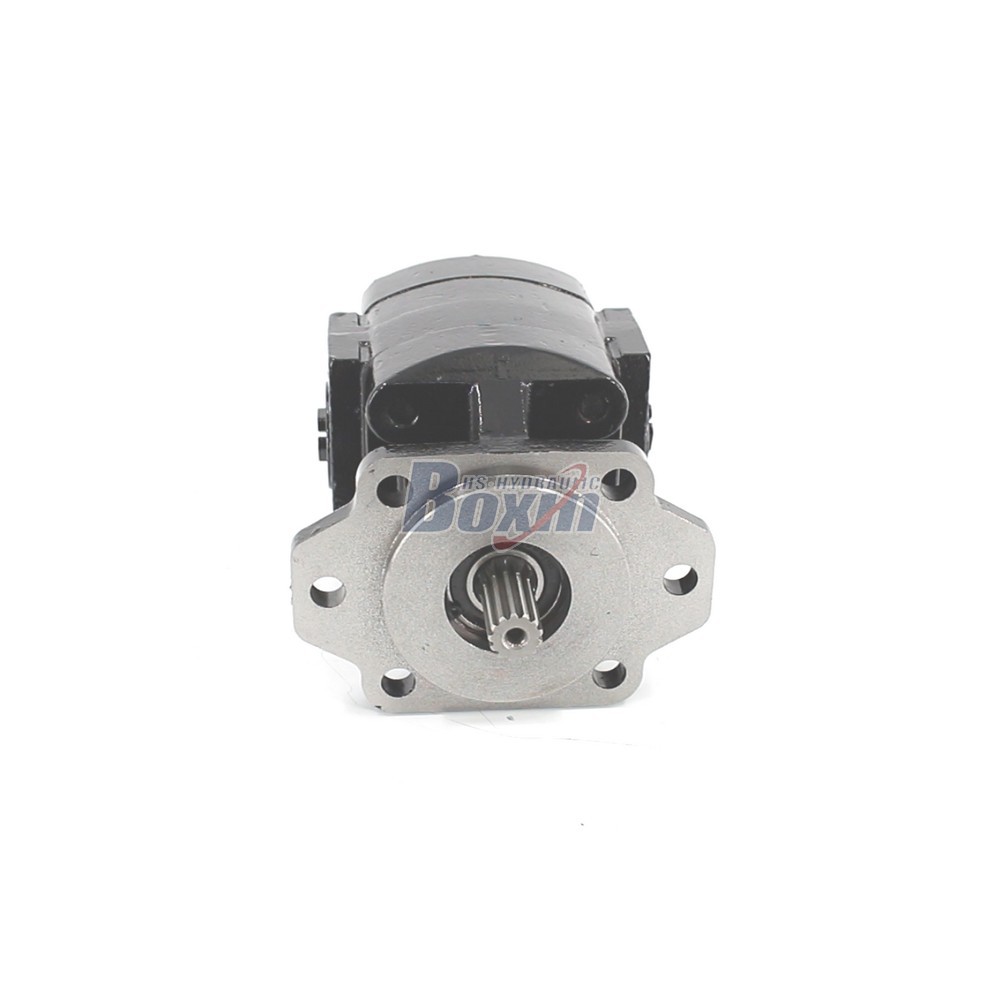

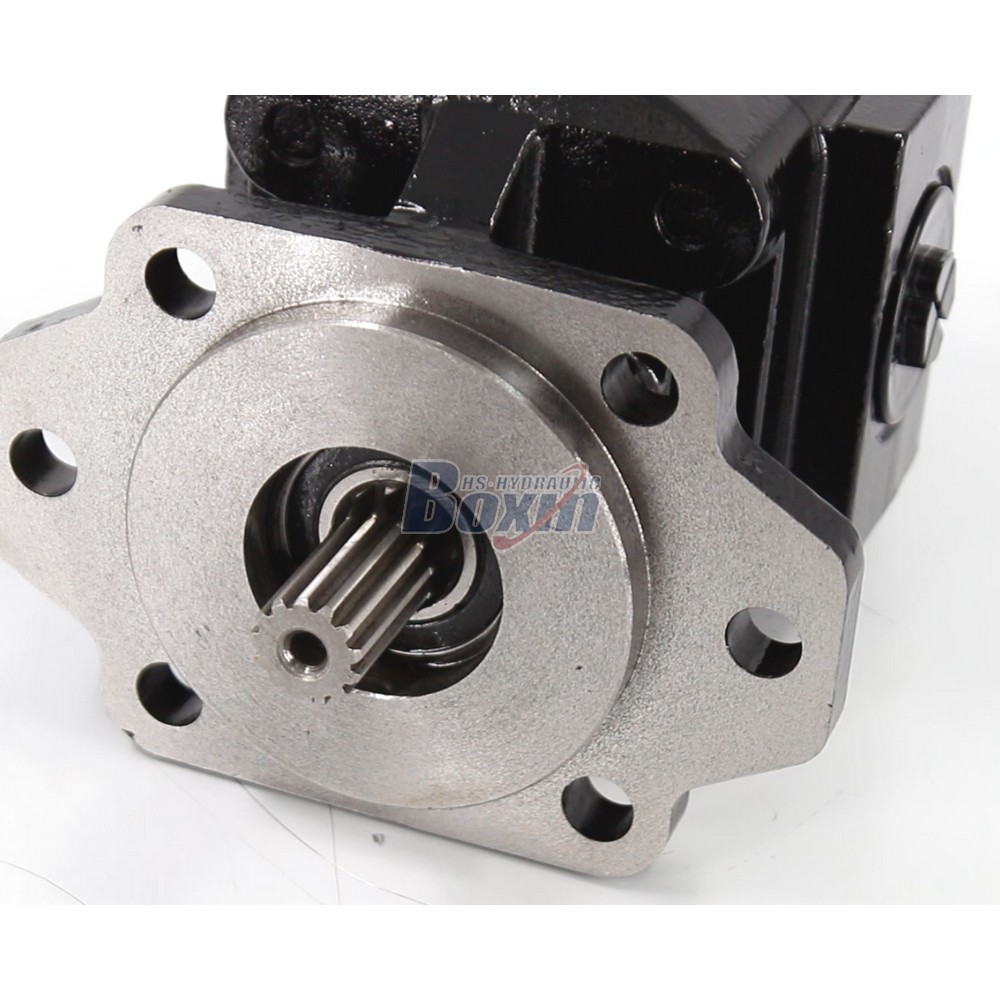

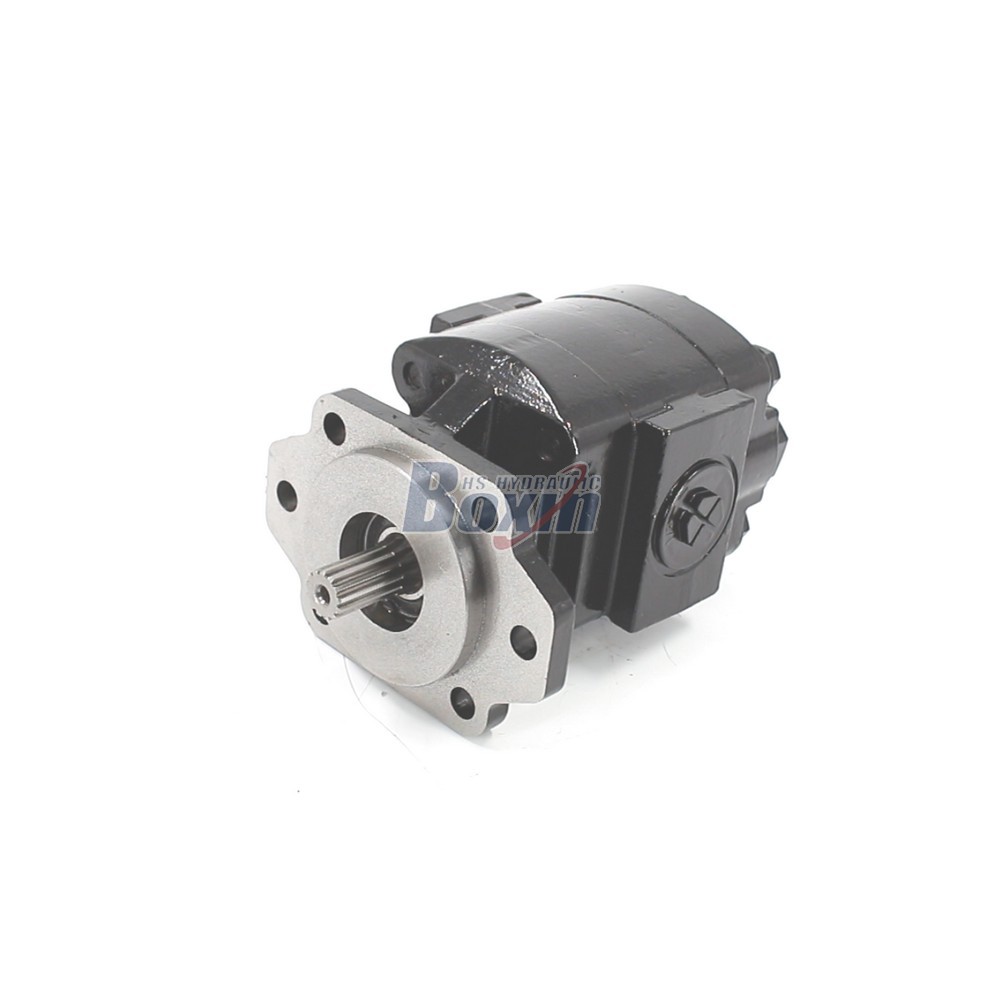

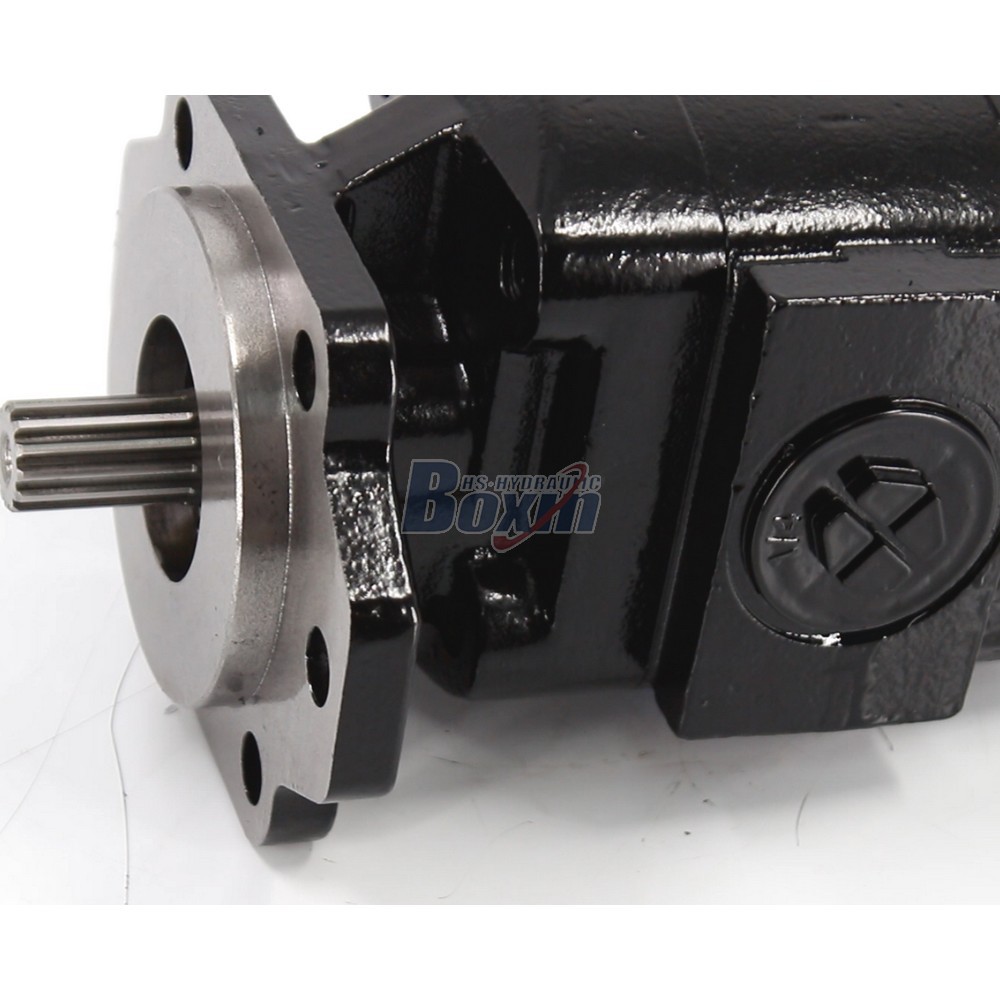

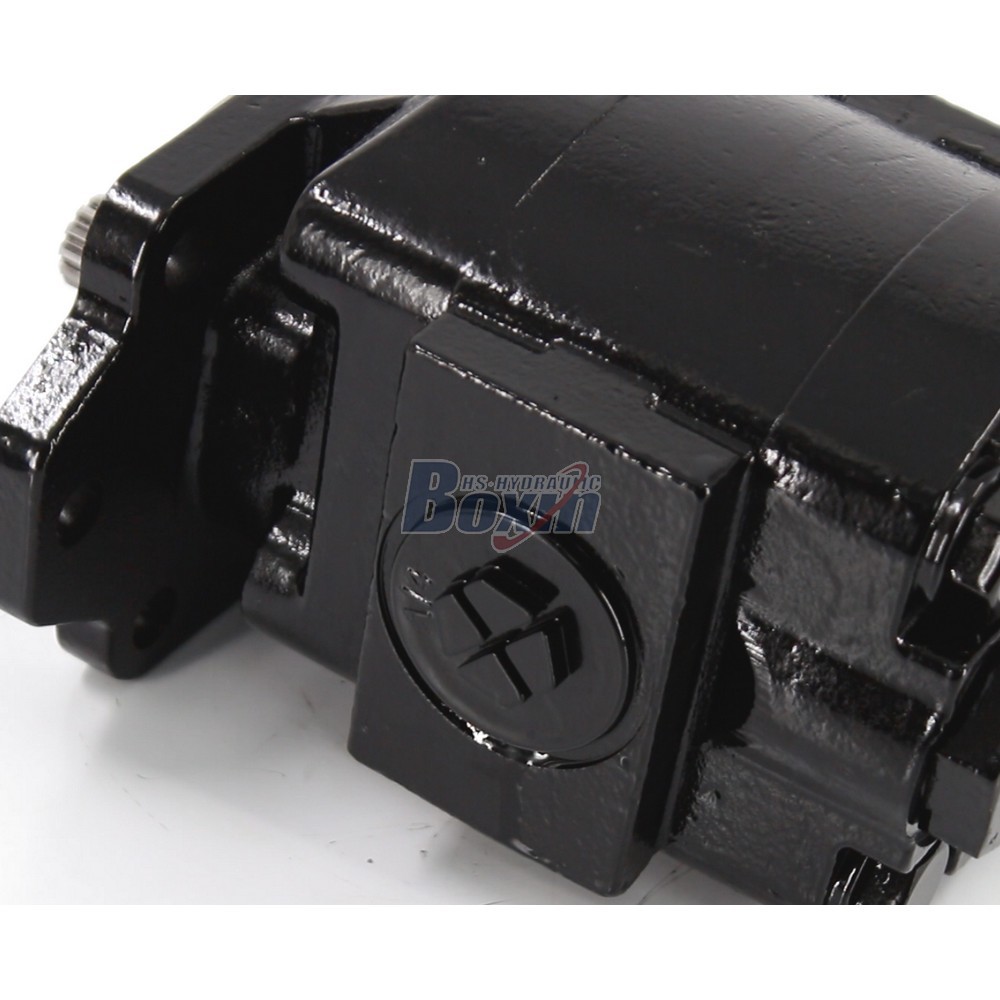

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Cylindrée:64,6 cm³/tr

Pression nominale:16 MPa (2320 psi)

Pression maximale:17 MPa (2465 psi)

Vitesse maximale:2 400 tr/min

Rotation:/: (Bidirectionnel)

Marque:BXHS

Type de produit:Pompe hydraulique à engrenages

Série de produits:Série P21 Pompe hydraulique à engrenages

Taille de l'emballage:45*25*18

Poids brut:16.00 kg

Disponibilité: En stock

168 personnes consultent ce produit

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump drawing image

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for wheel loaders and excavators. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.

Série P21 Pompe hydraulique à engrenages Paramètres
Cylindrée 64,6 cm³/tr
Pression nominale 16 MPa (2320 psi)
Pression maximale 17 MPa (2465 psi)
Vitesse nominale 600 tr/min
Vitesse maximale 2 400 tr/min
Rotation /: (Bidirectionnel)
Matériau Fonte
Structure Pompe à engrenages externes
Version de la bride A - Bride ovale, B - Bride carrée, Trous de montage ISO-4, Trous de montage UNI-3, Bride SAE
Type d'arbre X : Cannelures hélicoïdales

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa.
- Supports bidirectional rotation at speeds up to 2400 r/min, ensuring versatile integration into complex hydraulic systems.

**2. Professional Manufacturer with IATF 16949 Certification**
- Backed by 25+ years of expertise, 4 modern factories, and 260+ CNC machining centers for consistent quality.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, guaranteed by CE and SGS certifications.

**3. Versatile P21 Series Gear Pump Applications**
- Specifically engineered for heavy-duty equipment including wheel loaders, backhoes, skid steers, and forklifts.
- Perfectly compatible with major international brands, offering a cost-effective replacement solution for OEMs and distributors.

**4. OEM/ODM Available for Custom Branding**
- Supported by 35+ senior engineers, we offer tailored solutions including custom castings, logos, and private label services.
- Flexible manufacturing allows for specific port configurations and mounting flanges to meet unique project requirements.

**5. Factory Direct Sales with Global Logistics**
- Benefit from wholesale direct sales pricing with an annual production capacity of 1,500,000 units for fast lead times.
- Products are secured with anti-rust treatment and heavy-duty wooden crate packaging, ensuring safe worldwide delivery.
