Sectional Type SD8 Manual 4 Spool Directional Valve

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:90 L/min (23,8 US gpm)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G1/2

Orifice de sortie:G3/4

Dimension du raccord:G1/2

Marque:BXHS

Type de produit:Distributeur directionnel sectionnel

Série de produits:Série SD8 Distributeur directionnel sectionnel

Taille de l'emballage:32*36*16

Poids brut:18.00 kg

Disponibilité: En stock

111 personnes consultent ce produit

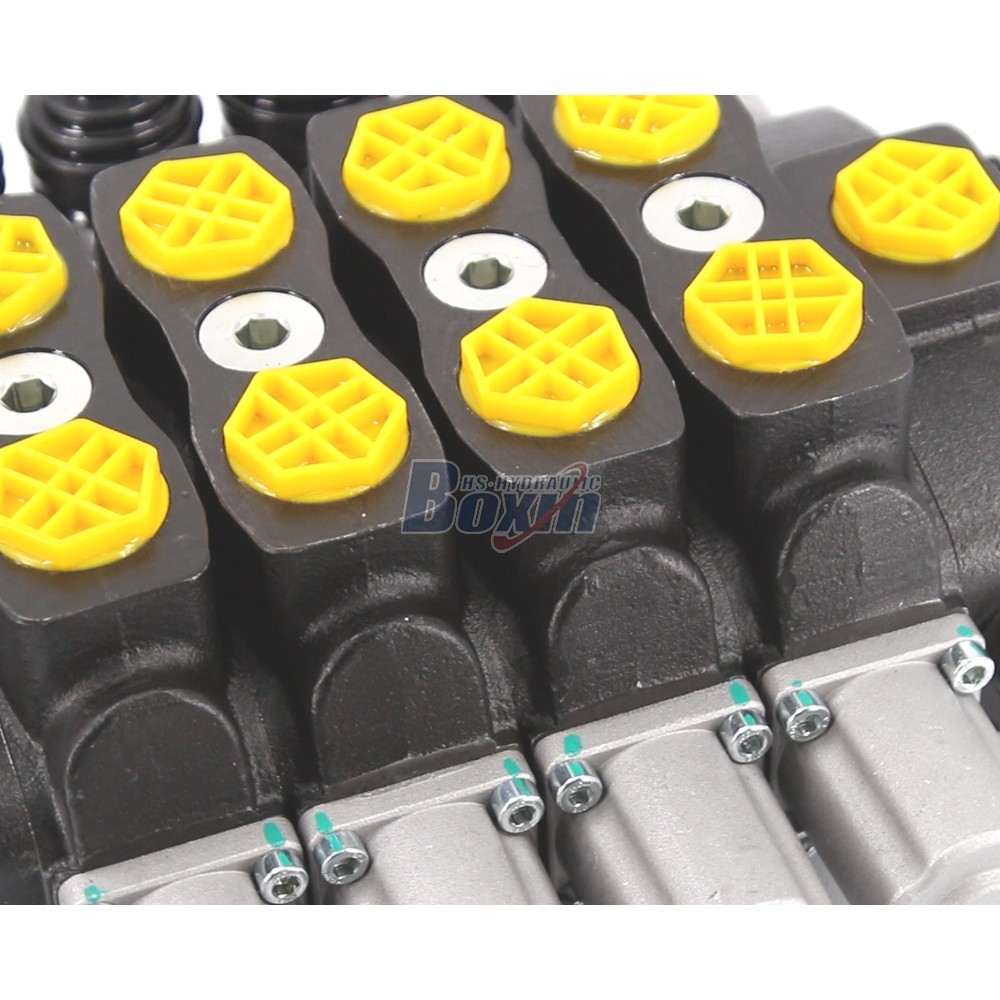

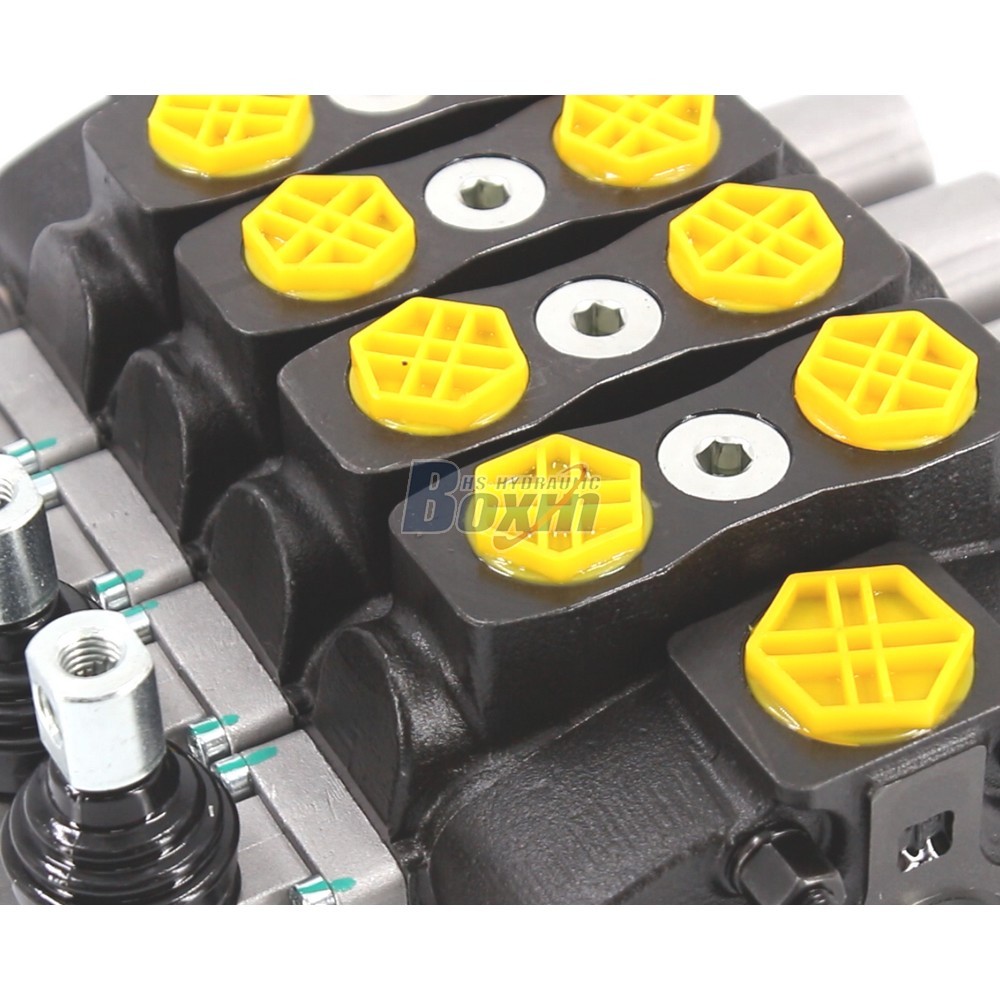

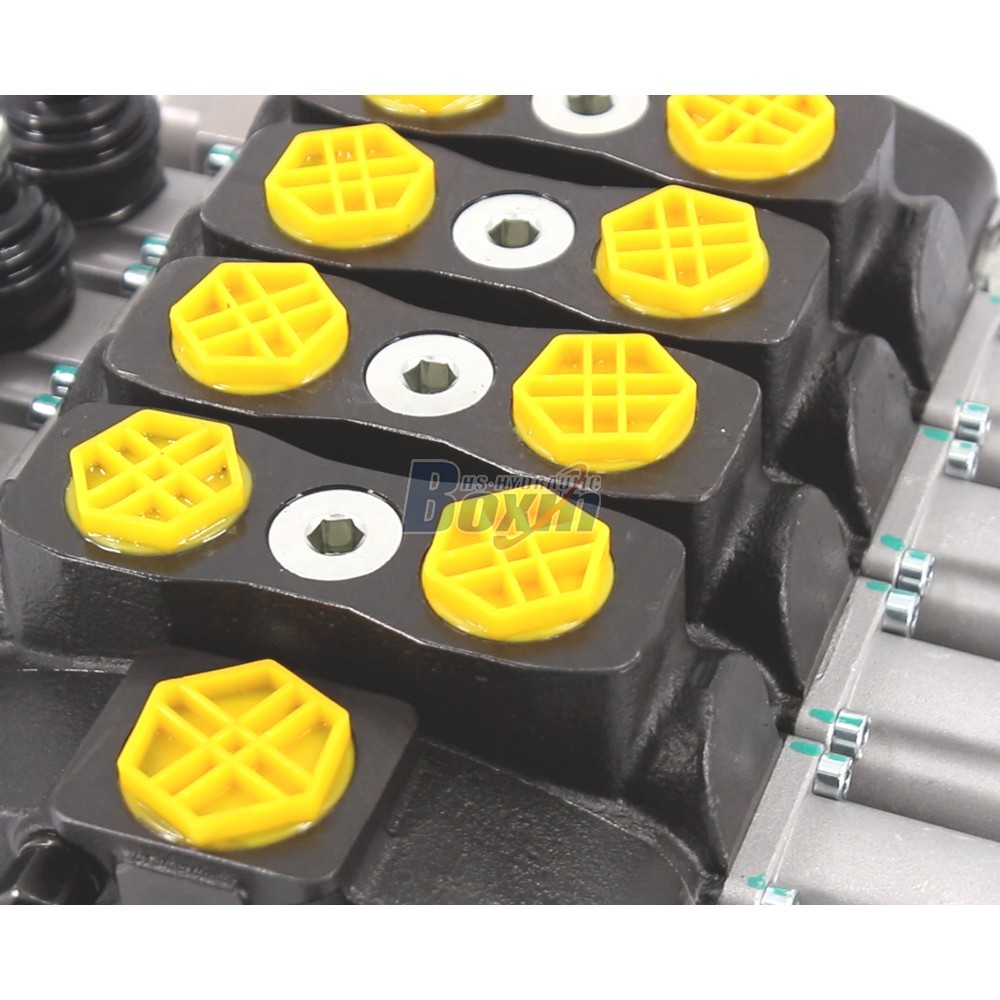

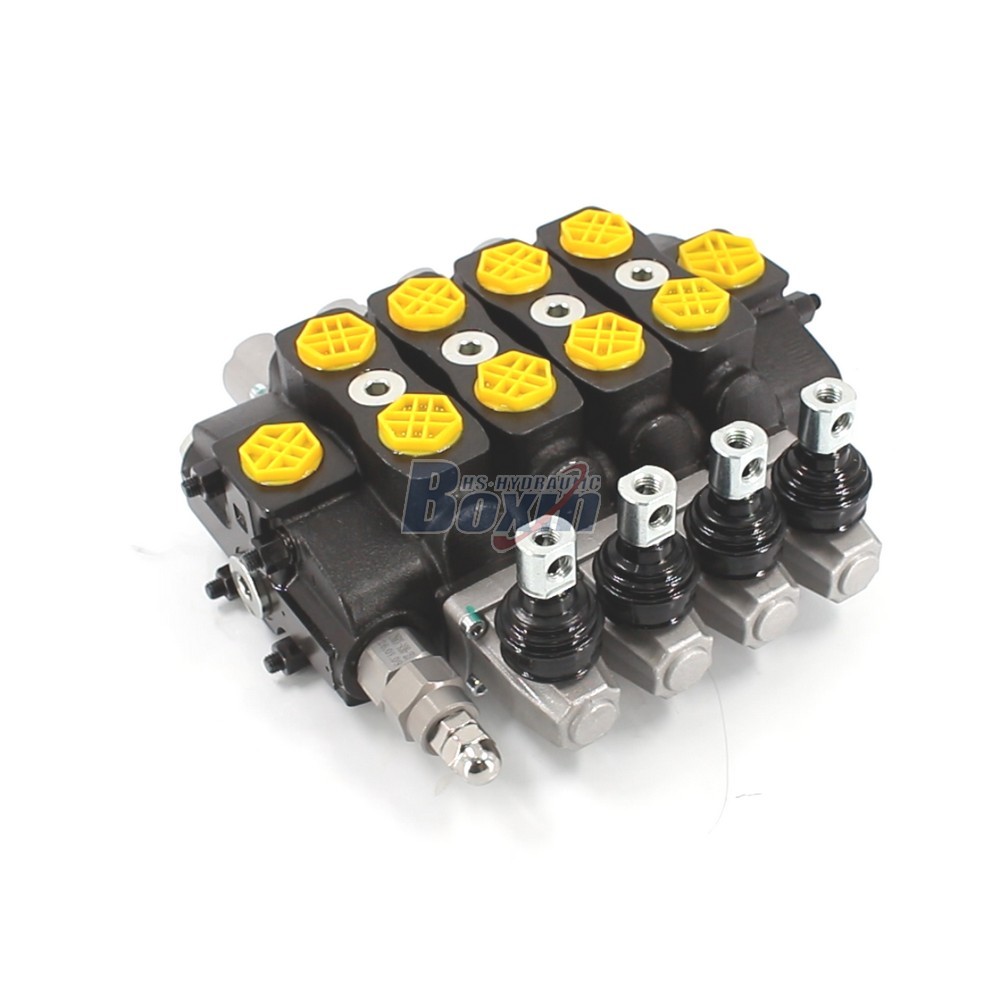

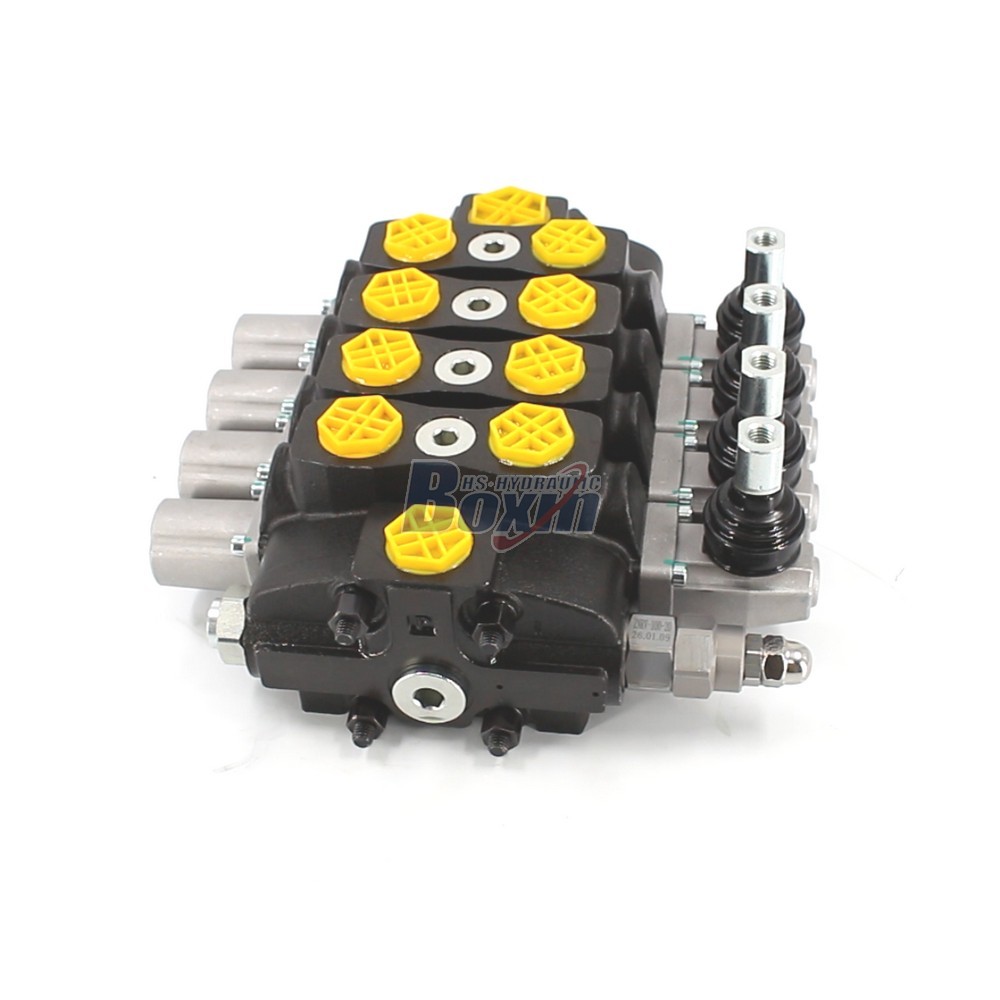

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve drawing image

The SD8 Series 4-spool manual sectional directional valve is a high-performance hydraulic solution designed for flow rates up to 80 L/min and pressures up to 315 bar. This versatile valve offers precise manual control for a wide range of mobile and industrial applications, including construction, agriculture, and material handling equipment.

Série SD8 Distributeur directionnel sectionnel Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur à clapets
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections
Plage de viscosité de fonctionnement 12 - 400 mm²/s (12 cSt à 400 cSt)
Débit nominal 90 L/min (23,8 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, SAE 10
Orifice de sortie G1/2, G3/4, SAE 10, 3/4 NPT
Dimension du raccord G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we offer the SD8 Series Sectional Type Manual 4 Spool Directional Valve, engineered for demanding environments. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 315 bar (4600 psi), making it ideal for machinery such as forklifts, skid steer loaders, mini-excavators, and tractors. The sectional design provides flexible configuration, while G1/2 inlet and G3/4 outlet ports ensure standard connectivity. We specialize in factory-direct supply, providing extensive OEM, ODM, and custom branding (Private Label) services to meet specific technical requirements. Our facility is equipped for large-scale production, supporting wholesale orders with competitive pricing. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need a reliable supplier for forestry wood splitters or complex aerial platforms, our factory provides the expertise and manufacturing capacity to support your business growth.
