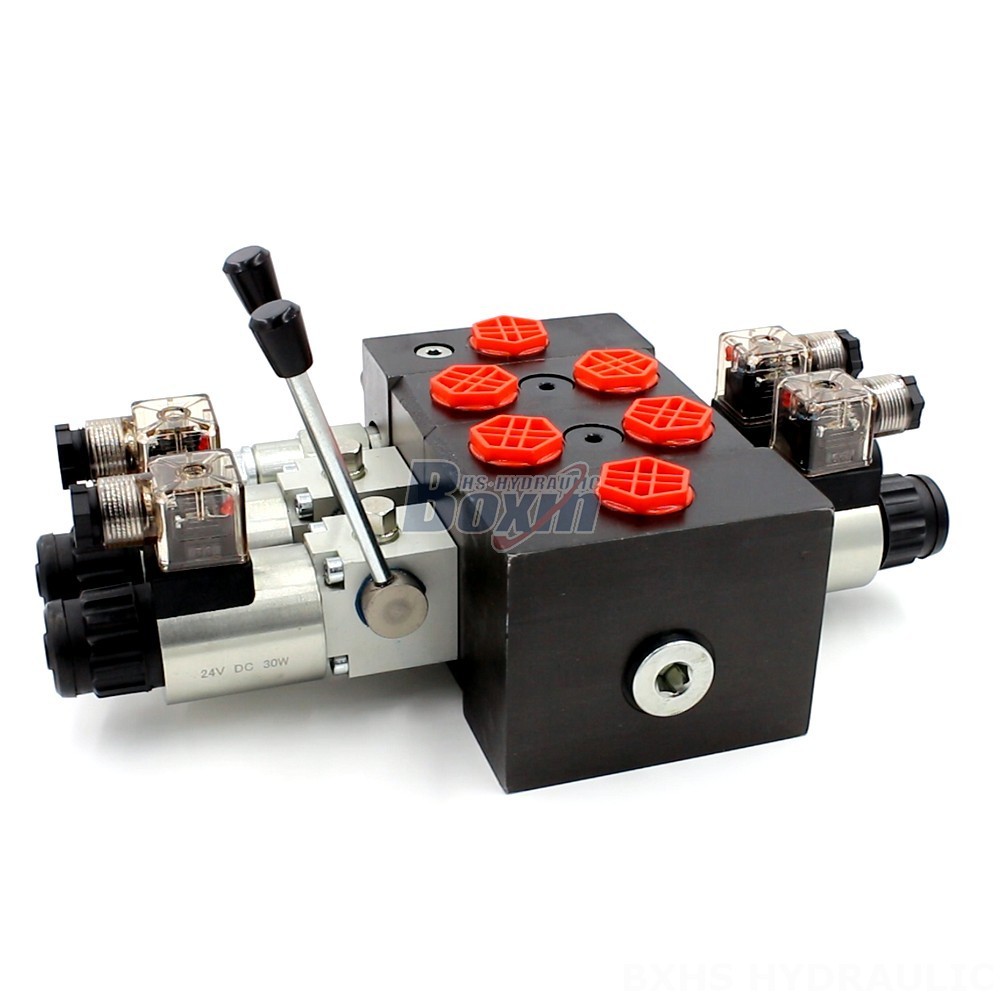

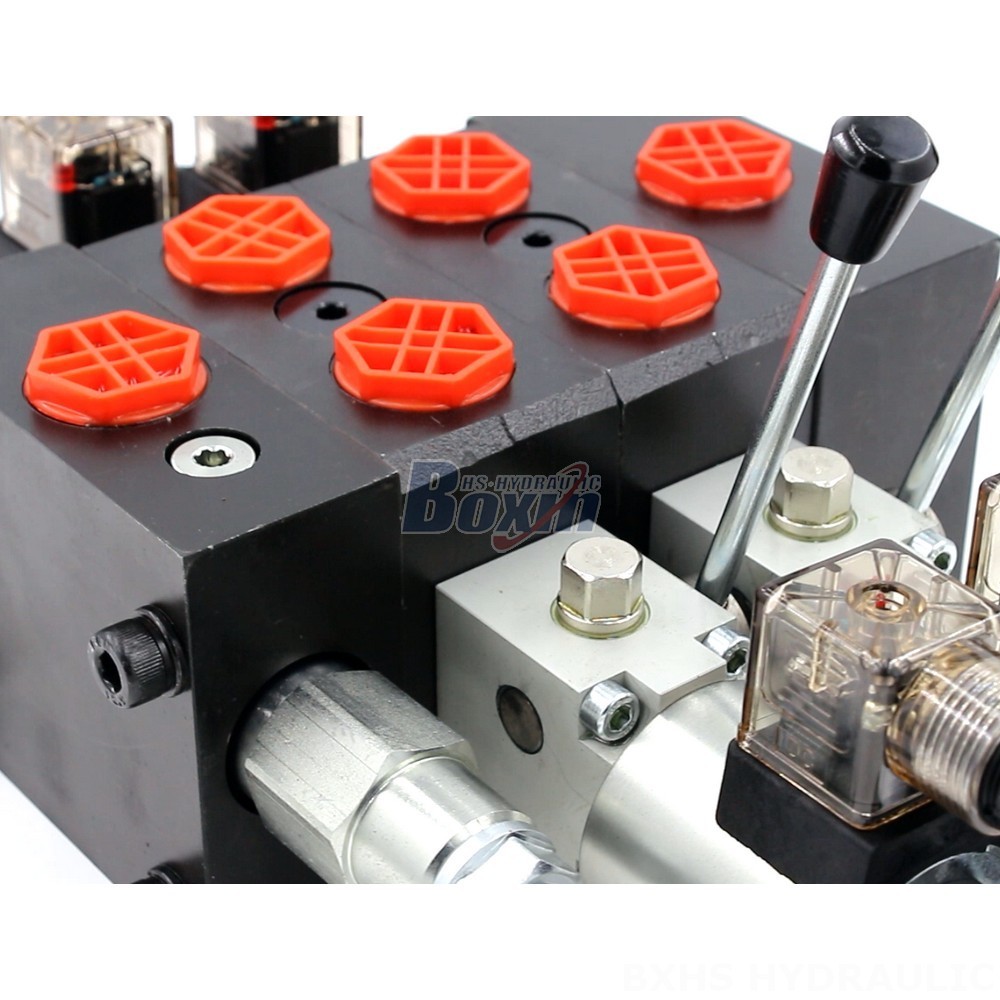

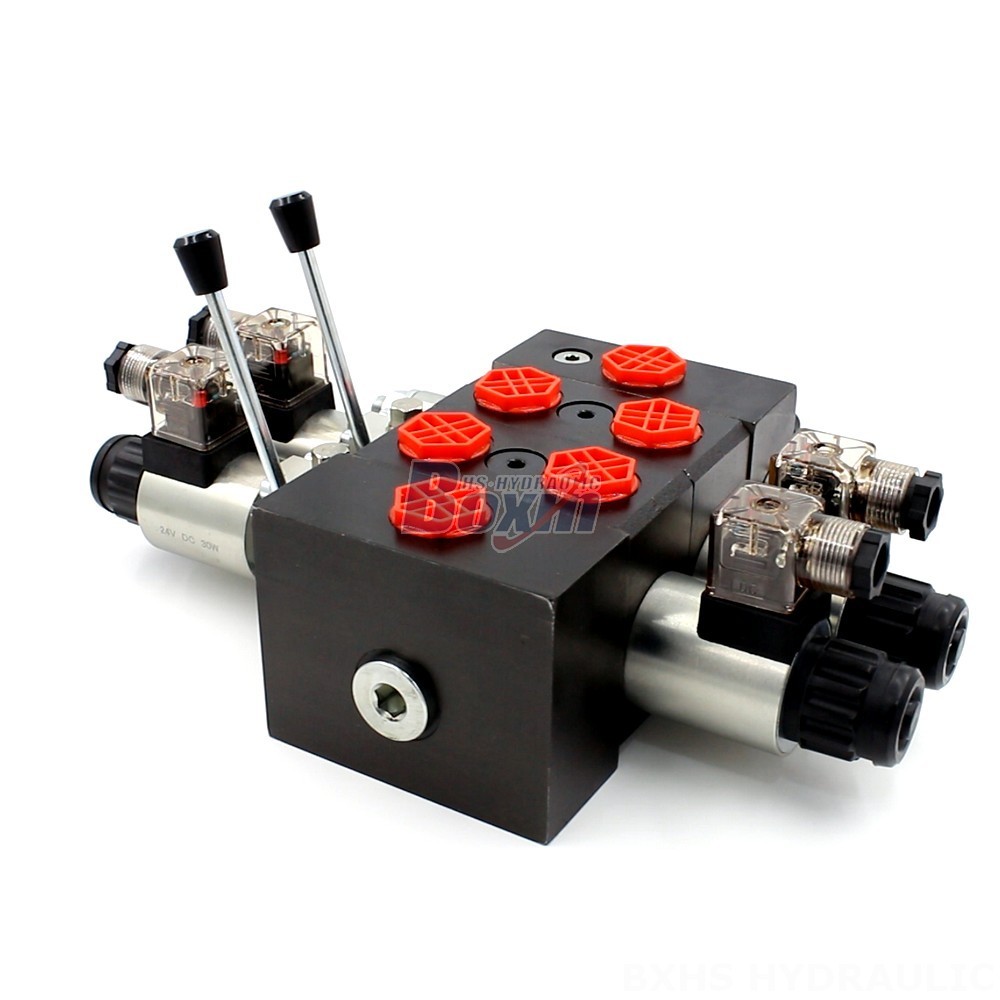

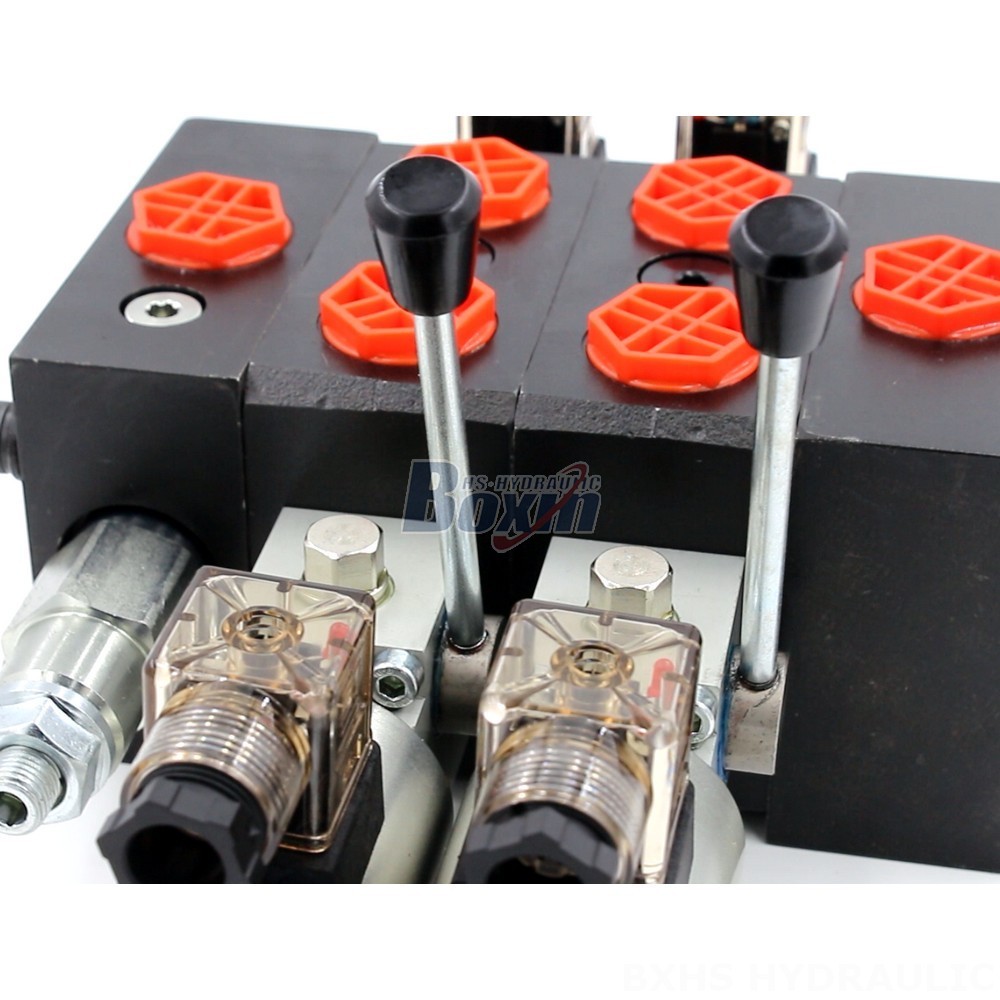

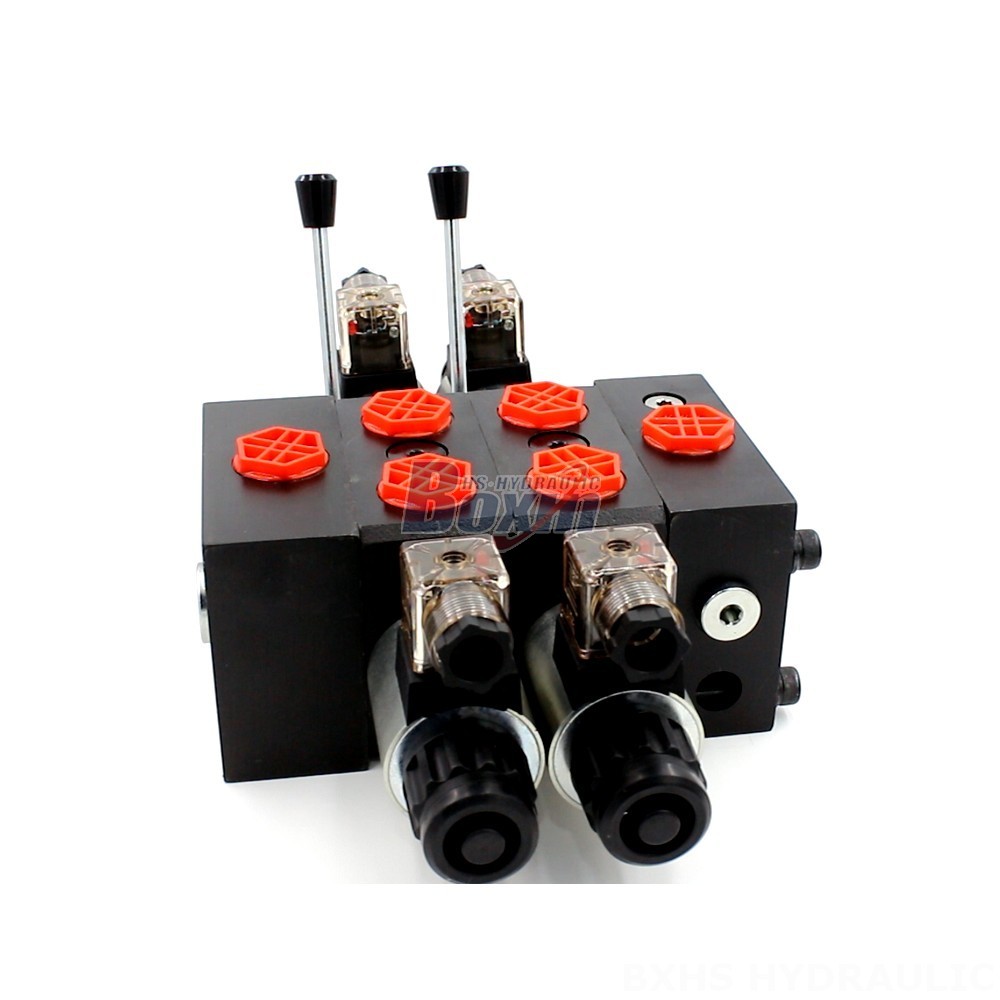

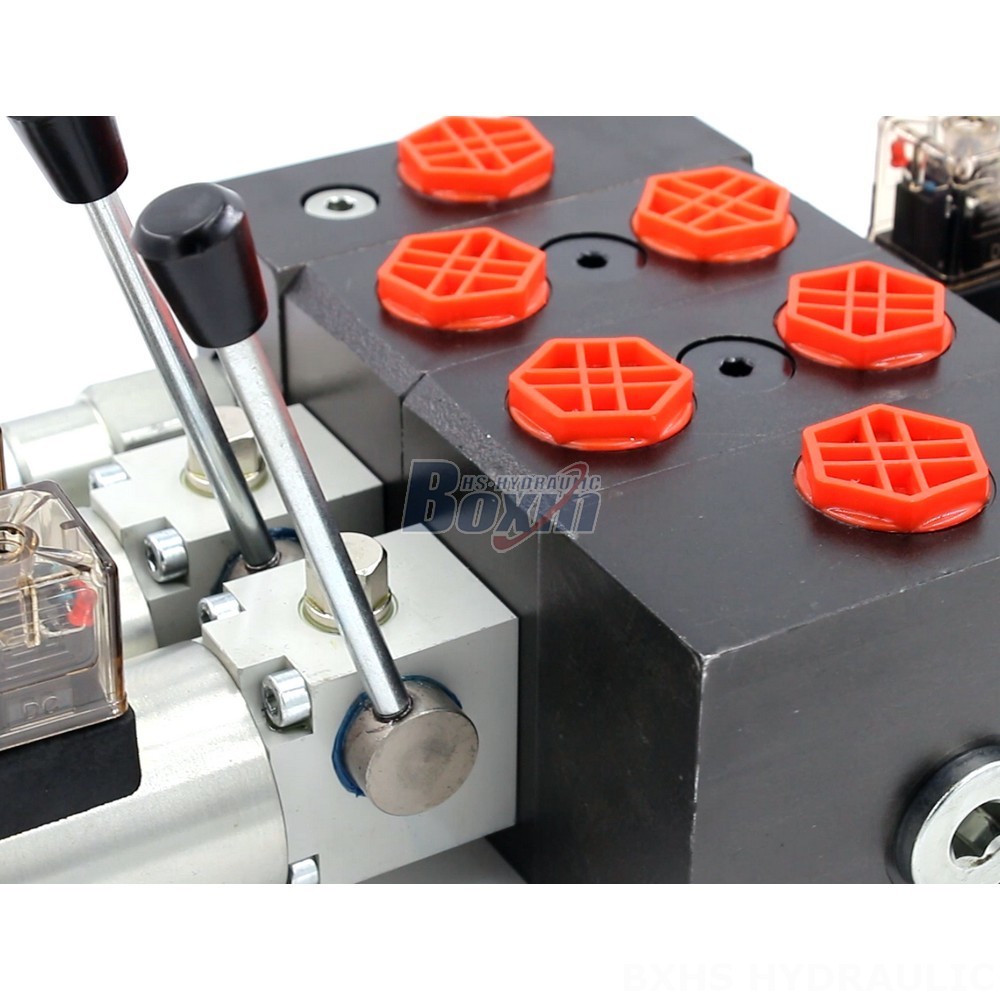

The DCV58 Series Electric Over Hydraulic Valve Block is a high-performance, 2-section sectional hydraulic valve designed for use in a wide range of applications, including material handling, construction, and agriculture. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is ideal for demanding applications. The valve is available for wholesale and OEM orders.
| Série DCV58 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 Series Electric Over Hydraulic Valve Block is a reliable and efficient hydraulic valve that offers a wide range of benefits, including:
* **High Performance:** Rated flow of 60 L/min and a maximum pressure of 350 bar for demanding applications.
* **Versatility:** 2-section design for a variety of hydraulic control functions.
* **Easy Control:** Solenoid control for precise and responsive operation.
* **Durable Construction:** Designed for long life and reliability in harsh environments.
* **Wide Applications:** Suitable for use in material handling, construction, agriculture, and industrial vehicles.
Available for wholesale and OEM orders. Contact us to discuss your specific needs.
