The SD8 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications. It features a compact and lightweight design, making it ideal for use in space-constrained applications. The valve is also highly efficient and reliable, making it a cost-effective solution for demanding applications.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |

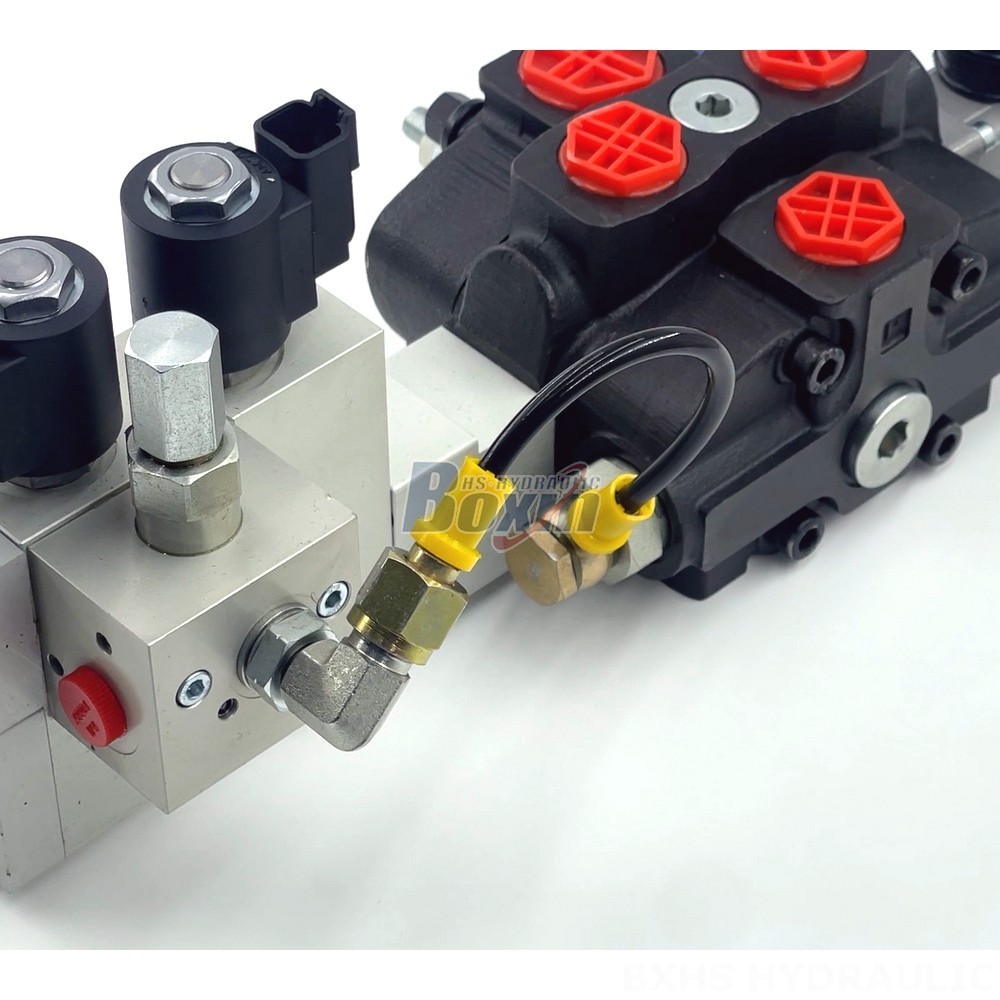

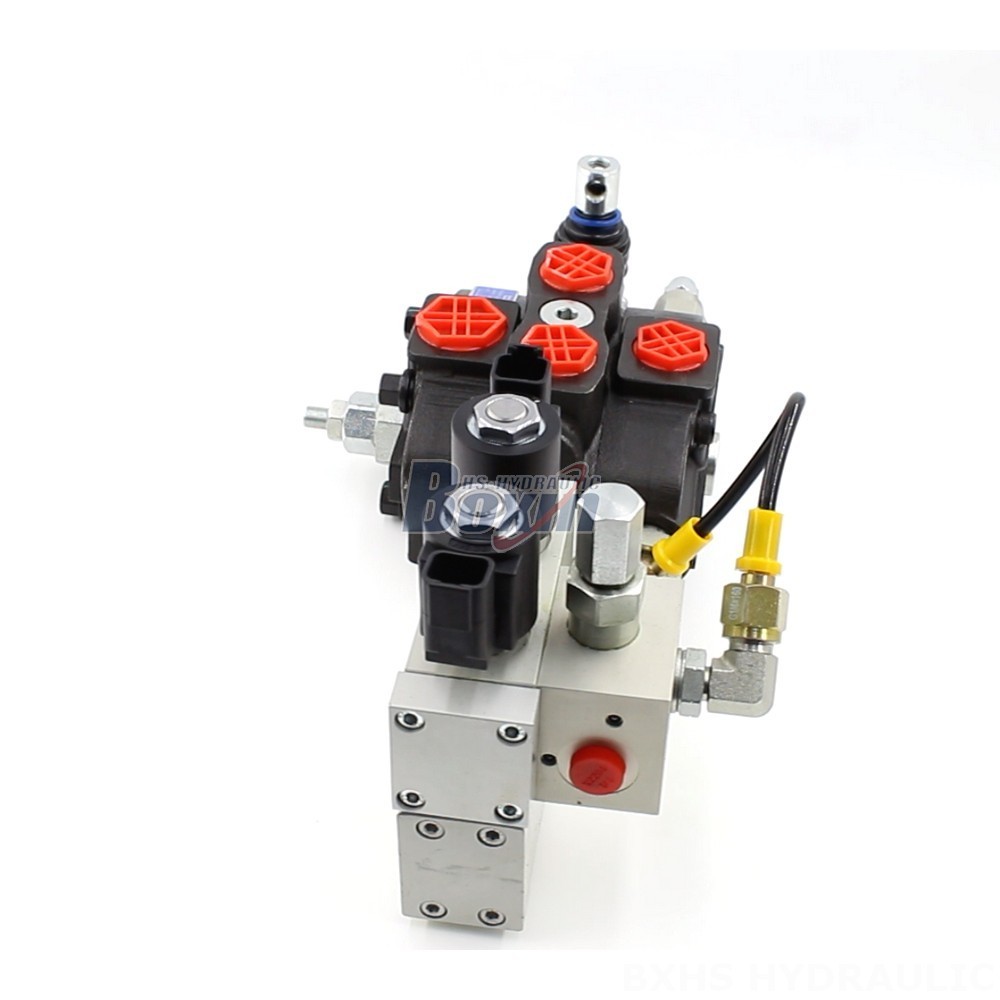

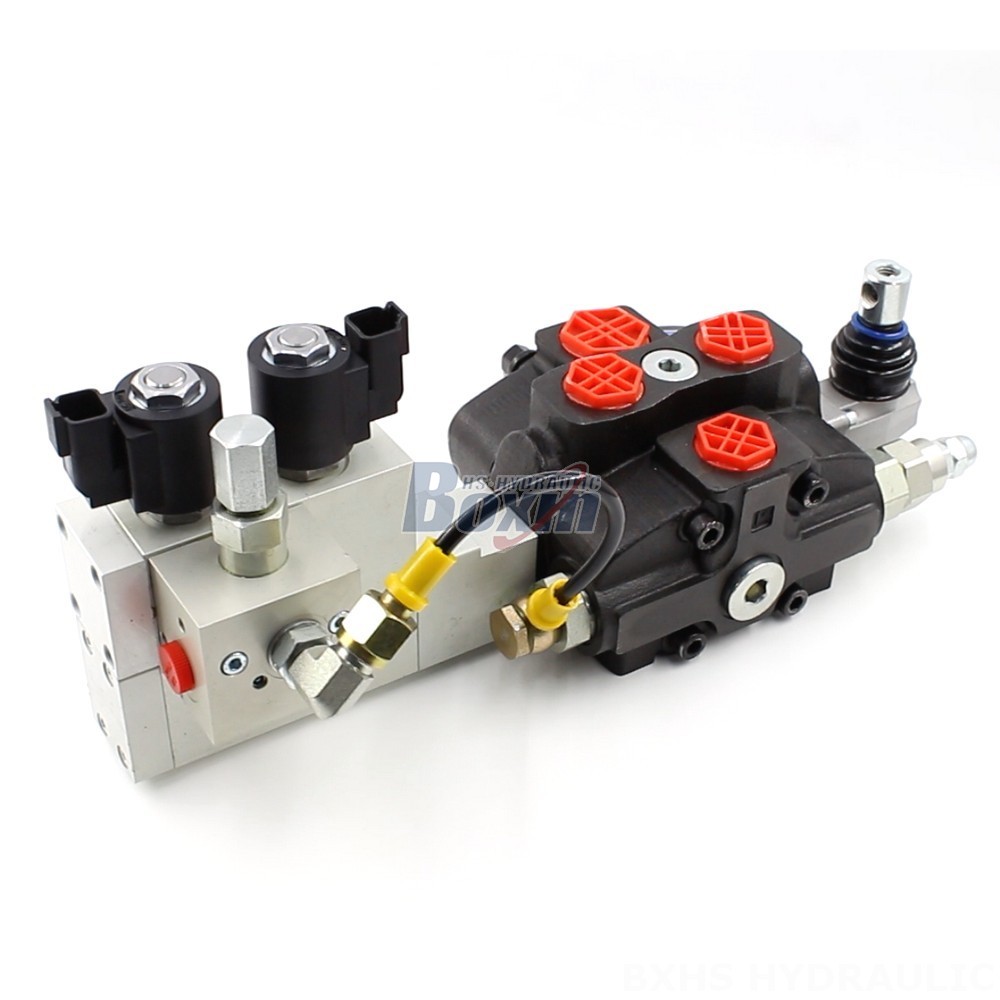

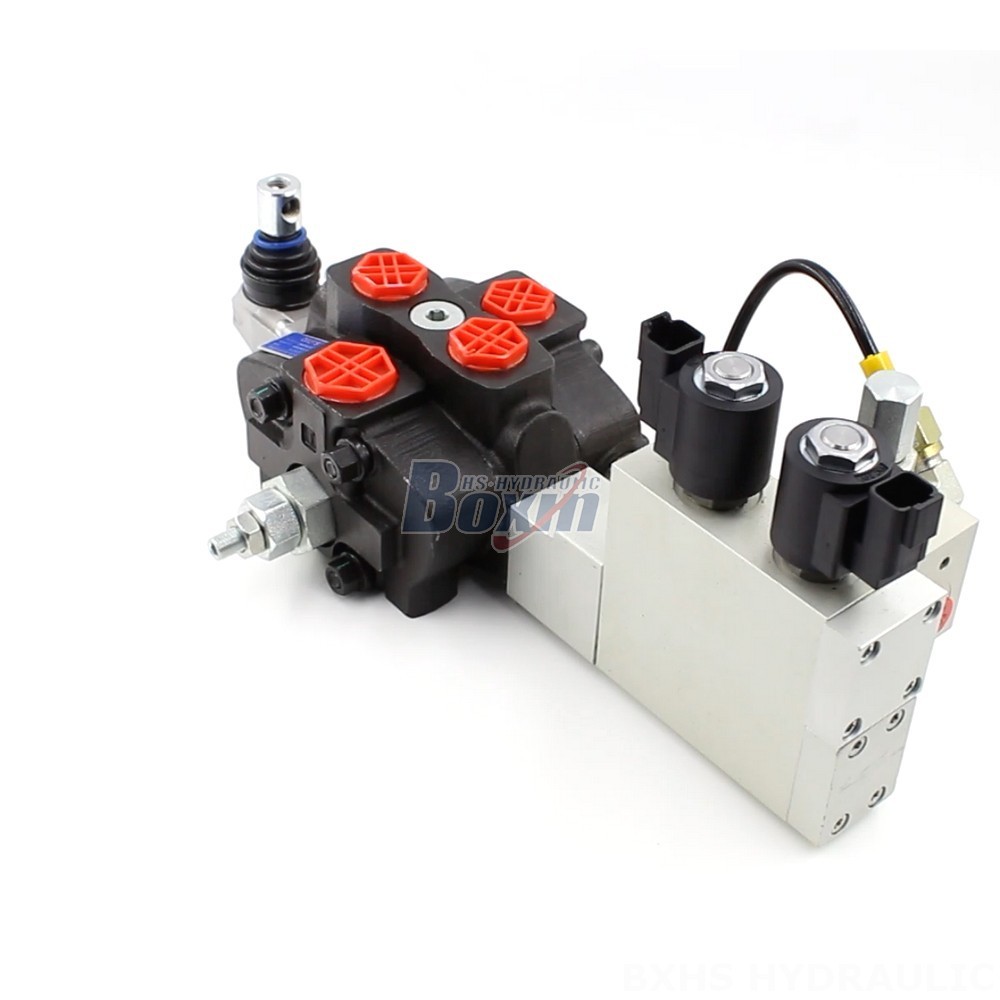

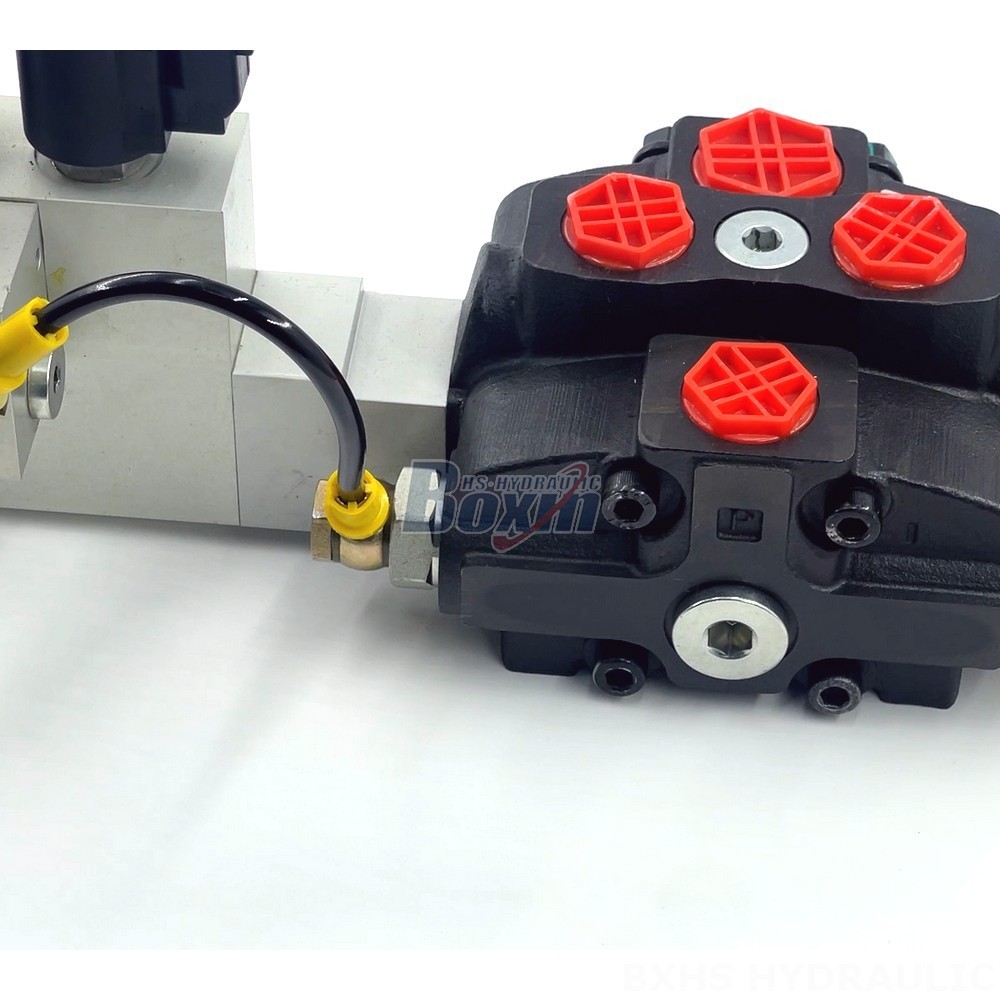

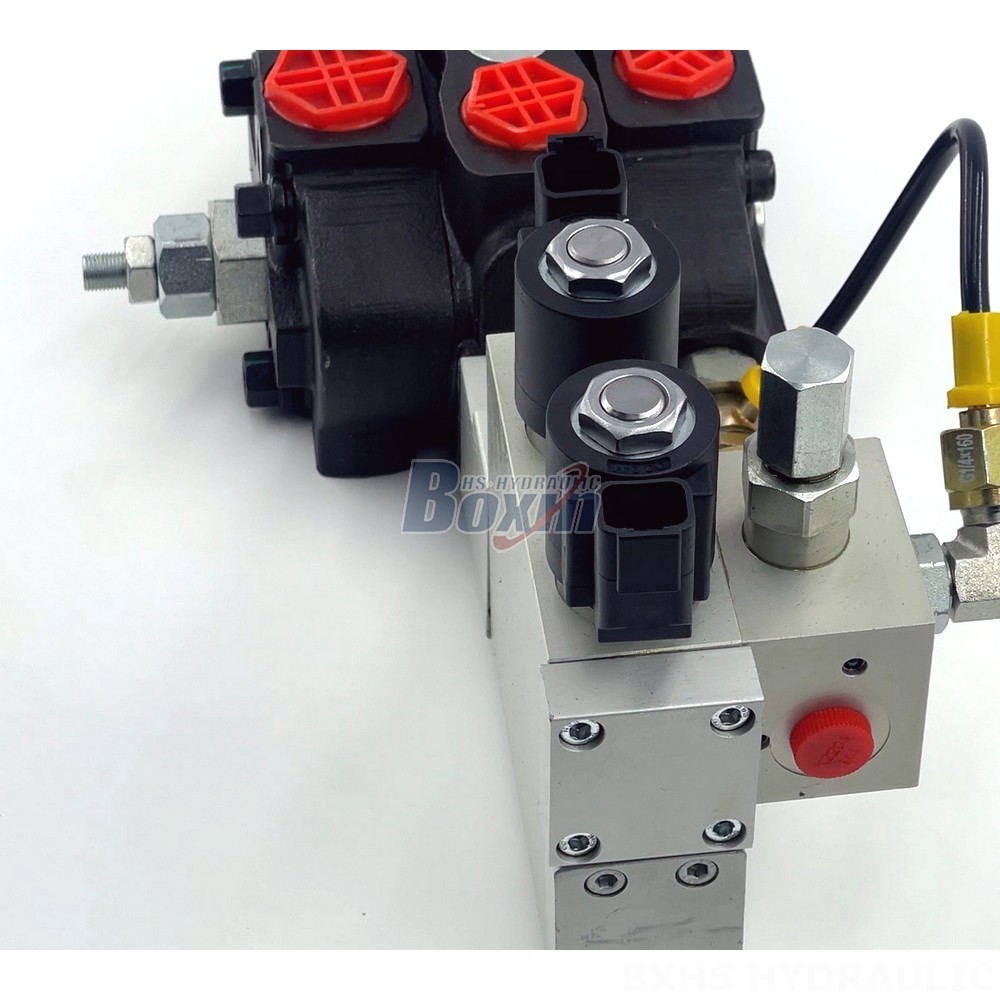

**SD8 Electro-hydraulic Directional Control Valve**
The SD8 Electro-hydraulic Directional Control Valve is a 1-section, electro-hydraulically controlled valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is a sectional valve, which means that it can be easily customized to meet the specific requirements of an application. The valve is available with a variety of spool options, including single-acting, double-acting, and float. It is also available with a variety of porting options, including NPT, SAE, and BSPP.
The SD8 Electro-hydraulic Directional Control Valve is a versatile and reliable valve that is suitable for use in a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Key Features**
* Compact and lightweight design
* High efficiency and reliability
* Easy to customize to meet the specific requirements of an application
* Available with a variety of spool and porting options
