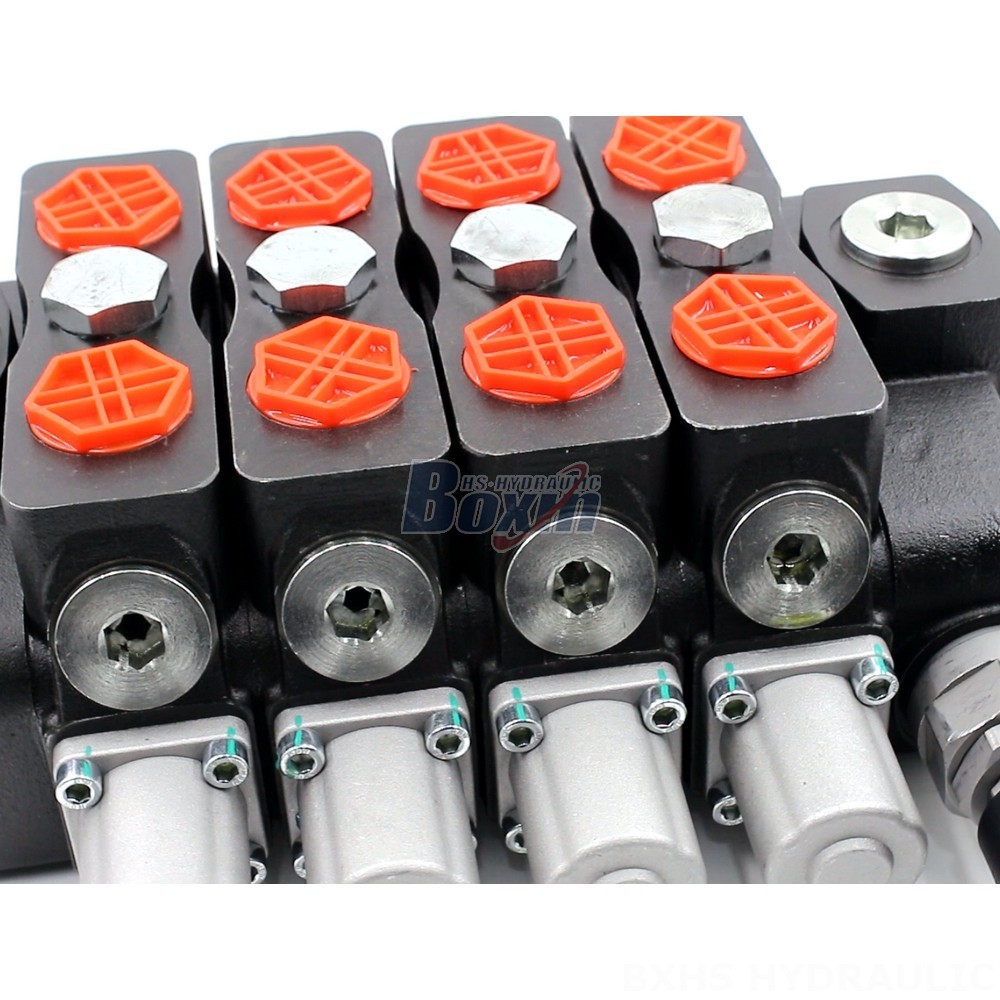

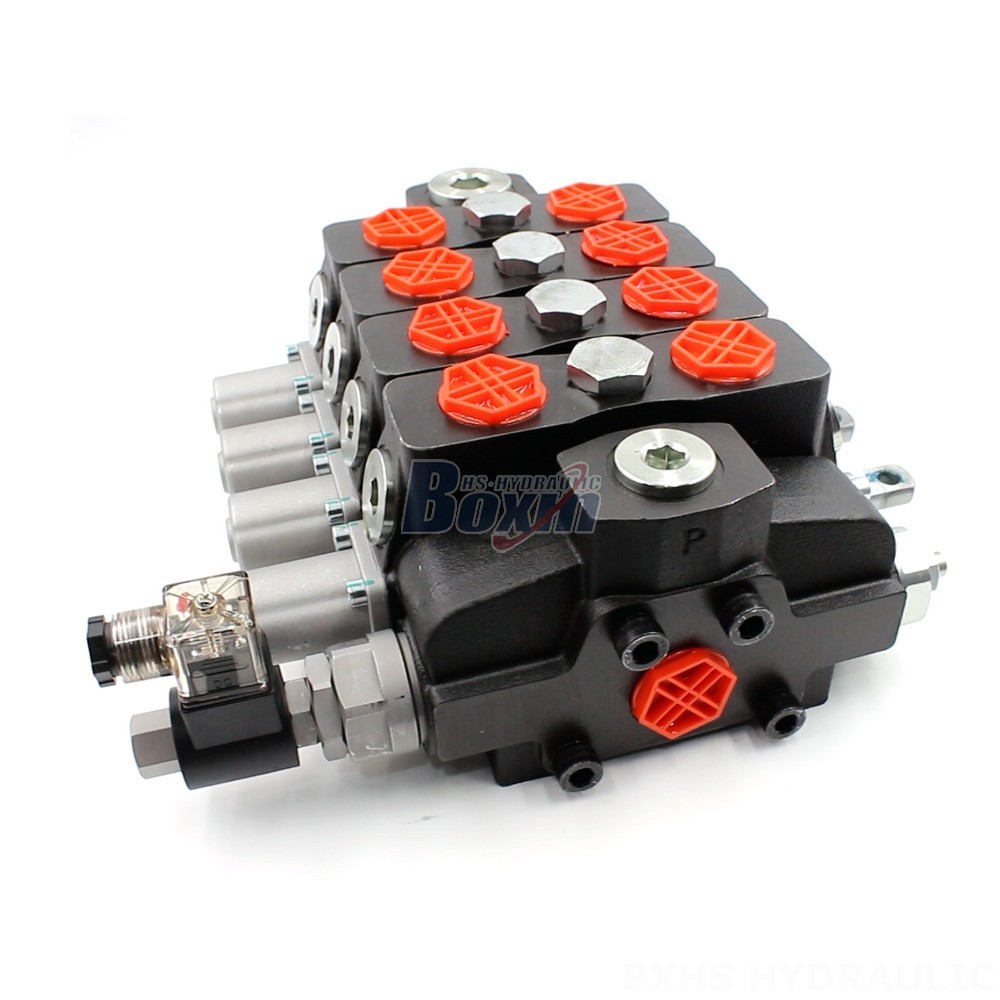

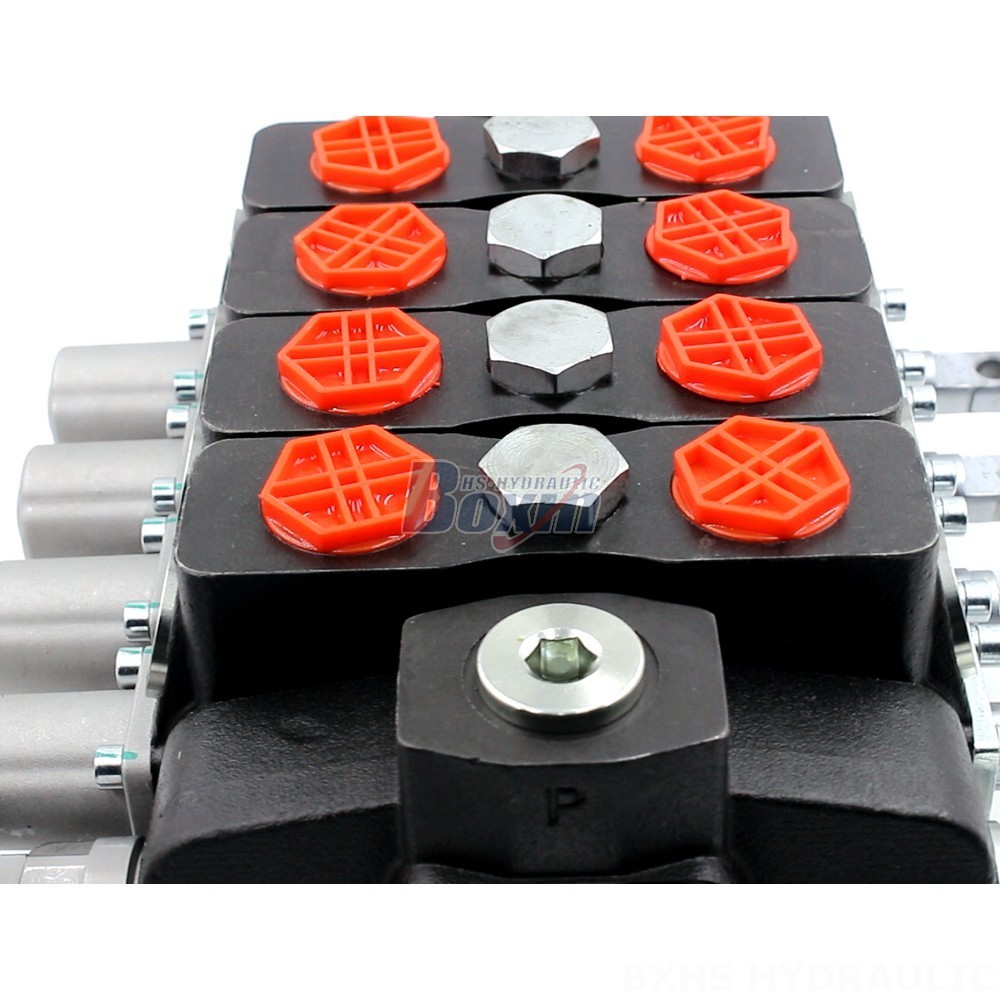

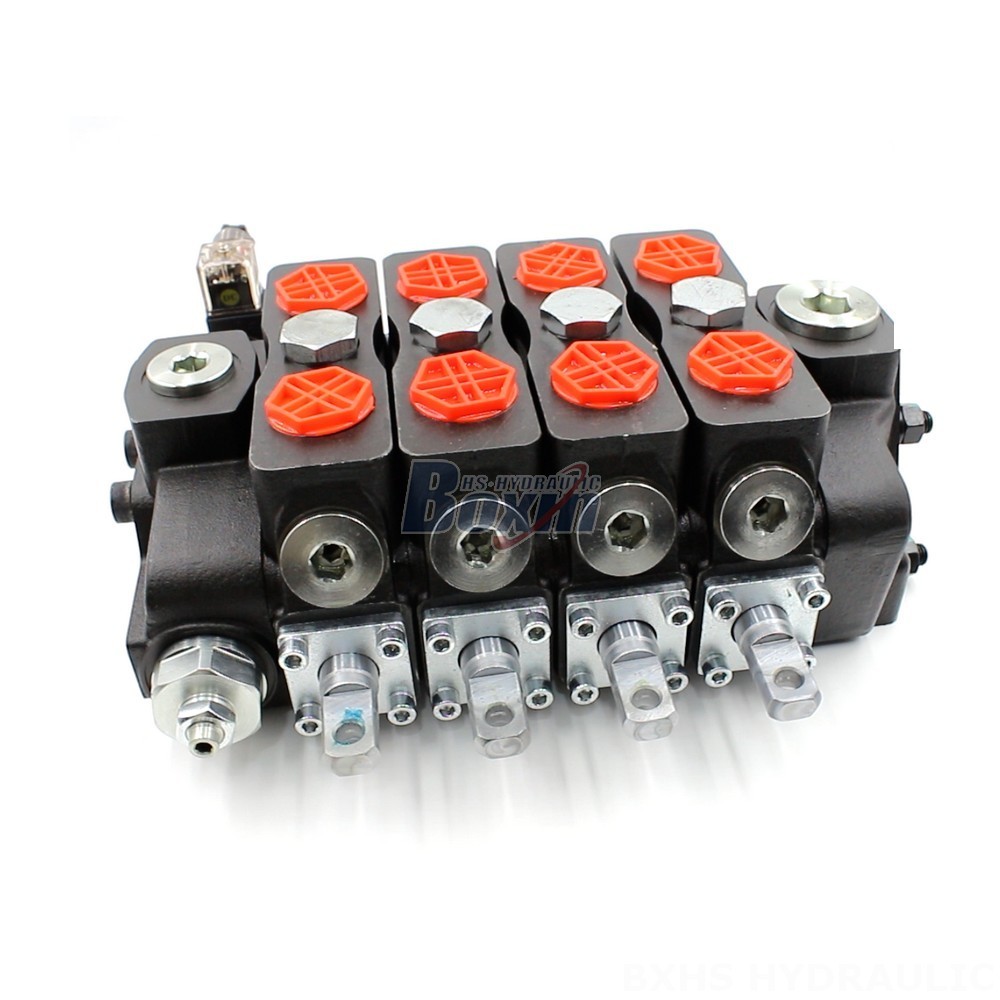

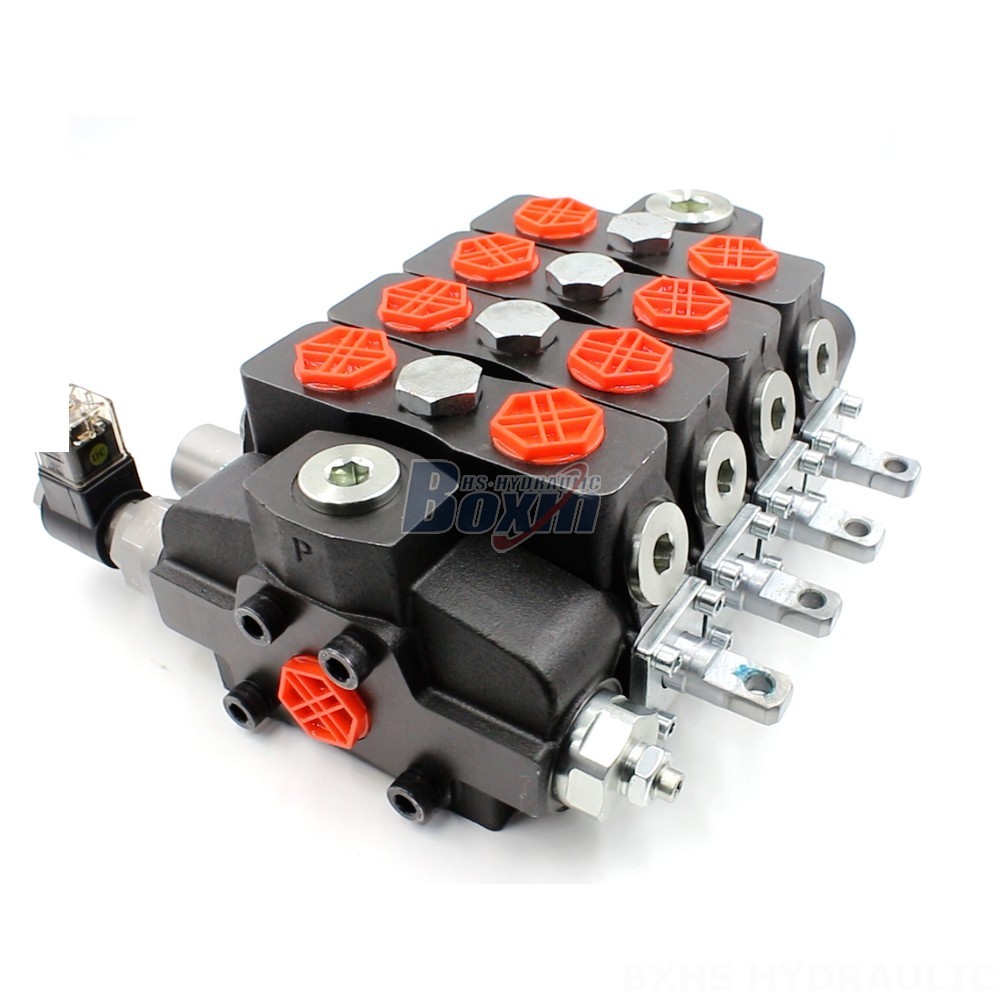

The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for a wide range of industrial applications. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is suitable for demanding hydraulic systems in various industries, including material handling, construction, agriculture, and industrial vehicles.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |
The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve features a sectional design that allows for easy customization and maintenance. It is equipped with four spools, providing precise control over the flow of hydraulic fluid. The valve has an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt), making it compatible with a wide range of hydraulic fluids. Its compact design and modular construction ensure easy installation and integration into existing hydraulic systems. Applications for the SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
