Production & Delivery
15-30 Days Production Lead Time
L'innovation favorise le développement ; la technologie forge l'avenir
1440 personnes consultent ce produit

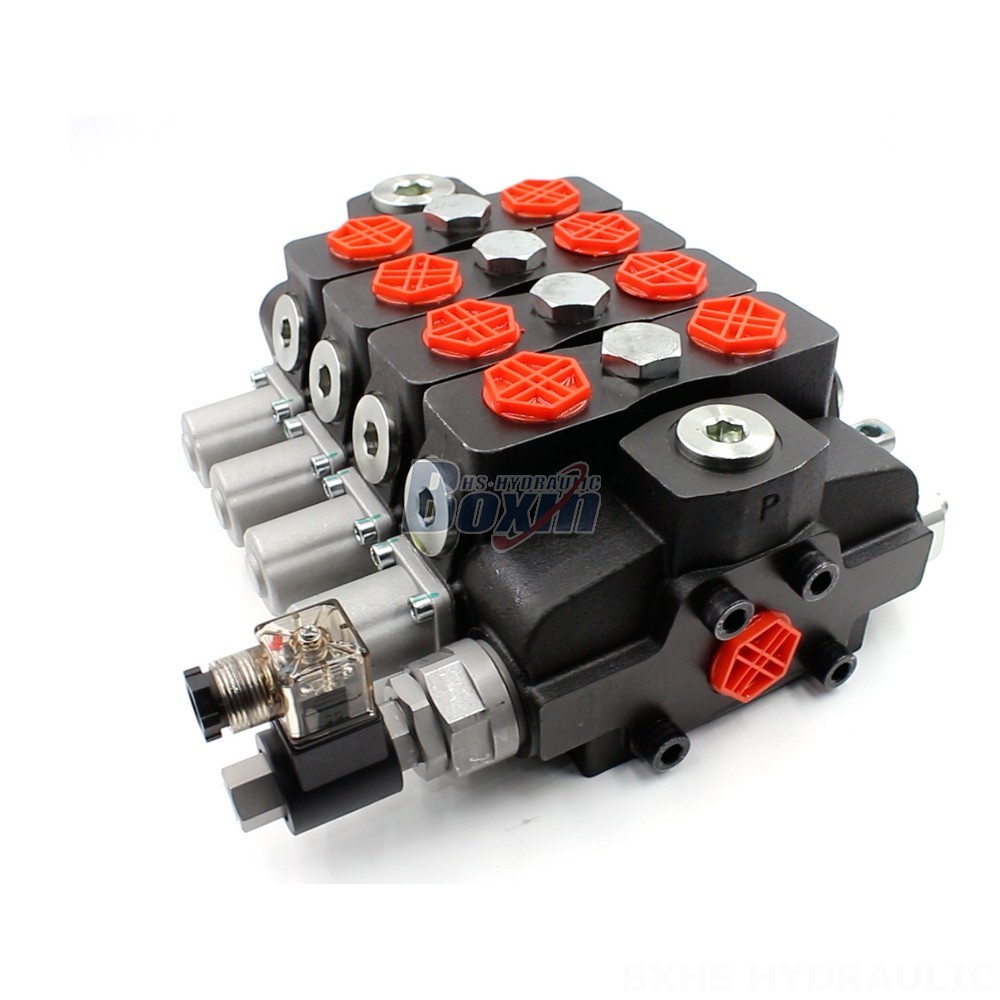

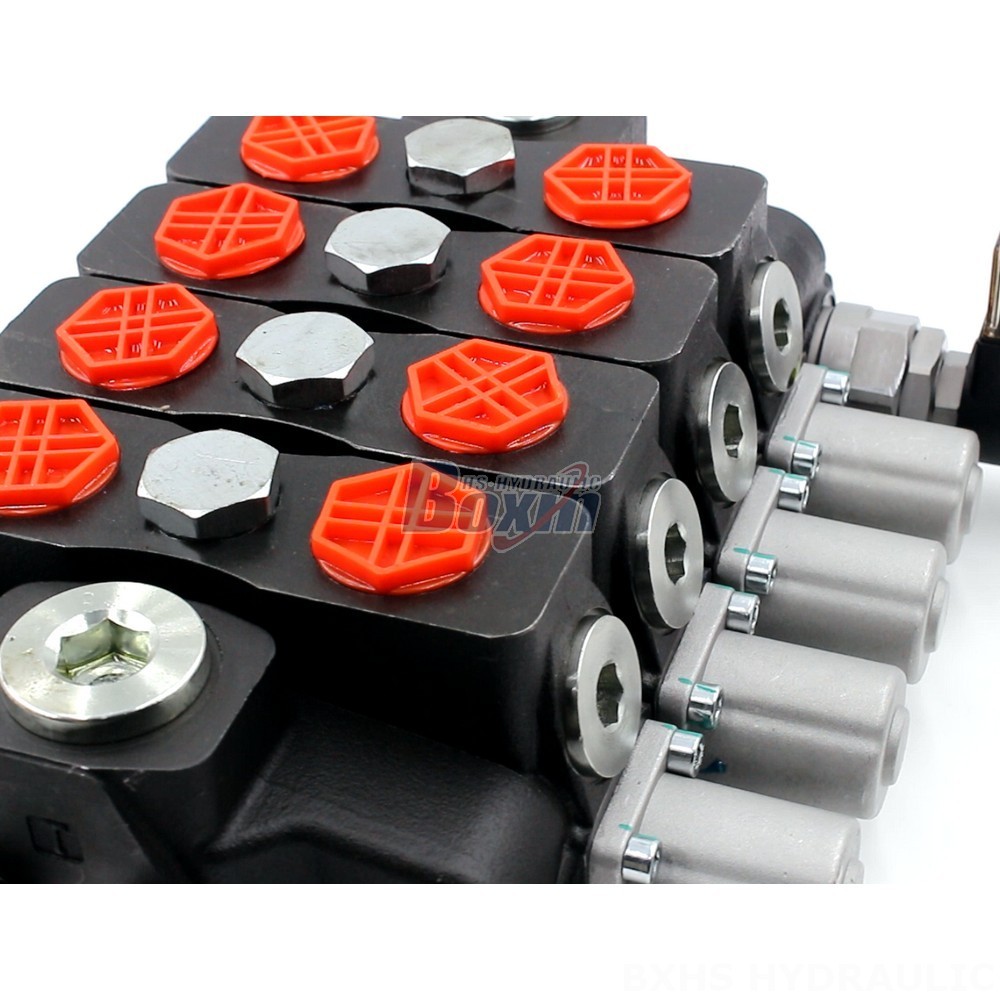

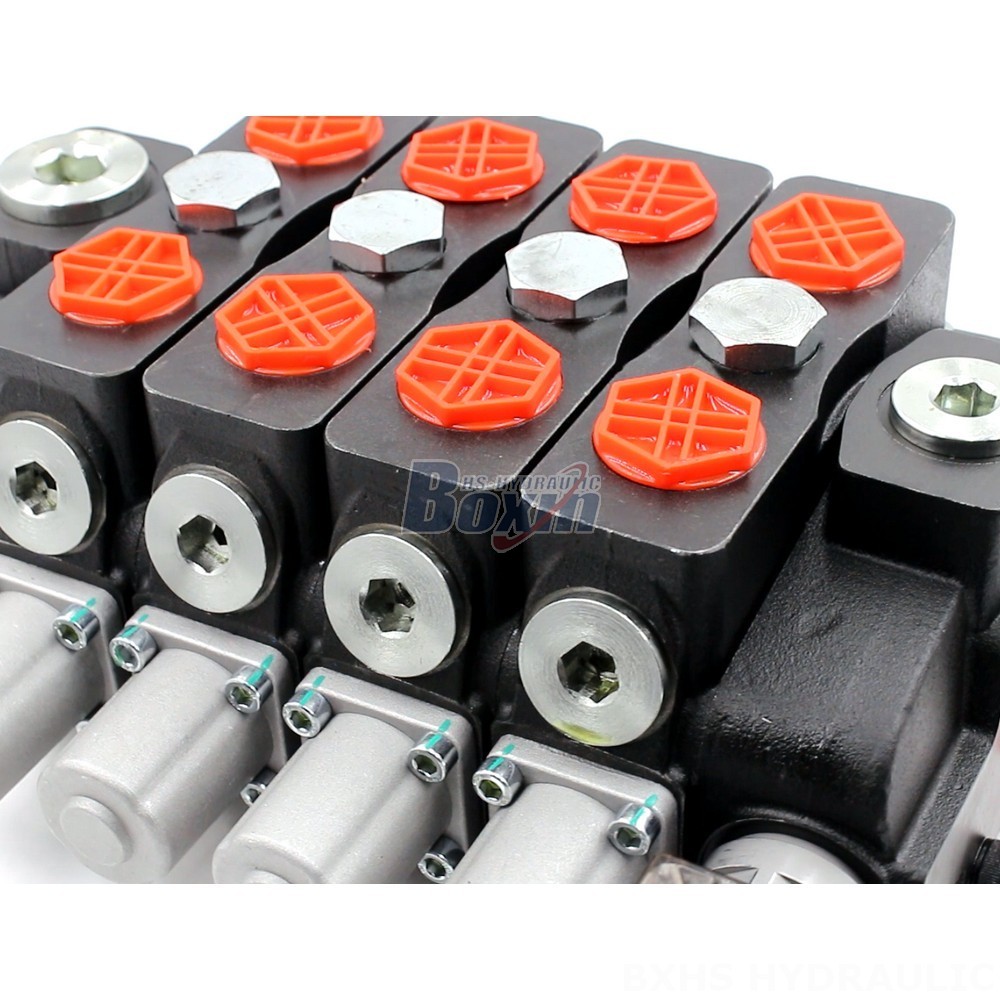

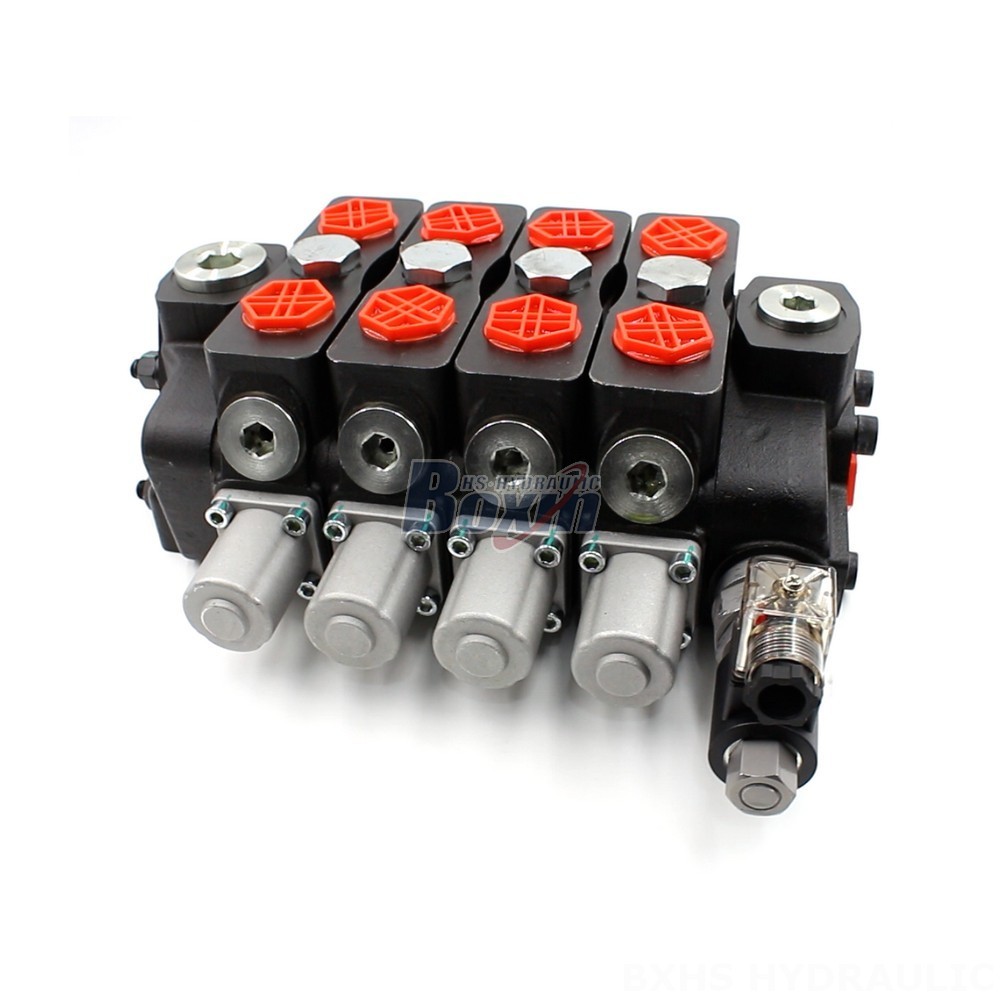

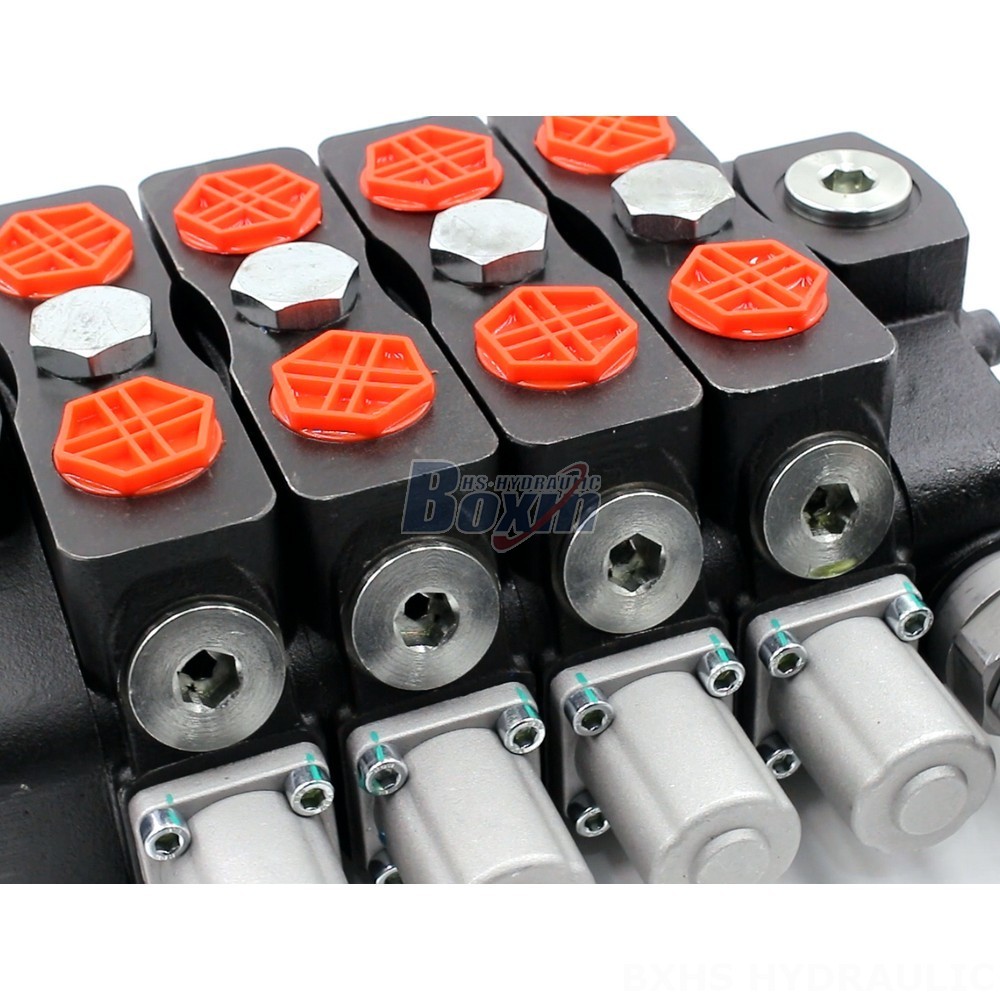

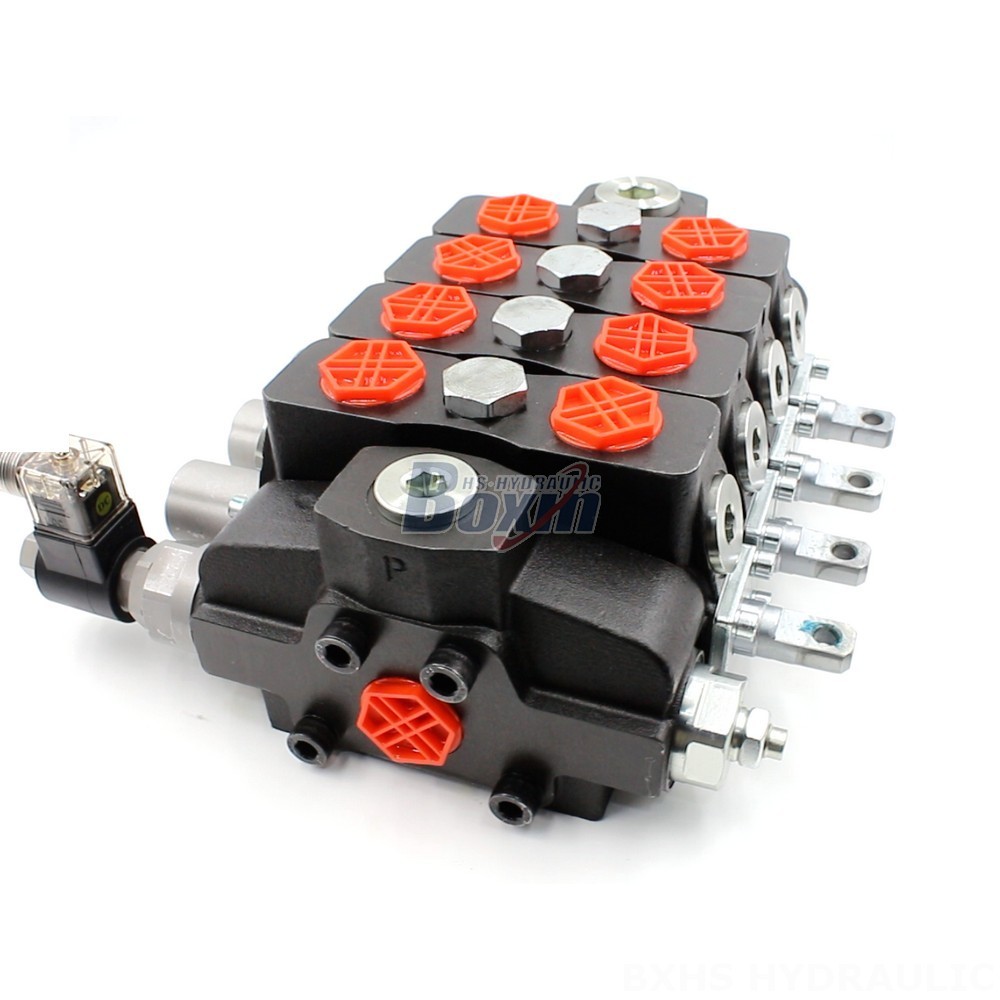

The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve is capable of handling demanding hydraulic systems. The manual control and 4 spool design provide precise and reliable control over the flow of hydraulic fluid.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |
**Key Features:**
* Manual control for precise and reliable operation
* 4 spool design for versatile flow control
* Rated flow of 90 L/min (23.8 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
**Applications:**
* Material handling equipment
* Construction and earth moving machinery
* Agricultural equipment
* Industrial vehicles
**Benefits:**
* Improved efficiency and productivity
* Reduced downtime and maintenance costs
* Enhanced safety and reliability
