The SD8-Electric unloading valve is a 4-spool, manually controlled sectional directional valve designed for hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve provides precise and efficient control of hydraulic functions.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |

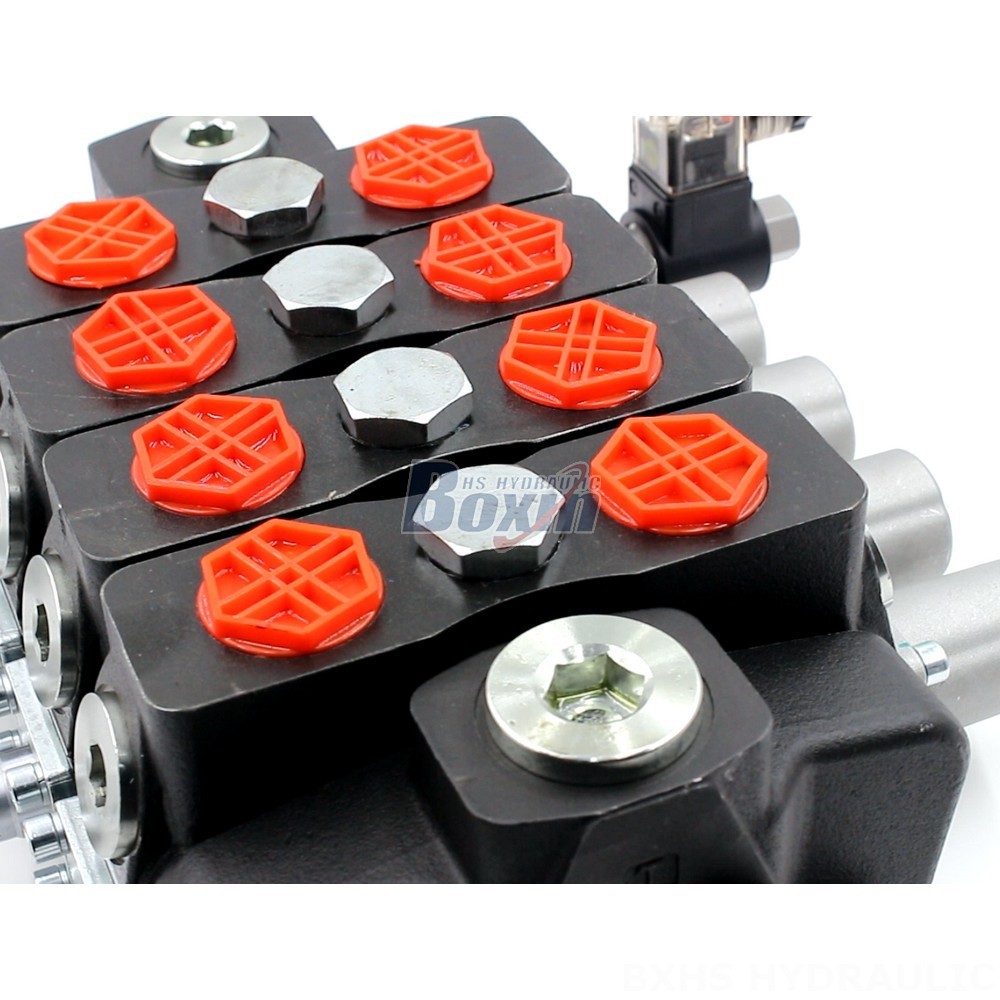

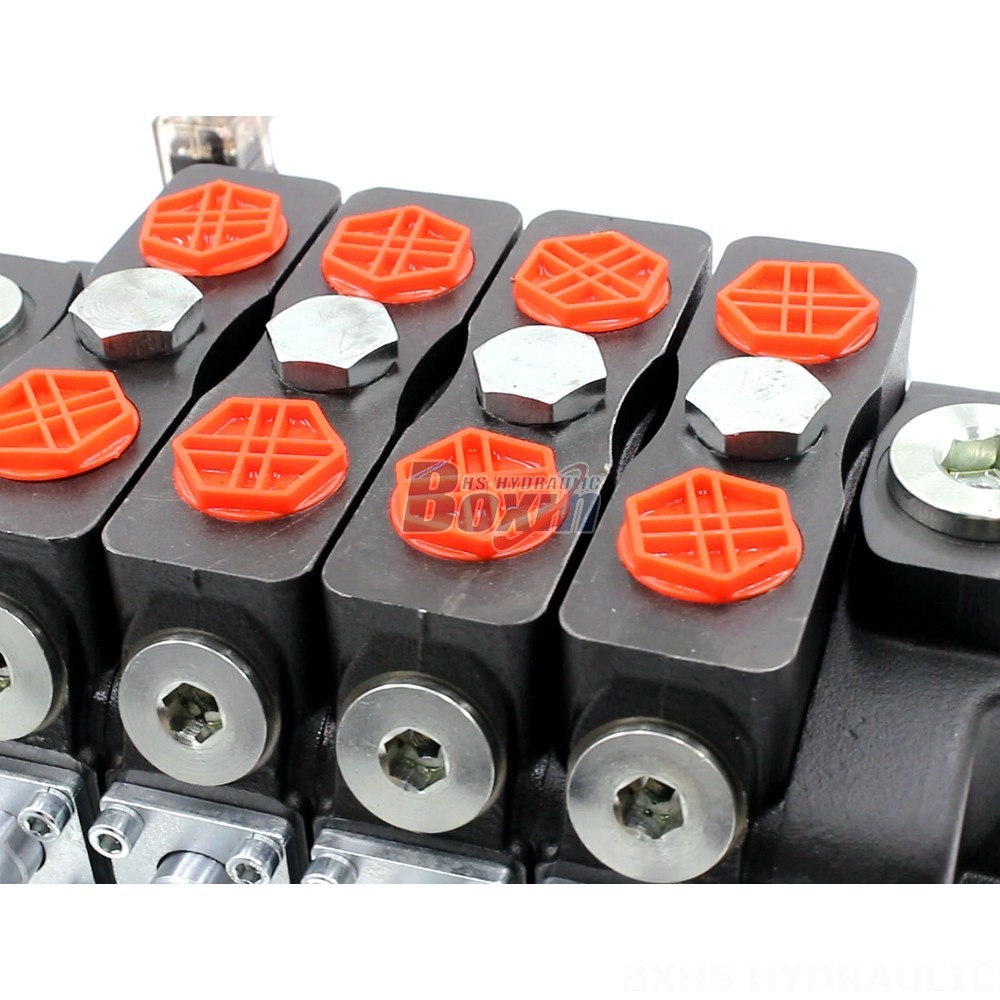

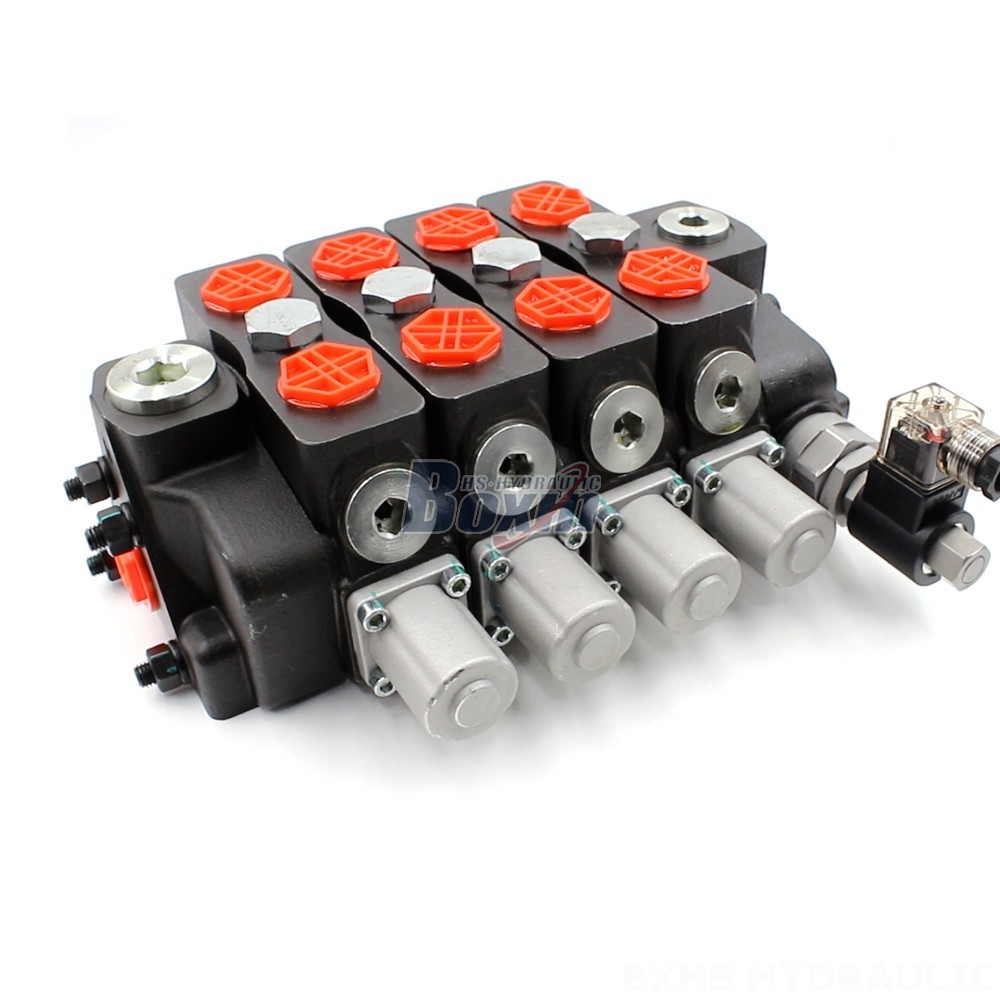

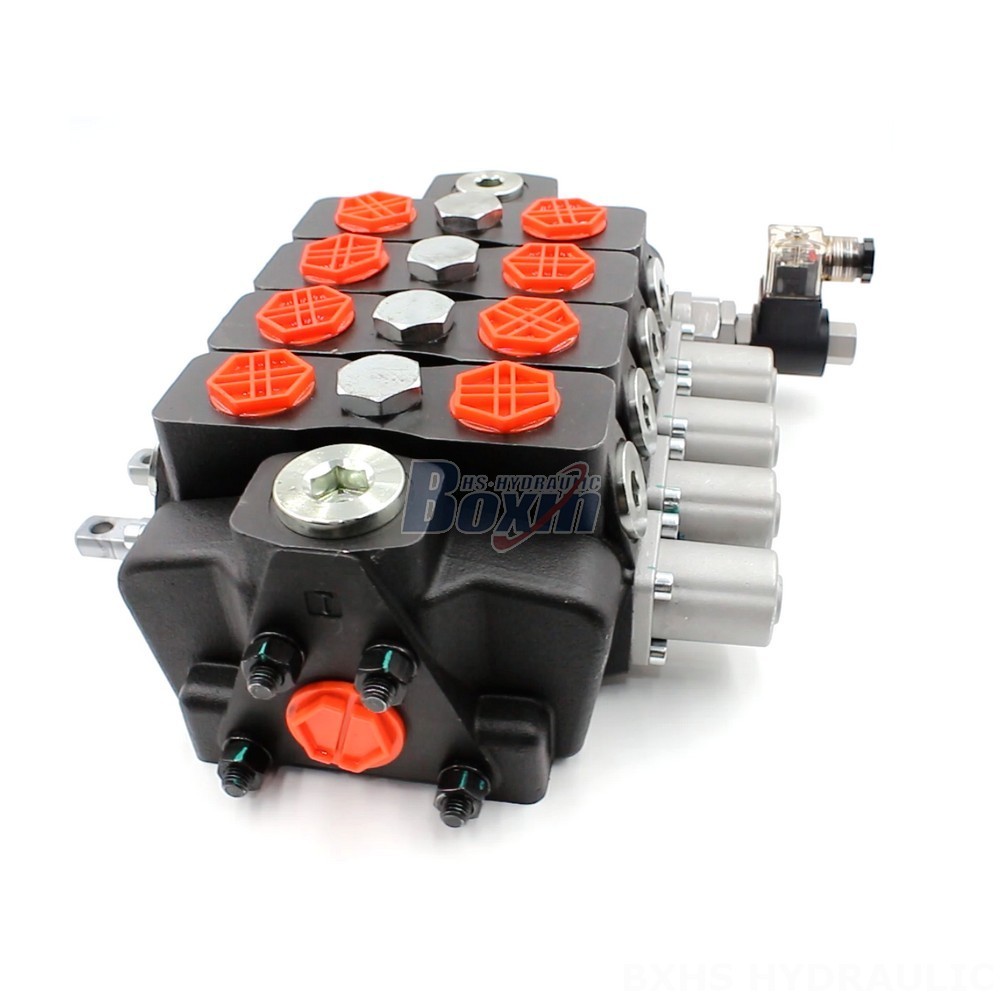

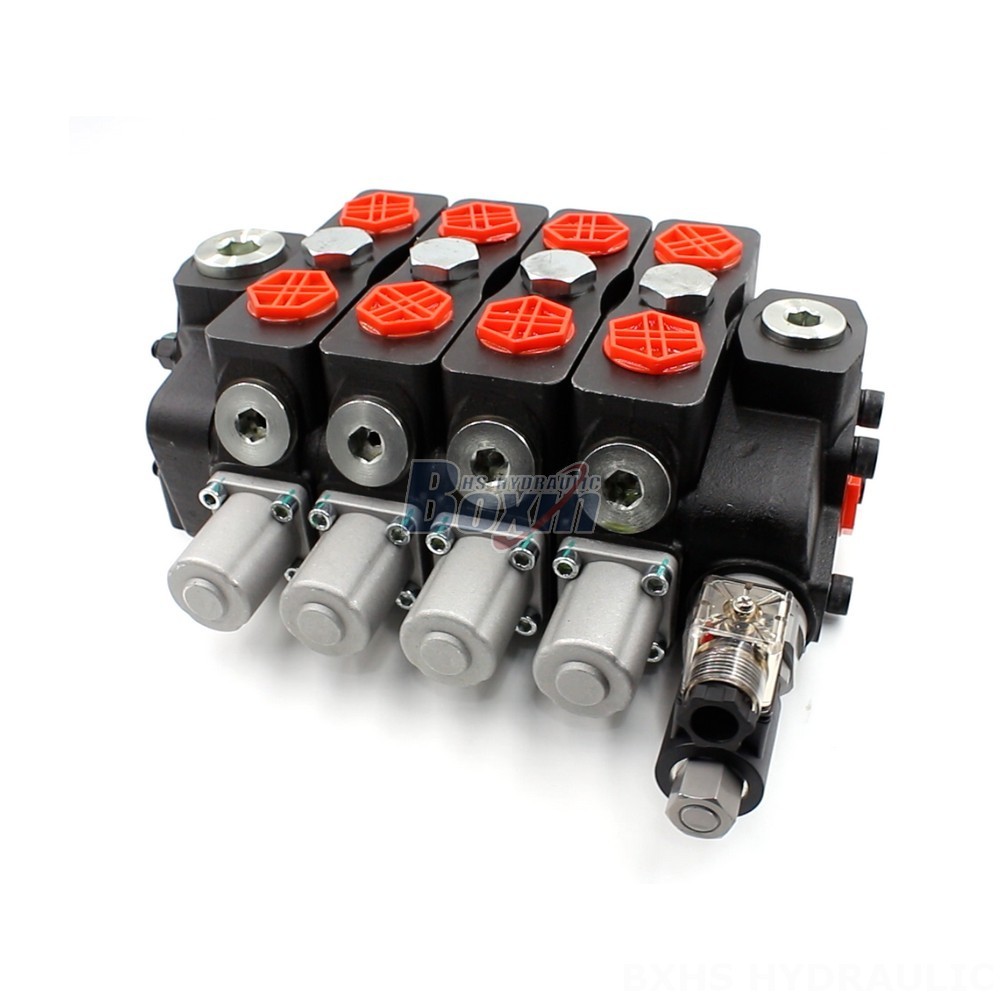

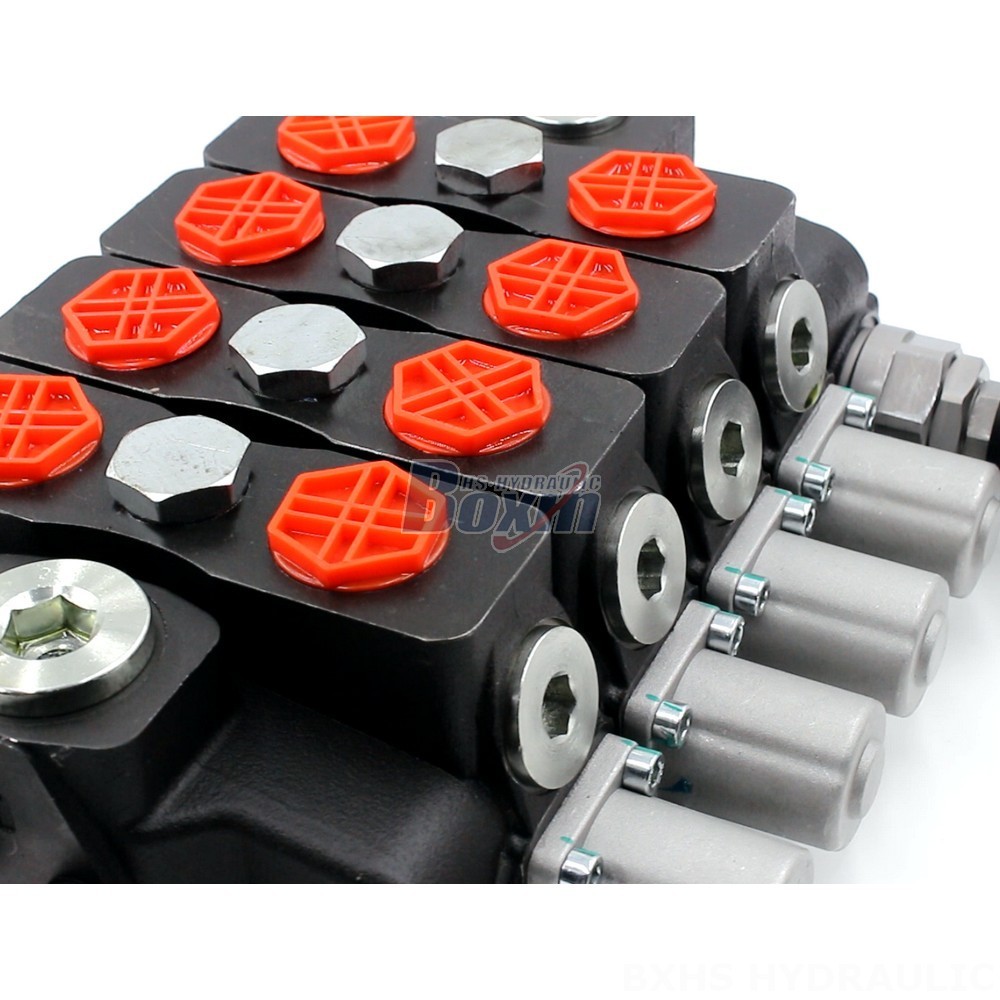

**SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 4 Spool
**Series:** SD8 Series
The SD8-Electric unloading valve is a versatile and reliable solution for a wide range of hydraulic applications. Its robust design and high-quality components ensure long-lasting performance and durability. The valve's compact size and modular design make it easy to integrate into existing systems or design new ones.
**Key Features:**
* Manual control for precise operation
* High flow capacity (90 L/min)
* High pressure rating (350 bar)
* Suitable for various applications
* Compact and modular design
* Durable and reliable construction
