The SD8-Electric Unloading Valve is a 5-position, 4-solenoid, 12v/24v hydraulic directional control valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |

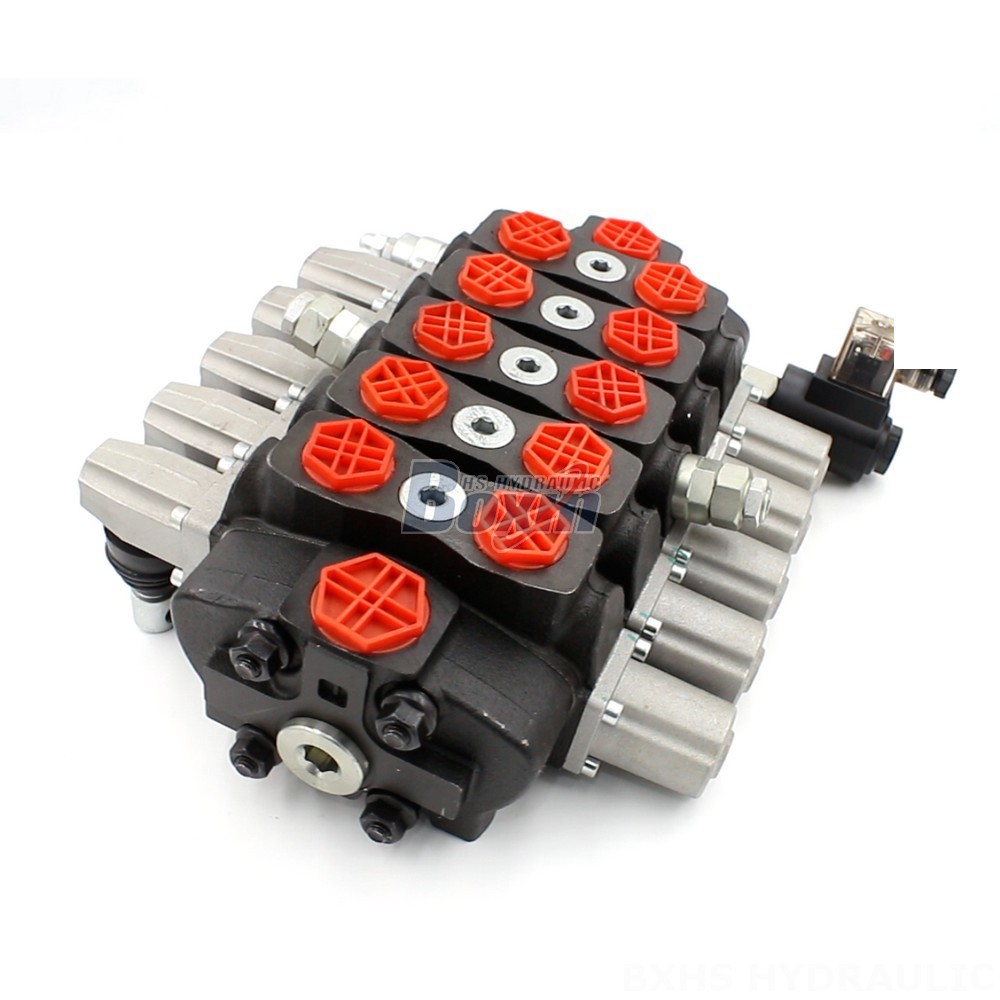

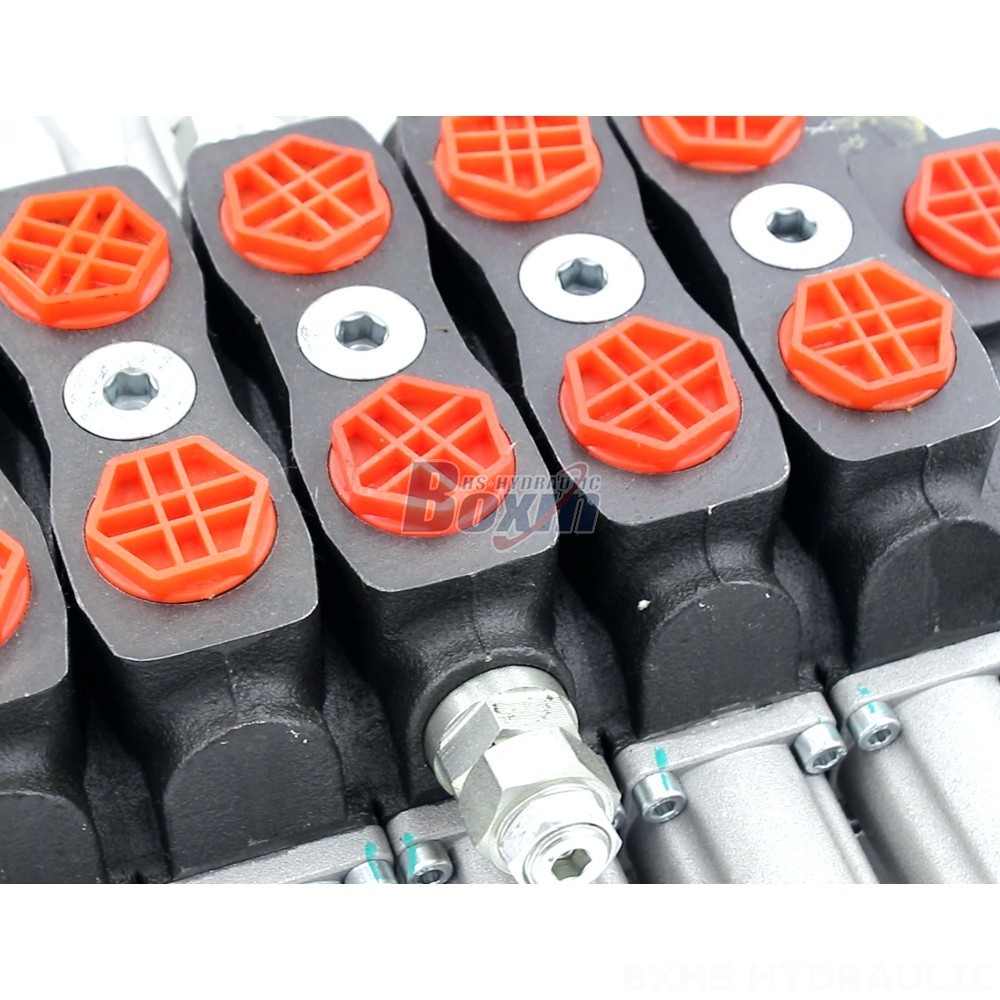

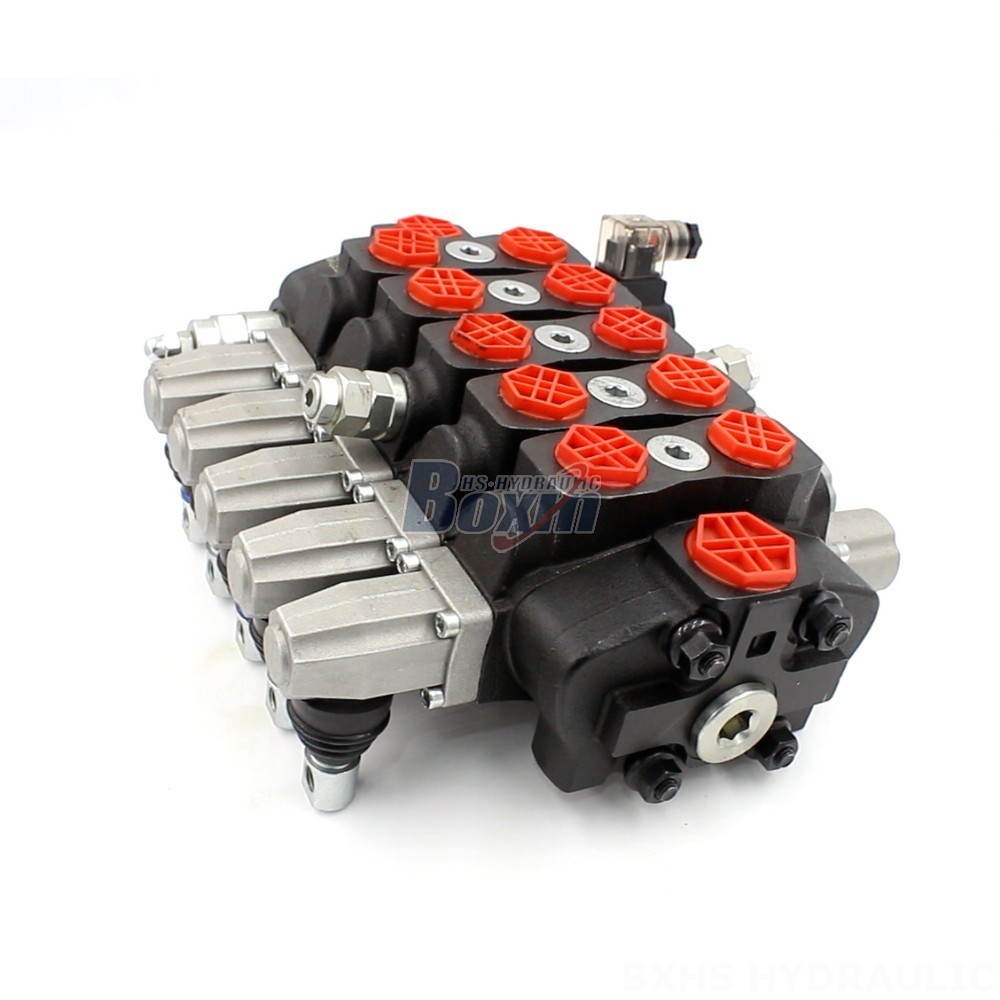

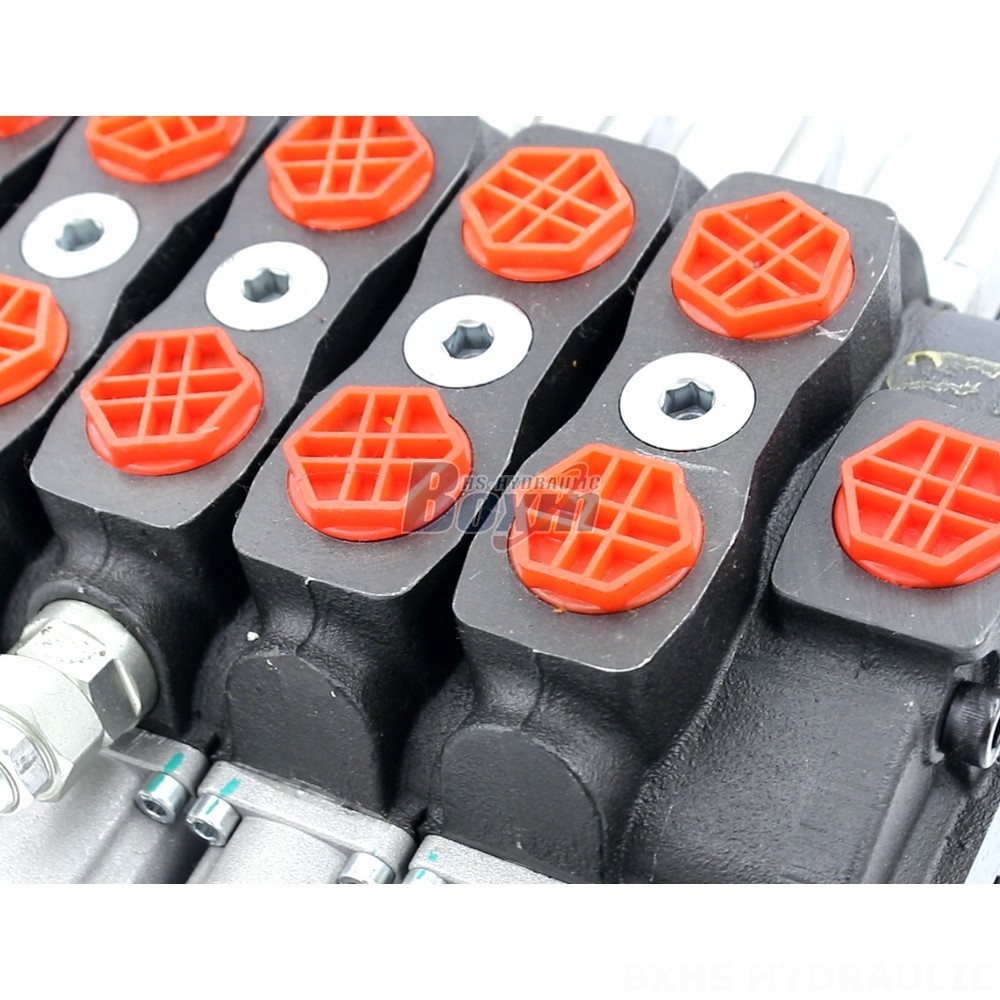

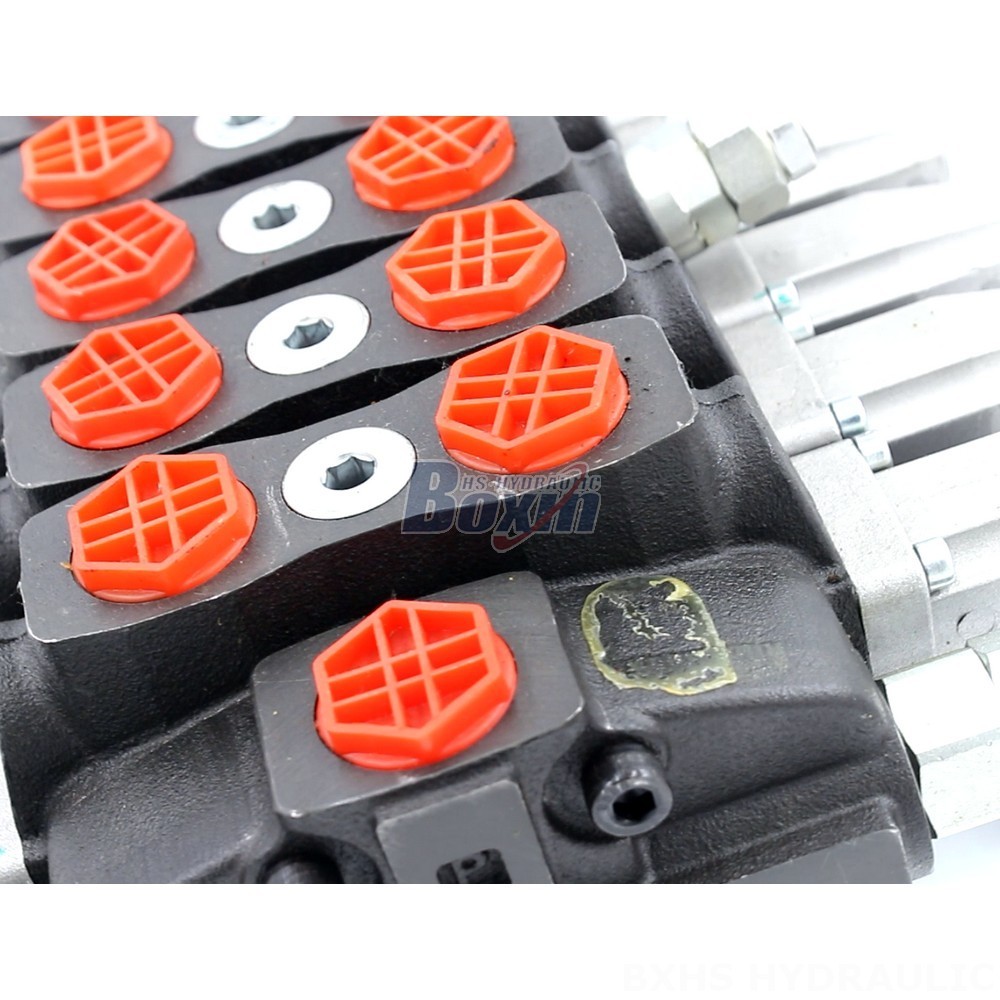

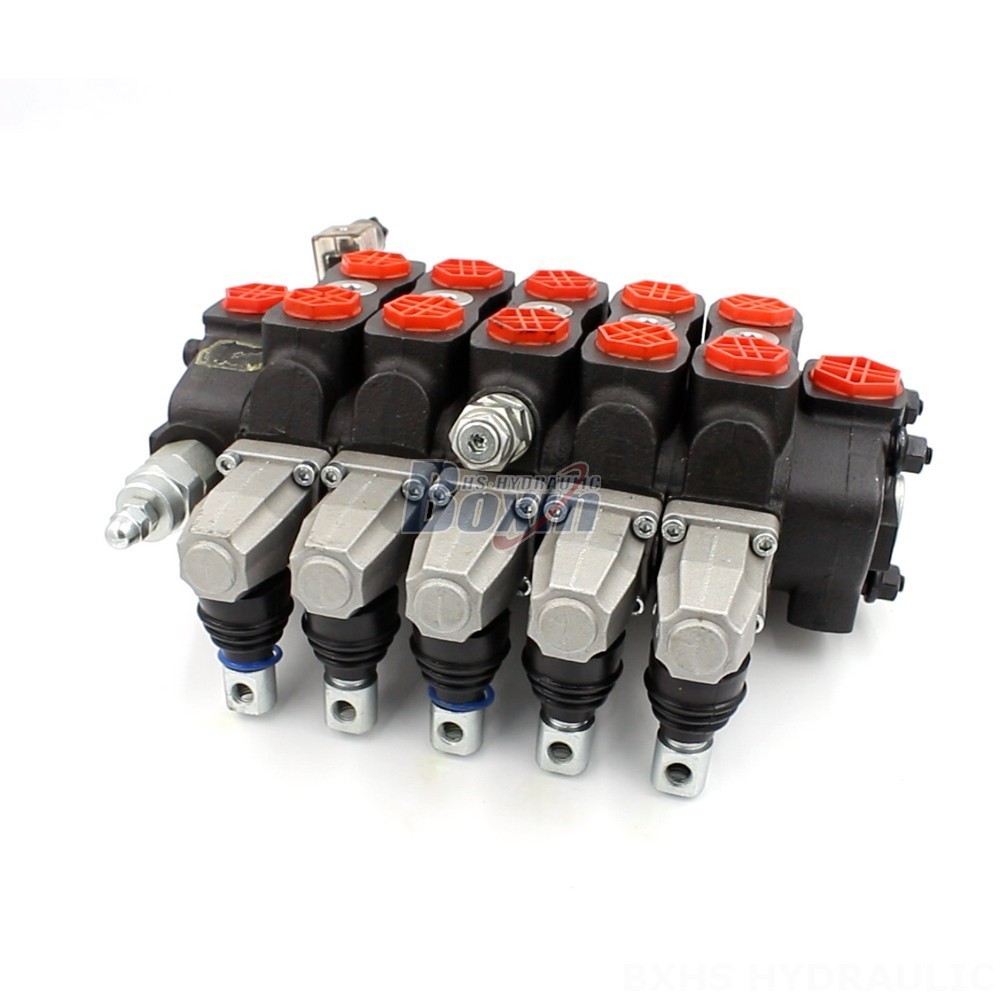

**SD8-Electric Unloading Valve**
The SD8-Electric Unloading Valve is a high-performance hydraulic directional control valve designed for a wide range of applications. With its 5-position, 4-solenoid configuration, it offers precise and reliable control of hydraulic systems. The valve is available in 12v and 24v options, making it suitable for use in various electrical systems.
**Key Features:**
* 5-position, 4-solenoid configuration
* Rated flow of 90 L/min
* Maximum pressure of 350 bar
* Manual control
* Compact and durable design
* Suitable for various applications, including material handling, construction, agriculture, and industrial vehicles
The SD8-Electric Unloading Valve is an excellent choice for applications requiring high flow capacity, precise control, and reliable performance. Its robust construction and high-quality components ensure long-lasting operation even in demanding conditions.
