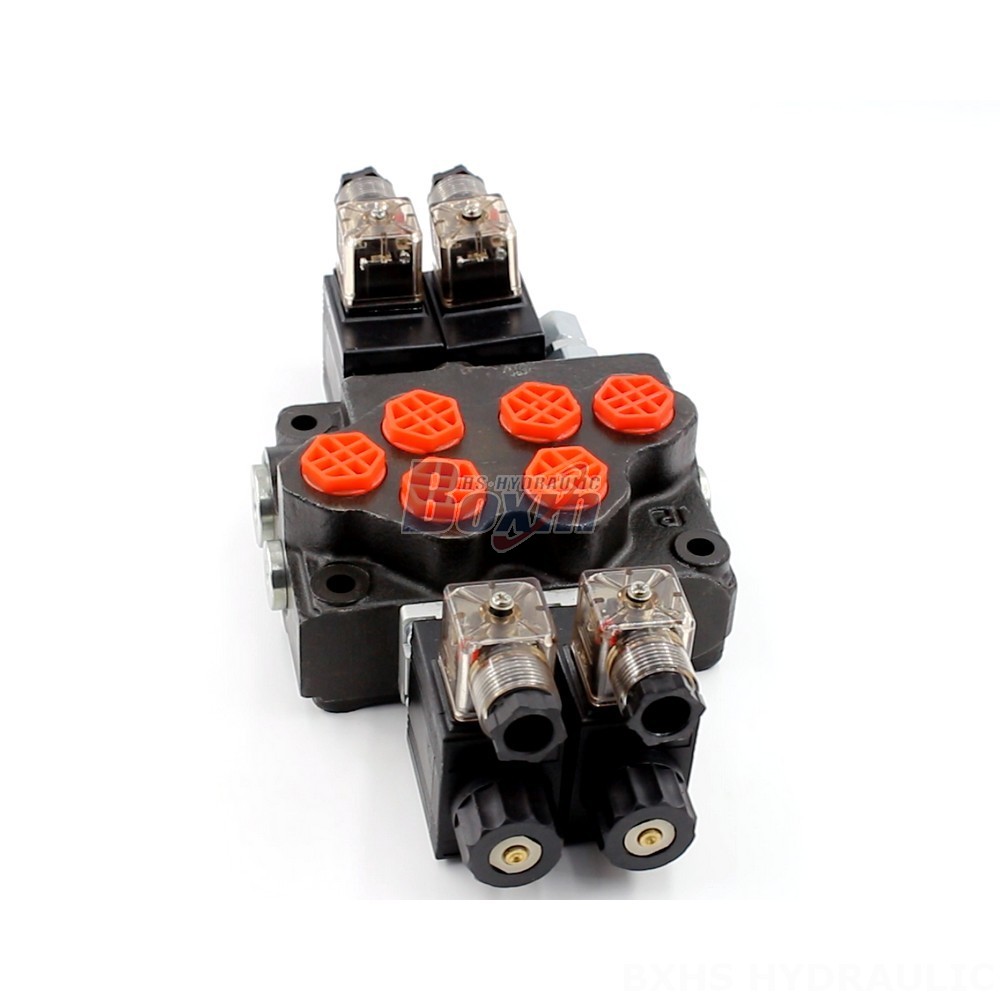

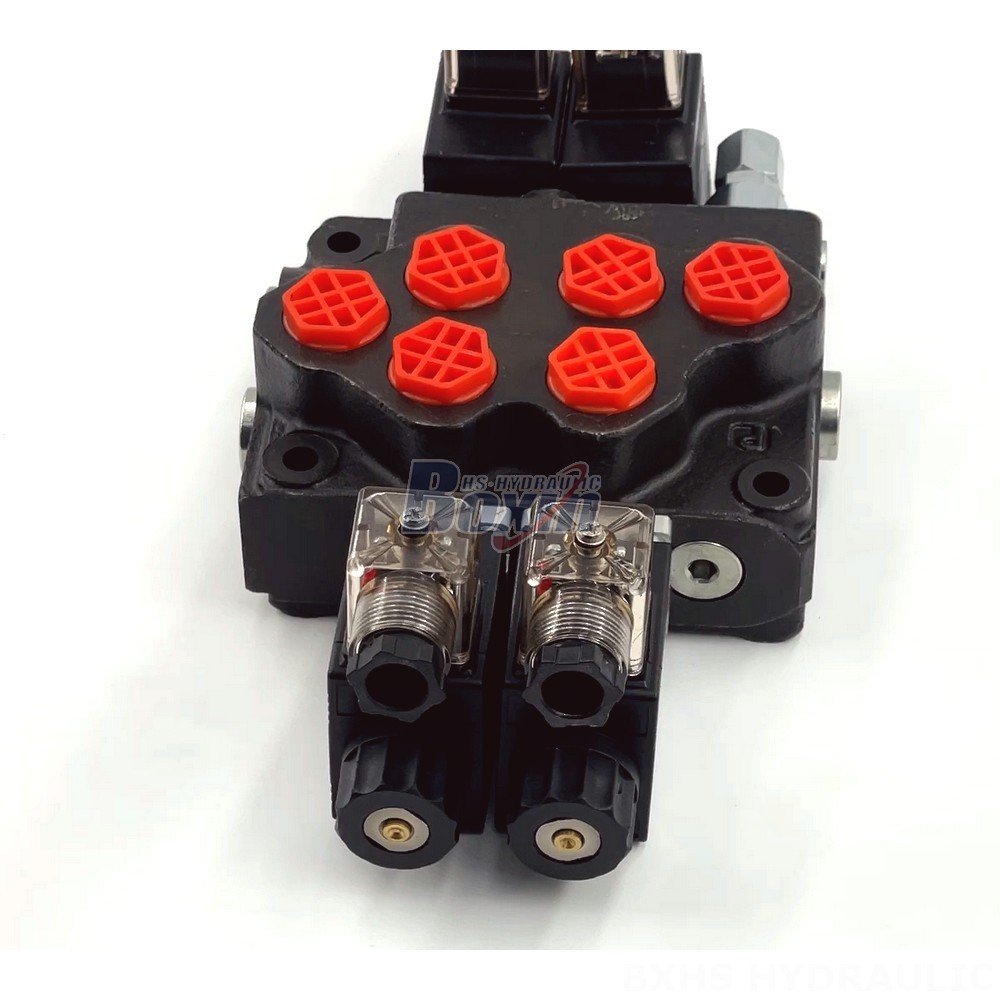

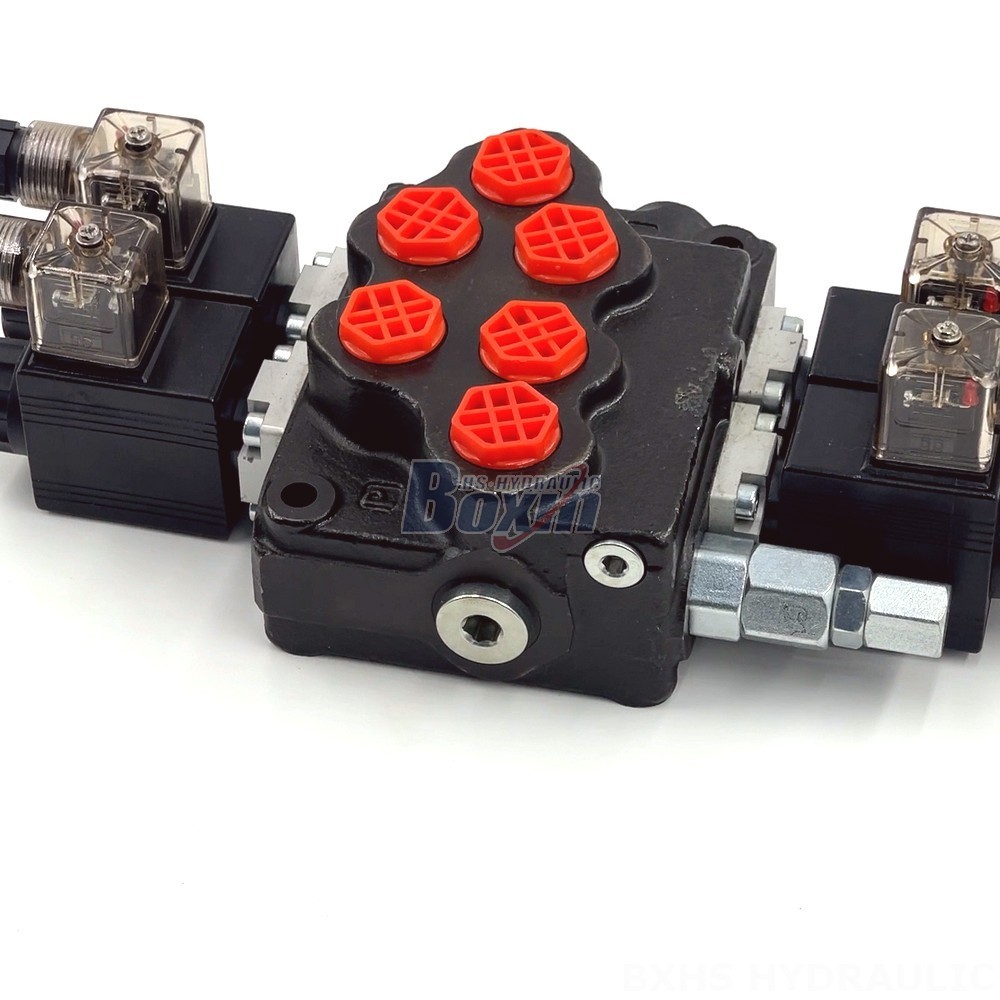

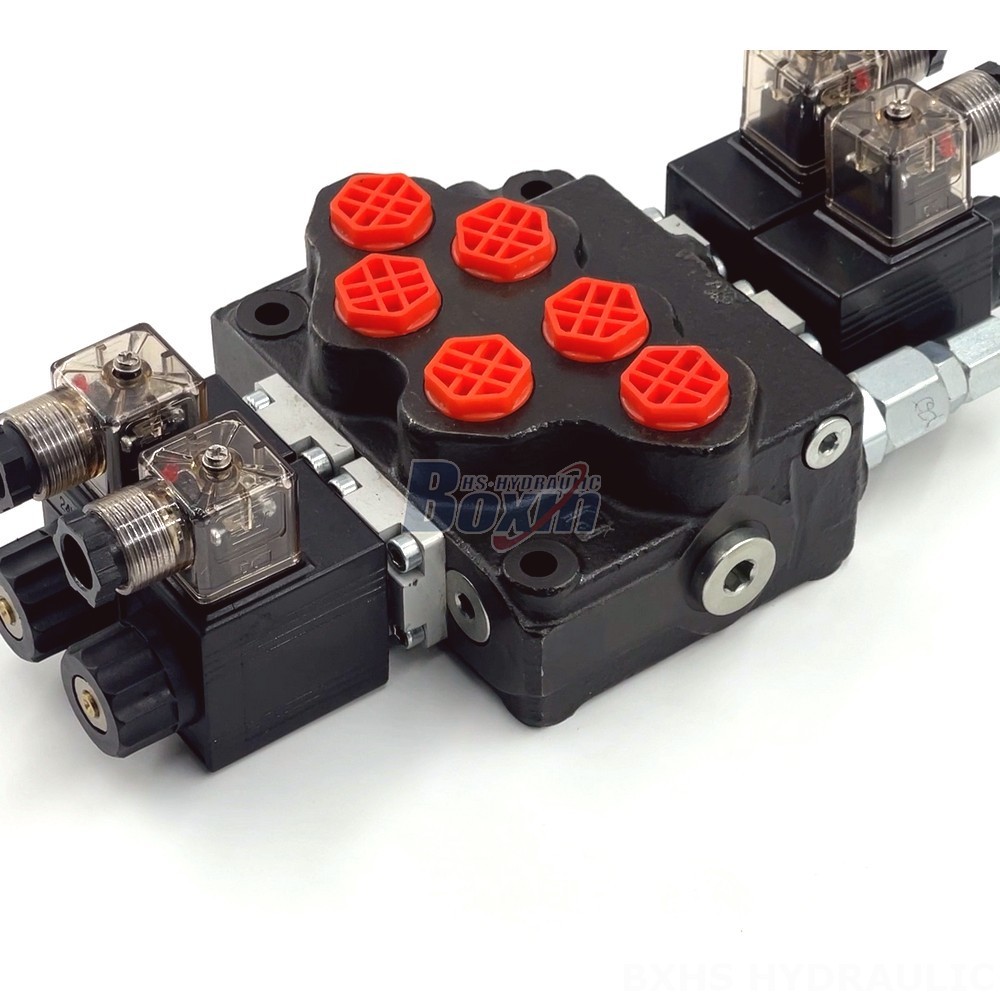

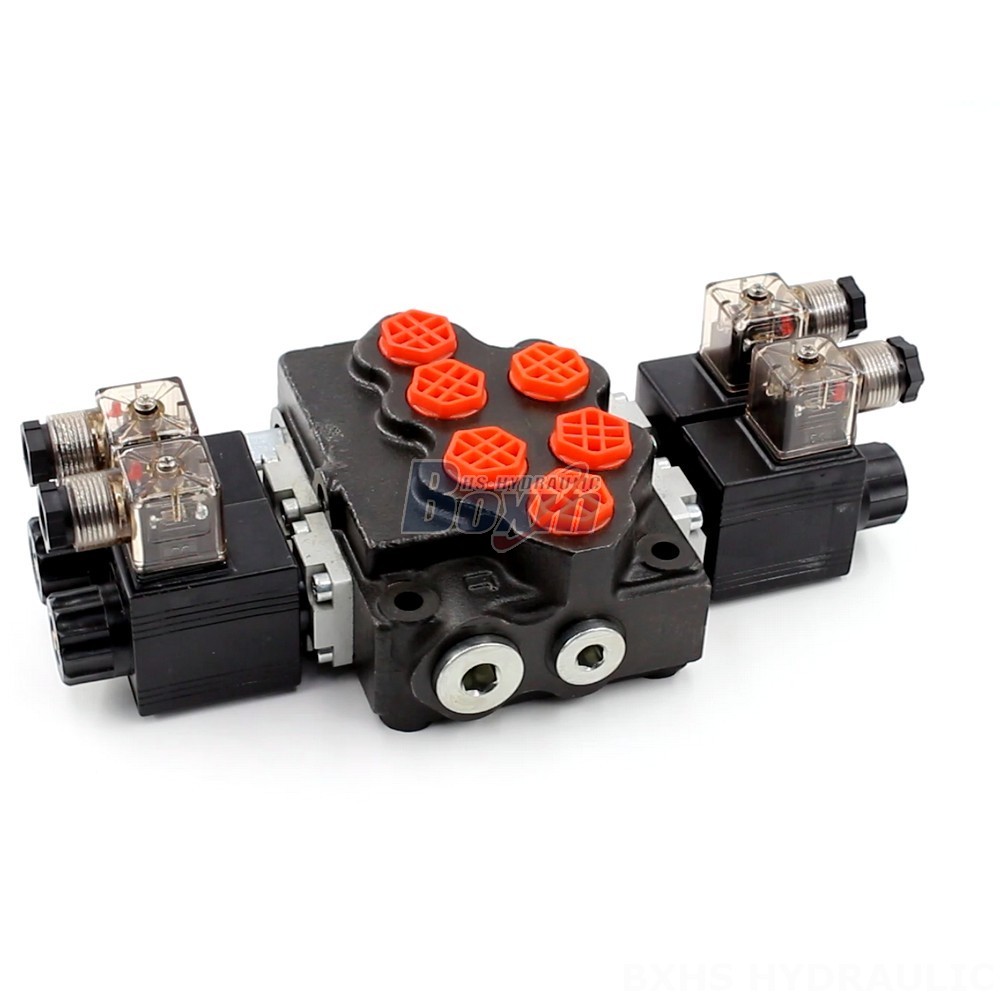

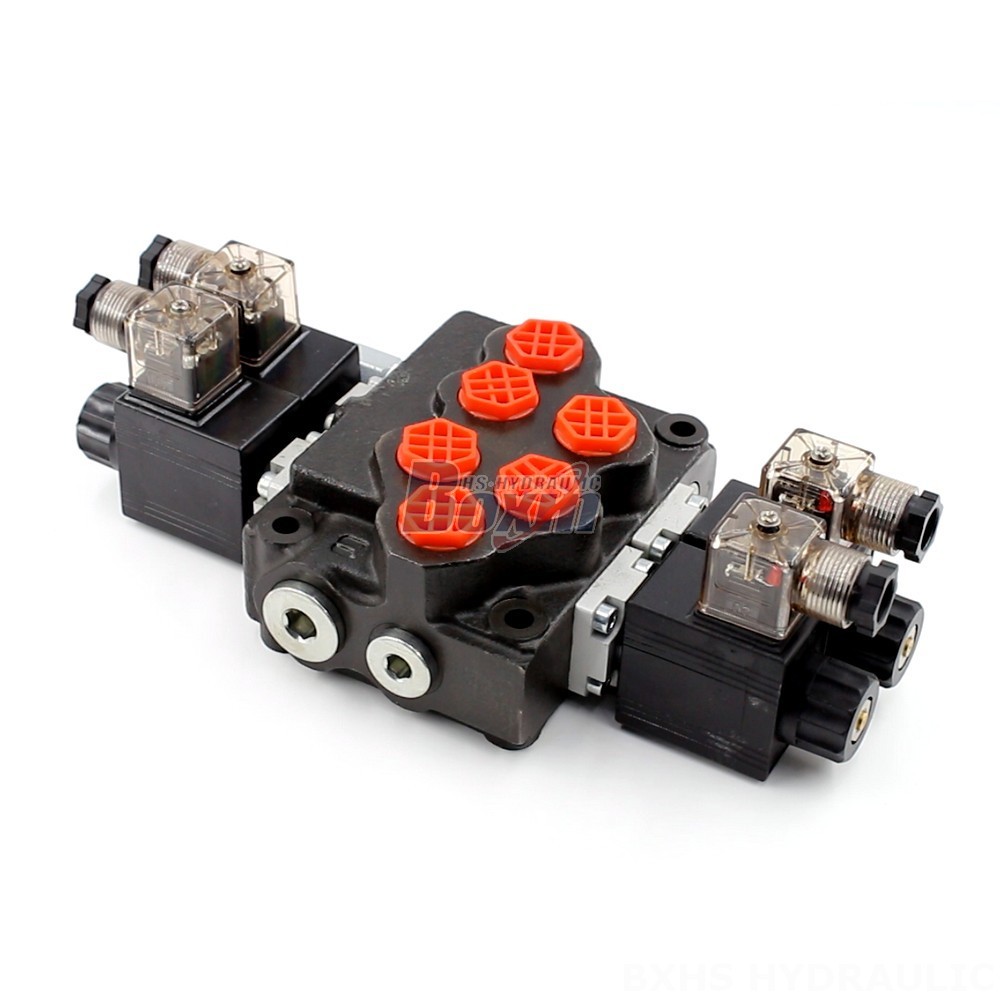

The SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It features a monoblock valve structure, a rated flow of 40 L/min (10.5 US gpm), and a maximum pressure of 305 bar (4400 psi).
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This high-performance SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in demanding applications. It features a robust monoblock valve structure, providing high reliability and durability. The valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), making it suitable for a wide range of hydraulic systems. The valve's operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), allowing it to function effectively in various temperature conditions (-40°C to +60°C/-40°F to +140°F). The SD5 Series Hydraulic 4/3 Valve is ideal for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
