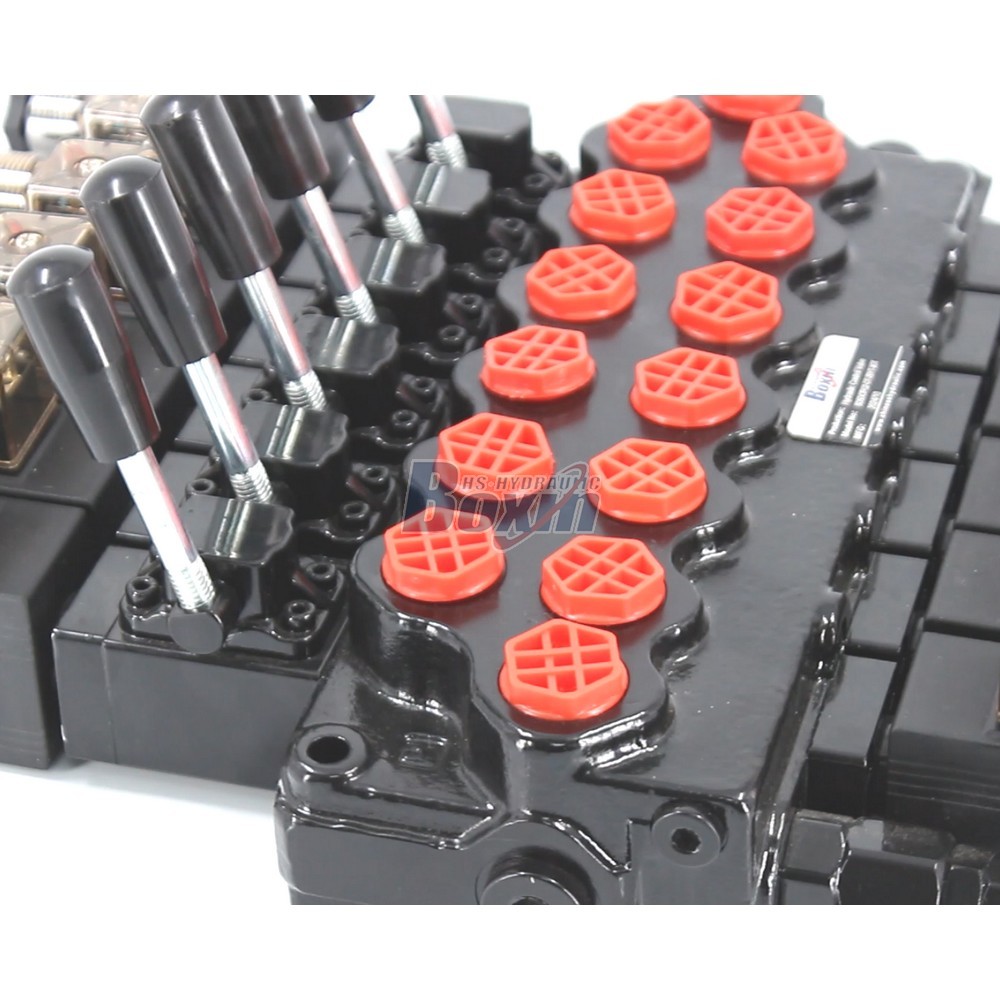

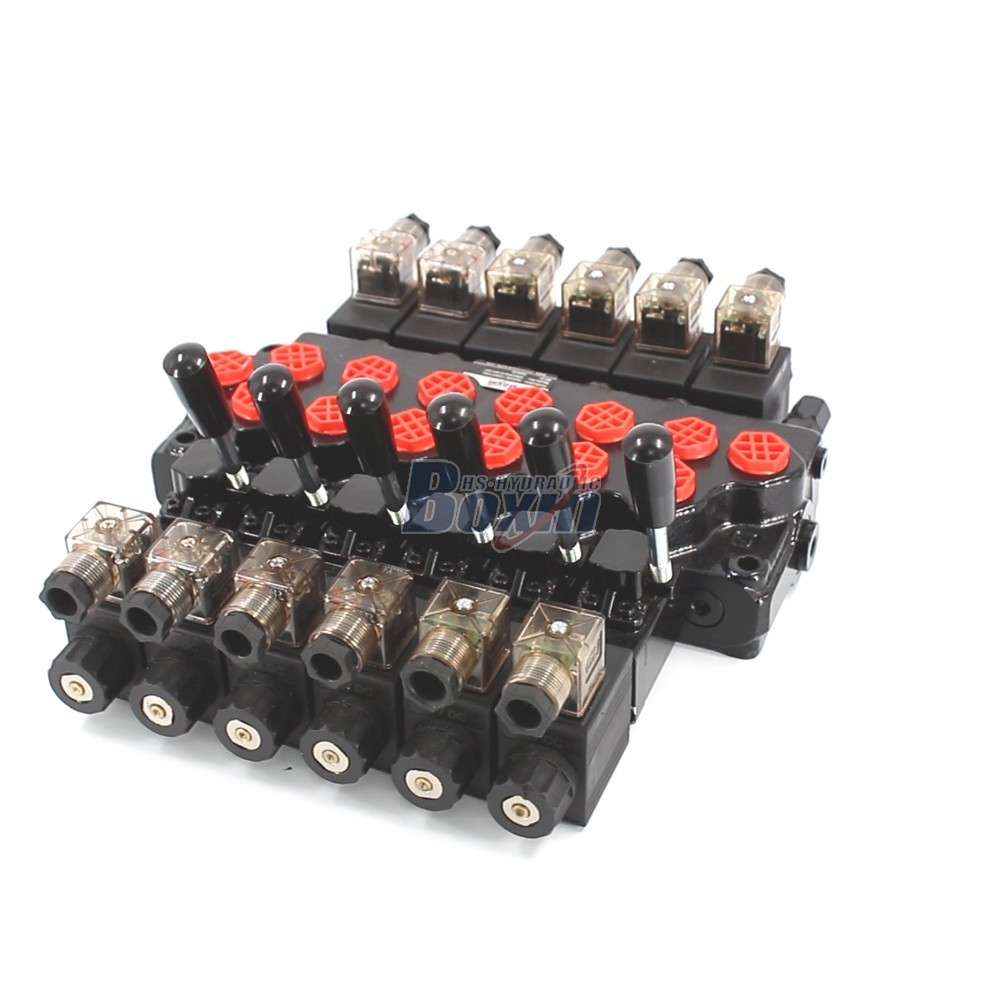

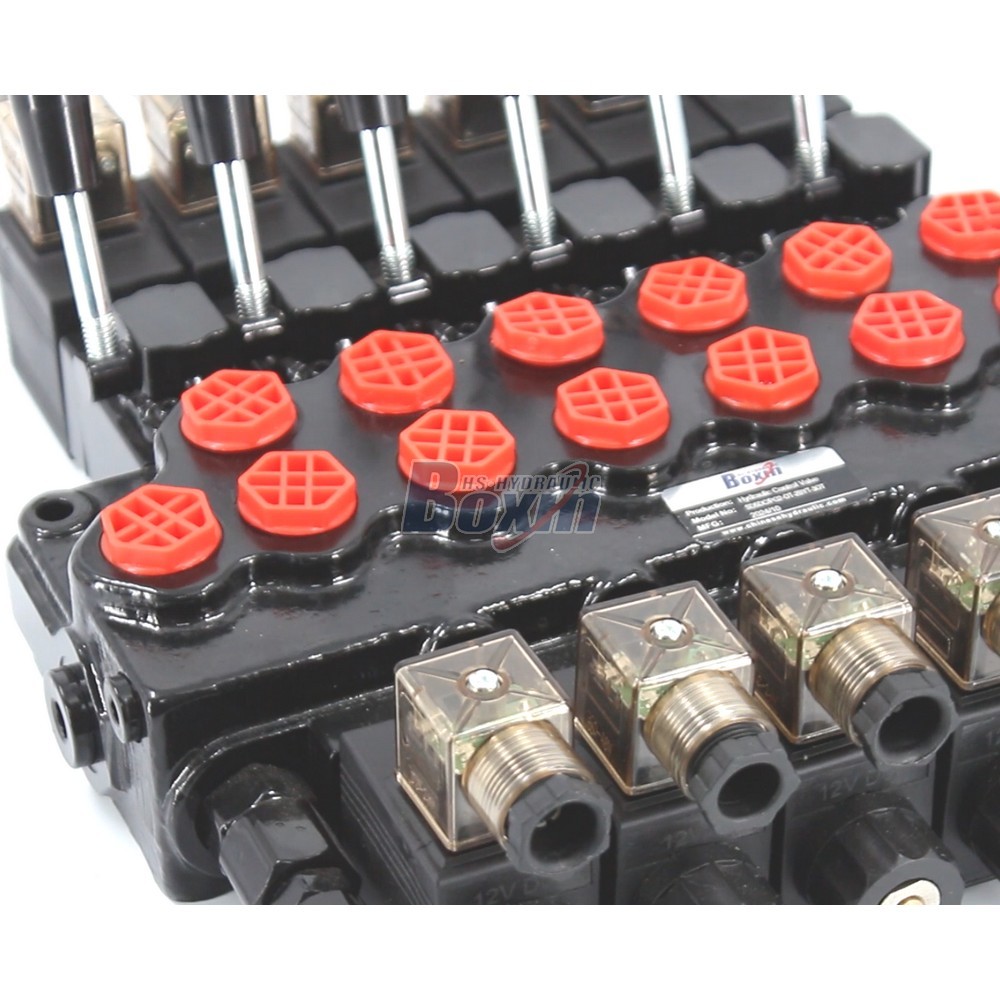

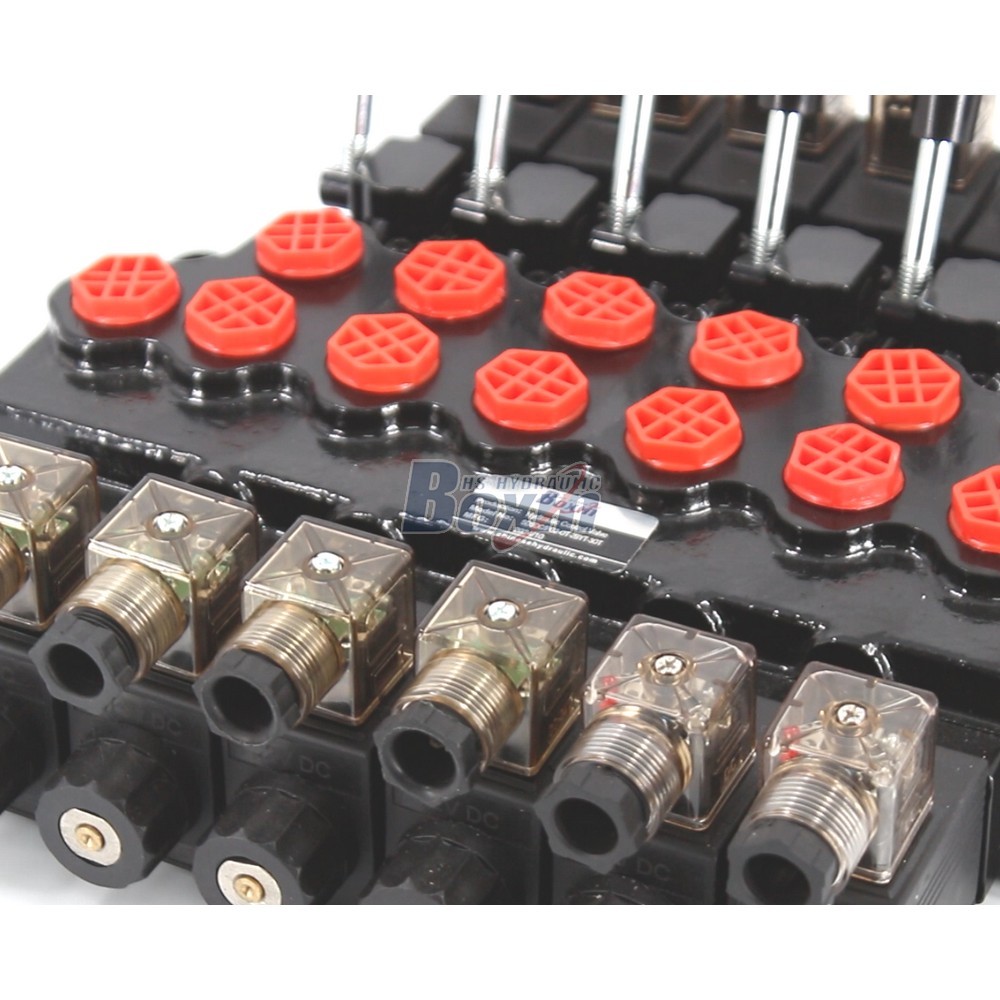

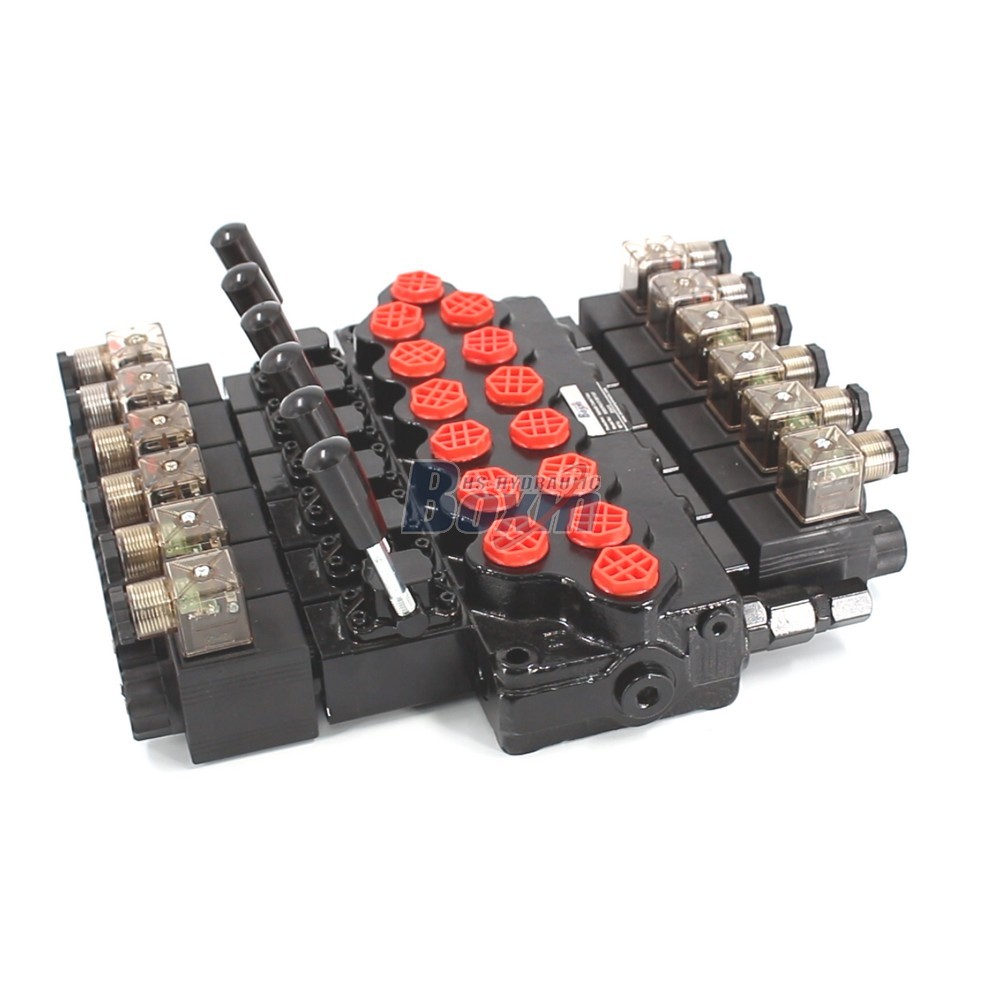

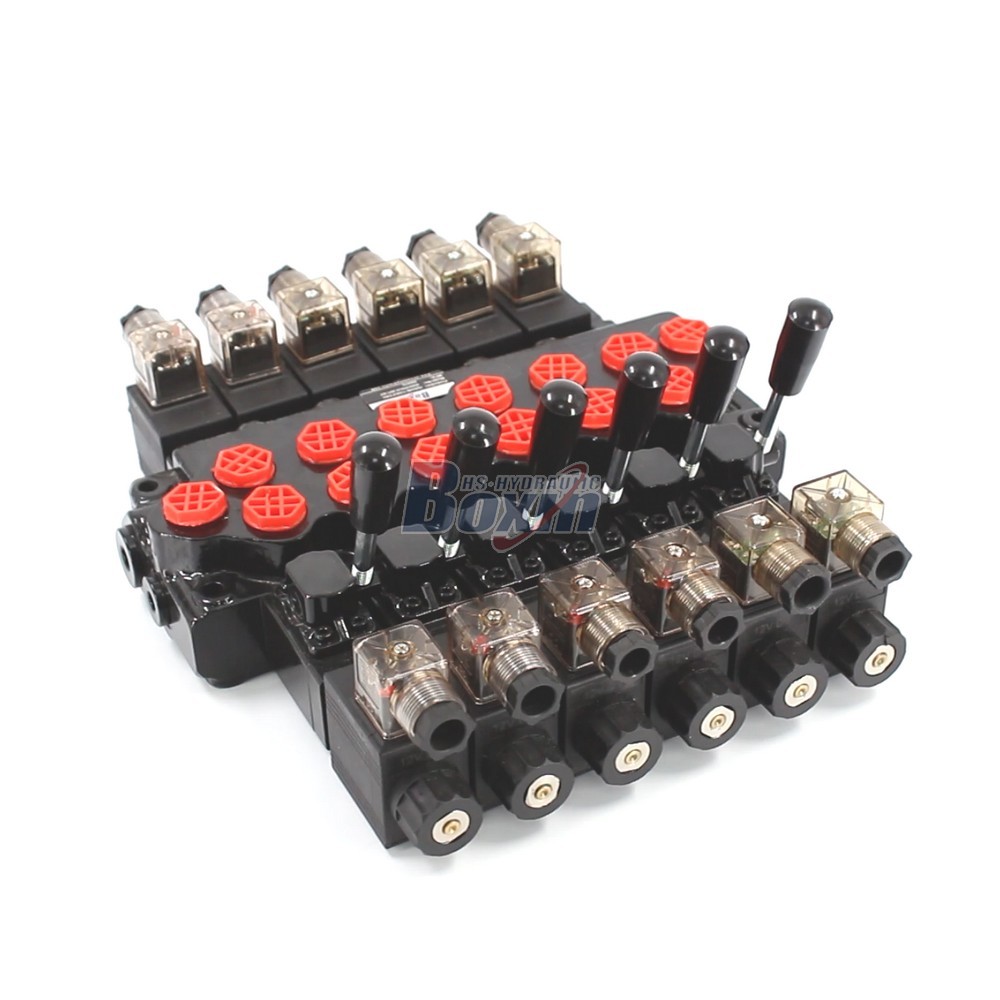

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

Méthode de contrôle:Solénoïde

Distributeur:6 tiroirs

Débit nominal:45 L/min (11,8 US gpm)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G1/2

Orifice de sortie:G1/2

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série SD5 Vanne directionnelle monobloc

Taille de l'emballage:31*29*10

Poids brut:14.00 kg

Disponibilité: En stock

96 personnes consultent ce produit

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation drawing image

The SD5-PG2 Series is a high-performance 6-spool solenoid directional control valve designed for precision flow management. With a 45 L/min flow rate and 315 bar pressure capacity, it serves diverse heavy-duty applications including construction, agriculture, and material handling machinery.

Série SD5 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +60 °C (-40 °F à +140 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 305 bar (4 400 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Orifice de sortie G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Dimension du raccord G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

As a prominent manufacturer specializing in advanced fluid power solutions, we provide the SD5-PG2 Series 6 Spool Solenoid Directional Control Valve to global markets. Our facility excels in precision engineering, offering comprehensive services in manufacturing, OEM, private labeling, and custom design to meet specific project requirements. We support large-scale factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. Our valves are engineered for reliability in demanding environments such as tractors, forklifts, mini-excavators, and harvesters. By choosing our factory direct supply, partners gain access to competitive pricing, robust logistical support, and consistent manufacturing quality. We welcome inquiries for tailored hydraulic solutions and invite industry professionals to discuss partnership opportunities to expand our reach in the global construction and industrial vehicle sectors.
