The SD5 Hydraulic Valve is a high-performance solenoid-controlled monoblock valve designed for use in agricultural machinery, construction equipment, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it's ideal for applications demanding reliable hydraulic control.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

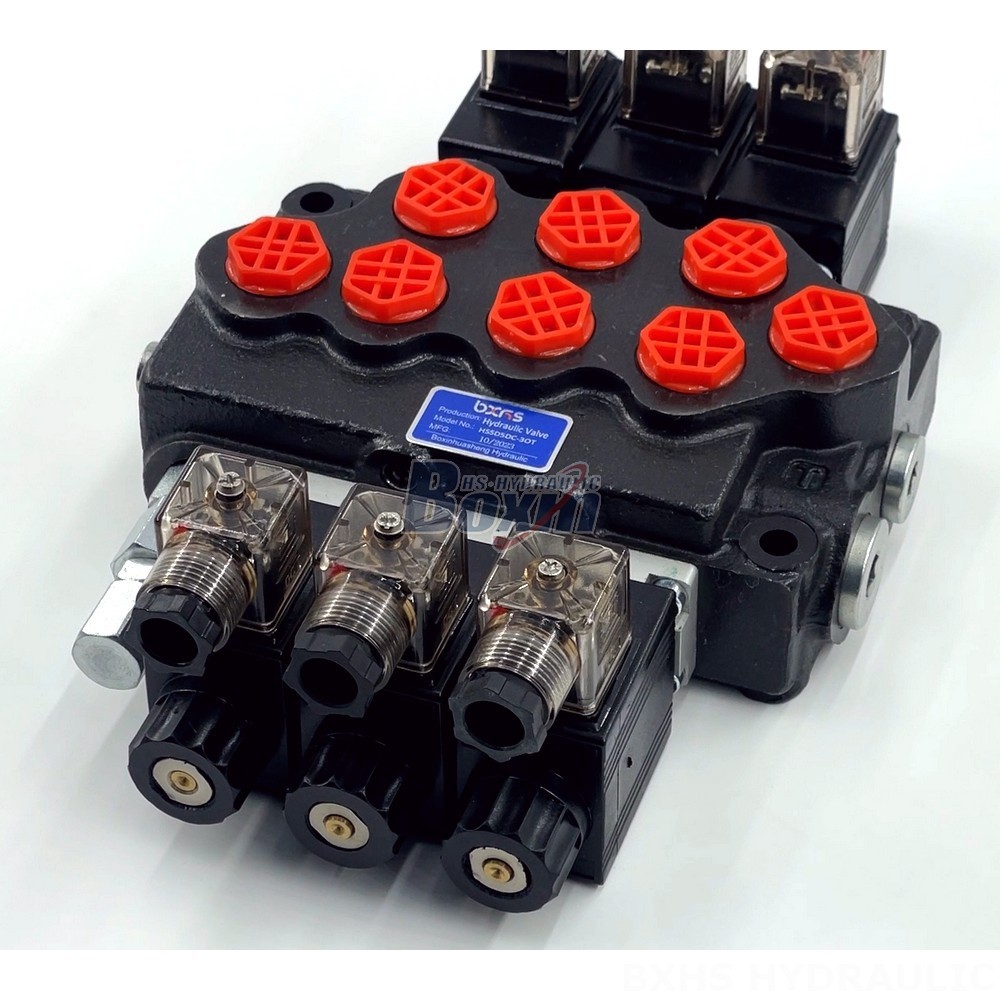

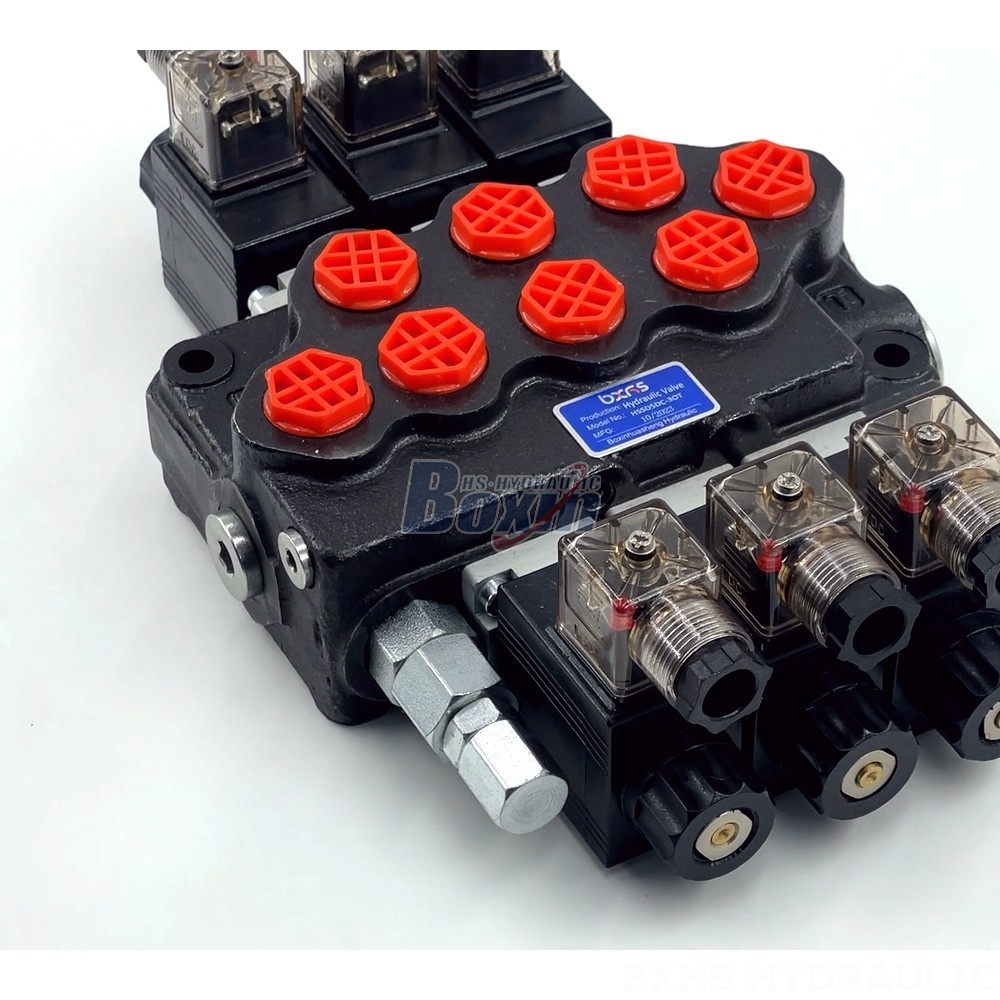

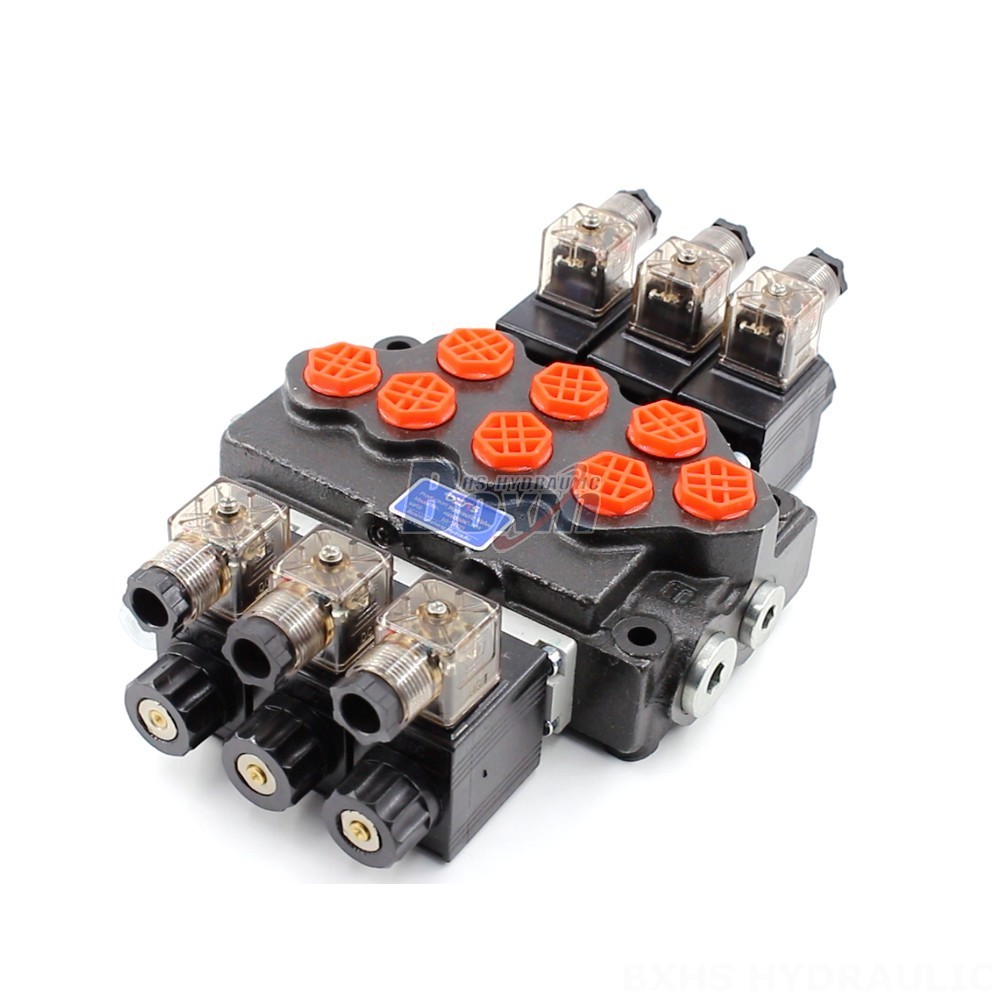

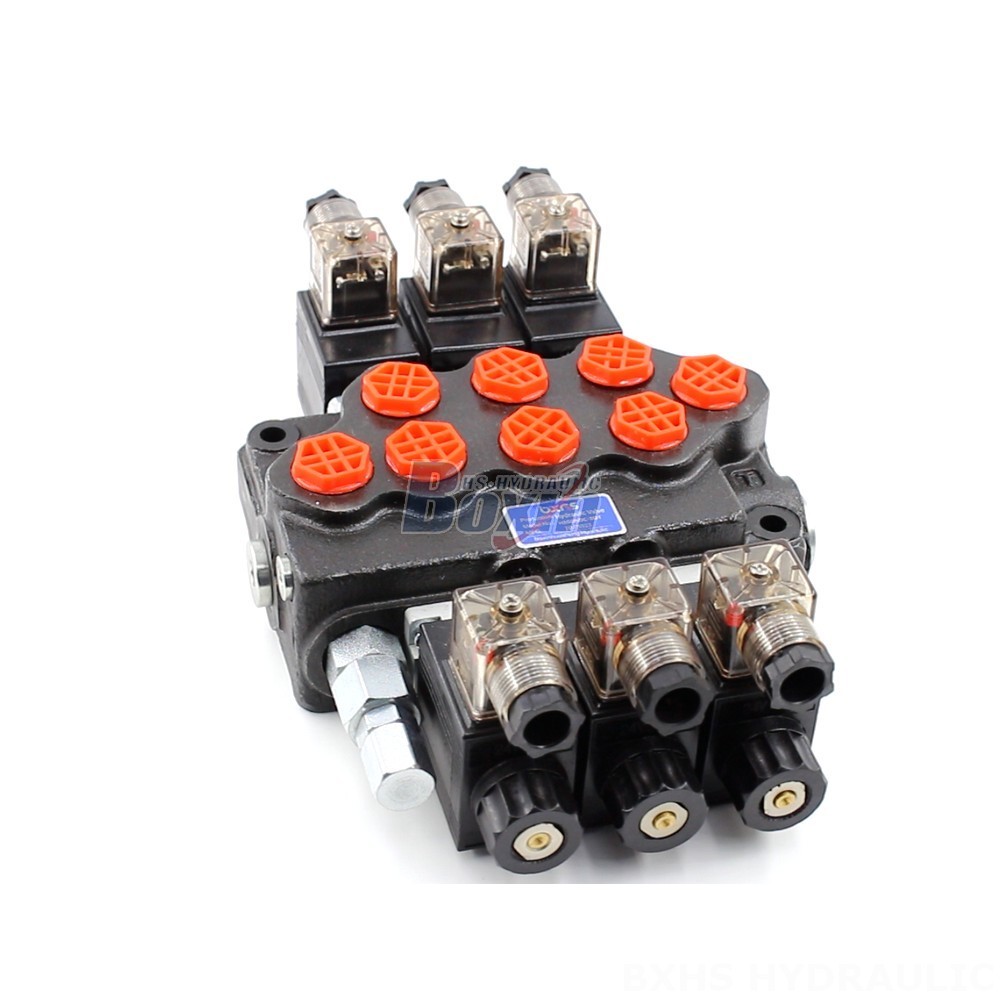

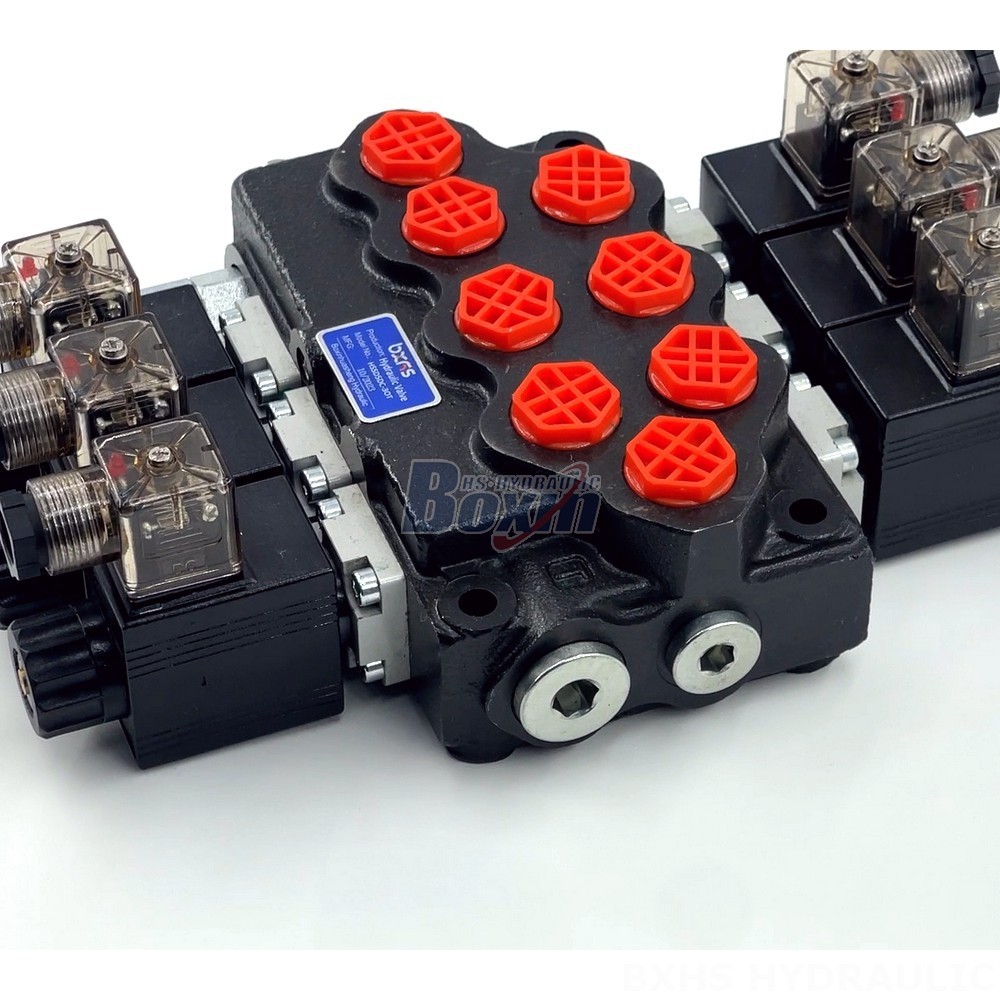

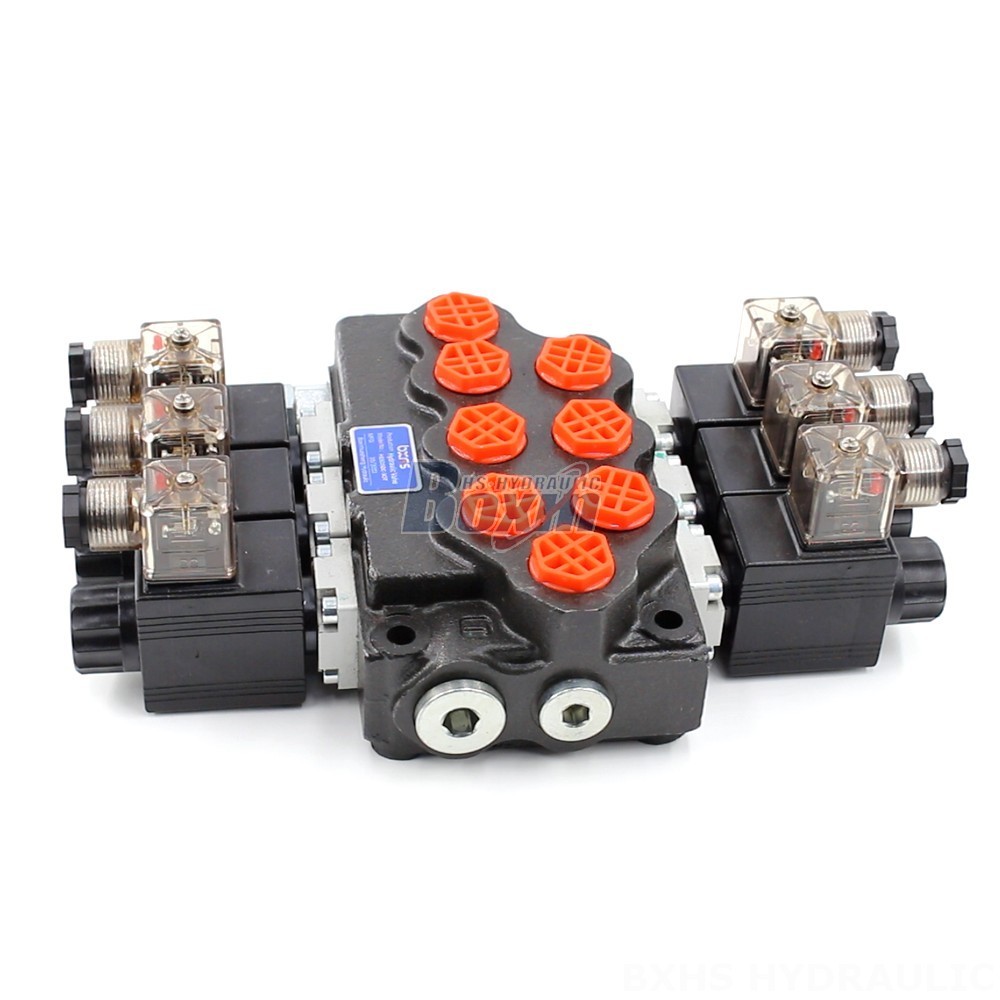

This 3-section SD5 Series valve offers exceptional control with its solenoid operation and robust construction. Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s and a wide ambient temperature range from -40°C to +60°C. With its 3 spools and 40 L/min rated flow, it's perfect for controlling hydraulic systems in a variety of agricultural machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its monoblock design ensures durability and reliable performance, making it a valuable asset for any hydraulic system.
