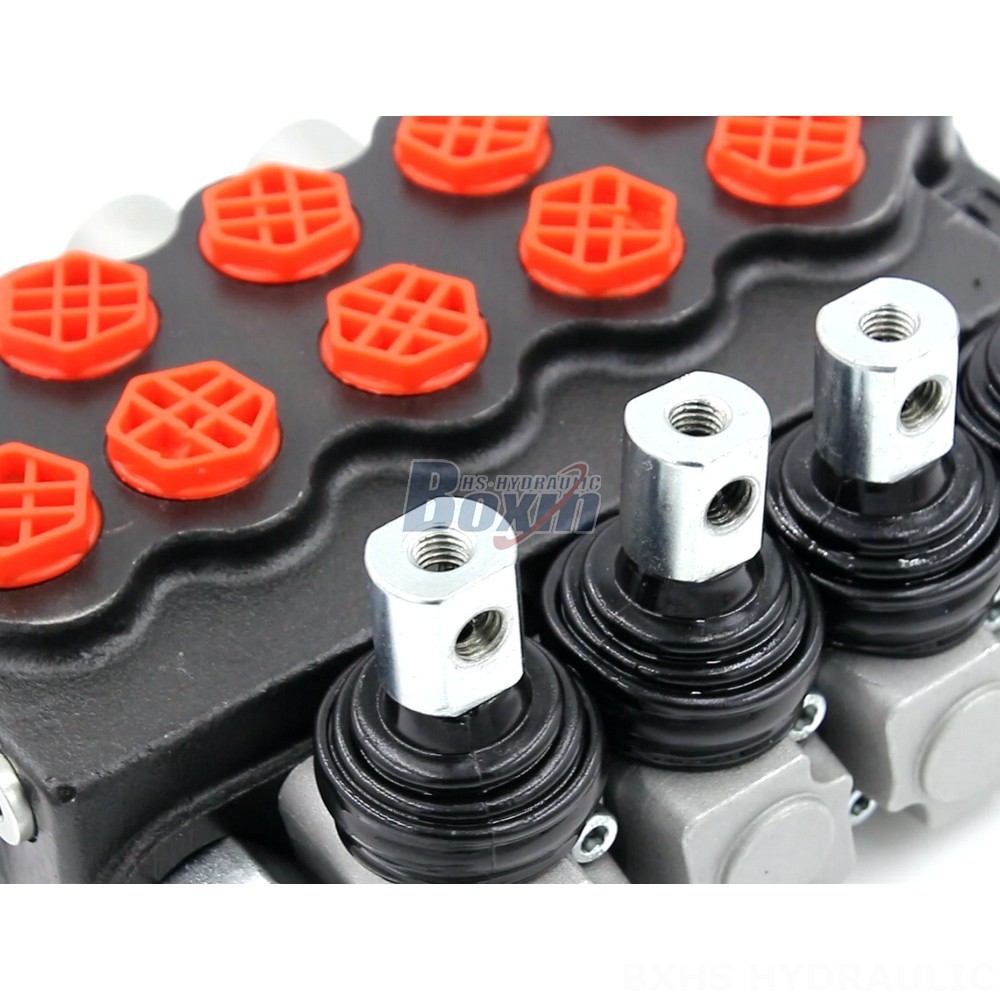

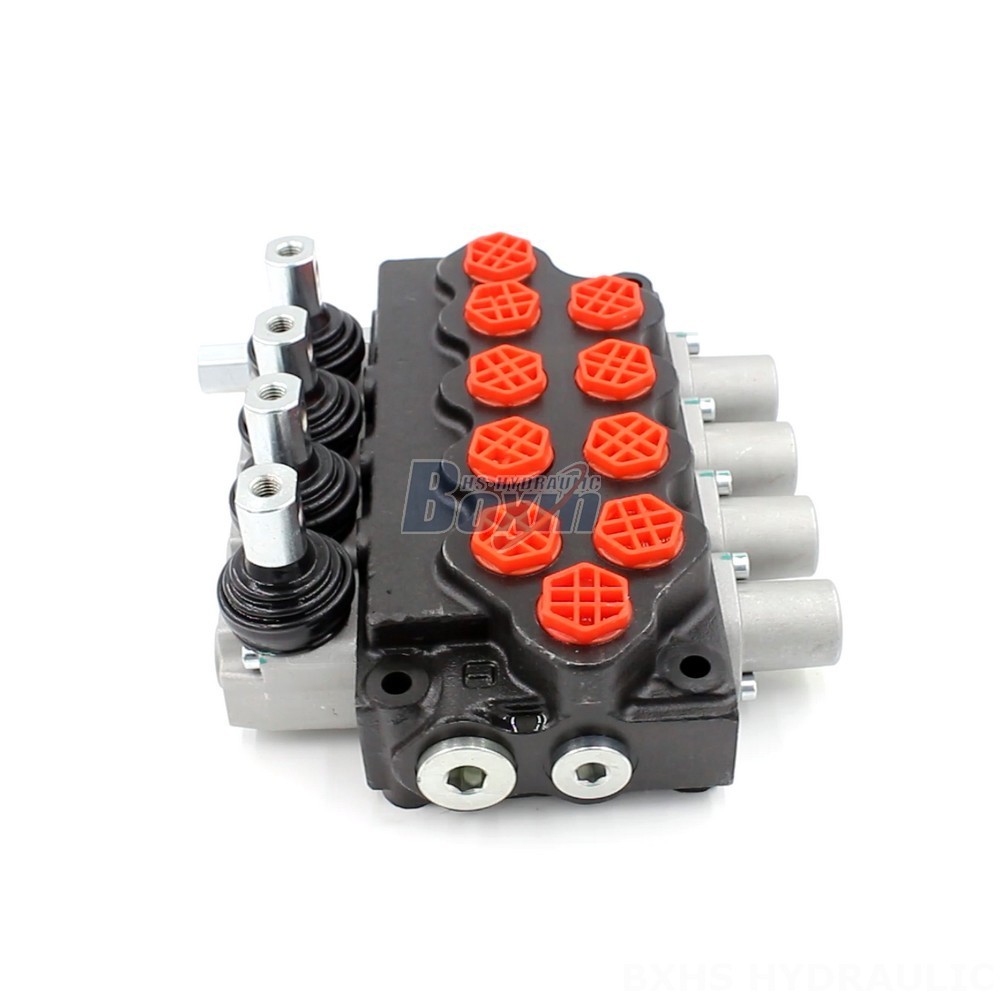

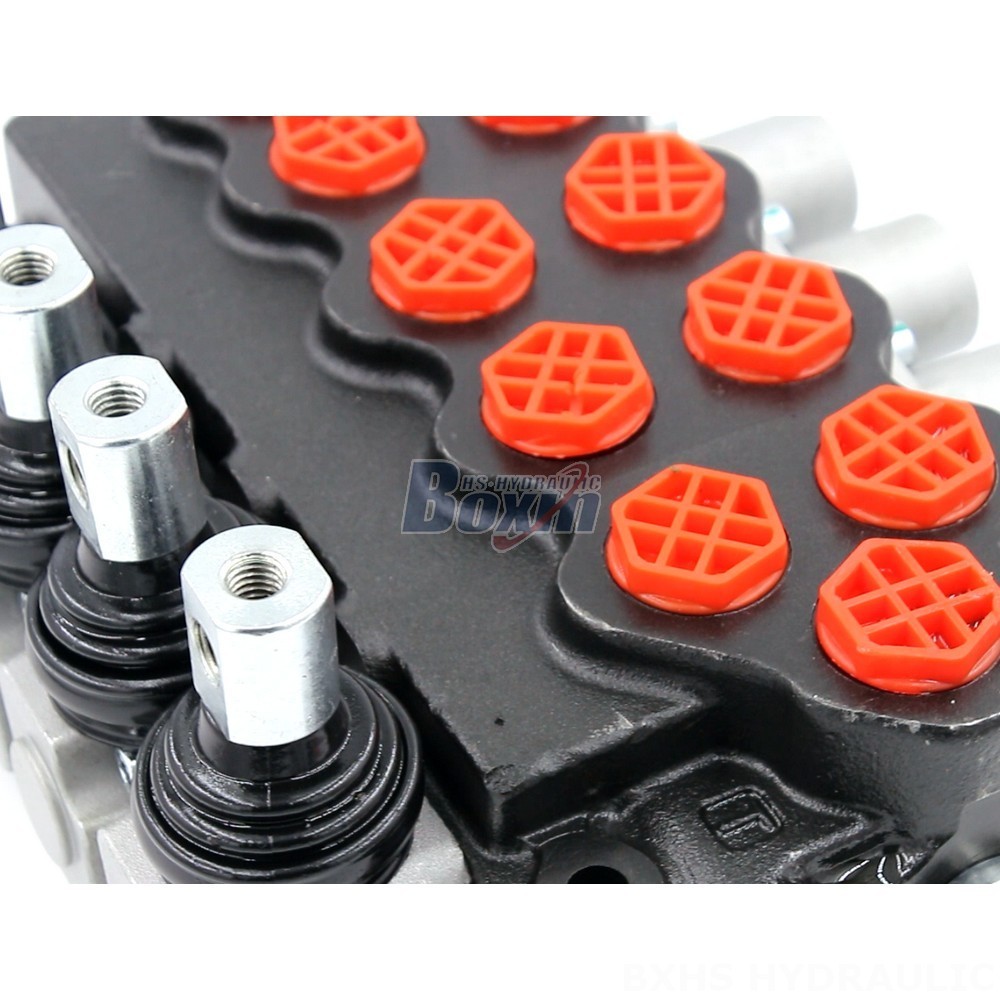

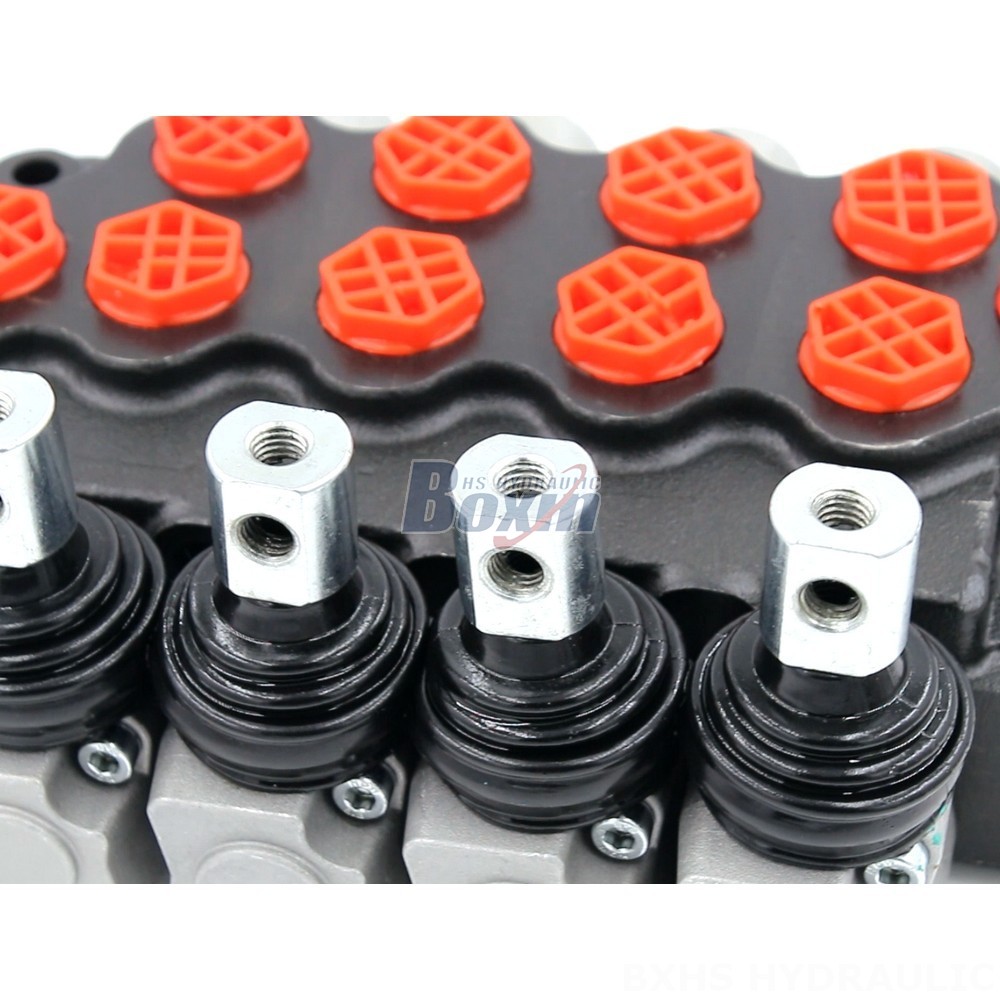

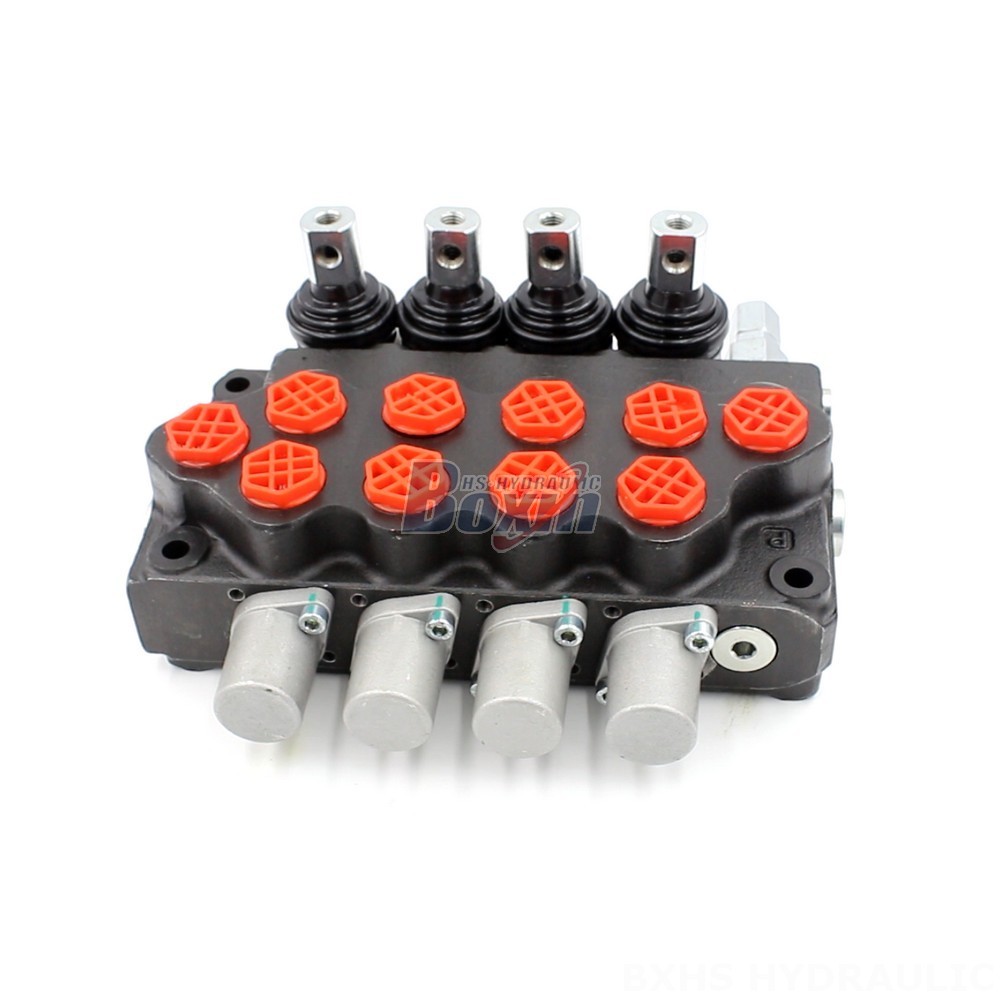

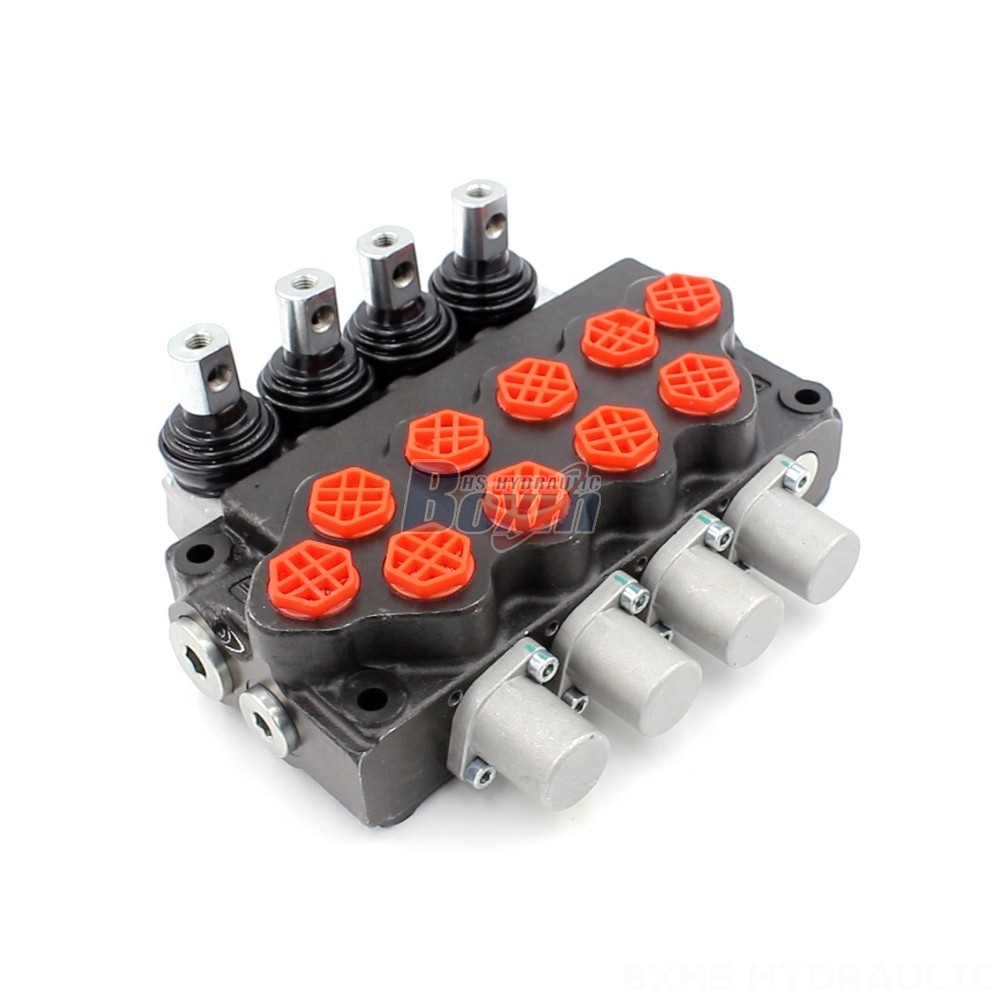

The SD5-G38 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its robust monoblock construction, manual control, and high pressure capacity, this valve offers reliable and precise flow control.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* Manual control for precise flow adjustment
* Monoblock construction for durability and leak-free performance
* 4 spool design for versatile flow control
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 305 bar (4400 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Wide ambient temperature range (-40°C to +60°C / -40°F to +140°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
* Industrial vehicles (e.g., sweepers, scrubbers)
**Benefits:**
* Improved flow control and efficiency
* Enhanced system performance and reliability
* Reduced maintenance and downtime
* Suitable for a wide range of hydraulic applications
