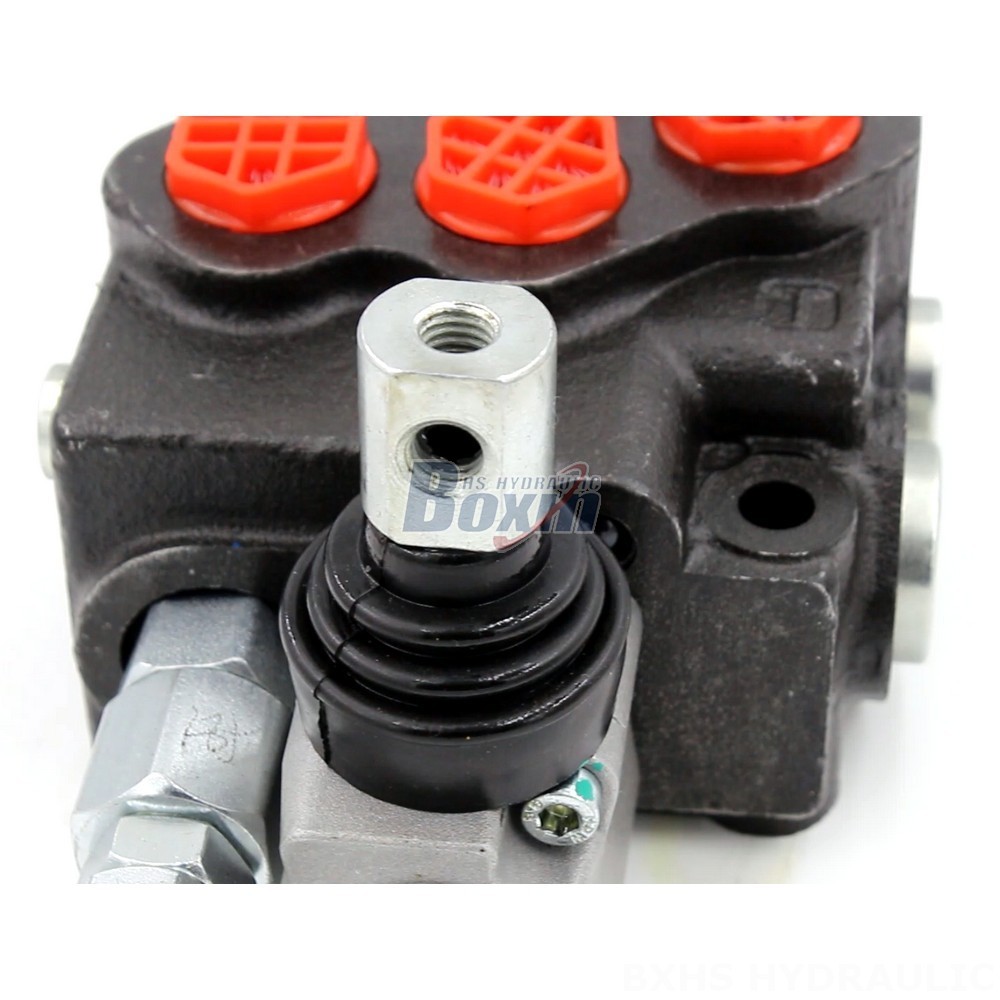

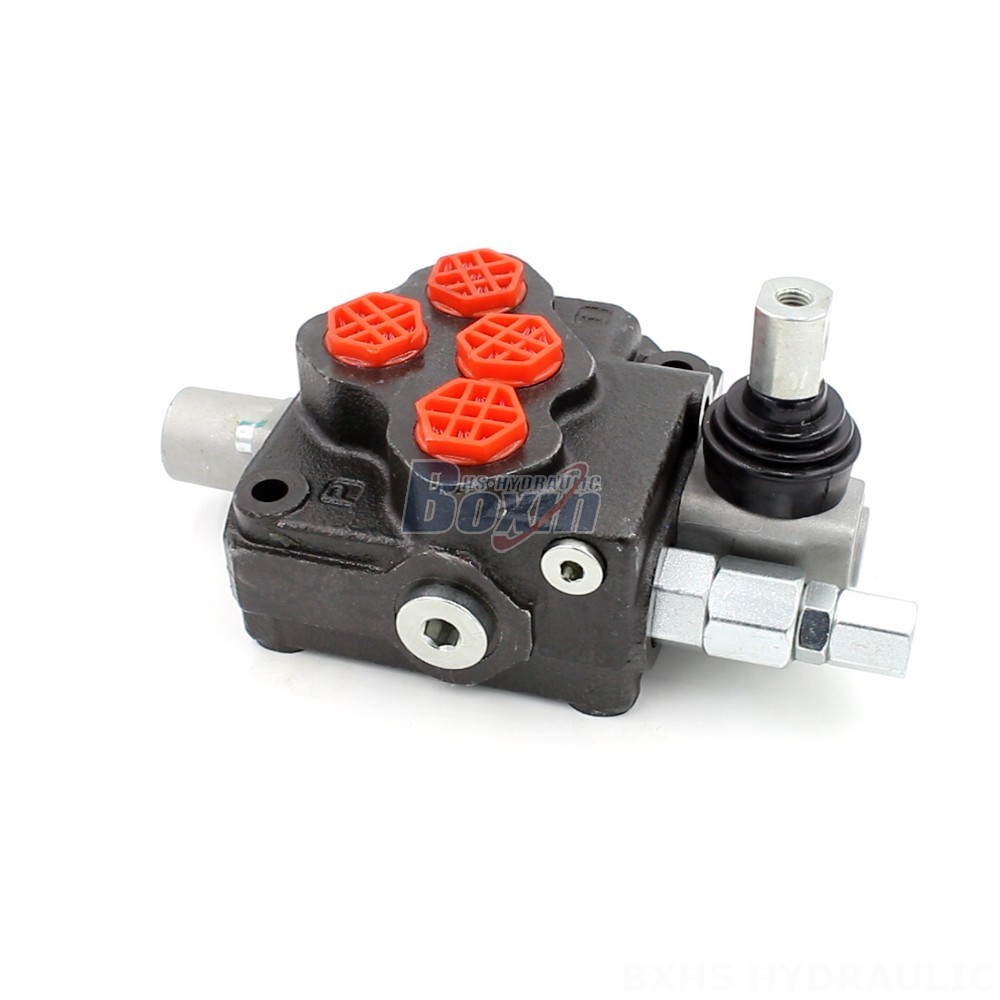

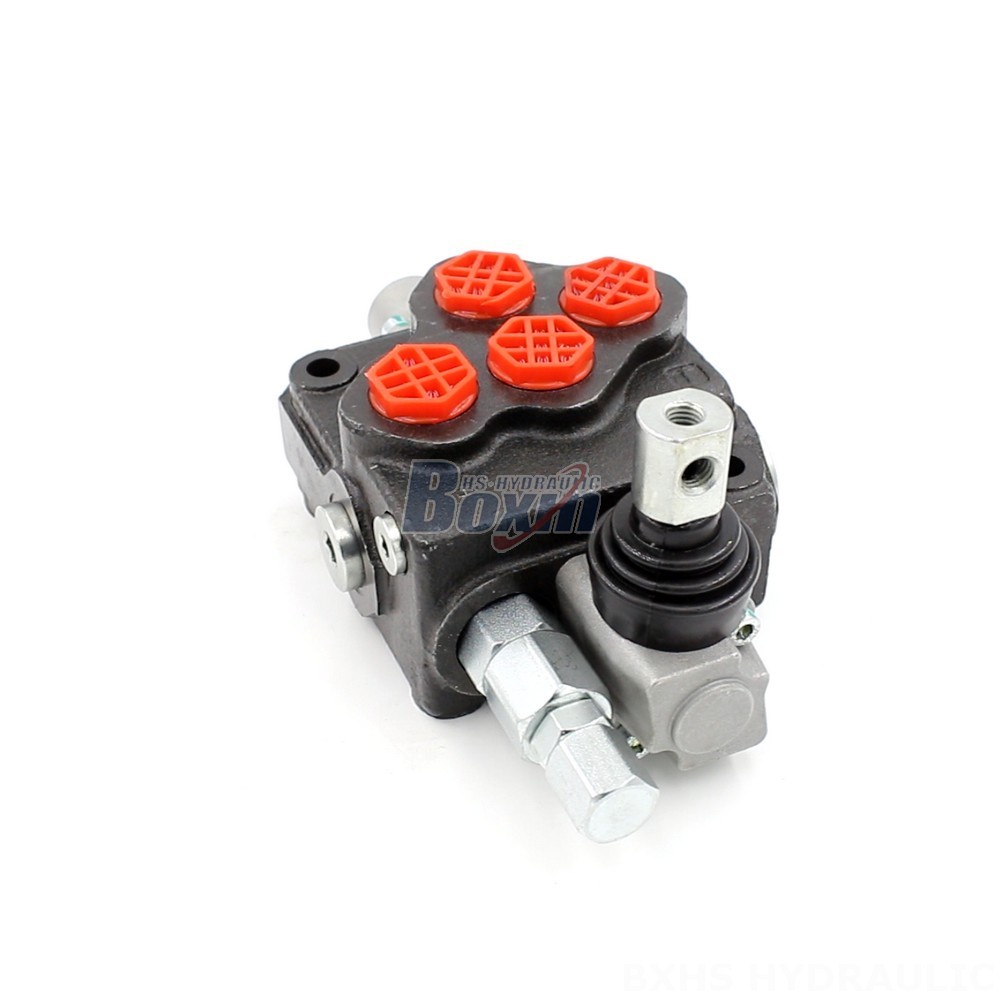

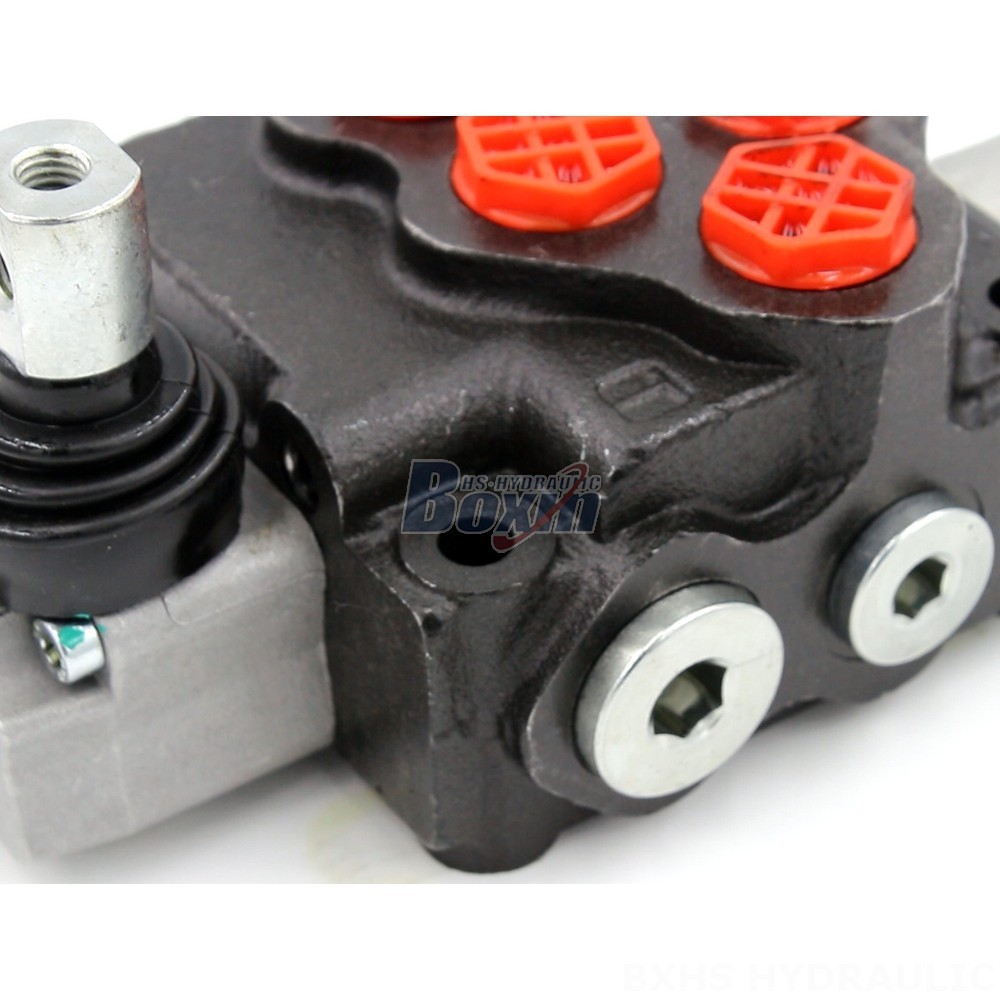

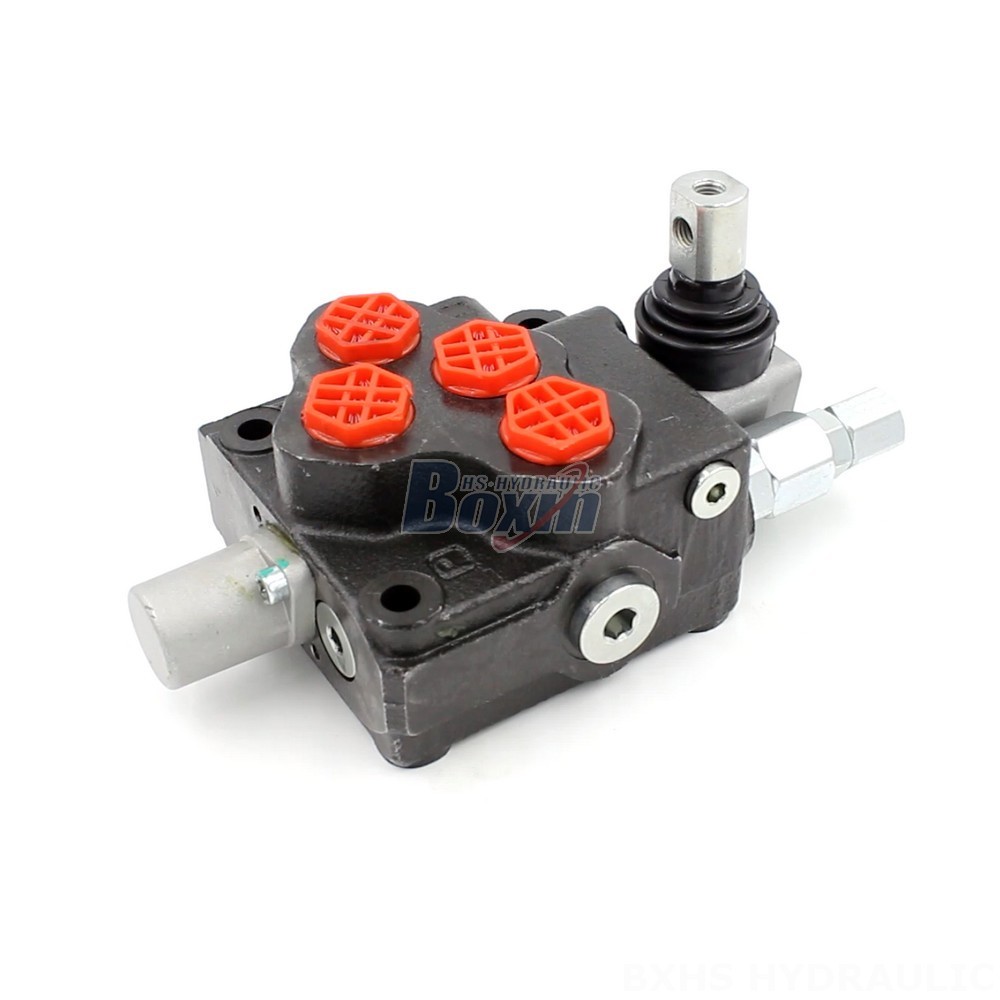

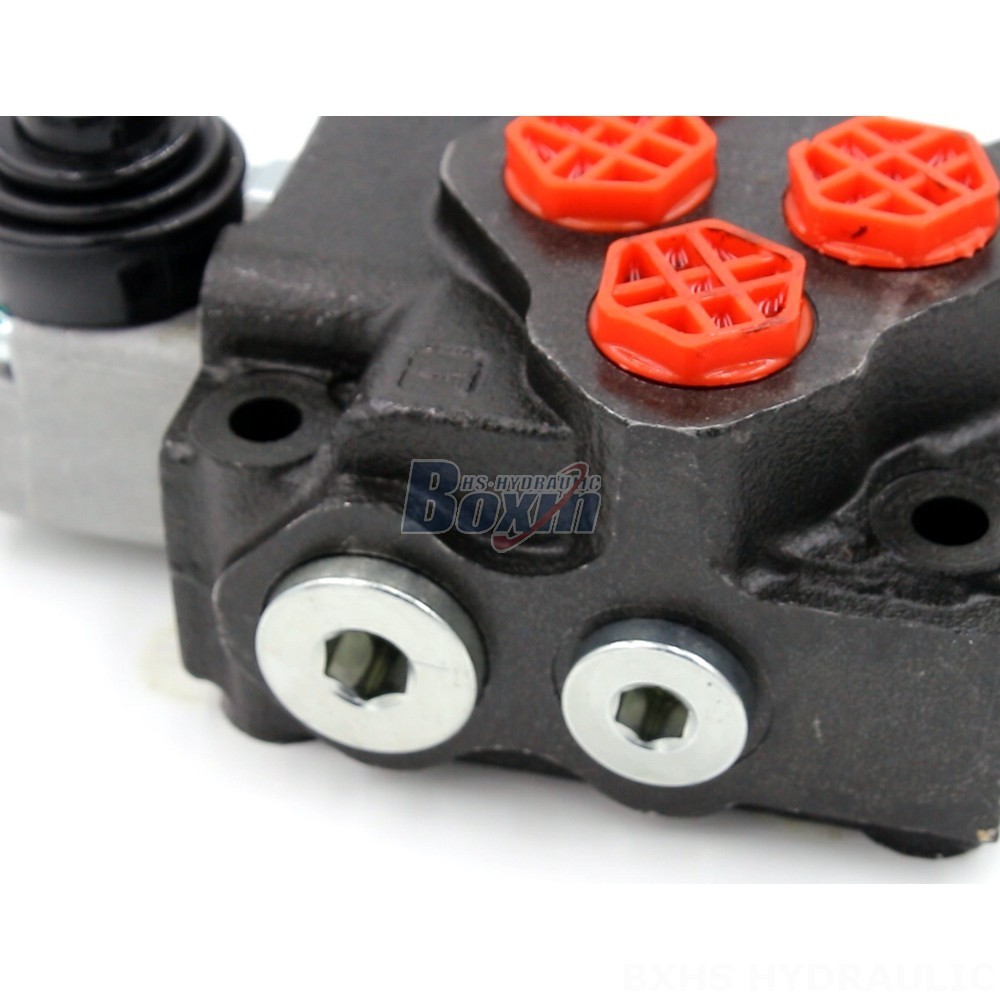

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

Méthode de contrôle:Manuel

Distributeur:1 tiroir

Débit nominal:45 L/min (11,8 US gpm)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G3/8

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série SD5 Vanne directionnelle monobloc

Taille de l'emballage:23*20*12

Poids brut:3.80 kg

Disponibilité: En stock

1183 personnes consultent ce produit

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need drawing image

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual valve features a compact monoblock design, a rated flow of 40 L/min, and a maximum pressure rating of 305 bar.

Série SD5 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +60 °C (-40 °F à +140 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 305 bar (4 400 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Orifice de sortie G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Dimension du raccord G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications. This robust valve features a single spool design, a compact monoblock structure, and a rated flow of 40 L/min. The valve is capable of handling pressures up to 305 bar, making it suitable for demanding applications. It's designed for use in a variety of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. The SD5-G38 is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
