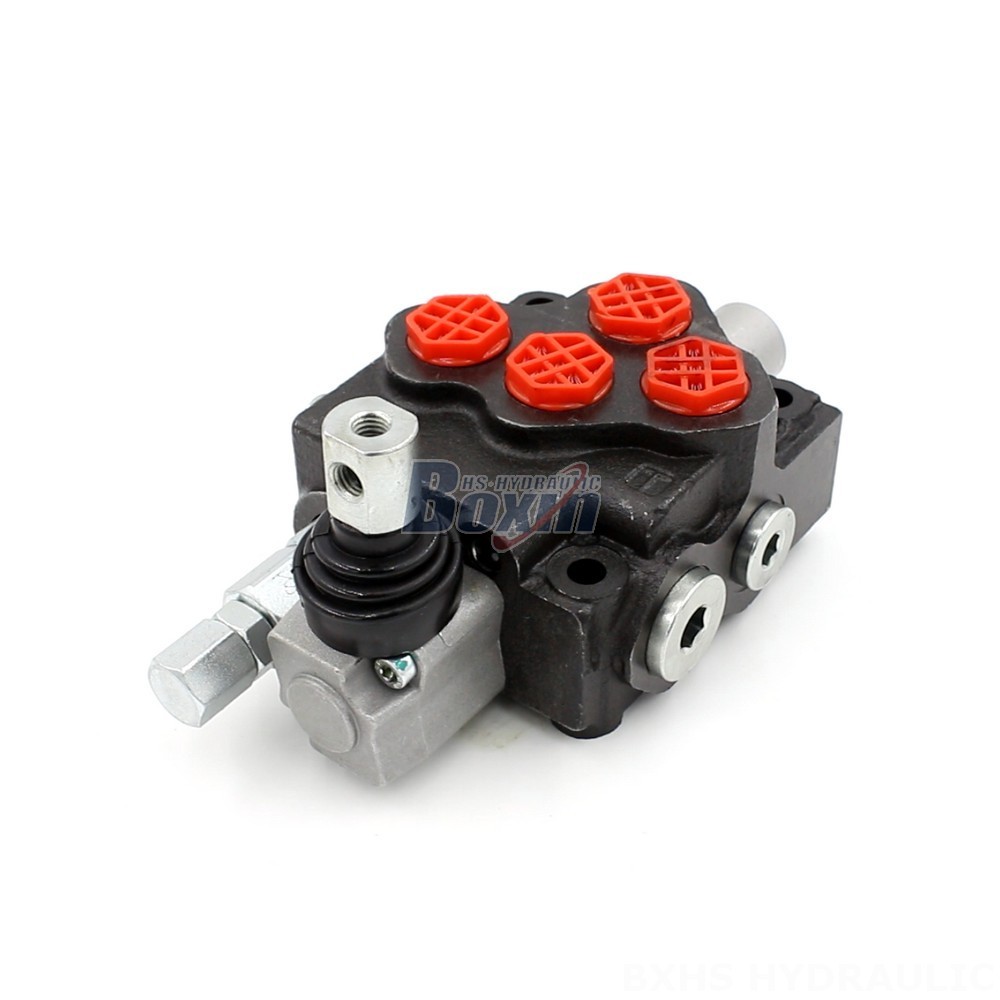

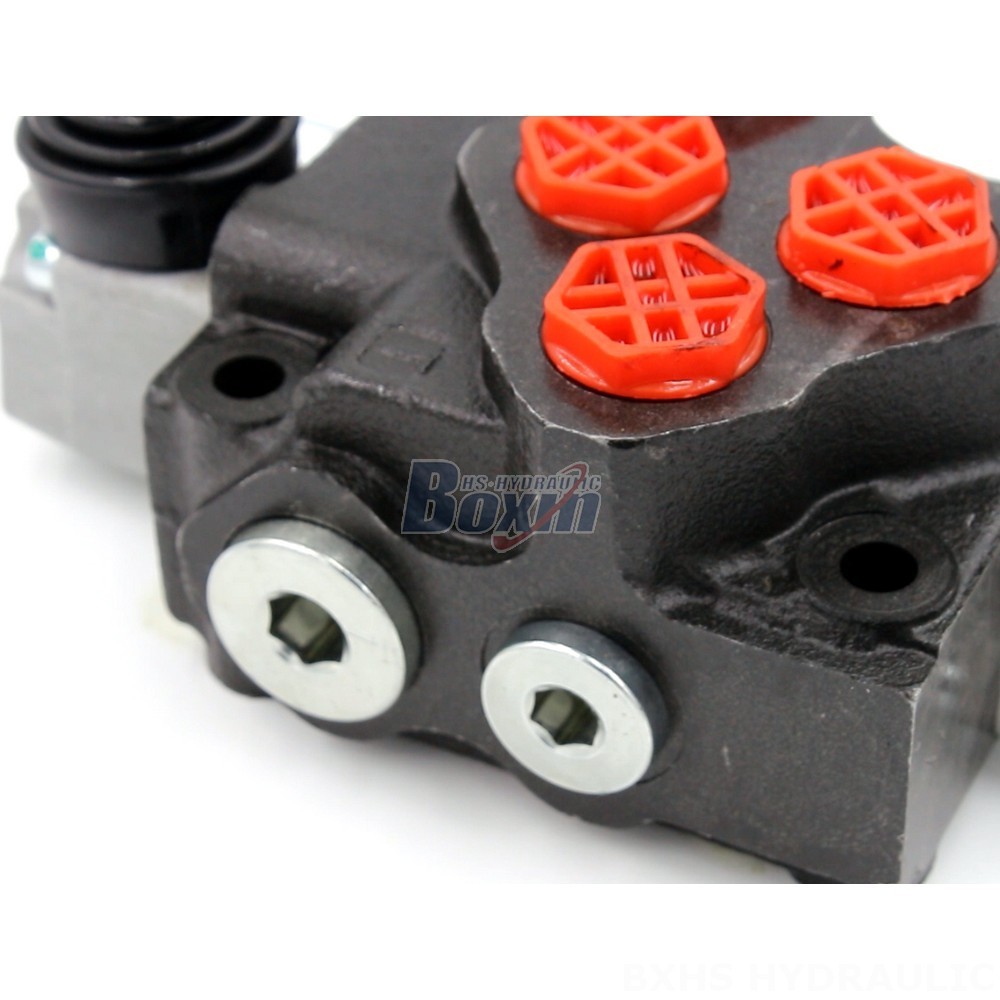

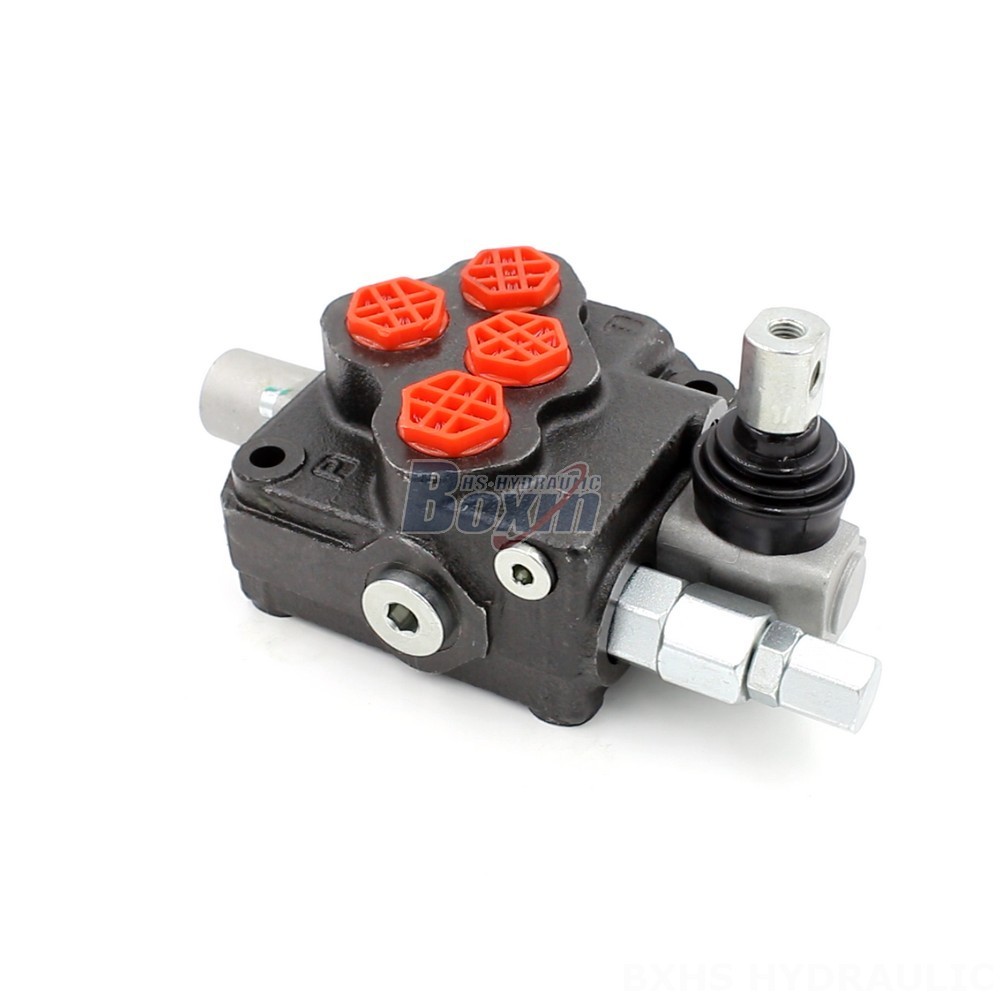

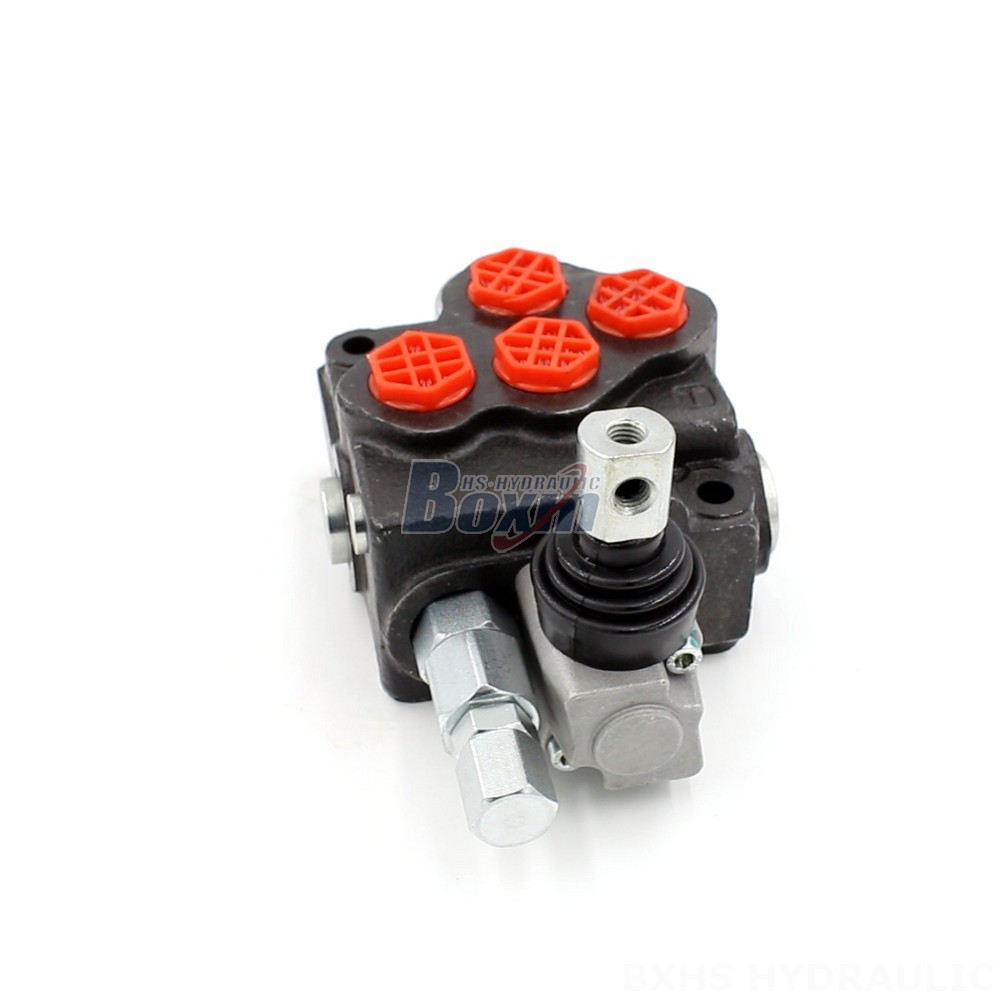

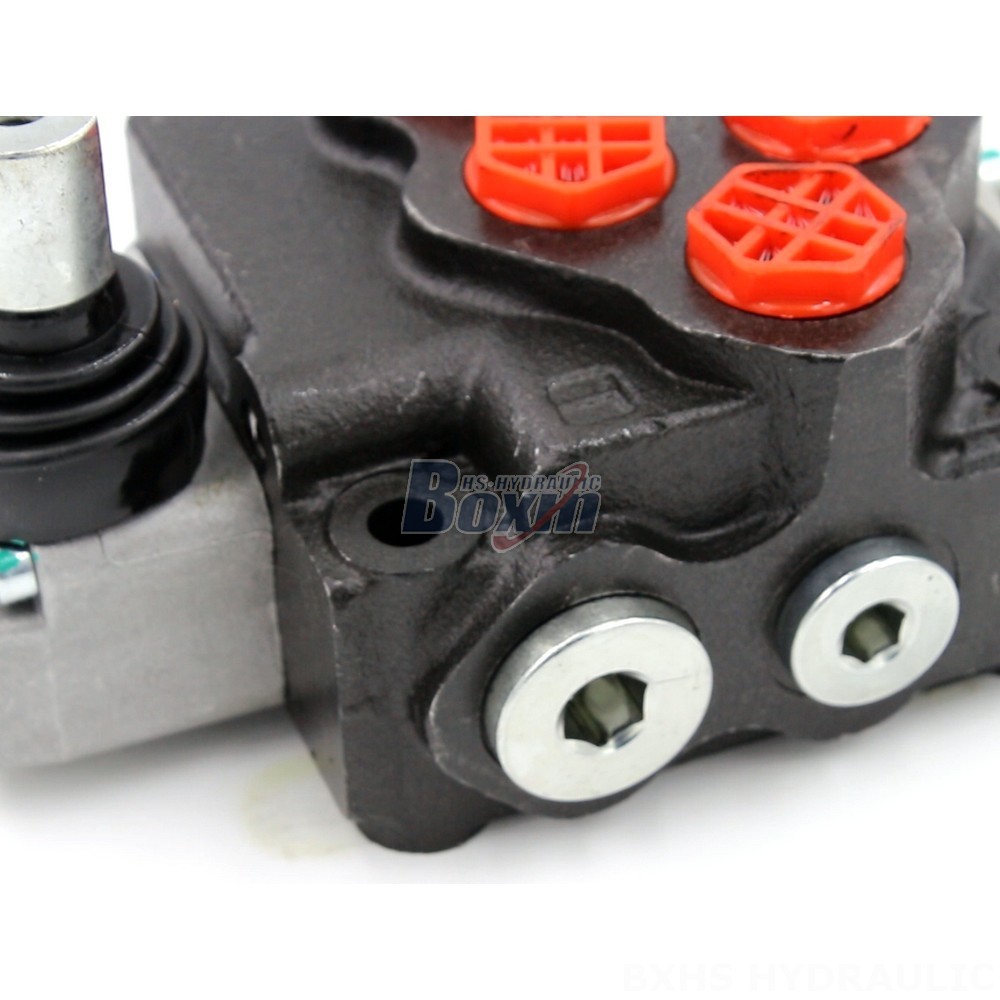

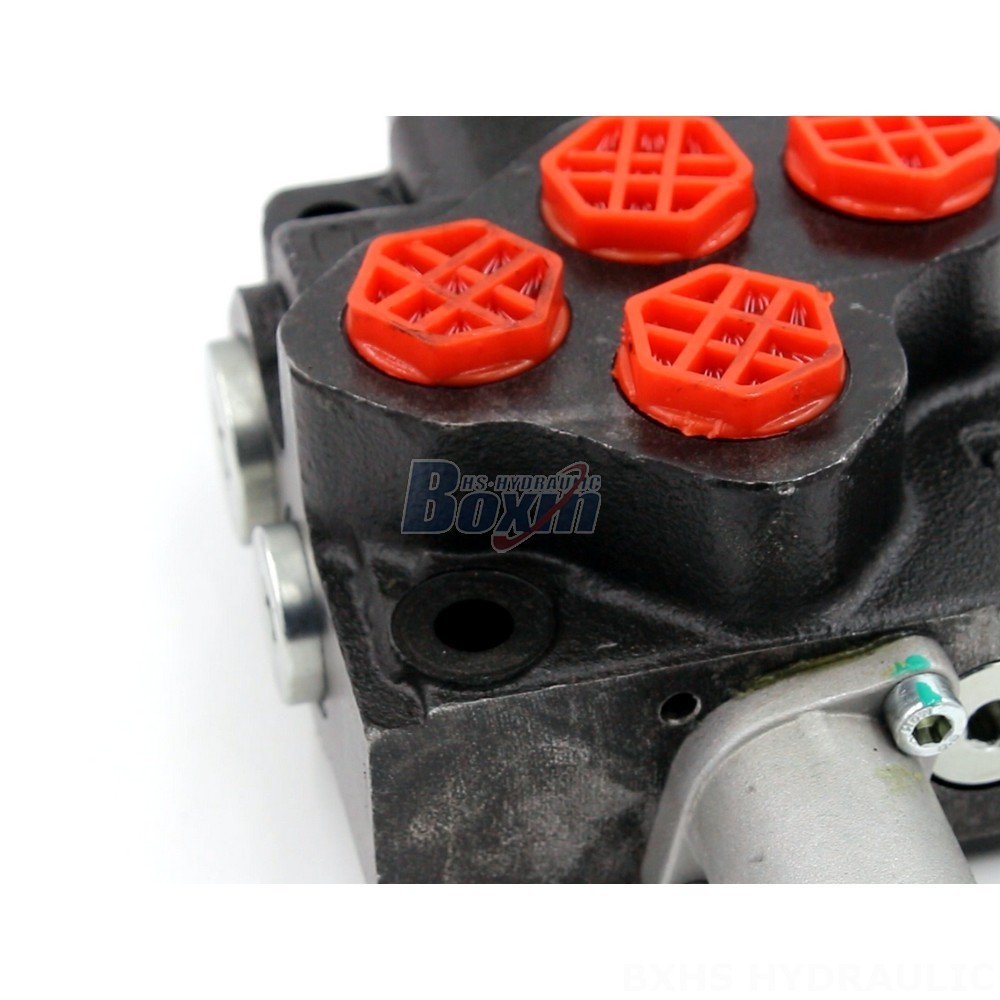

SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation

Méthode de contrôle:Manuel

Distributeur:1 tiroir

Débit nominal:45 L/min (11,8 US gpm)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G3/8

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série SD5 Vanne directionnelle monobloc

Taille de l'emballage:23*20*12

Poids brut:3.80 kg

Disponibilité: En stock

1080 personnes consultent ce produit

SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation

SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation

SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation drawing image

The SD5-G38 Adjustable Pressure Controller is a reliable and durable hydraulic valve designed for smooth operation in a wide range of applications. It offers precise pressure control, high flow rate, and robust construction, making it ideal for use in construction equipment, material handling, agriculture, and industrial vehicles.

Série SD5 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +60 °C (-40 °F à +140 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 305 bar (4 400 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Orifice de sortie G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Dimension du raccord G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Adjustable Pressure Controller is a high-performance hydraulic valve designed for demanding applications. Its monoblock construction provides exceptional strength and durability, while its manual control method allows for precise pressure adjustments. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), this valve is suitable for a wide range of hydraulic systems. Its wide operating viscosity range and temperature range ensure reliable performance in various environments. The SD5-G38 is designed for use in a variety of applications, including telehandlers, forklifts, cranes, excavators, loaders, tractors, harvesters, and other industrial vehicles. Its robust construction and high performance make it the perfect choice for demanding applications requiring precise pressure control and reliable operation.
