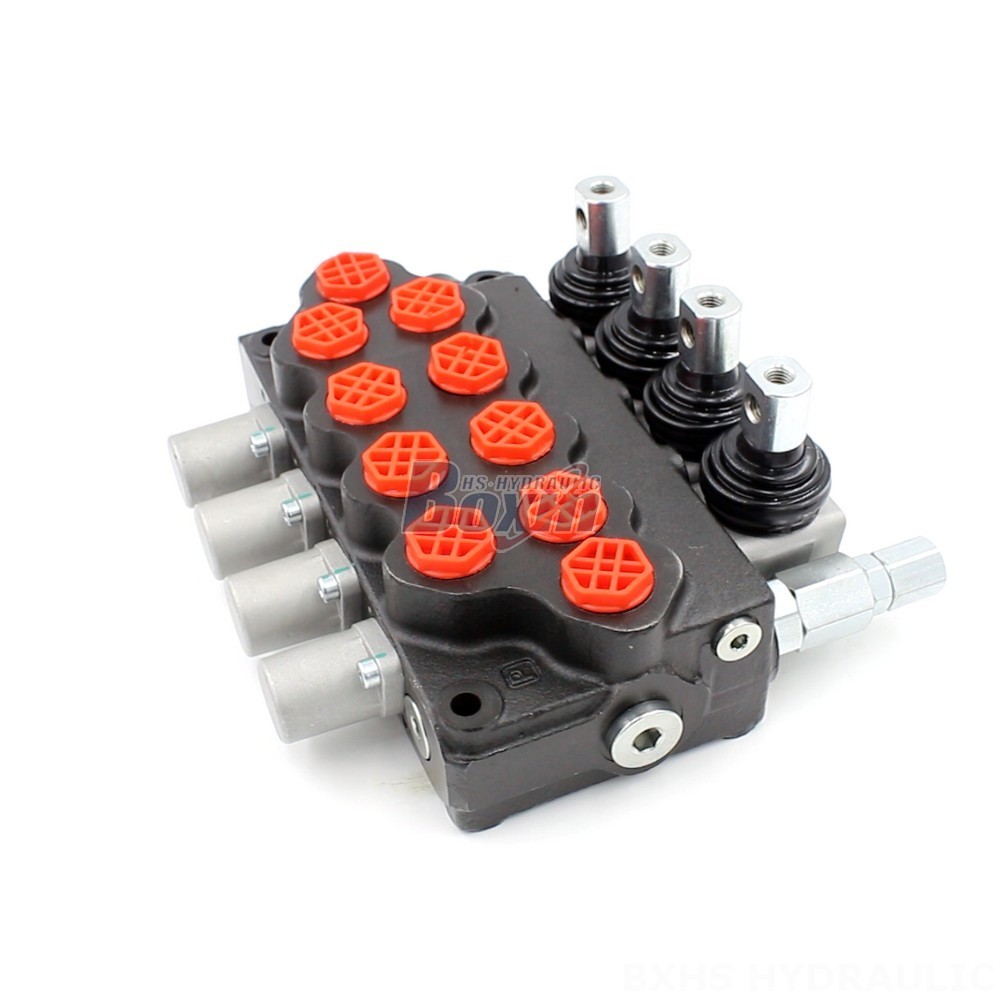

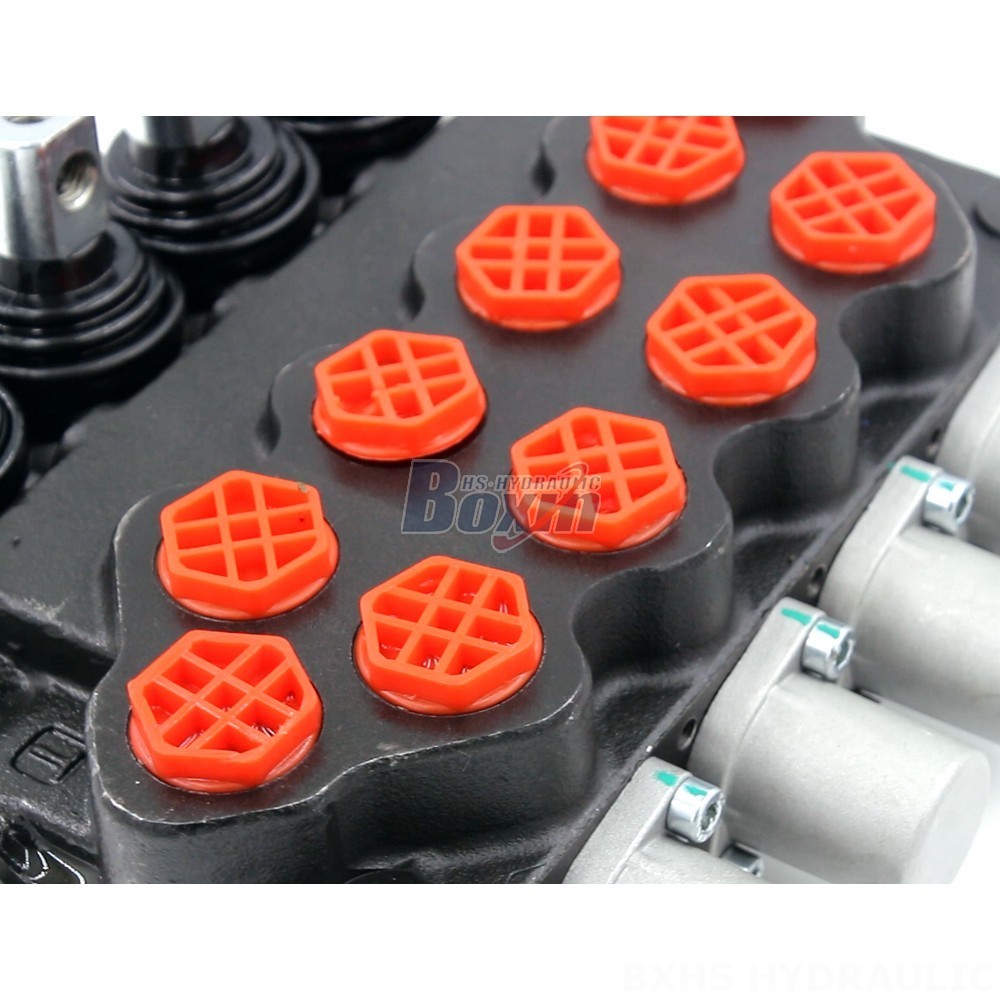

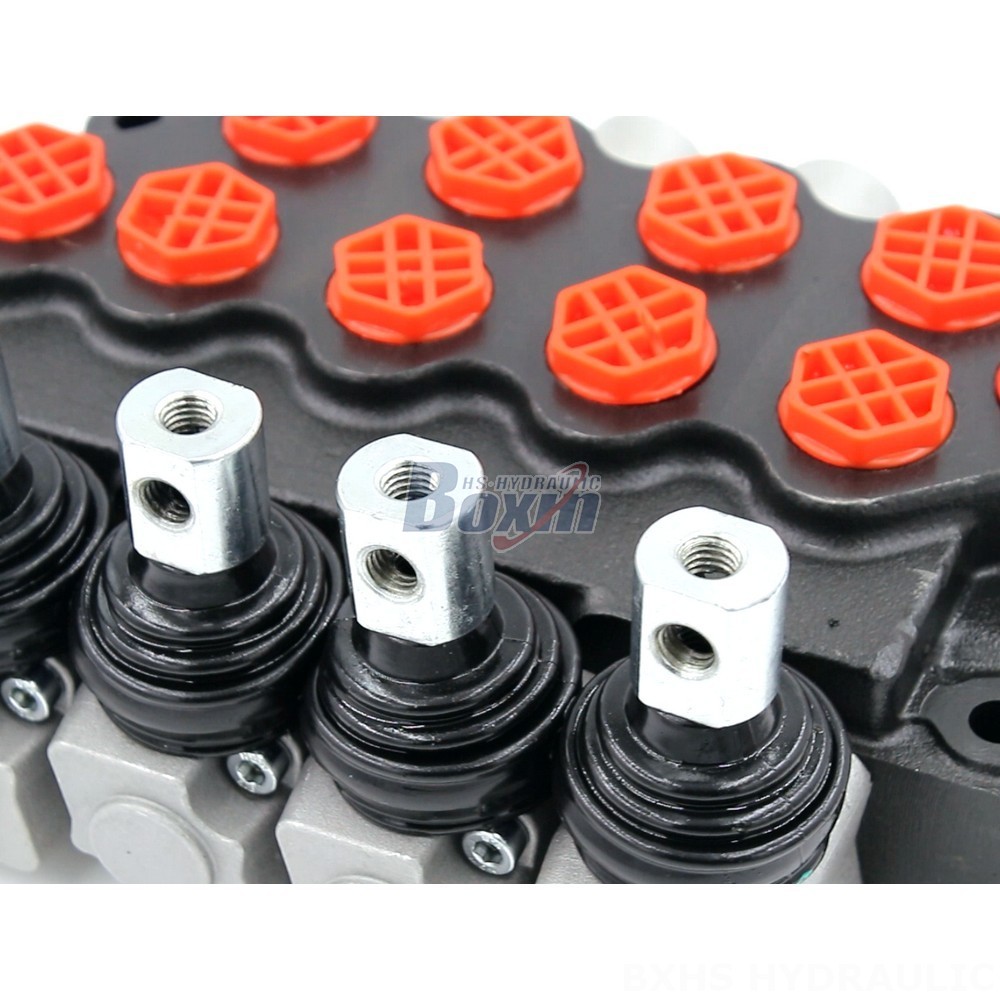

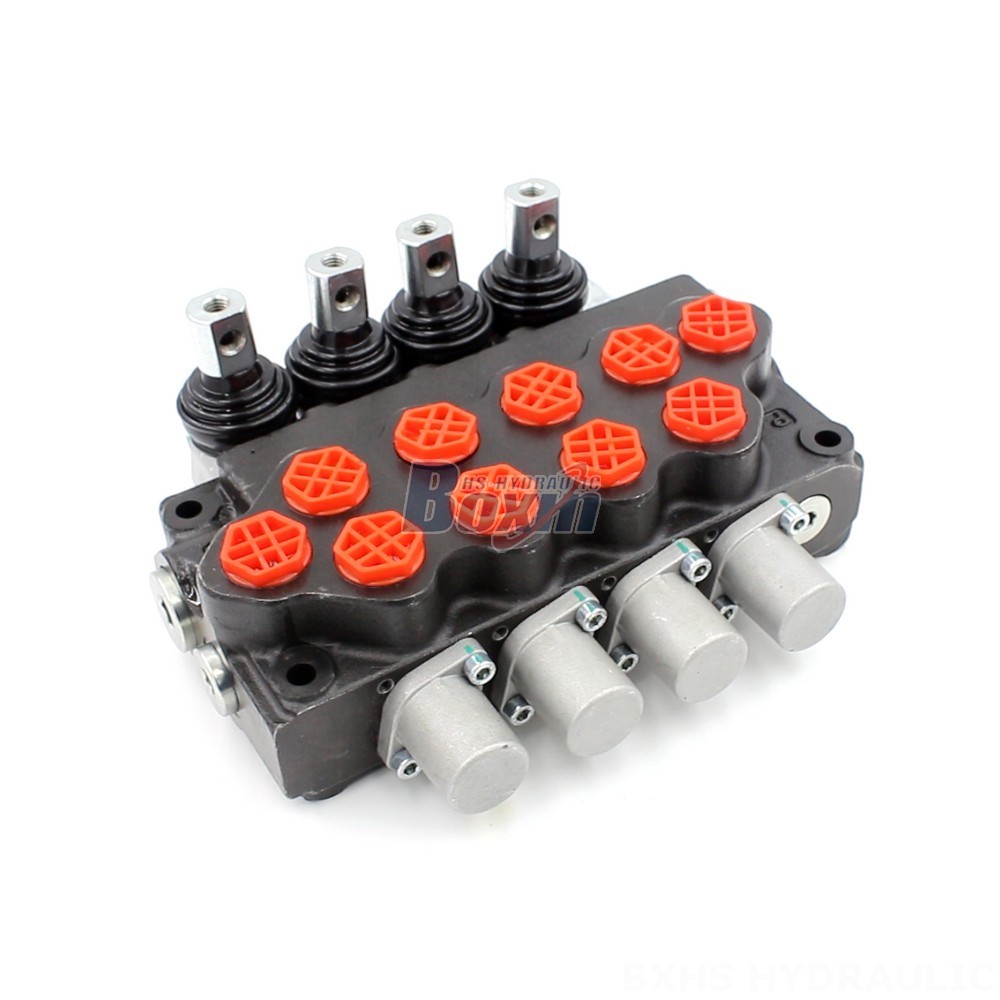

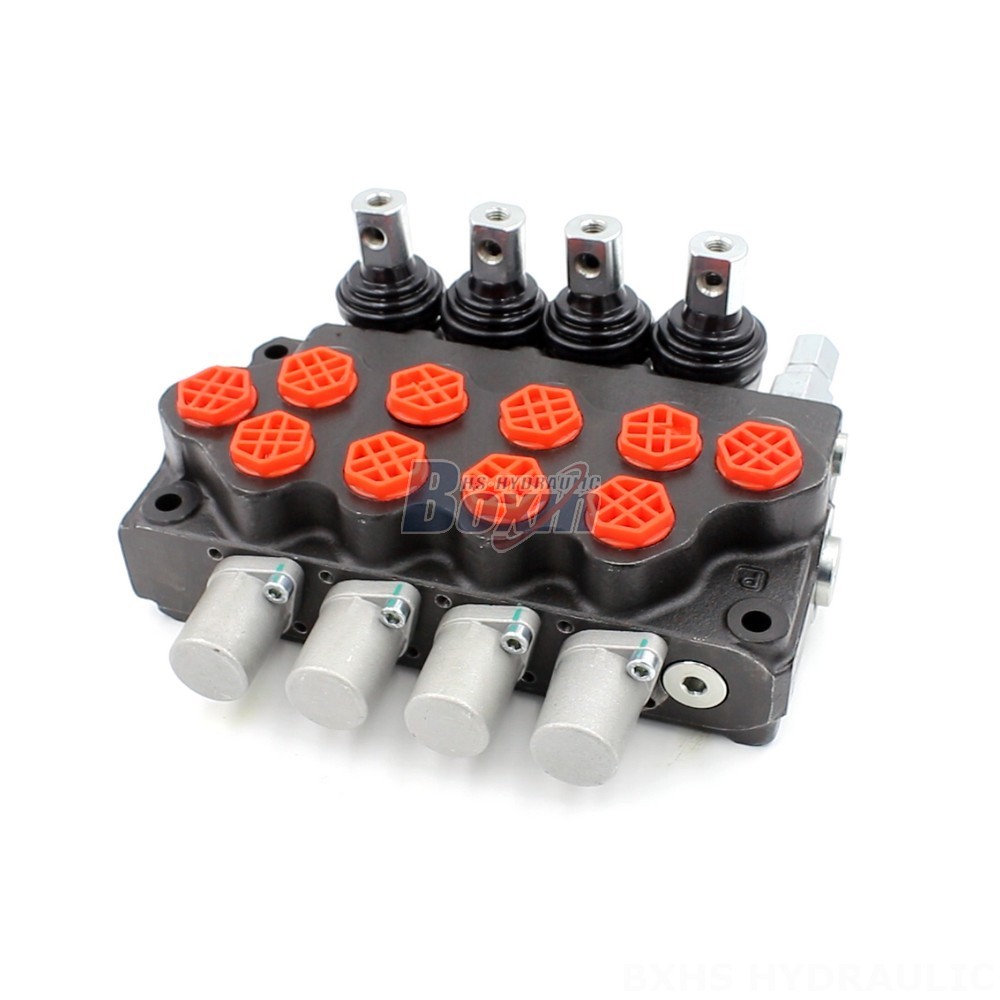

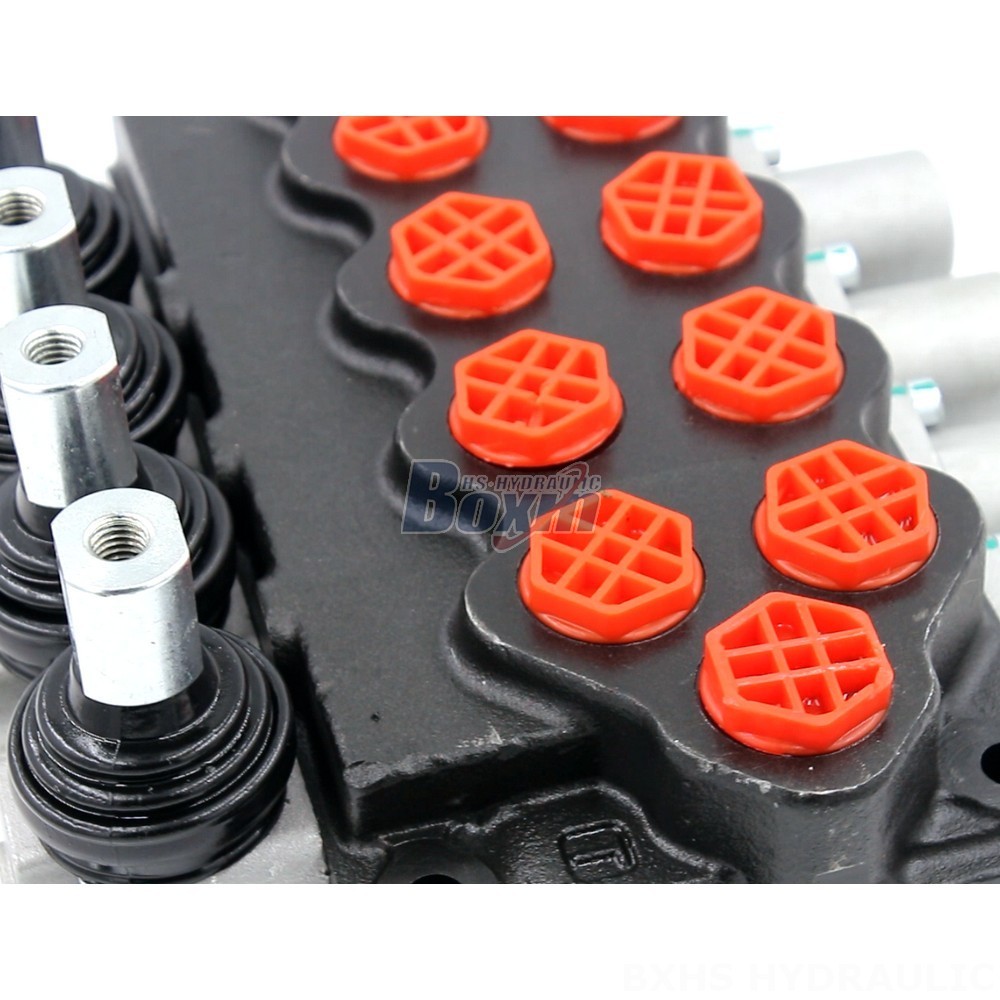

The SD5-G38 4-Spool Hydraulic Valve is a premium hydraulic solution designed for demanding applications in various industries. Its robust construction, high flow capacity, and exceptional pressure handling capabilities make it ideal for heavy-duty machinery and equipment.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* **4-Spool Design:** Provides precise control over multiple hydraulic circuits.
* **Monoblock Construction:** Ensures durability and leak-free operation.
* **Manual Control:** Offers intuitive and responsive operation.
* **High Flow Rate (40 L/min):** Supports efficient operation of hydraulic systems.
* **High Pressure Capacity (305 bar):** Handles demanding pressure requirements with ease.
* **Versatile Temperature Range (-40°C to +60°C):** Suitable for operation in extreme environments.
* **Wide Application Area:** Ideal for material handling, construction, earth moving, agriculture, and industrial vehicles.
* **Compatible Models:** Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
