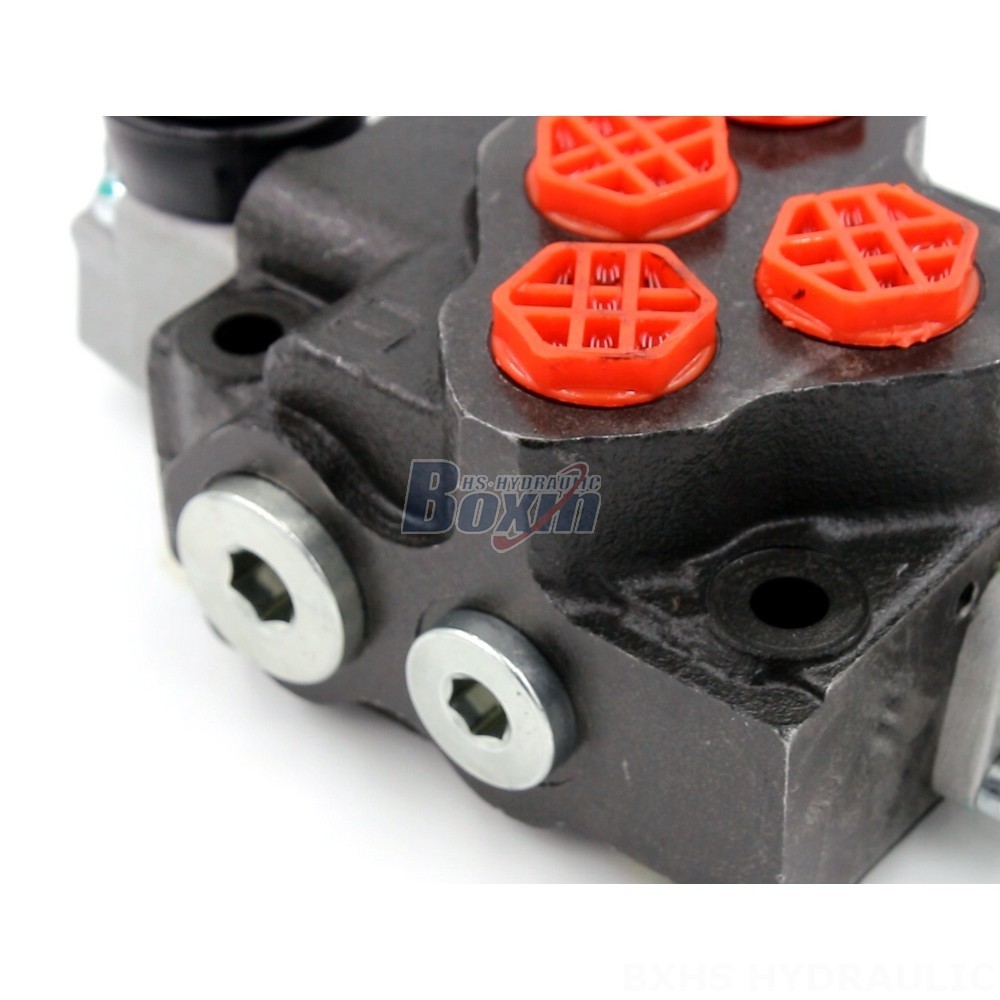

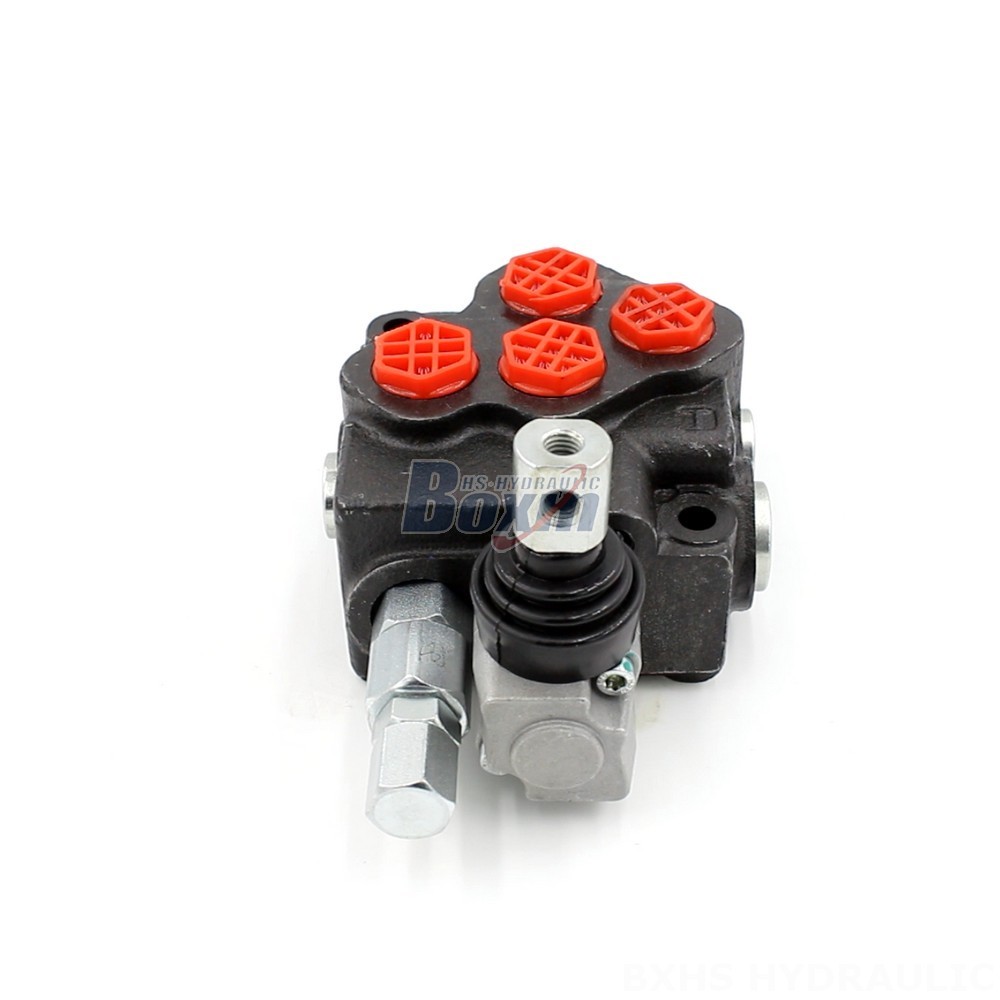

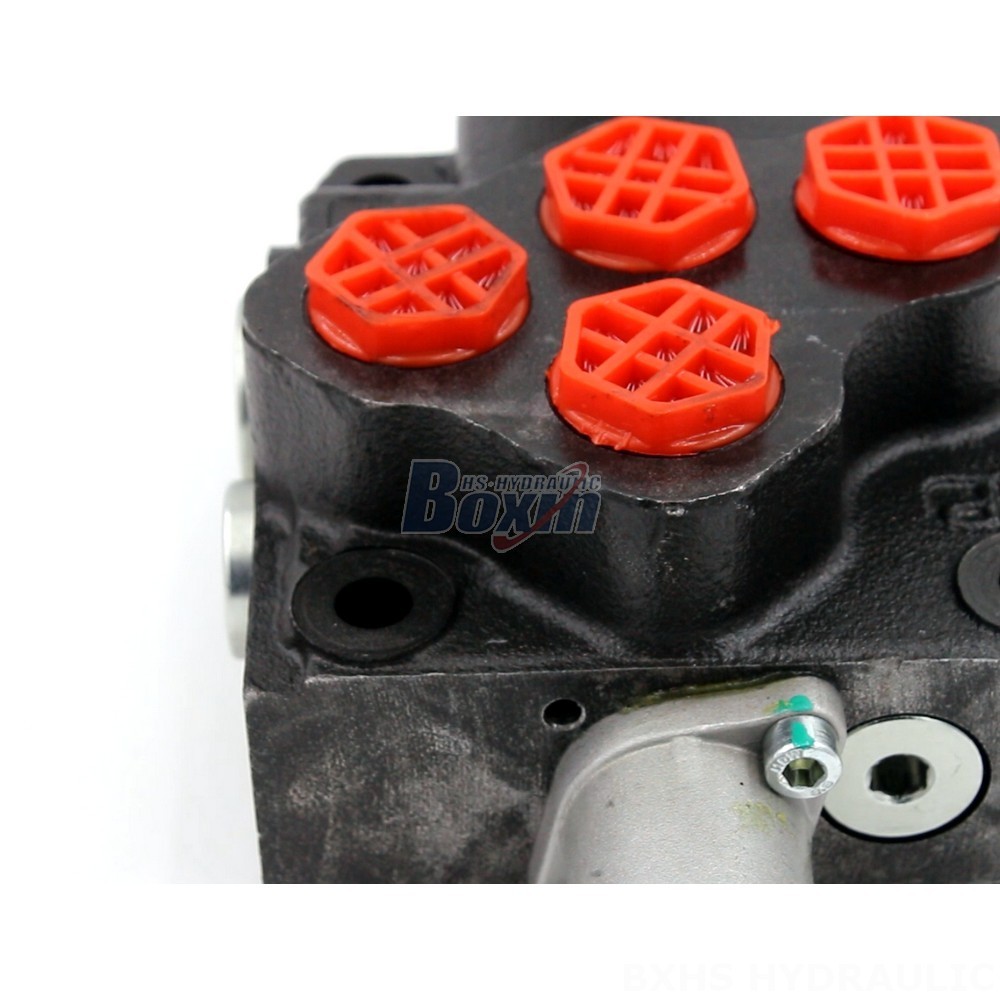

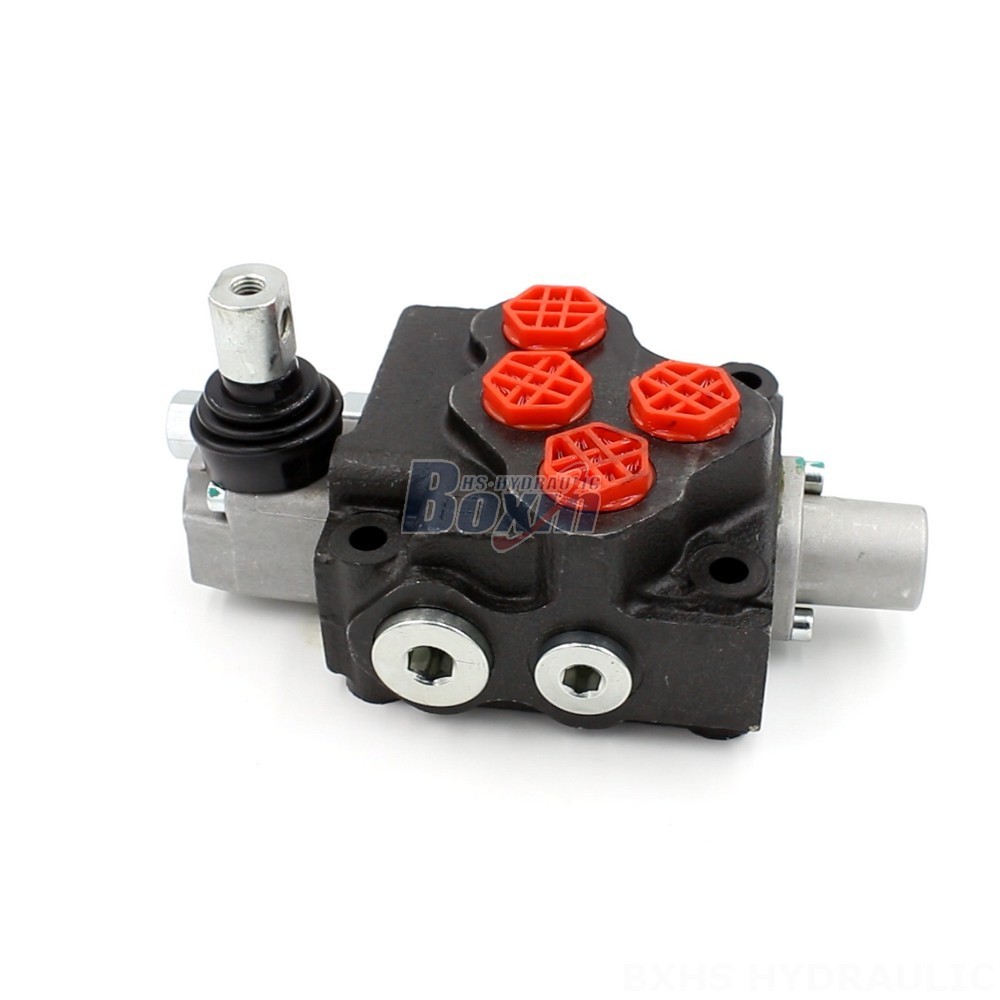

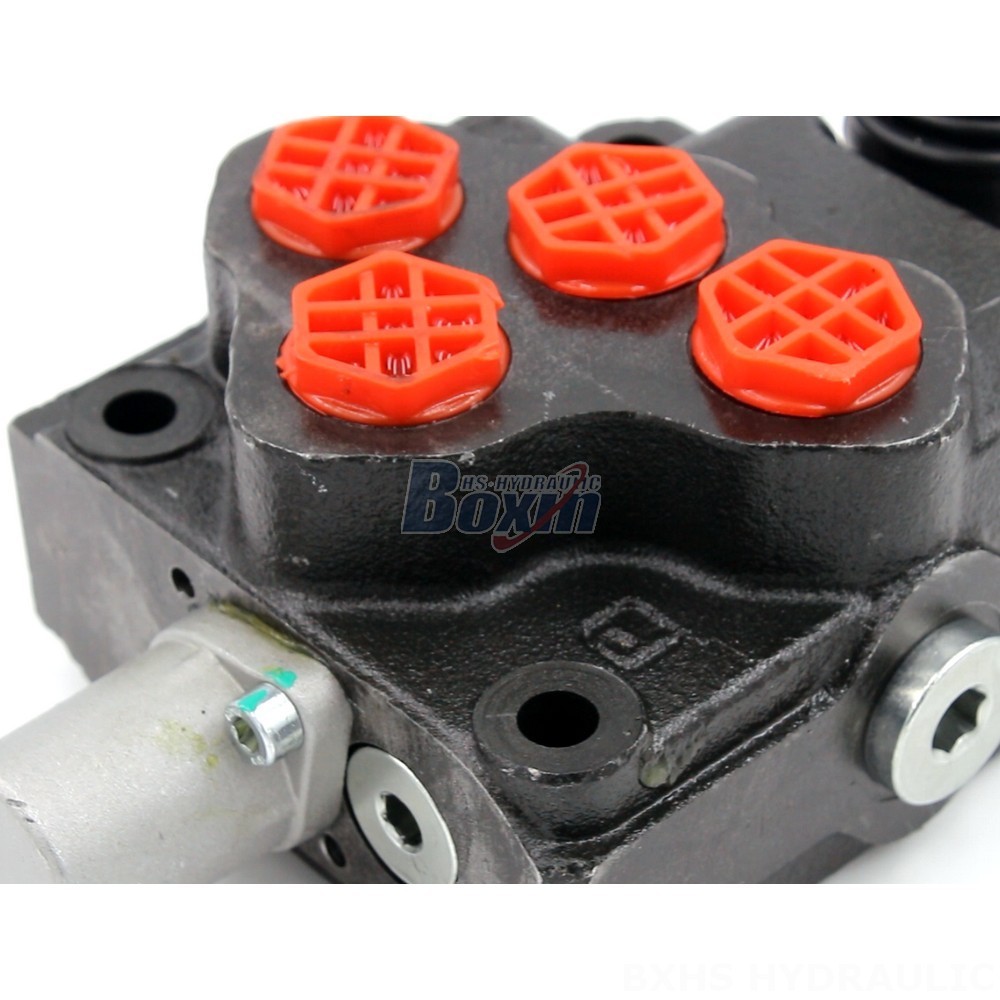

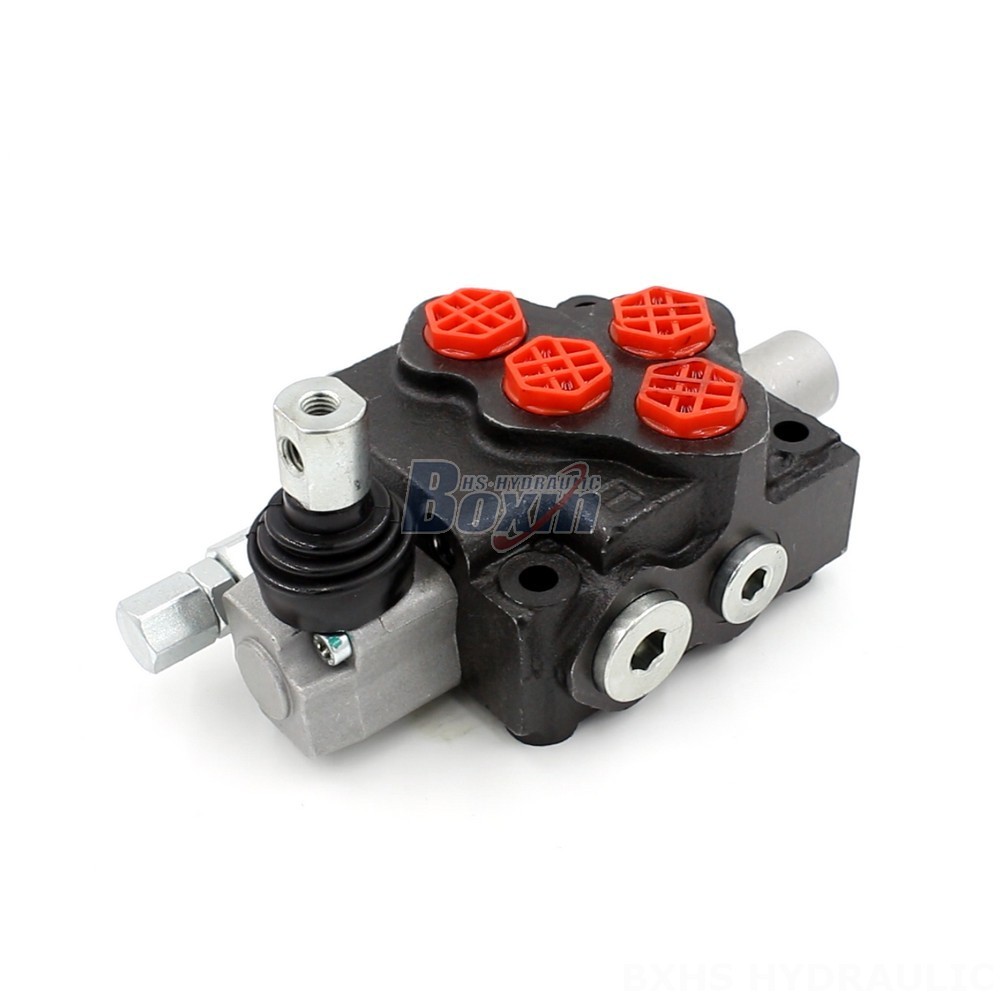

The SD5-G38 1 Spool Directional Valve is a high-performance, compact hydraulic manifold block designed for use in a wide range of applications, including material handling, construction, and agriculture. Featuring a monoblock structure, manual control, and a rated flow of 40 L/min, this valve is a reliable and efficient solution for controlling hydraulic circuits.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 1 Spool Directional Valve is a robust and versatile component for fluid power systems. This monoblock valve offers manual control and features a single spool design for precise and efficient operation. With a rated flow of 40 L/min and a maximum pressure rating of 305 bar, this valve is well-suited for demanding applications. Its wide operating viscosity range and ambient temperature tolerance ensure reliable performance in various environments. The SD5-G38 is specifically designed for use in a range of equipment, including telehandlers, forklifts, mini excavators, skid steer loaders, and more. The valve's compact size and integrated design make it an ideal choice for applications where space is limited. Choose the SD5-G38 1 Spool Directional Valve for reliable and efficient hydraulic control.
