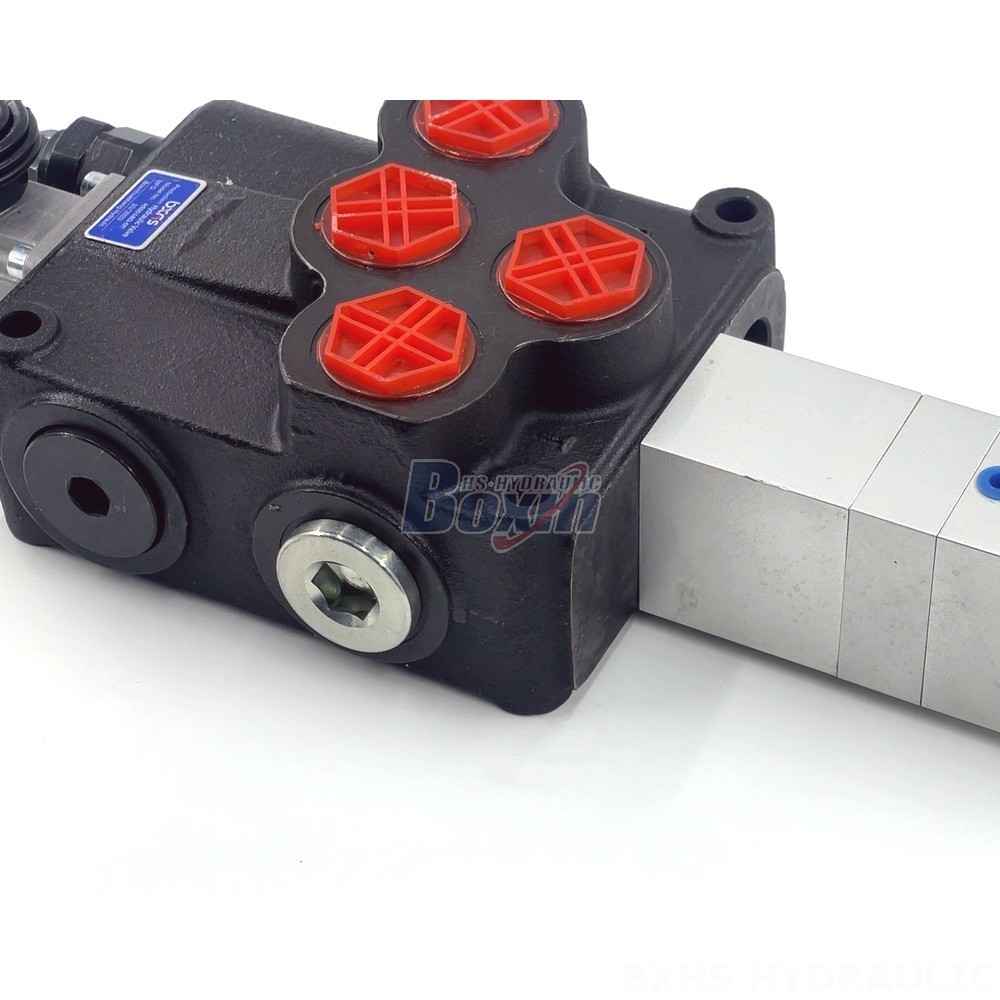

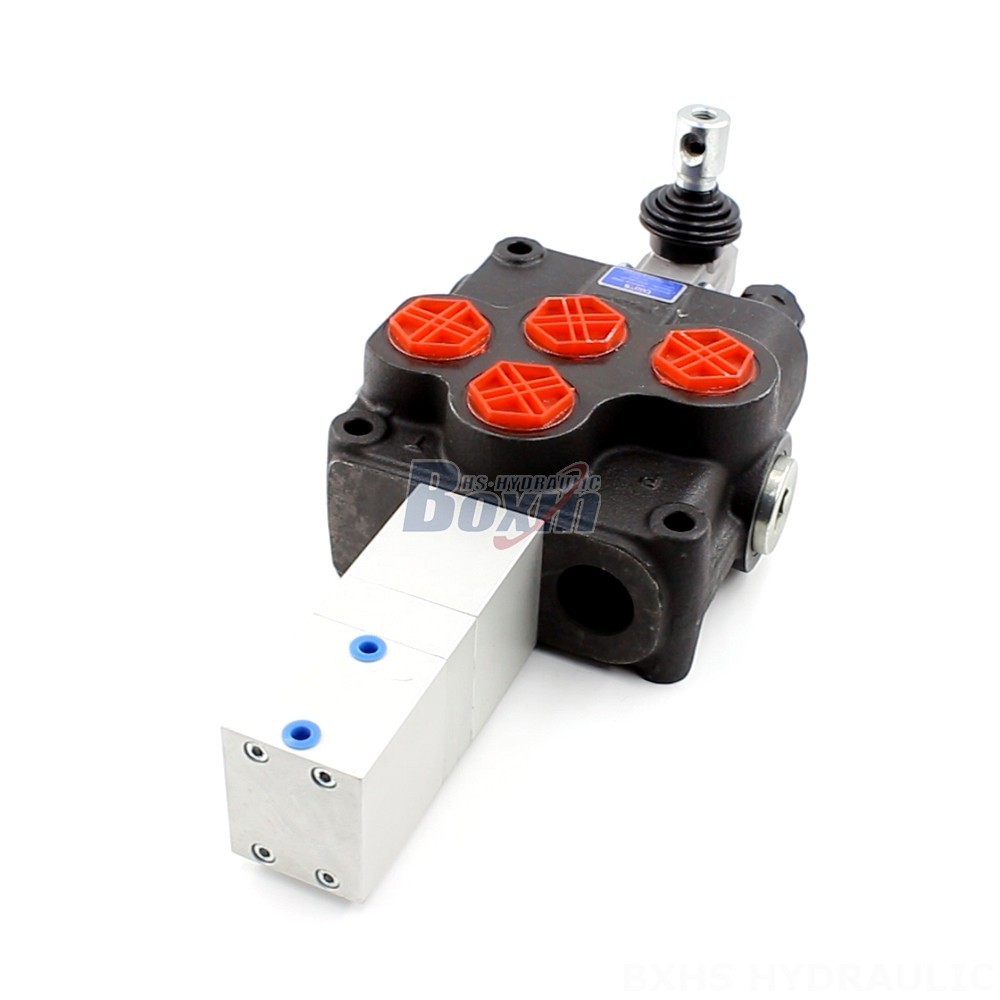

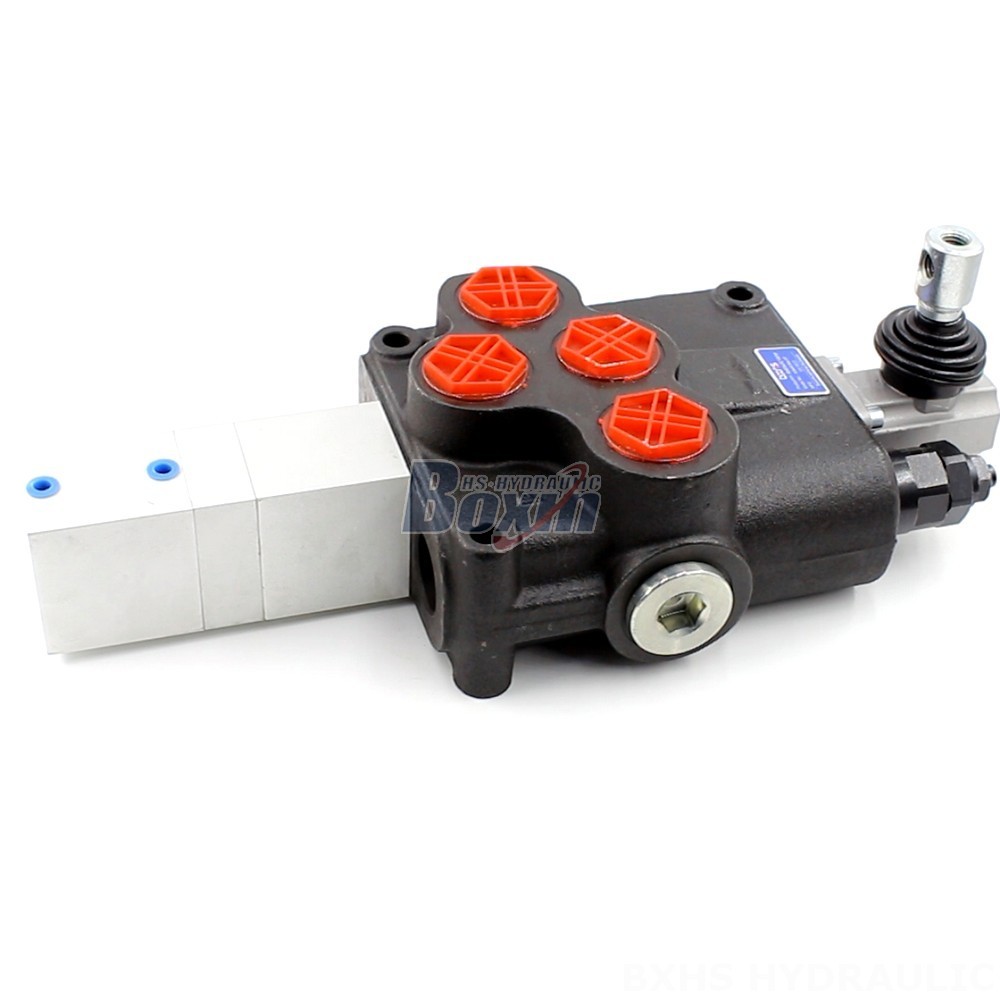

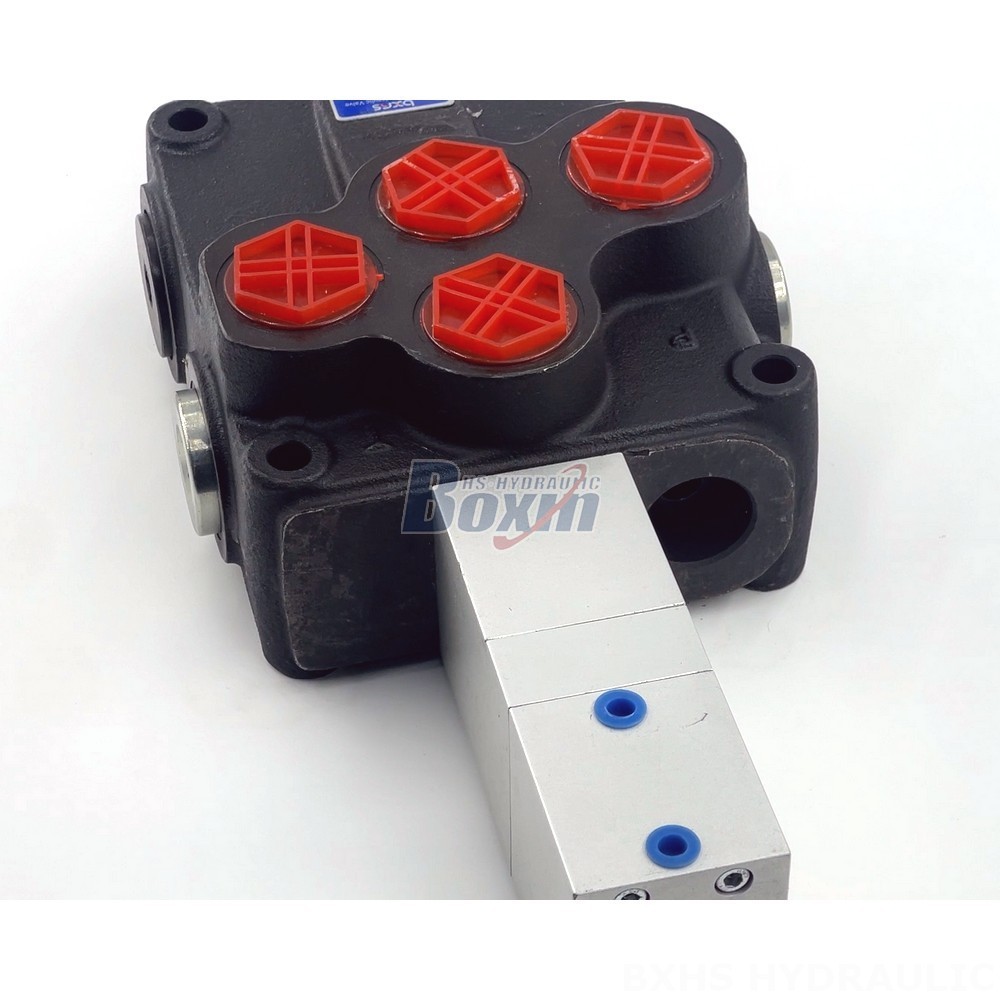

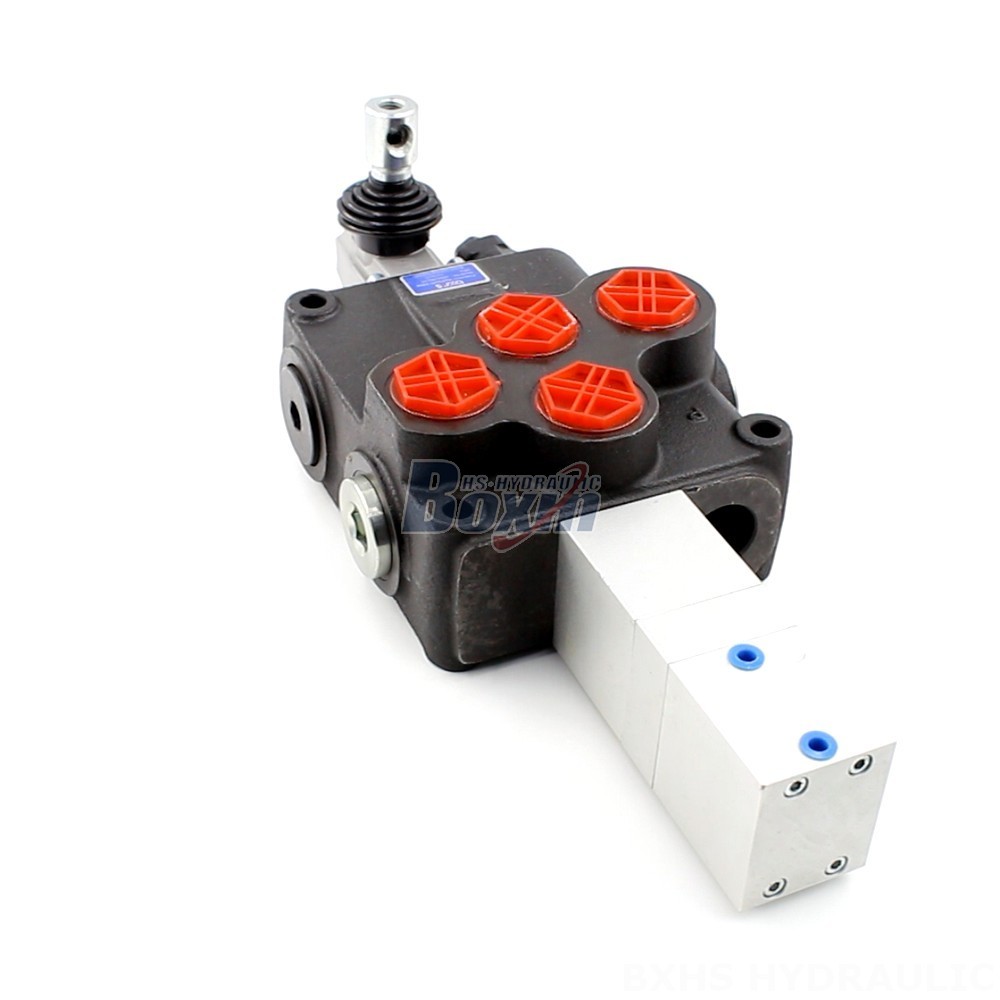

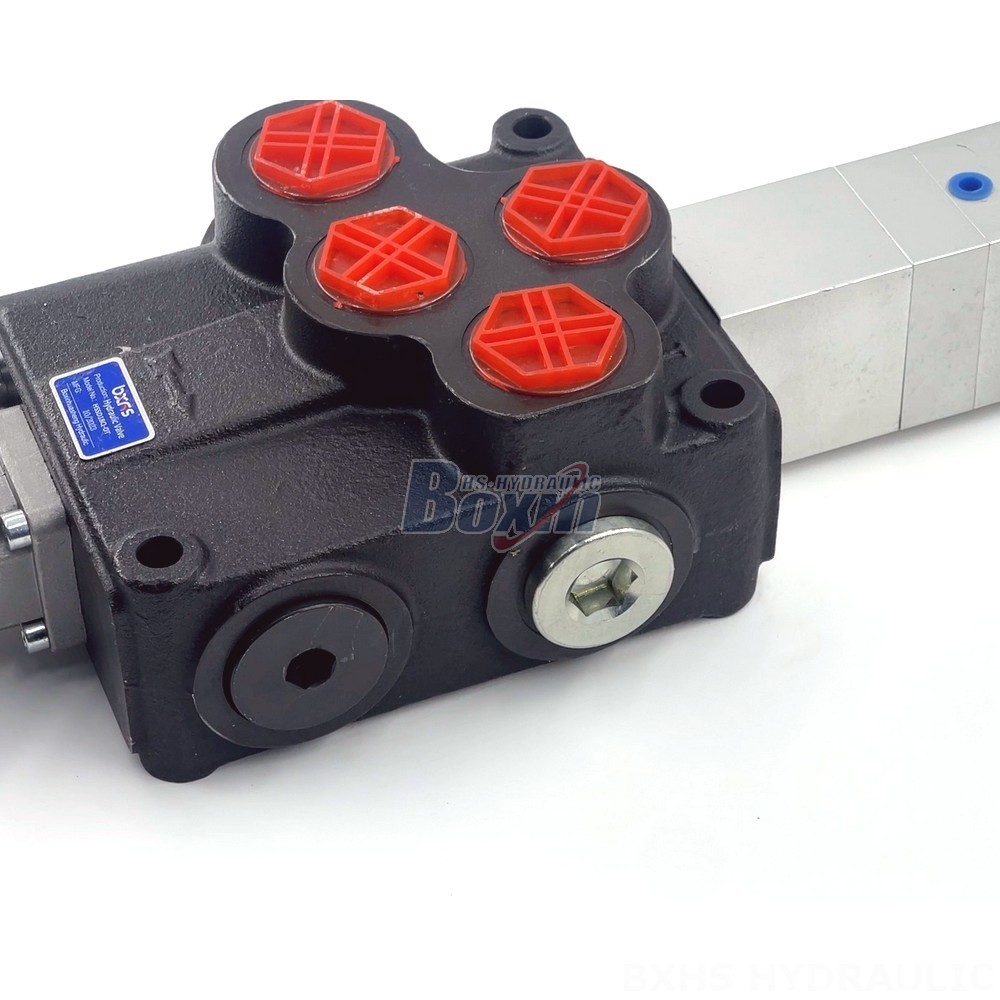

The SD18 Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It offers precise control of fluid flow and is constructed from high-quality materials for long-lasting durability.
| Série SD18 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 160 L/min (42,2 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G1/2, G1, SAE 16 |
| Orifice de sortie | G1, SAE 16 |
| Dimension du raccord | G1, SAE 16 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
**SD18 Pneumatic Directional Control Valve: Technical Specifications**
**Control Method:** Pneumatic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:**-40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
