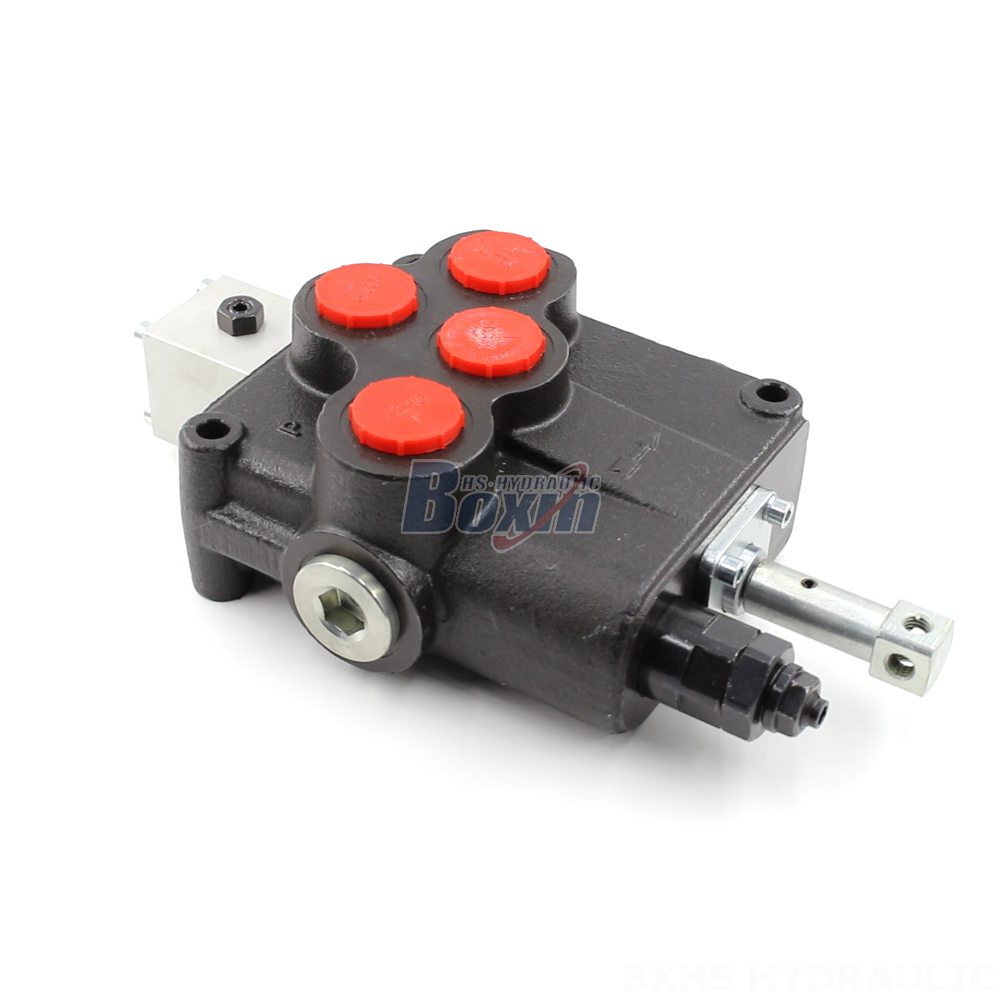

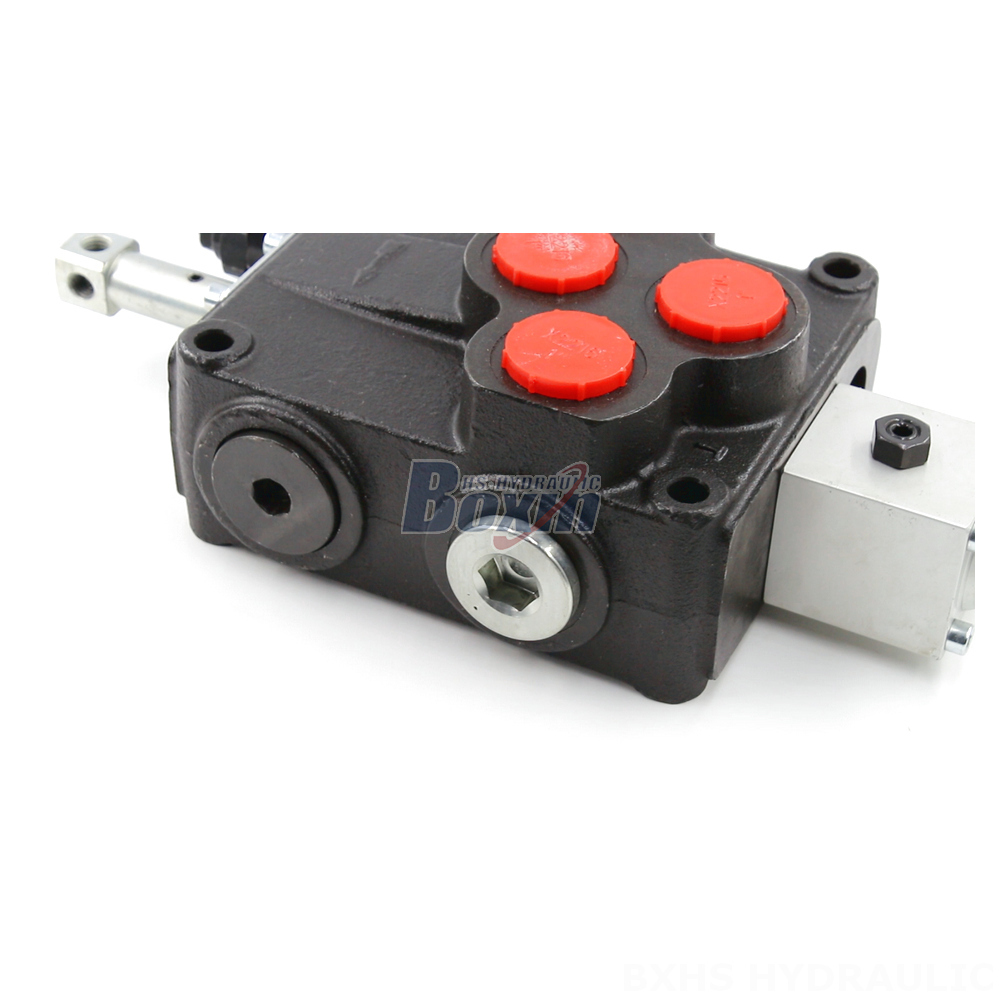

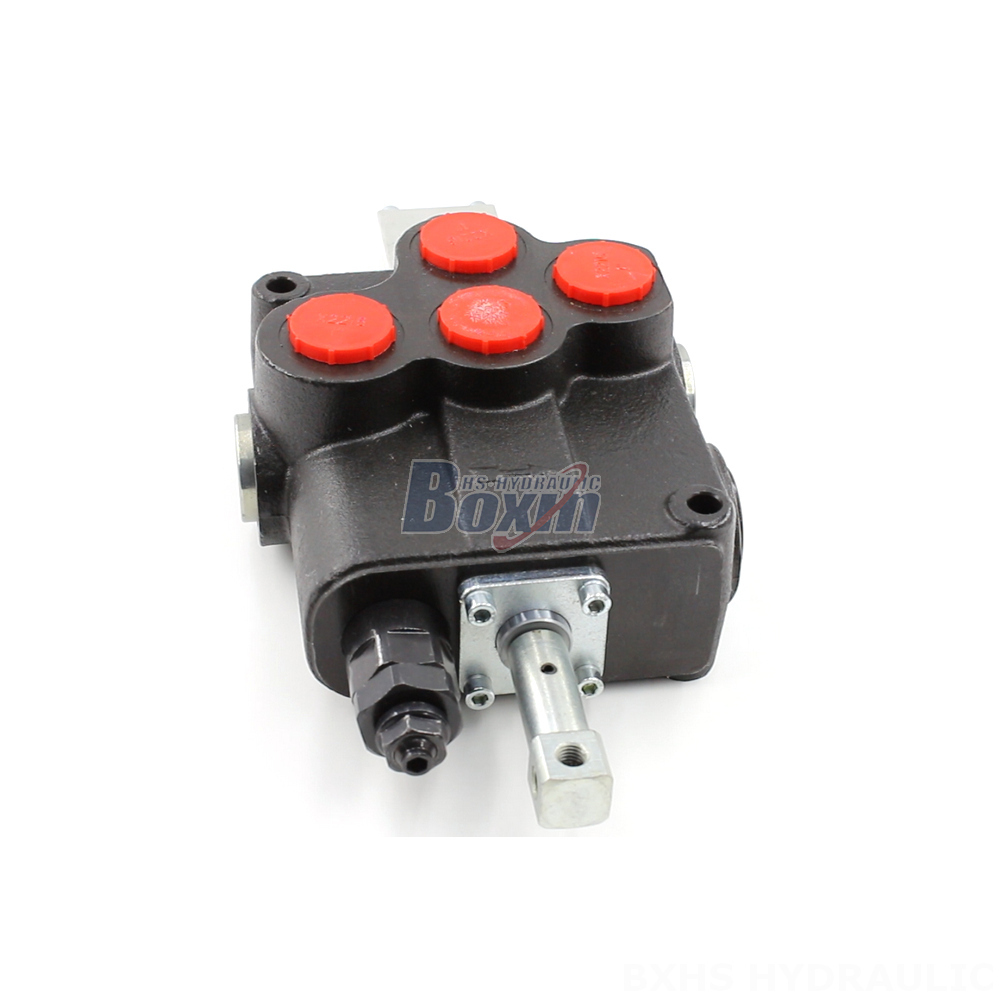

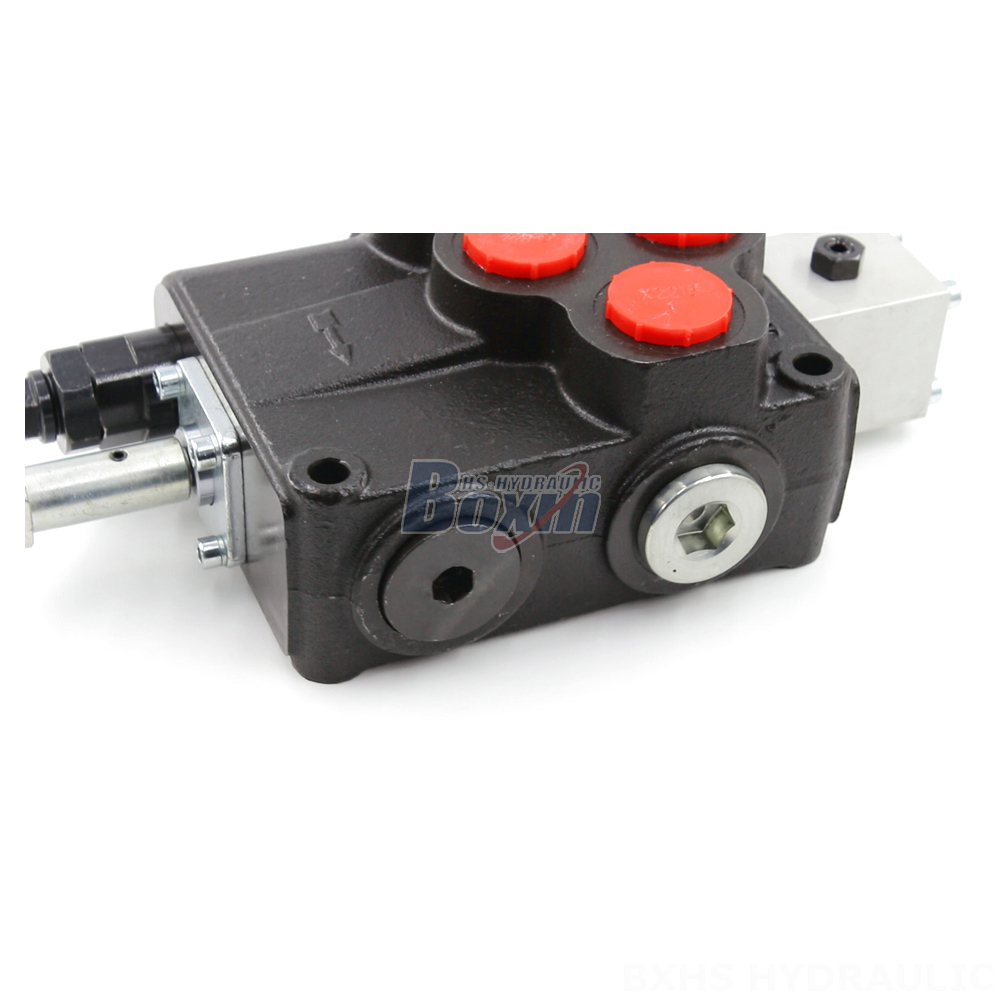

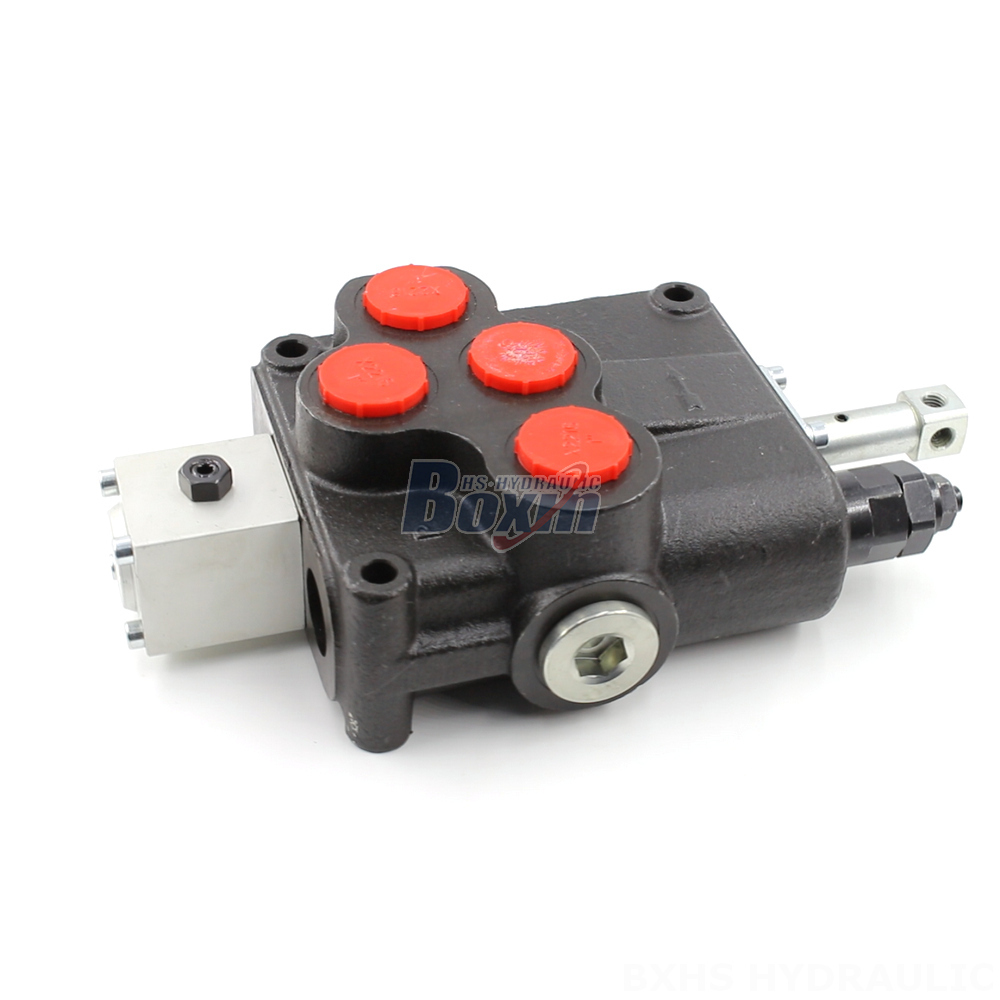

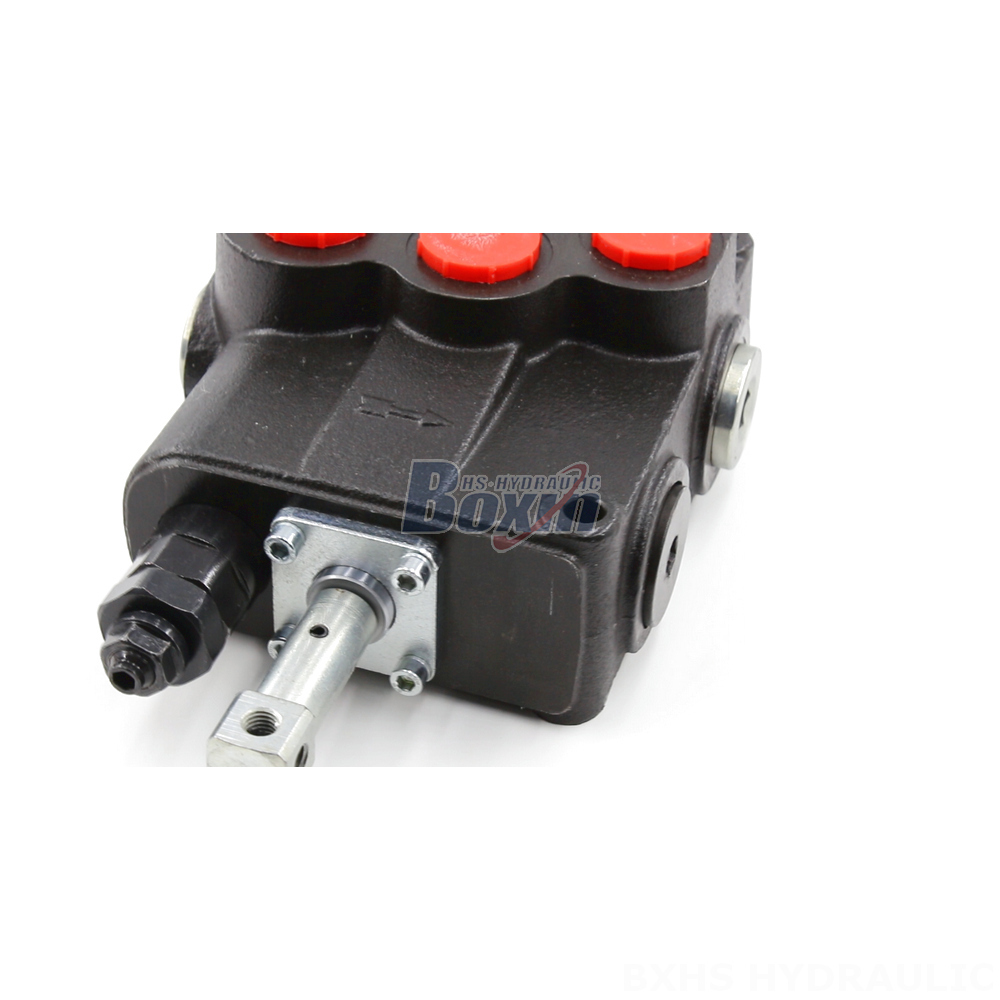

Introducing the SD18 Directional Control Valve, a high-performance hydraulic valve designed for demanding applications in various industries. With its advanced features, including manual control, a flow rate of 120 L/min, and a maximum pressure of 315 bar, this valve delivers exceptional precision, durability, and efficiency.
| Série SD18 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 160 L/min (42,2 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G1/2, G1, SAE 16 |
| Orifice de sortie | G1, SAE 16 |
| Dimension du raccord | G1, SAE 16 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
**SD18 Directional Control Valve: Trusted by Industries Worldwide**
**Key Features:**
- Manual control for precise operation
- Flow rate of 120 L/min (31.7 US gpm)
- Maximum pressure of 315 bar (4600 psi)
- Operating viscosity range: 12 - 400 mm²/s (12 cSt to 400 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
- Monoblock valve construction for increased durability
- Single spool design for simplified control
- Suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles
- Compatible with various equipment models such as telehandlers, forklifts, all terrain cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters
