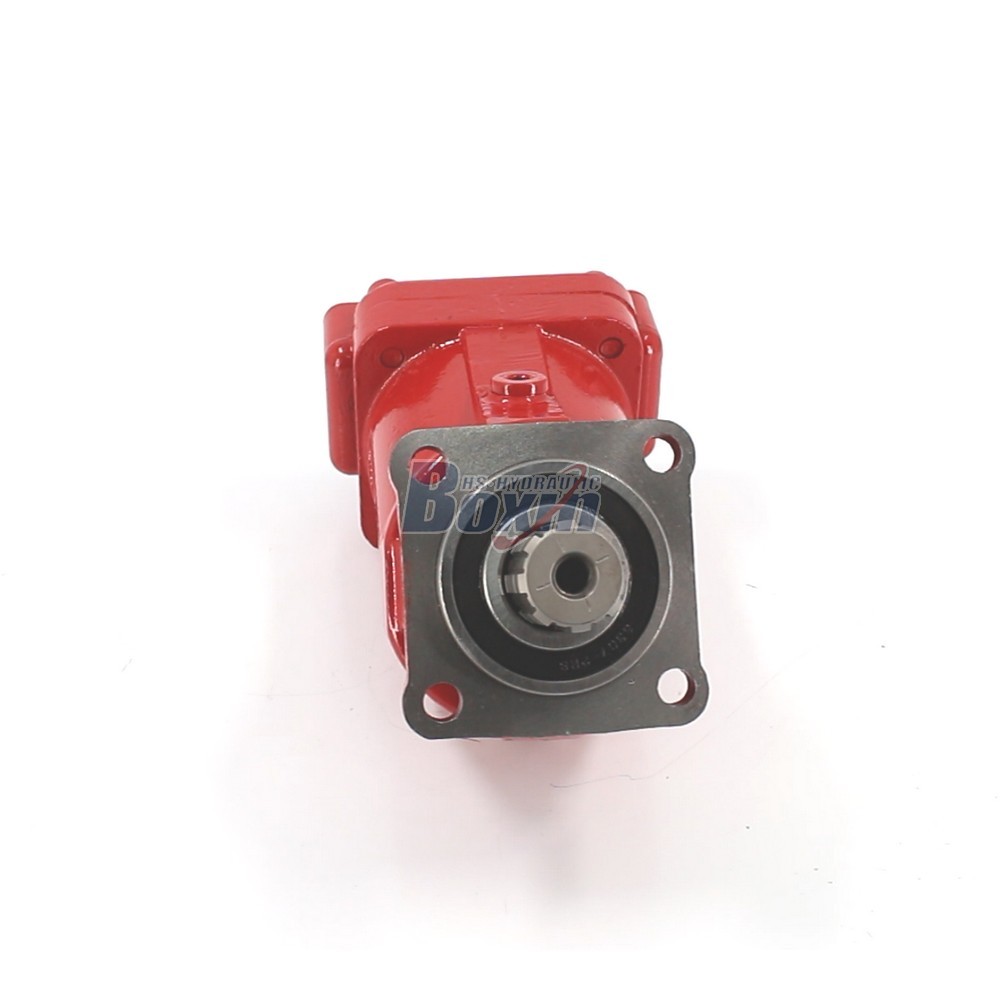

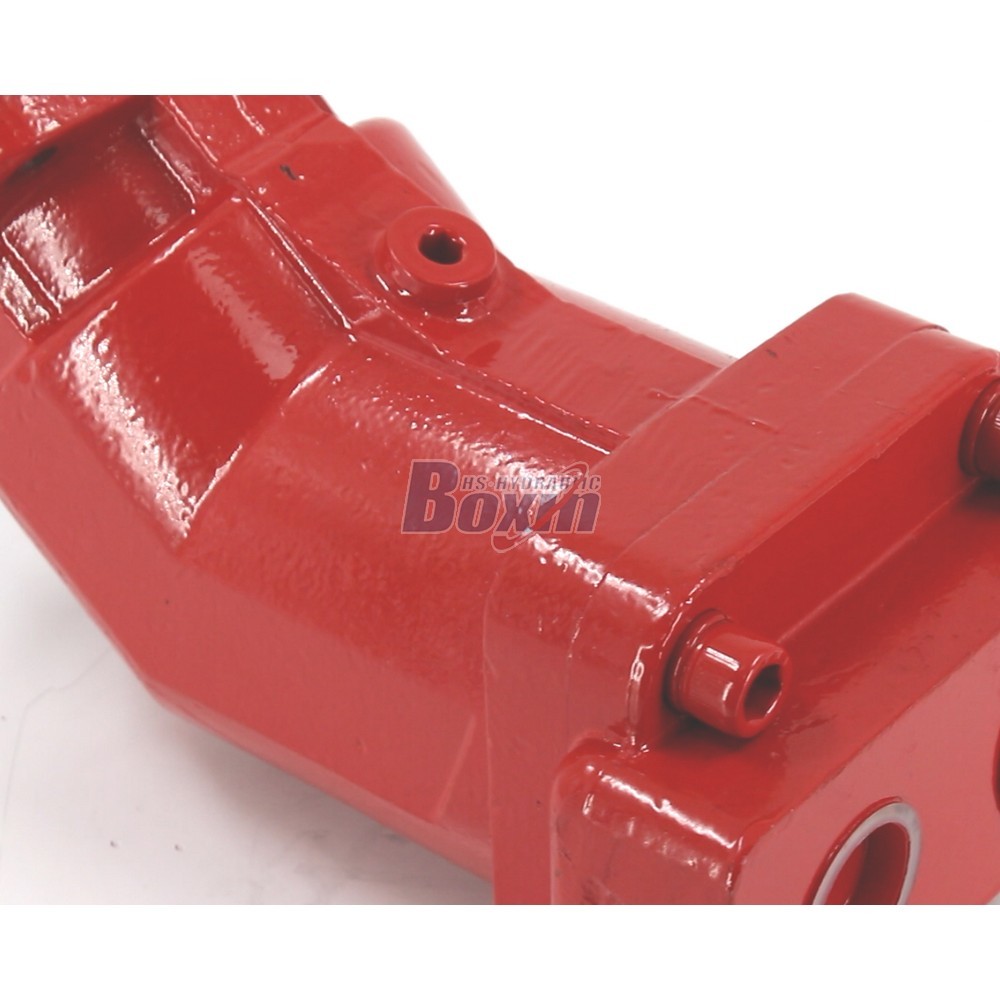

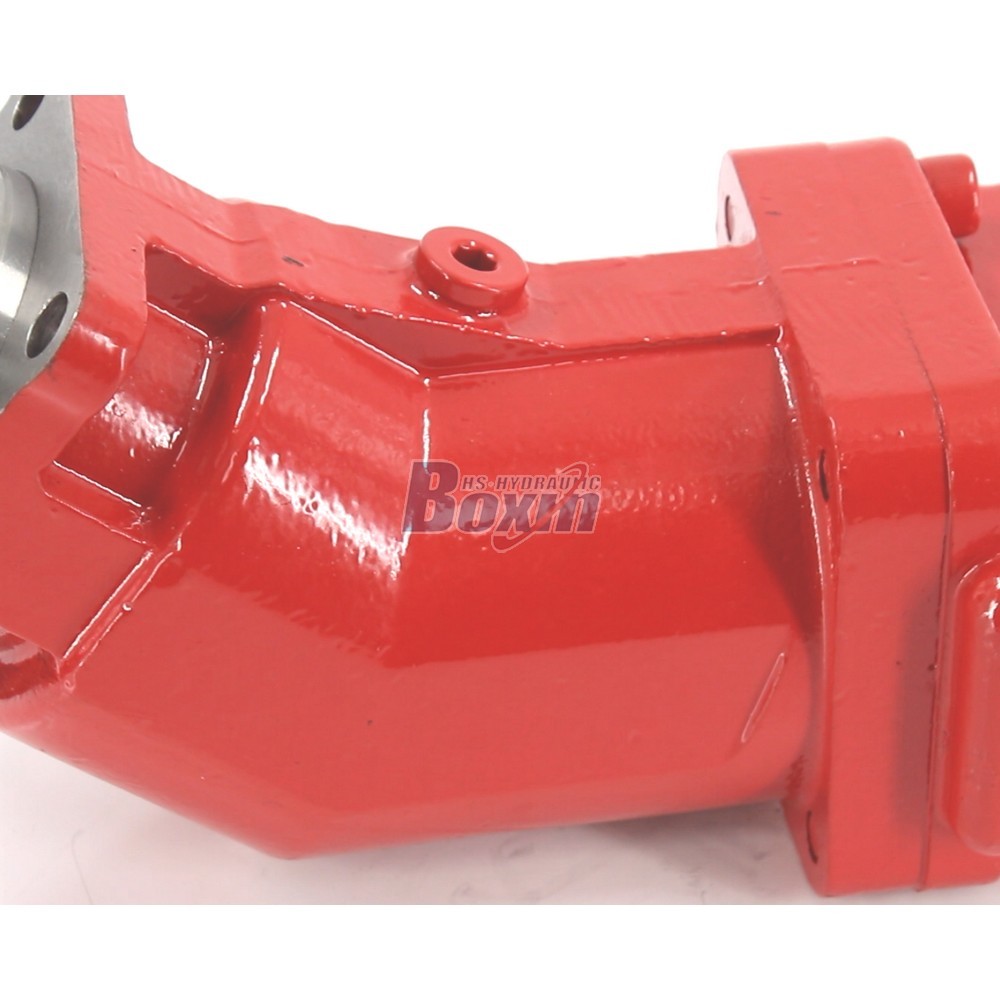

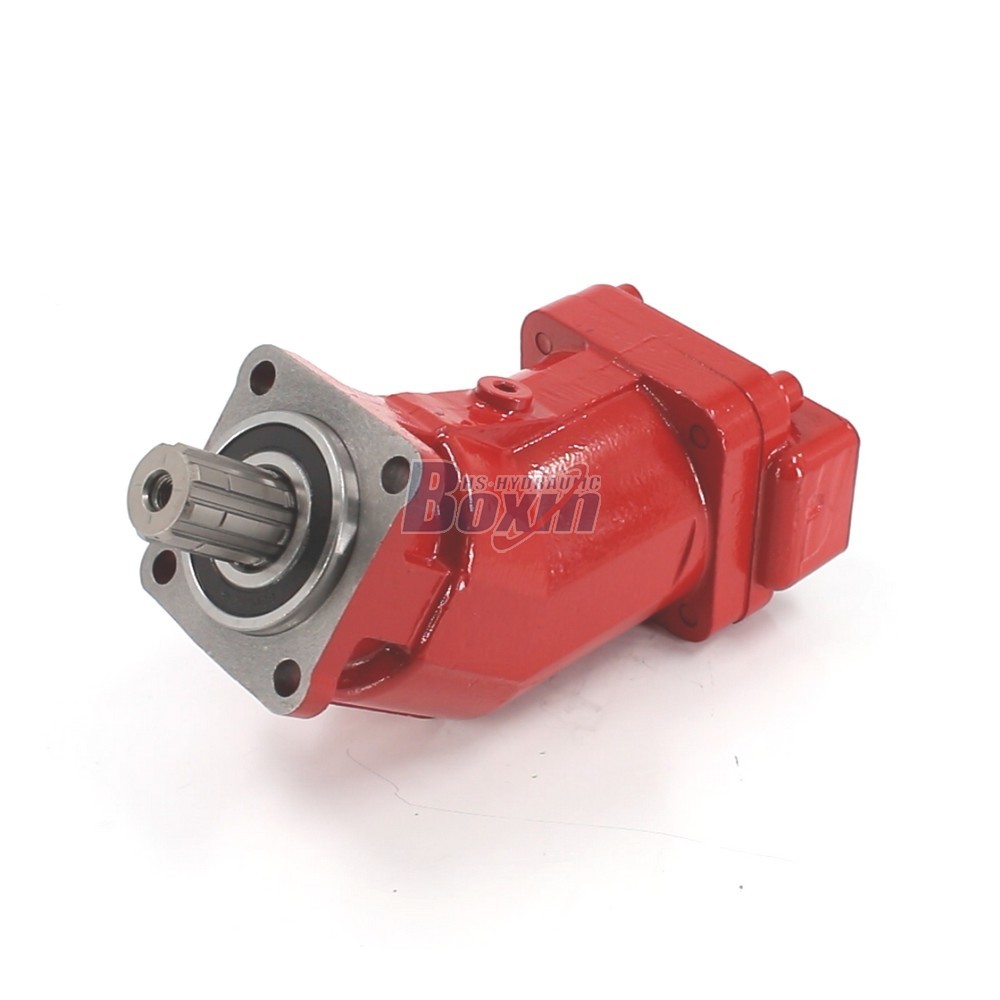

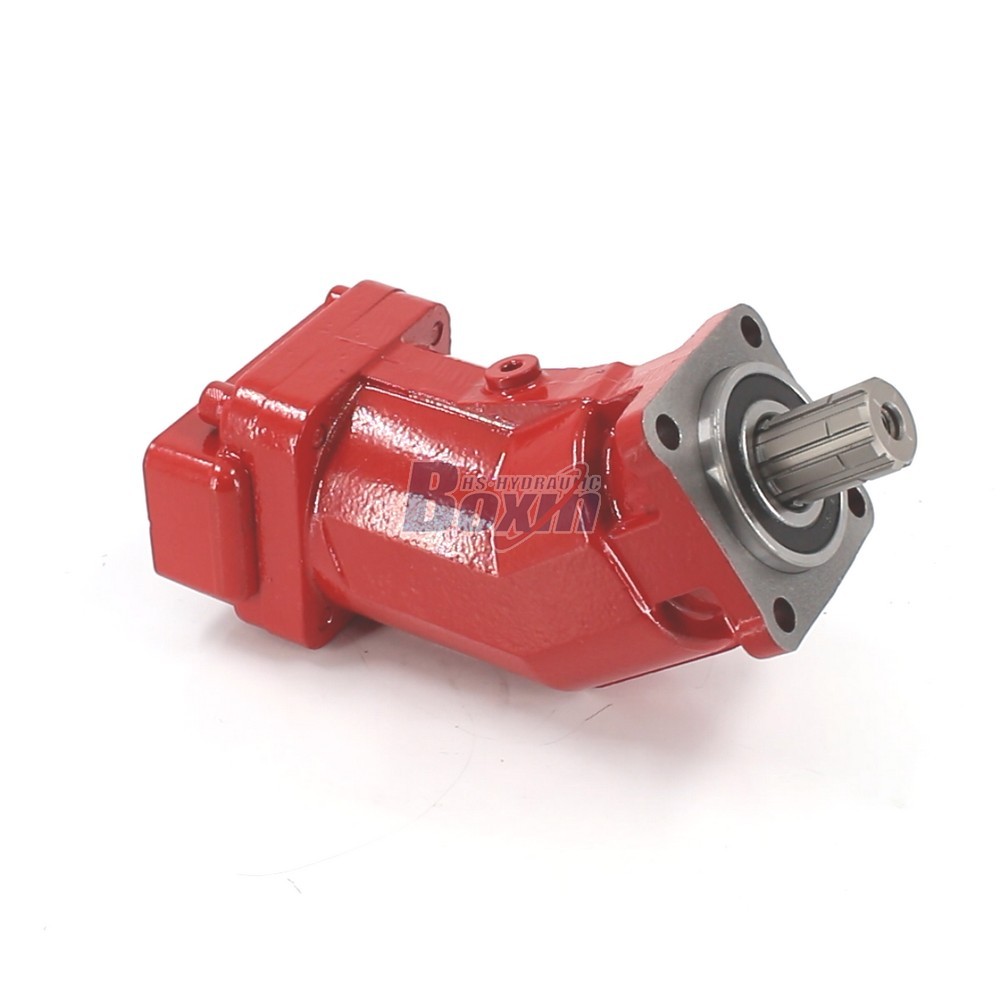

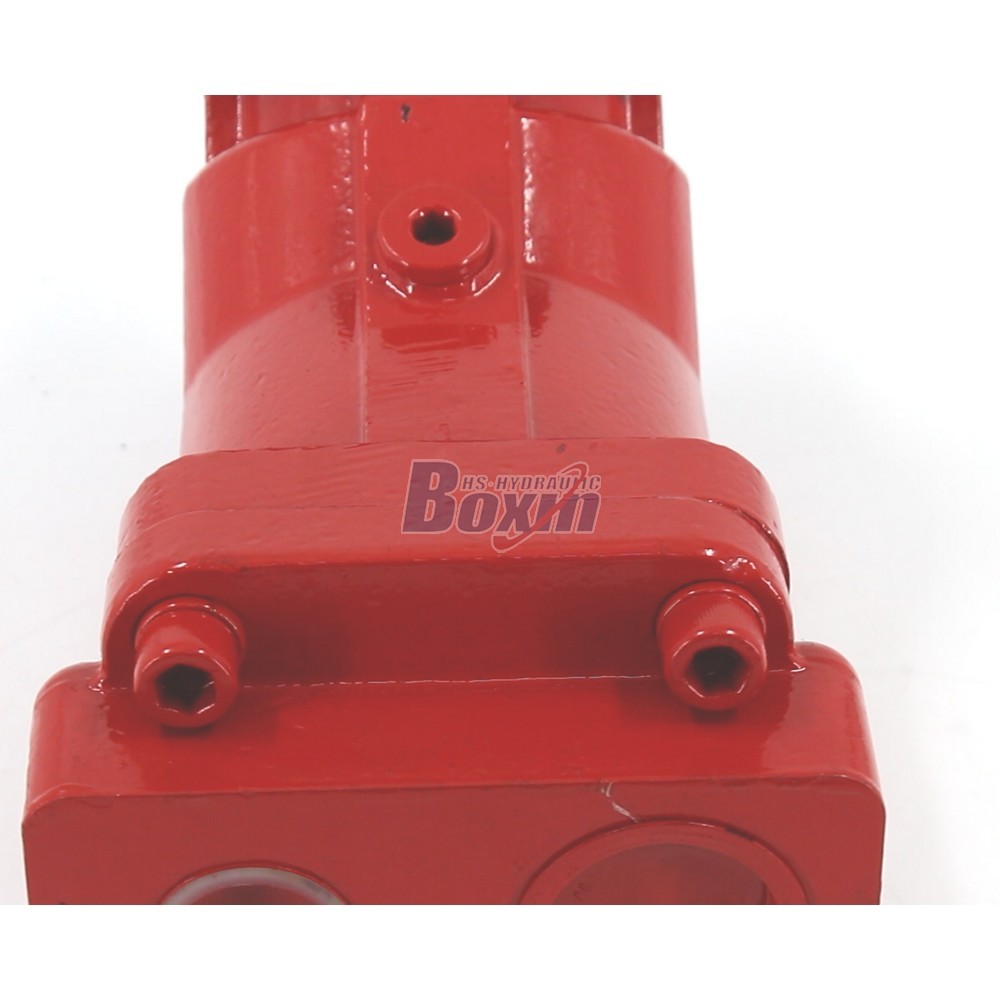

The XPI-63L Series is a high-performance 63 cc/rev hydraulic piston pump engineered for demanding mobile and industrial applications. Designed for reliability under high-pressure conditions up to 42 MPa, this left-rotation pump is essential for construction, agriculture, and material handling machinery, providing efficient power delivery for excavators, loaders, and concrete pumps.
| Série XPI Pompe hydraulique à pistons Paramètres | |
|---|---|
| Cylindrée | 32 cc/tr, 40 cc/tr, 45 cc/tr, 50 cc/tr, 63 cc/tr, 80 cc/tr, 25 cc/tr, 108 cm³/tr |
| Pression nominale | 38 MPa (5511 psi) |
| Pression maximale | 42 MPa (6091 psi) |
| Vitesse nominale | 1600 tr/min |
| Vitesse maximale | 1900 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Fonte |
| Structure | Plateau oscillant |
| Version de la bride | Trous de montage ISO-4 |
| Type d'arbre | H : Cannelures droites |
As a leading manufacturer of hydraulic solutions, we offer the XPI-63L Series 63 cc/rev Hydraulic Piston Pump for the global market. Operating at a rated pressure of 38 MPa and speeds up to 1900 r/min, this pump delivers consistent performance for heavy-duty machinery including mini-excavators, wheel loaders, and harvesters. We specialize in factory-direct supply, providing extensive opportunities for OEM, private labeling, and custom manufacturing to meet specific technical requirements. Our facility supports large-scale wholesale production with rigorous quality control. We are actively seeking long-term partnerships with professional distributors, wholesalers, agents, and international traders. By choosing our factory-direct wholesale services, partners benefit from reliable supply chains and competitive manufacturing capabilities for construction, agricultural, and industrial vehicle sectors.
