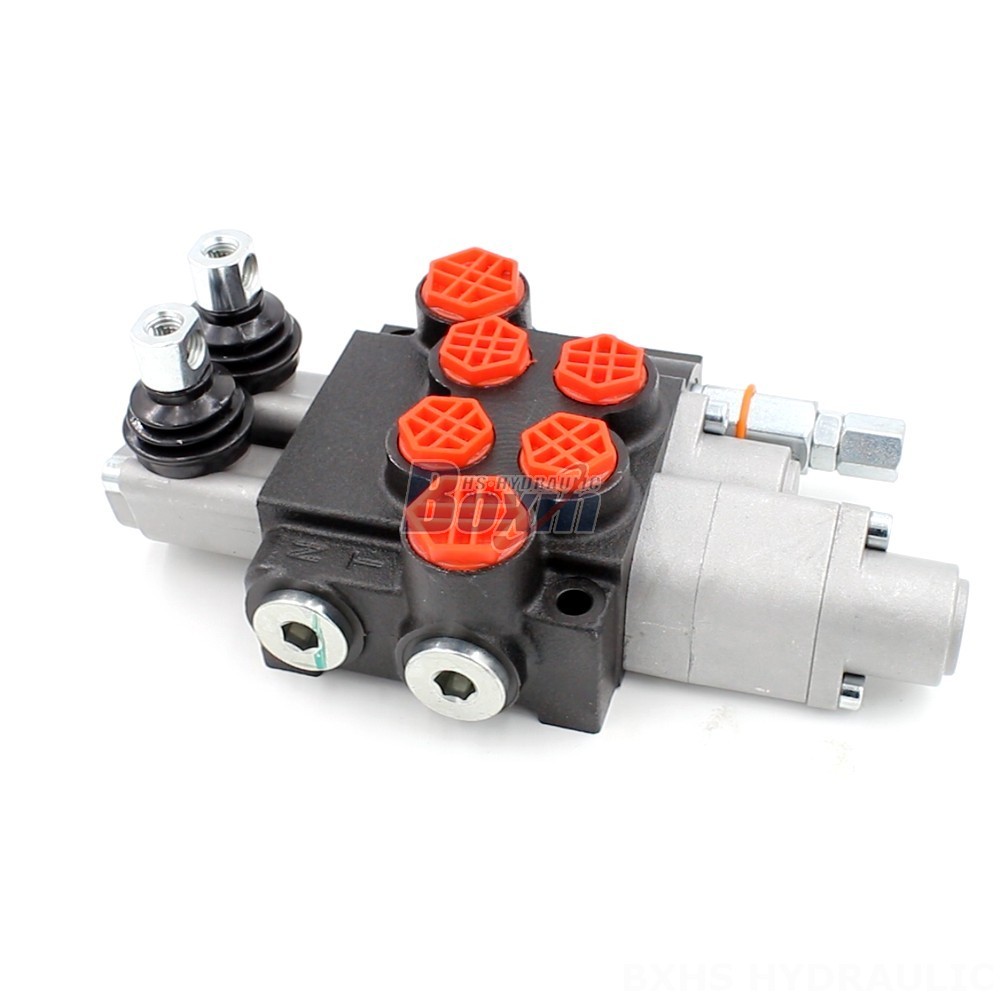

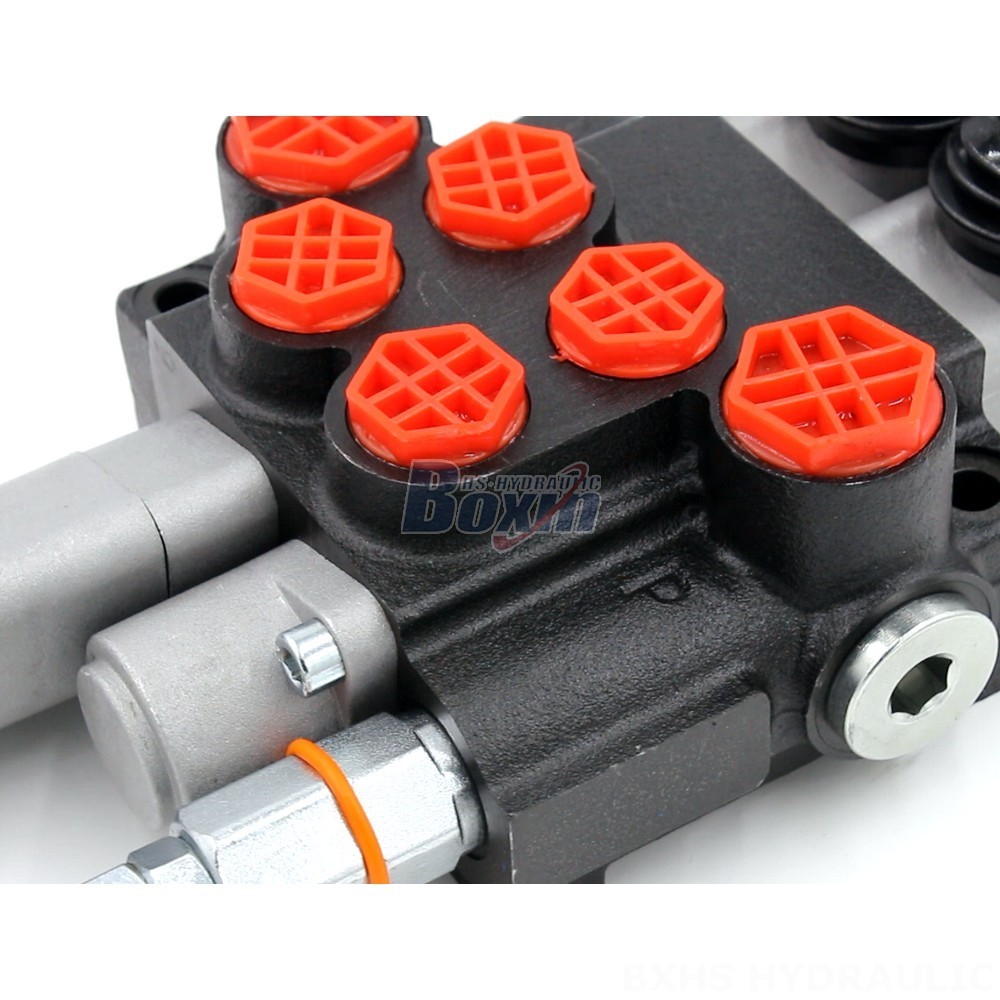

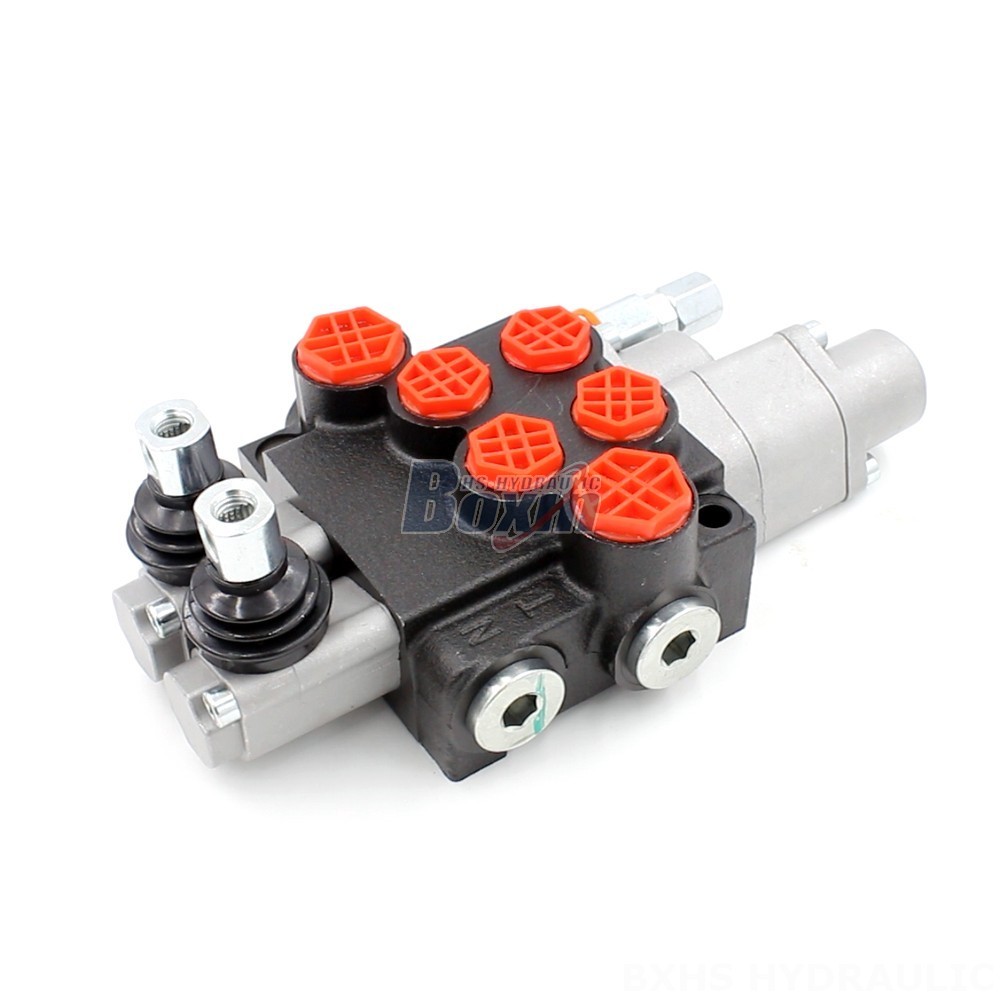

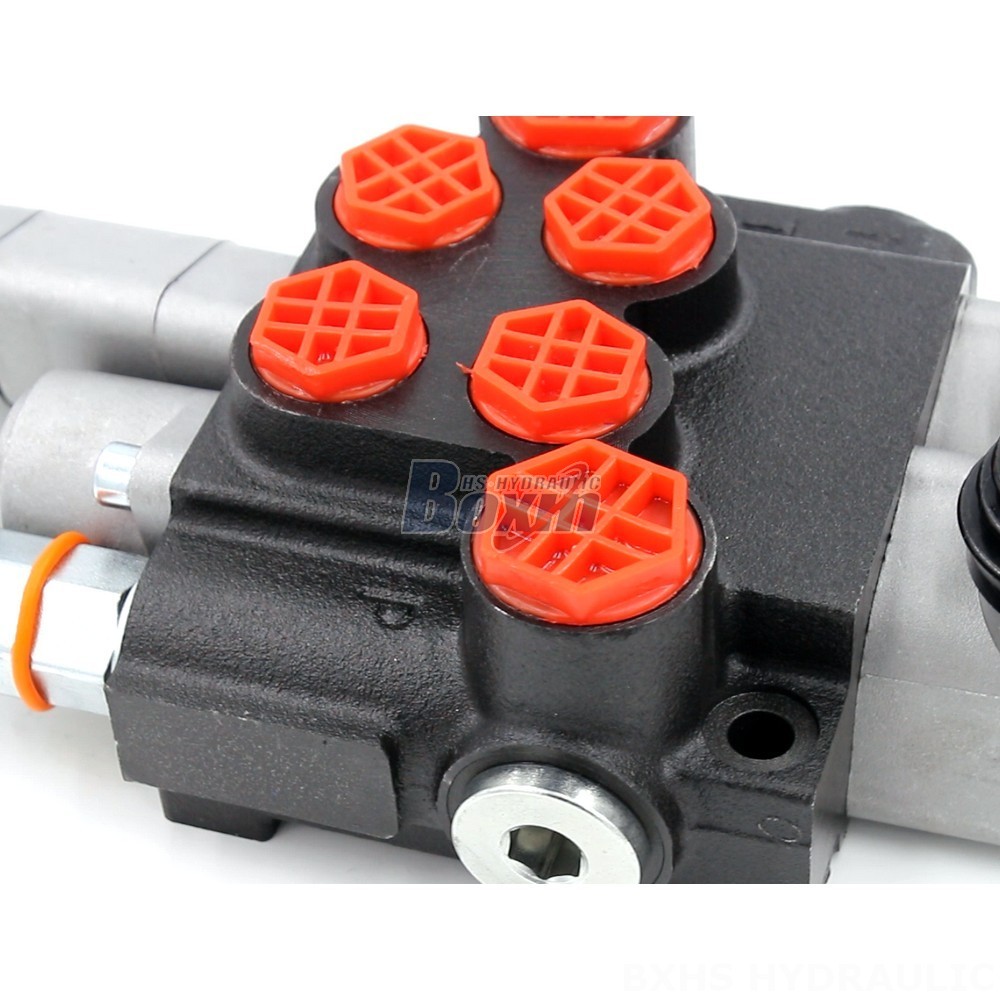

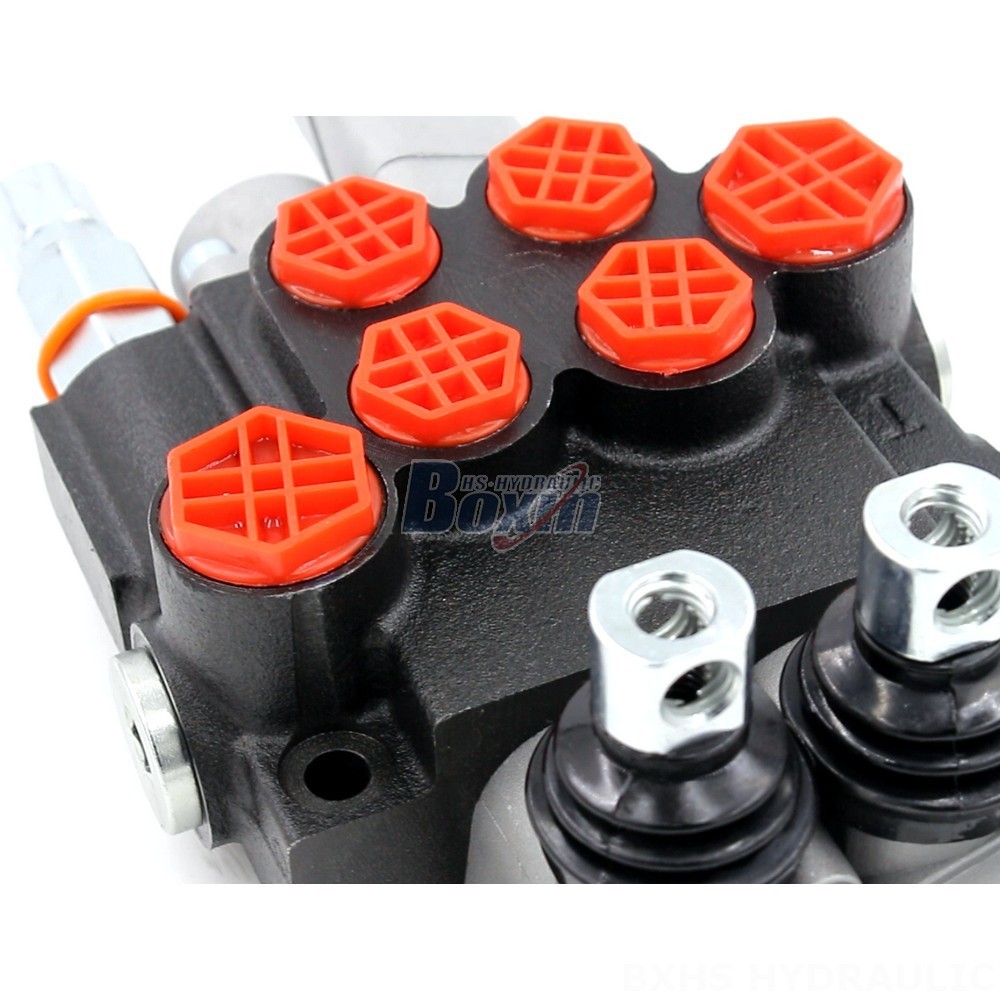

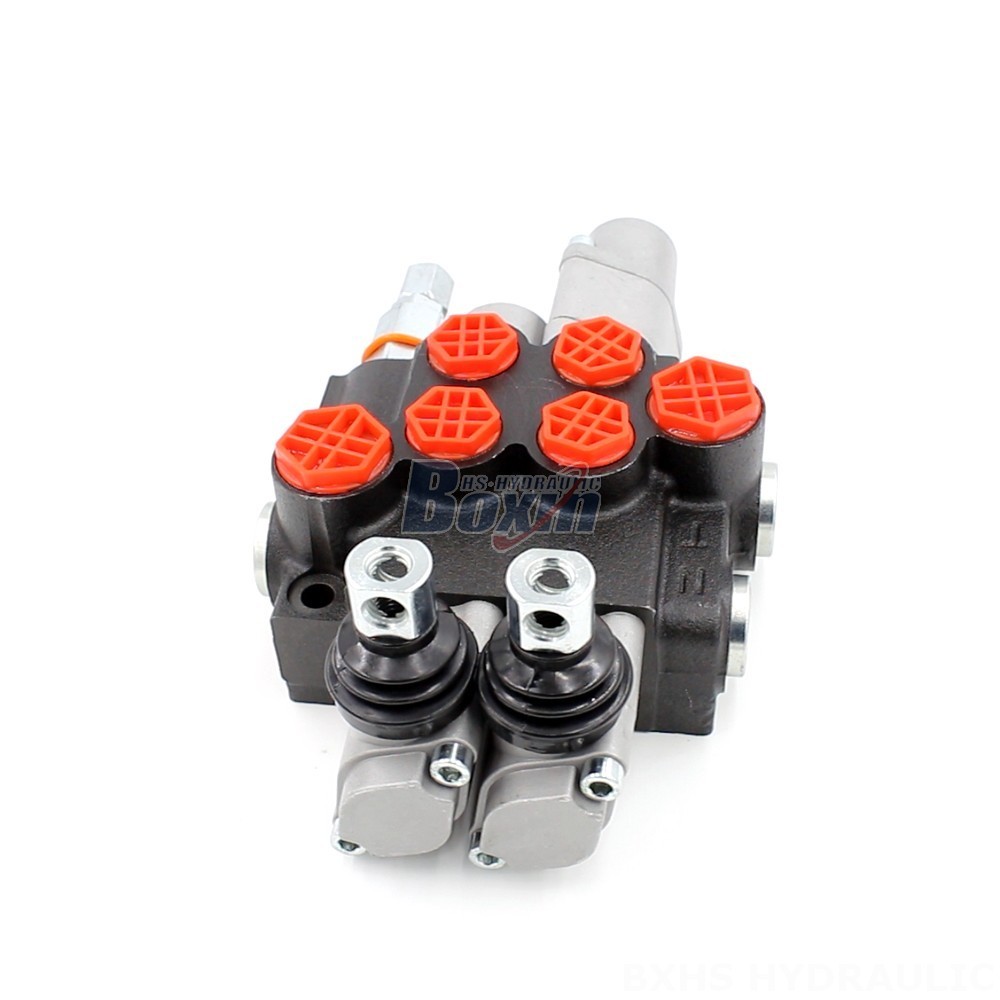

The P40-AQF-G38-G12 Monoblock Valve is a high-performance hydraulic control valve designed for use in a variety of applications including garbage trucks, material handling, construction, and agriculture. This 2-section manual valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-AQF-G38-G12 Monoblock Valve is a reliable and durable hydraulic control valve designed for demanding applications. It features a 2-section, manual control design and a robust monoblock structure. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of heavy-duty applications. It is ideal for use in garbage trucks, telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders. The valve operates reliably in a wide temperature range of -40°C to +80°C (-40°F to +176°F) and is compatible with hydraulic fluids with viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt).
