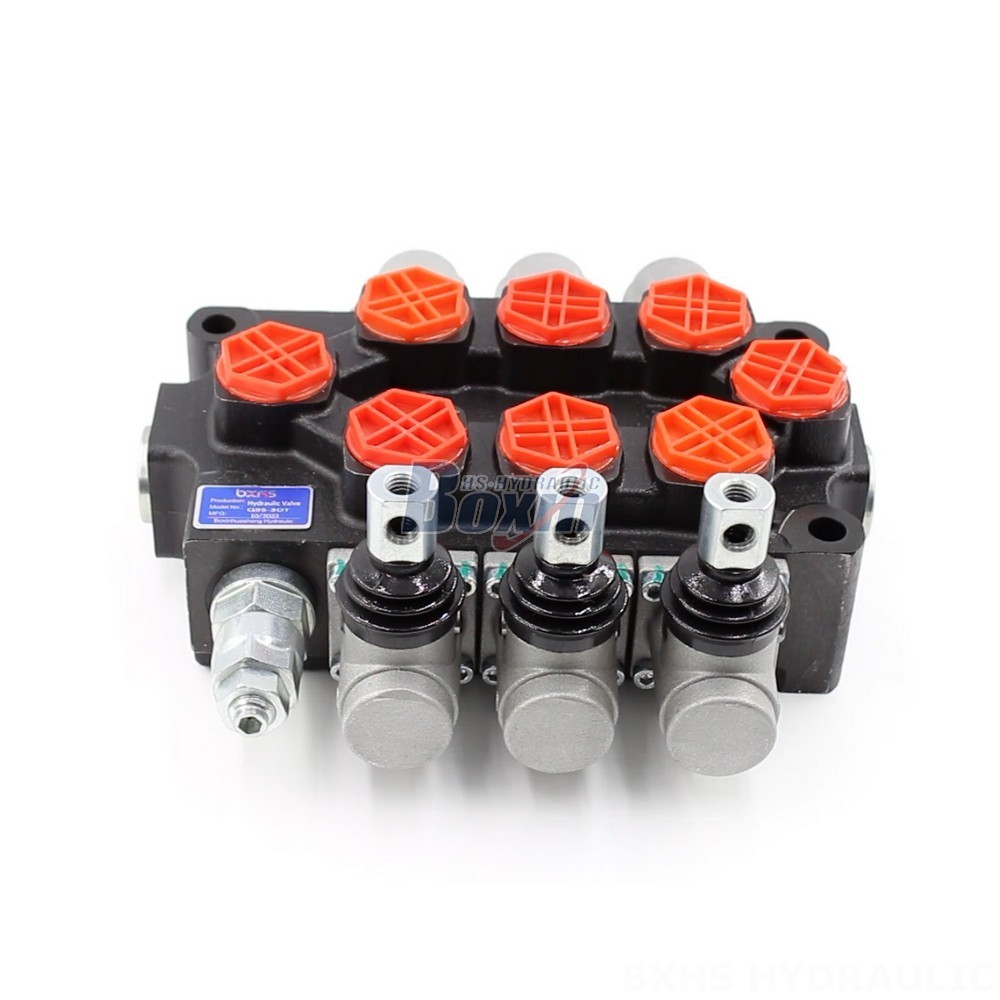

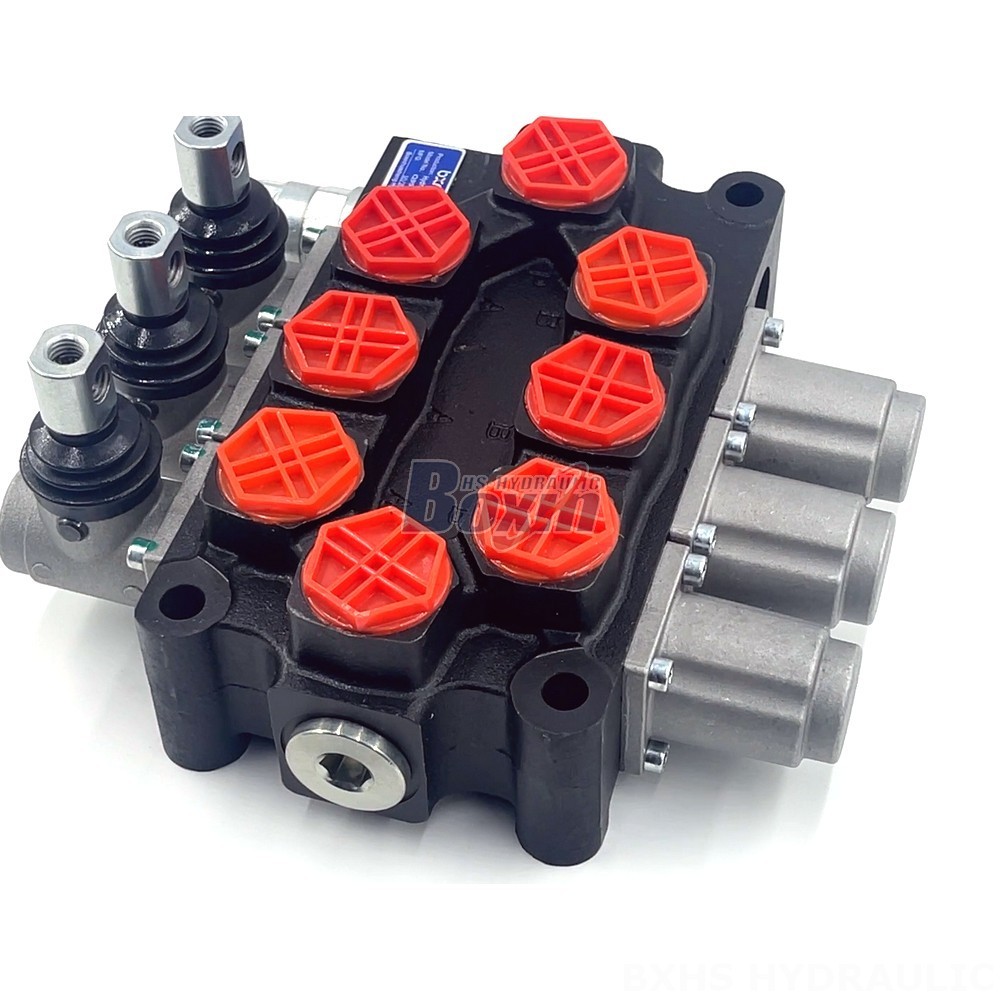

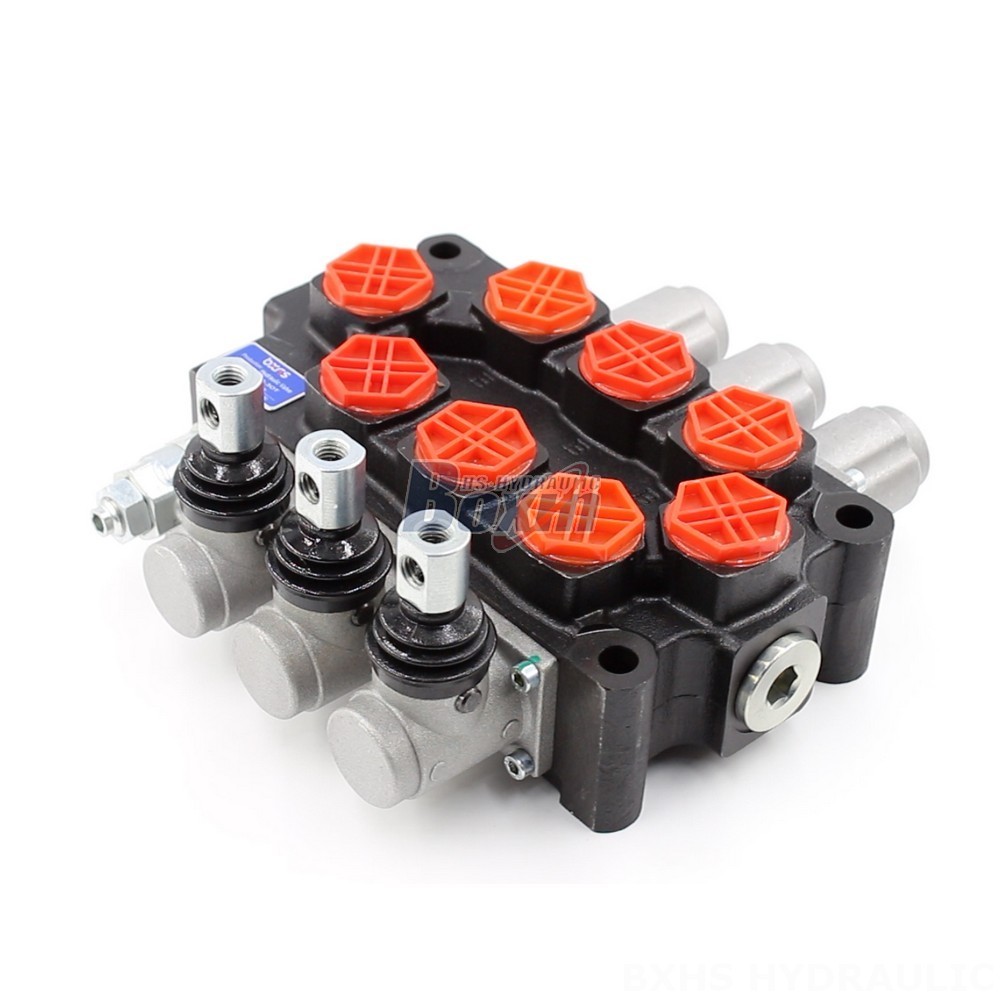

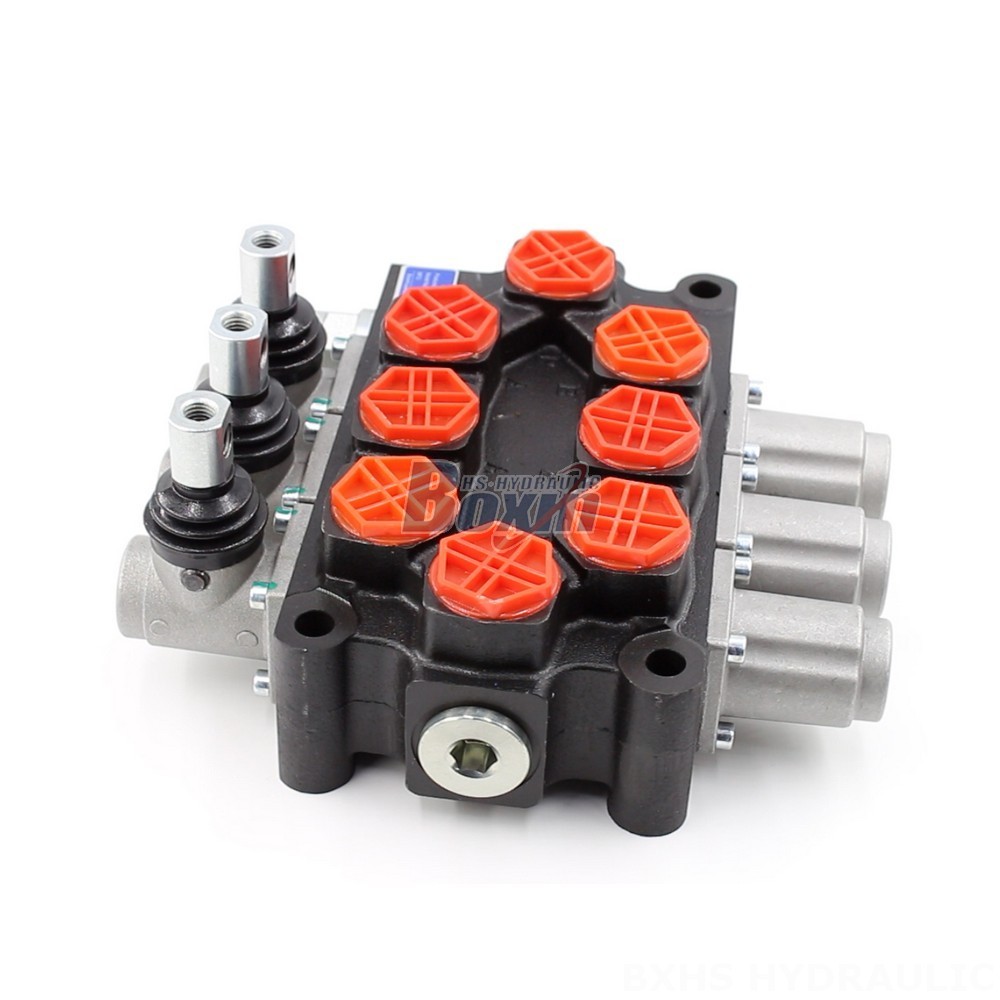

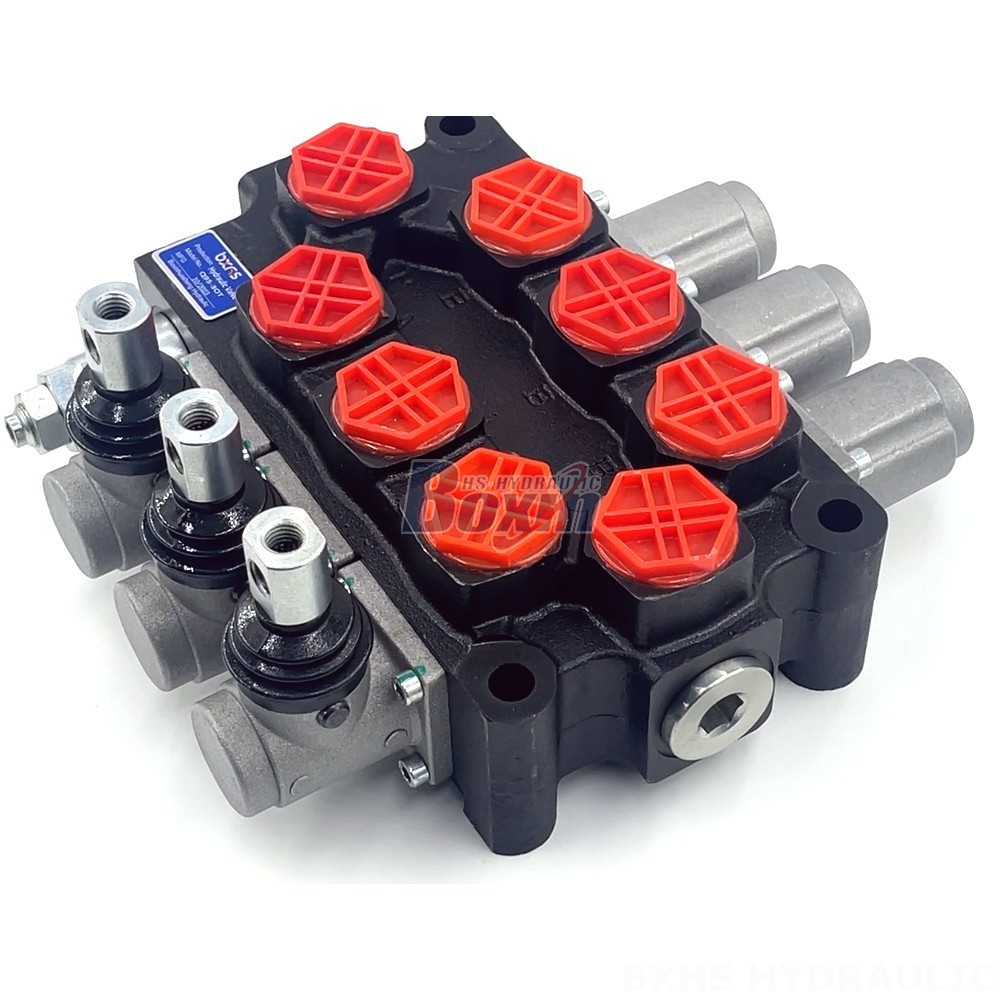

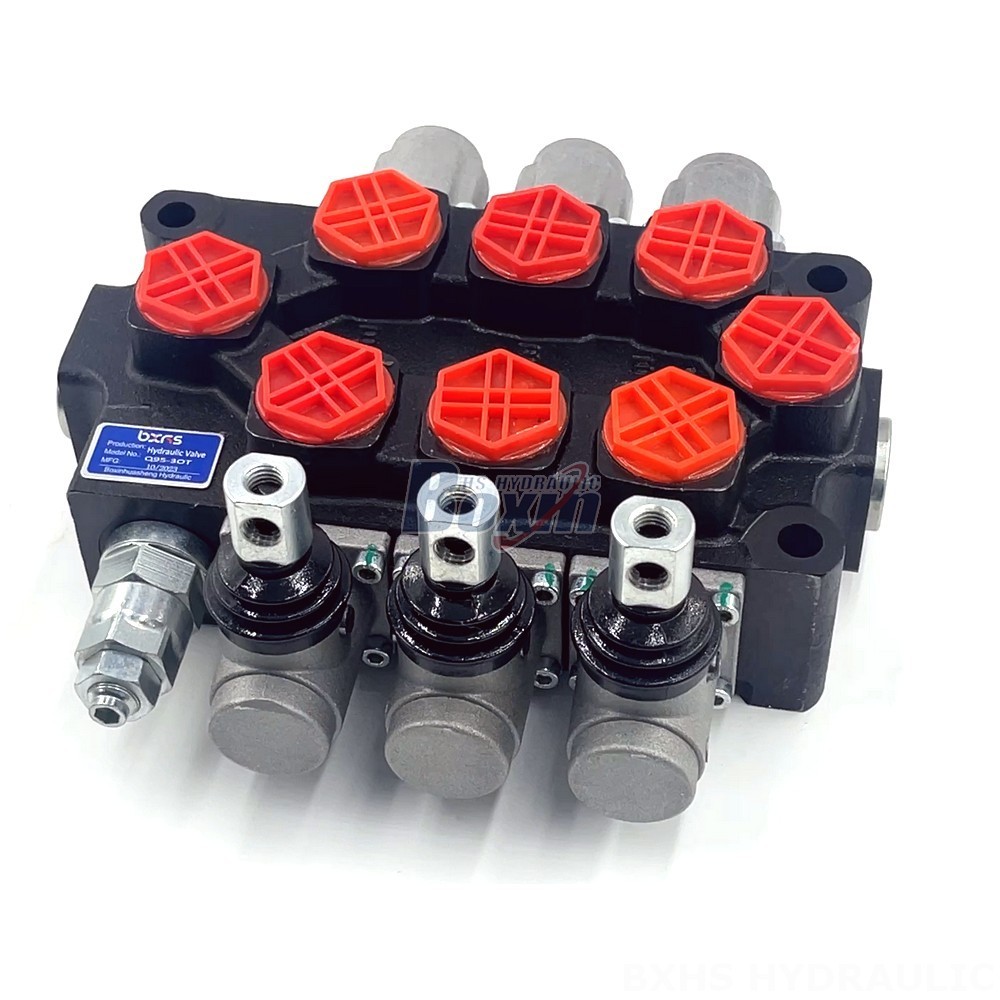

The Q95 Manual 3 Spool Monoblock Directional Valve is a precision-engineered hydraulic component designed for optimal fluid control in demanding applications. Its robust monoblock construction and high-quality materials ensure durability and reliability.
| Série Q95 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Débit nominal | 95 L/min (25,1 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4 |
| Orifice de sortie | G3/4 |
| Dimension du raccord | G3/4 |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
**Key Features of the Q95 Manual 3 Spool Monoblock Directional Valve:**
* Manual control for precise fluid flow regulation
* Monoblock design for compact and leak-proof operation
* 3-spool configuration for versatility and control of multiple fluid paths
* Rated flow of 95 L/min (25.1 US gpm) for efficient fluid transfer
* Max pressure of 315 bar (4600 psi) for handling high-pressure hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in diverse environments
* Wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
