Production et livraison
Délai de production de 15 à 30 jours

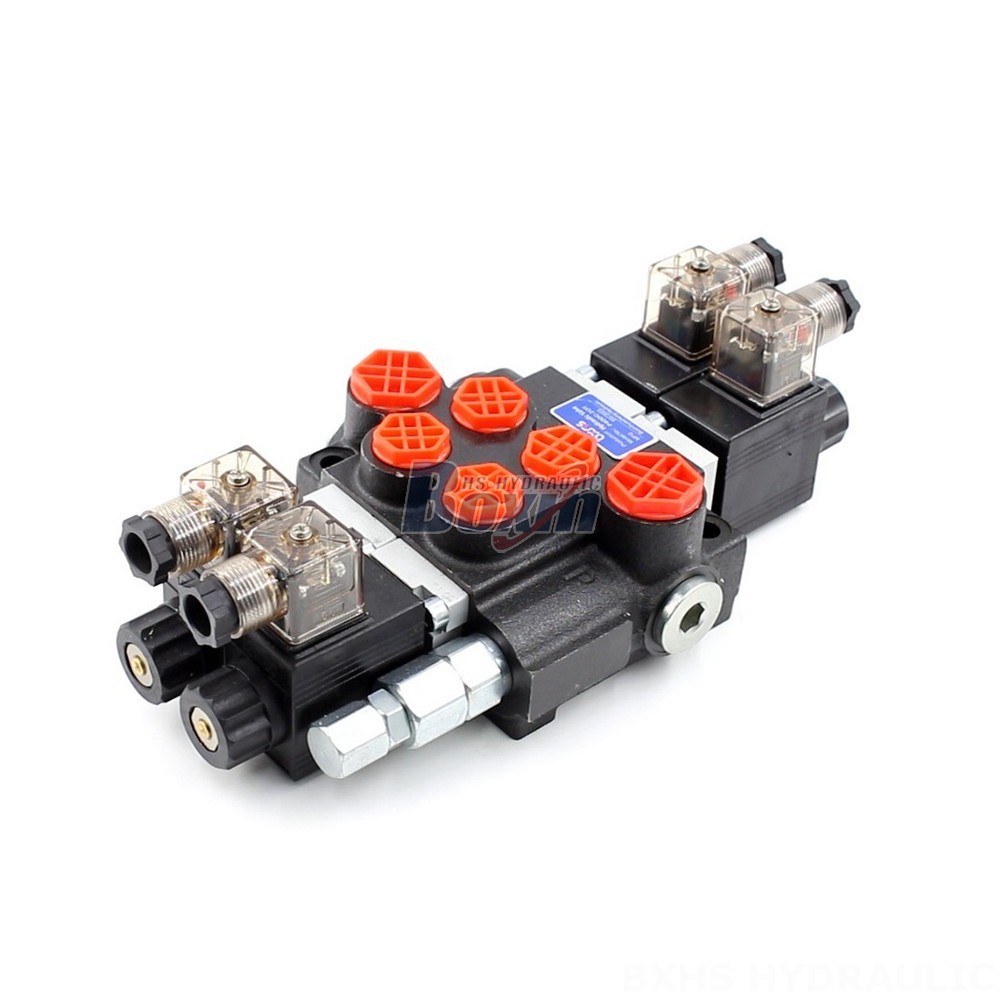

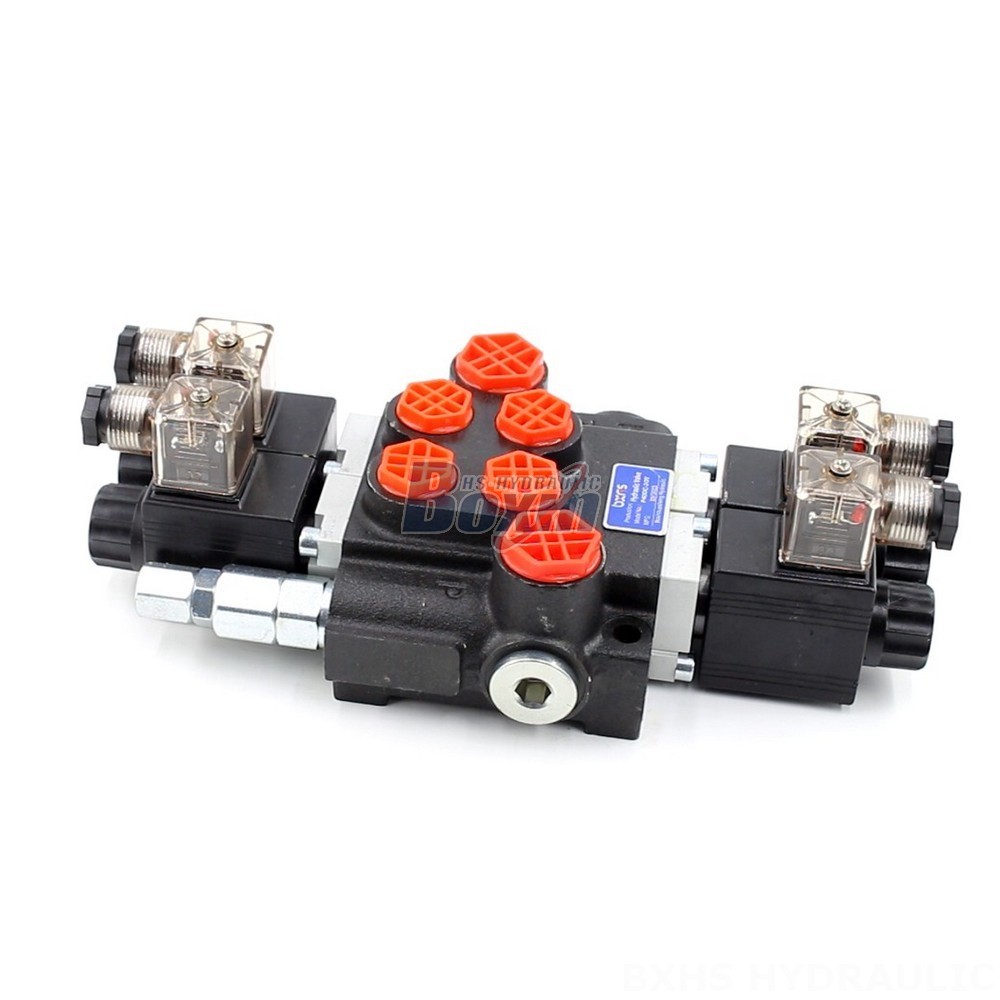

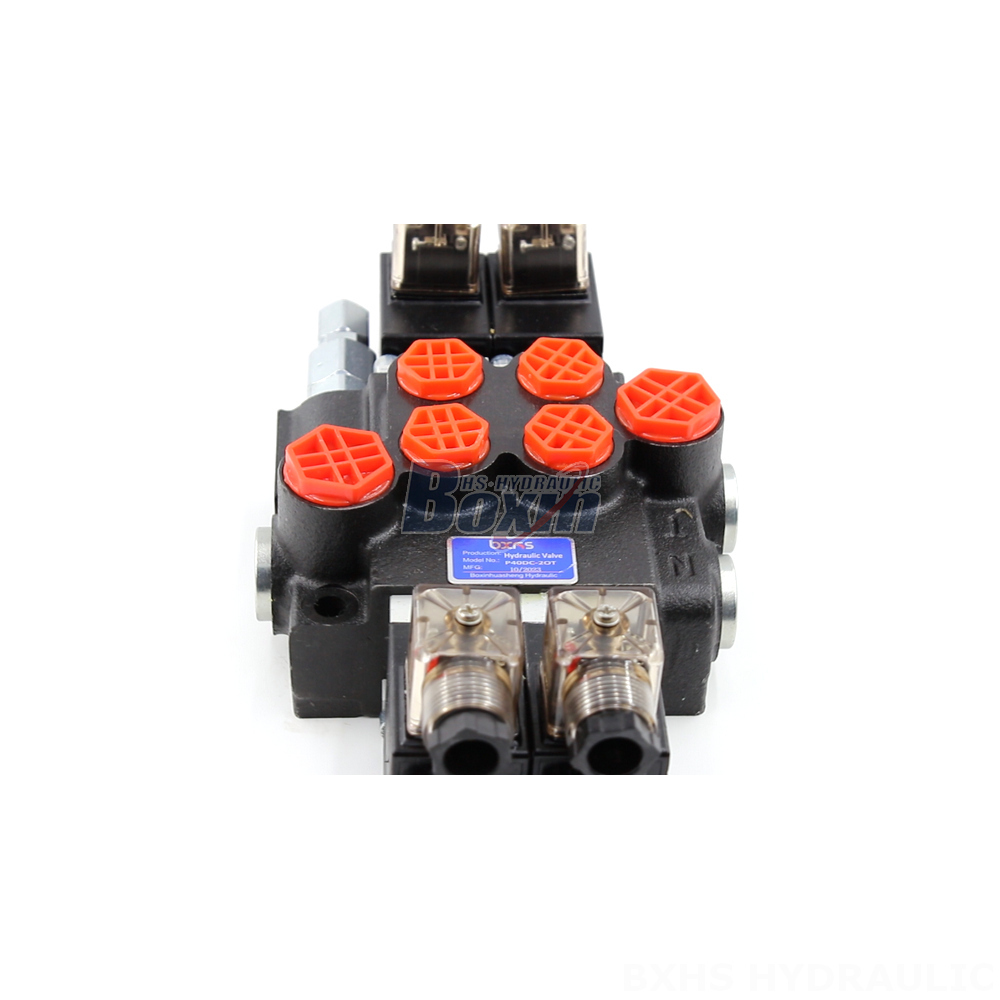

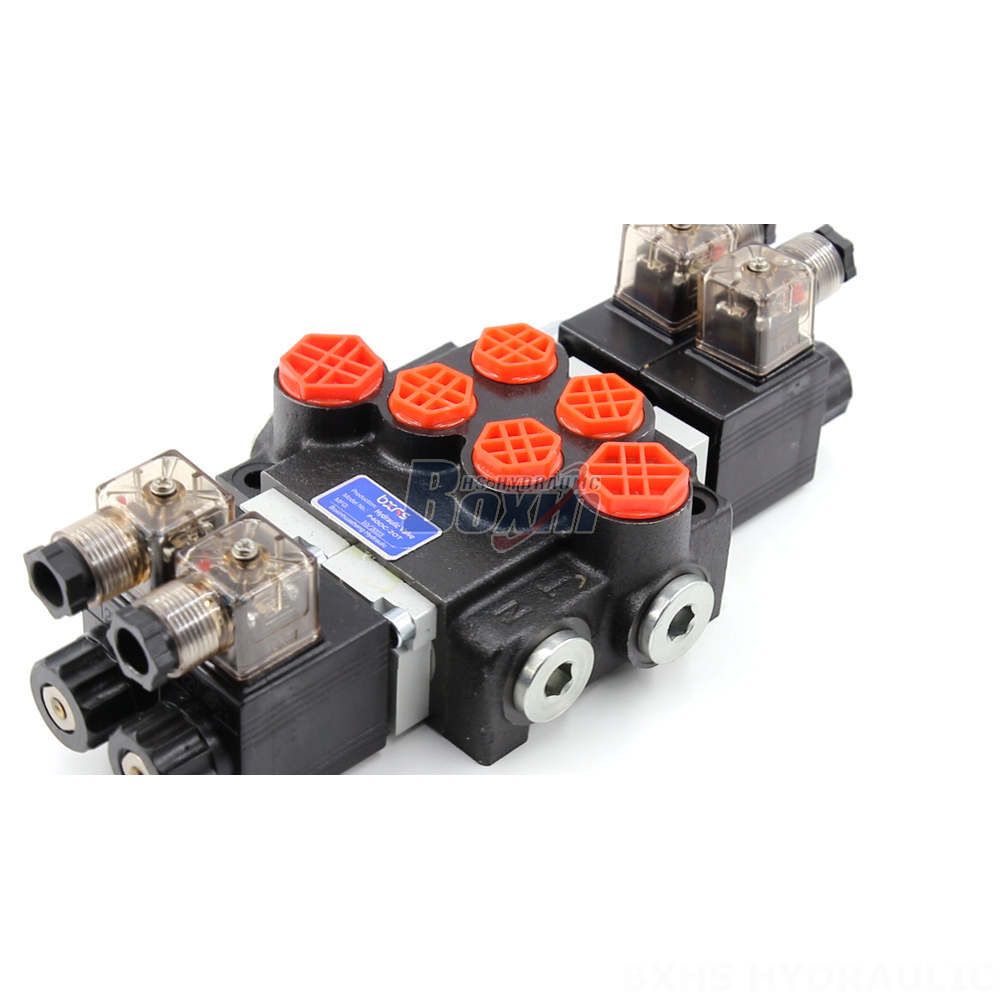

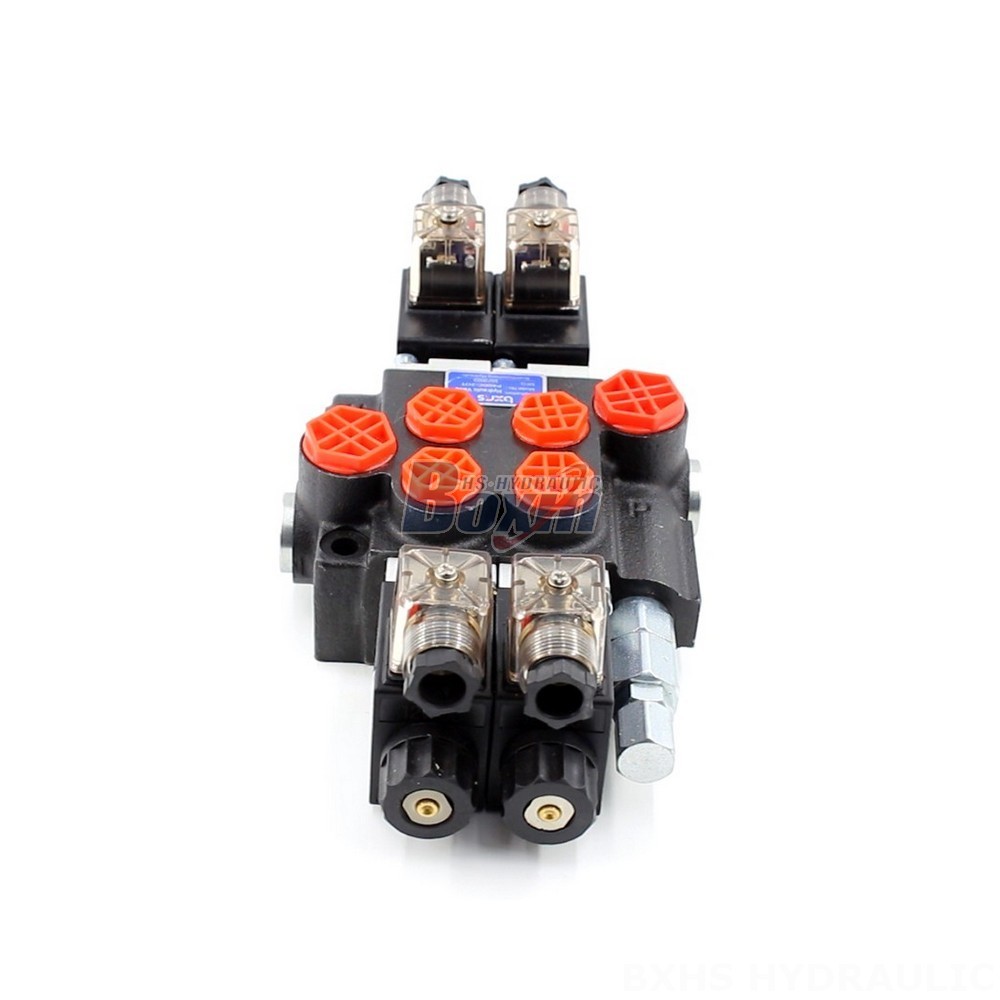

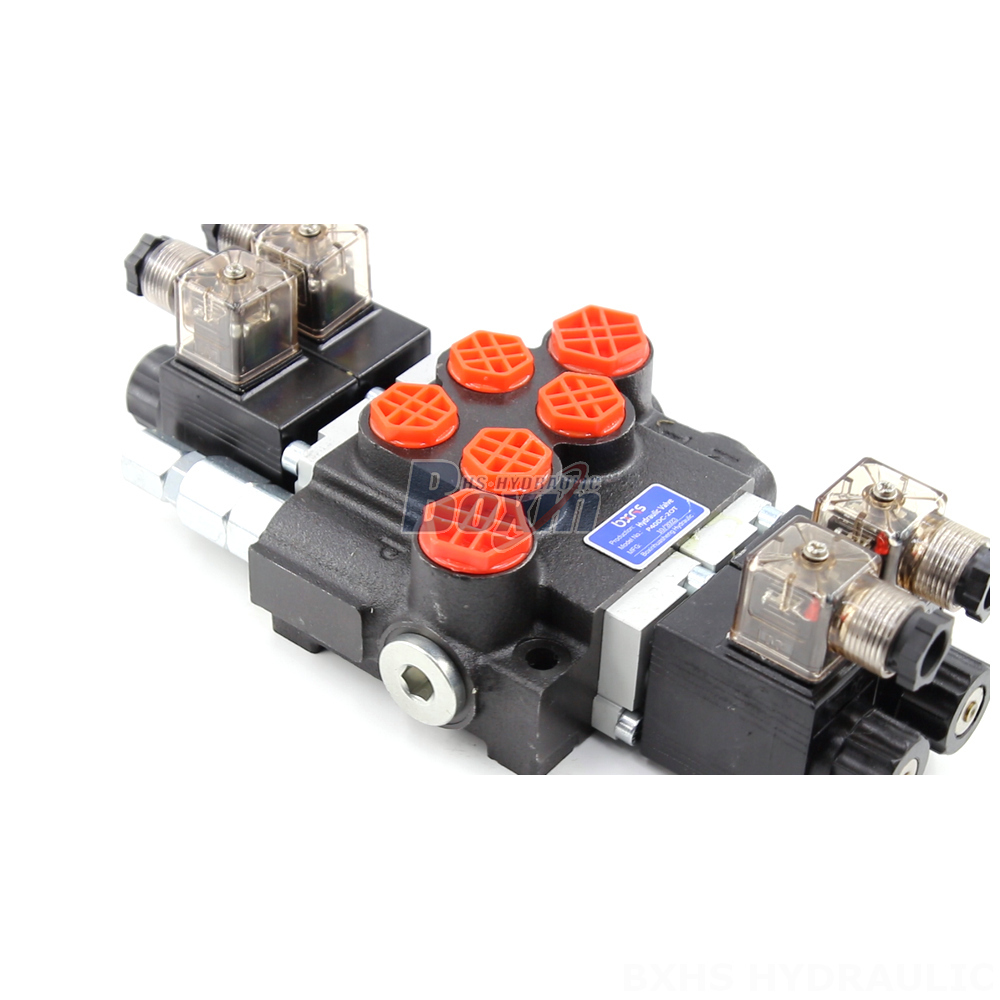

The P40 Series Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a compact design, robust construction, and reliable operation with a flow rate of 40 L/min and a maximum pressure rating of 250 bar.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Solenoid 2 Spool Monoblock Directional Valve is a powerful hydraulic valve that offers precise control and efficient operation. With its compact monoblock structure, it's designed for easy installation and integration into various hydraulic systems. The valve features a 2 spool design with a rated flow of 40 L/min and a maximum pressure rating of 250 bar, making it suitable for demanding applications in material handling, construction, agriculture, and industrial vehicles. The valve's solenoid control provides reliable and responsive operation. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring performance in various environments. This versatile valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, wheel loaders, backhoe loaders, and dumpers. We offer this valve for manufacturing, OEM, ODM, private label, and wholesale. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
