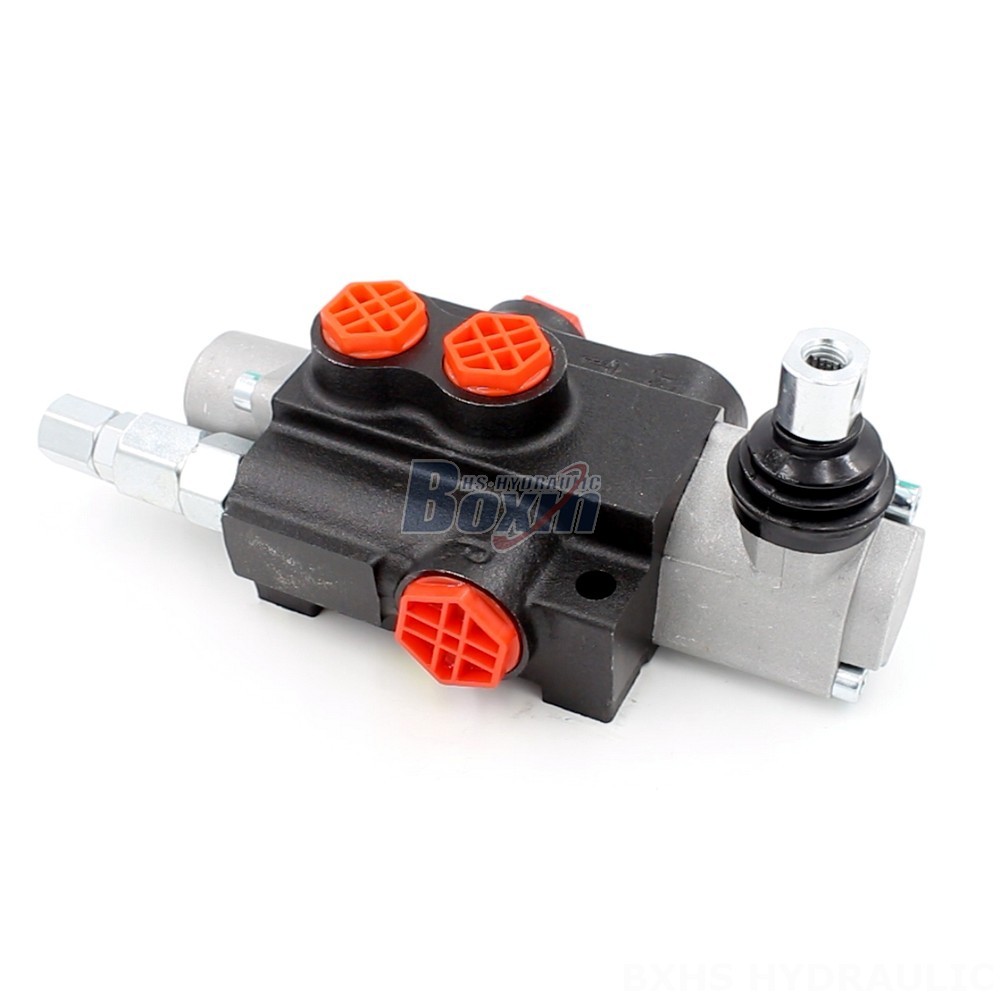

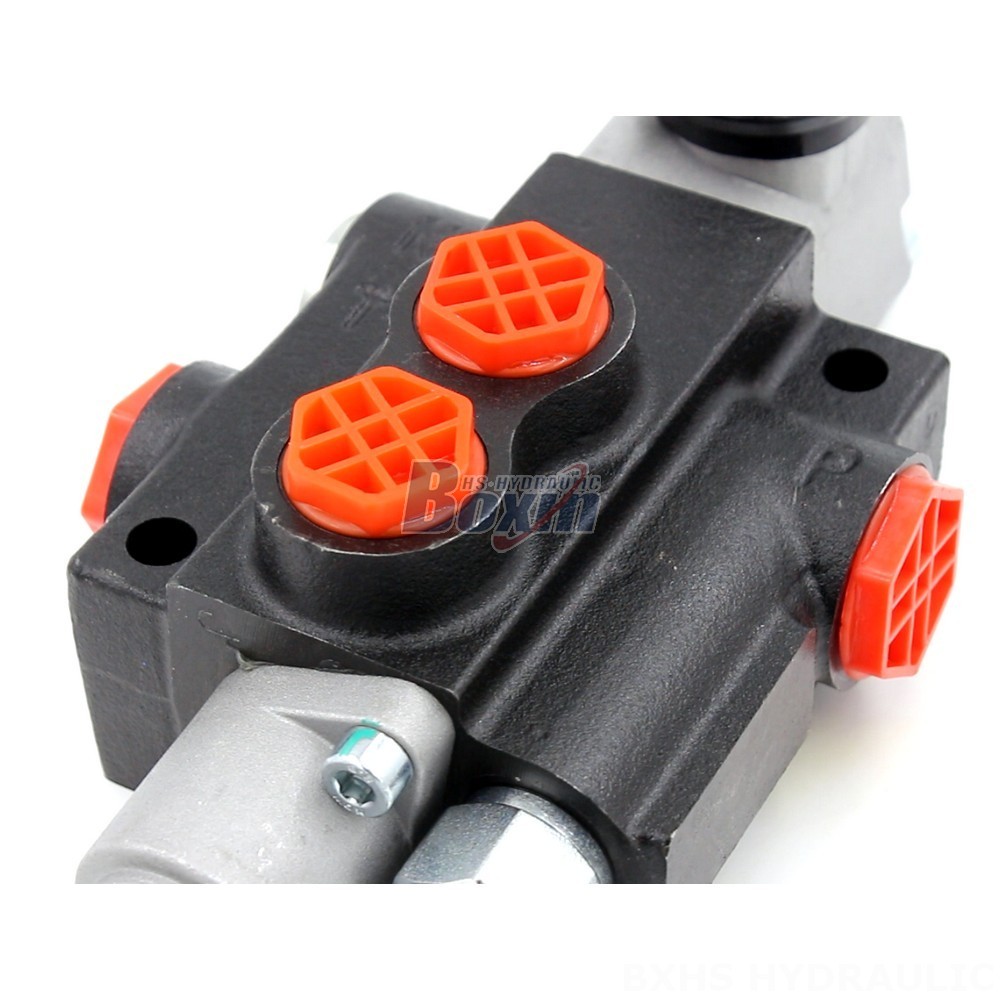

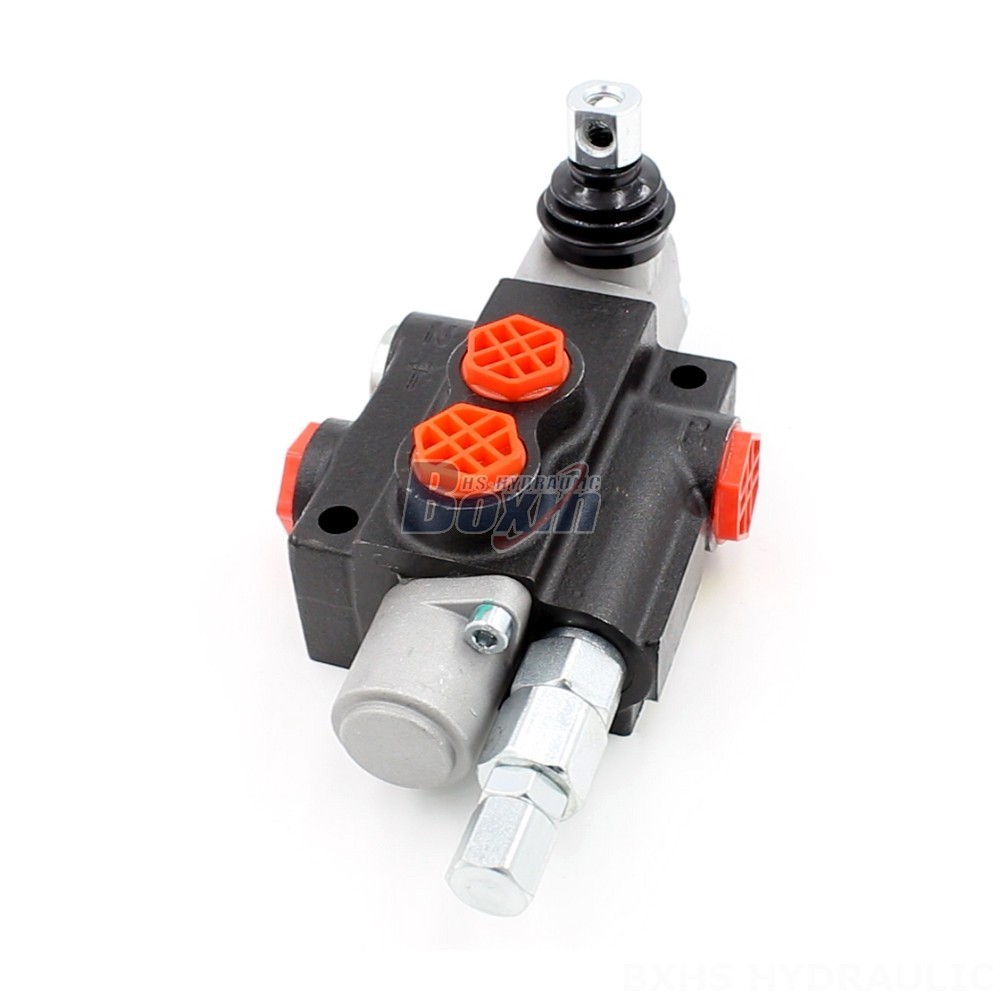

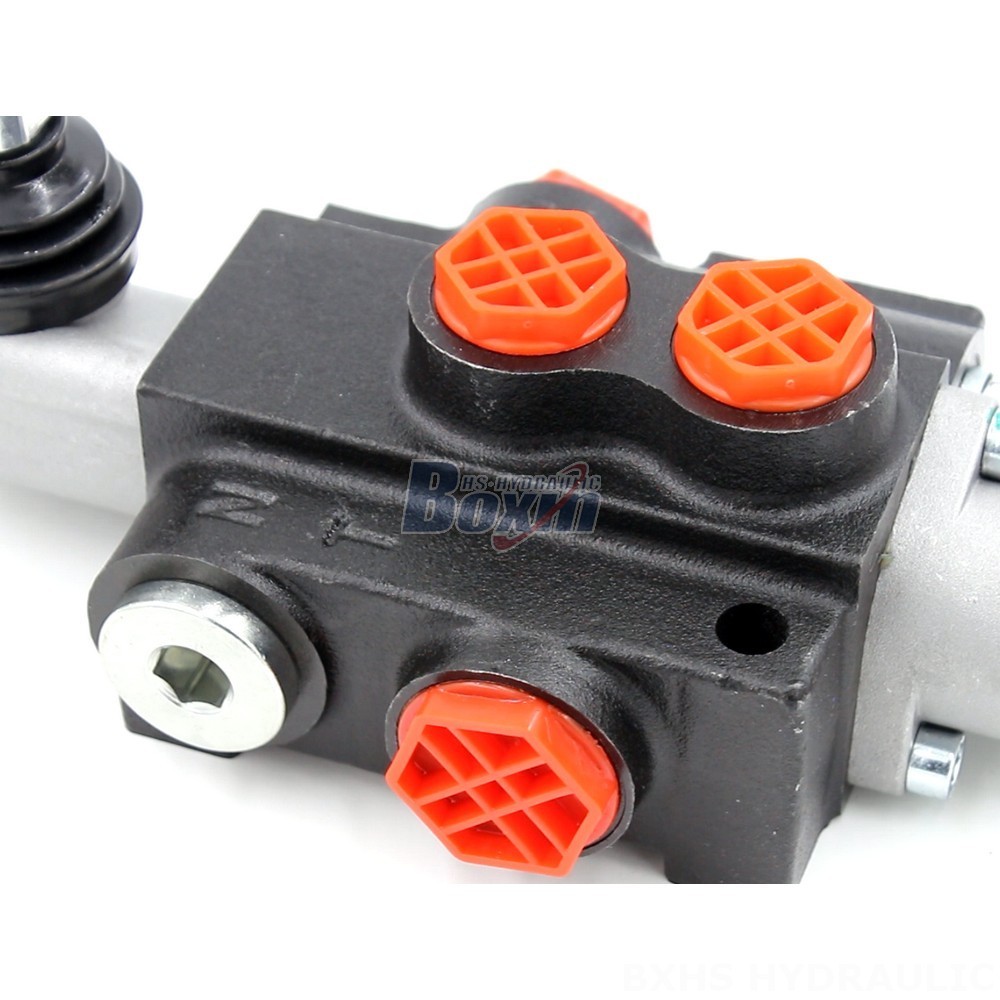

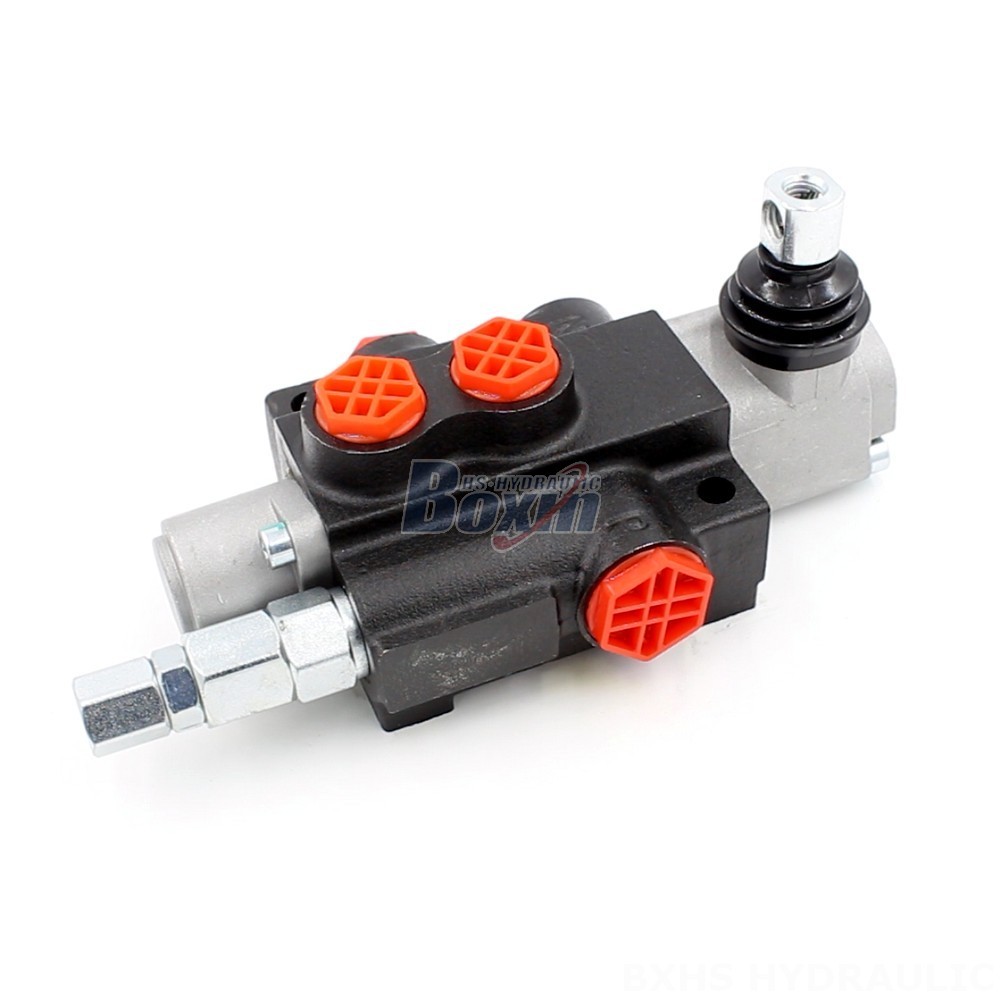

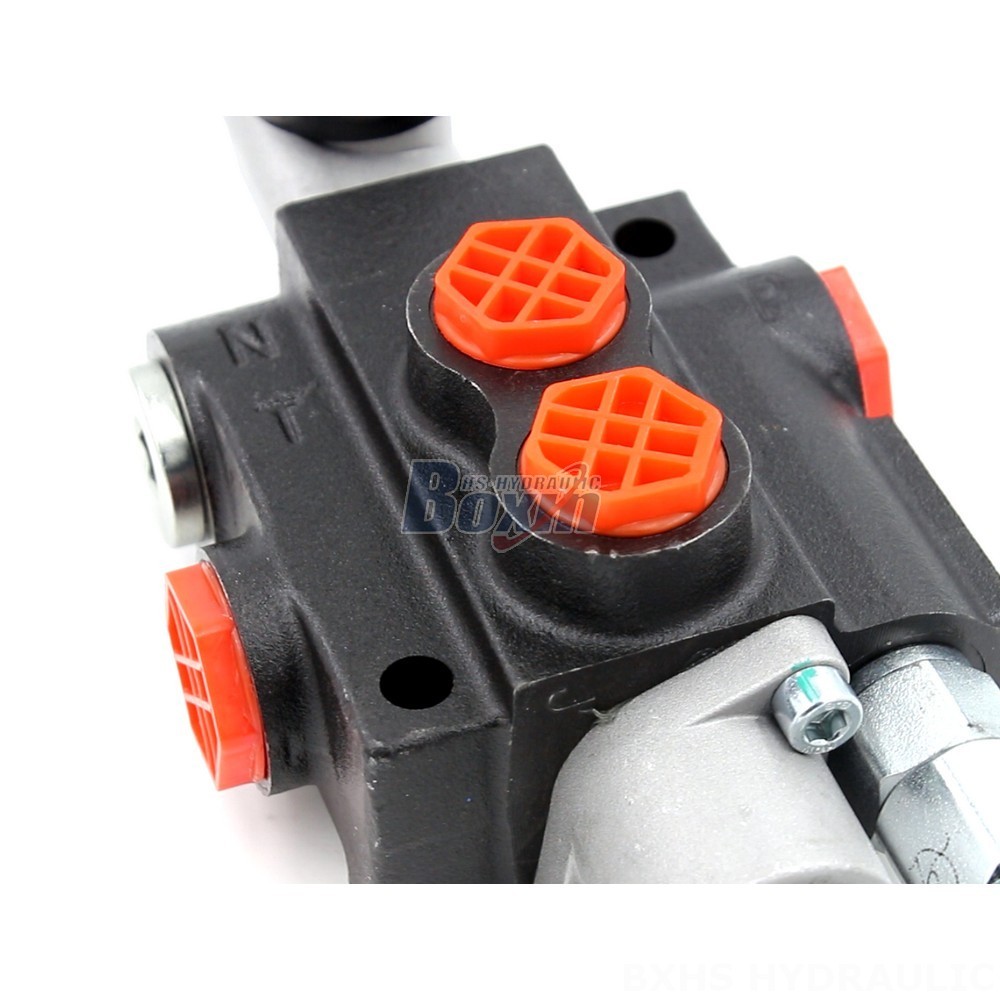

The P40-OT Series is a high-performance hydraulic joystick control valve designed for OEM partners. This manual control valve features a monoblock structure, 40 L/min rated flow, and 250 bar maximum pressure. Suitable for a wide range of applications in construction, material handling, agriculture, and industrial vehicles.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-OT Series hydraulic joystick control valve offers a reliable and efficient solution for controlling hydraulic systems. It is a robust monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is designed for manual control and is suitable for a wide range of operating temperatures. We offer private label and OEM options, allowing you to customize the valve to meet your specific needs. We also provide manufacturing, contract manufacturing, and wholesale services. Our team is ready to collaborate with you to develop a tailored solution that meets your unique requirements. Contact us today to learn more.
