Production et livraison
Délai de production de 15 à 30 jours

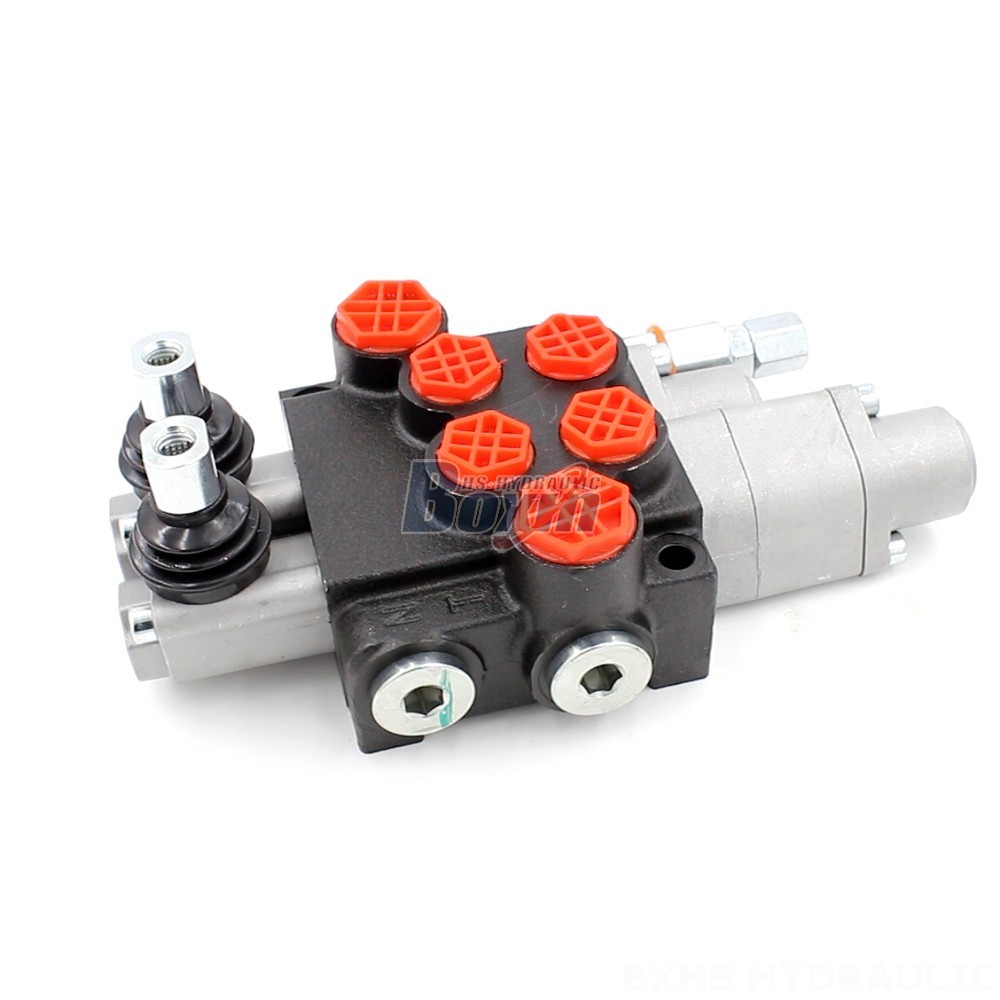

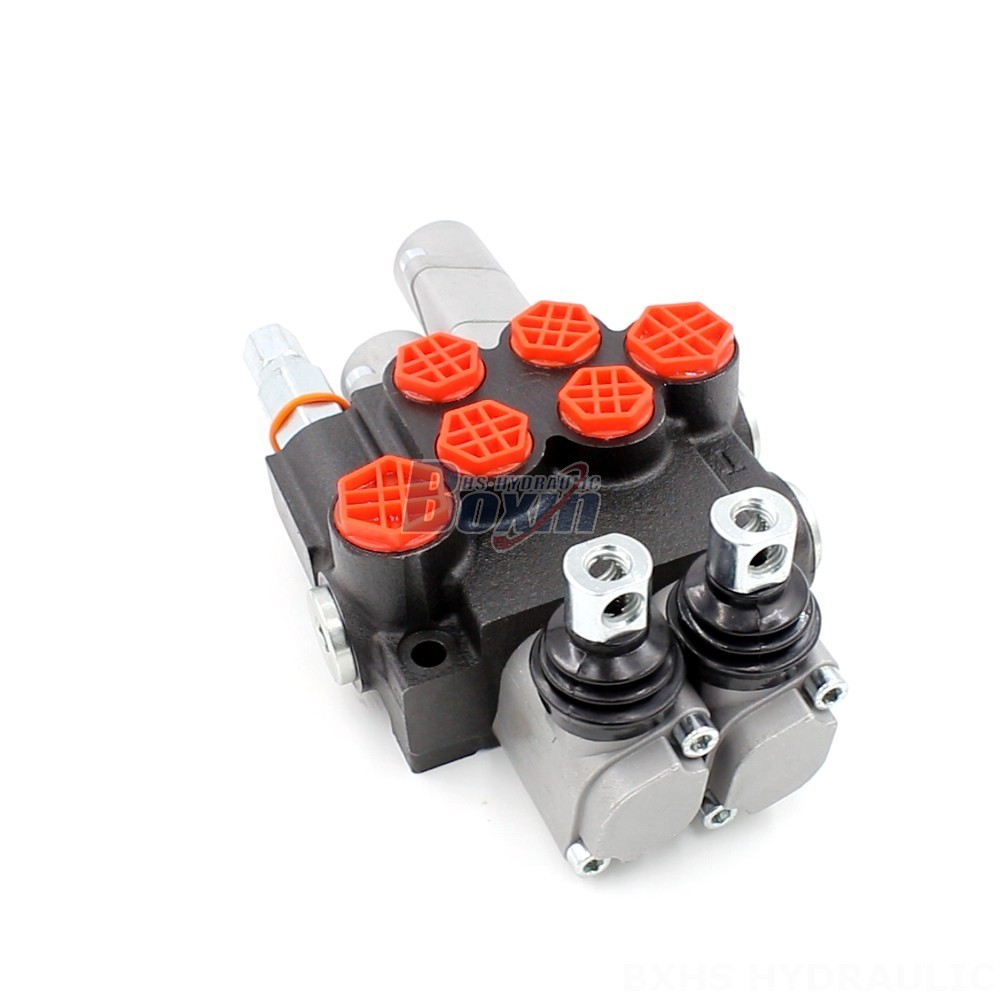

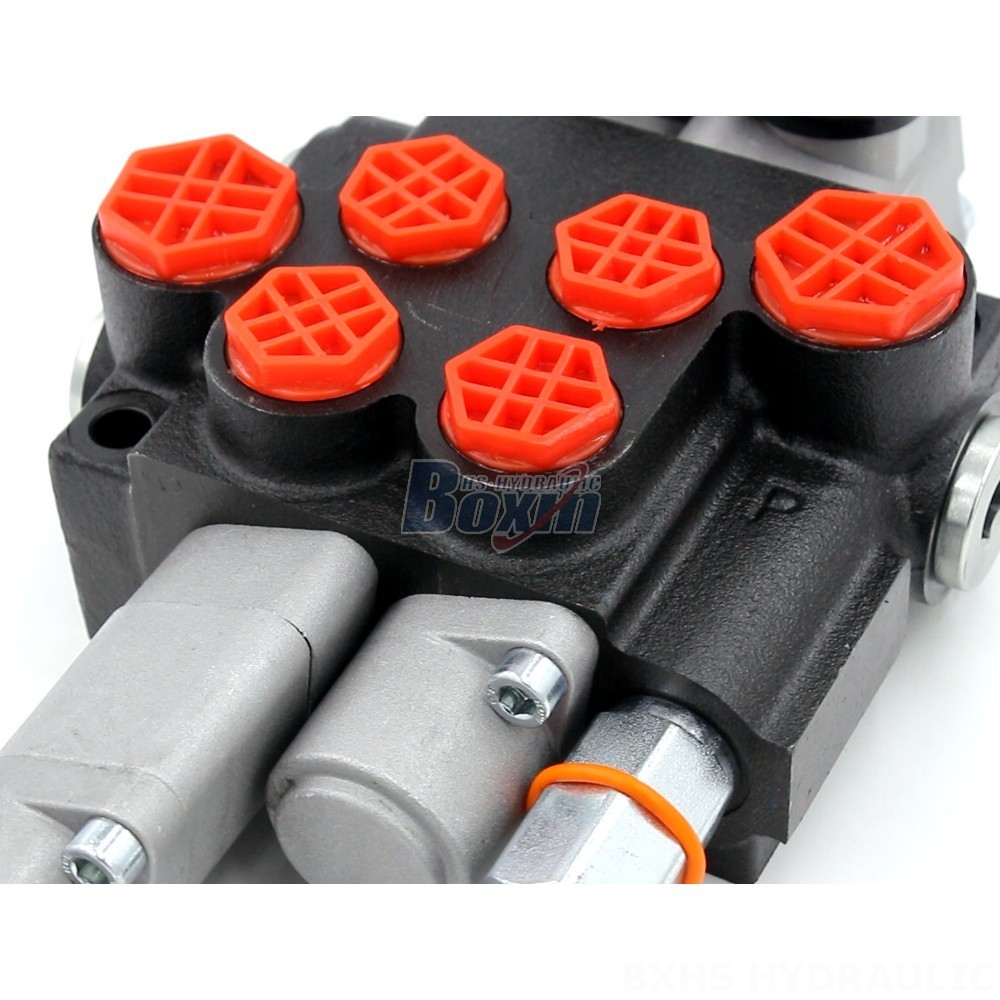

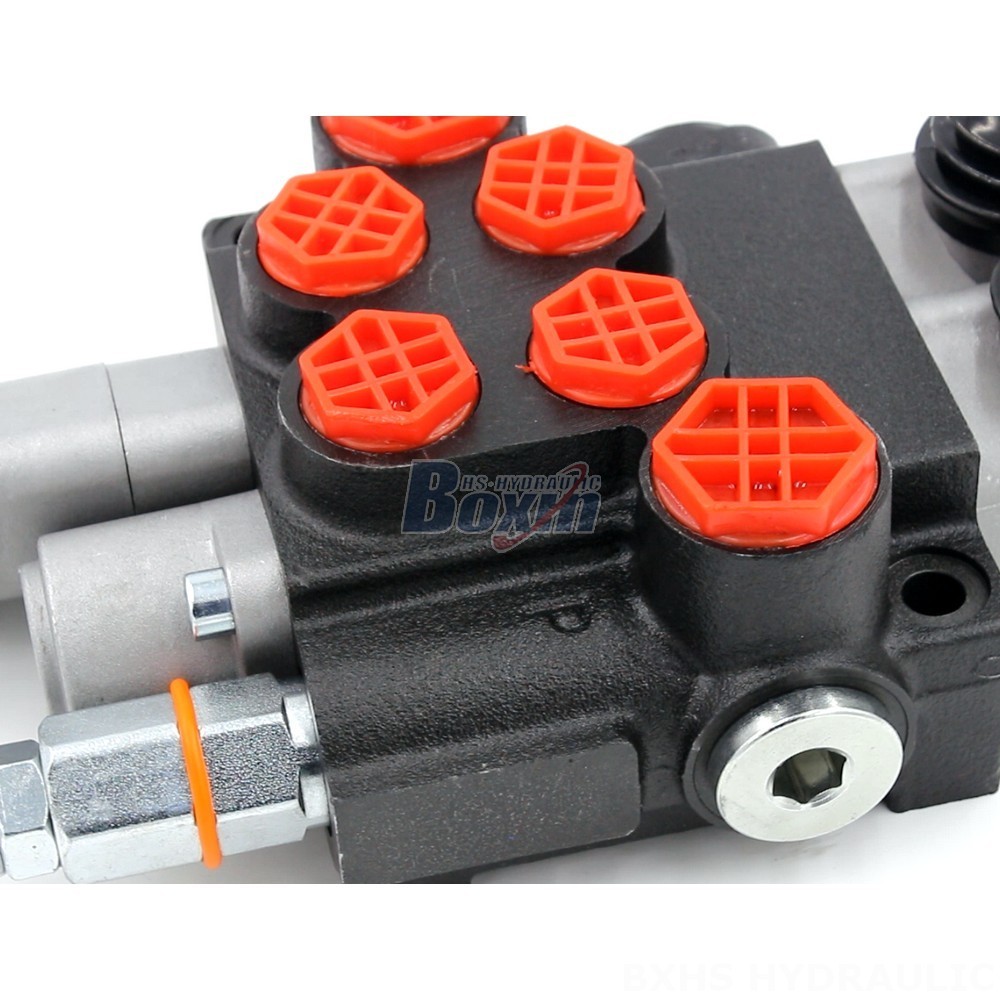

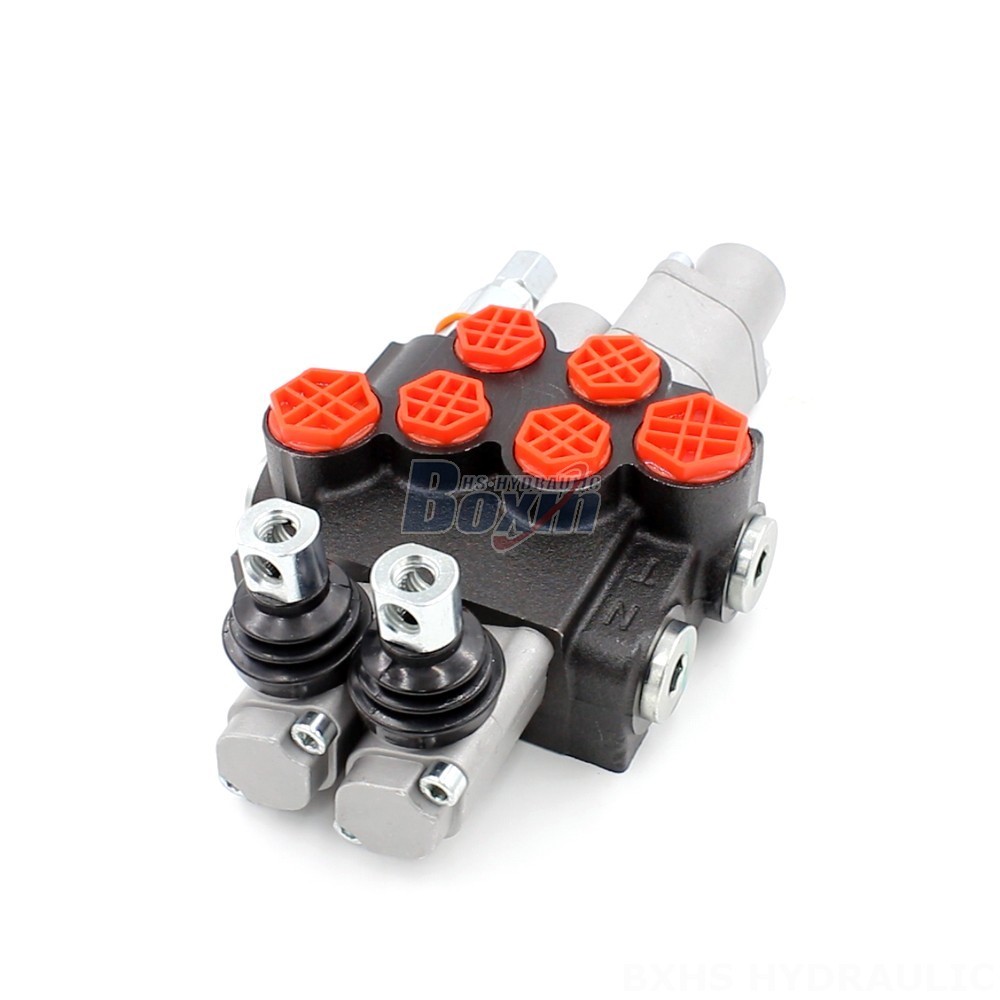

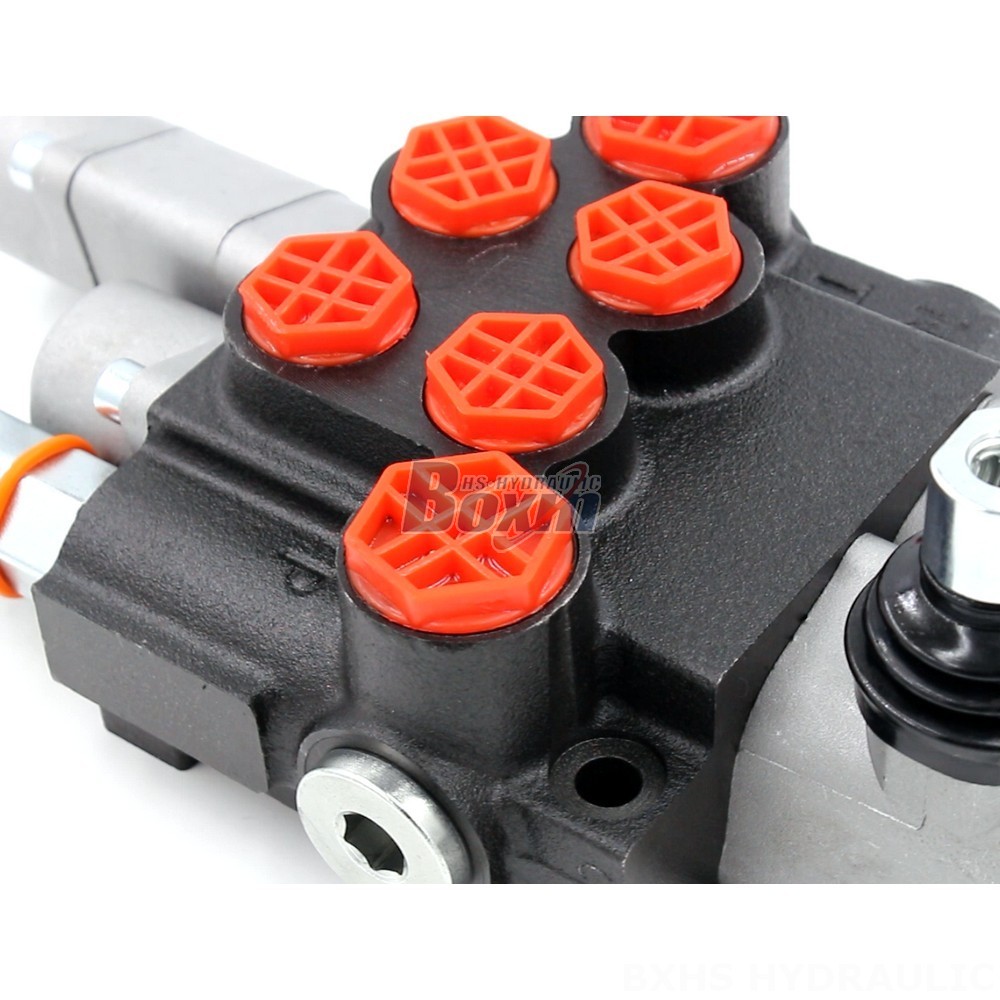

The P40-AQF-G38-G12 is a premium integral hydraulic valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. This monoblock valve features manual control, a 2-section design, and a rated flow of 40 L/min, making it ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-AQF-G38-G12 is a high-performance integral hydraulic valve designed for demanding applications in various industries. It features a robust monoblock valve design with manual control for precise operation. With a 2-section configuration and a rated flow of 40 L/min (10.5 US gpm), this valve can handle high flow rates and pressures. The P40-AQF-G38-G12 is capable of operating at pressures up to 250 bar (3600 psi) and can handle a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This valve is designed for reliable performance even in extreme environments, with an operating temperature range of -40°C to +80°C (-40°F to +176°F). It is specifically suited for use in various heavy-duty applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders. The P40-AQF-G38-G12 combines premium quality, high performance, and versatility, making it an ideal choice for demanding hydraulic applications.
