The P40-DKL Precision Directional Control Valves are a high-performance solution for industrial applications. These 4-section monoblock valves feature a solenoid control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. With their wide operating viscosity range and temperature range, these valves are suitable for a variety of applications in material handling, construction, earth moving, agriculture, and industrial vehicles.
| Série P40-DKL Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |

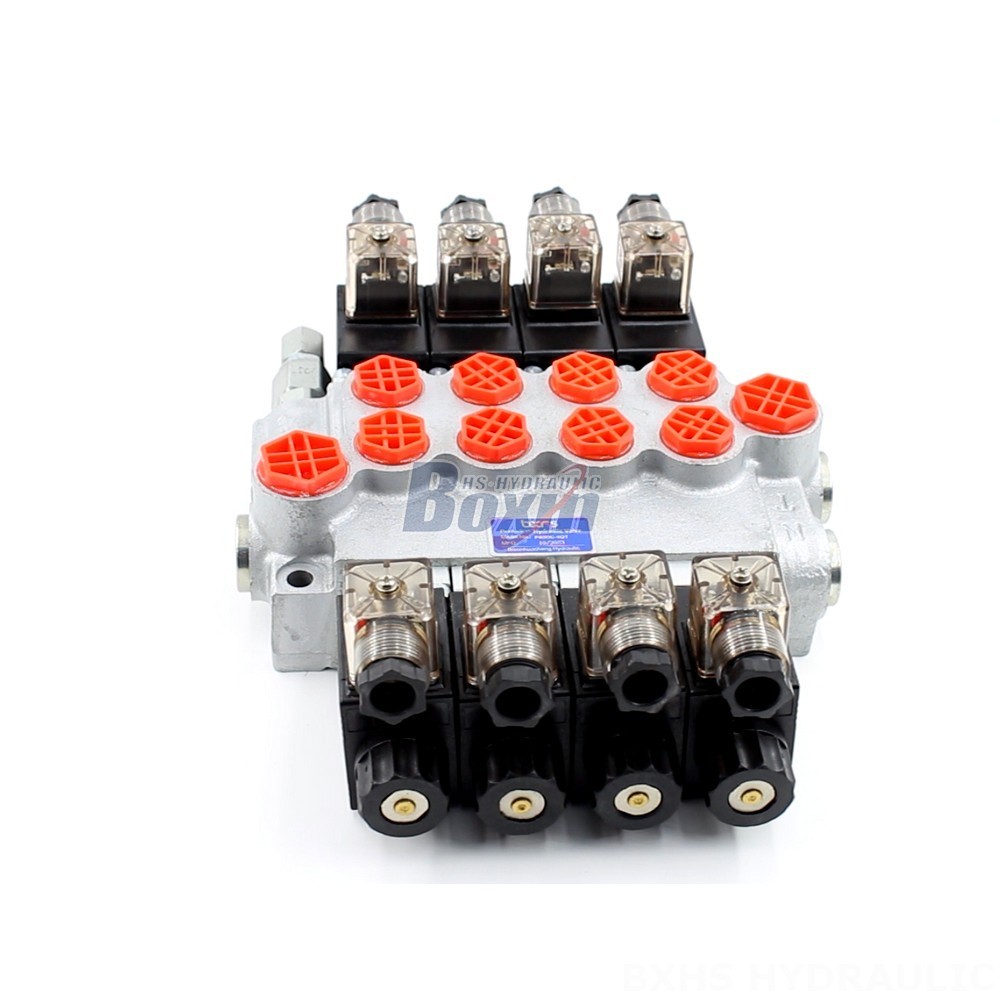

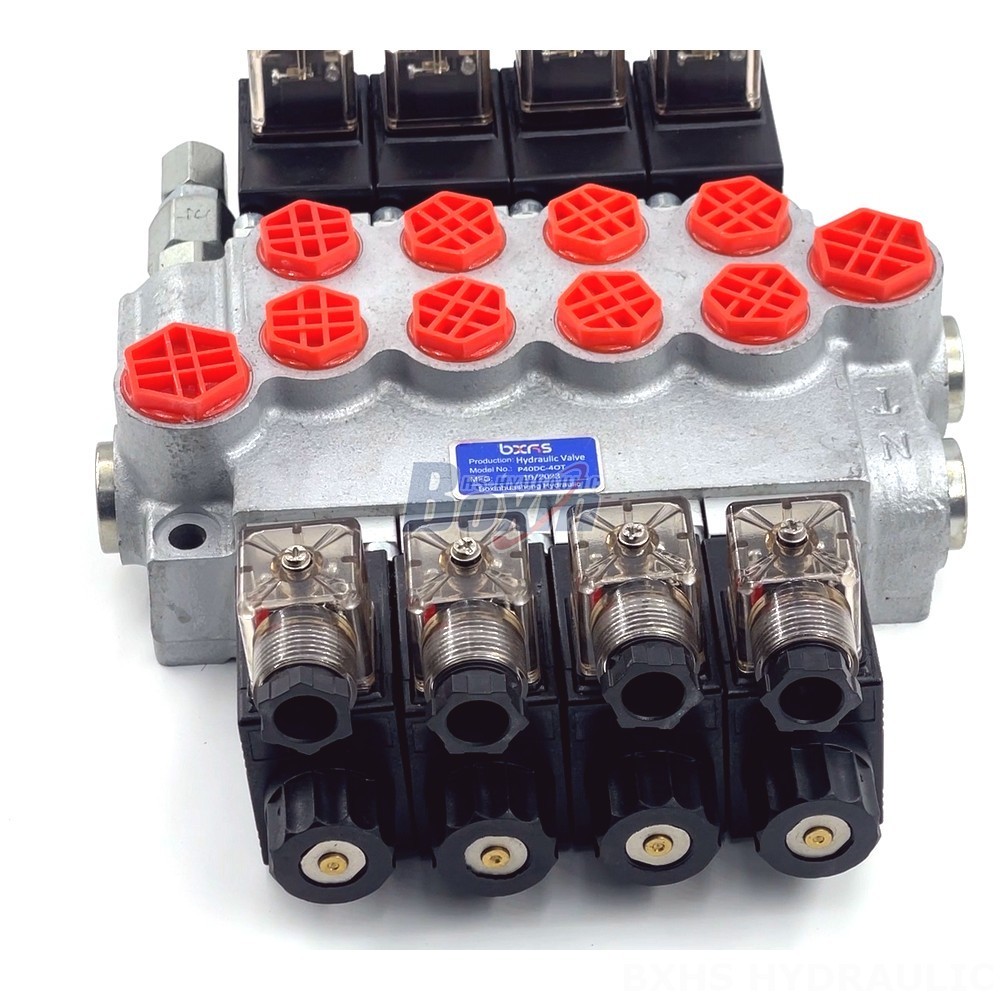

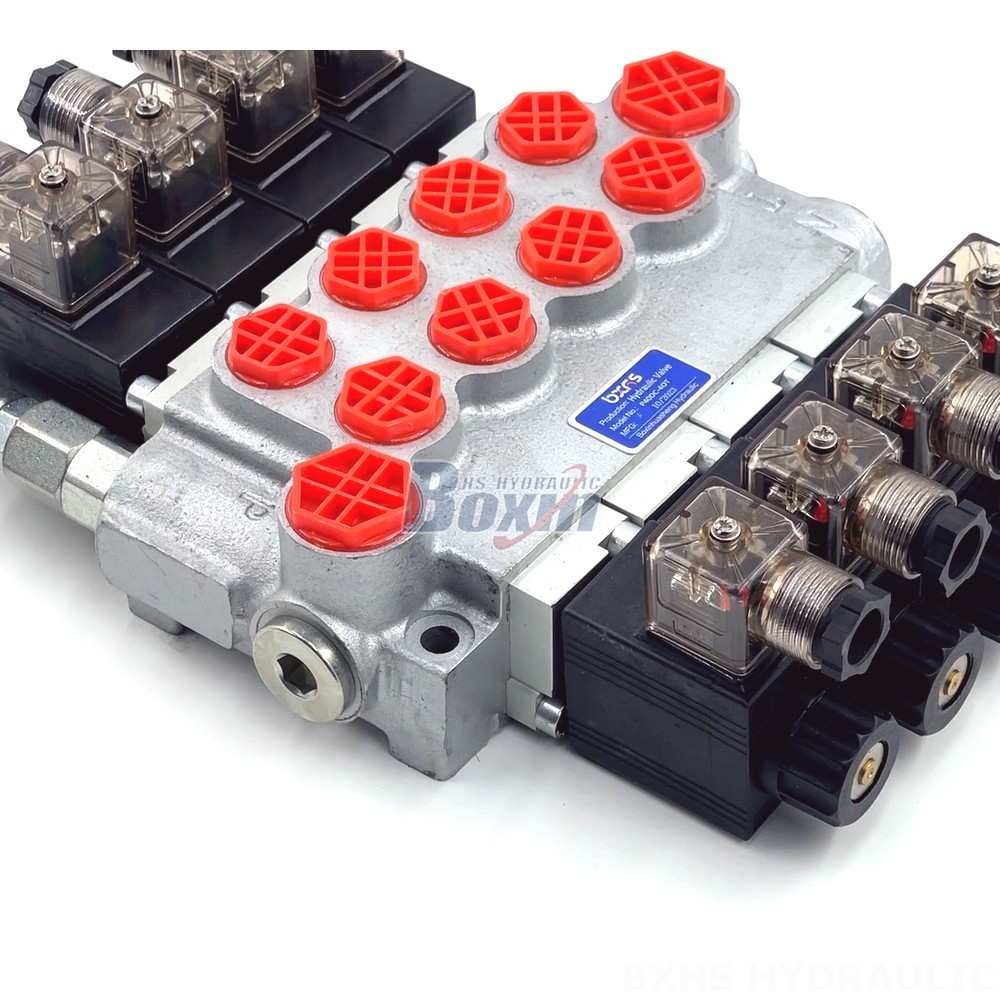

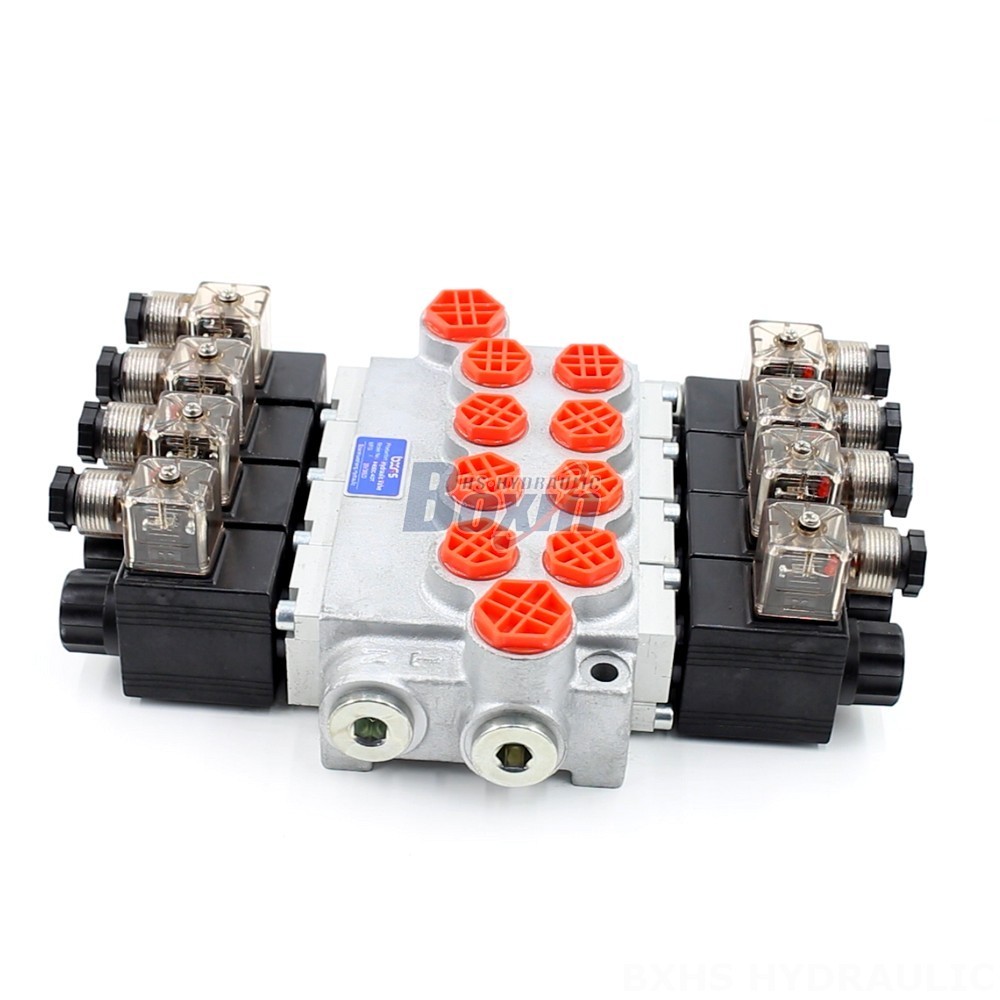

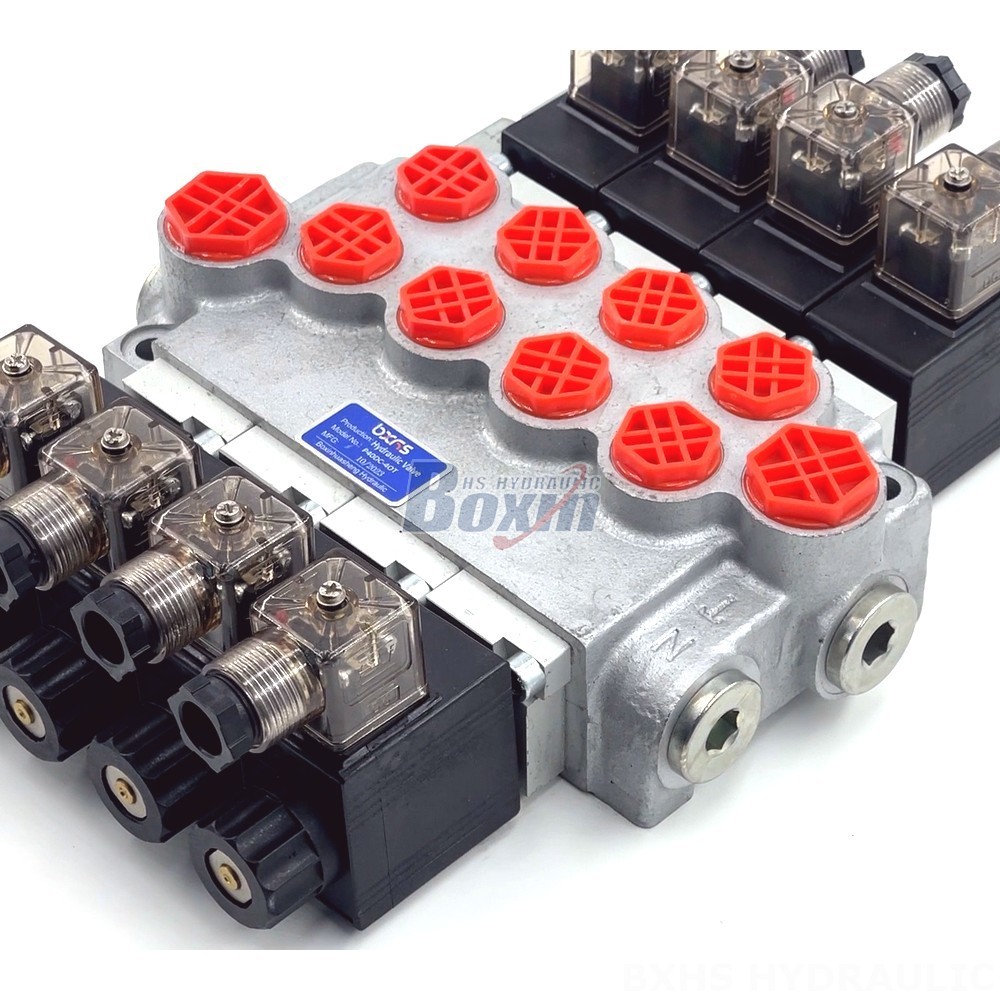

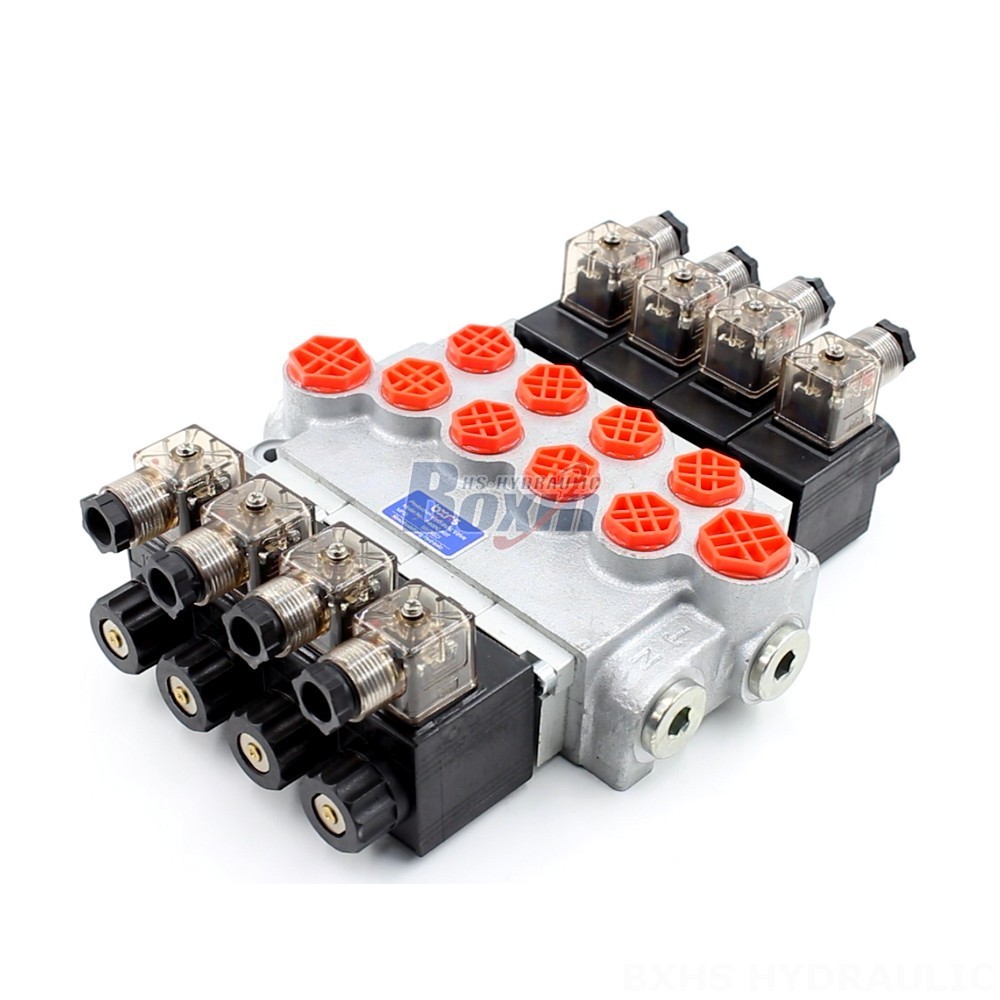

**P40-DKL Precision Directional Control Valves**
The P40-DKL Precision Directional Control Valves are designed for demanding industrial applications. These valves feature a robust monoblock construction and a solenoid control method for precise and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves can handle high-pressure hydraulic systems. They also have a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making them suitable for various operating conditions.
**Key Features:**
* 4-section monoblock valve
* Solenoid control method
* Rated flow: 40 L/min
* Maximum pressure: 250 bar
* Operating viscosity range: 15 - 75 mm²/s
* Ambient temperature range: -40°C to +80°C
* 4 spool
* Suitable for material handling, construction, earth moving, agriculture, and industrial vehicles
