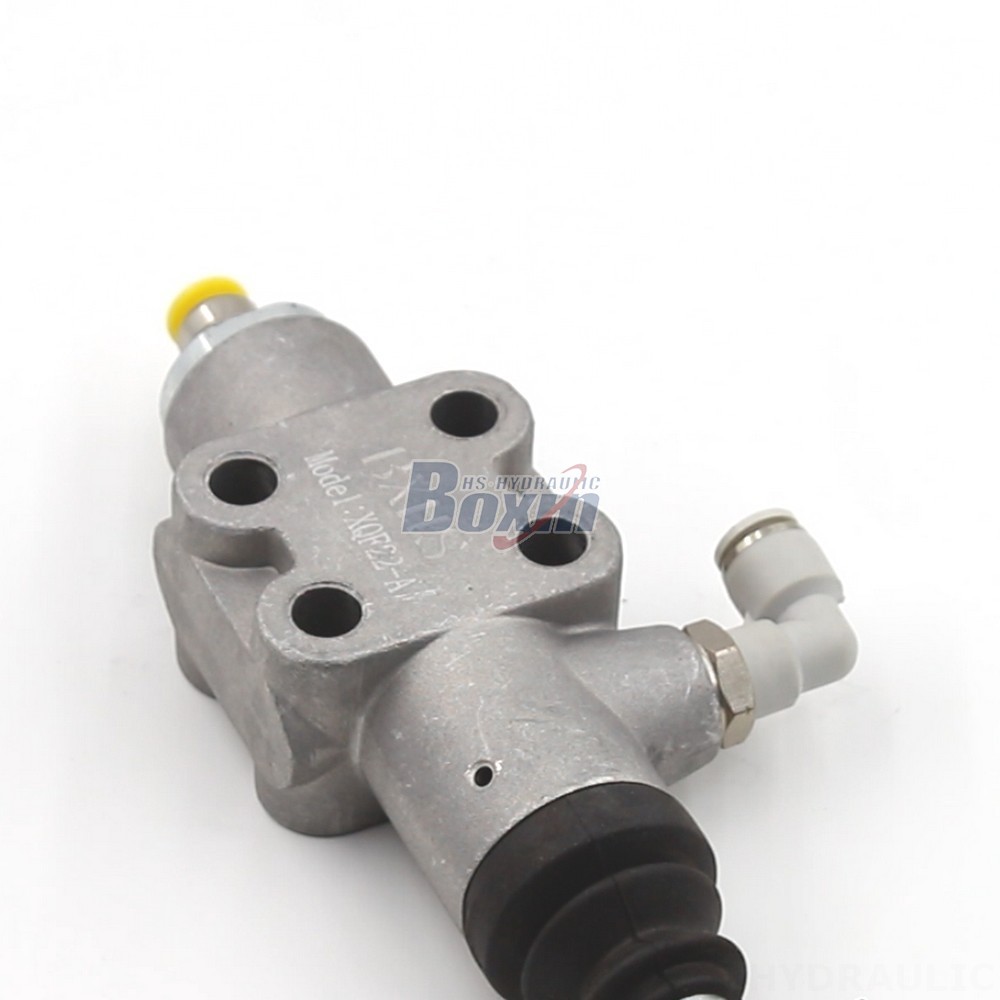

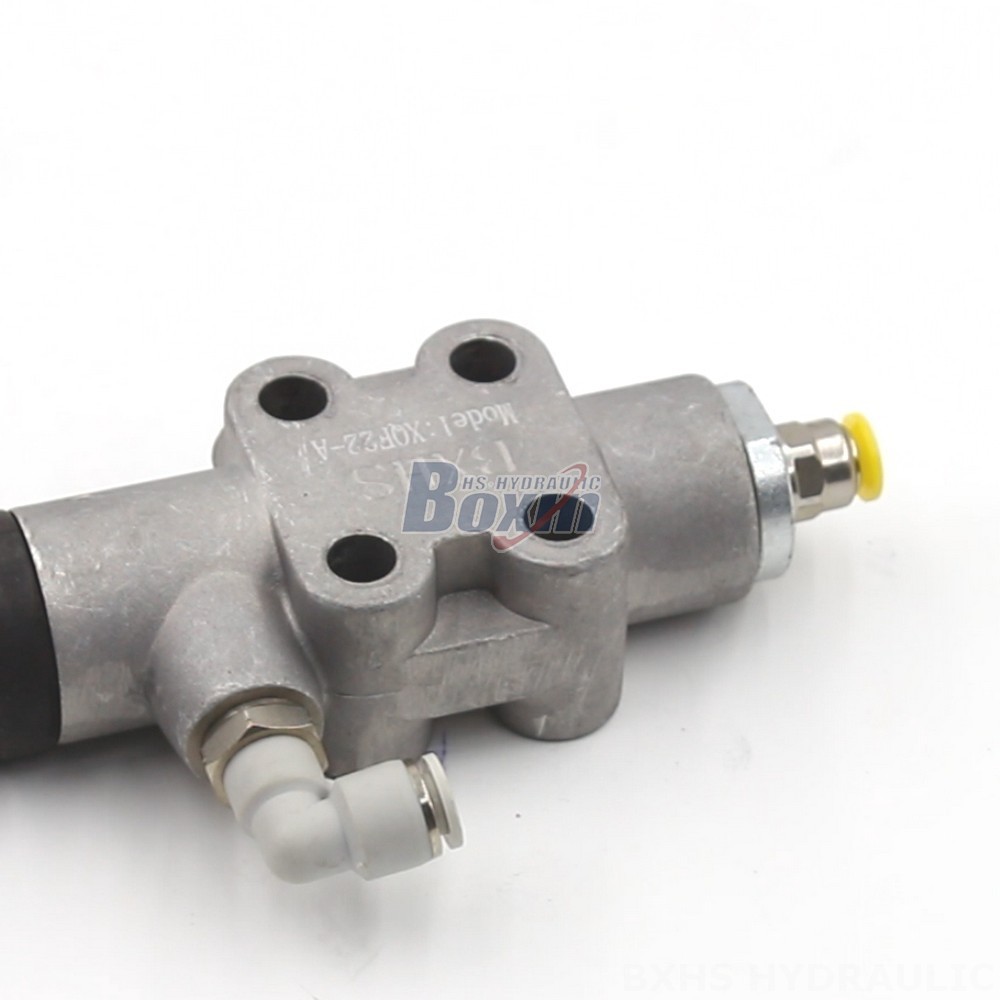

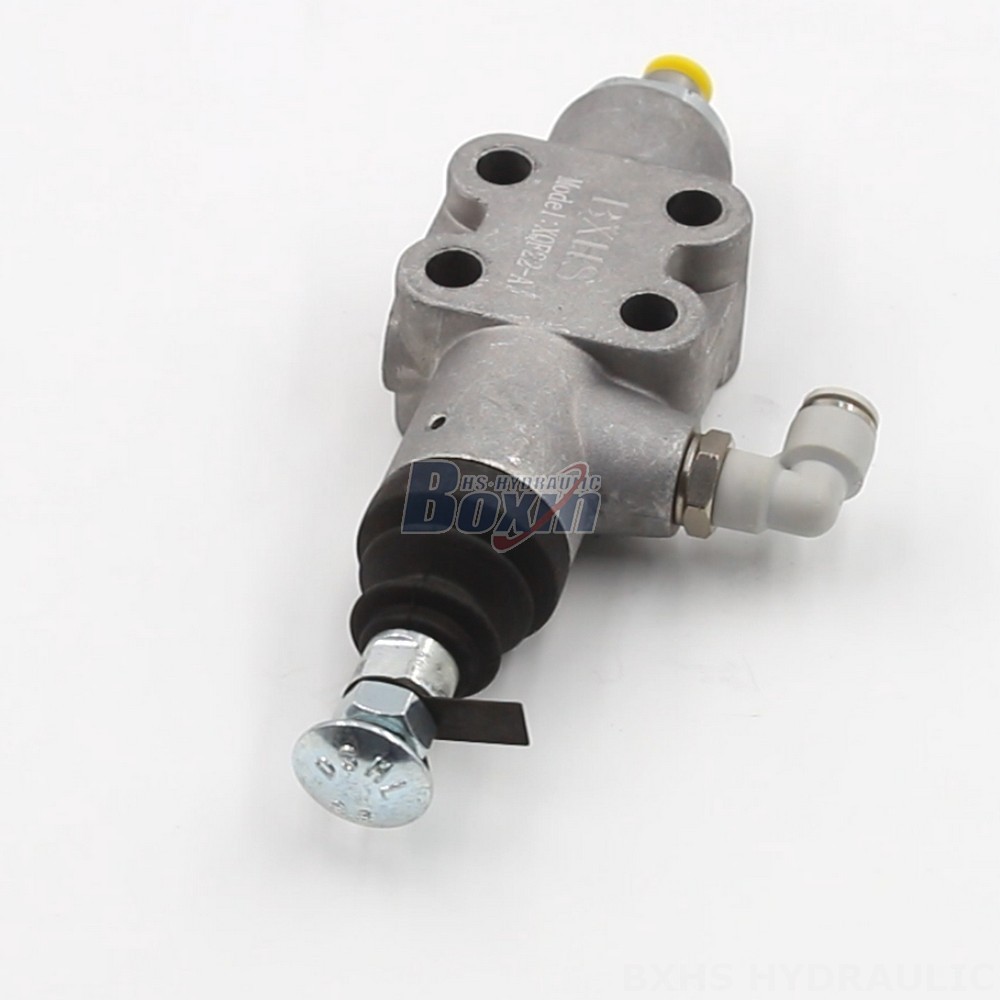

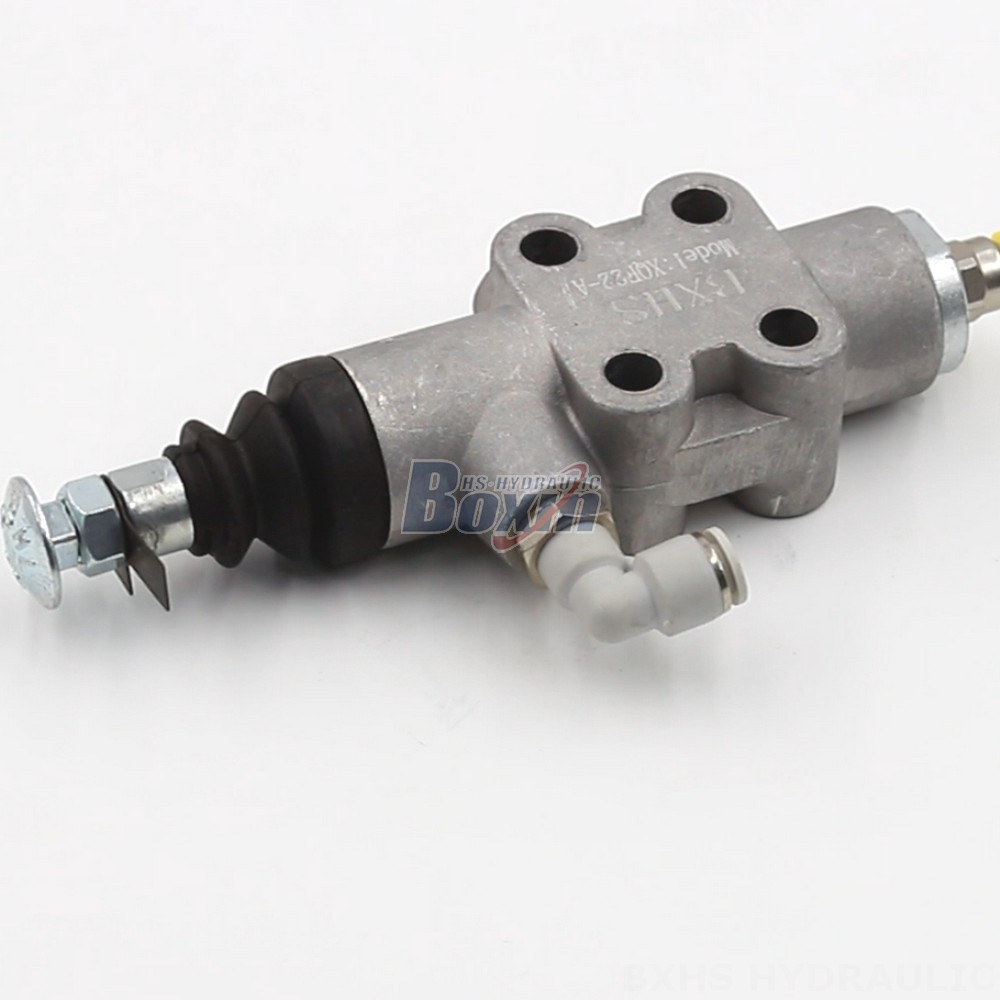

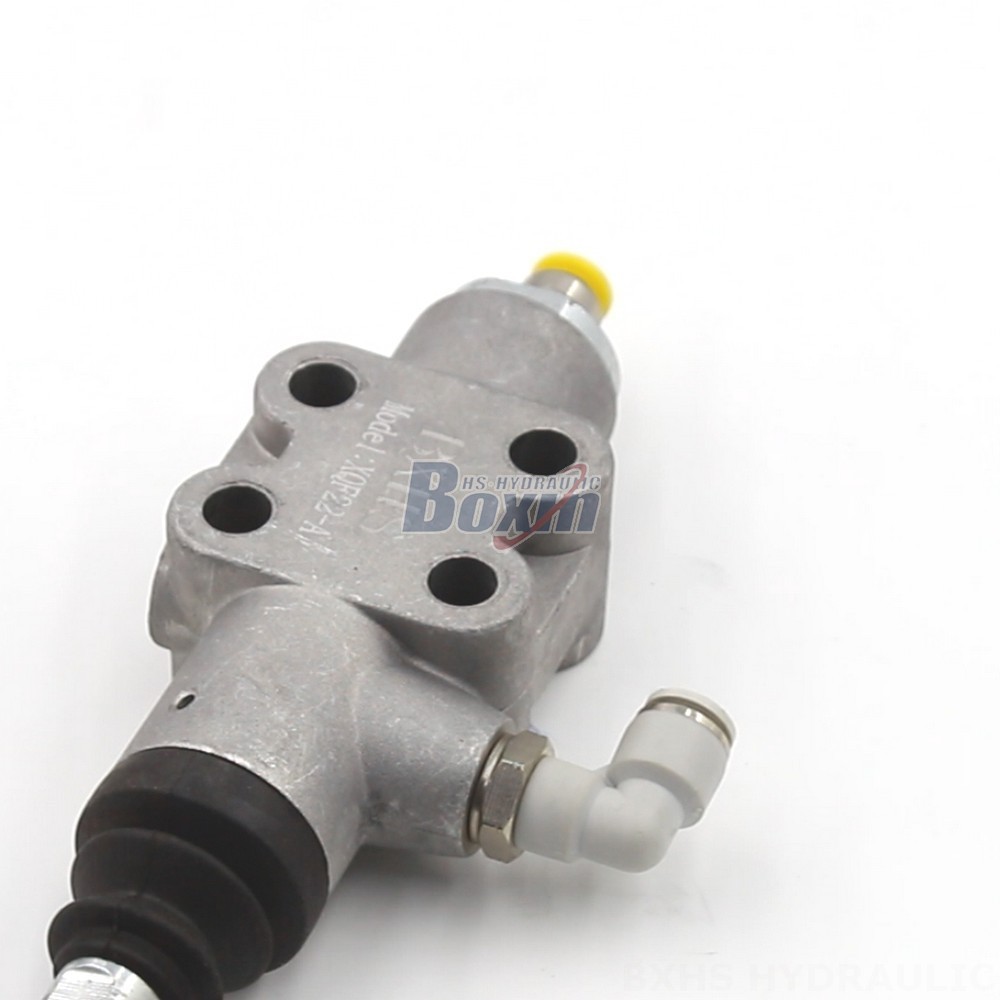

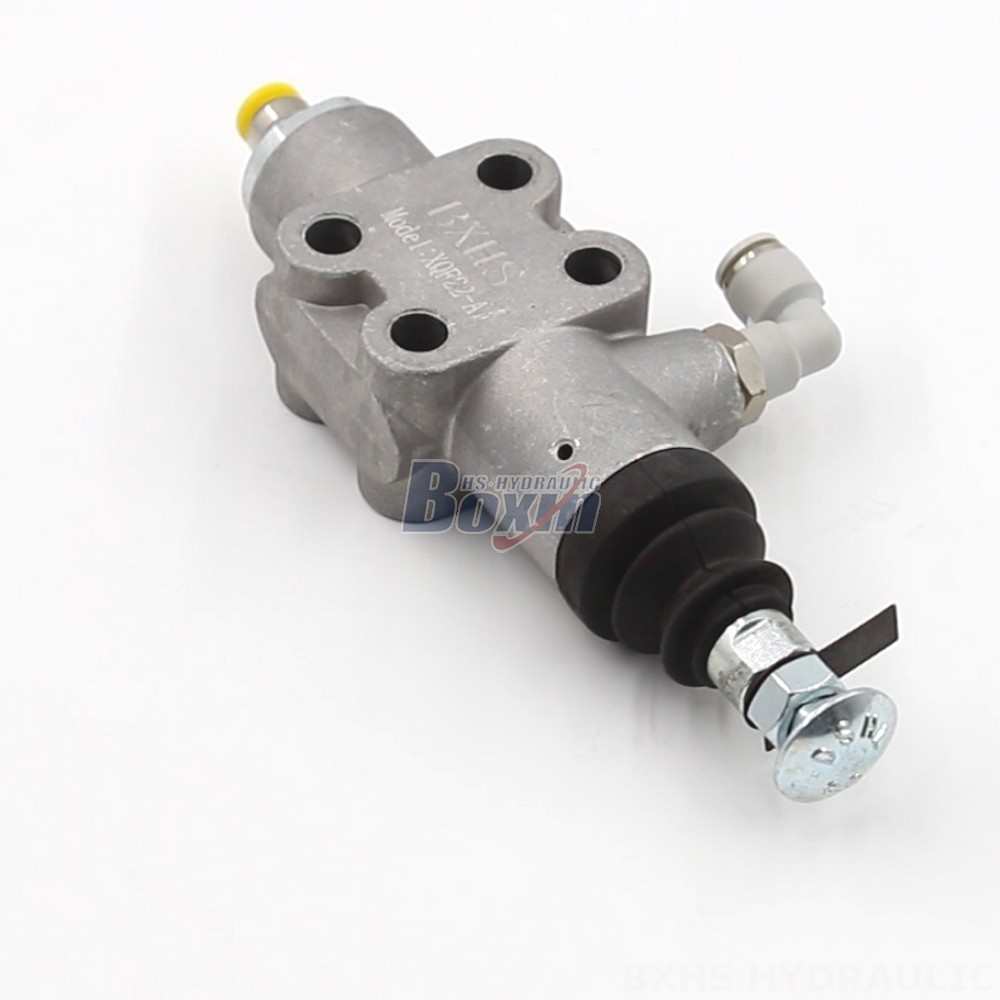

The XQF22-A Pneumatic Valve is a high-performance valve designed for use in material handling, construction, agriculture, and industrial vehicle applications. With a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12 - 400 mm²/s, this valve is suitable for a wide range of applications.
| Série XQF Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Pneumatique |
| Distributeur | 1 tiroir |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 50 L/min (13,2 US gpm) |
| Pression maximale | 200 bar (2 900 psi) |
| Orifice d'entrée | G1/4 |
| Orifice de sortie | G1/4 |
| Dimension du raccord | G1/4 |
The XQF22-A Pneumatic Valve features a monoblock design for increased durability and reliability. The valve is also equipped with a 1 spool for precise control of fluid flow. The valve's wide operating temperature range of -40°C to +60°C makes it suitable for use in a variety of environments.
Key features of the XQF22-A Pneumatic Valve include:
* Pneumatic control
* 1 section
* 60 L/min rated flow
* 200 bar max pressure
* 12 - 400 mm²/s operating viscosity range
* -40°C to +60°C ambient temperature range
* 1 spool
* Monoblock design
* Material handling, construction, agriculture, and industrial vehicle applications
