The SD11 Series Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding applications. The valve is constructed from high-quality materials and is built to last.
| Série SD11 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Électrique, Pneumatique et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 70 L/min (18,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi), 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4, SAE 12 |
| Orifice de sortie | G3/4, SAE 12 |
| Dimension du raccord | G3/4, SAE 12 |

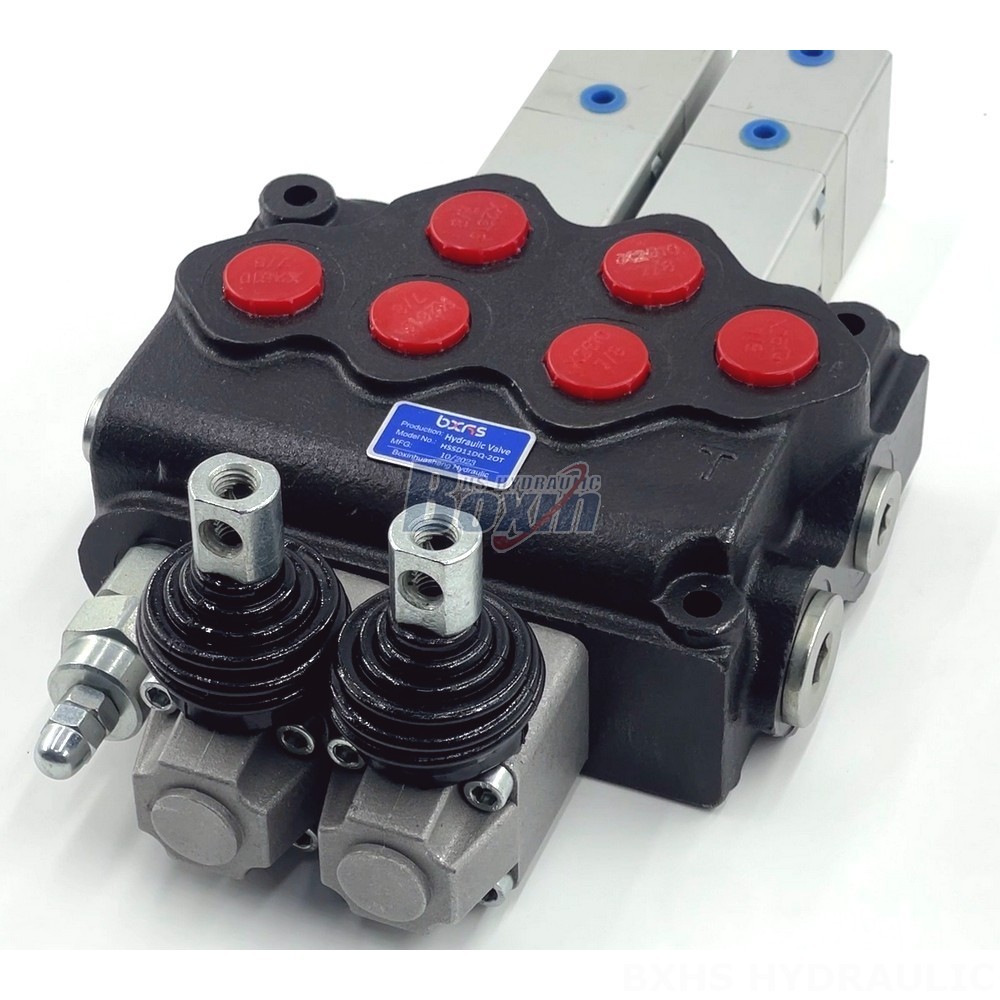

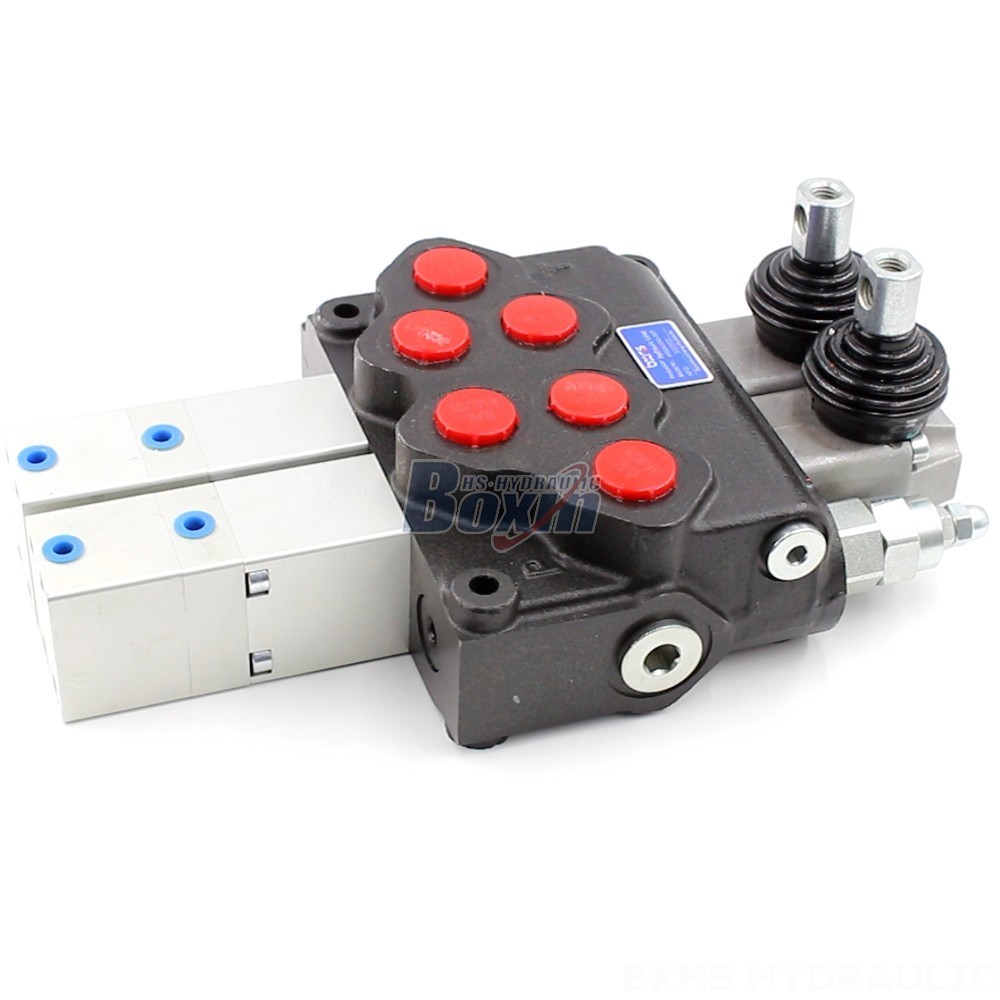

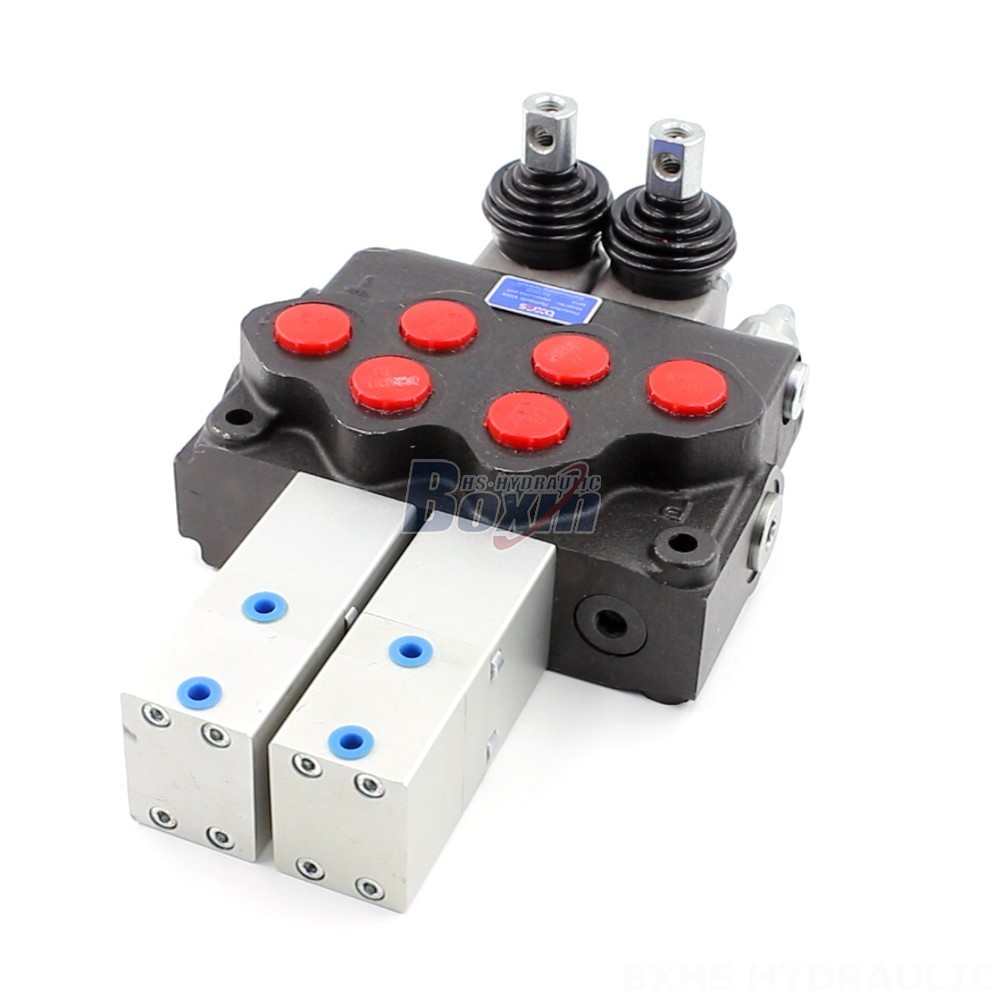

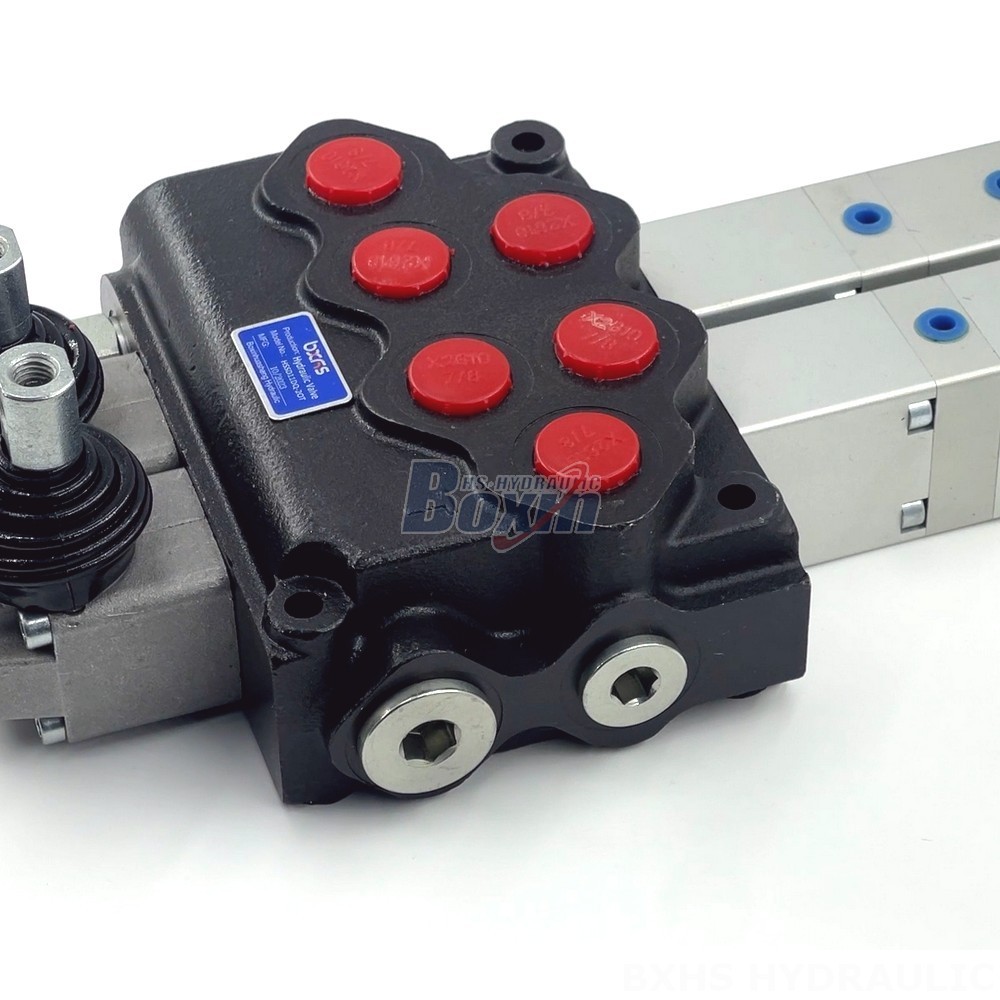

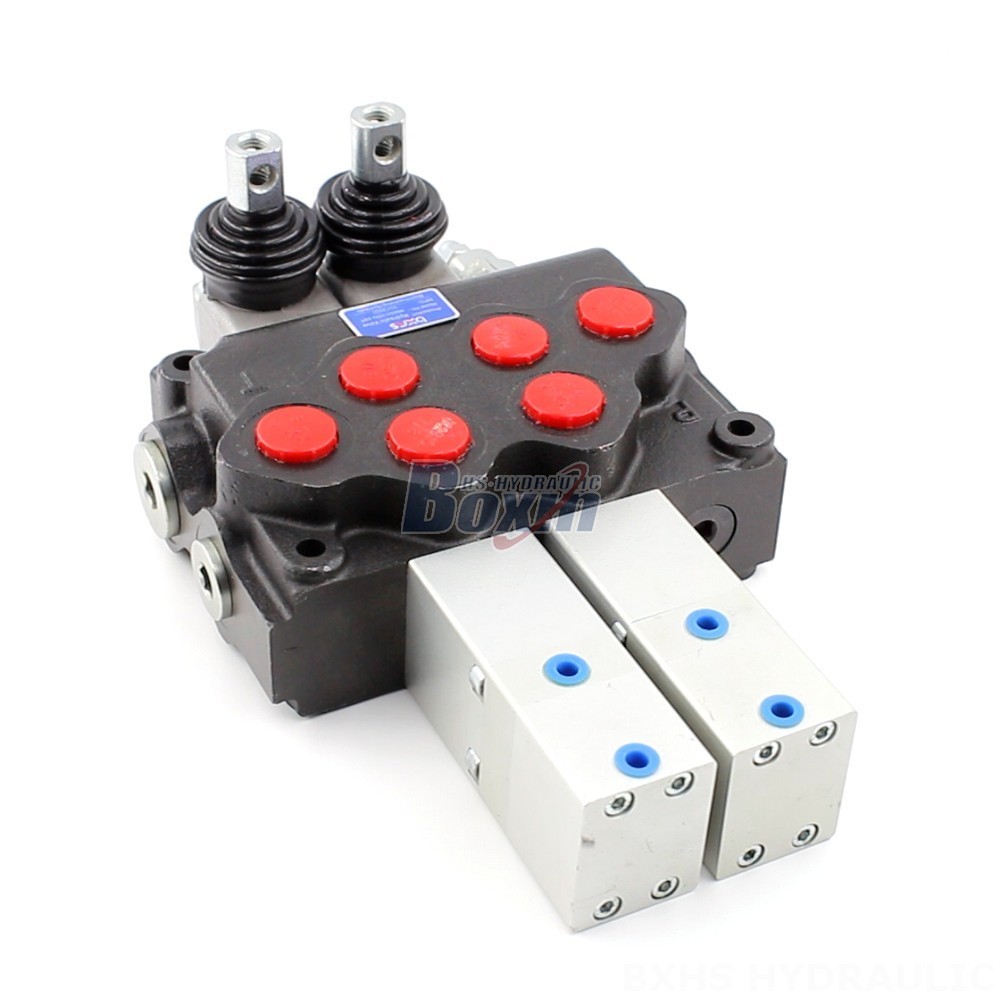

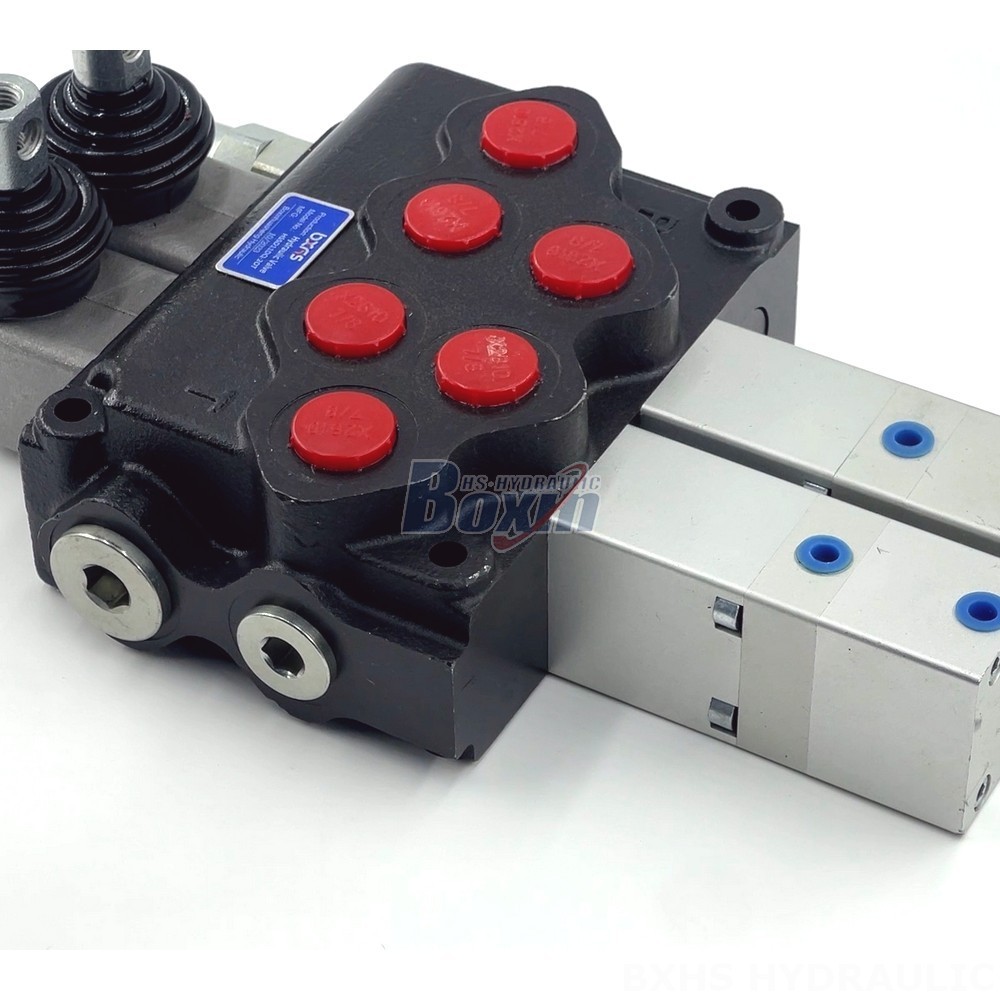

**SD11 Series Pneumatic Directional Control Valve**
The SD11 Series Pneumatic Directional Control Valve is a 2-section, monoblock valve with a rated flow of 70 L/min and a maximum pressure of 250 bar. The valve is constructed from high-quality materials and is built to last. It is ideal for use in a wide range of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
The valve is available with a variety of spool options to meet the specific requirements of your application. It also features a wide operating temperature range of -40°C to +60°C, making it suitable for use in even the most challenging environments.
**Key Features:**
* Rated flow of 70 L/min
* Maximum pressure of 250 bar
* 2-section, monoblock valve
* Wide operating temperature range of -40°C to +60°C
* Variety of spool options available
* Compact and lightweight design
* Easy to install and maintain
