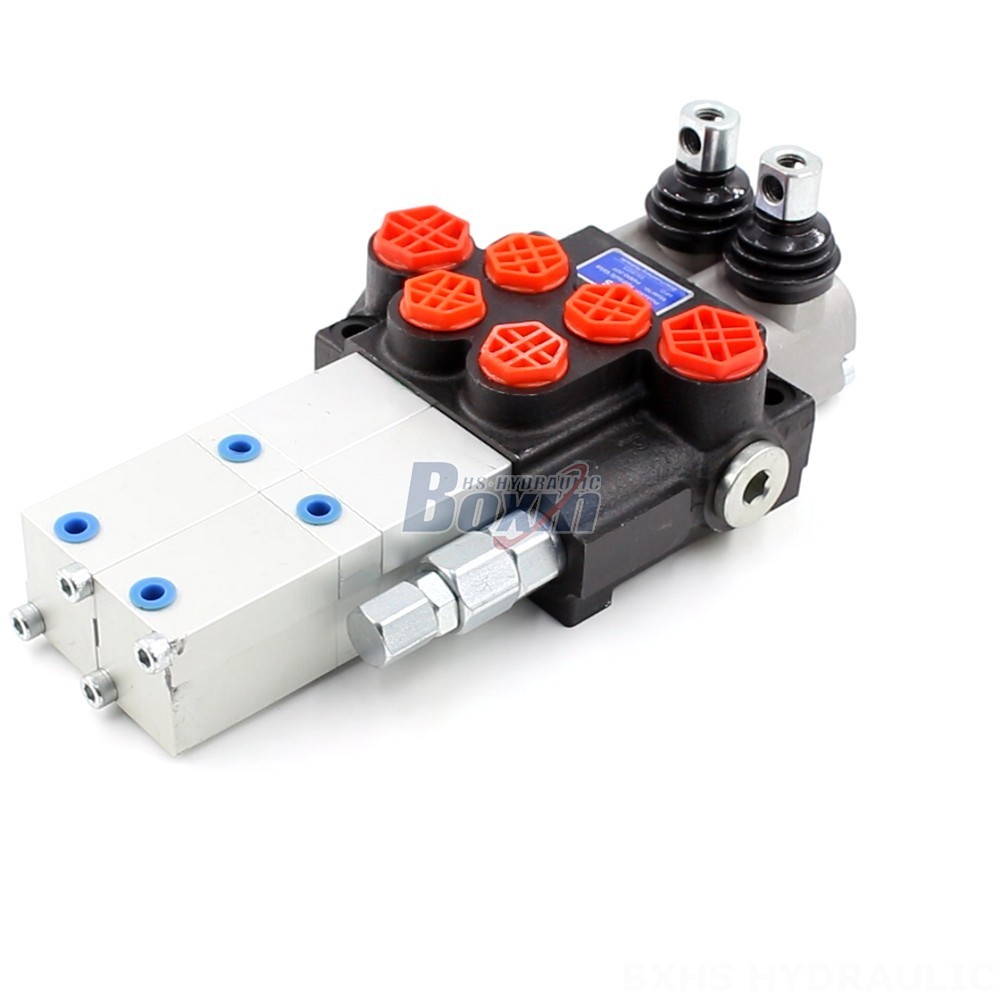

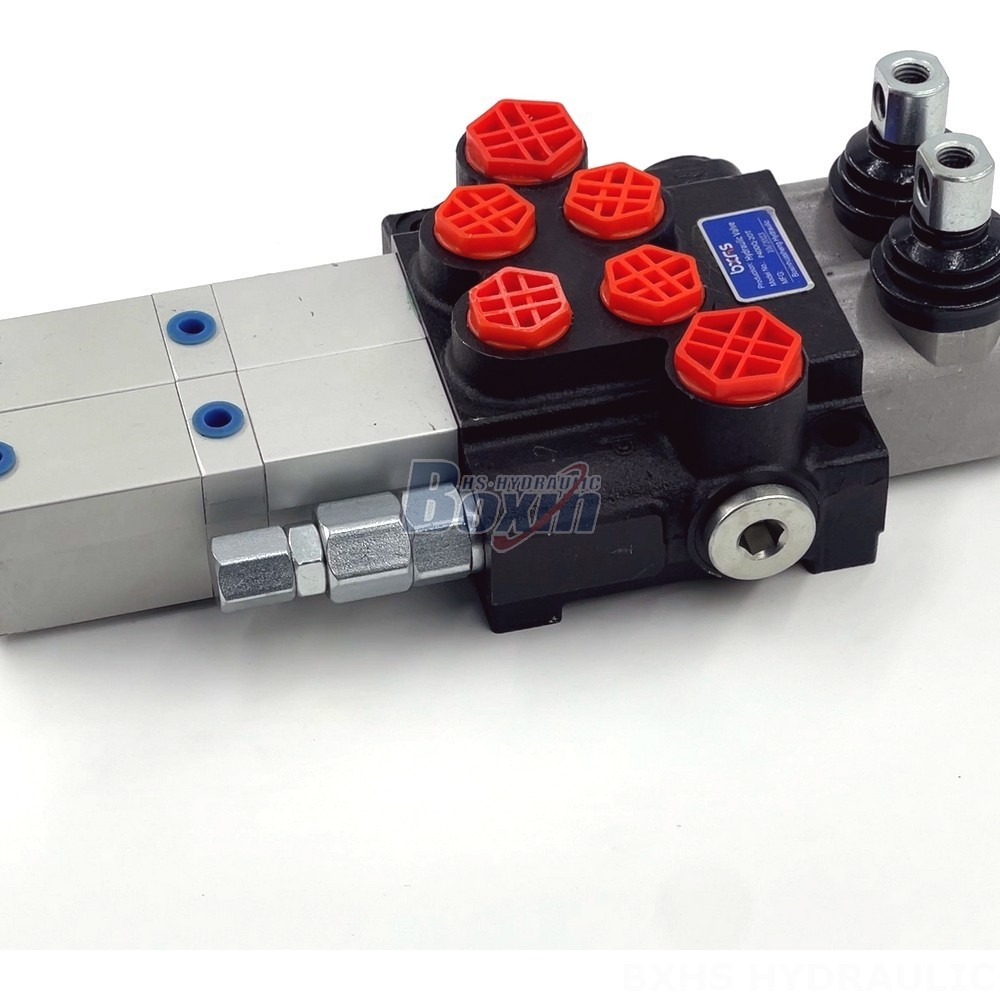

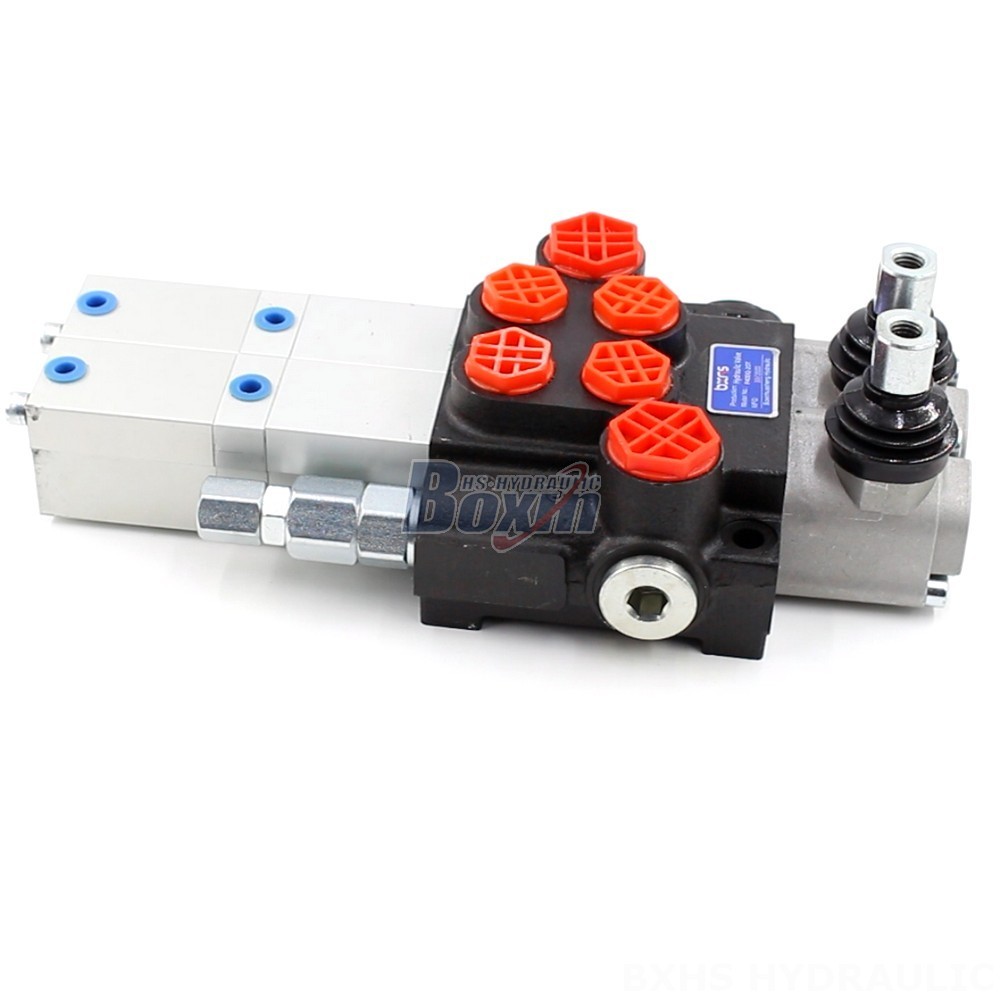

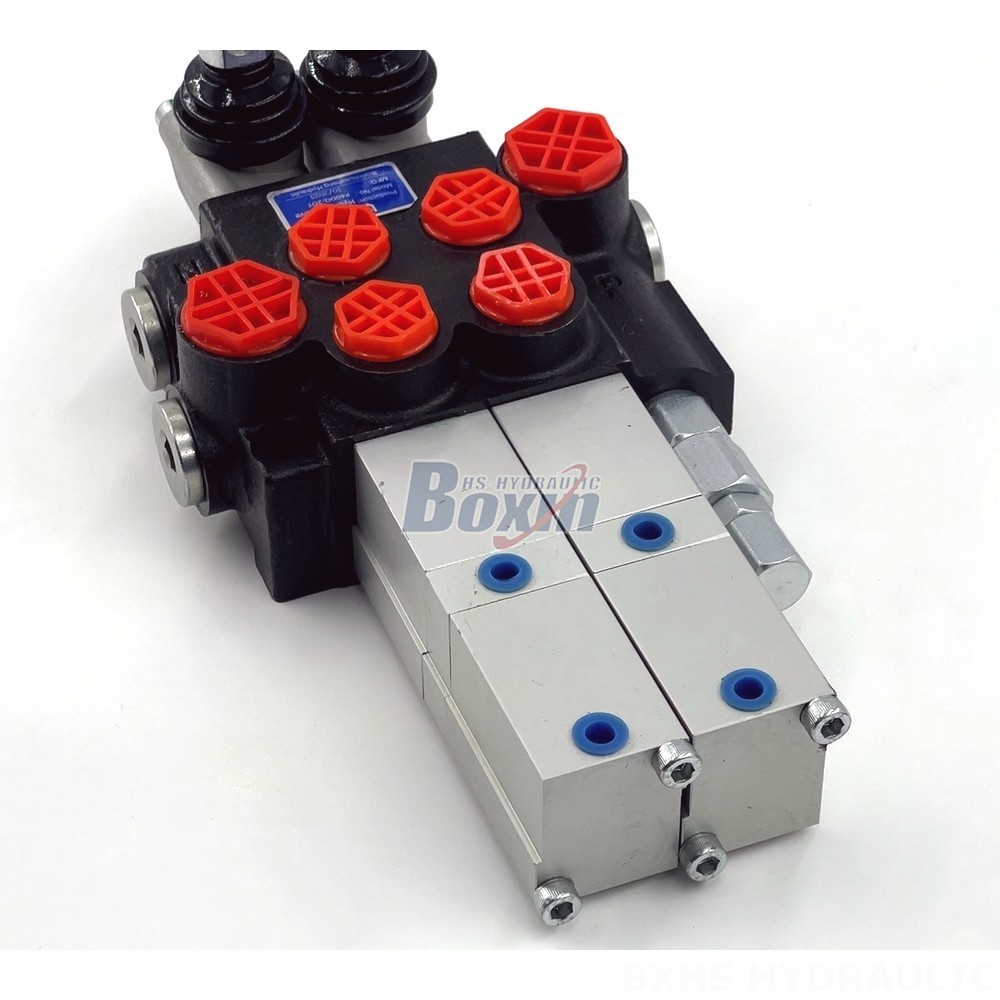

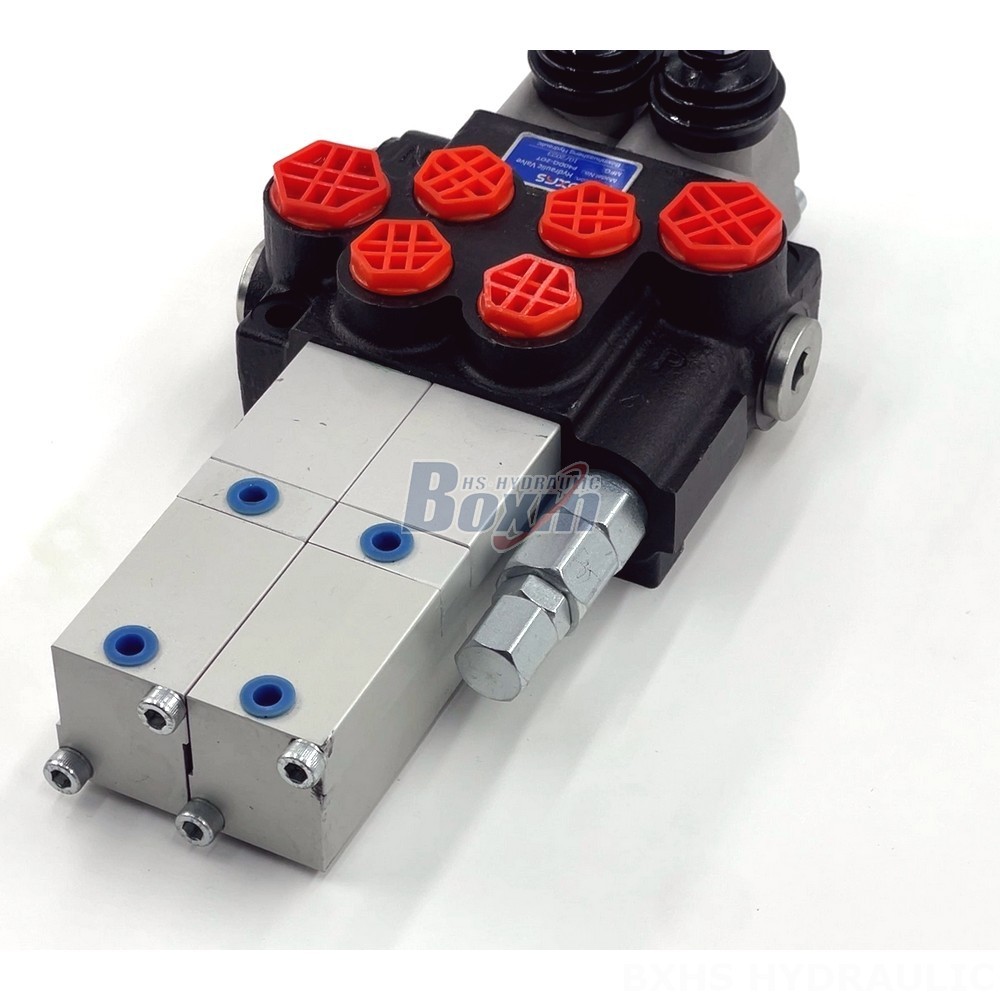

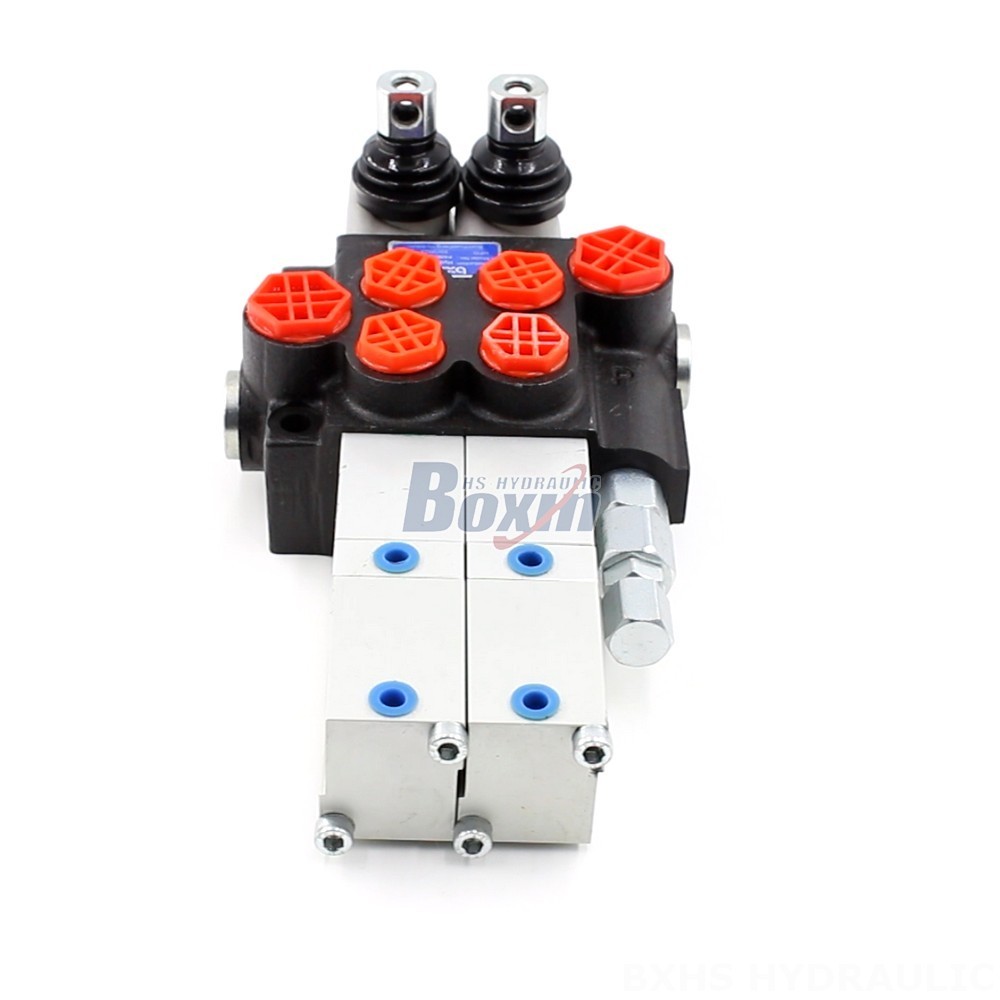

The P40 Series Proportional Directional Control Valve is a high-performance, 2 spool valve designed for use in a variety of material handling, construction and industrial applications. It features pneumatic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm).
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Proportional Directional Control Valve is a 2 spool, monoblock valve designed for precise and reliable control of hydraulic circuits in a variety of applications. It features pneumatic control, allowing for smooth and responsive actuation. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum operating pressure of 250 bar (3600 psi). It is designed to operate in a wide range of temperatures, from -40°C to +80°C (-40°F to +176°F). This robust valve is ideally suited for use in material handling, construction, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
