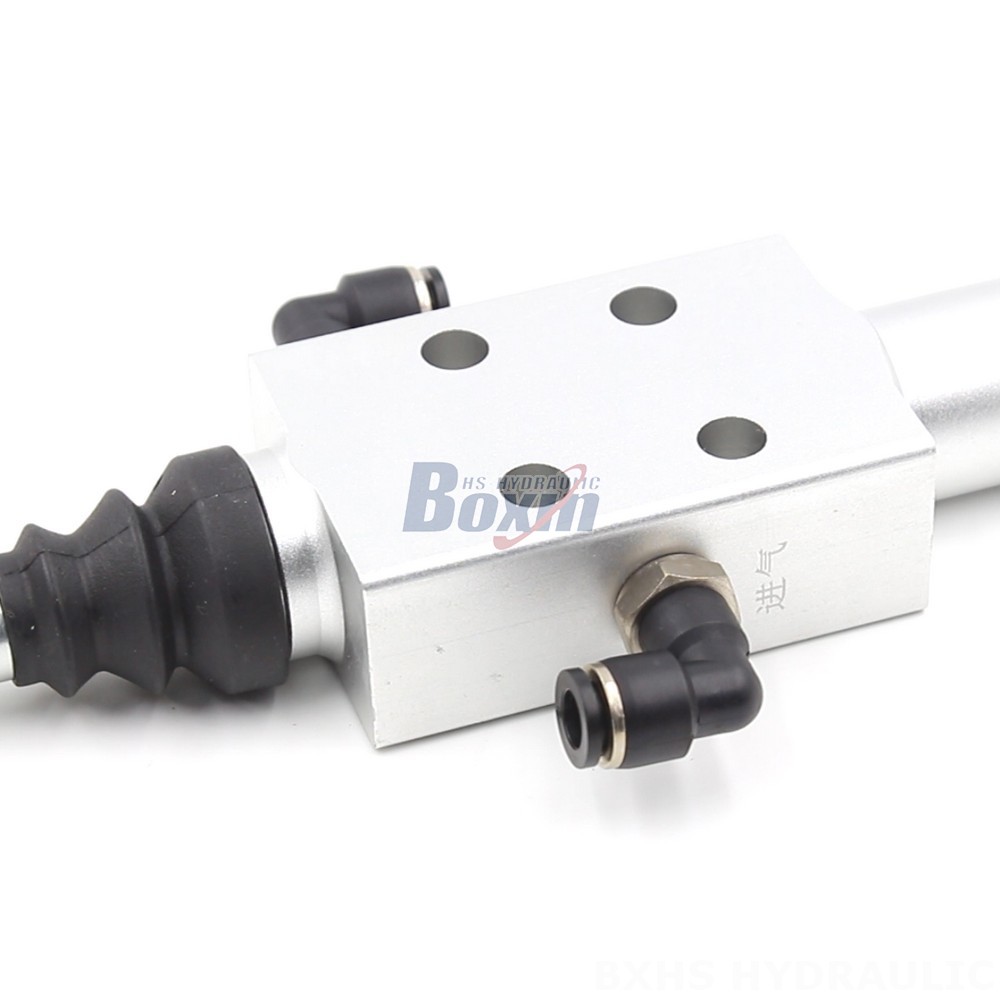

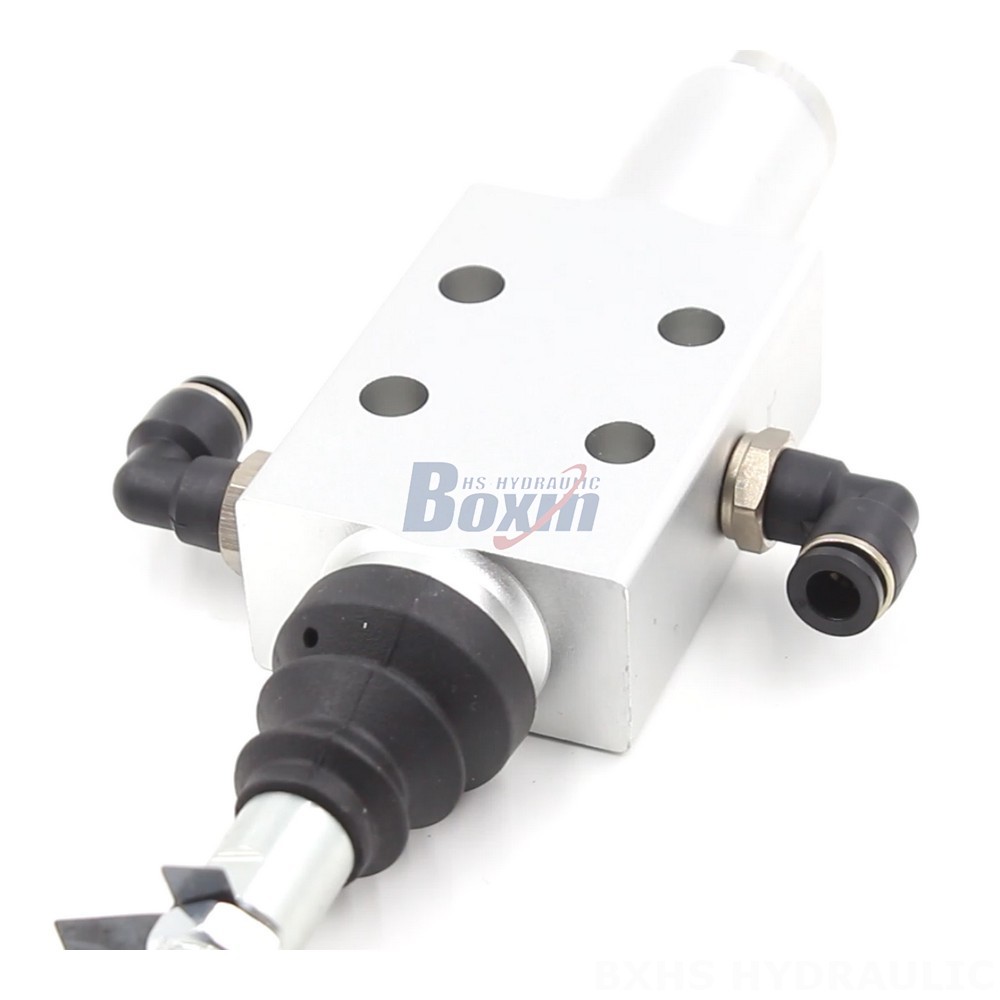

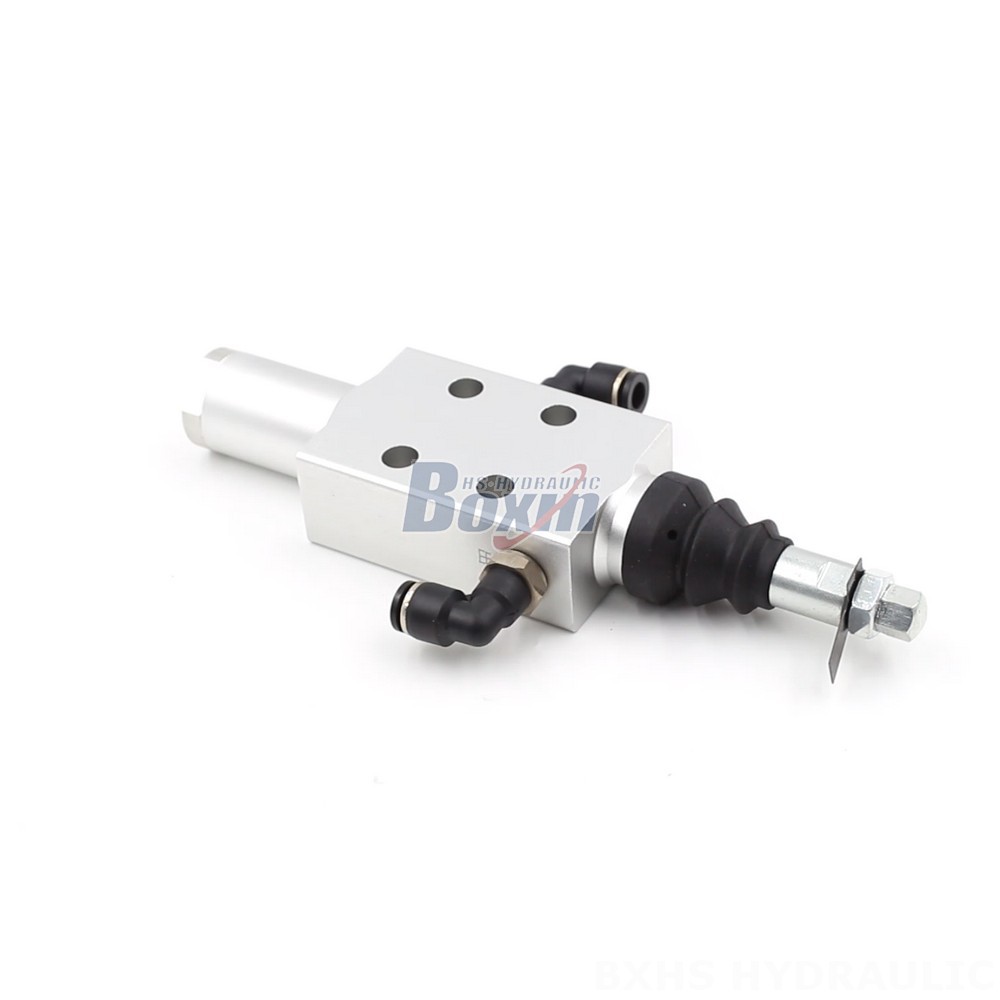

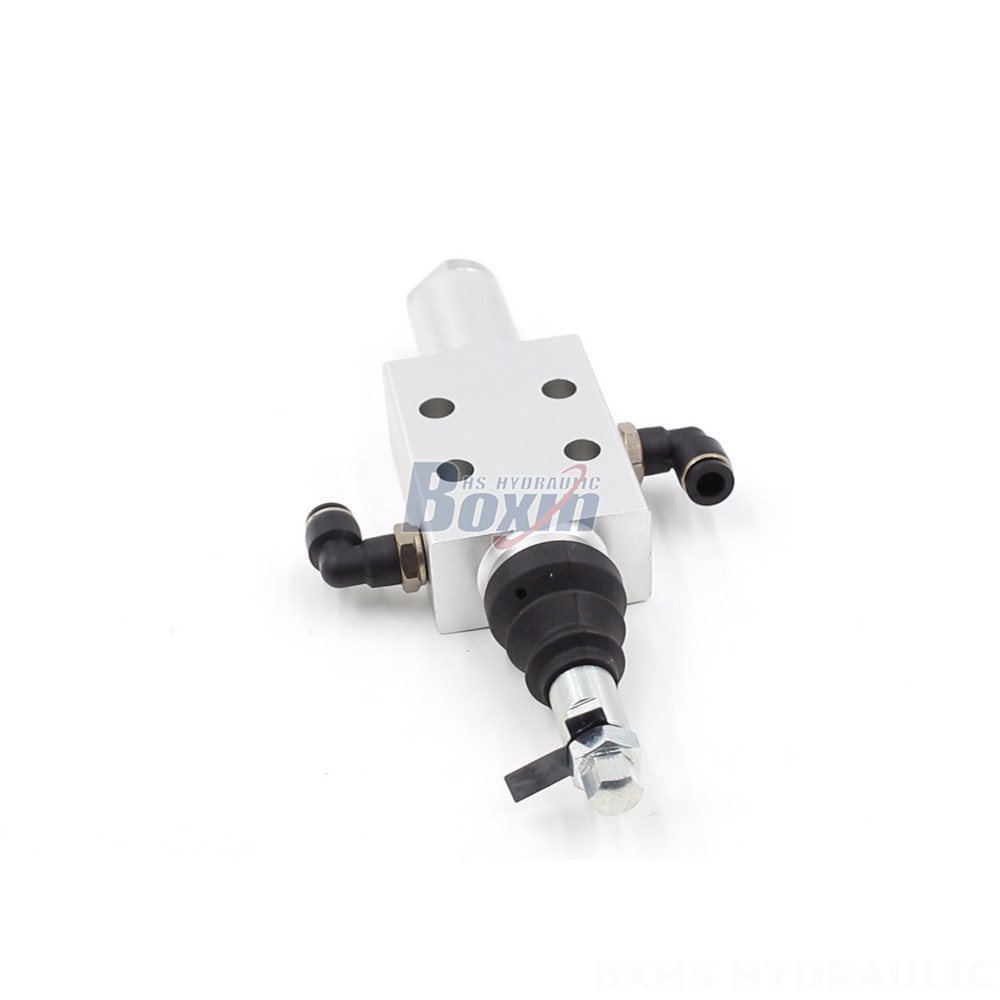

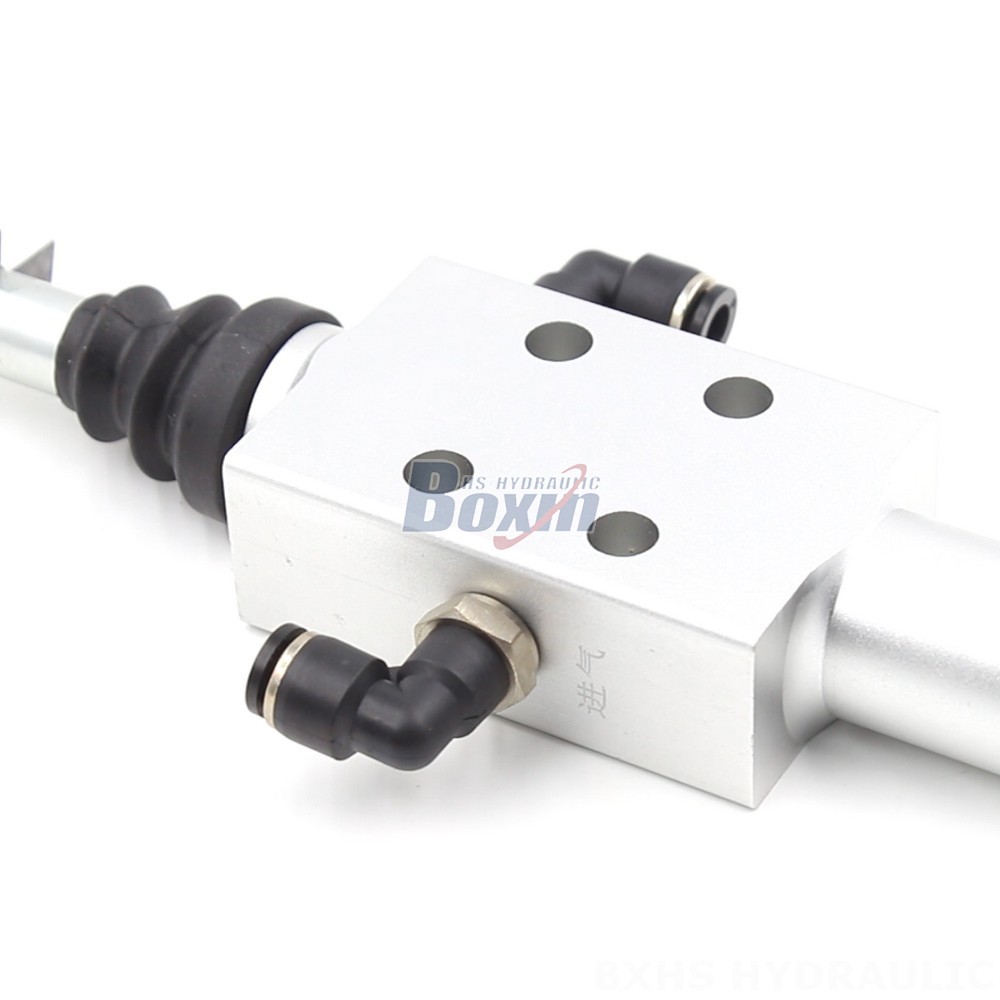

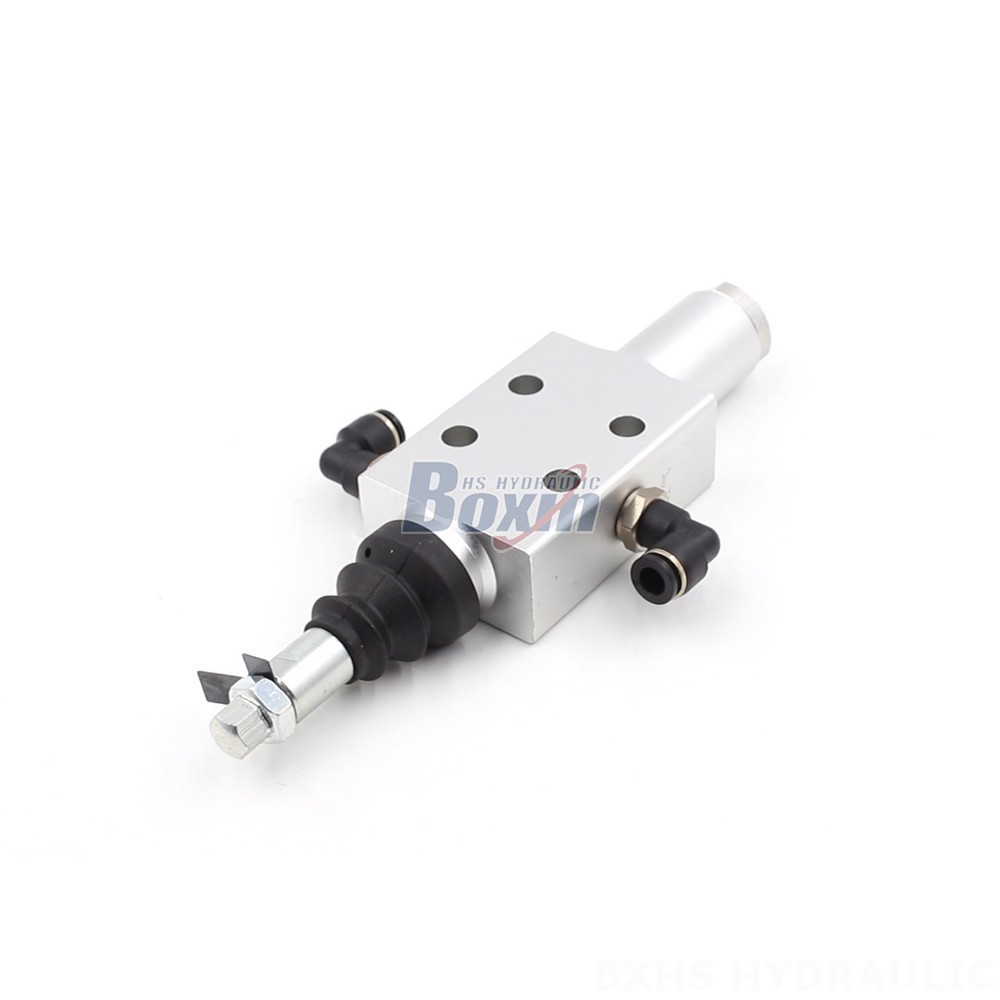

This XQF Series 24v pneumatic solenoid valve is a heavy-duty, monoblock directional valve designed for use in material handling, construction and earthmoving, agriculture, and industrial vehicles. It features a 1 spool design and operates at pressures up to 200 bar (2900 psi) with an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt).
| Série XQF Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Pneumatique |
| Distributeur | 1 tiroir |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 50 L/min (13,2 US gpm) |
| Pression maximale | 200 bar (2 900 psi) |
| Orifice d'entrée | G1/4 |
| Orifice de sortie | G1/4 |
| Dimension du raccord | G1/4 |
The XQF Series 24v pneumatic solenoid valve is a reliable and durable option for a wide range of applications. It is constructed with a monoblock structure, offering a robust and compact design. The valve features a single spool, providing precise directional control. With a maximum pressure rating of 200 bar (2900 psi) and an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt), this valve is suitable for heavy-duty applications. The valve is designed to withstand ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in a variety of environments. This 24v pneumatic solenoid valve is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
