Production et livraison
Délai de production de 15 à 30 jours

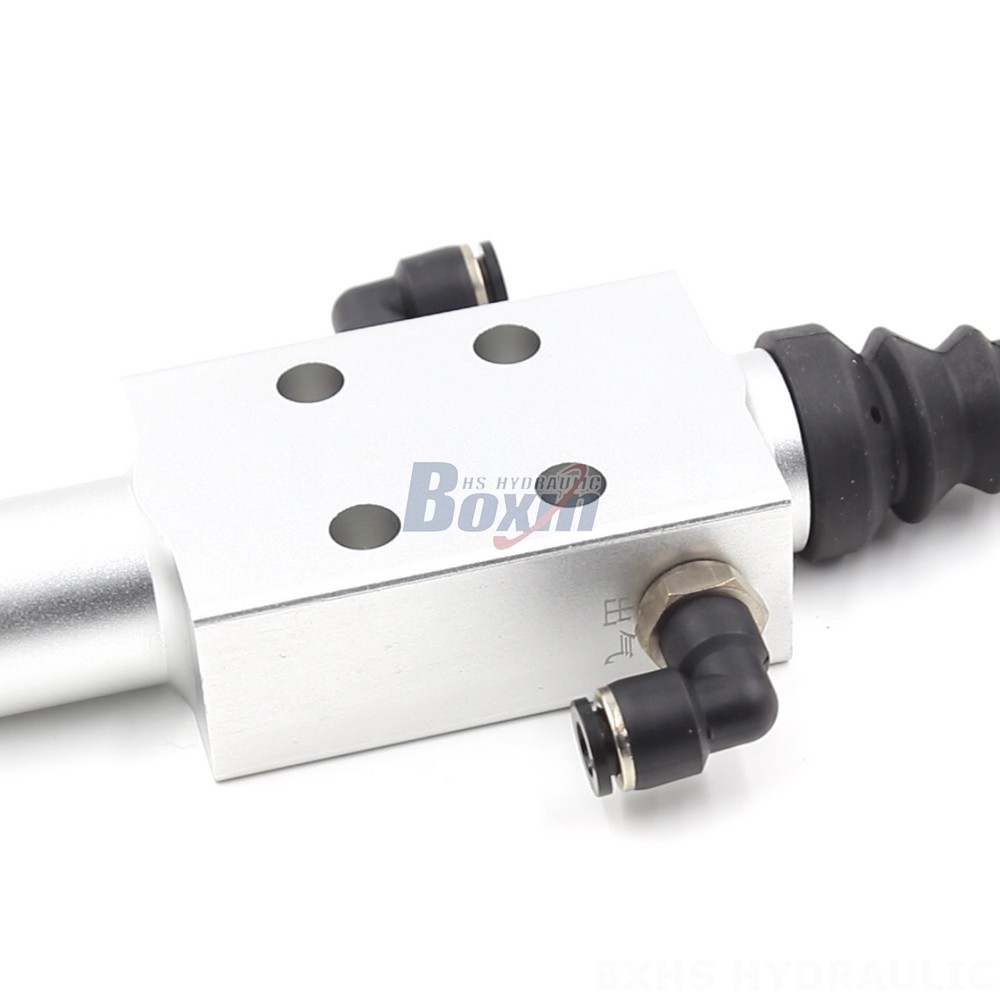

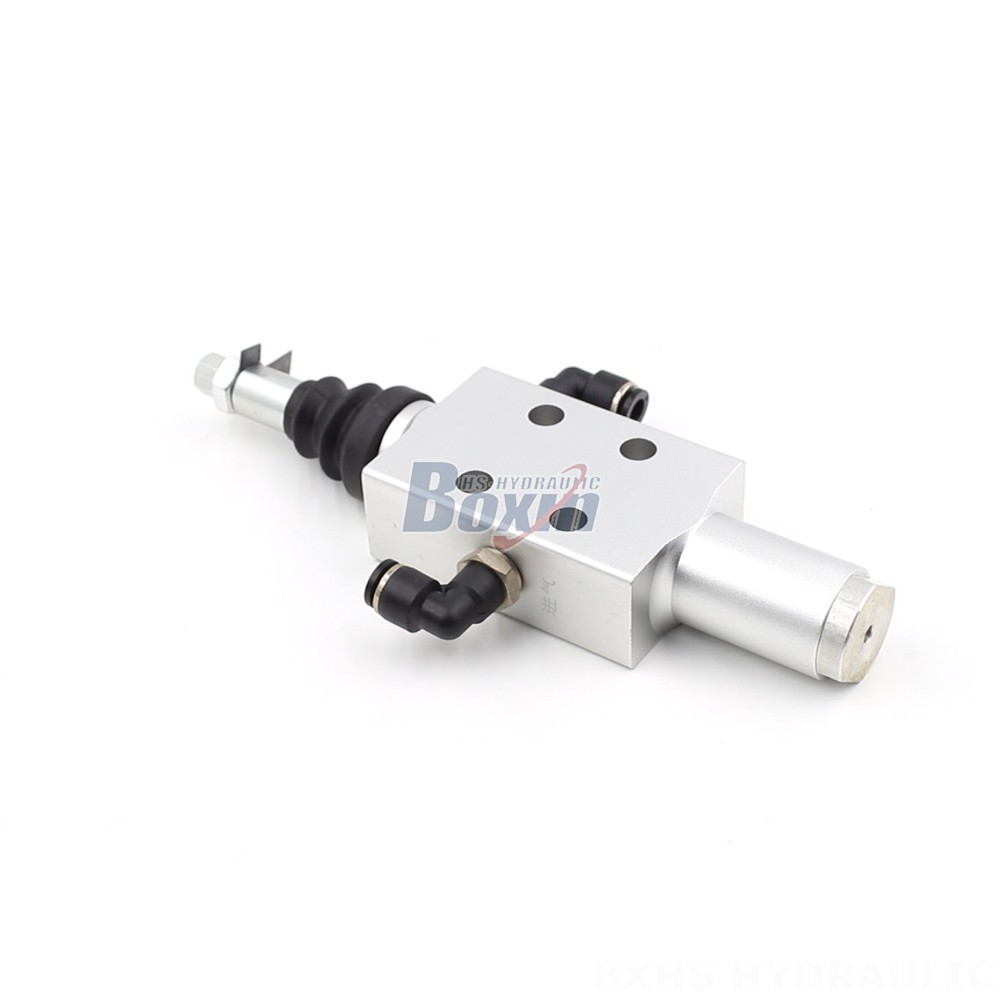

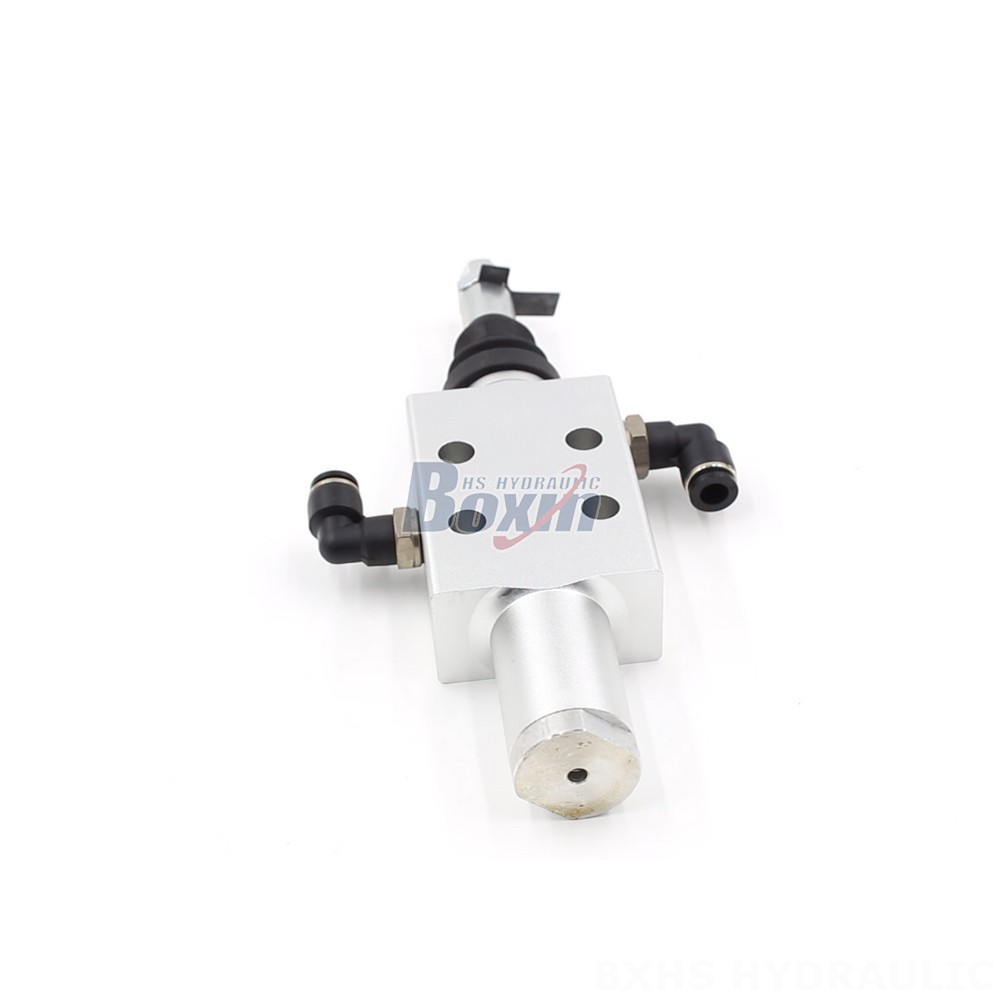

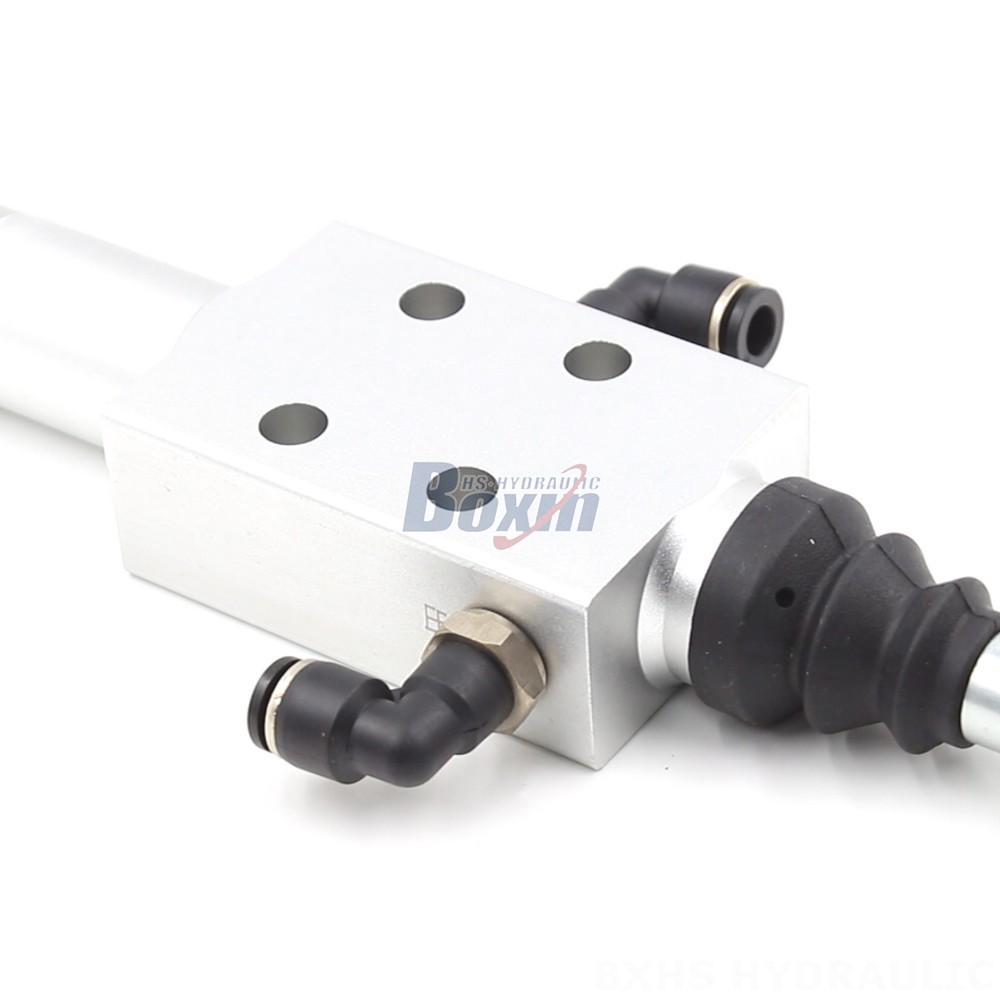

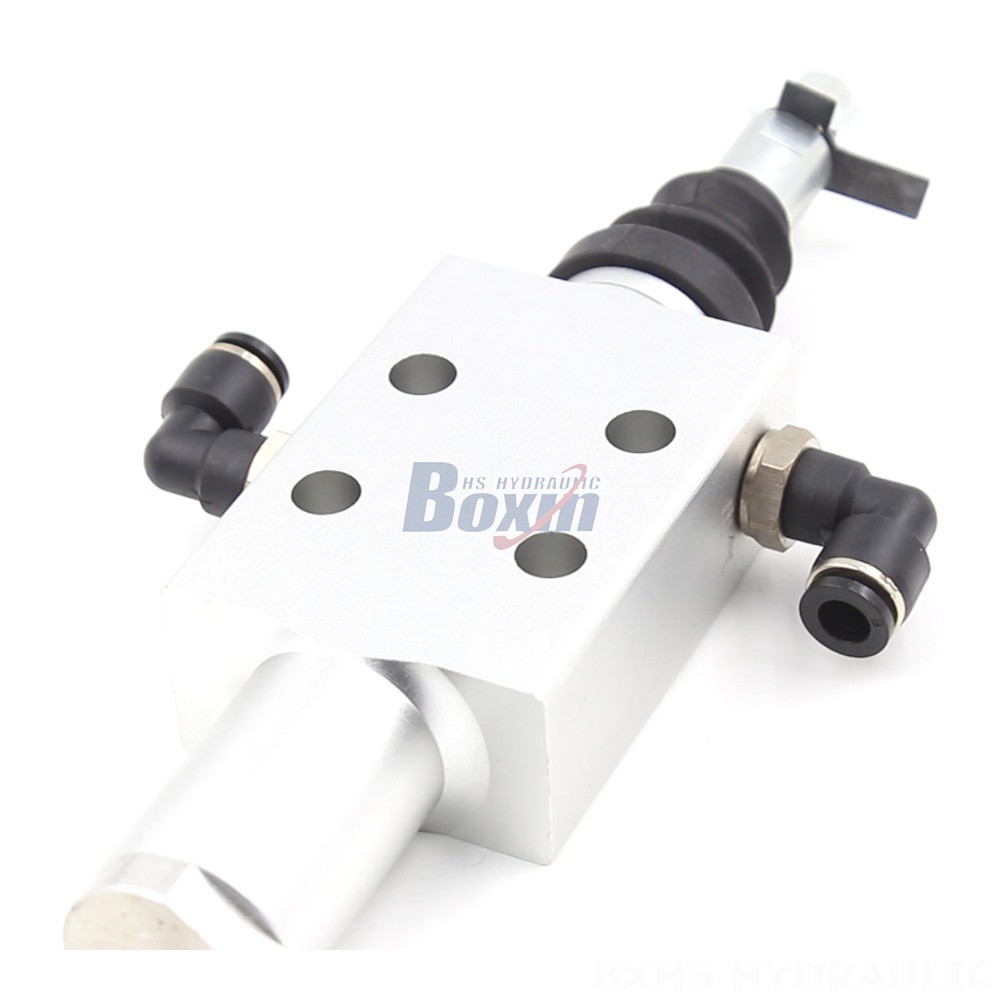

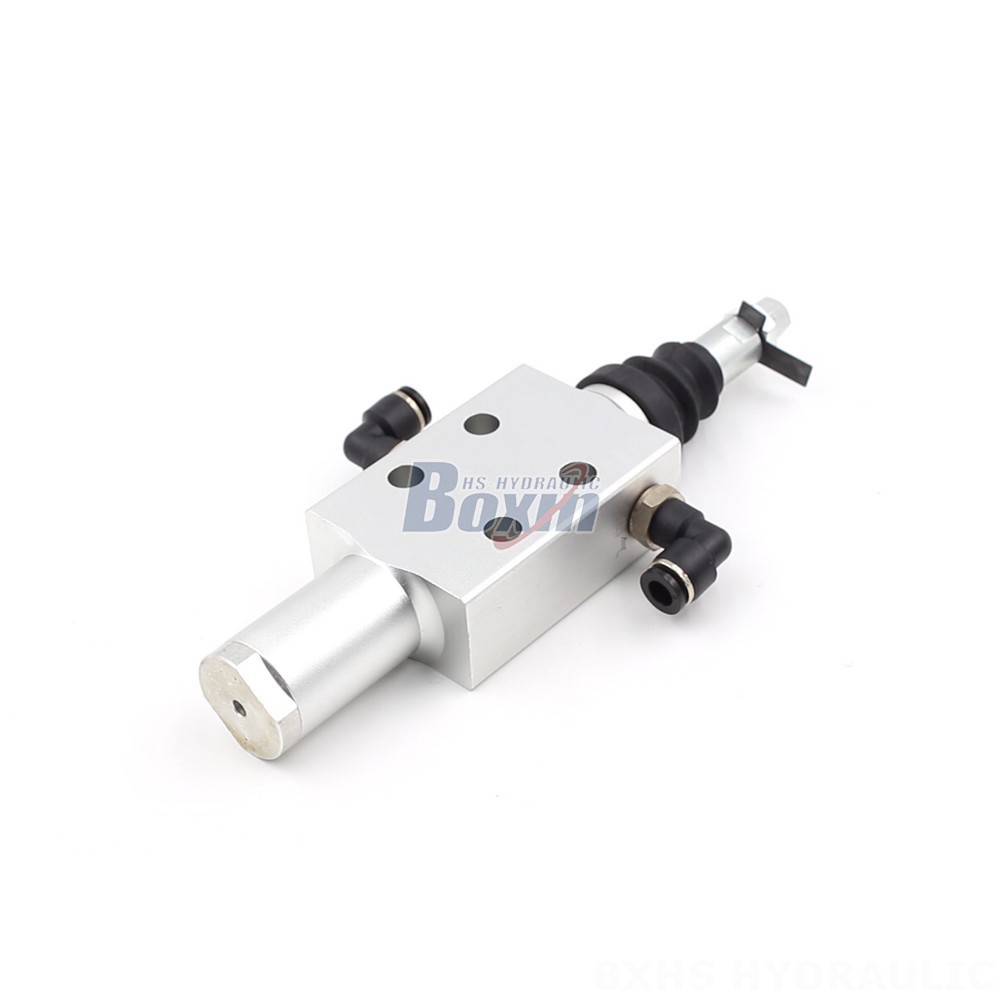

Our XQF Series Directional Spool Valve Pneumatic 1 Spool Monoblock Directional Valve is a high-performance, reliable hydraulic valve designed for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Available in factory direct supply, this valve is perfect for manufacturers, OEMs, and distributors seeking a cost-effective and efficient solution.
| Série XQF Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Pneumatique |
| Distributeur | 1 tiroir |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 50 L/min (13,2 US gpm) |
| Pression maximale | 200 bar (2 900 psi) |
| Orifice d'entrée | G1/4 |
| Orifice de sortie | G1/4 |
| Dimension du raccord | G1/4 |
This XQF Series Directional Spool Valve Pneumatic 1 Spool Monoblock Directional Valve is a high-quality, factory direct supply product manufactured to the highest standards. Designed for maximum performance and reliability, it features a compact monoblock structure, a single spool, and a maximum pressure rating of 200 bar (2900 psi). This valve is suitable for a wide range of applications, including material handling equipment, construction machinery, agricultural equipment, and industrial vehicles. It offers superior performance, excellent durability, and exceptional cost-effectiveness. We offer manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and services and to find a distributor, wholesaler, agent, or trader for your specific needs.
