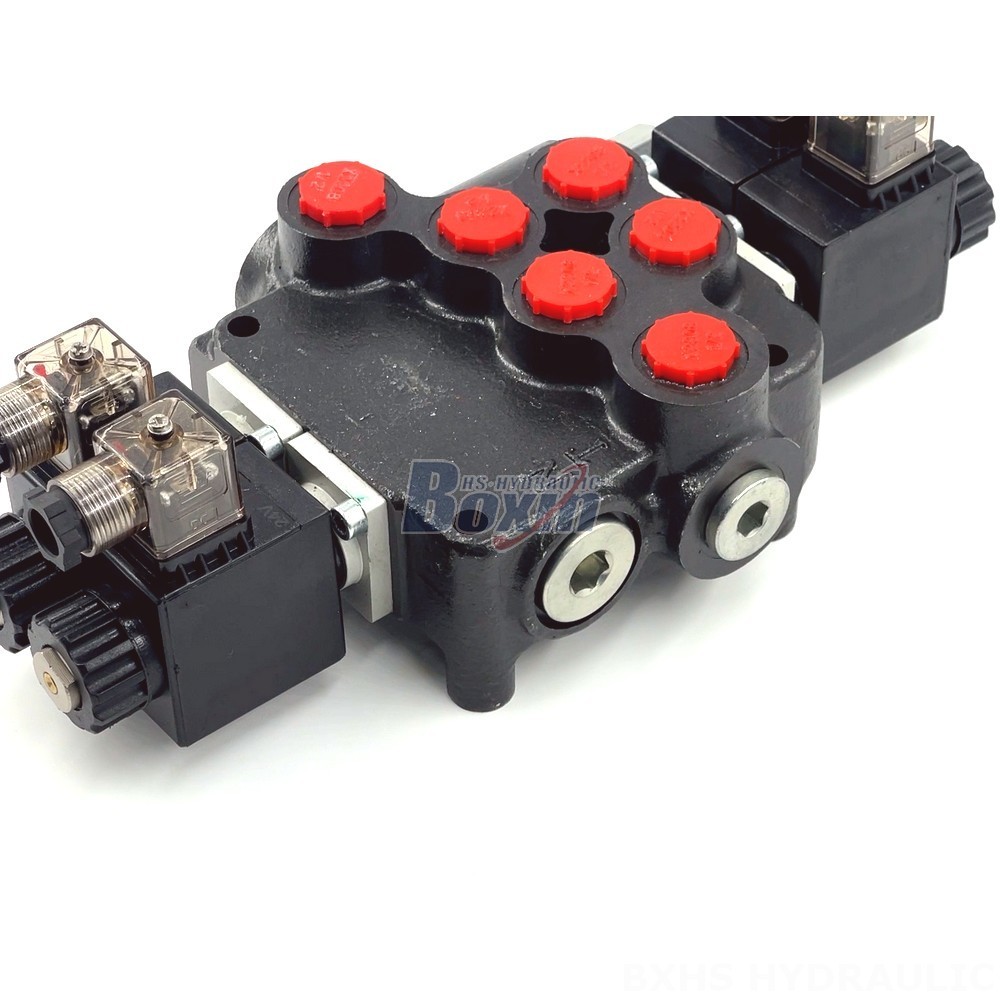

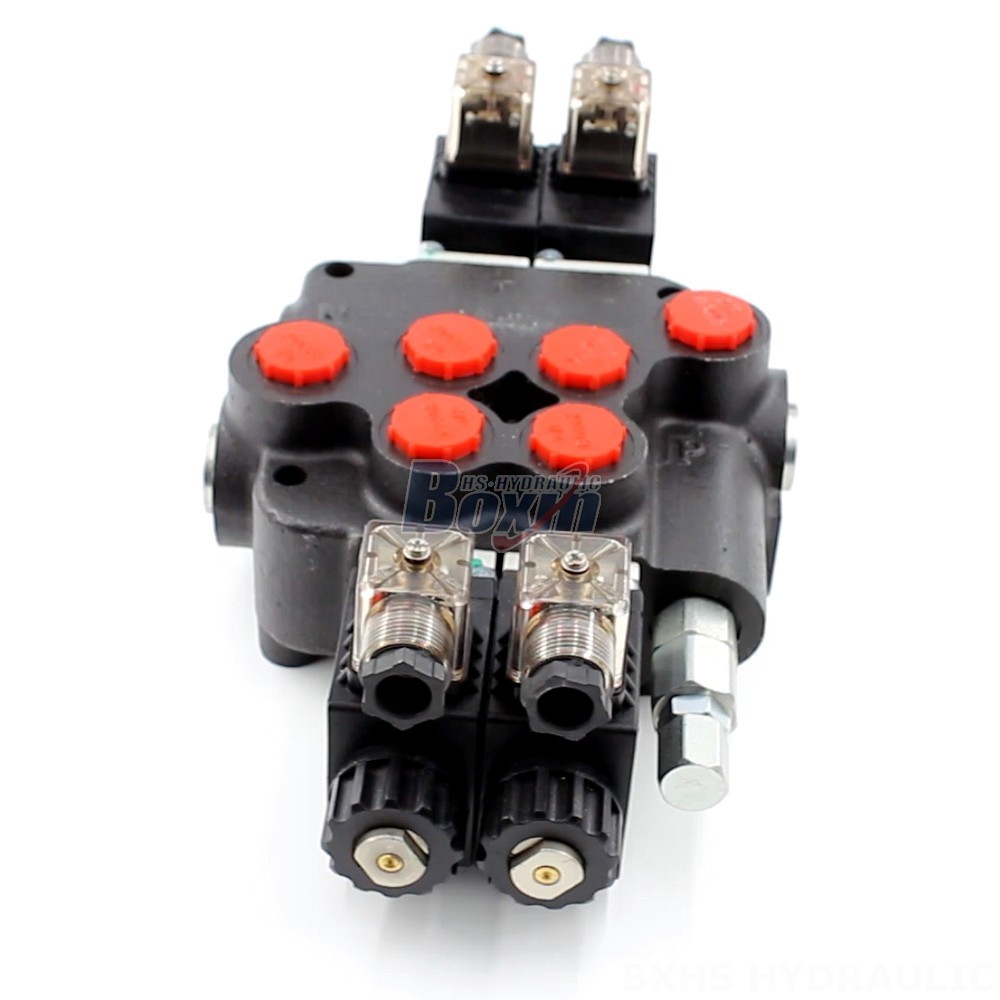

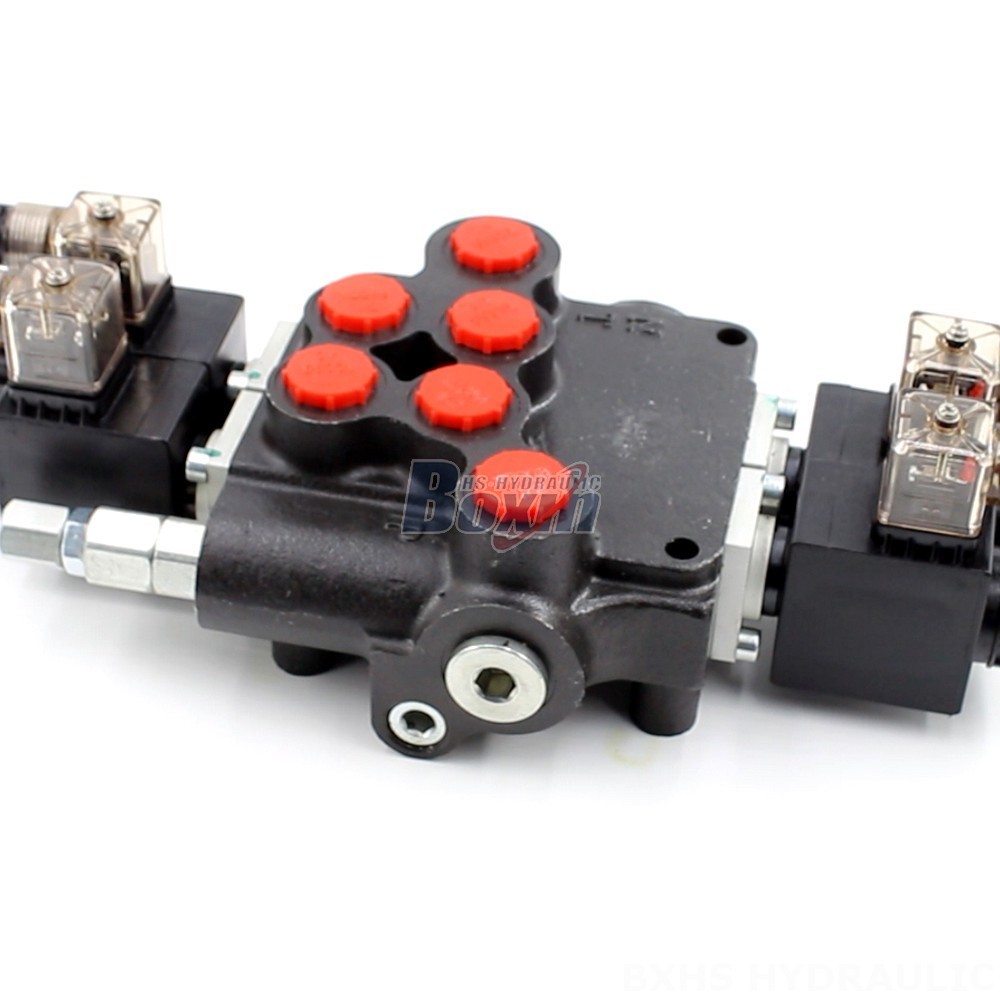

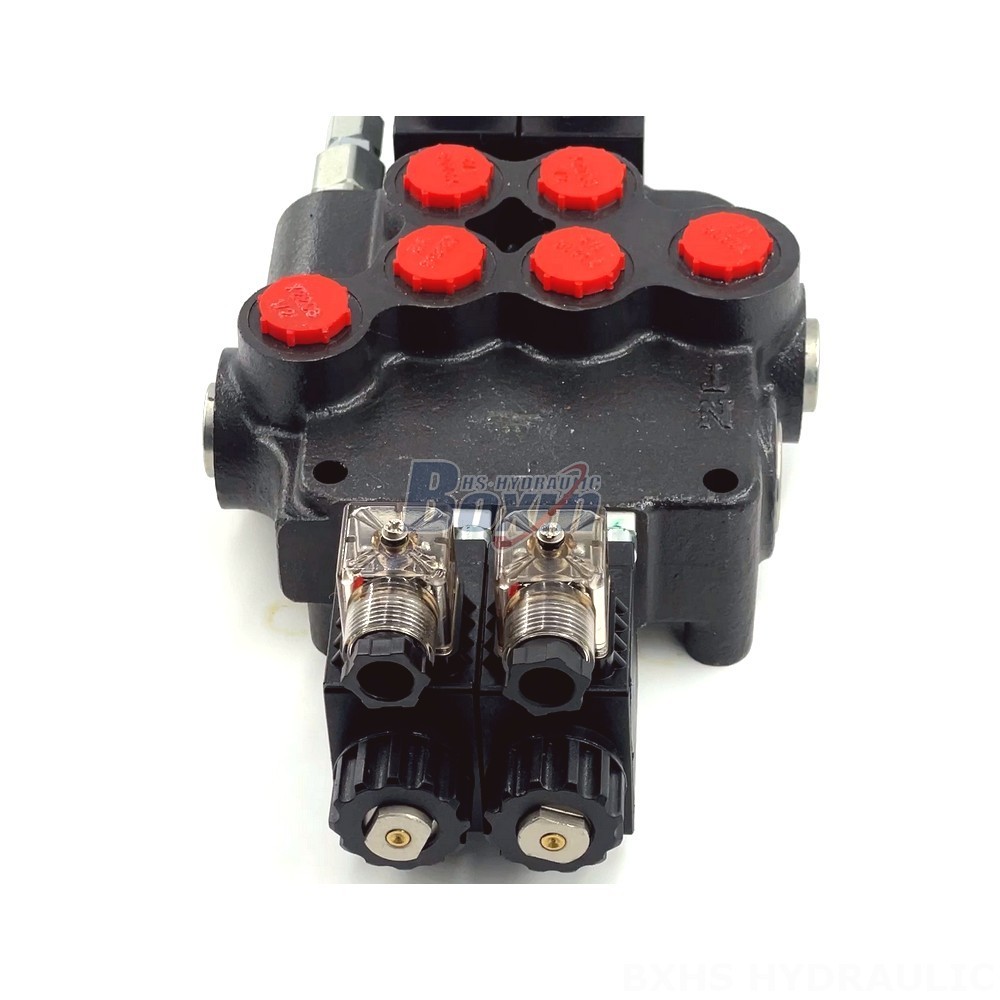

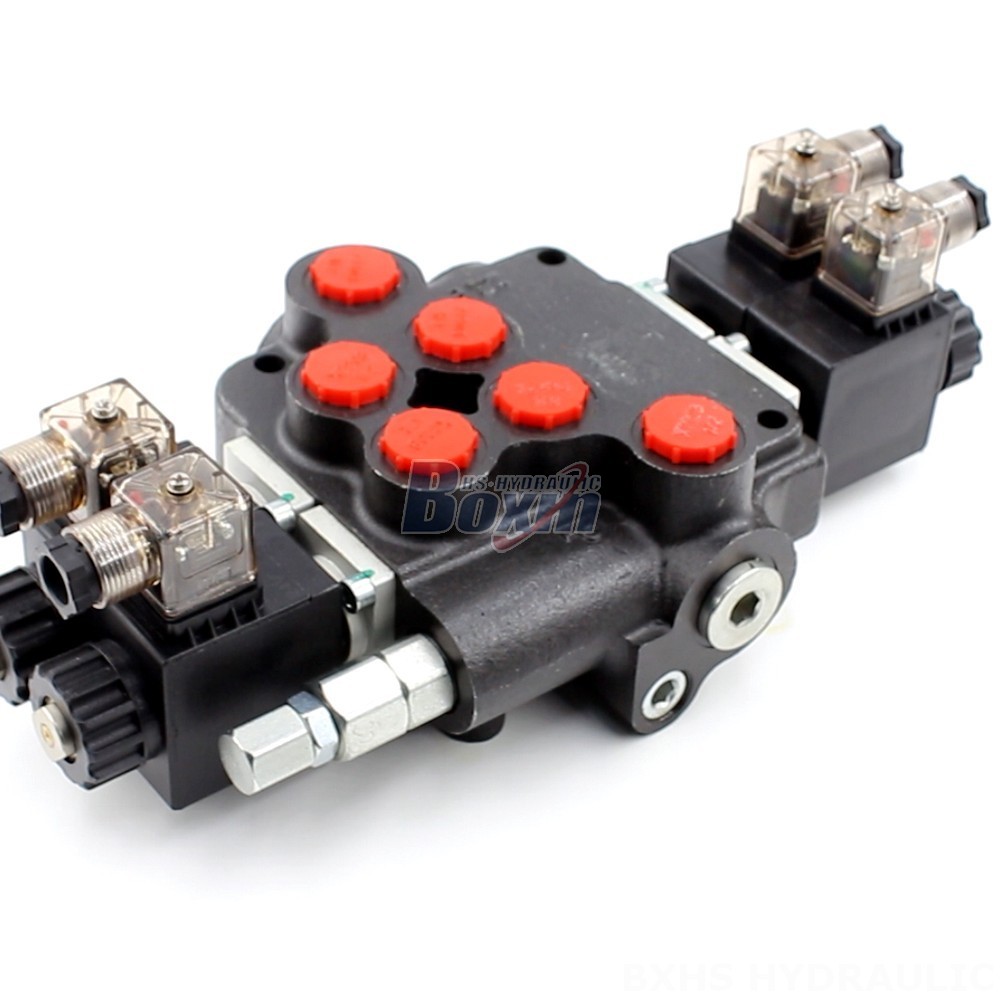

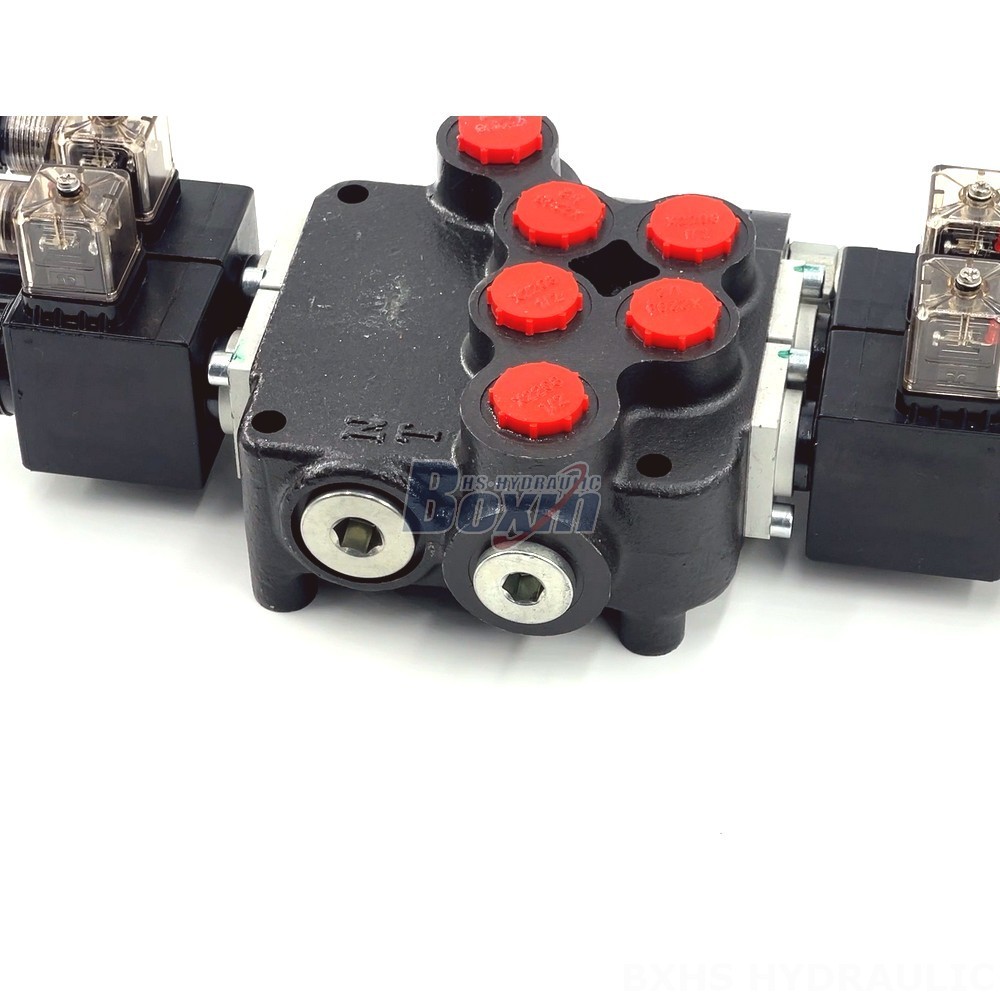

The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
The valve features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations.
The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
We are looking for distributors, wholesalers, agents, and traders to help us distribute the P80 Solenoid 2 Spool Monoblock Directional Valve to a global market. We offer a variety of support services to our partners, including marketing materials, technical support, and training. If you are interested in becoming a partner, please contact us today.
