Introducing the HDCF50 Series Solenoid Valve from a leading manufacturer. This high-performance valve boasts a rated flow of 50 L/min, max pressure of 160 bar, and is suitable for a wide range of applications in industries such as material handling, construction, agriculture, and more.
| Série HDCF50 Soupape de commande à solénoïde Paramètres | |
|---|---|
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Méthode de contrôle | Solénoïde |
| Dimension du raccord | M22×1.5, SAE 8 |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de températures ambiantes | -20 °C à +80 °C (-4 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Orifice de sortie | M18×1.5, M22×1.5, SAE 8 |
| Pression maximale | 160 bar (2 300 psi) |
| Débit nominal | 50 L/min (13,2 US gpm) |
| Type de structure | Distributeur à clapets |
| Orifice d'entrée | M18×1.5, M22×1.5, SAE 8 |

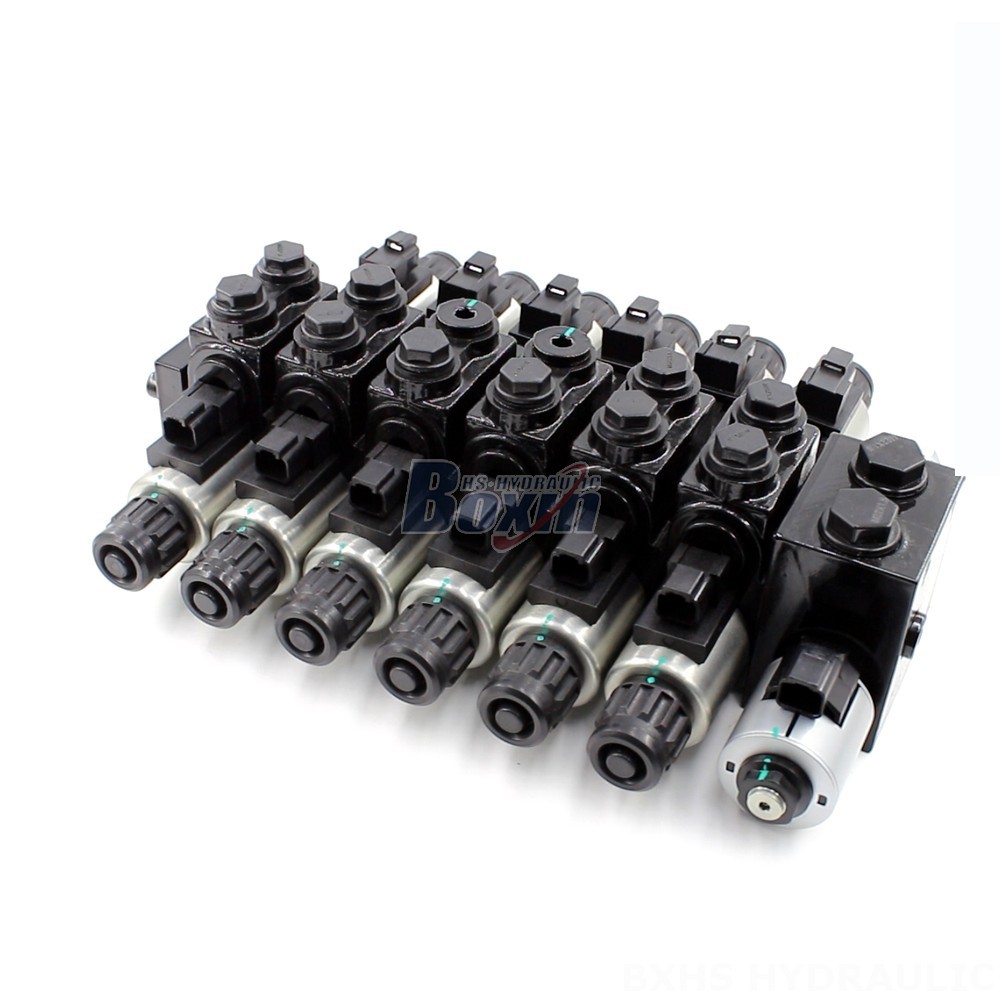

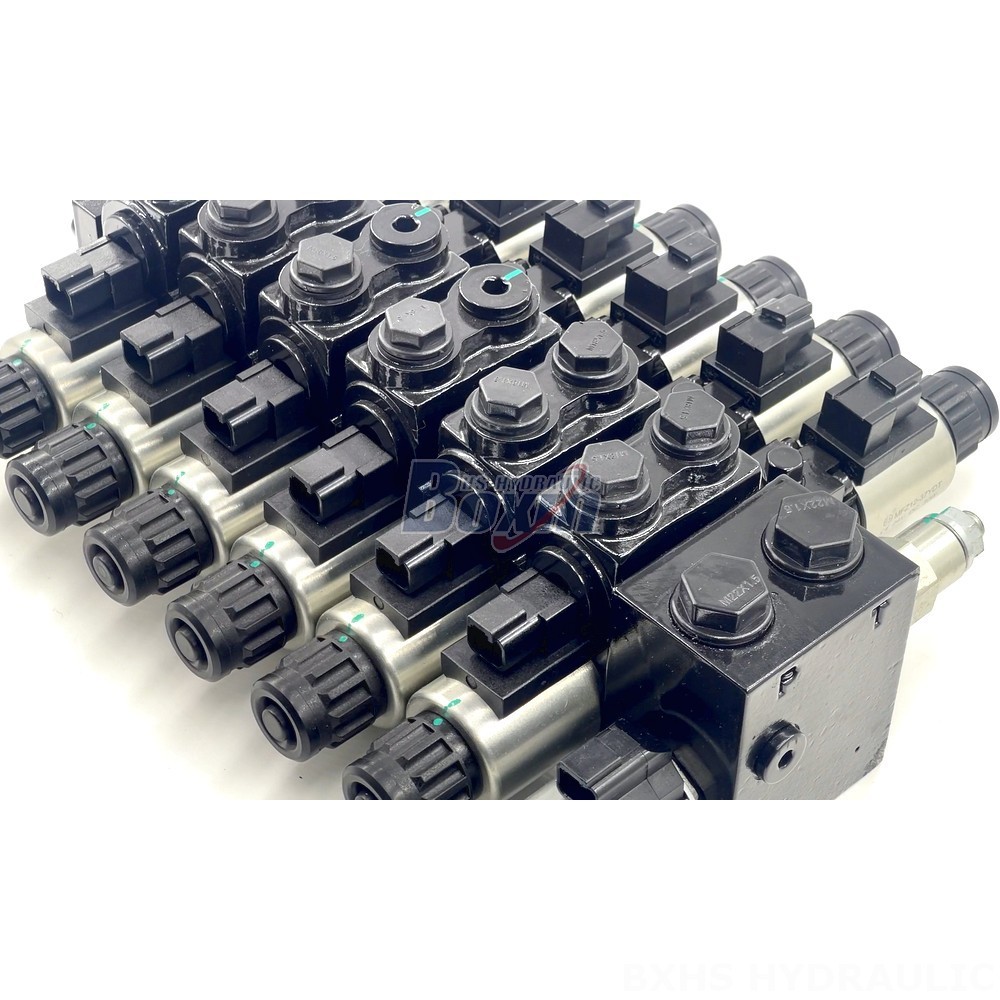

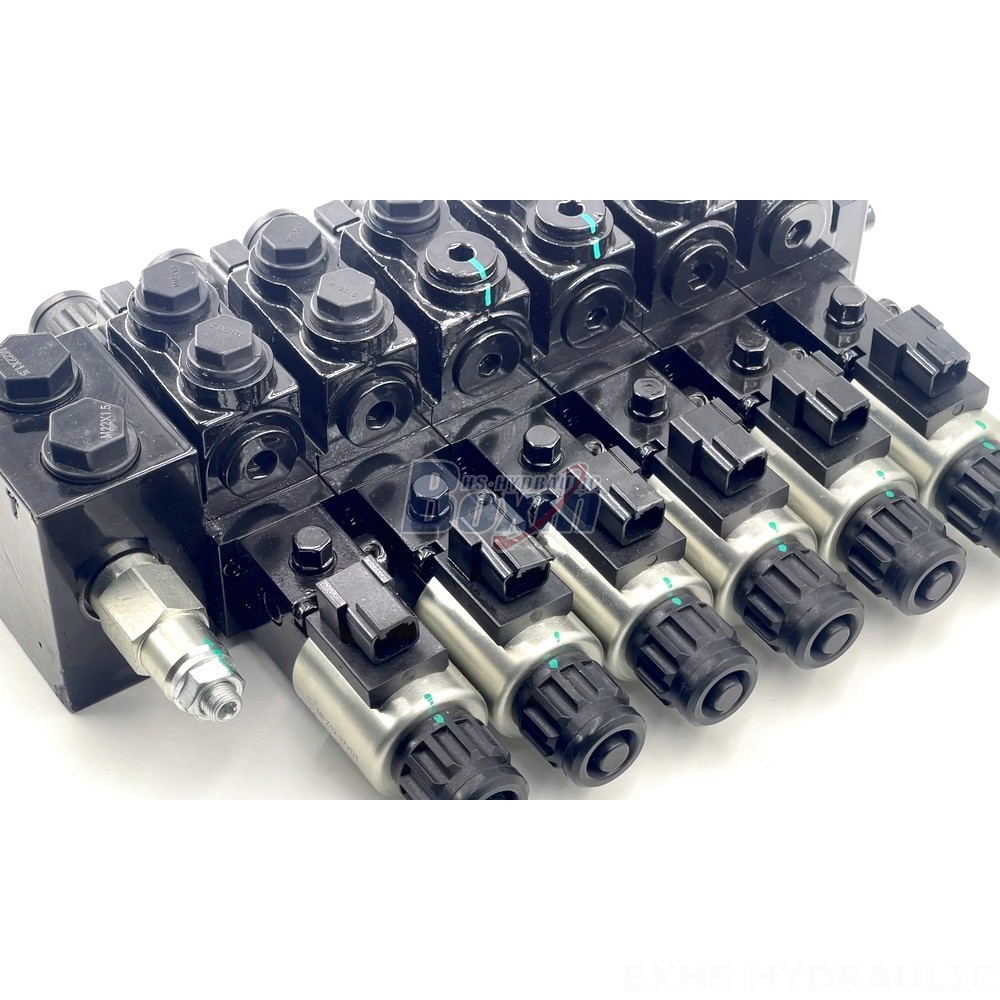

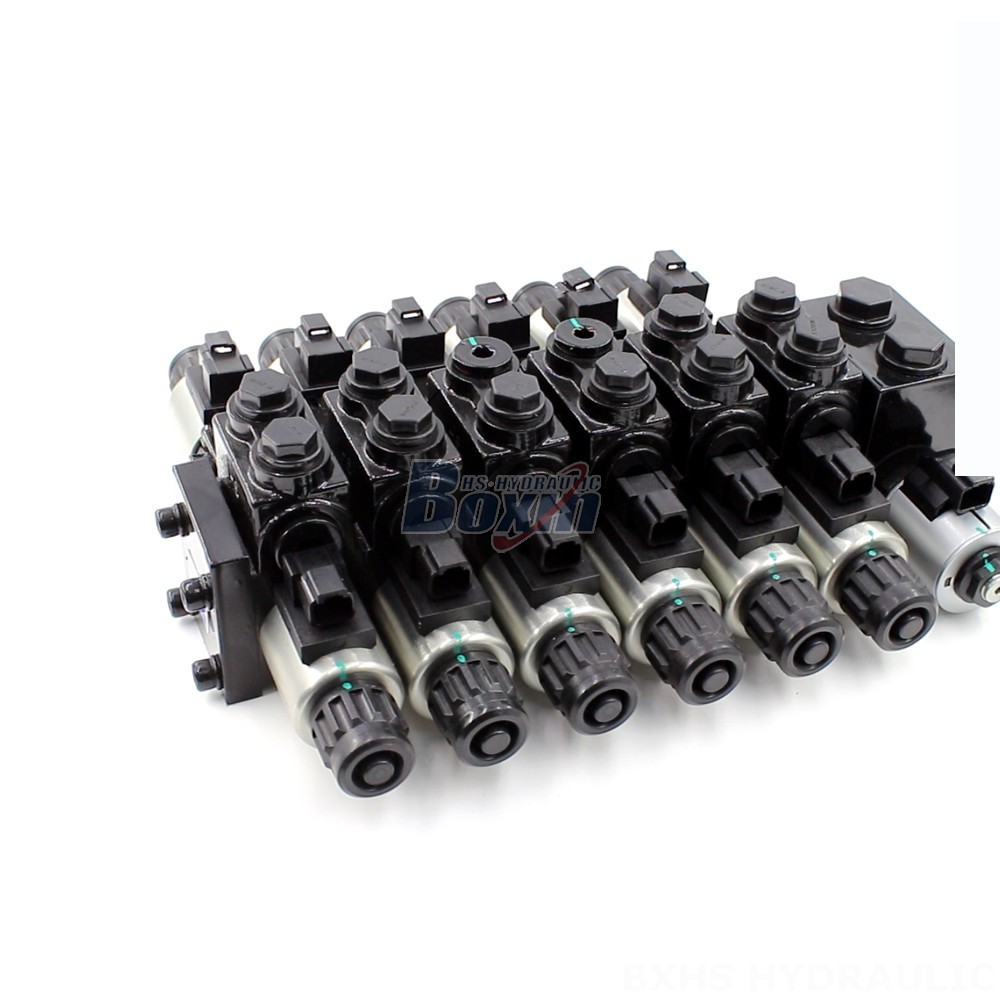

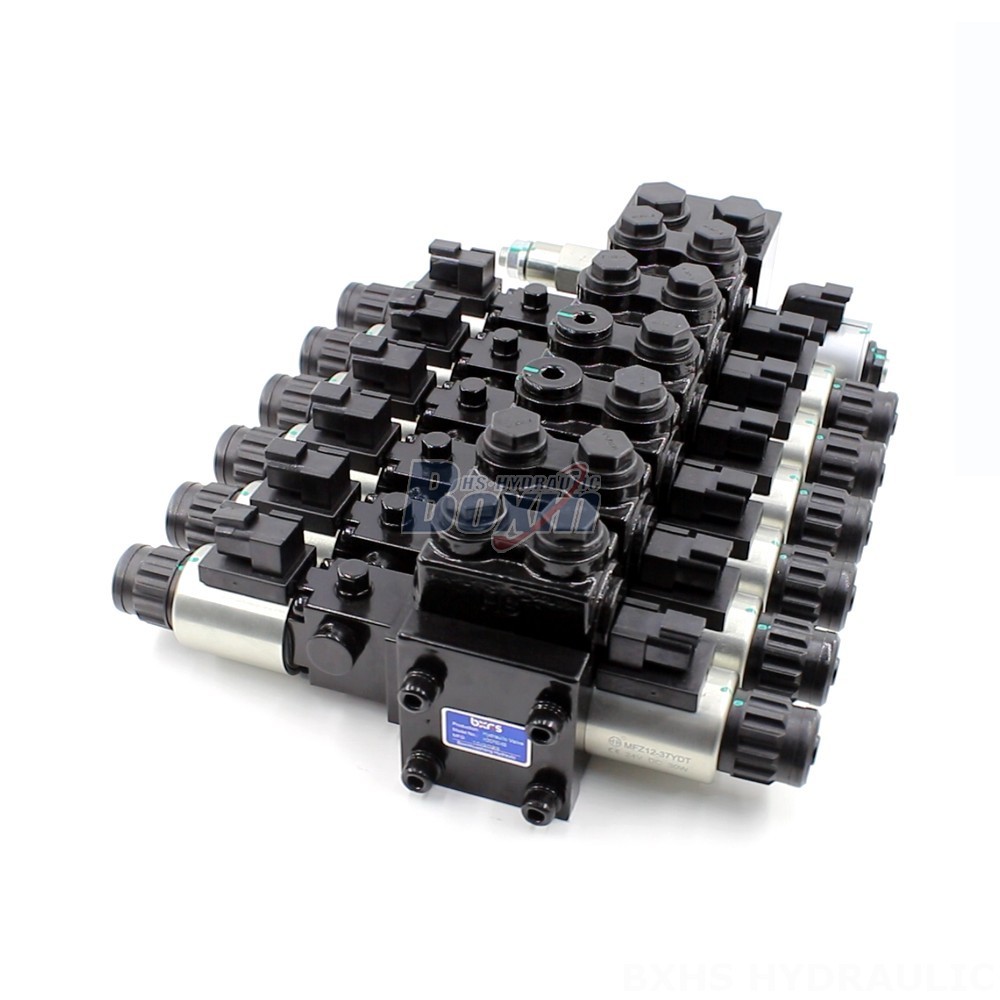

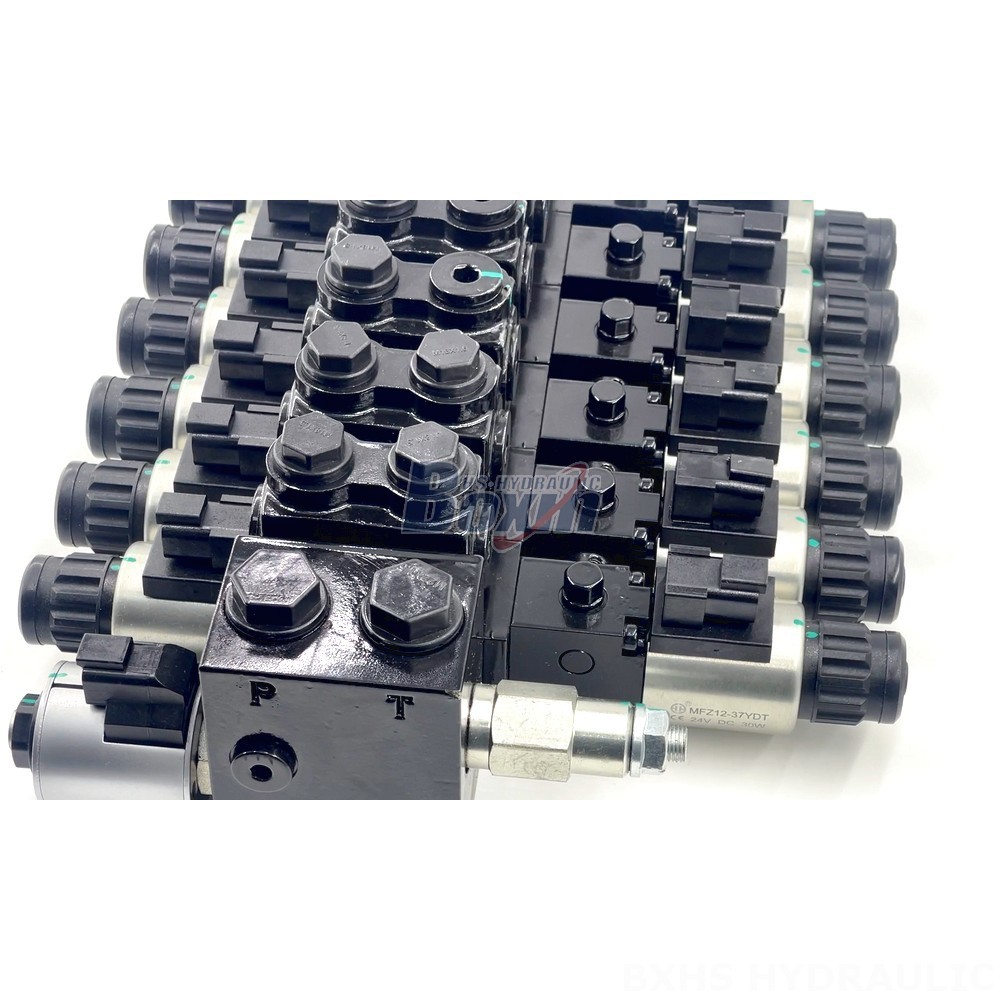

**HDCF50 Series Solenoid Valve**
**Control Method:** Solenoid
**Section:** 6 Section
**Structure Type:** Sectional valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 6 Spool
**Voltage:** 12V 24V
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
- Backhoe Loader
**Distributors, Wholesalers, and Traders Wanted**
We are actively seeking distributors, wholesalers, and traders to expand our global reach. Join forces with us and capitalize on the growing demand for high-quality solenoid valves. Contact us today to discuss partnership opportunities.
