Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
2072 personnes consultent ce produit

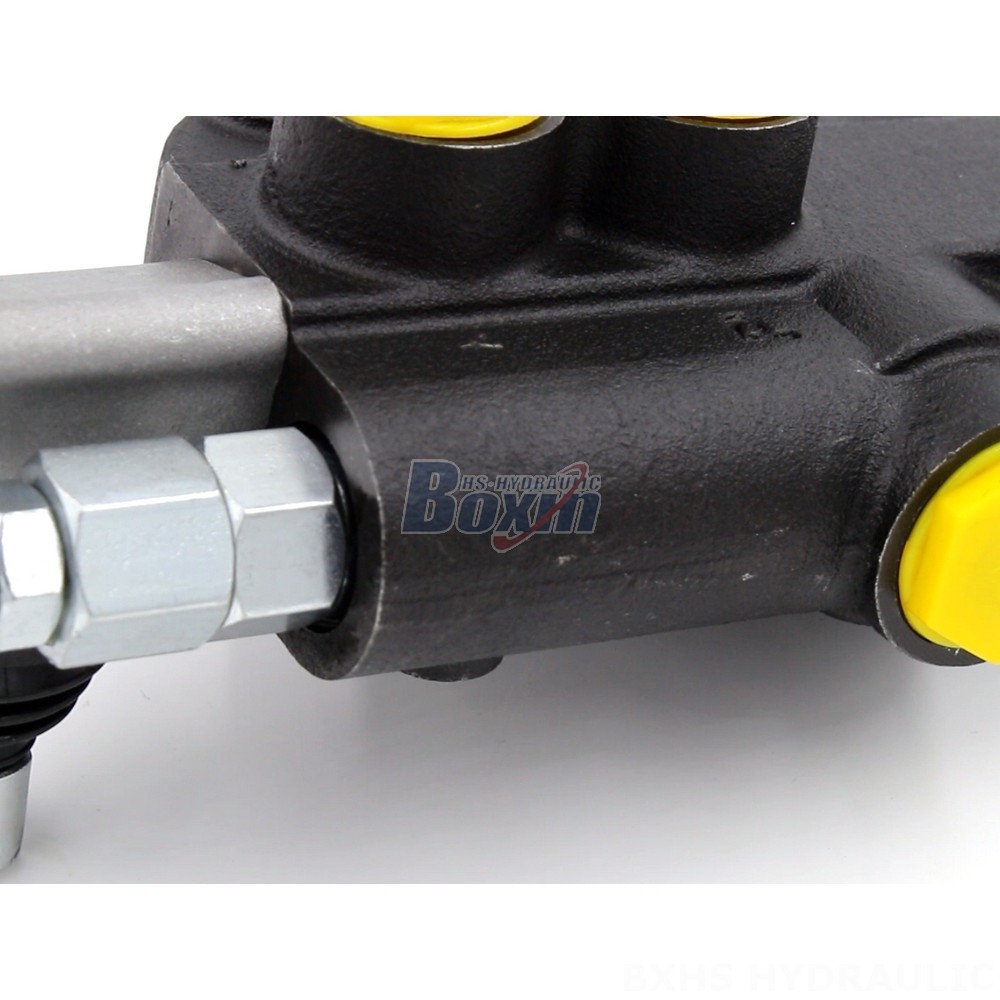

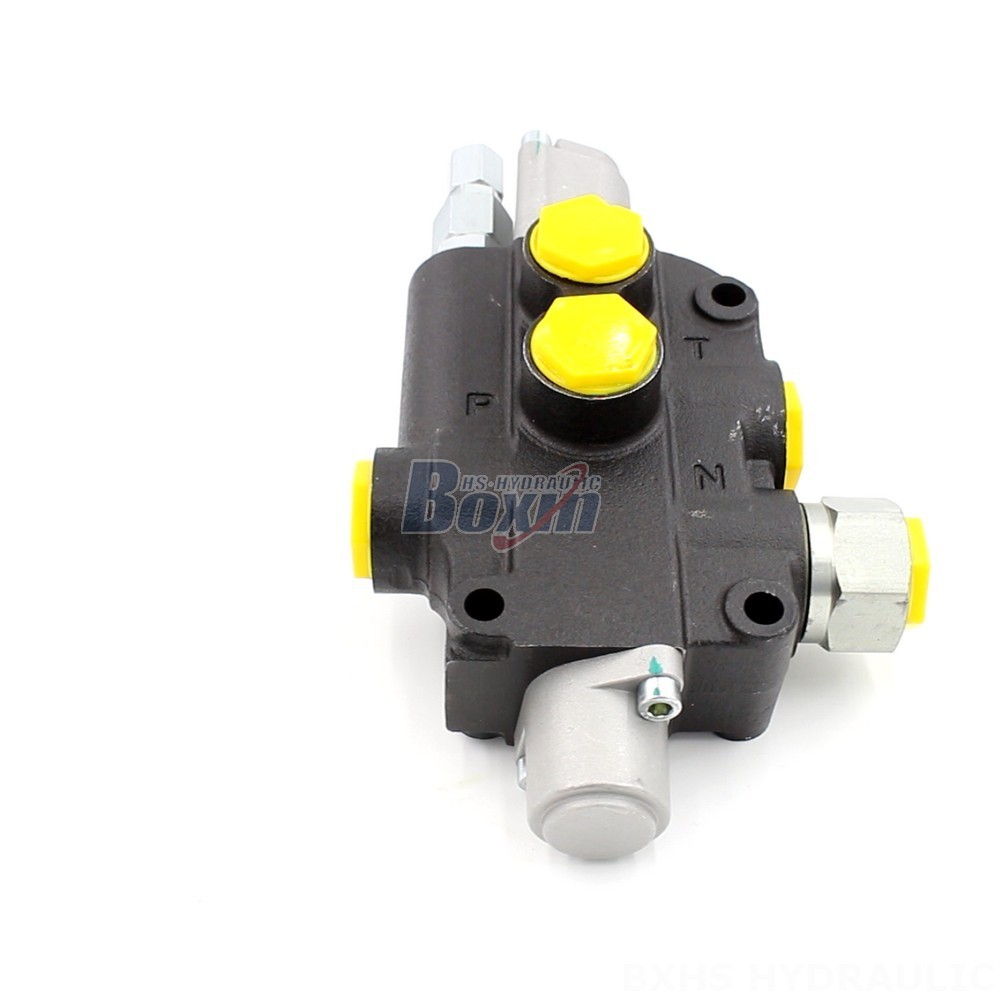

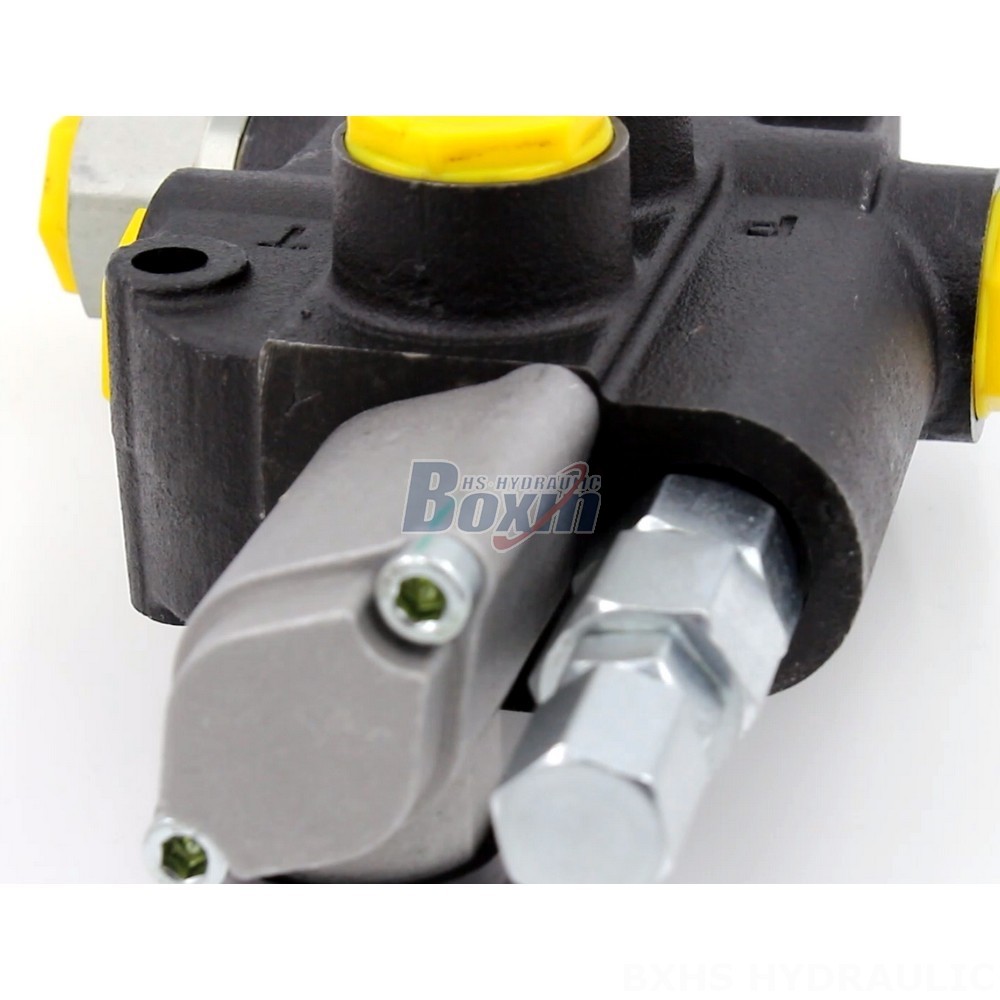

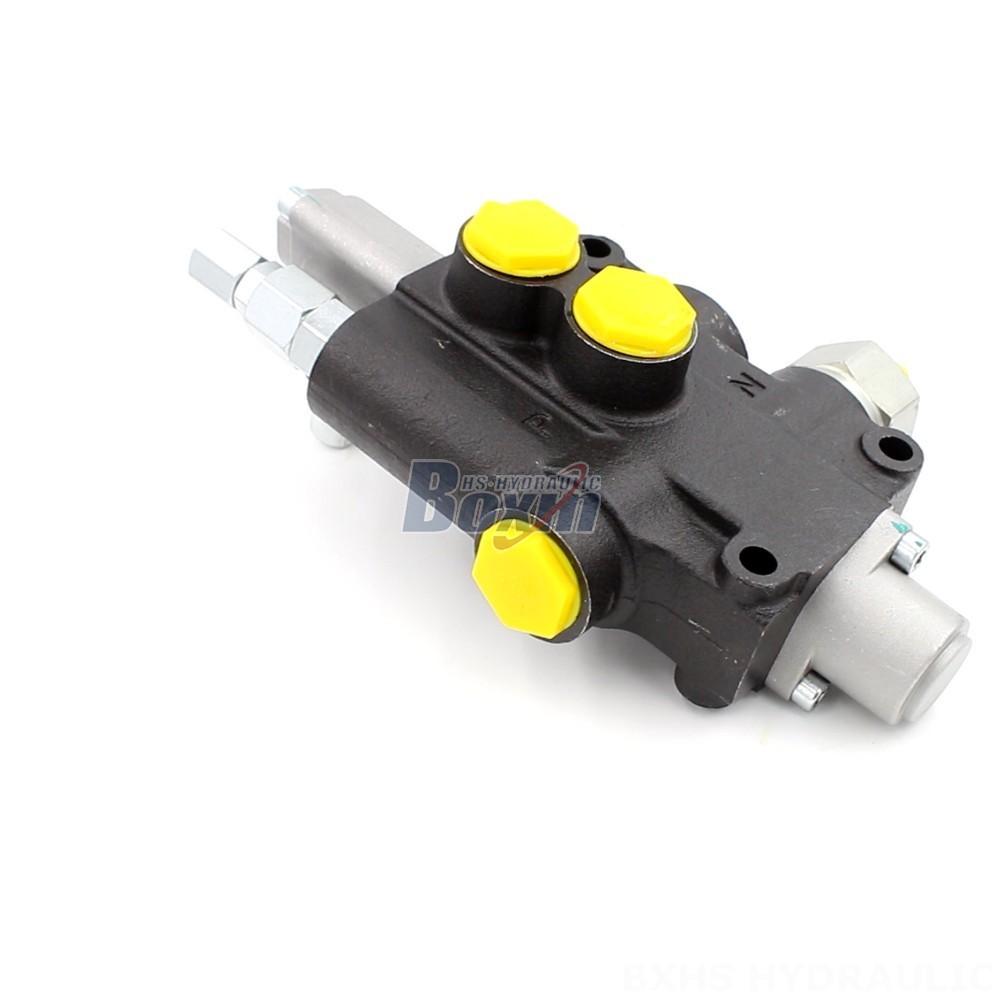

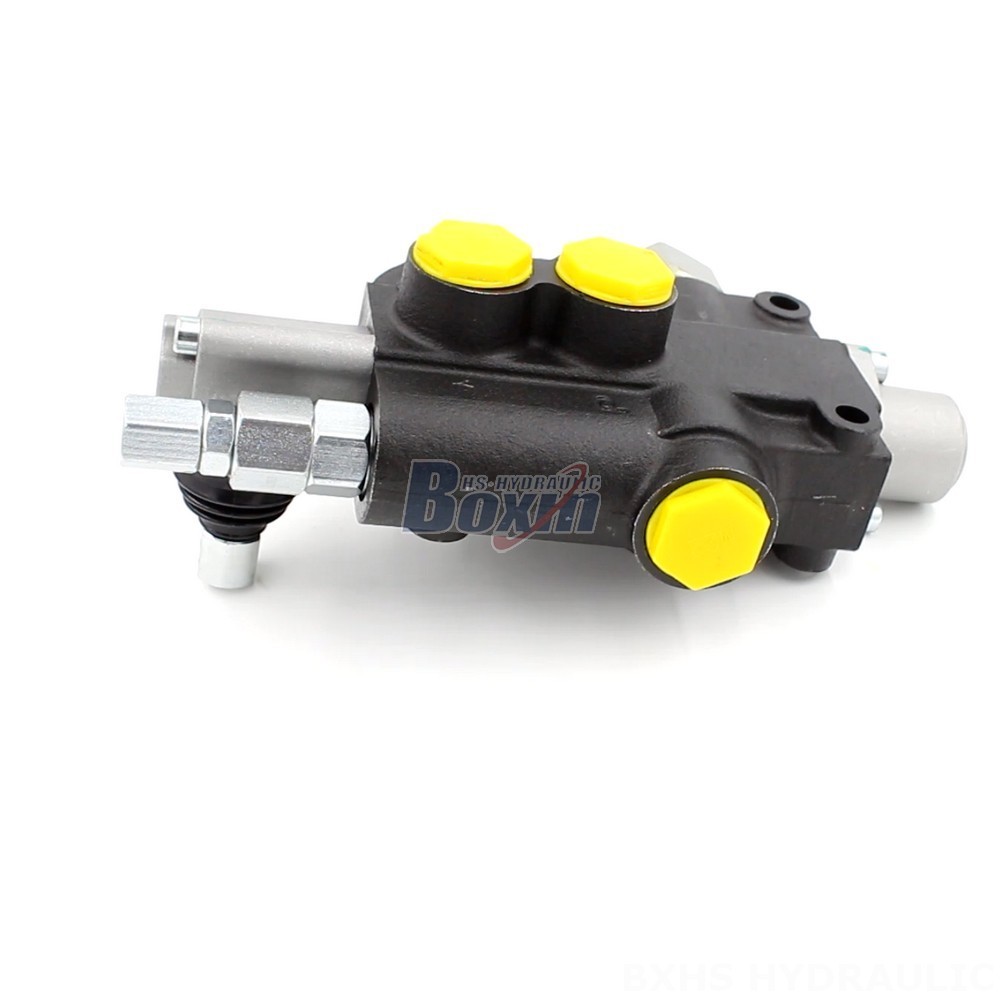

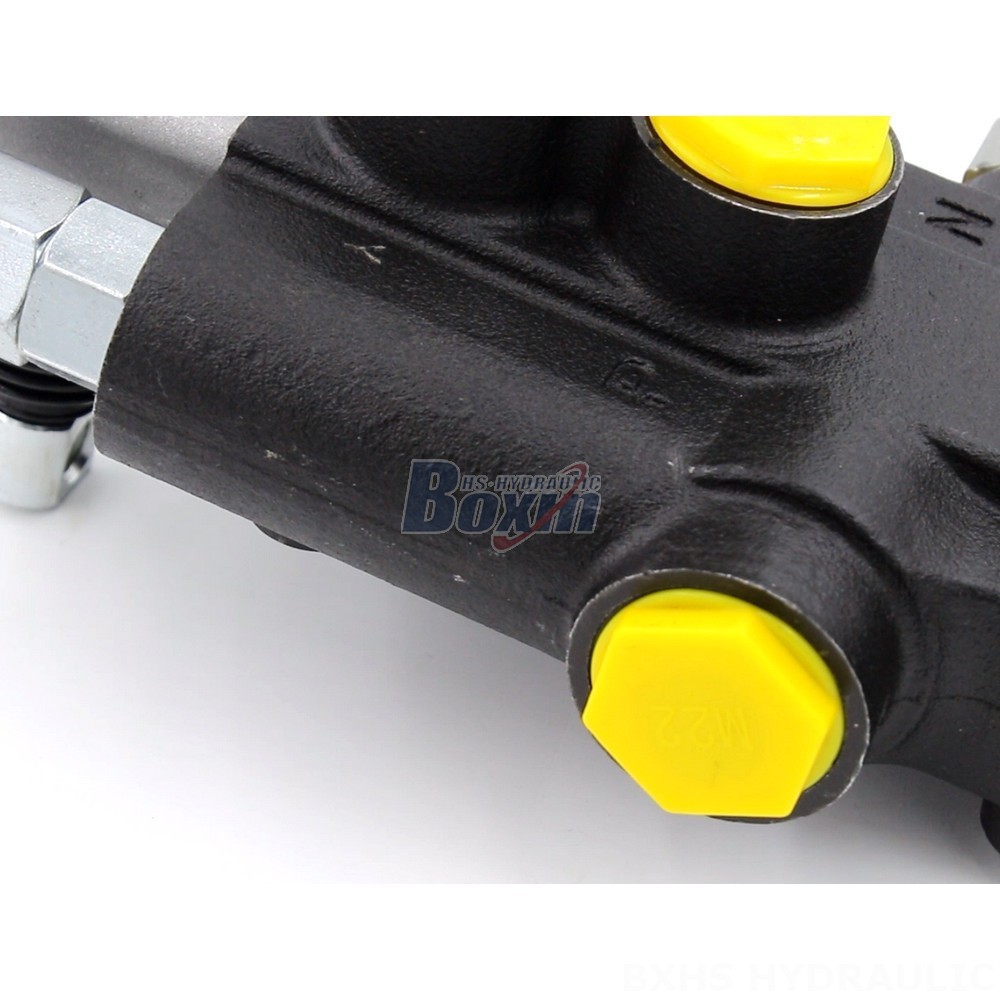

The P80J Series Control Valve is a manual, monoblock directional valve designed for a variety of applications, including material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this 1-spool valve is a reliable and efficient solution for your hydraulic needs.
| Série P80J Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Électrique, Solénoïde et manuel, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M20×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M20×1.5, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This P80J Series Control Valve is a manual, monoblock directional valve with 1 spool. It is designed for applications requiring a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is suitable for a wide range of applications, including material handling, construction, and agriculture. It can be used in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. As a hydraulic supplier, we offer manufacturing, OEM, private labeling, customization, and wholesale services. We are also seeking distributors, wholesalers, agents, and traders for our products.
