P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

Méthode de contrôle:Manuel

Distributeur:5 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G3/4

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80F Vanne directionnelle monobloc

Taille de l'emballage:26*30*11

Poids brut:16.00 kg

Disponibilité: En stock

2056 personnes consultent ce produit

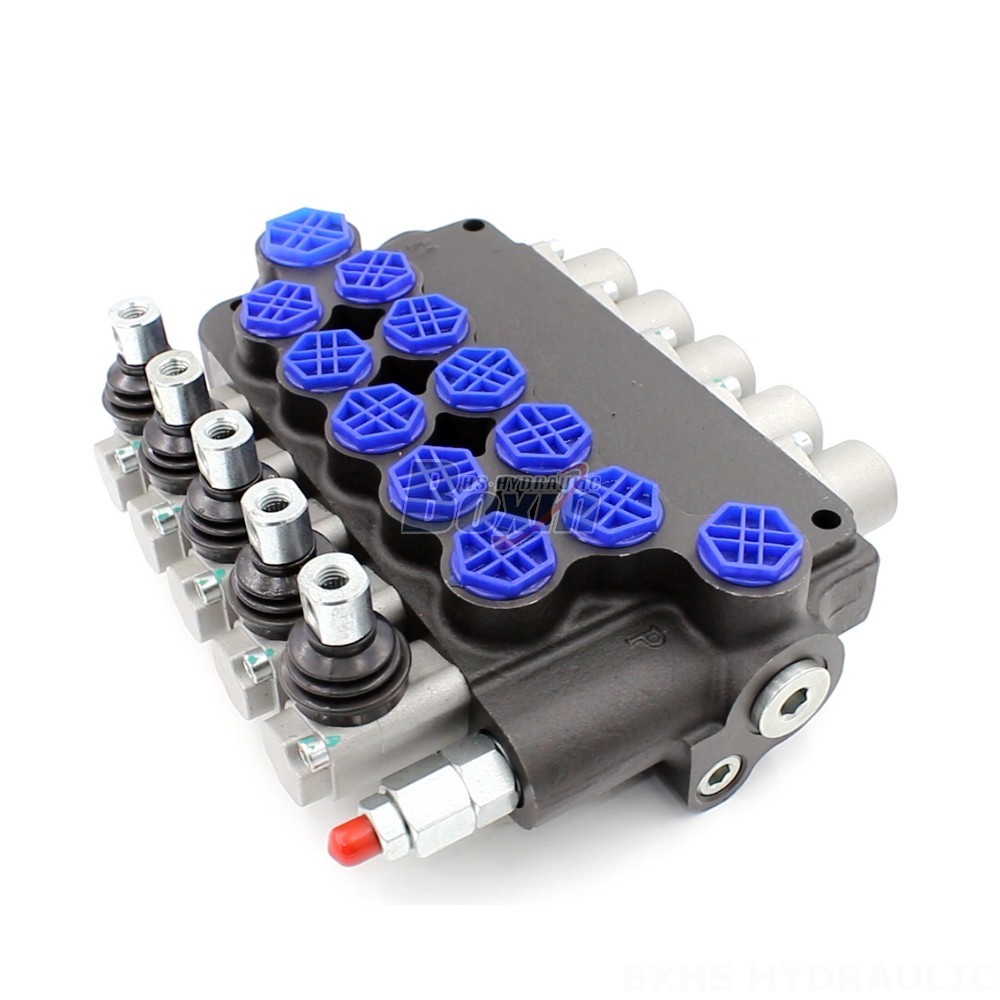

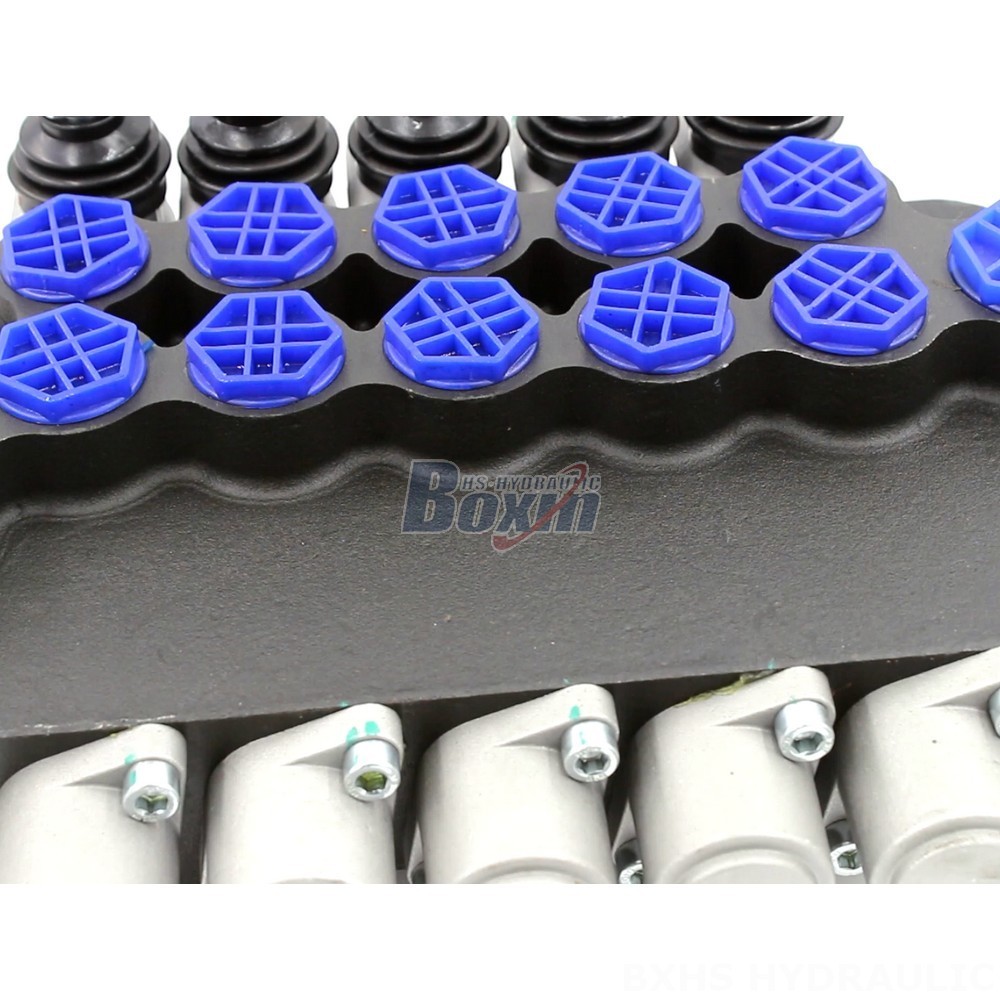

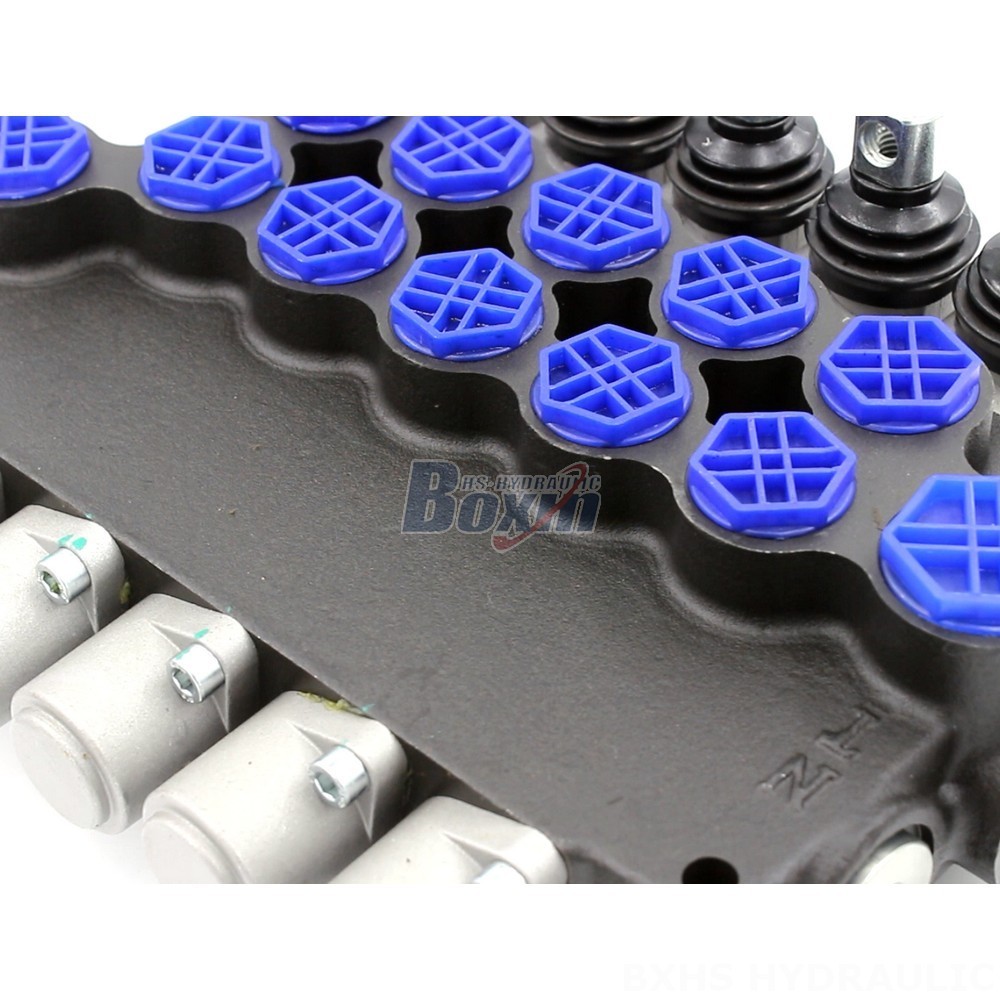

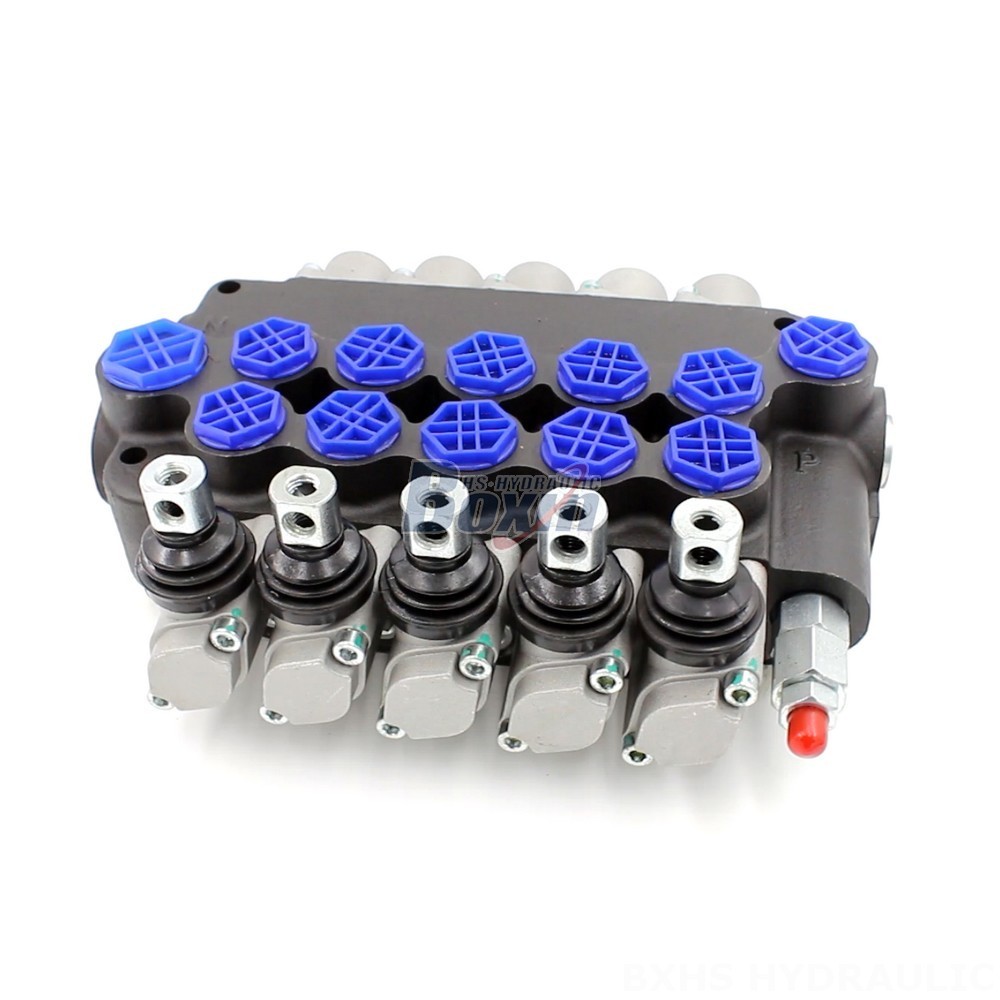

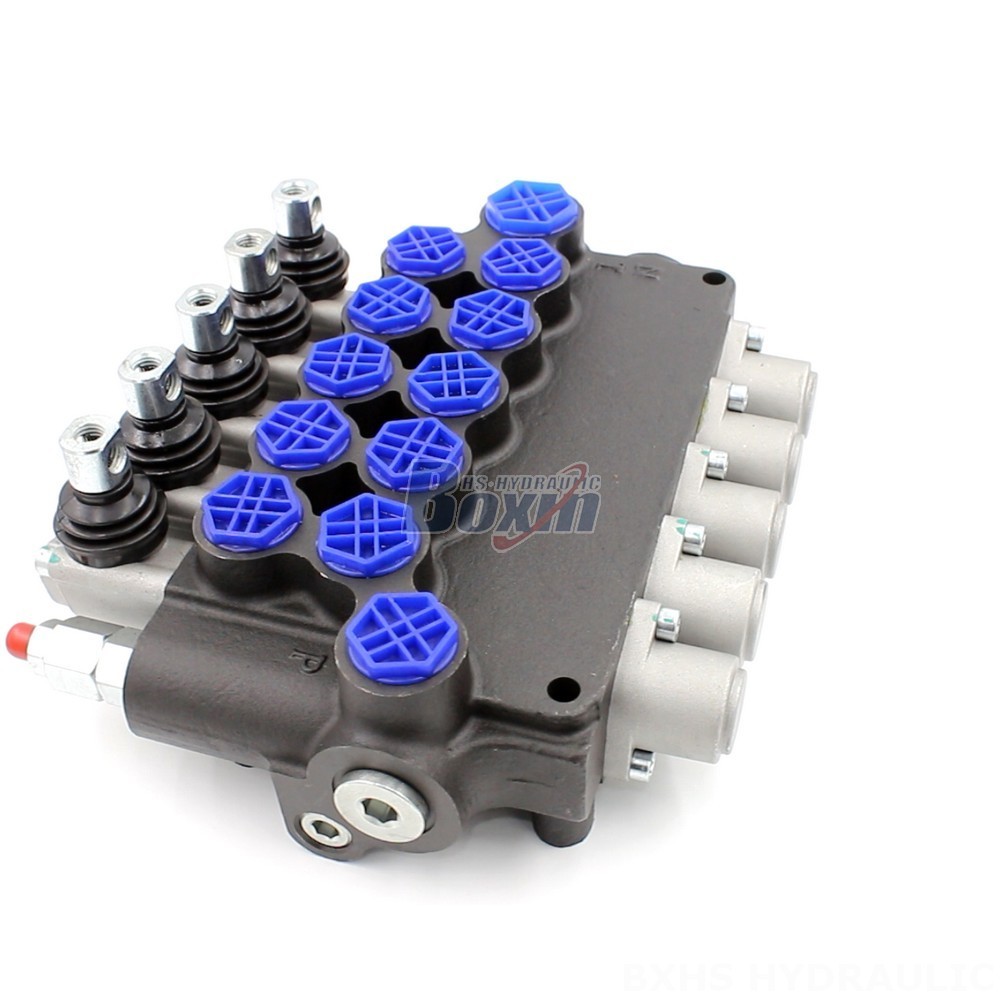

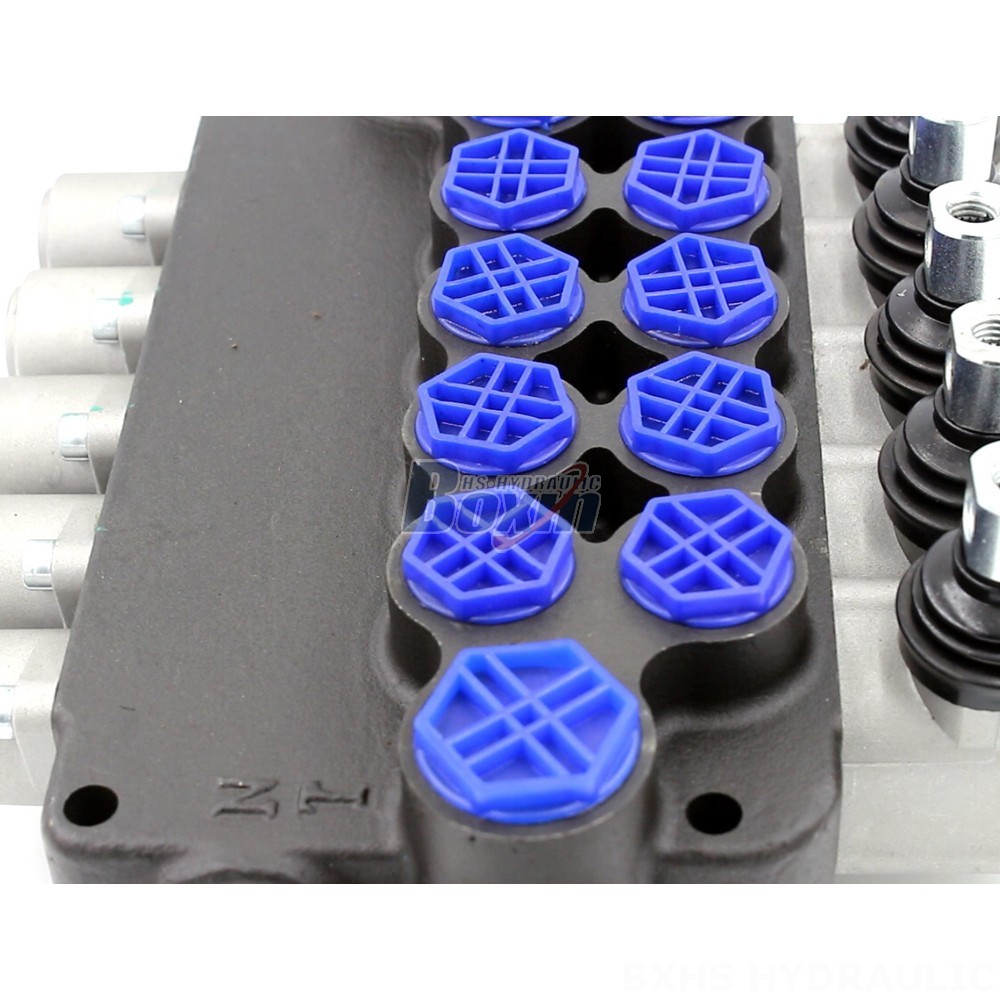

P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

P80F-G34-OT Manual 5 Spool Monoblock Directional Valve drawing image

The P80F-G34-OT is a robust 5-spool monoblock directional valve designed for demanding applications in construction, material handling, and industrial vehicles. It features manual control, 80 L/min flow rate, and 250 bar maximum pressure, making it ideal for controlling hydraulic systems in telehandlers, forklifts, excavators, loaders, and other heavy-duty equipment.

Série P80F Vanne directionnelle monobloc Paramètres
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette
Dimension du raccord G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Pression maximale 315 bar (4 600 psi)
Débit nominal 80 L/min (21,2 US gpm)
Type de structure Distributeur monobloc
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80F-G34-OT is a high-performance, manual control, 5-spool monoblock directional valve specifically engineered for heavy-duty applications in construction, material handling, and industrial vehicles. This valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), ensuring efficient and reliable operation in demanding environments. The P80F-G34-OT's robust construction and versatile design make it a versatile solution for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to operate effectively in a wide range of hydraulic fluids and temperatures, from -40°C to +80°C (-40°F to +176°F). The P80F-G34-OT is a reliable and efficient hydraulic control solution designed to withstand the rigors of heavy-duty applications.
