The P80F-G34-OT 5-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers reliable and efficient control of hydraulic systems.
| Série P80F Vanne directionnelle monobloc Paramètres | |
|---|---|
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Dimension du raccord | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Pression maximale | 315 bar (4 600 psi) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Type de structure | Distributeur monobloc |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |

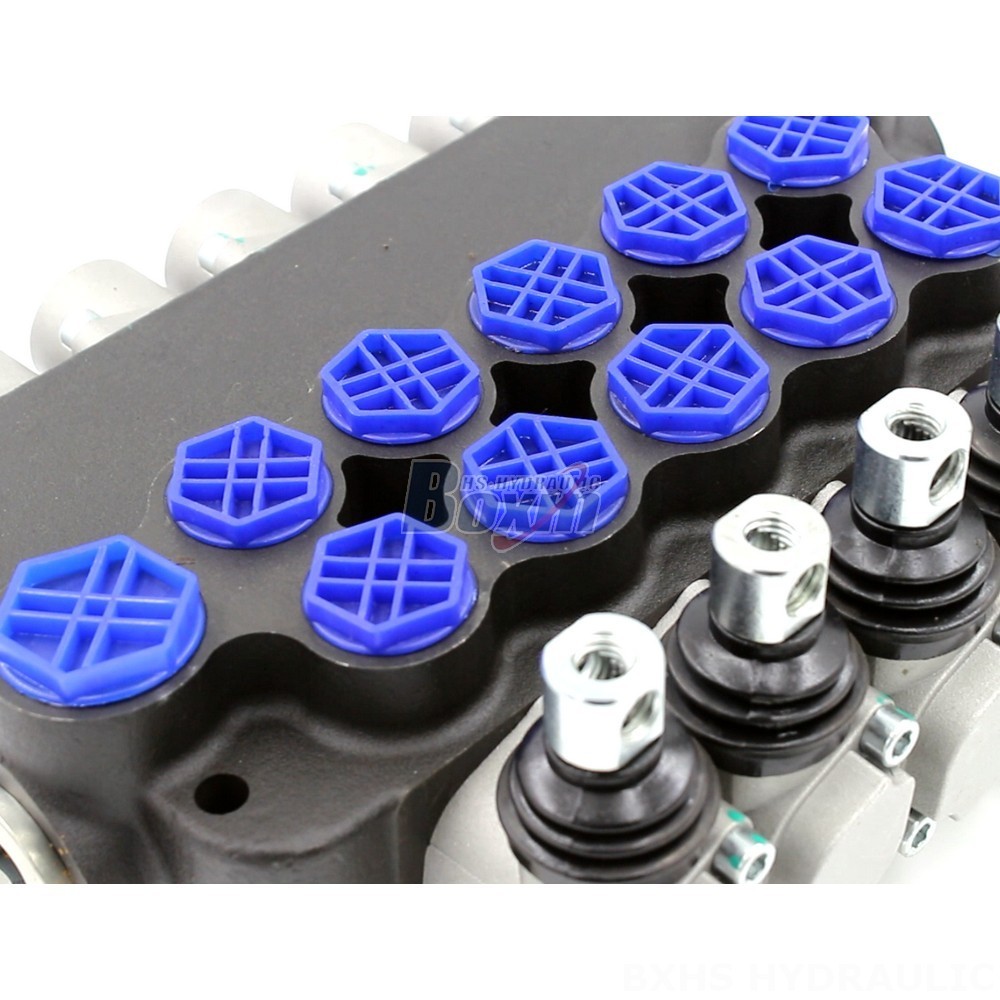

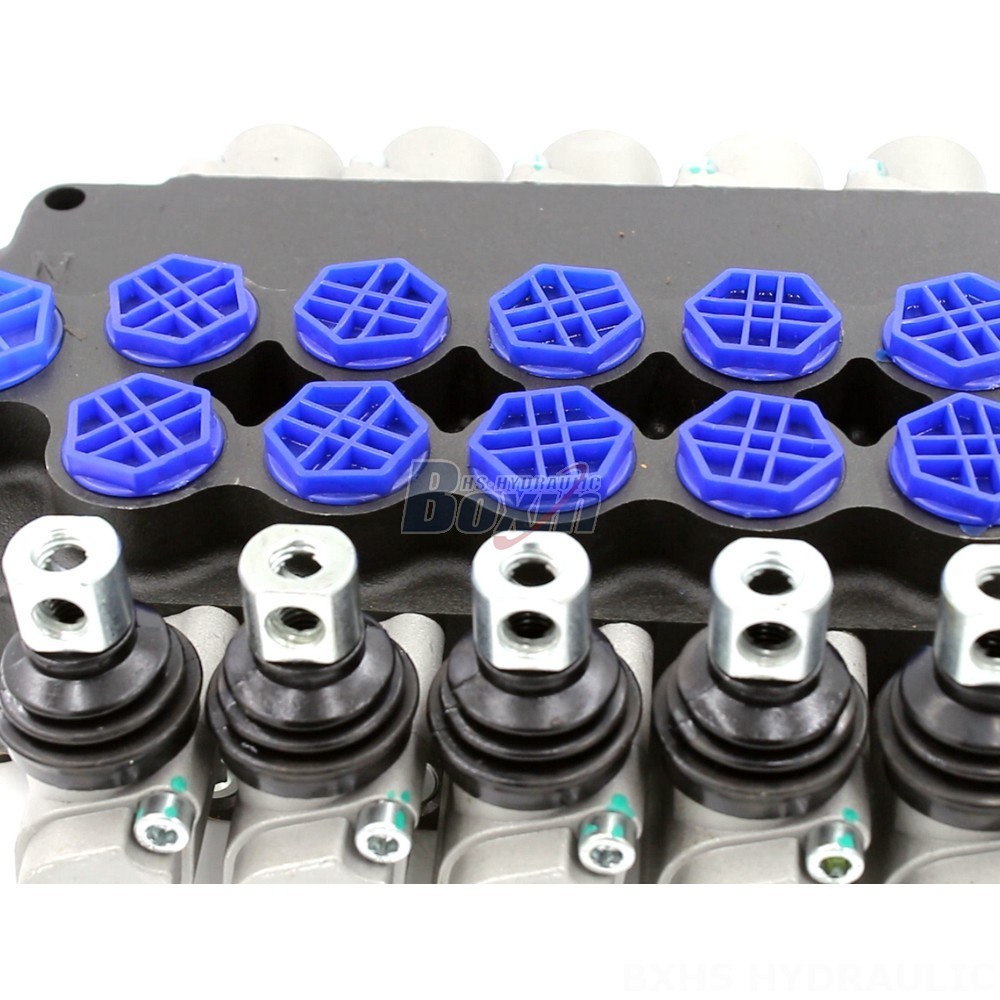

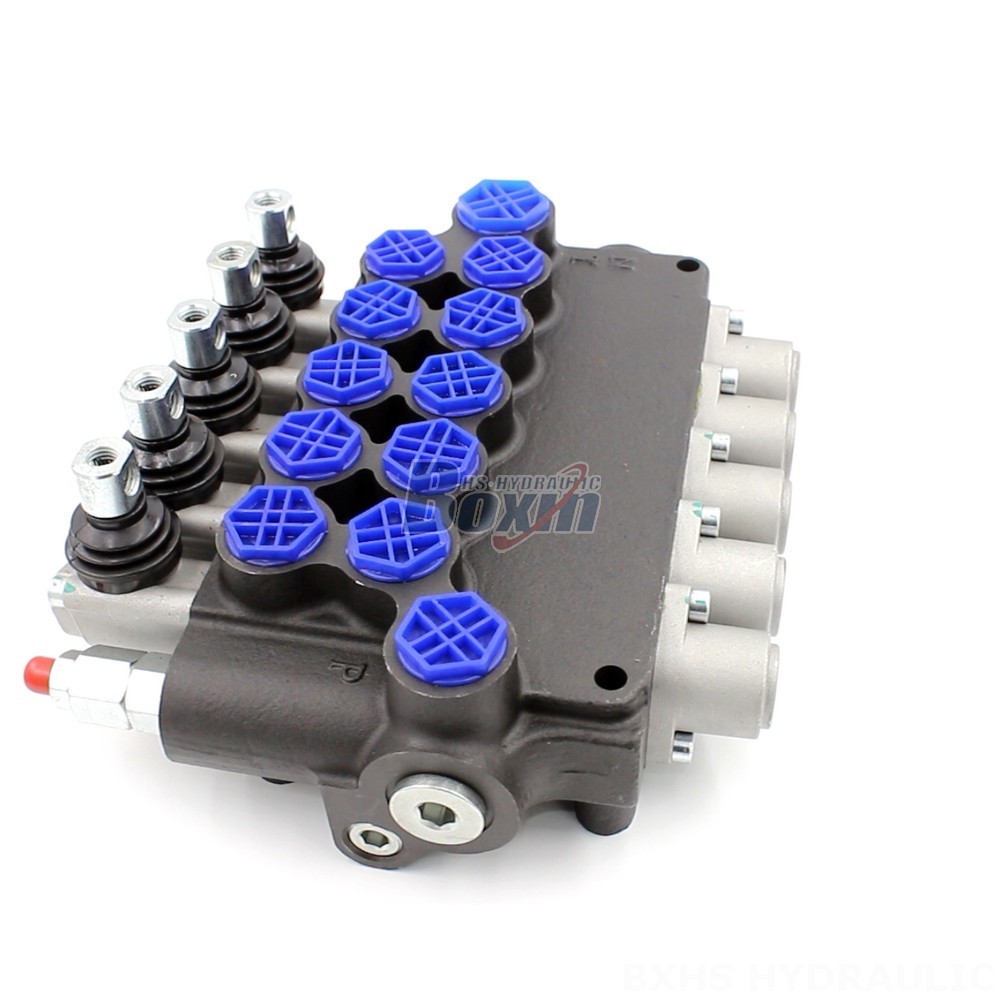

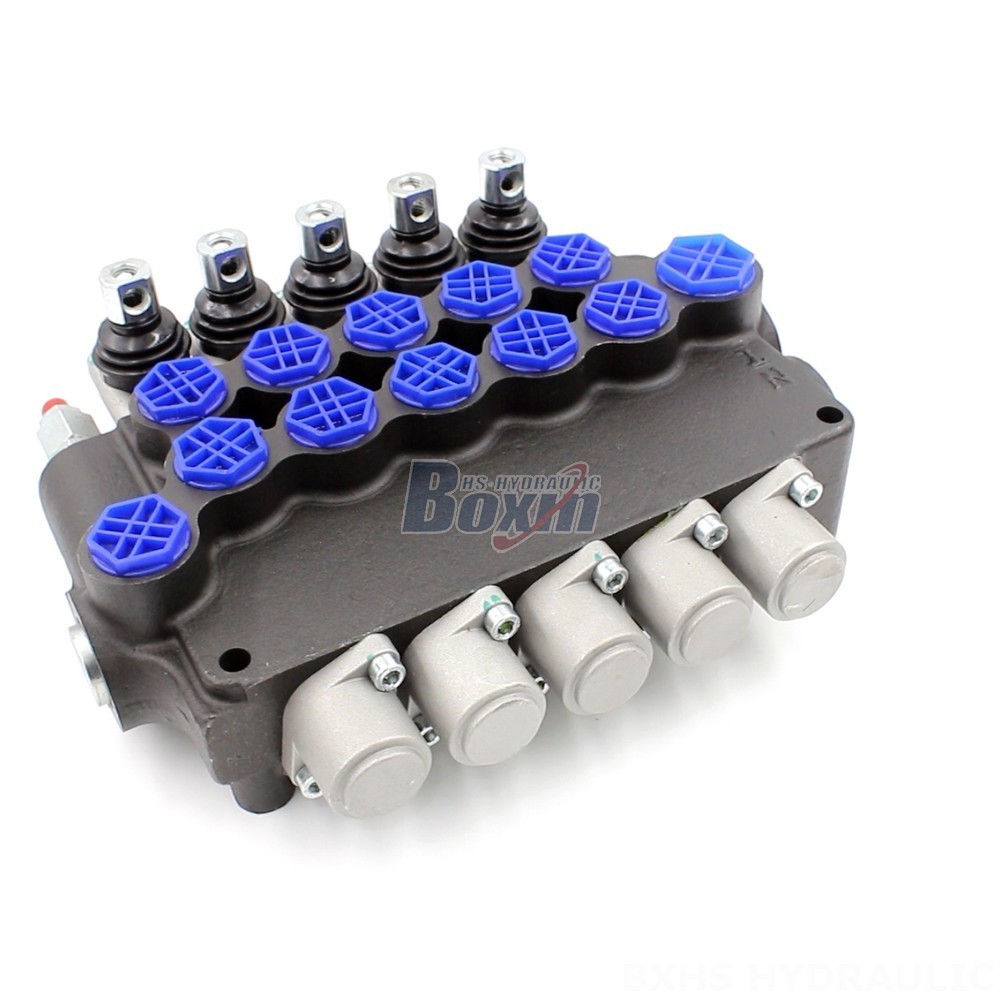

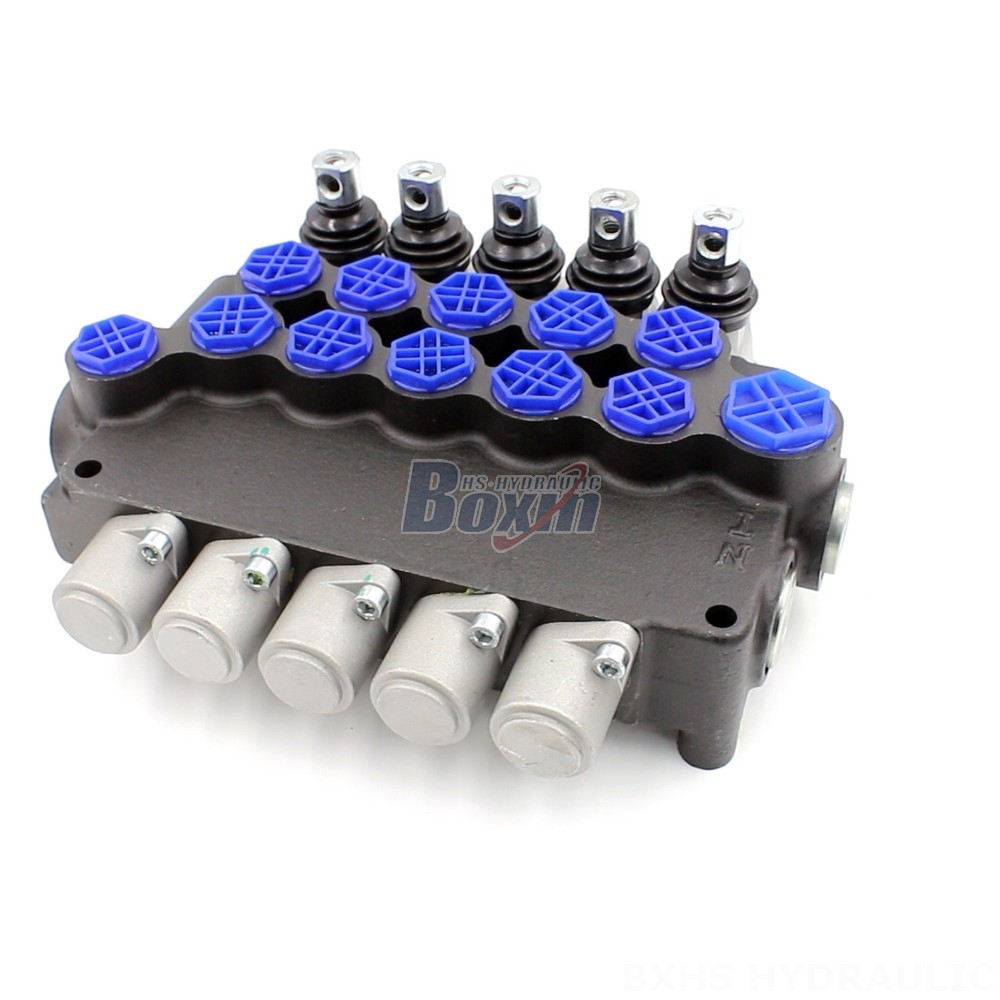

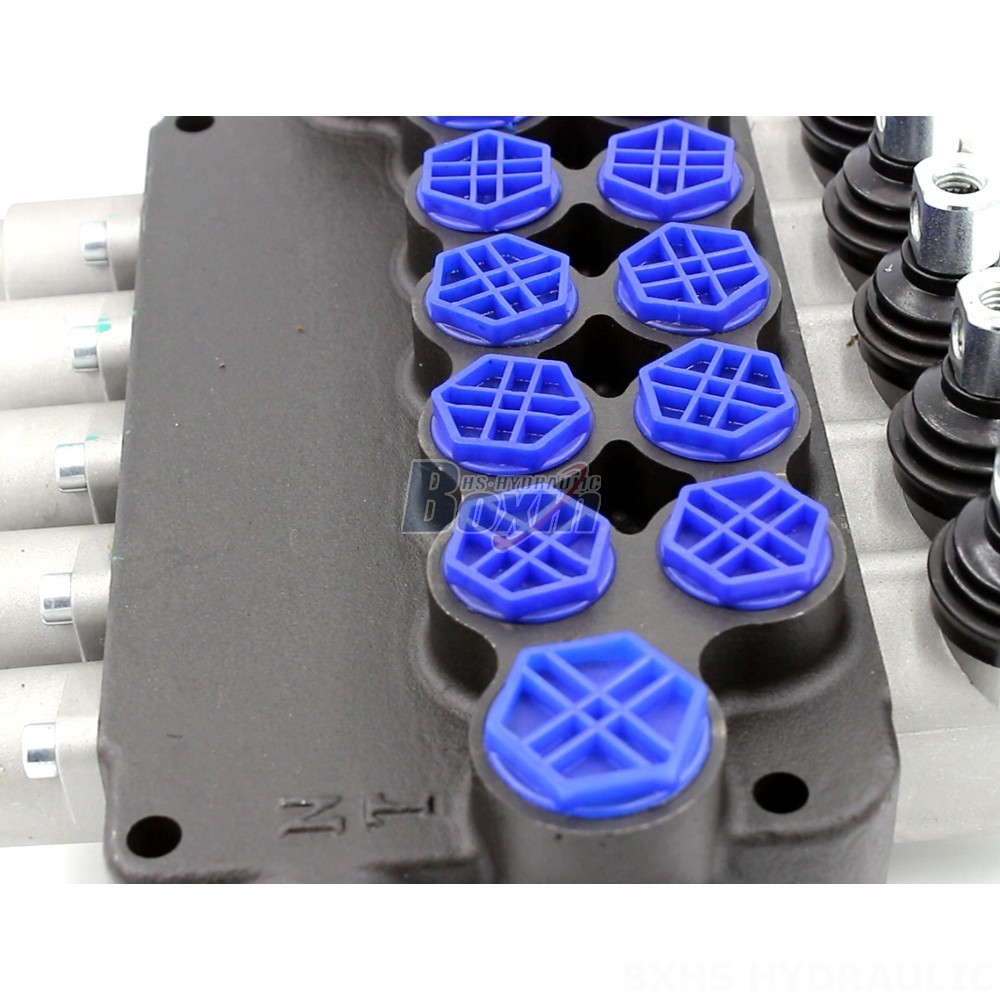

**P80F-G34-OT 5-Spool Hydraulic Directional Valve**
**Control Method:** Manual
**Section:** 5 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 5 Spool
**Series:** P80F Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, BACKHOE LOADER, HARVESTER, BALE WRAPPER
The P80F-G34-OT 5-Spool Hydraulic Directional Valve is widely used in various applications, including:
* Material Handling Equipment
* Construction Vehicles
* Industrial Vehicles
This valve is known for its high performance, reliability, and durability, making it an ideal choice for demanding hydraulic systems.
