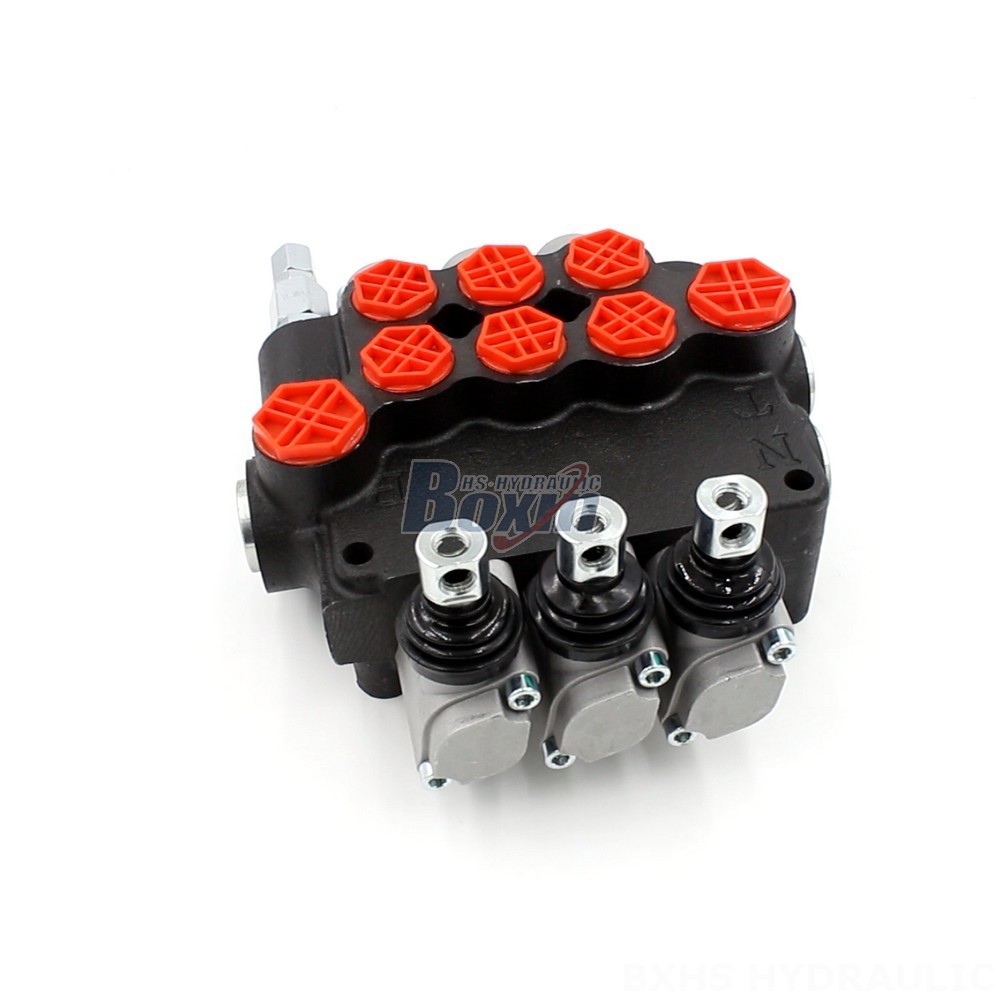

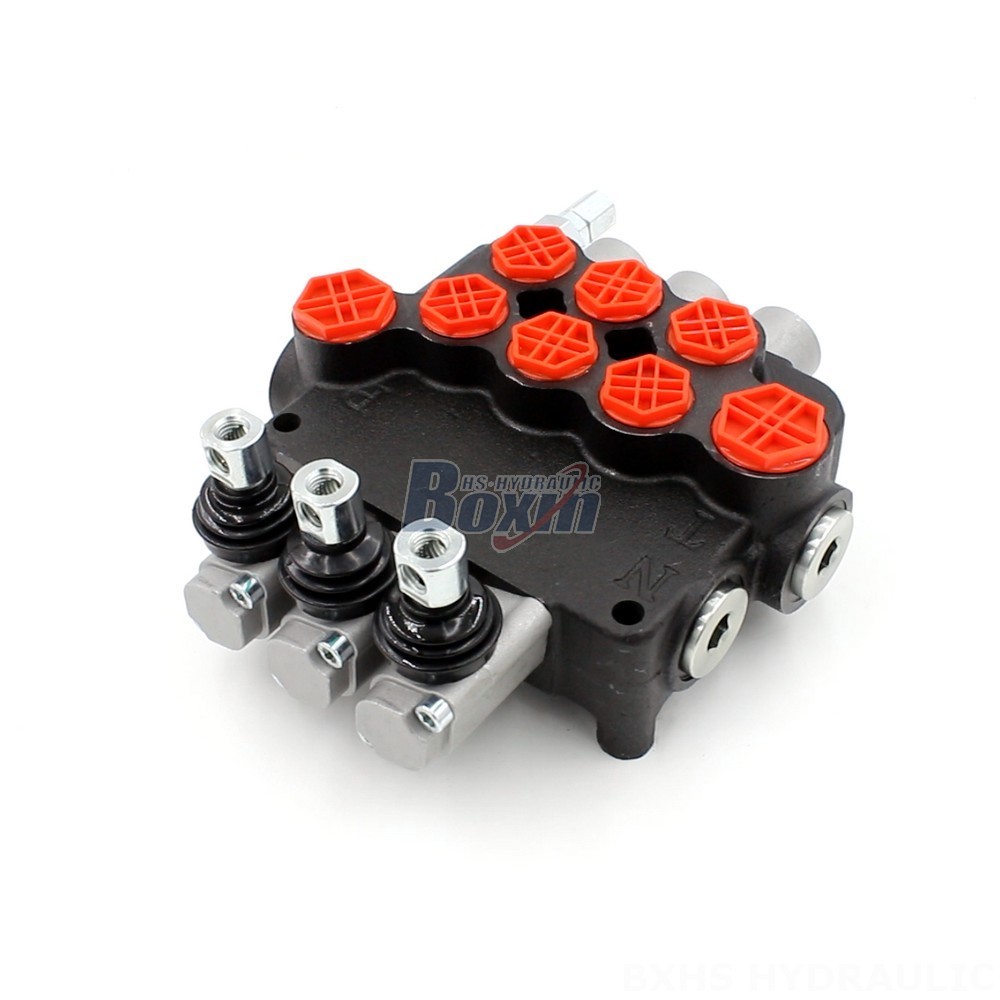

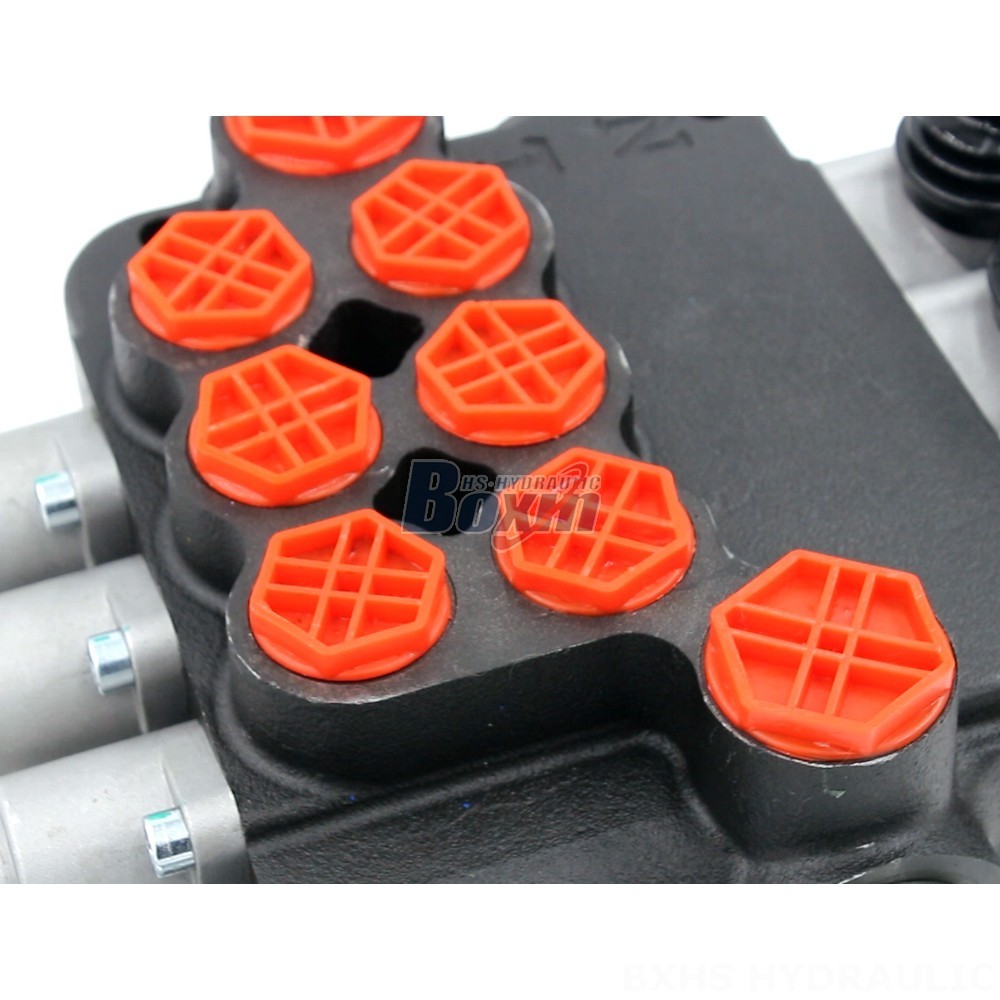

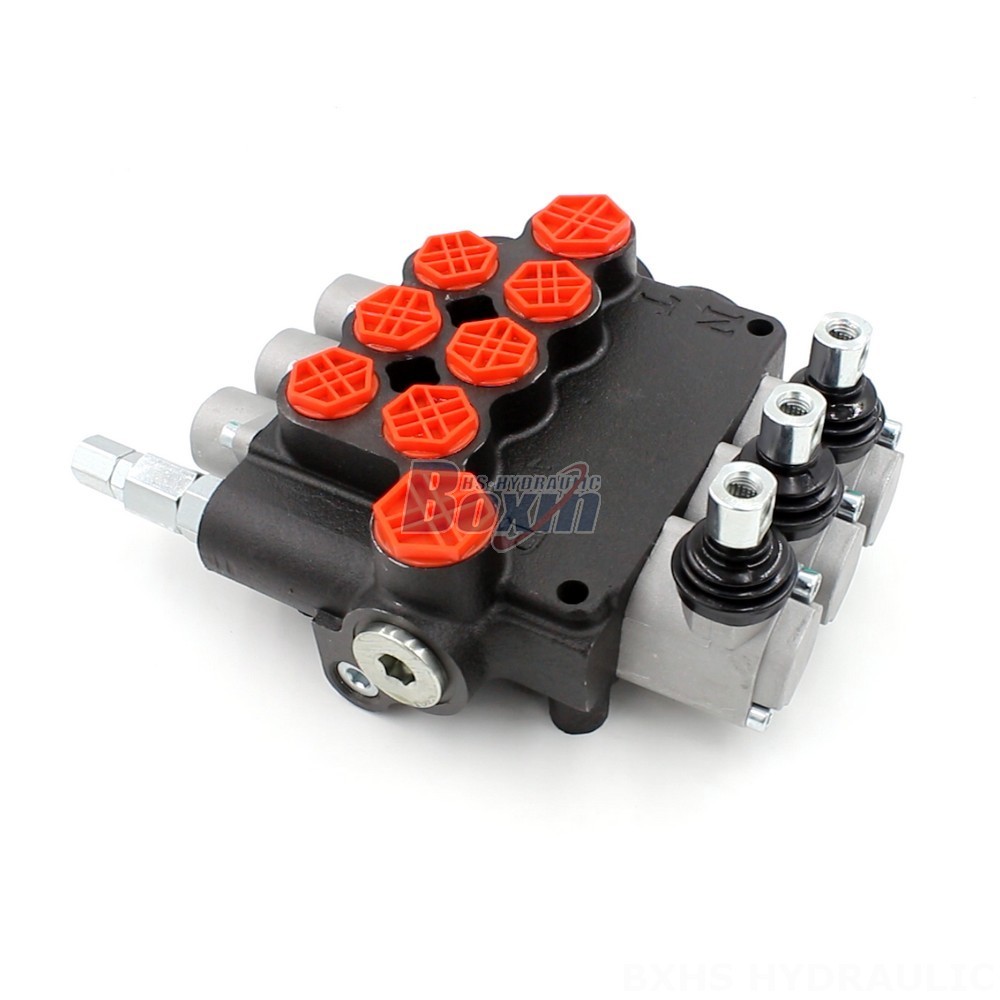

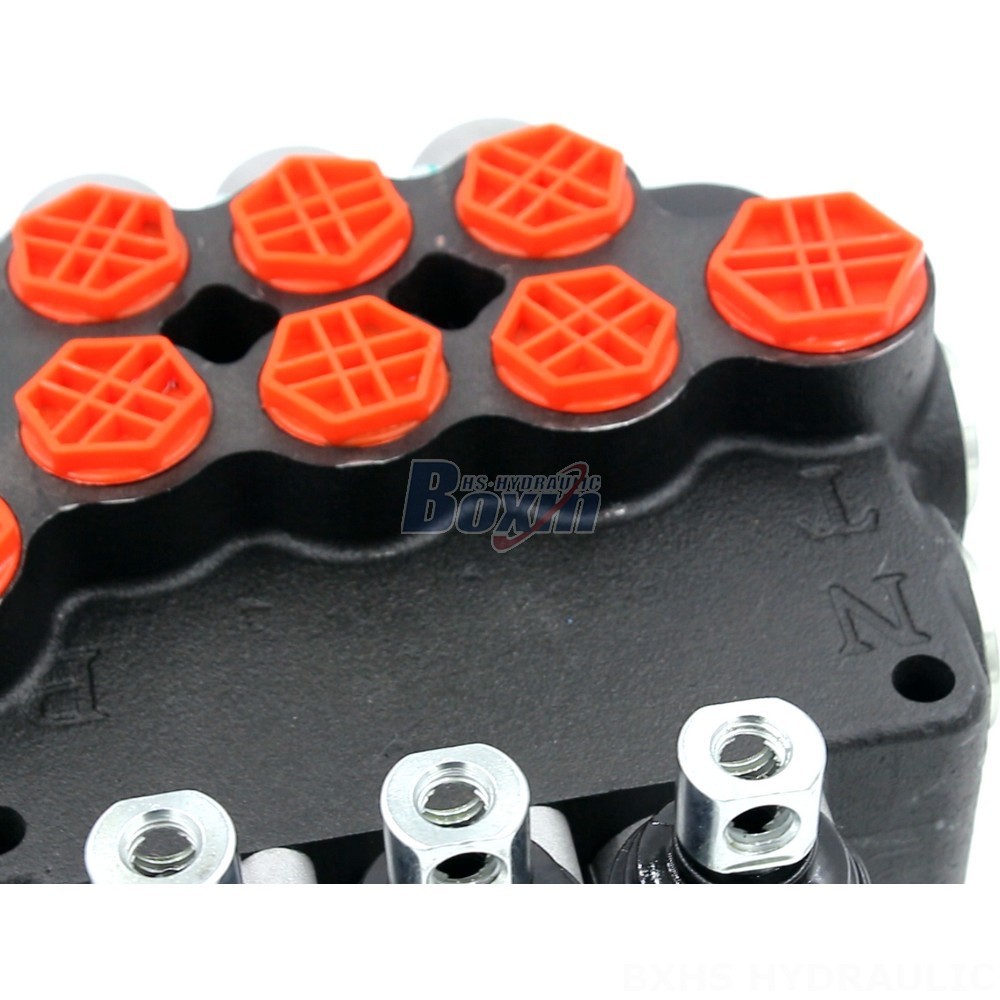

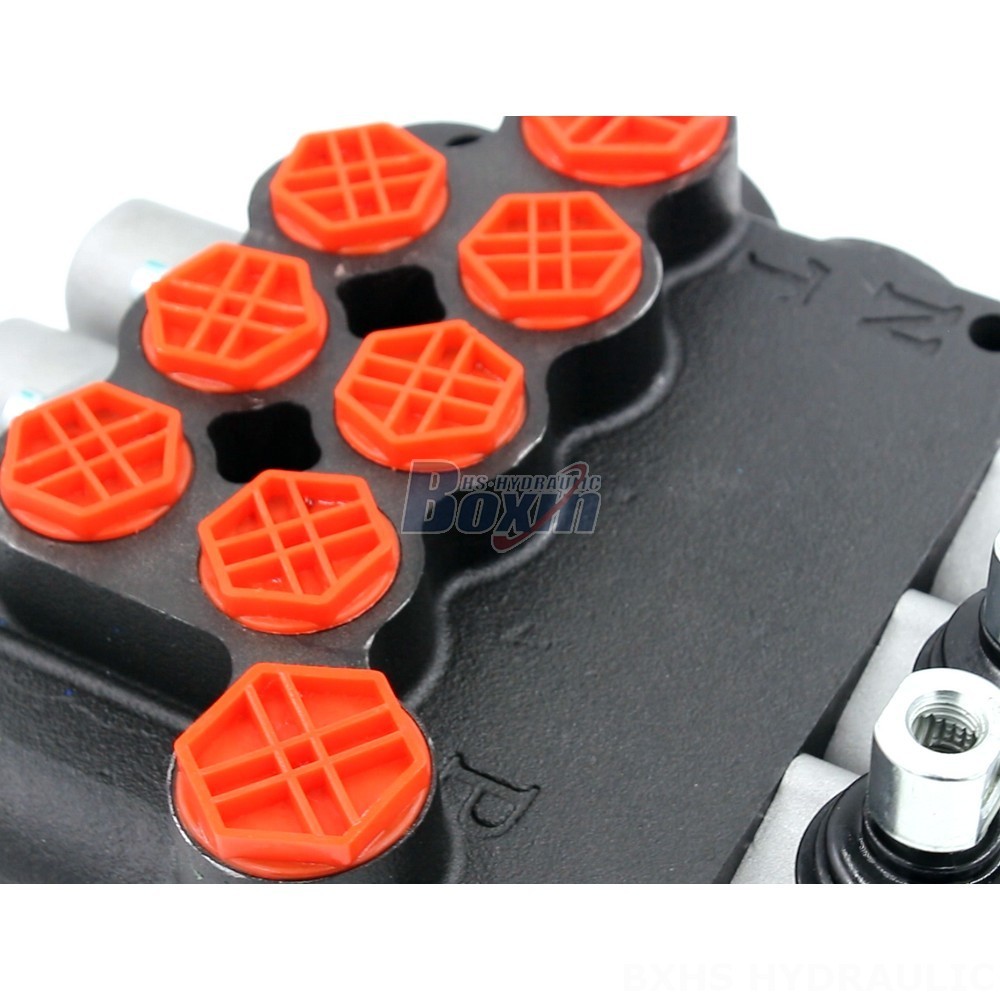

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Méthode de contrôle:Manuel

Distributeur:3 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G1/2

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*23*11

Poids brut:10.70 kg

Disponibilité: En stock

1112 personnes consultent ce produit

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

P80A 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The Dump Truck P80A 2-Spool Hydraulic Directional Valve is a high-performance, heavy-duty valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a 3-section, monoblock construction, a rated flow of 80 L/min, and a maximum pressure of 250 bar.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This manual control, 3-spool valve is a reliable and efficient solution for operating hydraulic systems in a wide range of vehicles. With a robust design and operating temperature range from -40°C to +80°C, it is suitable for various demanding environments. The Dump Truck P80A valve is available in customizable options, making it a versatile solution for diverse applications. This valve is specifically designed for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its high performance and durability make it a reliable choice for manufacturers and users seeking a robust and adaptable hydraulic valve.
