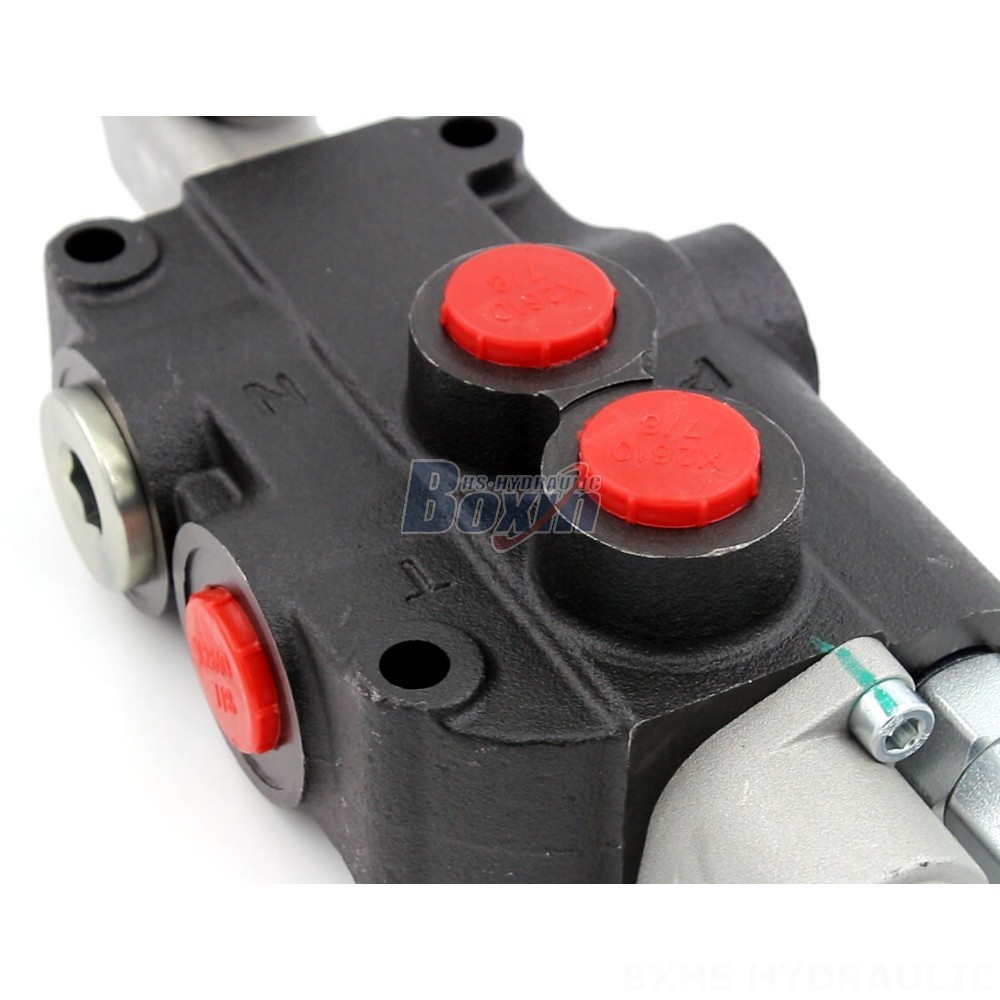

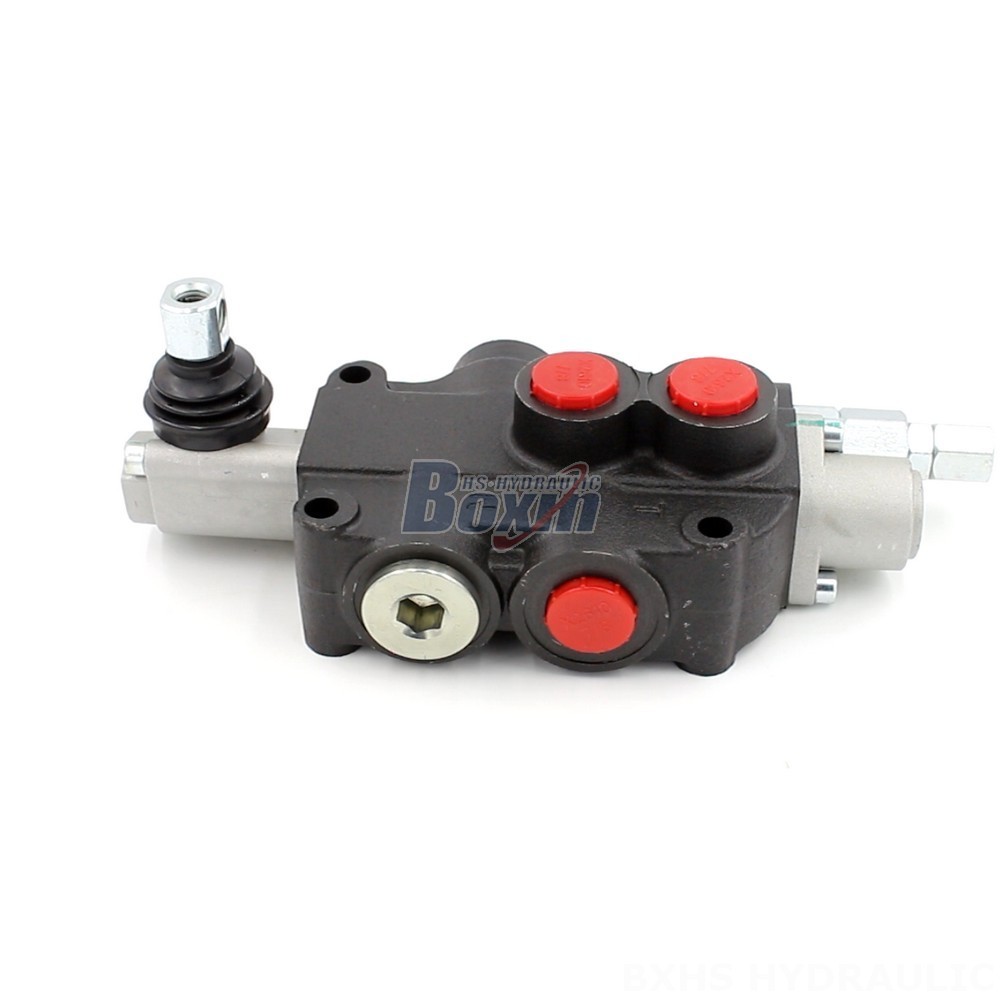

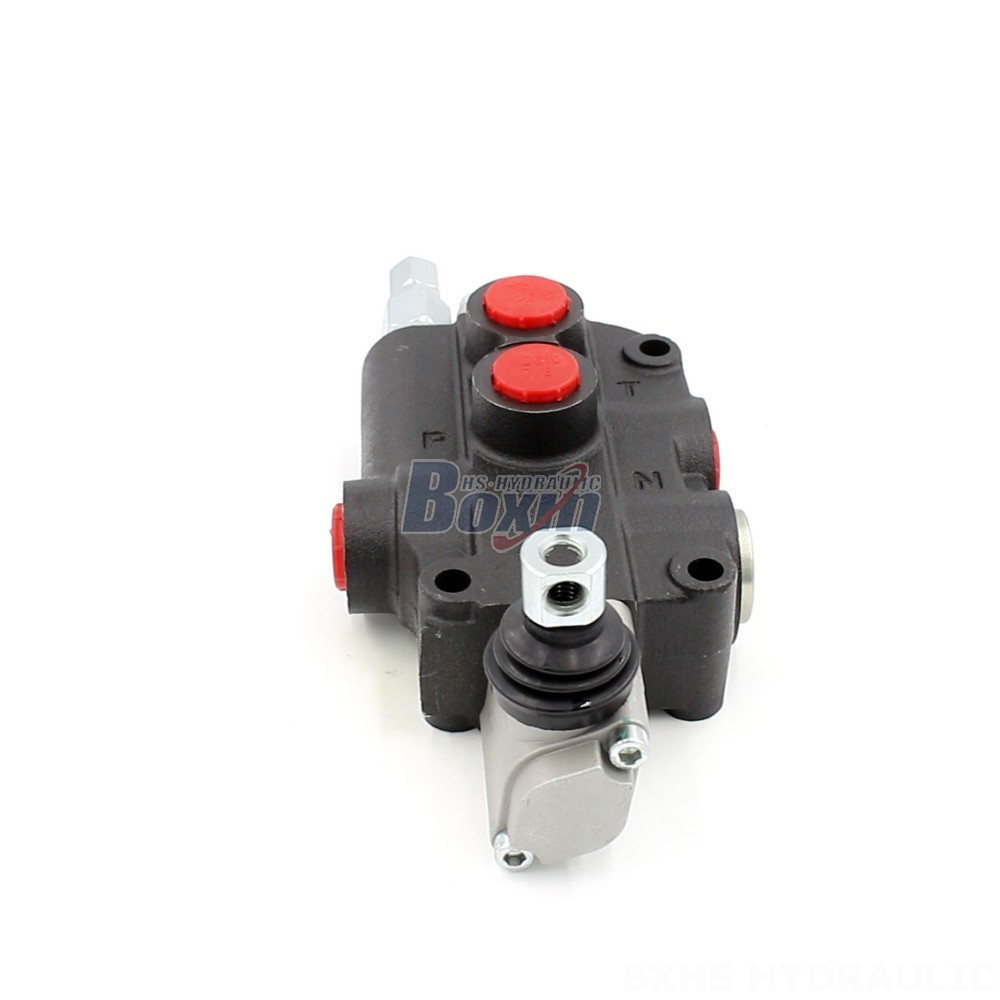

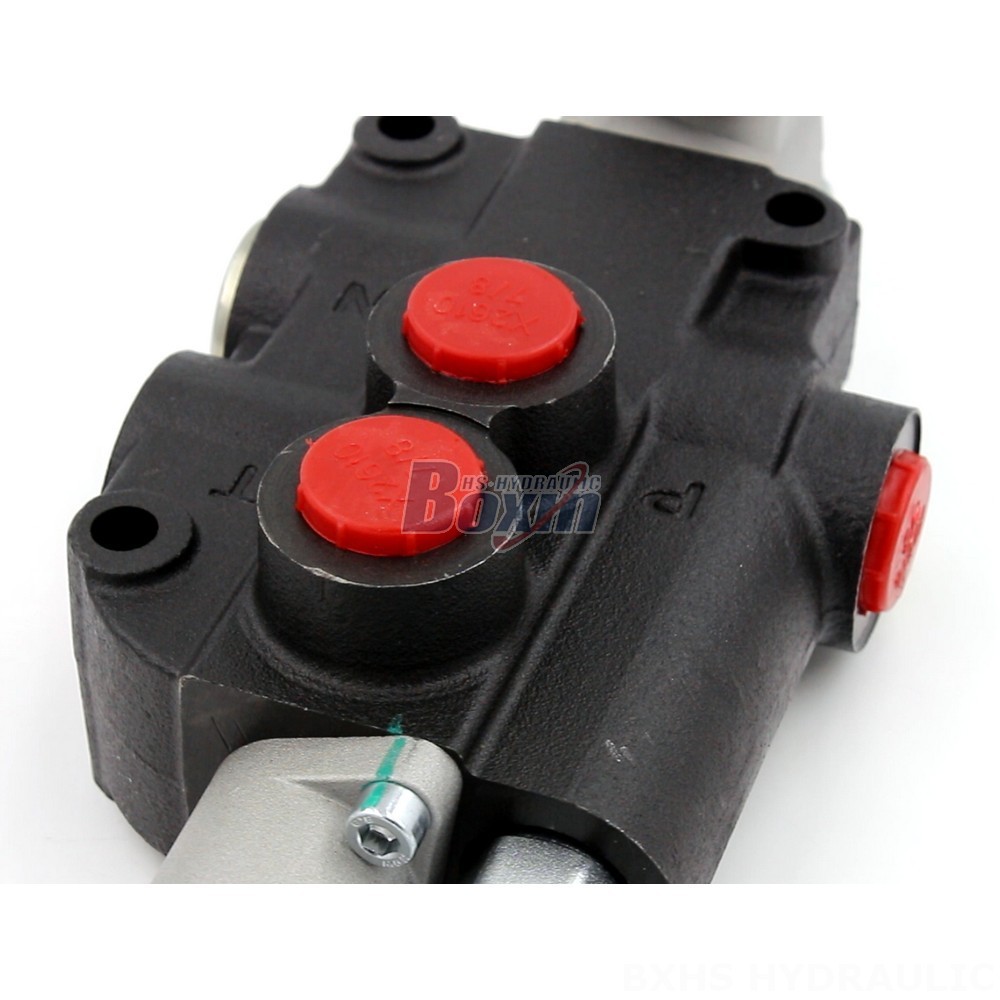

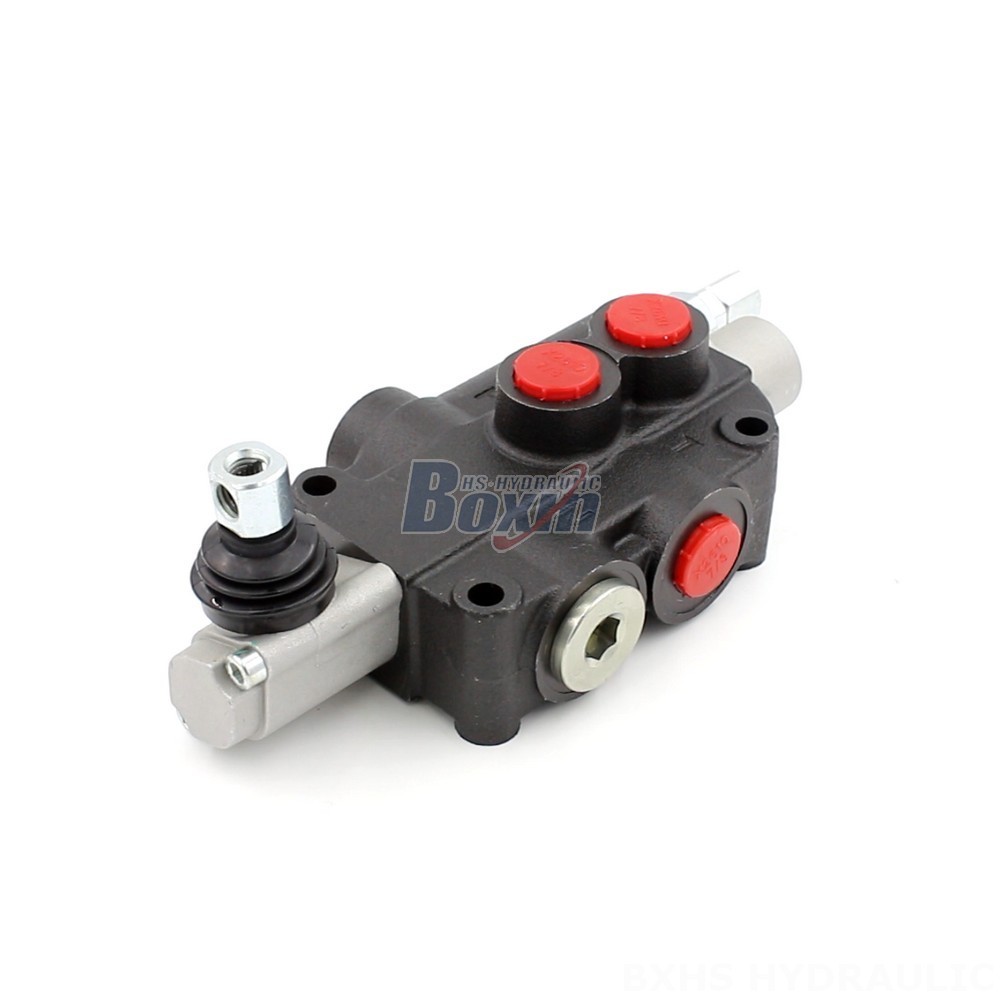

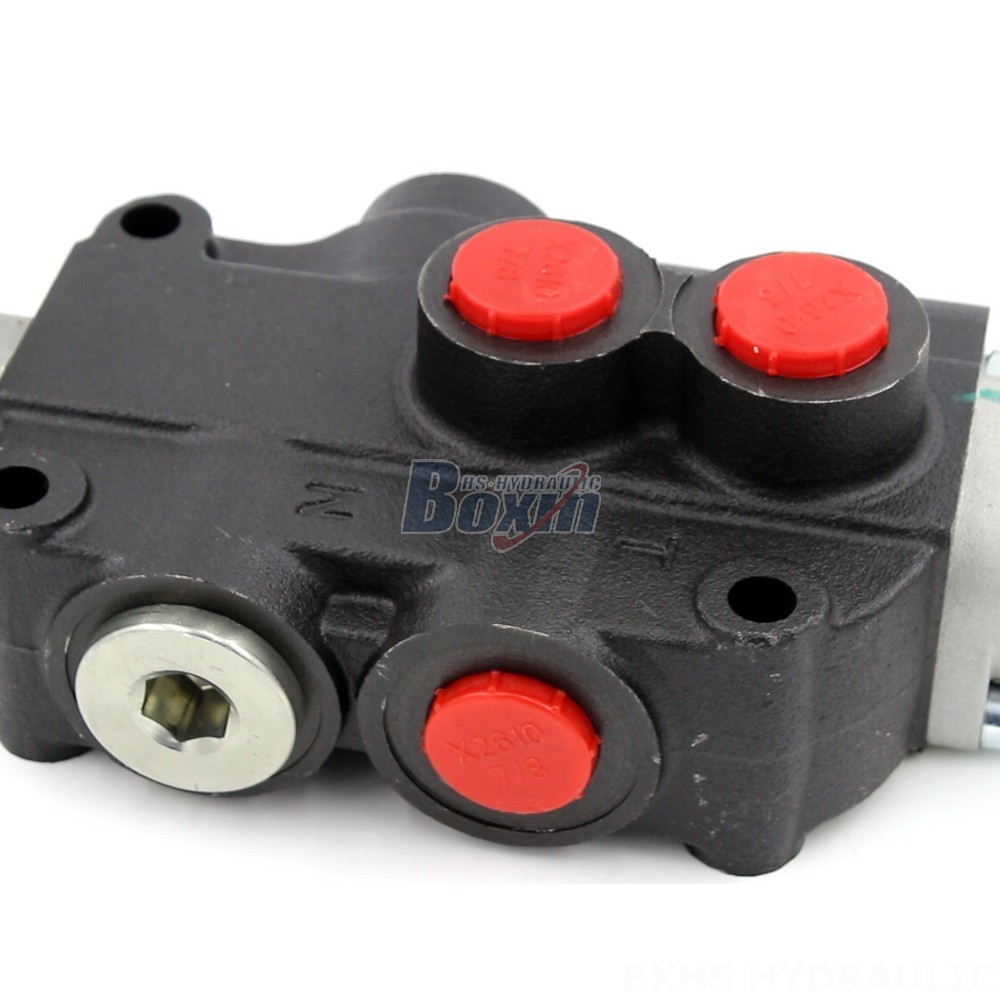

P80-U78-OT hydraulic directional valve is a high-performance valve designed for material handling applications, particularly in forklifts. It is a monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is a 1-spool, 1-section valve that is part of the P80 series.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U78-OT hydraulic directional valve is a reliable and efficient choice for demanding material handling operations. Its compact design and robust construction make it suitable for harsh environments. The valve is manufactured to the highest quality standards and undergoes rigorous testing to ensure its performance and durability. This valve is available for factory direct supply and global distribution, making it easily accessible to customers worldwide.
